Highly Stereoselective Synthesis of 1,6-Ketoesters Mediated by Ionic Liquids: A Three-component Reaction Enabling Rapid Access to a New Class of Low Molecular Weight Gelators

Summary

Ionic liquids (ILs) mediate fast, simple and cheap access to 1,6-ketoesters in high diastereoselectivities and good yields. The reaction protocol is robust and the 1,6-ketoesters can be obtained in gram scale after a simple filtration protocol. Moreover, the 1,6-ketoesters are potent gelators in hydrocarbon solvents.

Abstract

In organic chemistry ionic liquids (ILs) have emerged as safe and recyclable reaction solvents. In the presence of a base ILs can be deprotonated to form catalytically active N-Heterocyclic Carbenes (NHCs). Here we have used ILs as precatalysts in the addition of α,β-unsaturated aldehydes to chalcones to form 1,6-ketoesters, incorporating an anti-diphenyl moiety in a highly stereoselective fashion. The reaction has a broad substrate scope and several functional groups and heteroaromatics can be integrated into the ketoester backbone in generally good yields with maintained stereoselectivity. The reaction protocol is robust and scalable. The starting materials are inexpensive and the products can be obtained after simple filtration, avoiding solvent-demanding chromatography. Furthermore, the IL can be recycled up to 5 times without any loss of reactivity. Moreover, the 1,6-ketoester end product is a potent gelator in several hydrocarbon based solvents. The method enables rapid access to and evaluation of a new class of low molecular weight gelators (LMWGs) from recyclable and inexpensive starting materials.

Introduction

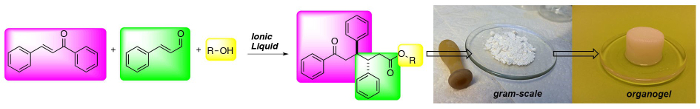

(Above) Three-component synthesis of 1,6-ketoesters: a new class of low molecular weight gelators.

Ionic liquids (ILs) have high stability, low volatility, non-flammability and have therefore rendered attention as safe reaction media and ideal solvents for recycling.^1-3 Dialkyl imidazoliums are a certain type of ionic liquids that, in the presence of a base, can be deprotonated to render an N-heterocyclic carbene (NHC).⁴ In the field of organocatalysis, NHCs, operating under distinct reaction paths, have found widespread usage in a broad range of generic reactions.^5-11

Despite this, the connection between ILs and C-C bond forming NHC–catalysis is relatively unexplored. Nevertheless, NHCs derived from ILs have been reported to catalyze C-C bond forming reactions such as the benzoin condensation and the Stetter reaction.^12-22 For example, Davis et al. have shown that ILs derived from N-alkyl thiazoliums serve as precatalysts in the formation of benzoin from benzaldehyde.¹²

More recently, Chen and co-workers expanded this concept using an imidazolium based IL, 1-ethyl-3-methyl imidazolium acetate (EMIMAc), to perform the benzoin condensation on 5-hydroxymethylfurfural (HMF) to generate 5,5’-di(hydroxymethyl)furoin (DHMF).²³ Given that ILs are commercially available and offer an inexpensive way of generating NHCs, we were interested in investigating what other types of reactions ILs could perform. To this end, we found that dialkyl imidazoliums could efficiently be used as precatalysts in the formal conjugate addition of unsaturated aldehydes to chalcones (Figure 1) giving 1,6-ketoesters. The most efficient IL, EMIMAc, promotes a highly stereoselective reaction between cinnamaldehyde and chalcone. The reaction occurs with high preference for the anti-diastereomer and the 1,6-ketoesters can be isolated in yields up to 92%.^24,25,26

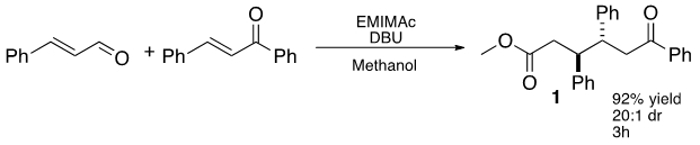

Figure 1: IL-mediated three-component, stereoselective addition of cinnamaldehyde to chalcone.

Protocol

1. Gram-scale Synthesis of Methyl 6-oxo-3,4,6-triphenylhexanoate

1. Dry 1-ethyl-3-methyl imidazolium acetate (EMIMAc) in a round bottom flask on a rotary evaporator at 10 mBar, 40 °C for 1 hr.
2. Add 2.1 g of dry EMIMAc and 1.0 g of 1,3-diphenyl-2-propen-1-one to a 100 ml round bottom flask equipped with a magnetic stirrer.
3. Add 2.019 ml of methanol and 2.3 g of cinnamaldehyde to the flask.
4. At room temperature (22 °C) dissolve the mixture in 60 ml of dichloromethane by stirring for 1 min.
5. Subsequently add 0.37 ml of 1.8-diazabicyclo[5.4.0]undec-7-ene (DBU) to the stirring mixture (step 1.4) and cap the round bottom flask.
6. Stir with a magnetic stir bar at a speed of 500 rpm at room temperature (22 °C).
7. Check completion of the reaction with ¹H NMR.²⁴ Look for disappearance of double bond of the chalcone in the 7.8 ppm area.
8. When the reaction has reached completion remove the volatiles on a rotary evaporator at 10 mBar, 20 °C for 15 min.
9. Add 50 ml methanol to the residue to dissolve the EMIMAc by stirring with a magnetic stir bar.
10. Remove the solids from the walls of the flask by stirring violently with a magnetic stir bar at a speed of 750 rpm for 30 min. If necessary, use a spatula to remove remaining solids from the walls.
11. Filter the mixture on a frit (pore size 3).
12. Wash with additional 20 ml of methanol. If recycling of the EMIMAc is desired evaporate the methanolic filtrate. (step 2.1).
13. Still on the frit, gently divide the filter cake (from step 1.11) into smaller pieces with a spatula and transfer the solids via a powder funnel to a pre-weighed round bottom flask and dry the solids under vacuum.
14. Weigh the flask and calculate the yield.
15. Analyze the product by ¹H NMR (step 1.7). Compare with reported spectra.²⁴

2. Recycling of EMIMAc

1. Remove the volatiles from the methanolic mixture (from step 1.12) under reduced pressure of 10 mBar, at 40 °C for 30 min.
2. Analyze the resulting oil by ¹H NMR and ¹³C NMR to check that EMIMAc is present.²⁴
3. Use the recycled EMIMAc starting from step 1.2.

3. Gelation

1. Preparation of a Stock Solution
   1. Add 200 mg of Methyl 6-oxo-3,4,6-triphenylhexanoate (the product from step 1.15) and a magnetic stir bar to a vial. Add 2.0 ml dichloromethane to dissolve the ketoester. Stir until everything has dissolved.
2. Gelation
   1. Add 50 ml of heptane to a 500 ml beaker. Add 1.5 ml of the stock solution to the heptane. Stir swiftly to ensure adequate mixing and let stand without stirring at ambient temperature until gelation occurs.

Results

As exemplified above, EMIMAc serve as a precatalyst in the formal conjugate addition of α,β-unsaturated aldehyde to chalcones. Other commercially available imidazolium based ILs such as 1-ethyl-3-methylimidazolium chloride (EMIMCl) and 1-butyl-3-methylimidazolium chloride (BMIMCl) were also investigated, however, these reactions proceeded in lower yields indicating that the acetate anion may be important for reactivity (Table 1, entry 1-3).^27,28*

* ...

Discussion

Based on the anti-configuration determined by X-ray analysis of ketoester 3 and on the mechanistic investigation proposed by Bode and co-workers³⁰ the following reaction path is suggested (Figure 5). Deprotonation of the IL generates NHC species; the NHC reacts with the unsaturated aldehyde to form the Breslow intermediate I. The Breslow intermediate and the chalcone react in a cross-benzoin reaction to form diene II. Intermediate II undergoes an oxy-Cope rearrangement via boat transi...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
1-ethyl-3-methyl imidazolium acetate	Aldrich	51053-100G-F	Produced by BASF ≥90%, dried on a rotary evaporated before use (10 mBar, 40 °C, 1 hr) CAS NUMBER: 143314-17-4
1,3-diphenyl-2-propen-1-one	Aldrich	11970-100G	98.0% CAS NUMBER: 94-41-7
trans-cinnamaldehyde	Aldrich	C80687-25G	99%, stored under nitrogen prior to use CAS NUMBER: 14371-10-9
1,8-Diazobicyclo[5.4.0]undec-7-ene	Aldrich	139009-25G	98% CAS NUMBER: 6674-22-2
Methanol	Sigma-Aldrich	32213N-2.5L	puriss. P.a., ACS reagent, reag. ISO, reag. Ph. Eur. ≥99.8% (GC) CAS NUMBER: 67-56-1
Dichloromethane	Fischer Chemical	D/1852/17X	Analytic reagent grade, stabilized with amylene CAS NUMBER: 9/2/1975
n-Heptane	Fischer Chemical	H/0160/17X	Analytic reagent grade CAS NUMBER: 142-82-5
