Induction of Experimental Autoimmune Encephalomyelitis in Mice and Evaluation of the Disease-dependent Distribution of Immune Cells in Various Tissues

Summary

This manuscript describes the methods for induction and scoring of the experimental autoimmune encephalomyelitis (EAE) model, together with the assessment of immune cell distribution and mRNA cytokine levels in lymph nodes, spleen, blood and spinal cord using flow cytometry and quantitative PCR, respectively, at various disease phases.

Abstract

Multiple sclerosis is presumed to be an inflammatory autoimmune disease, which is characterized by lesion formation in the central nervous system (CNS) resulting in cognitive and motor impairment. Experimental autoimmune encephalomyelitis (EAE) is a useful animal model of MS, because it is also characterized by lesion formation in the CNS, motor impairment and is also driven by autoimmune and inflammatory reactions. One of the EAE models is induced with a peptide derived from the myelin oligodendrocyte protein (MOG)_35-55 in mice. The EAE mice develop a progressive disease course. This course is divided into three phases: the preclinical phase (day 0 - 9), the disease onset (day 10 - 11) and the acute phase (day 12 - 14). MS and EAE are induced by autoreactive T cells that infiltrate the CNS. These T cells secrete chemokines and cytokines which lead to the recruitment of further immune cells. Therefore, the immune cell distribution in the spinal cord during the three disease phases was investigated. To highlight the time point of the disease at which the activation/proliferation/accumulation of T cells, B cells and monocytes starts, the immune cell distribution in lymph nodes, spleen and blood was also assessed. Furthermore, the levels of several cytokines (IL-1β, IL-6, IL-23, TNFα, IFNγ) in the three disease phases were determined, to gain insight into the inflammatory processes of the disease. In conclusion, the data provide an overview of the functional profile of immune cells during EAE pathology.

Introduction

Multiple sclerosis (MS) and its corresponding animal model, experimental autoimmune encephalomyelitis (EAE), show autoimmune neuroinflammation changes in the central nervous system (CNS). Early active MS and EAE lesions are characterized by the presence of infiltrated immune cells. The etiology of MS remains unknown, but is widely considered to involve the destruction of myelin mediated by autoreactive T cells. These autoreactive T cells secrete pro-inflammatory cytokines and chemokines which attract other immune cells such as B cells, monocytes and neutrophils from the circulation. Monocytes differentiate into macrophages. Interferon gamma (IFNγ) secreted by autoreactive T cell polarizes the macrophages into pro-inflammatory macrophages. The pro-inflammatory macrophages release cytokines and reactive oxygen species that promote apoptosis in oligodendrocytes. The death of the oligodendrocytes leads to demyelination. Furthermore, B cells differentiate into plasma cells and release autoantibodies against the myelin sheath, ultimately resulting in degradation of myelin. The loss of myelin leads to degradation of axons and neurons and thereby to the formation of lesion sites in the CNS which represent the main characteristic of MS¹. In the periphery, T cells and B cells are activated in the lymph nodes, they proliferate in the spleen and migrate through the circulation into the central nervous system. Monocytes and neutrophils proliferate in the bone marrow and also migrate through the circulation into the central nervous system.

Leukocyte extravasation from bone marrow, spleen and lymph nodes into the blood or from the bloodstream into the CNS is a multistep process that depends on several factors, including molecular interactions between leukocytes and endothelium mediated by chemokines and chemokine receptors. The production of chemokines by various cell types can be induced during the immune reaction by cytokines like tumor necrosis factor-α (TNFα), IFNγ and interleukin-6 (IL-6), which subsequently recruits immune cells to the site of inflammation^2,3. Immune cells present a subset of chemokine receptors on their surface, depending on cell type and migration pathway to the inflammatory site. Thus, CXCR2, CCR1 and CXCR1 are expressed on mature neutrophils in bone marrow and blood⁴, and binding of its ligands, CXCL2, CCL5 or CXCL6, respectively, activates neutrophils and promotes their adhesion to the endothelium and subsequently, the migration of the cells into tissues^5-9. CCL2 and CCL20 attract monocytes and Th1/Th17 cells¹⁰, which express CCR2¹¹ and CCR6¹², respectively. CCR1 and CCR5, expressed by different cell types, including T cells, monocytes and macrophages¹³, bind CCL3, CCL5 and CCL7 and are upregulated during MS¹⁴. CXCR3 is expressed on T cells and binds CCL9, CCL10 and CCL11¹⁵.

One main strategy in MS treatment is the depletion of immune cells or the prevention of immune cell infiltration into the CNS. Therefore, the blockade of specific chemokine receptors has been investigated in EAE. Antagonism or genetic deletion of CCR1¹⁶, CCR2¹⁷, CCR7¹⁸ or CXCR2¹⁹ reduces EAE pathology, whereas antagonism or genetic deletion of CCR1²⁰, CCR5²⁰ or CXCR3²¹ did not reduce the pathology. Hence, the expression of specific chemokine receptors on leukocytes is crucial for the infiltration of the latter into the CNS and dictates the course of EAE.

The depletion of immune cells is an effective treatment strategy for MS patients, because infiltrated immune cells release cytokines, such as TNFα, IL-6 and IL-1β, which, in turn, promote the inflammatory process or the degradation of neurons²². Furthermore, auto-reactive Th1 cells release IFNγ, which in turn stimulates macrophages to release TNFα, IL-1β and IL-23.

This manuscript describes the induction of EAE, the determination of the immune cell distribution and the cytokine levels (mRNA) in various tissues in EAE mice. Cells were isolated at different time points during the disease course to provide a time-dependent overview of the inflammatory processes which finally lead to lesion formation in the CNS.

Protocol

ETHICS STATEMENT: Our experimental procedures are approved by the Ethics Committee of the Regierungspräsidium Darmstadt (Germany) and confirm to National and European regulations. All efforts were made to minimize animal suffering and reduce the number of animals used.

1. EAE Model

1. Induction of the EAE model
   1. Use 10- to 13-week-old female 129S4/SvJae×C57BL/6 mice for the induction of EAE.
   2. Give the mice a subcutaneous injection, into the upper and lower back, of the encephalitogenic MOG_{35 - 55} (myelin oligodendrocyte glycoprotein) peptide (200 µg), emulsified in 200 µl complete Freund`s adjuvant (CFA) containing 400 µg Mycobacterium tuberculosis.
      Note: As a negative, non-disease-inducing sham control, incomplete Freund's adjuvant containing Mycobacterium tuberculosis, in the same volume and by the same route, can be used.
   3. Thereafter, and again 24 hr later, give the mice an intraperitoneal injection of pertussis toxin (in total 0.2 µg, diluted in 200 µl phosphate-buffered saline, PBS). Use untreated mice as the control group, to be able to compare diseased with healthy animals.
      Note: It is also possible to induce EAE with 200 - 300 µg MOG_{35 - 55} peptide, 300 - 500 µg of Mycobacterium tuberculosis in the CFA and 0.2 - 0.3 µg pertussis toxin in a volume of 0.1 - 0.2 ml per injection.
   4. Beginning one week after the injection, examine mice daily for clinical symptoms (see step 1.2.1)
      Note: The day of disease onset varies in different experiments, but under the conditions in our laboratory, this is around day 11 and thus, here day 14 is defined as 3 days after disease onset. All mice in the present study developed clinical symptoms.
2. Scoring of the mice
   1. Classify clinical symptoms by clinical scores as follows: 0) no signs, 0.5) distal paralysis of the tail, 1) complete paralysis of the tail, 1.5) limp tail and mild weakness of hind legs, 2) limp tail and severe weakness of hind legs, 2.5) limp tail and paralysis of one hind leg, 3) limp tail and paralysis of both hind legs, 3.5) paralysis of both hind limbs and weakness of one fore limb (mice achieving this score were euthanized, in keeping with local ethical guidelines).

2. Preparation of Single Cells for Flow Cytometry Analysis

Note: The antibody mixture consists of 1 µl CD45-Vioblue, 2 µl CD8-eFluor650, 0.5 µl CD11b-eFluor605, 0.5 µl F4/80-PE-Cy7, 1 µl CD3-PE-CF594, CD4-V500, 0.5 µl CD11c-AlexaFluor700, 1 µl CD19-APC-H7 and 1 µl Ly6G-APC-Cy7.

Note: If you take blood, lymph node, spleen and spinal cord then the procedure is as follows: Mice are deeply anaesthetized with a combination of isoflurane (2% in carbogen per minute) and ketamine (100 mg/kg body weight). Next open the thorax, remove the blood with an intracardial stick and perfuse the mice intracardially with cold PBS. Then remove the lymph nodes followed by spleen and finally the spinal cord. If you do not need to perfuse the mice intracardially then euthanize the mice under deep anesthesia by luxation of the neck.

1. Isolation of splenocytes
   1. Anaesthetize mice with a combination of isoflurane (2% in carbogen per minute) and ketamine (100 mg/kg body weight).
   2. Wet incision area with 80% isopropanol to avoid any contamination with hairs and open the thorax longitudinally, without puncturing deeper tissues, using scissors.
   3. Perfuse mice intracardially with cold PBS pH 7.0²³.
      Note: The spleen is located in the left superior abdominal quadrant under the rib cage. If only the spleen is to be studied, this organ may be removed before perfusion in order to retain all cell types of interest.
   4. Remove the spleen and cut off approximately 1/8 and weigh it. Store the sample in PBS on ice.
   5. Squeeze the spleen tissue through a 70 µm mesh sieve (placed over a 50 ml tube), using the plunger of a 2 ml syringe.
   6. Wash the mesh with 5 ml PBS. Centrifuge at 1,800 x g for 3 min. Resuspend the pellet in 500 µl lysing solution.
      Note: At this stage, it may be necessary to make a differential cell count if, later, an alternative FACS analysis method is used that does not employ beads (see section 3).
   7. Incubate for 10 min at room temperature (RT) and add 500 µl PBS. Centrifuge for 6 min at 650 x g at room temperature (RT).
   8. Repeat the washing step with 500 µl PBS. Discard the supernatant, resuspend the cell pellet in 100 µl 0.2% bovine serum albumin (BSA)/PBS, add 2 µl Fc receptor-1 (FcRI) blocking buffer and incubate for 15 min at RT in the dark.
   9. Add 13 µl antibody mixture, incubate 15 min at RT in the dark, add 500 µl PBS and centrifuge for 6 min at 650 x g at RT. Discard the supernatant.
      Note: The manufacturer's staining procedure recommends a single wash, but additional reduction of background staining may be achieved by optionally repeating the washing step one or two more times.
   10. Resuspend the cell pellet in 500 µl PBS (or possibly running buffer for protein separation, to potentially reduce cell clumping) and transfer it to the flow cytometry tube. Keep cells on ice.
2. Isolation of lymph node cells
   1. Anaesthetize mice with a combination of isoflurane (2% in carbogen per minute) and ketamine (100 mg/kg body weight).
   2. Wet incision area with 80% isopropanol and open the thorax longitudinally using scissors. Perfuse mice intracardially with cold PBS pH 7.0²³.
   3. To isolate the inguinal lymph node, carefully remove the skin in the region of the hip and pick the lymph node carefully out of the fat tissue with forceps. Weigh the inguinal lymph node and store the sample in PBS on ice.
      Note: We used inguinal lymph nodes in our studies because O`Connor et al. found that high numbers of activated monocytes, macrophages, neutrophils and T cells were all present in the inguinal lymph nodes after EAE induction²⁴.
   4. Squeeze the lymph node through a 70 µm mesh sieve (placed over a 50 ml tube) using the plunger of a 2 ml syringe.
   5. Wash the mesh with 5 ml PBS. Centrifuge at 2,400 x g for 8 min. Resuspend the cell pellet in 100 µl 0.2% BSA/PBS, add 2 µl FcRI blocking buffer and incubate for 15 min at RT in the dark.
   6. Add 13 µl antibody mixture, incubate 15 min at RT in the dark, add 500 µl PBS and centrifuge for 6 min at 650 x g at RT.
   7. Discard the supernatant, resuspend the cell pellet in 300 µl PBS (or a suitable running buffer) and transfer it to a flow cytometry tube.
3. Isolation of blood cells
   1. Add 50 µl 20 mM HEPES to 50 µl blood (stabilized with EDTA) and add 500 µl lysing solution. Incubate for 10 min at RT and add 500 µl PBS. Centrifuge for 6 min at 650 x g at RT. Discard supernatant and repeat the wash step.
   2. Resuspend the cell pellet in 100 µl 0.2% BSA/PBS, add 2 µl FcRI blocking buffer and incubate for 15 min at RT in the dark.
   3. Add 13 µl antibody mixture, incubate 15 min at RT in the dark, add 500 µl PBS and centrifuge for 6 min at 650 x g at RT. Discard the supernatant, resuspend the cell pellet in 300 µl PBS and transfer it to the flow cytometry tube.
4. Isolation of spinal cord cells
   1. Anaesthetize mice with a combination of isoflurane (2% in carbogen per minute) and ketamine (100 mg/kg body weight).
   2. Wet incision area with 80% isopropanol and open the thorax longitudinally using scissors. Perfuse mice intracardially with cold PBS pH 7.0²³.
   3. Wet the incision area on the back and make again a longitudinal cut with a scalpel and remove the skin.
   4. Cut out the lumbar part of the spine (which innervates the hind limbs) and flush it with a PBS-filled syringe to extract the spinal cord. Cut out approximately 1/3 of the lumbar cord, weigh this and store the sample in PBS on ice.
   5. Centrifuge at 250 x g for 2 min at 4 °C. Discard the supernatant, add 500 µl cell detachment solution and HBSS (1:1). Add 3 mg/ml collagenase A and 1 Unit/ml DNase I, decollate the cells by repeated up and down pipetting and incubate for 30 min with shaking at 37 °C at 400 rpm.
      Note: If preferred, the cell suspension can be cleared of contaminating myelin and cellular debris by density gradient centrifugation which may improve the sensitivity of the flow cytometry measurement, thereby, reducing background autofluorescence and the number of events that need to be acquired (see section 3.5).
   6. Centrifuge at 250 x g for 2 min at RT. Discard the supernatant, resuspend the pellet in 1 ml 10% fetal calf serum (FCS)/Dulbecco's minimum essential medium (DMEM) and decollate the cells again by repeated up and down pipetting.
   7. Centrifuge at 250 x g for 2 min at RT. Repeat the washing step.
   8. Resuspend the cell pellet in 1 ml PBS and squeeze the spinal cord through a 70 µm mesh sieve (placed over a 50 ml tube) using the plunger of a 2 ml syringe.
   9. Wash the mesh with 4 ml PBS. Centrifuge at 1,800 x g for 3 min at RT. Discard the supernatant, resuspend the cell pellet in 100 µl 0.2% BSA/PBS, add 2 µl FcRI blocking reagent and incubate for 15 min at RT in the dark.
   10. Add 13 µl antibody mixture, incubate 15 min at RT in the dark, add 500 µl PBS and centrifuge for 6 min at 650 x g at RT.
   11. Discard the supernatant, resuspend the cell pellet in 500 µl PBS (or a suitable running buffer) and transfer it to the flow cytometry tube.

3. Flow Cytometric Analysis

1. Titrate all antibodies beforehand to determine optimal concentrations as described by Olesch et al.²⁵.
2. Use antibody-capturing compensation beads for single-color compensation to create multi-color compensation matrices according to the manufacturer`s instructions.
3. Control the instrument calibration daily using specific beads according to the manufacturer`s instructions.
4. Directly before the flow cytometry measurement, add 30 µl flow cytometric absolute count standard to the cells (for isolation see section 2.1, 2.2, 2.3, 2.4) to determine absolute cell counts. Instead of using counting beads the cells can be counted.
5. Take up samples (cells from spleen, lymph node and blood: 100,000 events, spinal cord: 500,000 events) into a flow cytometer and analyze using specific flow cytometry software.
   1. Open the flow cytometry software and add fcs 3.0 files by pressing the button "add samples".
   2. Open the added file by double clicking. Adjust the channels for the x- and y-axis. To select the cell populations of interest create a gate (see Figure 4).

4. Quantitative PCR Analysis

1. Isolation of mRNA and transcription into cDNA
   1. Extract the mRNA from lumbar spinal cord (1/3), spleen (1/8) and inguinal lymph nodes by phenol-chloroform and precipitate with ethanol²⁶.
      1. For this, homogenize the tissue in 1 ml guanidinium thiocyanate-phenol mixture, incubate for 10 min. Add 200 µl chloroform and incubate again for 10 min.
      2. After a centrifugation step (18,000 x g for 15 min at 4 °C), wash the upper aqueous phase is with 500 µl isopropanol and centrifuge (18,000 x g for 8 min at 4 °C).
      3. Wash the pellet with 500 µl ethanol and after a centrifugation step (18,000 x g for 5 min at 4 °C), dry the pellet in the vacuum concentrator (5 min at 30 °C). Thereafter, resuspend the pellet in 30 µl water.
   2. To extract the mRNA from blood, centrifuge 500 µl EDTA-stabilized blood (300 x g 10 min 4 °C).
      1. Take the buffy coat, containing white blood cells, and dilute in 1 ml lysing solution (150 mM NH₄Cl, 100 mM NaHCO₃, 0.1 mM Na-EDTA pH 7.4).
      2. After 10 min incubation at RT, centrifuge the cells at 650 x g for 6 min and afterwards wash twice with PBS.
      3. Extract the mRNA from white blood cells (WBCs) using a kit for RNA extraction according to the manufacturer's instructions.
   3. Perform cDNA synthesis using a kit for cDNA synthesis including random hexamers according to manufacturer's instructions. Use 200 ng mRNA for the cDNA synthesis.
2. Quantitative PCR
   1. To quantify the amount of a specific mRNA, use 1 µl cDNA, 1 µM forward/reverse primer and a fluorescent DNA binding dye according to manufacturer's instructions²⁷. See Table 1 for the sequences for the primer sets. Measure the CT-values of IL-1β, IL-6, IL-23, IFNγ, TNFα and PPIA (peptidyl prolyl isomerase) using a quantitative PCR system.
   2. To determine the relative mRNA expression use the comparative CT (cycle threshold) method²⁷.
      1. For this, normalize CT-values of the target genes to the expression levels of PPIA by subtracting the mean CT-value of PPIA from the target gene, as described in previous studies (Barthelmes et al.²⁸, Schiffmann et al.²⁹, Schiffmann et al.³⁰). Subsequently, calculate the so called ΔΔCT-values, using which, normalize the ΔCT-values of the target genes from EAE mice to the expression level of the target genes of untreated mice, again by subtracting the mean ΔCT-value in the untreated mice from the ΔCT-value in EAE mice.
      2. To gain the relative mRNA expression of the target gene, calculate the ratio using the following formula: 2^-ΔΔct.
3. Test the specificity of each primer. Determine the amplified fragment size using a 2% agarose gel³¹. The fragment size is shown in Table 1.

Results

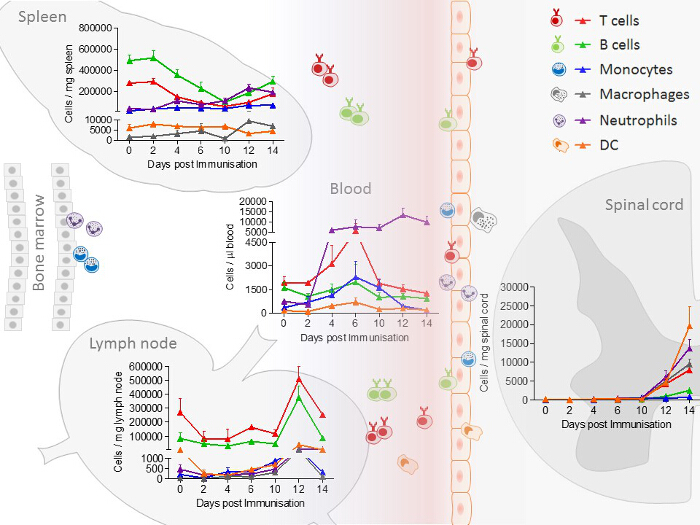

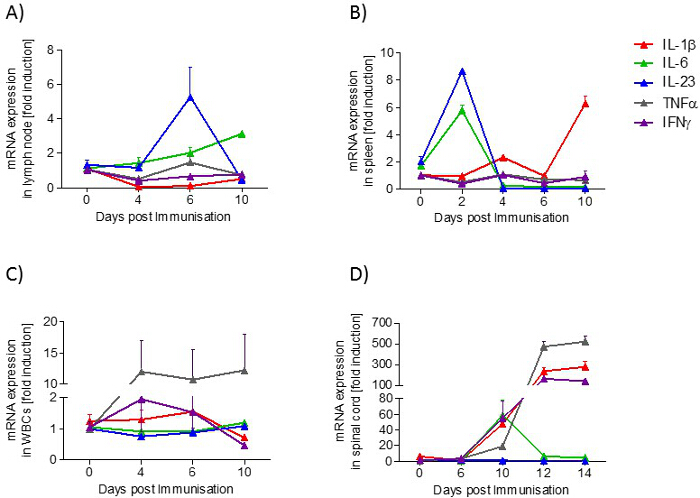

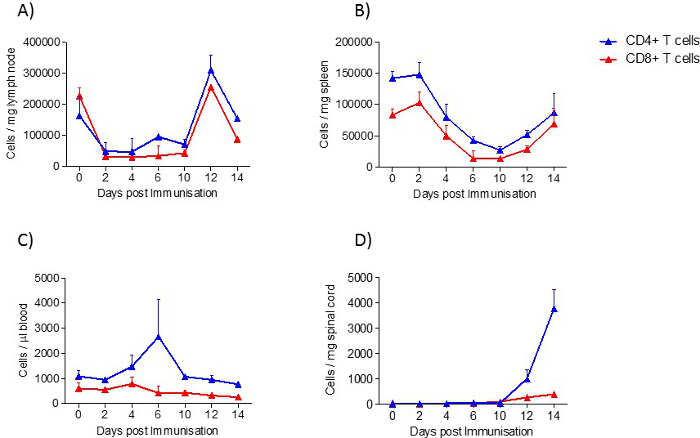

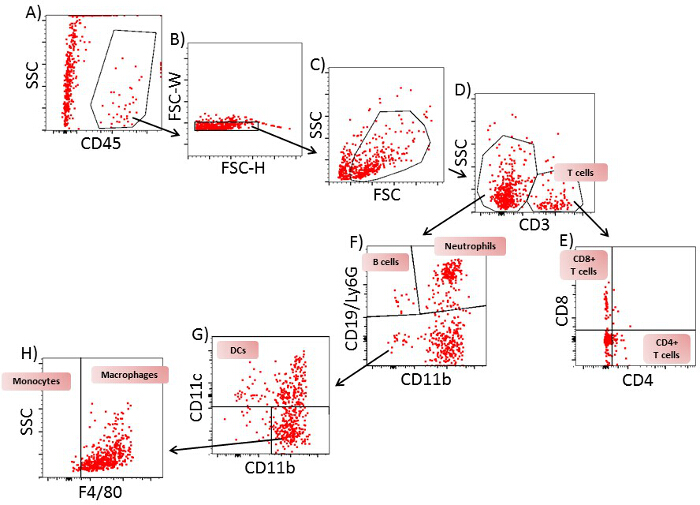

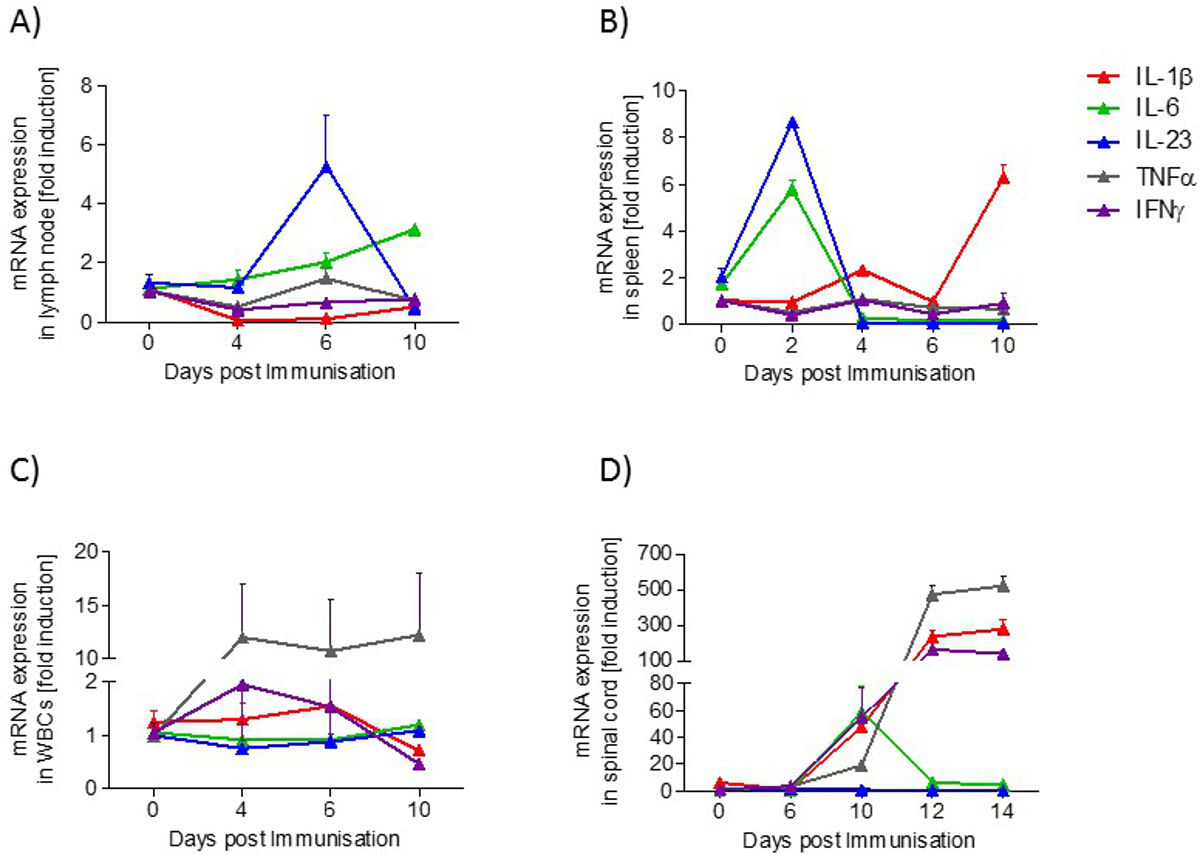

Figure 1 gives a schematic overview of the different methods described in this article. 1) Mice receive an injection of MOG_35-55 antigen and develop initial clinical symptoms after 10.7 ± 0.3 days²⁸. A representative disease course of EAE mice is shown in Figure 1. 2) Various tissues (spleen, lymph nodes, lumbar spinal cord) and blood are extracted from control and EAE mice at different time points d...

Discussion

The EAE model described here has received the most attention as a model of MS and is routinely used in testing therapeutic strategies for MS³². The mouse disease exhibits many clinical and histological features of MS and is caused by the induction of autoimmunity to neuronal antigens. The sensitization to myelin antigens is associated with blood brain barrier dysfunction and thereby, immune cell infiltration into the CNS. Our findings show that immune cells increase transiently in the lymph nodes in the acute ...
