The pretreatment of lignocellulosic biomass with protic low-cost ionic liquids is shown, resulting in a delignified cellulose-rich pulp and a purified lignin. The pulp gives rise to high glucose yields after enzymatic saccharification.
A subscription to JoVE is required to view this content. Sign in or start your free trial.
Method Article
Pretreatment of Lignocellulosic Biomass with Low-cost Ionic Liquids
In This Article
Summary
Abstract
A number of ionic liquids (ILs) with economically attractive production costs have recently received growing interest as media for the delignification of a variety of lignocellulosic feedstocks. Here we demonstrate the use of these low-cost protic ILs in the deconstruction of lignocellulosic biomass (Ionosolv pretreatment), yielding cellulose and a purified lignin. In the most generic process, the protic ionic liquid is synthesized by accurate combination of aqueous acid and amine base. The water content is adjusted subsequently. For the delignification, the biomass is placed into a vessel with IL solution at elevated temperatures to dissolve the lignin and hemicellulose, leaving a cellulose-rich pulp ready for saccharification (hydrolysis to fermentable sugars). The lignin is later precipitated from the IL by the addition of water and recovered as a solid. The removal of the added water regenerates the ionic liquid, which can be reused multiple times. This protocol is useful to investigate the significant potential of protic ILs for use in commercial biomass pretreatment/lignin fractionation for producing biofuels or renewable chemicals and materials.
Introduction
Meeting humanity's energy demand sustainably is one of the greatest challenges that our civilization faces. Energy use is predicted to double in the next 50 years, putting greater strain on fossil fuel resources. 1 The buildup of greenhouse gases (GHG) in the atmosphere through wide-spread fossil fuel use is particularly problematic, as CO2 generated from combustion of fossil fuels is responsible for 50% of the anthropogenic greenhouse effect. 2 Therefore, large-scale application of renewable and carbon neutral technologies is essential for meeting the increased energy and material needs of future generations. 1, 3
<....Access restricted. Please log in or start a trial to view this content.
Protocol
Note: The protic ionic liquids used in the process are synthesized in our laboratory, although some might be or become commercially available. The resulting ionic liquids are acidic and corrosive and probably skin/eye irritants (depending on the amine used), and must therefore be handled with care wearing appropriate PPE (lab coat, safety specs, resistant gloves).
1. Preparation
- Preparing and storing the lignocellulosic biomass
- Obtain the lignocellulosic biomass prior to the experiment in sufficient quantities, for example 100 g up to 5 kg.
Note: Each experiment requires at least 3 g of biomass....
- Obtain the lignocellulosic biomass prior to the experiment in sufficient quantities, for example 100 g up to 5 kg.
Access restricted. Please log in or start a trial to view this content.
Results

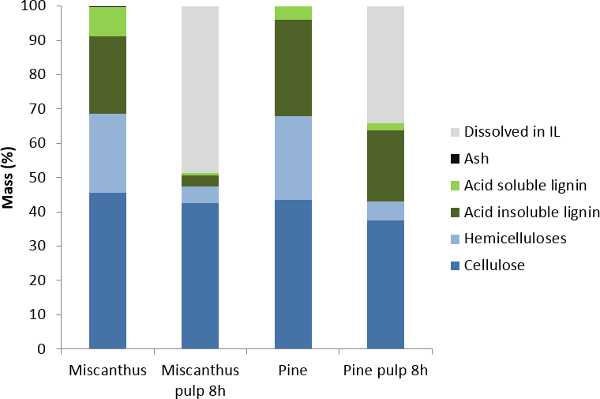

The exact amount of lignin removal and lignin precipitation, recovered pulp and glucose yield depend on the type of biomass used, the temperature at which the treatment is run and the duration of the treatment. Short pretreatment times and low temperatures lead to incomplete pretreatment while at higher temperatures the cellulose becomes unstable in the ionic liquid, leading to hydrolysis and degradation. The selected ionic liquid also plays an important role in the outcome of the fractio.......
