Minimally Invasive Embryo Transfer and Embryo Vitrification at the Optimal Embryo Stage in Rabbit Model

Summary

Assisted reproductive techniques (ARTs) are in continuous evaluation to improve outcomes and reduce the associated risks. This manuscript describes a minimally invasive embryo transfer procedure with an efficient cryopreservation protocol that allows the use of rabbits as an ideal animal model of human reproduction.

Abstract

Assisted reproductive techniques (ARTs), such as in vitro embryo culture or embryo cryopreservation, affect natural development patterns with perinatal and postnatal consequences. To ensure the innocuousness of ART applications, studies in animal models are necessary. In addition, as a last step, embryo development studies require evaluation of their capacity to develop full-term healthy offspring. Here, embryo transfer to the uterus is indispensable to perform any ARTs-related experiment.

The rabbit has been used as a model organism to study mammalian reproduction for over a century. In addition to its phylogenetic proximity to the human species and its small size and low maintenance cost, it has important reproductive characteristics such as induced ovulation, a chronology of early embryonic development similar to humans and a short gestation that allow us to study the consequences of ART application easily. Moreover, ARTs (such as intracytoplasmic sperm injection, embryo culture, or cryopreservation) are applied with suitable efficiency in this species.

Using the laparoscopic embryo transfer technique and the cryopreservation protocol presented in this article, we describe 1) how to transfer embryos through an easy, minimally invasive technique and 2) an effective protocol for long-term storage of rabbit embryos to provide time-flexible logistical capacities and the ability to transport the sample. The outcomes obtained after transferring rabbit embryos at different developmental stages indicate that morula is the ideal stage for rabbit embryo recovery and transfer. Thus, an oviductal embryo transfer is required, justifying the surgical procedure. Furthermore, rabbit morulae are successfully vitrified and laparoscopically transferred, proving the effectiveness of the described techniques.

Introduction

With the aims of bypassing human infertility or improving dissemination of livestock of high genetic value and preserving animal genetic resources, a set of techniques collectively termed assisted reproduction technologies, such as superovulation, in vitro fertilization, embryo culture, or cryopreservation, were developed^1,2. Currently, hormonal treatments are given to stimulate the ovaries and produce a large number of antral ovarian follicles¹. Oocytes collected from these follicles can be matured, fertilized, and developed in vitro until they are either cryopreserved or transferred to surrogate mothers³. However, during these treatments, gametes and zygotes are exposed to a series of non-physiological processes that could require embryo adaptation to survive in these conditions^4,5. This adaptation is possible due to early embryo plasticity, which allows embryo changes in gene expression and developmental programming⁶. However, these modifications can influence the subsequent stages of embryo development until adulthood, and it is now widely accepted that methods, timing, cryopreservation procedure or culture conditions show different outcomes on embryo fate^7,8. Therefore, to elucidate the specific induced effects of ARTs, the use of well-characterized animal models is inevitable.

The first documented live birth resulting from transfer of mammalian embryos took place in 1890⁹. Today, embryo transfer (ET) to a surrogate female is a crucial step in studying the ART-induced effects during preimplantation on subsequent embryo development stages¹⁰. ET techniques depend on the size and anatomical structure of each animal. In the case of large-sized animal models, it has been possible to perform ET by transcervical nonsurgical ET techniques, but in smaller-size species catheterization of the cervix is more complex and surgical techniques are frequently used¹¹. However, surgical ET can cause hemorrhaging that could impair implantation and embryo development, as blood can invade the uterine lumen, causing embryo death¹⁰. Transcervical nonsurgical ET techniques are still applied in humans, baboons, bovine, pigs and mice^{12,13,14,15,16,17}, but surgical ETs are still being used in species such as goats, sheep or other animals which present additional difficulties^{10,18,19,20,21}, such as rabbits (two independent cervices) or mice (small size). Nonetheless, surgical transfer methods tend to have gradually been replaced by less invasive methods. Endoscopy was used to transfer embryos, for example, in rabbits, pigs and small ruminants^18,19,20. These minimally invasive endoscopy methods can be used to transfer embryos into the ampulla via the infundibulum, which is essential in rabbits and has demonstrated beneficial effects in some species²⁰. This is based on the importance of the correct dialogue between embryo and mother during early embryo stages in the oviduct. As mentioned above, the embryo remodeling that takes place in rabbits during embryo migration through the oviduct is essential to achieve embryos able to implant^22,23.

Larger-size animal models, such as bovine, are interesting because the biochemical and preimplantation features are similar to those in human species²⁴. However, large animals are too expensive to use in preliminary trials, and rodents are considered an ideal model (76% model organisms are rodents) for laboratory research²⁵. Nevertheless, the rabbit model provides some advantages over rodents in reproductive studies, as some reproductive biological processes exhibited by humans are more similar in rabbits than those in mice. Human and rabbits present a similar chronological embryonic genome activation, gastrulation and hemochorial placenta structure. In addition, using rabbits it is possible to know the exact timing of fertilization and pregnancy stages due to their induced ovulation²⁵. Rabbit life cycles are short, completing gestation in 31 days and reaching puberty at about 4-5 months; the animal is easy to handle due to its docile and non-aggressive behavior, and its upkeep is very economical compared to the expense of larger animals. Moreover, it is crucial to mention that rabbits have a duplex uterus with two independent cervixes^11,25. This places the rabbit in a preferential position, as embryos from the different experimental groups can be transferred into the same animal, but into a different uterine horn. This allows us to compare both experimental effects, reducing the maternal factor from the results.

Today, nonsurgical ET methods are not in use in rabbit. Some studies carried out in the late 90s using a transcervical ET technique resulted in low delivery rates ranging from 5.5% to 20.0%^11,26 versus 50-65% by surgical methods, among them the laparoscopy procedure described by Besenfelder and Brem¹⁸. The low success rates of these nonsurgical ET methods in rabbits coincide with the lack of the necessary embryo remodeling in the oviduct, which is avoided in transcervical ET. Here, we describe an effective minimally invasive laparoscopic ET procedure using rabbits as a model organism. This technique provides a model for further reproductive research in large animals and humans.

Because rabbits have a particularly narrow time window for embryo implantation, ET in this species requires a high degree of synchrony between the developmental stage of the embryo at ET and the physiological status of the recipient²⁷. In some cases, after a reproductive treatment that slows embryo development (such as in vitro culture) or alters the endometrial receptivity (such as superovulation treatments), there is no synchrony between the embryo and the maternal uterus. These situations can negatively affect outcome. To respond in these contexts, we describe an effective rabbit morula vitrification protocol that allows us to pause, organize and resume the experiments. This process is logistically desirable for reproductive studies and gives us the capacity for long-term storage of embryos, allowing their transport. The laparoscopic procedure and cryopreservation strategies allow better planning of studies with fewer animals. Thus, our methodology offers hygienic and economic advantages and conforms to the concept of the 3Rs (replacement, reduction and refinement) of animal research with the stated goal of improving human treatment of experimental animals. Thus, with these methods, rabbits constitute an ideal model organism for in vivo reproductive assays.

Protocol

All experimental procedures used in this study were performed in accordance with Directive 2010/63/EU EEC for animal experiments and reviewed and approved by the Ethical Committee for Experimentation with Animals of the Universitat Politècnica de València, Spain (research code: 2015/VSC/PEA/00170). XGD, FMJ, MPVC and JSV holds an authorization certificate issued by the Valencian governmental administration to experiment on animals. XGD is authorized to in situ supervise the welfare and care of the animals during the experiment.

1. Embryo Transfer

1. Preparation of recipient females
   1. Use only sexually mature females (> 4.5 months old).
   2. One week before ET, adapt females to a 16 h light/8 h dark regime to initiate follicular growth and enhanced female receptivity.
   3. Select the recipient females, observing the turgidity and color of the vulva. If the vulva is turgid and reddish, the female is receptive.
   4. Induce pseudopregnancy (ovulation) by a single intramuscular injection of 1 µg of buserelin acetate (synthetic analogue of Gonadotropin-releasing hormone) regardless of body weight.
      NOTE: Normally, 0.8 µg is a suitable dose for ovulation induction in medium-size rabbits (4-5 kg), so 1 µg generally guarantees the ovulation.
   5. Induce ovulation as many days beforehand as the age of the embryos to be transferred (for example, 70-72 h before fresh morula ET).
2. Anesthesia and analgesia
   1. Weigh the rabbit and load the following anesthetics and analgesics.
      1. In a 1 mL syringe with a 30G needle: load xylazine (5mg/kg) and buprenorphine hydrochloride (0.03 mg/kg). In another 1 mL syringe with a 23G pericranial needle, load ketamine hydrochloride (35 mg/kg).
   2. Hold the rabbit and inject the xylazine-buprenorphine mixture intramuscularly.
   3. Insert the pericranial needle with ketamine in the marginal ear vein, slowly introducing all the syringe contents intravenously.
   4. Fix the needle and leave it inserted throughout the remaining steps to administer more anesthesia if necessary.
   5. Leave the rabbit in the cage (clean and without any other animals) on a warm stage.
   6. Once unconscious, apply eye ointment to avoid dryness of the eye and check for the absence of the palpebral freflex.
      NOTE: This protocol provides a surgical anesthesia plane for a minimum of 30 min. If a longer time is required, inject additional dosages with half of the amount of ketamine hydrochloride described in 1.2.1 after 30 min.
   7. Monitor the depth of anesthesia by checking the pedal reflex and breathing movement. Changes in the breathing pattern to an irregular and faster rate indicate loss of the proper plane of anesthesia.
   8. Monitor the color of the mucous membranes (eyes, lips, etc.), respiratory rate (30-60 breaths per minute), heart rate (120-325 beats per minute) and rectal temperature (38-39.6 °C).
   9. Eight hours before transfer, withhold food from animals to avoid the greater gut size and activity until the ET process is finished. Leave free access to water.
3. Embryo preparation
   1. Warm the embryo manipulation media to 25 °C: Base Medium (BM), consisting of Dulbecco's Phosphate-Buffered Saline (DPBS) supplemented with 0.2% (w/v) of Bovine Serum Albumin.
   2. Working under a stereomicroscope, rinse fresh or thawed (Step 2) embryos with BM.
   3. Using sterile gloves, attach an appropriately configured 17G epidural catheter to a 1 mL syringe.
   4. Aspirate 1 cm of BM into the catheter, followed by a small air bubble.
   5. Aspirate 5-7embryos in a volume of 10 µL of BM, followed by another small air bubble.
   6. Finish loading the catheter by aspirating 1 cm of BM.
4. Embryo transfer
   1. Consider the use of sterile gloves, gown and mask to ensure an aseptic environment.
   2. Sterilize surgical instruments, clean the surfaces where surgery will be performed, and wipe them with 70% ethanol.
   3. Perform anesthesia as previously detailed (step 1.2), checking for loss of reflexes.
   4. Shave the fur from the ventral abdomen with an electric razor.
   5. Prepare the ventral abdomen aseptically.
      1. Clean the surgical area and remove any remaining hair. Wash the surgical area with a chlorhexidine gluconate soap. Sanitize the area with chlorhexidine solution and ethanol 96º (3 times).
   6. Place the animal on a warm surgical table, in Trendelenburg's position (head down at 45°) to ensure that the stomach and intestines are cranially located. Consider the evacuation of the bladder if it is turgid. If any viscera are damaged in the process, the animal may die. It is therefore important to have them properly located (Figure 1).
   7. Cover the area using a sterile towel, with a hole (fenestration) exposing the shaved area, to separate the surgical site from any potential contaminating areas.
   8. Insert one endoscopic trocar 5 cm into the abdominal cavity, 2 cm caudal to the xiphoid process, and insufflate through it the peritoneal cavity with a pressure-regulating mechanical insufflator.
      NOTE: The intra-abdominal pressure should be 8-12 mmHg with CO₂ (Figure 1A).
   9. Insert the endoscope camera through the endoscopic trocar (Figure 1B).
      NOTE: Identify the reproductive tract, determining the status and position of the infundibulum and ampulla before ET to facilitate the next steps.
   10. Insert the 17-G epidural needle into the inguinal region between 2-3 cm from the infundibulum (Figure 1B).
   11. Identify the entrance of the infundibulum (Figure 2A, 2B).
   12. Insert the loaded catheter (step 1.3) through the epidural needle into the abdomen (Figure 1C).
   13. Locate the oviduct and insert 1-2 cm of the epidural catheter through the infundibulum in the ampulla (Figure 2A-2C). Do not progress very far into the oviduct to prevent damage and hemorrhage.
   14. Release the embryos into the oviduct by gently pressing the plunger of the syringe coupled to the catheter (Figure 2D-2F). Both air bubbles must exit the catheter.
   15. Remove the catheter just after the embryos have been released.
   16. Rinse the catheter, aspirating and releasing manipulating medium to check the absence of the embryos and confirm their successful transfer.
   17. Repeat steps 1.4.11 to 1.4.16 in the other side of the uterus, if desired.
   18. Remove the epidural needle and endoscope camera.
   19. Release CO₂ through the endoscopic trocar. If excess gas remains in the abdomen of the animal, it will have pain and discomfort.
   20. Remove the endoscopic trocar from the abdominal cavity. Remove the surgical towel.
   21. Discontinue anesthesia.
   22. Clean the incision made by the trocar with chlorhexidine solution. Close the incision made by the trocar with a micronized aluminum and a plastic dressing.
5. Postoperative care
   1. Treat the animals with antibiotics: 10 mg/kg of enrofloxacin, subcutaneously, every 24-h for 5 days.
   2. Administer analgesics: buprenorphine hydrochloride (0.03 mg/kg), intramuscularly, each 12 hours for 3 days; Meloxicam (0.2 mg/kg), subcutaneously, every 24-h for 3 days.
   3. Monitor the animals for at least 30 min after surgery (depending on the animal and the dose of anesthesia used) making sure they recover their physiological conditions.
   4. Identify the recipient (e.g., ear tattoo) and house animals individually in a clean cage with the appropriate environmental condition.

Figure 1: Laparoscopic embryo transfer assisted by laparoscopy (External view). A) Insertion of the endoscopic trocar (one port). B) Insertion of the endoscopic camera and the epidural needle (black arrow). C) Insertion of the embryo transfer catheter (white arrow) through the epidural needle. Please click here to view a larger version of this figure.

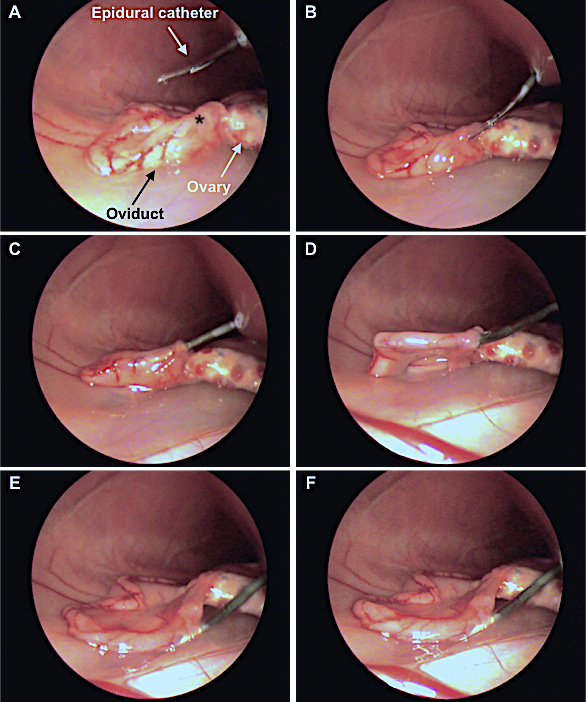

Figure 2: Laparoscopic embryo transfer assisted by laparoscopy (Internal view). A: Insertion of the catheter through the epidural needle into the abdominal zone. Asterisk indicates the infundibulum. B, C, D: The catheter loaded with the embryos is inserted into ampulla region across the infundibulum. E, F: Release of the embryos, confirmed by the visualization of a swollen oviduct. This figure has been adapted from Marco-Jiménez et al.³⁸. Please click here to view a larger version of this figure.

2. Embryo Vitrification and Warming

1. Perform all the manipulations at room temperature (around 22 °C) to reduce the vitrification solution toxicity at warmer temperatures.
   NOTE: Embryos can be moved using 0.1-2 µL automatic pipette in this protocol, but other similar devices to move the embryos dragging the minimum volume can be suitable.
2. Vitrify the embryos in a two-step addition procedure:
   1. Place the embryos for 2 minutes in equilibrating solution consisting of 10% (v/v) ethylene glycol and 10% (v/v) dimethyl sulfoxide dissolved in BM.
   2. Move the embryos (from step 2.2.1) for 1 minute into vitrification solution consisting of 20% (v/v) ethylene glycol and 20% (v/v) dimethyl sulfoxide dissolved in BM.
3. Load the embryos into a 125 µL plastic ministraw (which contains one closed end with a cotton plug and one open extreme). The process is schematized in Figure 3.
   1. Couple the closed end of 0.125 μL ministraw with the appropriate microdispenser (e.g. Captroll III®).
   2. Aspirate BM until 1/3 of the straw length, following by a small air bubble.
   3. Aspirate the embryos in a volume of 40 µL of vitrification solution, followed by another small air bubble.
   4. Aspirate BM until the first liquid fraction (step 2.3.2) reaches the cotton.
   5. Close the open end with a straw plug.
4. Perform step 2.2.2 while step 2.3 is being done to ensure that no more than one-minute elapses, which would be toxic to embryos.
5. Plunge the ministraw directly into liquid nitrogen to achieve vitrification.
6. Store the ministraw in a dewar for nitrogen for the desired time.
7. Thaw the embryos in a single step.
   1. Place the ministraw horizontally 10 cm from liquid nitrogen vapour for 20-30 s.
   2. When the crystallization process begins inside the ministraw, immerse the ministraw in a water bath at 25 °C for 10-15 s.
   3. Remove the ministraw plug and cut the cotton plug.
   4. With a coupled microdispenser, expel all the ministraw content into a plate containing 0.33 M sucrose solution at 25 °C in BM for 5 minutes.
      NOTE: This step must be done quickly in order to reduce embryo exposure to the vitrification solution.
   5. Move the embryos to a new plate containing BM solution for another 5 min.
   6. Consider only non-damaged embryos (with intact mucin coat and zona pellucida) to continue with the ET.
      NOTE: Take into account that in thawed embryos, asynchronous transfers (e.g., 60-62 h in morula transfers) may improve the results by allowing a resynchronization between the embryo and the maternal endometrium.

Figure 3: Schematization of correctly loaded straw. A) BM refers to the embryo manipulating media employed during vitrification. Embryos must be loaded in vitrification solution. B) Macroscopic appearance of the loaded straw with a magnified detail of the embryo position. This large-volume device allows us to vitrify large number of embryos, unlike minimum volume devices. Furthermore, the handling of this device is easier compared with minimum volume devices, while the results are similar in rabbits⁴¹. Please click here to view a larger version of this figure.

Results

Minimally invasive laparoscopic transfer of fresh or vitrified embryos places the rabbit among the best model animals for reproductive studies. Table 1 shows the results of fresh ET at different developmental stages (Figure 4) of transferred embryos. The survival rate at birth (percentage of embryos resulting in a pup) proved the efficacy of the laparoscopic technique described in this paper. The higher values were achieved when the ET was pe...

Discussion

Since the first documented live birth case from transferred embryos⁹, this technique and the rabbit species have become crucial in reproductive studies. Besides, embryo research studies involving manipulation, production, cryopreservation, etc. require as a last step the evaluation of embryo capacity to generate healthy full-term offspring. Therefore, embryo transfer technique is indispensable^13,28. Over the years, the surgical me...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Bovine Serum Albumin (BSA)	VWR	332
Buprenorphine hydrochloride	Alvet Escartí	626	To be ordered by a licensed veterinarian.
Buserelin Acetate	Sigma Aldrich	B3303
Clorhexidine digluconate soap	Alvet Escartí	0265DCCJ500B
Clorhexidine digluconate solution	Alvet Escartí	0265DCCA500B
CO2	Air Liquide	99921	CO2 N48.
CO2 Incubator	Fisher scientific	15385194
Dimethyl Sulfoxide	Sigma Aldrich	W387509
Dulbecco’s phosphate-buffered saline (DPBS)	Sigma Aldrich	D5773	Without calcium chloride.
Electric razor	Oster Golden A5	078005-140-002
Endoscope camera	Optomic Spain S.A	OP-714
Endoscope trocar with silicone leaflet valve	Karl Storz Endoscopia Ibérica S.A.	30114GK	Lightweight trocar model.
Enrofloxacin	Alvet Escartí	9993046	To be ordered by a licensed veterinarian.
Epicraneal needle 23G	Alvet Escartí	514056353	Smaller needles can be also used.
Epidural catheter	Vygon corporate	187.10
Epidural needle	Vygon corporate	187.10
Ethylene Glycol	Sigma Aldrich	102466-M
Eye ointment	Alvet Escartí	5273
Ketamine hydrochloride	Alvet Escartí	184	To be ordered by a licensed veterinarian.
Laparoscopy equipment	Karl Storz Endoscopia Ibérica S.A.	26003 AA	Hopkins® Laparoscope, 0º-mm straight-viewing laparoscope, 30-cm length, 5-mm working channel.
Light source	Optomic Spain S.A	Fibrolux 250
Liquid Nitrogen	Air Liquide	P1505XXX
Mechanical CO2 insufflator	Karl Storz Endoscopia Ibérica S.A.	Endoflator®
Meloxicam	Alvet Escartí	9993501	To be ordered by a licensed veterinarian.
Petri dishes, 35-mm	Sigma Aldrich	CLS430165-500EA
Plastic dressing (Nobecutan)	IBOR medica	7140028
Plastic Straw 0.25 mL	IMV - technologies	6431
Povidone iodide solution	Alvet Escartí	02656DPYS500S
Scissors	ROBOZ	RS-5880	Any regular surgical grade steel small straight scissors will work.
Silicone tube for insufflator	Karl Storz Endoscopia Ibérica S.A.	20400040
Stereomicroscope	Leica	MZ16F	There are cheaper options such as Leica MZ8 or Nikon SMZ-10 or SMZ-2B, to name a few.
Sterile Gloves	Alvet Escartí	087GL010075
Sterile gown	Alvet Escartí	12261501
Sterile mask	Alvet Escartí	058B15924B
Straw Plug	IMV - technologies	6431
Sucrose	Sigma Aldrich	S7903
Syringe, 1-mL	Fisher scientific	11750425
Syringe, 5-mL	Fisher scientific	11773313
Urinary catheter	IMV - technologies	17722
Waterbath	RAYPA	BAE-4
Xylazine	Alvet Escartí	525225	To be ordered by a licensed veterinarian.
Rabbits	Universitat Politècnica de València	Line A	Other maternal lines, such as Line V or Line HP can be used.
