Separation of Uranium and Thorium for ²³⁰Th-U Dating of Submarine Hydrothermal Sulfides

Summary

The protocol describes a method to purify and separate the U and Th nuclide in submarine hydrothermal sulfide sample with Fe co-precipitation and extraction chromatography for ²³⁰Th-U disequilibrium dating.

Abstract

The age of a submarine hydrothermal sulfide is a significant index for estimating the size of hydrothermal ore deposits. Uranium and thorium isotopes in the samples can be separated for ²³⁰Th-U dating. This article presents a method to purify and separate U and Th isotopes in submarine hydrothermal sulfide samples. Following this technique, the separated U and Th fractions can meet measuring requirements by multi-collector inductively coupled plasma mass spectrometry (MC-ICPMS). The age of the hydrothermal sulfide sample can be calculated by measuring the present-day activity ratios of ²³⁰Th/²³⁸U and ²³⁴U/²³⁸U. A super clean room is necessary for this experiment. Cleaned regents and supplies are used to reduce the contamination during the sample processes. Balance, hotplate, and centrifuge are also used. The sulfide sample is powdered for analysis and less than 0.2 g sample is used. Briefly, the sample is weighed, dissolved, added to ²²⁹Th-²³³U-²³⁶U double spike solution, Fe co-precipitated, and separated on an anion-exchange resin extraction column. Approximately 50 ng U is consumed for ²³⁰Th-U dating of sulfides sample by MC-ICPMS.

Introduction

Submarine hydrothermal sulfides have been a steady source of metals like iron, copper, zinc and lead. They are also seen as economically viable resources of silver and gold. The location and size of the deposits are a record of the history of hydrothermal venting on the seafloor. Dating of a hydrothermal sulfide can provide important information regarding the formation and alteration mechanism of the sulfide ore deposit, seafloor hydrothermal activity history, and growth rate of large sulfide deposits^1,2,3. ²³⁸U-²³⁴U-²³⁰Th disequilibrium dating is an effective isotopic method of age estimation for hydrothermal sulfides^{4,5,6,7,8,9,10,11,12}, where the purification and separation of U and Th isotopes is necessary. This text describes a protocol for U and Th isotopes separation and ²³⁰Th-U dating of sulfides sample by MC-ICPMS.

Geological materials which contain U and Th remain undisturbed for several million years, and a state of secular equilibrium between all the nuclides in the radioactive series is established. However, a combination of chemical solubility and nuclear recoil factors often create disequilibrium, in which the members of the decay series are separated from each other through processes such as deposition, transport and weathering. For example, when a sulfide deposit is formed, the state of ²³⁸U, ²³⁴U and ²³⁰Th is of disequilibrium, and the long-lived ²³⁸U can decay gradually towards short-lived ²³⁴U and ²³⁰Th subsequently. Assuming (i) the system remains closed with respect to U and Th isotopes, and (ii) initial amount of ²³⁰Th and ²³²Th incorporated into sulfide samples is zero, it is possible to determine the time of deposition by measuring the present-day activity ratios of ²³⁰Th/²³⁸U and ²³⁴U/²³⁸U. However, the initial amount of Th is not zero in the sample, and we assume the initial ²³⁰Th/²³²Th atomic ratio is 4.4 ± 2.2 x 10^-6. The applicable dating range of this method is approximately ~10-6 x 10⁵ years^13,14. However, the large difference between the abundance of uranium and thorium makes measurement challenging. Hence, it is very important to establish a chemical procedure for U-Th dating by MC-ICPMS.

In the past 30 years, most studies focused more measurements of carbonate materials^14,15,16,17 and less on sulfide deposits^11,12,18,19. Alpha-particle counting methods have traditionally been used for the study of ²³⁰Th/²³⁸U disequilibrium of submarine hydrothermal sulfides¹. However, analytical uncertainty of 5-17% is a limiting factor that affects the precision of age determination of sulfides^1,8,9. These techniques generally suffer from the use of relatively large columns and reagent volumes and the need for multiple column passes for purification and separation U-Th from a sample. Recent developments in MC-ICPMS have greatly improved the precision of U-Th isotopic measurements (<5‰ for ages)¹⁴ and have significantly reduced the sample size (<0.2 g) required for analysis. In these works, many chemical separation procedures have been developed, and have achieved excellent chemical yields with low chemical background^12,13.

Here we present a chemical-based protocol to obtain samples that are sufficiently clean for MC-ICPMS analysis. It is suitable for the dating of hydrothermal sulfide samples of age <6 x 10⁵ years¹⁴. With this technique, the separated U and Th isotopic fractions can meet measuring requirements by MC-ICPMS. The age of the hydrothermal sulfide sample can be calculated from the extent of disequilibria between ²³⁰Th and ²³⁴U and between ²³⁴U and ²³⁸U by using the described activity decay equation.

Protocol

1. Preparing the sample, reagents, and containers

1. Clean the fume hood, hotplate and the balance room bench for the chemical experiment with sprayed alcohol or ultrapure water.
2. Prepare sub-boiled acids (2 M HCl, 8 M HCl, 7 M HNO₃, and 14 M HNO₃), clean beakers and any apparatus before sample processed.
   NOTE: Sulfide samples presented in this study were collected from newly discovered hydrothermal zones in the South Atlantic. Approximately 60 mg of powdered sample was used in this process. Sample was collected into glass vials and put in the sample storage cabinet.

2. Weigh the samples

1. Prepare cleaned 30 mL perfluoroalkoxy (PFA) beakers. Label twice outside the beaker (to prevent erasure).
2. Weigh the blank beakers.
   NOTE: The balance used is accurate to ±0.0001 g provided that all the vessels have had their static electricity completely removed.
3. Read the weight and record it.
4. Pour the sample into the beaker. Cover with a lid and weigh the samples.
   NOTE: Sample weight depends on the ²³⁰Th content. ²³⁰Th level varies with the U concentration and age of the sample. In general, a total of 100 ng of total U is sufficient for the sample.
5. Add some (~1 mL) ultrapure water using a bottle, rinse the inner wall and shake the beaker carefully.
   NOTE: Add enough ultrapure water cover all the samples.

3. Dissolve and spike the sample

1. Place the sample-containing beaker in the fume hood.
2. Open the beaker lid. Add 3 mL of HNO₃ (14 M) or aqua regia into the sample using a pipette.
3. Place the beaker on the hotplate, set the hotplate temperature to 170 °C and dissolve the sample completely.
   NOTE: If there are still insoluble substances in the solution, add 12 M HCl, 22.6 M HF and 10.6 M HClO₄, and use a pressurized closed tank to ensure complete dissolution of samples.
4. Leave the solution to cool for at least 30 min. Add 0.1–0.3 g ²²⁹Th-²³³U-²³⁶U spike solution of known activity into the solution.
   NOTE: Generally, the optimal ratio of ²³⁵U/²³³U is ~10–20:1 in the mixed solution.
5. Place the solution onto the hotplate, set the temperature to 170 °C and leave it on the hotplate until it dries.
   NOTE: Evaporation must be done slowly when the sample approaches dryness.
6. Dissolve the sample in 2 drops of HNO₃ (0.04 mL, 14 M), and dry it on the hotplate at 170 °C again.

4. Ferric hydroxide co-precipitation for U-Th

1. Prepare cleaned 15 mL centrifuge tubes, label and place them in the tube stand.
   NOTE: Add approximately 10 mg of Fe(III) (FeCl₃ in 12 M HCl) into the centrifugal tube carefully if samples contain almost no Fe.
2. Add several drops (0.1 mL) of 2 M HCl into the beaker. Shake the beaker gently and dissolve the sample completely.
3. Transfer each sample into a centrifuge tube.
4. Add several drops of ammonia (~0.1 mL) until the acid is neutralized; when pH is 7–8, a reddish-brown precipitate appears. U and Th isotopes are precipitated by the Fe(OH)₃.
   NOTE: The clear solution contains unwanted ions such as metal-elements, Mg²⁺, NO₃^- and NH₄OH.
5. Cap the centrifuge tubes. Centrifuge at 2,340 x g for 7 min. Discard the supernatant
6. Add some ultrapure water to wash the precipitate. Centrifuge as above and repeat this step twice more.
7. Dissolve the precipitate with 1.5 mL of 7 M HNO₃. Transfer it into the corresponding beaker.
8. Add 1 drop of HClO₄ (to remove organic matter), and dry it on the hotplate at 170 °C for about 30 min.

5. Preparation of anion exchange column

1. Prepare small polytetrafluoroethylene (PTFE) columns (~2.5 mL column size) as shown in Figure 1; insert the frit into each column slowly at the bottom on the bench.
2. Pipet cleaned anion-exchange resins into the columns. Put the columns on the holder.
3. Fill the whole column with ultrapure water. Add 1 drop of 14 M HNO₃.
   NOTE: This step is performed in order mainly to remove the trace elements in the column.
4. Add 2 column volumes (CV) of 7 M HNO₃ to remove the trace elements. Then repeat this step.

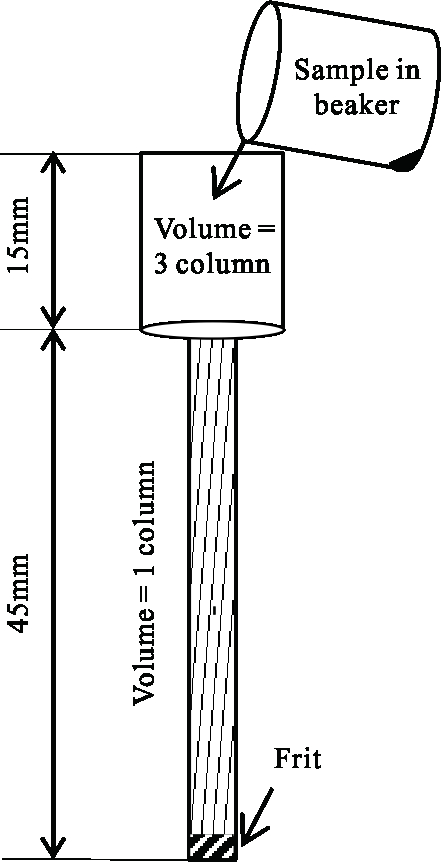

Figure 1: Ion-exchange column filling with anionic exchange resin. Please click here to view a larger version of this figure.

6. Purification and separation of U and Th fractions

1. Dissolve the sample in 0.5 mL of 7 M HNO₃. Load it onto the column carefully.
2. Let it drip across the column into the waste beaker.
3. Add 2 CV and 1 CV of 7 M HNO₃ successively into the column. Iron and other metal-elements in the sample are removed while U and Th are retained by the resin in this step.
4. Add 2 CV and 1 CV of 8 M HCl into the column successively to elute thorium fraction. Collect the thorium fraction using a 7 mL capacity cleaned PFA beaker. Add 1 drop of HClO₄ into the beaker and dry the fraction on a hotplate at 170 °C for about 30 min.
5. Elute uranium fraction from the resin with 2 CV of 0.1 M HNO₃ twice. Collect the eluate in the cleaned PFA beaker. Add 1 drop of HClO₄ and dry it on the hotplate at 170 °C for about 30 min.
6. Prepare and label 2 mL capacity vials.
7. Dissolve each sample in 1 drop HNO₃ and dry it on the hotplate at 170 °C for less than 5 min until 0.5 drop is left. Transfer them along with 0.2 mL of 2% HNO₃ + 0.1% HF into the corresponding vials for instrument measurement.

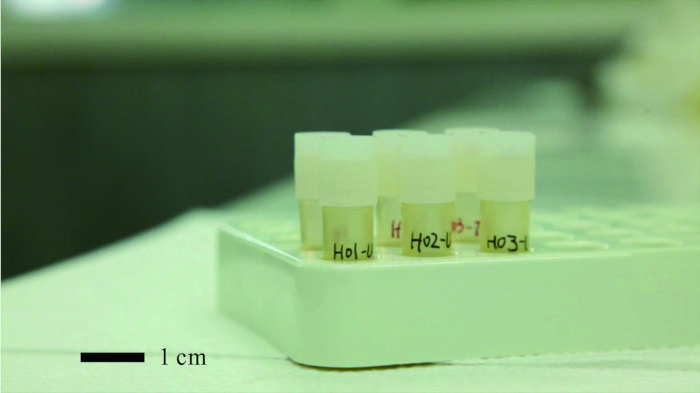

Figure 2: Uranium and thorium fractions of the submarine hydrothermal sulfides. Please click here to view a larger version of this figure.

7. MC-ICPMS measurement

1. Measure the U and Th fractions collected through the above chemical purification process using a high-resolution MC-ICPMS instrument.
   NOTE: U and Th isotopic ratios can be obtained by using the instrument by applying secondary electron multiplier (SEM)²¹ technique. The instrument parameters¹³ are listed in Table 1. Thorium age was calculated using the following equation:

   Initial ratio of ²³⁴U to ²³⁸U was measured as follows:


Instrument	Parameter	Value
MC-ICPMS	RF power	1325 W
	Cool gas	16.00 L min-1
	Auxiliary gas	1.78 L min-1
	Sample gas	1.00 L min-1
	Low resolution	300~400
CETAC Aridus II	Sample injection rate	50~60 μL min-1
	Ar Sweep Gas	2~5 L min-1
	Nitrogen Gas	2~10 mL min-1
	Spray Chamber Temperature	110 °C
	Membrane Oven Temperature	160 °C

Table 1: Instrument parameters for measuring U-Th isotopes by MC-ICPMS (using the instrument listed in the Table of Materials).

Representative Results

Using this procure, a submarine hydrothermal sulfide sample can be completely dissolved. Following this protocol, the Th fraction was eluted from the hydrothermal sulfide sample using 8 M HCl. Meanwhile, the U fraction of the hydrothermal sulfide sample was eluted with 0.1 M HNO₃. U and Th fractions were dissolved in the 2% HNO₃ (+0.1% HF) solution (see Figure 2) and stored in 2 mL capacity vials. The mixture was then analyzed by MC-ICPMS.

With the MC-ICPMS instrument, U and Th isotopes ratio and the age of submarine hydrothermal sulfide is determined precisely. The ages were calculated by an iterative method¹³. The test results are listed in Table 2. U content ranged from 178.0 to 5,118.2 ng·g^-1, and Th content ranged from 603 to 7,212 pg·g^-1. Five samples had ages of 567 ± 52, 1,585 ± 27, 3,345 ± 132, 14,211 ± 727 and 21,936 ± 91 years B.P. (B.P. stands for “before year 2000 A.D.”). Sample consumption was about 60 mg except S32 wherein only 17 mg sample was consumed.

Sample	Sample Mass	238U		232Th		230Th/232Thb		234U/238Ub		230Th/238Ub		230Th Age(yr)c		230Th Age (yr BP)d, e		(234U/238U)initialf
No.	(mg)a	(ng g-1)		(pg g-1)								(uncorrected)		(corrected)
S12	58	182.8	±0.2	7212	±144	11.7	±0.3	1.156	±0.002	0.1511	±0.0018	15221	±193	14211	±727	1.163	±0.002
S15	57	569.3	±0.7	1200	±24	310.3	±6.3	1.166	±0.002	0.2140	±0.0007	22006	±84	21936	±91	1.177	±0.002
S32	17	5118.2	±10.4	5173	±104	51.9	±1.2	1.157	±0.003	0.0172	±0.0002	1628	±20	1585	±27	1.158	±0.002
Y3	55	178.0	±0.2	865	±17	23.0	±0.8	1.162	±0.002	0.0366	±0.0010	3484	±100	3345	±132	1.164	±0.002
Y4	59	347.1	±0.4	603	±12	11.7	±0.8	1.159	±0.002	0.0067	±0.0004	629	±42	567	±52	1.159	±0.002
a Sample mass for separation of uranium and thorium nuclide and U and Th analysis.
b All ratios are radioactivity ratio, which calculated based on the decay constants λ238=1.55125 ×10-10 a-1 as described by Jaffey et al.(1971)20, λ234=2.82206 (±0.00302)×10-6 a-1 as described by Cheng et al.(2013)15, and 9.1705(±0.0138)×10-6 a-1 as described by Cheng et al.(2013)15.
c Calculated 230Th age following the equation
d Corrected 230Th ages assume the initial 230Th/232Th atomic ratio of 4.4 ±2.2 x10-6. Those are the values for a material at secular equilibrium, with the bulk earth 232Th/238U value of 3.8. The errors are arbitrarily assumed to be 50%15.
e B.P. stands for “Before year 2000 A.D.”.
f

Table 2. ²³⁰Th dating results for submarine hydrothermal sulfides. The error shown is 2s error.
^aSample mass for separation of uranium and thorium nuclide and U and Th analysis.
^bAll ratios are radioactivity ratios, which are calculated based on the decay constants λ₂₃₈ = 1.55125 x 10^-10 a^-1 as described by Jaffey et al.²⁰, λ₂₃₄ = 2.82206 (±0.00302) x 10^-6 a^-1 as described by Cheng et al.¹⁵, and 9.1705 (±0.0138) x 10^-6 a^-1 as described by Cheng et al.¹⁵.
^cCalculated ²³⁰Th age following the equation in section 7.
^dCorrected ²³⁰Th ages assuming the initial ²³⁰Th/²³²Th atomic ratio to be 4.4 ± 2.2 x 10^-6. These are the values for a material at secular equilibrium, with the bulk earth ²³²Th/²³⁸U value of 3.8. The errors are arbitrarily assumed to be 50%.
^eB.P. stands for “Before year 2000 A.D.”.
^fUsing the equation in section 7.

Discussion

Some critical steps must be followed to ensure success of this protocol. Ensure that all operations are carried out in clean chemistry room under fume hood with clean air circulation. Purify all regents in this process in advance and clean the apparatus before use. Dissolve the samples completely in the process of making the 7 M HNO₃ solution which is then loaded onto the 7 M HNO₃-conditioned resins. If there is any insoluble substance in the sample, it will be redissolved after drying. Additional important steps are suggested: (i) avoid the cross contamination from the adjacent samples during the sample processing; (ii) for each elution step allow the liquid to drain completely before the next step; and (iii) complete the process from the conditioning of the columns to collecting Th and U fractions within 2 h, otherwise the strong acid tends to break down the resin.

The major limitation of this technique is related to the ²³⁸U and ²³²Th concentration of the sample. It is best to choose samples with U > 50 ppb and Th < 10 ppb. The AG 1-X8 resin used can be replaced by UTEVA resin in the process.

With this method, five submarine hydrothermal sulfides samples from the South Atlantic were measured. Ages were 567 ± 52 to 21,936 ± 91 year B.P., indicating that this region has been experiencing hydrothermal activity events from 21,936 ± 91 years B.P.

U-Th purification and separation refers to isotopic methods of age estimation based on the measurement of uranium (²³⁸U and ²³⁵U), thorium (²³²Th), and certain members of the intermediate daughter nuclides in the three naturally occurring radioactive decay series for hydrothermal sulfide sample. It is also useful to determine the U and Th concentration of deep-sea sediments¹⁹. The technique can be applied to the dating of carbonate and phosphate, and to environmental tracer studies, assisting in building the age framework for the formation of minerals.

Materials

Name	Company	Catalog Number	Comments
AG 1-X8 anion-exchange resin	BIO-RAD	140-1441	Separating rare elements
Ammonia solution	Kanto Chemical CO., INC.	1336-21-6	Reagent
Glass vials	BOTEX	None	Sample collection
Hydrochloric acid	Sinopharem chemical reagent Co. Ltd	7647-01-0	Reagent
Hydrofluoric acid	EMD Millipore CO.	7664-39-5	Reagent
Neptune Plus	Thermo Fisher Scientific CO.	None	Apparatus
Nitric acid	Sinopharem chemical reagent Co. Ltd	7697-37-2	Reagent
Perchloric acid	Kanto Chemical CO., INC.	32059-1B	Reagent
Ultrapure water	Merck Millipore	None	Producted by Mill-Q Advantage systerm
Wipe paper	Kimberley-Clark	0123-12	Wipe and clean
2 ml vial	Nelgene	5000-0020	Sample collection
229Th-233U-236U spike	None	None	Reagent
7 ml PFA beaker	Savillex	200-007-20	Sample treatment
10 ml centrifuge	Nelgene	3110-1000	Sample treatment
30 ml PFA beaker	Savillex	200-007-20	Sample treatment
