Purification of Tubulin with Controlled Posttranslational Modifications and Isotypes from Limited Sources by Polymerization-Depolymerization Cycles

DOI:

10.3791/61826

⸱

November 5th, 2020

 ,  ,  ,
1PSL Research University, CNRS UMR3348, Institut Curie, 2Université Paris-Saclay, CNRS UMR3348, Université Paris Sud

* These authors contributed equally

In This Article

Summary

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

This protocol describes tubulin purification from small/medium-scale sources such as cultured cells or single mouse brains, using polymerization and depolymerization cycles. The purified tubulin is enriched in specific isotypes or has specific posttranslational modifications and can be used in in vitro reconstitution assays to study microtubule dynamics and interactions.

Abstract

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

One important aspect of studies of the microtubule cytoskeleton is the investigation of microtubule behavior in in vitro reconstitution experiments. They allow the analysis of the intrinsic properties of microtubules, such as dynamics, and their interactions with microtubule-associated proteins (MAPs). The “tubulin code” is an emerging concept that points to different tubulin isotypes and various posttranslational modifications (PTMs) as regulators of microtubule properties and functions. To explore the molecular mechanisms of the tubulin code, it is crucial to perform in vitro reconstitution experiments using purified tubulin with specific isotypes and PTMs.

To date, this was technically challenging as brain tubulin, which is widely used in in vitro experiments, harbors many PTMs and has a defined isotype composition. Hence, we developed this protocol to purify tubulin from different sources and with different isotype compositions and controlled PTMs, using the classical approach of polymerization and depolymerization cycles. Compared to existing methods based on affinity purification, this approach yields pure, polymerization-competent tubulin, as tubulin resistant to polymerization or depolymerization is discarded during the successive purification steps.

We describe the purification of tubulin from cell lines, grown either in suspension or as adherent cultures, and from single mouse brains. The method first describes the generation of cell mass in both suspension and adherent settings, the lysis step, followed by the successive stages of tubulin purification by polymerization-depolymerization cycles. Our method yields tubulin that can be used in experiments addressing the impact of the tubulin code on the intrinsic properties of microtubules and microtubule interactions with associated proteins.

Introduction

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

Microtubules play critical roles in many cellular processes. They give cells their shape, build meiotic and mitotic spindles for chromosome segregation, and serve as tracks for intracellular transport. To perform these diverse functions, microtubules organize themselves in different ways. One of the intriguing questions in the field is to understand the molecular mechanisms that allow the structurally and evolutionarily conserved microtubules to adapt to this plethora of organizations and functions. One potential mechanism is the diversification of microtubules, which is defined by the concept known as the ‘tubulin code’1,2,3. The tubulin code includes two principal components: differential incorporation of α- and β-tubulin gene products (tubulin isotypes) into the microtubules and tubulin posttranslational modifications (PTMs).

Since the 1970s, in vitro reconstitution experiments, combined with evolving light microscopy techniques, have paved the way for important discoveries about the properties of microtubules: dynamic instability4 and treadmilling5, and their other mechanisms and functions6,7,8,9,10,11,12,13,14,15. Almost all the in vitro experiments performed so far have been based on tubulin purified from brain tissue using repeated cycles of polymerization and depolymerization16,17. Although purification from the brain tissue confers the advantage of obtaining high-quality tubulin in large quantities (usually gram amounts), one important drawback is the heterogeneity as tubulin purified from brain tissue is a mixture of different tubulin isotypes and is enriched with many tubulin PTMs. This heterogeneity makes it impossible to delineate the role of a particular tubulin PTM or isotype in the control of microtubule properties and functions. Thus, producing assembly-competent tubulin with controlled tubulin PTMs and homogenous isotype composition is essential to address the molecular mechanisms of the tubulin code.

Recently, an approach to purify tubulin by affinity chromatography using the microtubule-binding TOG (tumor-overexpressed gene) domain of yeast Stu2p has been developed18. In this method, tubulin in crude lysates of cells or tissue is passed through a column where it binds to the matrix-immobilized TOG domain, which allows the analysis of the whole tubulin pool of a given, even very small, sample. A long-awaited approach to purify recombinant tubulin has also been described in recent years. It is based on the baculovirus system, in which a bi-cistronic vector containing α- and β-tubulin genes is expressed in insect cells19. However, this method is very cumbersome and time-consuming and is therefore mostly used for studying the impact of tubulin mutations20 and tubulin isotypes21,22,23 in vitro.

In the current protocol, we describe a method that uses the well-established and widely used polymerization-depolymerization approach as a blueprint to generate tubulin with different levels of modification either from cell lines or from mouse brain tissue24. In this procedure, tubulin is cycled between the soluble (tubulin dimer at 4 °C) and polymerized form (microtubule at 30 °C in the presence of guanosine 5'-triphosphate [GTP]). Each form is separated through successive steps of centrifugation: tubulin dimers will remain in the supernatant after a cold (4 °C) spin, whereas microtubules will be pelleted at 30 °C. Furthermore, one polymerization step is carried out at high piperazine-N,N′-bis(2-ethanesulfonic acid) (PIPES) concentration, which allows the removal of microtubule-associated proteins from the microtubules and thus, from the finally purified tubulin. Tubulin purified from HeLa S3 cells grown as suspension or adherent cultures is virtually free of any tubulin PTM and has been used in recent in vitro reconstitution experiments25,26,27,28. We have further adapted the method to purify tubulin from single mouse brains, which can be used for a large number of mouse models with changes in tubulin isotypes and PTMs.

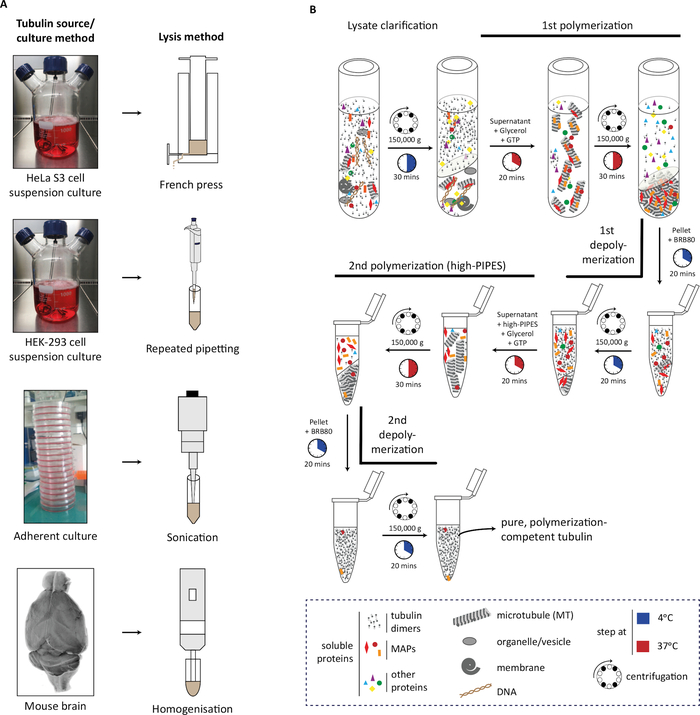

In the protocol, we first describe the generation of the source material (cell mass or brain tissue), its lysis (Figure 1A), followed by the successive steps of tubulin polymerization and depolymerization to purify the tubulin (Figure 1B). We further describe the process to assess the purity (Figure 2A,B) and quantity (Figure 3A,B) of the purified tubulin. The method can be adapted to produce tubulin enriched with a selected PTM by overexpressing a modifying enzyme in cells prior to tubulin purification (Figure 4B). Alternatively, tubulin-modifying enzymes can be added to tubulin during the purification process. Finally, we can purify tubulin lacking specific isotypes or PTMs from the brains of mice deficient in the corresponding tubulin-modifying enzymes (Figure 4B)29.

The method we describe here has two main advantages: (i) it allows the production of sufficiently large amounts of tubulin in a relatively short time, and (ii) it generates high-quality, pure tubulin, with either specific tubulin isotype composition or PTMs. In the associated video of this manuscript, we highlight some of the critical steps involved in this procedure.

Access restricted. Please log in or start a trial to view this content.

Protocol

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

Animal care and use for this study were performed in accordance with the recommendations of the European Community (2010/63/UE). Experimental procedures were specifically approved by the ethics committee of the Institut Curie CEEA-IC #118 (authorization no. 04395.03 given by National Authority) in compliance with the international guidelines.

1. Preparation of Reagents for Tubulin Purification

NOTE: All the buffers used for tubulin purification should contain potassium salts and NOT sodium salts30.

  1. Prepare 1 L of complete medium: Dulbecco’s modified Eagle medium (DMEM), with 10% fetal bovine serum (FBS, 100 mL), 200 mM L-glutamine (10 mL of 2 M stock), and 1x penicillin-streptomycin (10 mL of 100x stock). Store at 4 °C.
  2. Prepare 10 M potassium hydroxide (KOH) by dissolving 140 g of KOH in water, adjust the final volume to 250 mL, and store at room temperature.
  3. Prepare 0.5 M ethylenediamine tetraacetic acid (EDTA), pH 8, by dissolving 36.5 g of EDTA in water, adjust the pH to 8.0 using KOH (otherwise EDTA will not dissolve) and the final volume to 250 mL, filter-sterilize, and store at room temperature.
  4. Prepare 5 mM phosphate-buffered saline (PBS)-EDTA by adding 5 mL of 0.5 M EDTA to 500 mL of PBS, filter-sterilize, and store at room temperature.
  5. Prepare 0.5 M K-PIPES, pH 6.8, by dissolving 75.5 g of PIPES in water, adjust to pH 6.8 with KOH (otherwise PIPES will not dissolve) and the final volume to 500 mL, filter-sterilize, and store at 4 °C.
  6. Prepare 1 M K-PIPES, pH 6.8, by dissolving 15.1 g of PIPES in water, adjust to pH 6.8 with KOH and the final volume to 50 mL, filter-sterilize, and store at 4 °C.
  7. Prepare 0.5 M potassium-ethylene glycol-bis(β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid (K-EGTA, pH 7.7) by dissolving 47.5 g of EGTA in water, adjust to pH 7.7 with KOH and the final volume to 250 mL, filter-sterilize, and store at room temperature.
  8. Prepare BRB80 (80 mM K-PIPES, pH 6.8; 1 mM K-EGTA; 1 mM magnesium chloride [MgCl2]) solution by mixing 3.2 mL of 0.5 M PIPES, 40 µL of 0.5 M K-EGTA, and 20 µL of 1 M MgCl2 and adjust the final volume to 20 mL. Store at 4 °C.
  9. Prepare 0.1 M phenylmethanesulfonyl fluoride (PMSF) by dissolving 435 mg of PMSF in isopropanol to obtain a final volume of 25 mL and store at -20 °C.
  10. Prepare protease inhibitors mix (200x) by dissolving 10 mg of aprotinin, 10 mg of leupeptin, and 10 mg of 4-(2-aminoethyl)-benzenesulfonyl fluoride in water to obtain a final volume of 2.5 mL, make aliquots of 100 µL, and store at -20 °C.
  11. Prepare 10% Triton X-100 by mixing 5 mL of Triton X-100 in 45 mL of water, filter-sterilize, and store at room temperature.
  12. Prepare Lysis buffer (BRB80 supplemented with 1 mM 2-mercaptoethanol, 1 mM PMSF, 1x protease inhibitors mix and, optionally for HEK-293 cells, 0.2% Triton X-100) on the day of tubulin purification by mixing 20 mL of BRB80 with 1.5 µL of 2-mercaptoethanol, 200 µL of 0.1 M PMSF, 100 µL of the protease inhibitors mix and, optionally for HEK-293 cells, 400 µL of 10% Triton X-100.
    NOTE: 2-mercaptoethanol is toxic and should be used in the fume-hood.
  13. Prepare 0.2 M GTP by dissolving 1 g of GTP in 9.5 mL of water, adjust the pH to 7.5 using KOH, make aliquots of 20 µL, and store at -20 °C. Avoid repeated freeze-thaw cycles.
  14. Prepare 1 M tris(hydroxymethyl) aminomethane-hydrochloride (Tris-HCl) by dissolving 60.56 g of Tris in water, adjust to pH 6.8 with HCl, complete to a final volume of 500 mL, filter-sterilize, and store at room temperature.
  15. Prepare 5x Laemmli sample buffer (450 mM dithiothreitol (DTT); 10% sodium dodecylsulfate (SDS); 400 µM Tris-HCl, pH 6.8; 50% glycerol; ~0.006% bromophenol blue) by adding 4 g of SDS to 16 mL of preheated 1 M Tris-HCl, pH 6.8, and mix the solution gently. Add 2.6 g of DTT and 20 mL of 100% glycerol to the mix and stir until the solution becomes homogenous. Add the desired amount of bromophenol blue (2.5 mg) to reach the required color intensity. Make 5 mL aliquots and store at -20 °C. Prepare the 2x working solution of Laemmli sample buffer by diluting the 5x stock in distilled water.

2. Amplification and harvesting sources of tubulin

NOTE: In this protocol, three sources of tubulin were used: (i) cells (HeLa S3 and HEK-293) grown as suspension cultures; (ii) cells grown as adherent cultures (HEK-293, HeLa, and U2 OS); and (iii) mouse brain tissue. This protocol considers the day of tubulin purification as ‘day 0’ and accordingly, other steps have been described relative to day 0.

  1. Amplification of Cells
    1. Cells Grown as Suspension Cultures
      NOTE: To successfully purify tubulin from suspension cultures, use at least 2 L of suspension culture.
      1. For 2 L of suspension culture, revive and grow the preferred cell type to obtain 6 × 107 cells 10 days before the day of preparation. On day -10, plate cells on six 15 cm diameter dishes at 107 cells per plate.
      2. On day -8, preheat the required amount of complete medium to 37 °C. Add 1 L of pre-heated medium to each spinner bottle under sterile conditions. Place the spinners on a stirrer table set at 20–25 rpm inside the cell culture incubator, slightly open the lateral spinner caps to allow the medium to equilibrate to the incubator’s atmosphere.
        NOTE: To avoid any contamination, thoroughly clean the outer surface of the media and spinner bottles using 70% ethanol.
      3. On day -7, trypsinize and collect the cells grown to 80–90% confluence (approximately 1.8 × 108 cells). Collect cells from 3 dishes at a time, spin down (200 × g, 5 min, room temperature), and re-suspend all cells in 10 mL of DMEM.
        NOTE: Thorough dissociation of the cells at this point is very important to avoid the formation of larger aggregates in the spinner bottles, which affects cell survival and results in low tubulin yield.
      4. Add 5 mL of the cell suspension to each spinner bottle containing 1 L of DMEM, return the spinners to the stirrer table in the cell culture incubator, and allow cells to grow for one week.
    2. Cells Grown as Adherent Cultures
      NOTE: To successfully purify tubulin from adherent cells, use a minimum of 10 dishes of 80–90% confluence.
      1. Revive and amplify the desired cell type to obtain 1 × 108 cells three days before the day of the tubulin preparation.
      2. On day -3, plate these cells on ten 15 cm dishes at 1 × 107cells per dish and allow them to grow 80–90% confluence.
      3. On day -1, if required, transfect cells with a plasmid to express a tubulin-modifying enzyme or a particular tubulin isotype.
  2. Harvesting the Cells/Brain Tissue
    1. Cells Grown as Suspension Cultures
      1. Transfer the cell suspension from spinners into 1 L centrifuge bottles (Table of Materials) and pellet cells at 250 × g, 15 min, room temperature. For immediately starting another culture of HeLa S3 cells in the spinner bottles, leave 100 mL of cell suspension in the spinners, and add 1 L of complete, pre-heated DMEM to the spinner bottle.
        NOTE: Carefully check for bacterial contamination before proceeding for tubulin purification.
      2. Resuspend pelleted cells from each centrifuge bottle in 10 mL of ice-cold PBS, and transfer all the cells into 50 mL screw-cap tubes. During re-suspension, keep the cells on ice. Pellet the cells at 250 × g, 15 min, 4 °C.
        NOTE: Follow recommendations for spinner bottle cleaning and storage (see Table of materials).
      3. Discard the supernatant and determine the volume of the cell pellet. From 2 L of suspension culture (two spinner bottles), expect a cell pellet of 5–6 mL.
        NOTE: In the protocol described below, the cell pellet volume is assumed to be 10 mL. Adjust the experiment according to the pellet volumes.
      4. Add 1 volume (10 mL) of lysis buffer and re-suspend the cell pellet.
        NOTE: The ratio of cell pellet volume to lysis buffer volume is very important for successful tubulin purification. Adding more lysis buffer decreases tubulin concentration, which then fails to reach the critical concentration needed for polymerization, thus greatly reducing the tubulin yield.
        NOTE: Cells resuspended in lysis buffer can be snap-frozen in liquid nitrogen and stored at -80 °C for two months.
    2. Cells Grown as Adherent Cultures
      NOTE: Cells from adherent cultures must be harvested very quickly for successful tubulin purification (approximately 15 mins for harvesting ten 15 cm dishes). Three people participated in this step of the protocol.
      1. Remove the medium from 15 cm dishes by inclining the dishes, and then gently wash the cells with 7 mL of PBS-EDTA at room temperature (person 1). Work only with three 15 cm dishes at a time to avoid leaving the cells without medium or buffer.
      2. Add 5 mL of PBS-EDTA to the cells and incubate them for 5 min at room temperature.
      3. Use a cell lifter to gently detach the cells by shoveling them to one edge of the dish (person 2), and collect all the cells in a 50 mL screw-cap tube (person 3). Rinse each plate with an additional 2 mL of PBS-EDTA to collect any remaining cells from the dishes. During this step, keep the 50 mL screw-cap tube containing the cell suspension on ice.
      4. Pellet the cells at 250 × g, 10 min, 4 °C. Discard the supernatant and determine the volume of the cell pellet. Expect a volume of ~1 mL from ten 15 cm dishes.
        NOTE: In the protocol described below, the cell pellet volume is assumed to be 10 mL. Adjust the experiments according to the pellet volumes.
      5. Resuspend the cells in 1 volume (10 mL) of lysis buffer.
        NOTE: Cells resuspended in lysis buffer can be stored at -80 °C for up to two months.
    3. Brain Tissue
      NOTE: Mice of any age, sex, or genetic background can be used. The choice of the transgenic mouse strain will depend on the scientific question to be addressed. In this manuscript, we show the example of tubulin purified from the ttll1-/- mouse, lacking a major brain glutamylating enzyme, the tubulin tyrosine ligase-like 1 (TTLL1) protein31.
      1. Sacrifice the mouse by cervical dislocation, quickly decapitate, and collect the brain into a round-bottom tube. If there is excess blood on the brain, quickly wash with lysis buffer. Collect the brain as soon as the mouse is sacrificed as a post-mortem delay can affect the success of tubulin purification. Use round-bottom tubes to accommodate the width of the probe used for homogenization.
        NOTE: Collected mouse brains can be snap-frozen in liquid nitrogen and stored at -80 °C for up to 3 years.
      2. Add 500 µL of lysis buffer to a single brain extracted from an adult mouse. For the rest of the protocol, the volume of lysis buffer added is assumed to be 10 mL. Adjust for your experiment according to the number of brains to be used.

3. Lysis of Cells or Brain Tissue

  1. Cells Grown as Suspension Cultures
    1. For HEK-293, lyse the cells on ice by repetitively pipetting up and down using pipette tips of different widths. First, attach a p1000 tip to a 10 mL pipette, and pipette the cell suspension up and down every 5 min, for 10 min (three cycles of pipetting). Second, attach a p200 tip to a p1000 tip and further pipette every 5 min, for 20 min (five cycles of pipetting).
    2. For HeLa S3, lyse the cells using a French press (see Table of Materials for settings).
    3. Take 1/100th volume of the lysis mix (L) (200 µL for 20 mL of L), and add the same volume of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analysis.
  2. Cells Grown as Adherent Cultures
    1. Transfer the cells into a 14 mL round-bottom tube whose height has been reduced to accommodate the sonicator probe (see Table of Materials for settings). Sonicate the cells for ~45 pulses, and confirm cell lysis by sampling a drop of the lysis mix under a microscope.
      NOTE: The number of pulses could vary according to the cell type used for tubulin purification. Sonicating cells too much could cause tubulin to precipitate and will negatively affect the purification yield.
    2. Pipette the cells up and down on ice every 5 min for 20 min (five cycles of pipetting), using a p200 tip.
    3. Take 1/100th volume of lysis mix (L) (200 µL for 20 mL of L) and add the same volume of 2x Laemmli buffer, boil for 5 min and store at -20 °C for further analysis.
  3. Brain Tissue
    1. Lyse the brain tissue using a tissue blender (see Table of Materials for settings). Alternatively, lyse the tissue using a microtube pestle or an equivalent equipment and pipette up and down on ice with a 1 mL syringe with an 18 G needle.
    2. Take 1/100th volume of lysis mix (L) (200 µL for 20 mL of L), and add the same volume of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analysis.

4. Purification of Tubulin

  1. Lysate Clarification
    1. Clear the lysate (separating pellet and soluble fraction of the lysis mix) by centrifugation at 150,000 × g, 4 °C, 30 min. See Table of Materials for details about ultracentrifuge rotors and tubes. For cell extracts, a white floating layer is often formed after centrifugation. Do not transfer this floating layer along with the supernatant, as it interferes with tubulin polymerization. Use a syringe of appropriate volume attached to a long 20 G or 21 G needle to gently remove the supernatant without disturbing the floating layer. If the supernatant is still cloudy, centrifuge at 5,000 × g, 4 °C for 10 min.
    2. Transfer the supernatant (SN1) to an ultracentrifuge tube and note its volume. For a 10 mL cell pellet, expect a volume of ~12 mL for SN1.
    3. Take 1/100th volume of SN1 (120 µL for 12 mL of SN1), and add the same volume of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analysis.
    4. Resuspend the pellet (P1) in BRB80 (Table of Materials) using the same volume as SN1. Take 1/100th volume of P1 (200 µL for 20 mL of P1), and add the same volume of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analysis.
  2. First Polymerization in Low-Molarity Buffer
    1. Prepare the polymerization mix by combining 1 volume of SN1 (12 mL), 1/200th volume of 0.2 M GTP (60 µL; final concentration 1 mM), and 0.5 volume of pre-heated glycerol (6 mL) in a screw-cap tube of the appropriate volume.
      NOTE: Glycerol is used as a crowding agent in the polymerization steps throughout the protocol and thus is not considered in the calculations of other components’ concentrations.
    2. Pipette the mix up and down, gently avoiding the formation of air bubbles and transfer it to the appropriate ultracentrifuge tubes.
      NOTE: While transferring the mix to the tubes, adjust the weight of the tubes (in pairs). This allows the experimenter to directly proceed to the sedimentation of microtubules after the polymerization step. Do this for all polymerization steps throughout the protocol.
    3. Cover the tubes with parafilm, transfer to a water bath set at 30 °C, and incubate for 20 min.
    4. Centrifuge the tubes at 150,000 × g, 30 °C for 30 min. Remove the supernatant (SN2), and keep the pellet of polymerized microtubules (P2).
      NOTE: Microtubule pellet can be snap-frozen and stored at -80 °C for up to 1 year.
    5. Take 1/200th volume of SN2 (90 µL for 18 mL SN2) and add the same volume of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analysis.
  3. First Depolymerization
    1. Depolymerize microtubules by adding ice-cold BRB80 to the pellet P2, and leave on ice for 5 min: for tubulin from cells, add 1/60th (200 µL), and for tubulin from brains, add 1/20th (600 µL) of the volume of the SN1.
      NOTE: The volume of ice-cold BRB80 added to the pellet during depolymerization steps is always relative to the volume of SN1.
    2. Resuspend the microtubule pellet gently, avoiding air bubbles, until the solution is completely homogeneous. Use a p1000 tip for a couple of cycles of pipetting followed by a p200 tip every 5 min, for 20 min (five cycles of pipetting). This is a crucial step for the success of the tubulin purification.
    3. Transfer the solution to appropriate ultracentrifuge tubes, and spin down at 150,000 × g, 4 °C for 20 min. Transfer the SN3 to a new 1.5 mL ultracentrifuge tube. The pellet formed after this centrifugation step (P3) contains precipitated proteins (microtubule-associated proteins or MAPs) and non-depolymerized microtubules. The supernatant (SN3) contains soluble components: depolymerized tubulin dimers and MAPs, which have detached from the depolymerized microtubules.
    4. Take 1–4 µL of SN3, and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.
    5. Resuspend the pellet P3 in BRB80 (in the same volume of SN3), take 1–4 µL, and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C.
  4. Second Polymerization (in High-Molarity Buffer)
    1. Prepare the polymerization mix by combining 1 volume of SN3 (200 µL), 1 volume of pre-heated 1 M PIPES (200 µL, final concentration 0.5 M), 1/100th volume of 0.2 M GTP (2 µL, final concentration 1 mM), and 1 volume of pre-heated glycerol (200 µL) in a tube of the appropriate volume.
    2. Pipette the mix up and down, avoiding the formation of air bubbles, and transfer it to ultracentrifuge tubes.
    3. Cover the tubes with parafilm, transfer them to a water bath set at 30 °C, and incubate for 20 min.
    4. Centrifuge the tubes at 150,000 × g, 30 °C for 30 min. Remove the supernatant (SN4), and keep the pellet of polymerized microtubules (P4). The pellet P4 contains the polymerized microtubules, and the supernatant SN4 contains unpolymerized tubulin, MAPs, and other soluble proteins.
      NOTE: The microtubule pellet after the second polymerization step can be snap-frozen and stored at -80 °C for up to 1 year.
    5. Take 1–4 µL and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.
  5. Second Depolymerization
    1. Depolymerize microtubules by adding ice-cold BRB80 to the pellet P4, and leave on ice for 5 min: for tubulin from cells, add 1/100th (120 µL), and for tubulin from brains, add 1/40th (300 µL) of the volume of the SN1.
    2. Pipette up and down with a p200 tip every 5 min, for 20 min (five cycles of pipetting).
    3. Transfer the solution to a 1.5 mL ultracentrifuge tube, and spin down at 150,000 × g, 4 °C for 20 min. Transfer the SN5 to a new 1.5 mL ultracentrifuge tube. The pellet formed after this centrifugation step (P5) contains non-depolymerized microtubules. The supernatant (SN5) contains the soluble tubulin.
    4. Take 1–4 µL and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.
    5. Resuspend the pellet P5 in BRB80 (same volume of SN5), take 1–4 µL, and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.
  6. Third Polymerization (in Low-Molarity Buffer)
    1. Prepare the polymerization mix: 1 volume of SN5 (120 µL), 1/200th volume of 0.2 M GTP (0.6 µL, final concentration is 1 mM), and 0.5 volume of pre-heated glycerol (60 µL) in a tube of the appropriate volume.
    2. Pipette the mix up and down, gently avoiding formation of air bubbles, and transfer it to the appropriate ultracentrifuge tubes.
    3. Cover the tubes with parafilm, transfer them to a water bath set at 30 °C, and incubate for 20 min.
    4. Centrifuge the tubes at 150,000 × g, 30 °C for 30 min. The pellet (P6) contains polymerized microtubules and the supernatant SN6 contains small amounts of non-polymerized tubulin.
      NOTE: Microtubule pellets can be snap-frozen and stored at -80 °C for up to 1 year.
    5. Take 1–4 µL and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.
  7. Third Depolymerization
    1. Depolymerize microtubules by adding ice-cold BRB80 to the pellet P6, and leave on ice for 5 min: for tubulin from cells, add 1/100th (120 µL), and for tubulin from brains, add 1/40th (300 µL) of the volume of the SN1.
    2. Pipette up and down with a p200 tip every 5 min, for 20 min (five cycles of pipetting).
    3. Transfer the solution to the appropriate ultracentrifuge tubes, and spin down at 150,000 × g, 4 °C for 20 min. Transfer SN7 to a new 1.5 mL ultracentrifuge tube. The pellet (P7) contains small amounts of non-depolymerized microtubules. The supernatant (SN7) contains exclusively depolymerized microtubules (soluble tubulin).
    4. Take 1–4 µL and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.
    5. Resuspend the pellet P7 in BRB80 (same volume of SN7), take 1–4 µL, and add 9 volumes of 2x Laemmli buffer, boil for 5 min, and store at -20 °C for further analyses.

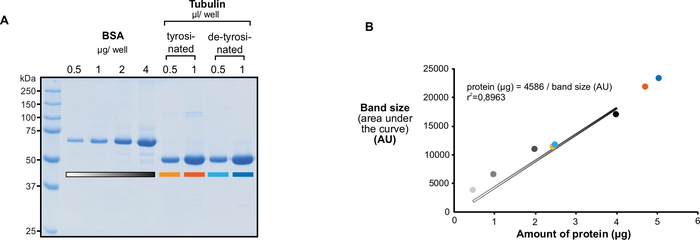

    6. Quantify the amount of tubulin (see Representative Results) and aliquot SN7 into small volumes, snap-freeze, and store at -80 °C.

Access restricted. Please log in or start a trial to view this content.

Results

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

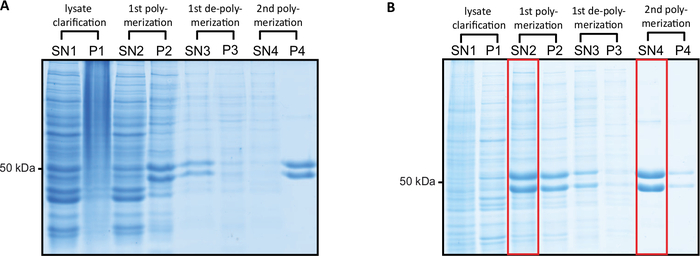

The main goal of this method is to produce high-quality, assembly-competent tubulin in quantities sufficient to perform repeated in vitro experiments with the purified components. Microtubules assembled from this tubulin can be used in reconstitution assays based on the total internal reflection fluorescence (TIRF) microscopy technique with either dynamic or stable microtubules, in experiments testing microtubule dynamics, interactions with MAPs or molecular motors, and force generation by the motors25<...

Access restricted. Please log in or start a trial to view this content.

Discussion

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

The method described here provides a platform to rapidly generate high-quality, assembly-competent tubulin in medium-large quantities from cell lines and single mouse brains. It is based on the gold-standard protocol of tubulin purification from bovine brains used in the field for many years16,17. One particular advantage of the approach is the use of suspension cultures of HeLa S3 cells, which, once established, yields large amounts of cells while requiring litt...

Access restricted. Please log in or start a trial to view this content.

Disclosures

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

The authors have nothing to disclose.

Acknowledgements

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

This work was supported by the ANR-10-IDEX-0001-02, the LabEx Cell’n’Scale ANR-11-LBX-0038 and the Institut de convergence Q-life ANR-17-CONV-0005. CJ is supported by the Institut Curie, the French National Research Agency (ANR) awards ANR-12-BSV2-0007 and ANR-17-CE13-0021, the Institut National du Cancer (INCA) grant 2014-PL BIO-11-ICR-1, and the Fondation pour la Recherche Medicale (FRM) grant DEQ20170336756. MMM is supported by the Fondation Vaincre Alzheimer grant FR-16055p, and by the France Alzheimer grant AAP SM 2019 n°2023. JAS was supported by the European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement No 675737, and the FRM grant FDT201904008210. SB was supported by the FRM grant FDT201805005465.

We thank all members of the Janke lab, in particular J. Souphron, as well as G. Lakisic (Institut MICALIS, AgroParisTech) and A. Gautreau (Ecole Polytechnique) for help during the establishment of the protocol. We would like to thank the animal facility of the Institut Curie for help with mouse breeding and care.

The antibody 12G10, developed by J. Frankel and M. Nelson, was obtained from the Developmental Studies Hybridoma Bank developed under the auspices of the NICHD and maintained by the University of Iowa.

Access restricted. Please log in or start a trial to view this content.

Materials

List of materials used in this article
NameCompanyCatalog NumberComments
1 M MgCl2 Sigma#M1028
1-L cell culture vesselsTechne F7610 Used for spinner cultures. Never stir the empty spinner bottles. When spinner bottles are in the cell culture incubator, always keep the lateral valves of spinner bottles slightly open to facilitate the equilibration of media with incubator’s atmosphere. After use, fill the spinner bottles immediately with tap water to avoid drying of remaining cells on the bottle walls. Wash the bottles with deionised water, add app 200 ml of deionised water and autoclave. Under a sterile cell culture hood remove the water and allow the bottles to dry completely, still under the hood, for several hours. Never use detergents for cleaning the spinner bottles because any trace amounts of the detergent can be deleterious to the cells.
1.5- and 2-ml tubes
14-ml round-bottom tubes
15-cm-diameter sterile culture dishes
15-ml screw-cap tubes
2-mercaptoethanol Sigma #M31482-mercaptoethanol is toxic and should be used under the hood.
4-(2-aminoethyl)-benzenesulfonyl fluoride Sigma #A8456
40% Acrylamide Bio-Rad #161-0140
5-, 10- 20-ml syringes
5-ml, 10-ml, 25-ml sterile pipettes
50-ml screw-cap tubes
Ammonium persulfate (APS)Sigma#A3678
Anti-alpha-tubulin antibody, 12G10 Developed by J. Frankel and M. Nelson, obtained from the Developmental Studies Hybridoma Bank, developed under the auspices of the NICHD, and maintained by the University of Iowadilution: 1/500
Anti-glutamylated tubulin antibody, GT335 AdipoGen #AG-20B-0020dilution: 1/20,000
Aprotinin Sigma #A1153
Balance (0.1 – 10 g)
Beckman 1-l polypropylene bottles For collecting spinner cultures
Beckman Avanti J-26 XP centrifugeFor collecting spinner cultures
Biological stirrer Techne MCS-104L Installed in the cell culture incubator (for spinner cultures), 25 rpm for Hela S3 and HEK 293 cells
Bis N,N’-Methylene-Bis-Acrylamide Bio-Rad #161-0201
Blender IKA Ultra-Turrax® For lysing brain tissue, use 5-mm probe, with the machine set at power 6 or 7. Blend the brain tissue 2-3 times for 15 s on ice.
Bovine serum albumin (BSA)Sigma #A7906
Bromophenol blue Sigma #1.08122
Carboxypeptidase A (CPA)Sigma#C9268Concentration: 1.7 U/µl
Cell culture hood
Cell culture incubator set at 37°C, 5% CO2
Dimethyl sulfoxide (DMSO) Sigma #D8418DMSO can enhance cell and skin permeability of other compounds. Avoid contact and use skin and eye protection.
DMEM medium Life Technologies #41965062
DTT, DL-Dithiothreitol Sigma #D9779
EDTAEuromedex#EU0007-C
EGTASigma #E3889
Ethanol absolute Fisher Chemical #E/0650DF/15
Fetal bovine serum (FBS)Sigma #F7524
French pressure cell press Thermo electron corporation #FA-078Awith a #FA-032 cell; for lysing big amounts of cells. Set at medium ratio, and the gauge pressure of 1,000 psi (corresponds to 3,000 psi inside the disruption chamber).
Glycerol VWR Chemicals #24388.295
GlycineSigma#G8898
GTP Sigma #G8877
Heating block Stuart #SBH130D
Hela cells ATCC® CCL-2™
Hela S3 cells ATCCATCC® CCL-2.2™
Hydrochloric acid (HCl )VWR#20252.290
Inverted microscope With fluorescence if cell transfection is to be verified
Isopropanol VWR #20842.298
jetPEIPolyplus #101
JLA-8.1000 rotor For collecting spinner cultures
KOH Sigma #P1767KOH is corrosive and causes burns; use eye and skin protection.
L-Glutamine Life Technologies #25030123
Laboratory centrifuge for 50-ml tubesSigma4-16 K
Leupeptin Sigma#L2884
Liquid nitrogen
Micro-pipettes p2.5, p10, p20, p100, p200 and p1000 and corresponding tips
MicropestlesEppendorf#0030 120.973
Mouse brain tissue Animal care and use for this study were performed in accordance with the recommendations of the European Community (2010/63/UE). Experimental procedures were specifically approved by the ethics committee of the Institut Curie CEEA-IC #118 (authorization no. 04395.03 given by National Authority) in compliance with the international guidelines.
Needles 18G X 1 ½” (1.2 X 38 mmTerumo#18G
Needles 20G X 1 ½” (0.9 X 38 mmTerumo#20G
Needles 21G X 4 ¾” (0.8 X 120 mmB.Braun#466 5643
Parafilm
PBS Life Technologies #14190169
Penicillin-Streptomycin Life Technologies #15140130
pH-meter
Phenylmethanesulfonyl fluoride (PMSF)Sigma #P7626PMSF powder is hazardous. Use skin and eye protection when preparing PMSF solutions.
PIPES Sigma #P6757
Pipette-boy
RotorsBeckman 70.1 Ti; TLA-100.3; and TLA 55
SDS-PAGE electrophoresis equipment Bio-Rad #1658001FC
SDS, Sodium dodecyl sulphate VWR #442444HFor preparing Laemmeli buffer
SDS, Sodium dodecyl sulphate Sigma #L5750For preparing 'TUB' SDS-PAGE gels
Sonicator Branson#101-148-070Used for lysing cells grown as adherent cultures. Use 6.5 mm diameter probe, set the sonicator at “Output control” 1, “Duty cycle” 10% and time depending on the cell type used.
Tabletop centrifuge for 1.5 ml tubesEppendorf5417R
TEMED, N, N, N′, N′-Tetramethylethylenediamine Sigma#9281
Trichostatin A (TSA)Sigma#T8552
Triton X-100 Sigma #T9284
Trizma base (Tris)Sigma #T1503
Trypsin Life Technologies#15090046
Ultracentrifuge rotors TLA-55, TLA-100.3 and 70.1 Ti rotorsSet at 4°C or 30°C based on the need of the experiment
Ultracentrifuge tubes Beckman#357448 for using with TLA-55 rotor
Ultracentrifuge tubes Beckman#349622for using with TLA-100.3 rotor
Ultracentrifuge tubes Beckman#355631 for using with 70.1 Ti rotor
UltracentrifugesBeckmanOptima L80-XP (or equivalent) and Optima MAX-XP (or equivalent)Set at 4°C or 30°C based on the need of the experiment
Vortex mixer
Water bath equipped with floaters or tube holdersSet at 30°C

References

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,
  1. Verhey, K. J., Gaertig, J. The tubulin code. Cell Cycle. 6 (17), 2152-2160 (2007).
  2. Janke, C. The tubulin code: Molecular components, readout mechanisms, and functions. Journal of Cell Biology. 206 (4), 461-472 (2014).
  3. Janke, C., Magiera, M. M. The tubulin code and its role in controlling microtubule properties and functions. Nature Reviews: Molecular Cell Biology. 21 (6), 307-326 (2020).
  4. Mitchison, T., Kirschner, M. Dynamic instability of microtubule growth. Nature. 312 (5991), 237-242 (1984).
  5. Margolis, R. L., Wilson, L. Opposite end assembly and disassembly of microtubules at steady state in vitro. Cell. 13 (1), 1-8 (1978).
  6. Borisy, G. G., Olmsted, J. B. Nucleated assembly of microtubules in porcine brain extracts. Science. 177 (55), 1196-1197 (1972).
  7. Kirschner, M. W., Williams, R. C. The mechanism of microtubule assembly in vitro. Journal of Supramolecular Structure. 2 (2-4), 412-428 (1974).
  8. Baas, P. W., Lin, S. Hooks and comets: The story of microtubule polarity orientation in the neuron. Developmental Neurobiology. 71 (6), 403-418 (2011).
  9. Stepanova, T., et al. Visualization of microtubule growth in cultured neurons via the use of EB3-GFP (end-binding protein 3-green fluorescent protein). Journal of Neuroscience. 23 (7), 2655-2664 (2003).
  10. Nedelec, F. J., Surrey, T., Maggs, A. C., Leibler, S. Self-organization of microtubules and motors. Nature. 389 (6648), 305-308 (1997).
  11. Bieling, P., Telley, I. A., Surrey, T. A minimal midzone protein module controls formation and length of antiparallel microtubule overlaps. Cell. 142 (3), 420-432 (2010).
  12. Roostalu, J., et al. Directional switching of the kinesin Cin8 through motor coupling. Science. 332 (6025), 94-99 (2011).
  13. Schaedel, L., et al. Microtubules self-repair in response to mechanical stress. Nature Materials. 14 (11), 1156-1163 (2015).
  14. Hendricks, A. G., Goldman, Y. E., Holzbaur, E. L. F. Reconstituting the motility of isolated intracellular cargoes. Methods in Enzymology. 540, 249-262 (2014).
  15. Dogterom, M., Surrey, T. Microtubule organization in vitro. Current Opinion in Cell Biology. 25 (1), 23-29 (2013).
  16. Vallee, R. B. Reversible assembly purification of microtubules without assembly-promoting agents and further purification of tubulin, microtubule-associated proteins, and MAP fragments. Methods in Enzymology. 134, 89-104 (1986).
  17. Castoldi, M., Popov, A. V. Purification of brain tubulin through two cycles of polymerization-depolymerization in a high-molarity buffer. Protein Expression and Purification. 32 (1), 83-88 (2003).
  18. Widlund, P. O., et al. One-step purification of assembly-competent tubulin from diverse eukaryotic sources. Molecular Biology of the Cell. 23 (22), 4393-4401 (2012).
  19. Minoura, I., et al. Overexpression, purification, and functional analysis of recombinant human tubulin dimer. FEBS Letters. 587 (21), 3450-3455 (2013).
  20. Uchimura, S., et al. A flipped ion pair at the dynein-microtubule interface is critical for dynein motility and ATPase activation. Journal of Cell Biology. 208 (2), 211-222 (2015).
  21. Pamula, M. C., Ti, S. C., Kapoor, T. M. The structured core of human beta tubulin confers isotype-specific polymerization properties. Journal of Cell Biology. 213 (4), 425-433 (2016).
  22. Vemu, A., et al. Structure and dynamics of single-isoform recombinant neuronal Human tubulin. Journal of Biological Chemistry. 291 (25), 12907-12915 (2016).
  23. Ti, S. C., Alushin, G. M., Kapoor, T. M. Human beta-tubulin isotypes can regulate microtubule protofilament number and stability. Developmental Cell. 47 (2), 175-190 (2018).
  24. Souphron, J., et al. Purification of tubulin with controlled post-translational modifications by polymerization-depolymerization cycles. Nature Protocols. 14, 1634-1660 (2019).
  25. Barisic, M., et al. Microtubule detyrosination guides chromosomes during mitosis. Science. 348 (6236), 799-803 (2015).
  26. Nirschl, J. J., Magiera, M. M., Lazarus, J. E., Janke, C., Holzbaur, E. L. F. alpha-Tubulin tyrosination and CLIP-170 phosphorylation regulate the initiation of dynein-driven transport in neurons. Cell Reports. 14 (11), 2637-2652 (2016).
  27. Guedes-Dias, P., et al. Kinesin-3 responds to local microtubule dynamics to target synaptic cargo delivery to the presynapse. Current Biology. 29 (2), 268-282 (2019).
  28. Luo, Y., et al. Direct observation of dynamic protein interactions involving human microtubules using solid-state NMR spectroscopy. Nature Communications. 11 (1), 18(2020).
  29. Even, A., et al. ATAT1-enriched vesicles promote microtubule acetylation via axonal transport. Science Advances. 5 (12), 2705(2019).
  30. Wolff, J., Sackett, D. L., Knipling, L. Cation selective promotion of tubulin polymerization by alkali metal chlorides. Protein Science. 5 (10), 2020-2028 (1996).
  31. Magiera, M. M., et al. Excessive tubulin polyglutamylation causes neurodegeneration and perturbs neuronal transport. EMBO Journal. 37 (23), 100440(2018).
  32. Lacroix, B., Janke, C. Generation of differentially polyglutamylated microtubules. Methods in Molecular Biology. 777, 57-69 (2011).
  33. Schneider, C. A., Rasband, W. S., Eliceiri, K. W. NIH Image to ImageJ: 25 years of image analysis. Nature Methods. 9 (7), 671-675 (2012).
  34. Magiera, M. M., Janke, C. Methods in Cell Biology Vol. 115 Microtubules, in vitro. Correia, J. J., Wilson, L. , Academic Press. 247-267 (2013).
  35. Hausrat, T. J., Radwitz, J., Lombino, F. L., Breiden, P., Kneussel, M. Alpha- and beta-tubulin isotypes are differentially expressed during brain development. Developmental Neurobiology. , (2020).
  36. Janke, C., et al. Tubulin polyglutamylase enzymes are members of the TTL domain protein family. Science. 308 (5729), 1758-1762 (2005).
  37. Newton, C. N., et al. Intrinsically slow dynamic instability of HeLa cell microtubules in vitro. Journal of Biological Chemistry. 277 (45), 42456-42462 (2002).
  38. Belvindrah, R., et al. Mutation of the alpha-tubulin Tuba1a leads to straighter microtubules and perturbs neuronal migration. Journal of Cell Biology. 216 (8), 2443-2461 (2017).
  39. Breuss, M., et al. Mutations in the murine homologue of TUBB5 cause microcephaly by perturbing cell cycle progression and inducing p53 associated apoptosis. Development. , (2016).
  40. Latremoliere, A., et al. Neuronal-specific TUBB3 is not required for normal neuronal function but is essential for timely axon regeneration. Cell Reports. 24 (7), 1865-1879 (2018).
  41. Morley, S. J., et al. Acetylated tubulin is essential for touch sensation in mice. Elife. 5, (2016).

Access restricted. Please log in or start a trial to view this content.

Reprints and Permissions

Request permission to reuse the text or figures of this JoVE article

Request Permission

Tags

Tubulin PurificationTubulin IsotypesCell Line CulturesMouse Brain LysisSDS Page AnalysisImmunoblot AnalysisMicrotubule Associated ProteinsIn Vitro Reconstitution

Related Articles
