Osmotic Minipump Implantation for Increasing Glucose Concentration in Mouse Cerebrospinal Fluid

Summary

This article describes a detailed protocol to increase glucose concentration in the cerebrospinal fluid (CSF) of mice. This approach can be useful for studying the effects of high CSF glucose on neurodegeneration, cognition, and peripheral glucose metabolism in mice.

Abstract

Diabetes increases the risk of cognitive decline and impairs brain function. Whether or not this relationship between high glucose and cognitive deficits is causal remains elusive. Moreover, whether these deficits are mediated by an increase in glucose levels in cerebrospinal fluid (CSF) and/or blood is also unclear. There are very few studies investigating the direct effects of high CSF glucose levels on central nervous system (CNS) function, especially on learning and memory, since current diabetes models are not sufficiently developed to address such research questions. This article describes a method to chronically increase CSF glucose levels for 4 weeks by continuously infusing glucose into the lateral ventricle using osmotic minipumps in mice. The protocol was validated by measuring glucose levels in CSF. This protocol increased CSF glucose levels to ~328 mg/dL after infusion of a 50% glucose solution at a 0.25 µL/h flow rate, compared to a CSF glucose concentration of ~56 mg/dL in mice that received artificial cerebrospinal fluid (aCSF). Furthermore, this protocol did not affect blood glucose levels. Therefore, this method can be used to determine the direct effects of high CSF glucose on brain function or a specific neural pathway independently of changes in blood glucose levels. Overall, the approach described here will facilitate the development of animal models for testing the role of high CSF glucose in mediating features of Alzheimer's disease and/or other neurodegenerative disorders associated with diabetes.

Introduction

Both type 1 and type 2 diabetes impair brain function^1,2,3. For example, diabetes increases the risk of cognitive decline and neurodegenerative disorders, including Alzheimer's disease^3,4. Moreover, people with diabetes have defective glucose sensing in the brain^5,6. This defect contributes to the pathogenesis of hypoglycemia associated unawareness and an insufficient counter-regulatory response to hypoglycemia^7,8, which can be fatal if not treated immediately.

Considering that diabetes increases glucose levels in the blood as well as in cerebrospinal fluid (CSF)⁹, it is important to determine whether one or both of these factors contribute to impaired brain function. Whether diabetes causes brain damage by high CSF glucose alone or in combination with other factors like insulin deficiency or insulin resistance is also an open question. Animal models of type 1 and type 2 diabetes show cognitive decline and neurodegeneration in addition to an affected energy balance and peripheral glucose metabolism^10,11,12,13. However, from these models, it is not feasible to uncouple the selective effects of high CSF glucose versus blood glucose levels in mediating the complications of diabetes on brain function.

This protocol describes methods to develop a mouse model of hyperglycorrhachia to test the effects of chronically high CSF glucose levels on brain function, energy balance, and glucose homeostasis. The mouse model developed through this technique presents a tool for studies investigating the etiological role of dysregulated glucose homeostasis on neural and behavioral function.

Therefore, the proposed approach will be useful in understanding the direct effects of elevated CSF glucose levels in various pathophysiological conditions.

Protocol

All mouse procedures were approved by the Institutional Animal Care and Use Committee at the University of Rochester and were performed according to the US Public Health Service guidelines for the humane care and use of experimental animals. Six weeks old C57BL/6J male mice used for this study were commercially obtained. All the animals were group housed (5 mice per cage) in a room with a 12 h day/night cycle and were given access to food and water ad libitum. After the mice were implanted with a cannula for infusing glucose into the lateral ventricle, they were single housed to prevent any damage to the implants from other mice.

1. Assembly of osmotic minipumps

1. Prepare artificial cerebrospinal fluid (aCSF) according to the following protocol. Dissolve NaCl (8.66 g), KCl (0.224 g), CaCl₂.2H₂O (0.206 g), and MgCl₂.6H₂O (0.163 g) in 500 mL of sterile water to prepare solution A. Dissolve Na₂HPO₄.7H₂O (0.214 g) and NaH₂PO₄.H₂O (0.027 g) in 500 mL of sterile water to prepare solution B. Then, mix solution A and B in a 1:1 ratio to prepare the aCSF.
   NOTE: This formulation of aCSF contains no glucose.
2. To prepare the 50% glucose solution, add 50 g of glucose to 50 mL of aCSF in a beaker. Place the beaker on a hot plate and bring the temperature of the suspension to 60 °C. Mix the suspension with a magnetic stirrer until the glucose is completely dissolved.
3. Add aCSF to the beaker to make the final volume 100 mL. Pass the solution through 0.22 µm pore filter to sterilize it.
4. Prepare a 0.9% saline (NaCl) solution and pass the solution through the 0.22 µm filter.
5. Place all the components of the minipump and infusion kit in a sterile tray and cut the tubing from the brain infusion kit to 1 inch in length with a sterile scissor. Hold the tubing with a sterile hemostat and push it on the top of one end of the cannula. Connect the other end of the tubing to the top side of the flow modulator. Cover both ends of the tubing with a small amount of glue for a stronger connection.
6. Attach a 27 G needle to a 1 mL syringe and fill it with either aCSF or the glucose solution. Insert the 27 G needle into a small piece of tubing. Then, connect the tubing to the open end of the flow modulator and fill it with the corresponding solution until drops of the solution start coming out from the cannula. Remove any air bubbles trapped in the tubing.
7. To fill the minipump, hold the pump upright and insert the syringe needle into the pump. Fill it with the corresponding solution until a drop of the solution starts forming at the opening of the minipump.
8. Slowly insert the flow modulator into the pump while making sure not to introduce any air bubbles in the assembly.
9. After the osmotic minipumps are assembled, transfer them to a 50 mL conical tube. Fill the tube with the sterile saline so that the pumps are completely submerged, while making sure that the cannula stays out of the saline solution. Four such assembled pumps can be placed in one 50 mL tube.
10. Loosely place the cap on each tube and incubate the pumps at 37 °C to prime for at least 48 h.

2. Surgery to implant osmotic pumps

1. Pre-surgery procedure
   1. Sterilize the surgical instruments in an autoclave and let them cool down for at least 30 min before use. The autoclave conditions involve steam sterilization at 121 °C for 30 min.
   2. Disinfect the surgery area with 70% ethanol. Wipe the knobs, ear bars, and stereotaxic frame surface.
      NOTE: Surgery should be performed in an aseptic environment, keeping in mind to avoid touching non-sterile surfaces while performing surgery. Replace gloves if there is a suspicion of contamination.
   3. Place the mouse in an anesthesia chamber to anesthetize it with 3% isoflurane mixed in air for 3-5 min. Then, remove the mouse from the chamber and place it on a sterile drape. Maintain anesthesia via a nose cone at 1.5%-2%.
   4. Pinch the mouse hind paw to observe any reflex and verify the depth of anesthesia.
   5. Inject 5 mg/kg carprofen subcutaneously for analgesia.
   6. Use clean clippers to clip the surgery area on the mouse head. Rub the scalp first with povidone-iodine solution and then with alcohol swabs thoroughly for at least 2 min. Repeat this process at least three times.
   7. Apply an eye lubricant to prevent the eyes from drying during surgery.
2. Surgery
   1. Place the mouse on the stereotaxic frame and fit the head on the incisor bar. Cover the nose with the nose cone. Apply sterile drapes to secure the surgical area.
   2. Shift the flow of isoflurane to the nose cone. Continue to maintain the anesthesia at 1.5%-2% isoflurane.
   3. Place a heating pad under the mouse to maintain the body temperature.
   4. Put on new sterile gloves and, with a scalpel, make a midline incision (~10-15 mm long) on the scalp. Expose the skull surface with a spatula while using cotton tips to wipe any bleeding.
      NOTE: Use a cauterizer if bleeding profusely, which is rare.
   5. Rub with a cotton tip dipped in 3% hydrogen peroxide to expose the cranial sutures.
   6. Take note of bregma and lambda to navigate the skull coordinates. Set all the coordinates to zero at bregma.
      NOTE: These coordinates were obtained from a mouse brain atlas¹⁴. The reference bregma-lambda distance in the atlas is 4.21 mm. To correct for age- and sex-based differences in skull size, the bregma-lambda distance for each mouse was measured and then divided by 4.21 mm to obtain a multiplication factor. For example, if the distance between bregma and lambda was 4.65 mm, division by 4.21 mm gave a multiplication factor of 1.10. All the coordinates obtained from the atlas were then multiplied with this factor to measure the actual coordinates that were used to drill the hole. In the above example, the resulting anterior-posterior (AP), and medial-lateral (ML) coordinates would be 0.55 and 1.1 mm, respectively (i.e., 1.1 x 0.5 or 1 mm).
   7. Use an electric drill to make a hole at these coordinates: 0.5 mm posterior to bregma and 1 mm lateral to midline toward the right.
      NOTE: While drilling the hole in the skull, be careful not to rupture the dura mater. Make sure the drill bit is sterile. It can be placed with other instruments in the same autoclave pouch for sterilization.
   8. Insert a hemostat under the incised skin and push it to the place where the osmotic minipump will be implanted. Gently open and close the hemostat to make a pocket for the minipump.
   9. Use a sterile hemostat to pick a primed osmotic minipump from the tip of the flow modulator. Push the pump through the incised skin into the pocket.
      NOTE: Be careful to not let the pump and the cannula touch any non-sterile surface.
   10. Apply some glue on the underside of the cannula and fix it in the cannula holder. Lower the cannula slowly through the drilled hole 2 mm ventral to the skull surface. Leave it there for at least 5 min to allow the glue to solidify.
   11. Before inserting the cannula down into the brain, make sure that the cannula is not clogged and that the solution is flowing properly.
       NOTE: Sometimes, glucose may deposit at the tip of the cannula due to a very low flow rate, blocking the flow.
   12. With the help of a scissor, clip the top of the cannula making sure that it doesn't dislodge from the skull surface.
   13. Cover the cannula with a layer of dental cement for extra support.
   14. Use nylon sutures (5-0 size and 30 inches in length) to close the wound and apply topical antibiotic on the wound to prevent infection.
   15. Turn off the isoflurane and let the animal recover from the anesthesia. Then, transfer the animal to a new clean cage.
3. Post-surgery care
   1. After surgery, monitor the mouse for at least 1 week.
   2. Administer 5 mg/kg carprofen subcutaneously, once every 24 hours for three days post-surgery.
   3. Let the wound heal completely before removing the sutures 7-10 days after surgery.
      ​NOTE: It was observed that mice with high CSF glucose took longer to heal. Trimming nails on mouse's hind paws minimizes the chance of injury to the site of the incision due to the scratching behavior of mice.

3. Replacement of the minipumps

NOTE: Since, the minipumps used in this study last only for 4 weeks, the replacement of minipumps was also tested to extend the duration of glucose infusion, as it may be required in the case of long-term studies. This involved the following steps.

1. Prepare the mice for surgery as detailed above.
2. Make a small 1 cm vertical incision in the skin slightly above the pump.
3. Insert a hemostat under the incised skin and pull the pump out.
4. Remove the pump from the tubing and connect a new primed pump to the tubing.
5. Insert the pump back inside and stitch the skin.
6. Follow the same post-surgery care instructions as described above.

4. CSF collection procedure

1. Preparation
   1. Pull 1 mm diameter glass capillaries with a micropipette puller machine to obtain 0.5 mm diameter tips. The settings are: heat = 800, pull = 15, velocity = 5, and time = 200 units. Place the pulled capillaries in a sterile box till use.
   2. Attach a 27 G needle to a 1 mL syringe. Insert the pulled capillary on the needle and use a small adhesive tape to secure the connection.
   3. Firmly fix the syringe in a capillary holder of a micromanipulator.
   4. Next, prepare the mouse for surgery, as described in the pre-surgery procedure above.
2. Surgical procedure
   1. Place the mouse on the stereotaxic frame. After fixing the head on the frame, as described previously, rotate the knobs to tilt the head so that the nose is facing downward. Apply sterile drapes to secure the surgical area.
   2. Make a small incision on the dorsal surface, starting from the intra-aural plane to the caudal side.
      NOTE: Be careful not to damage the tubing while making the incision.
   3. Remove the support from the mouse body and let the mouse rest vertically so that the neck is fully extended dorsally.
   4. With the help of curved blunt forceps, gently bisect the posterior neck muscles from the midline to create a small window. Then, use a wet cotton tip applicator to gently displace the neck muscles from mid-line to the periphery.
   5. Observe whether the cisterna magna is exposed, which appears as a triangular window with a transparent dura membrane.
   6. Place the micromanipulator assembly on the stereotaxic frame next to the mouse while making sure that the capillary tip does not touch any surface.
   7. Gently break the capillary tip without disturbing the setup.
   8. While looking into the magnifying glass (magnification of 2.25x), rotate the corresponding knobs on the micromanipulator to slowly align and move the capillary tip toward the cisterna magna.
   9. Some resistance is felt once the capillary tip touches the cisterna magna membrane. Very slowly push the tip against the membrane with the help of the knobs.
      NOTE: Be careful not to damage any blood vessels in the membrane. This step is very important to avoid any blood contamination in the CSF.
   10. Very gently pierce the membrane. CSF will start flowing into the capillary at once due to negative pressure in the capillary.
   11. Leave the setup for few minutes until ~10 µL of CSF is collected in the capillary.
   12. Then, slowly draw the capillary out of the cisterna magna and gently press a sterile cotton tip applicator against the opening of the cisterna magna to stop CSF leakage.
   13. Carefully remove the capillary from the syringe and attach it to a microcap bulb dispenser. Press the bulb to transfer the CSF into a sterile microcentrifuge tube.
   14. Place a support under the mouse and rotate the stereotaxic knobs to level the head.
   15. Close the wound with nylon sutures.
   16. Inject 300 µL of sterile saline subcutaneously before removing the mouse from the apparatus.
   17. Give post-operative care to the animals as described above, until it is time to remove the sutures-~7-10 days after surgery.

5. Glucose assay

1. Follow the protocol as described in the glucose colorimetric assay kit.
2. Dilute the sodium phosphate buffer stock solution provided in the kit to 50 mM concentration in ultra-pure water.
3. Prepare glucose standards in 0, 2.5, 5, 7.5, 10, 15, 20, 25, and 50 mg/dL ranges from the 1,000 mg/dL stock solution provided in the kit in diluted buffer solution.
4. Prepare a 7 fold dilution of CSF samples in the buffer. For example, if the total CSF volume collected is 10 µL, then the seven fold diluted volume will be 70 µL.
5. Pipette 15 µL of glucose standards and diluted CSF in duplicates in a 96-well plate.
6. Pipette 85 µL of diluted buffer in each of the wells with standards and CSF.
7. Add 6 mL of diluted buffer to the glucose calorimetric enzyme mixture vial and vortex it for a few seconds to mix thoroughly.
8. Add 100 µL of the enzyme mixture preparation to each well to start the reaction.
9. Seal the plate with a cover sheet and tap on the plate gently to mix the reagents.
10. Place the plate in an incubator at 37 °C for 10 min. Vials with high glucose start to turn violet immediately.
11. After 10 min, remove the cover and measure the absorbance at 500-520 nm using a plate reader.
12. Calculate the glucose concentration in the CSF samples by interpolating their values from the standard curve.

6. Blood glucose assay

1. Make a small lateral nick to the mouse tail using a razor blade and use a drop of blood to measure the blood glucose with a glucometer, according to the manual instructions.

Results

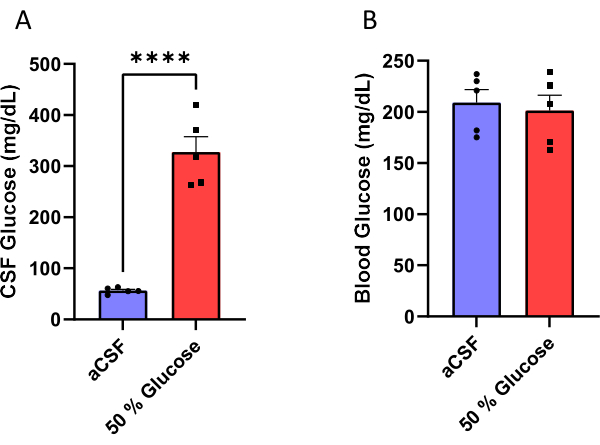

Male mice were implanted with a cannula assembled to an osmotic minipump (Figure 1) to chronically infuse aCSF or a 50% glucose solution into their lateral ventricles (Figure 2). CSF was collected 10 days after the surgery (Figure 3) to validate the efficacy of this procedure. The results showed an increase in the CSF glucose levels (mean: 327.7 mg/dL) in mice infused with 50% glucose compared to that (mean: 56.5 mg/dL) in mice infu...

Discussion

This article reports a detailed protocol to increase CSF glucose in mice by using osmotic minipumps connected to a cannula implanted in the lateral ventricle. The chronic infusion of glucose in the mouse brain through this procedure will be useful in delineating the effects of long-term hyperglycorrhachia on cognition, systemic glucose metabolism, and energy balance and for better understanding the pathogenesis of diabetes complications.

Chronic diabetes causes brain damage that inte...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
0.22 µm syringe filter	Membrane solutions	SFPES030022S
1 mL sterile Syringe (Luer-lok tip)	BD	309628
1 mL TB syringe	BD	309659
100 mL Glass beaker	Fisher	N/a
100% Ethanol (Koptec)	DLI	UN170	Use 70% dilution to clean the surgery area
50 mL conical tube	Fisher	N/A
Allignment indicator	KOPF	1905
Alzet brain infusion kit	DURECT	Kit # 3; 0008851	Cut tubing in the kit to 1 inch length
Alzet osmotic pump	DURECT	2004	Flow rate 0.25 µL/h
Anesthesia system	Kent Scientific	SomnoSuite
Betadine solution	Avrio Health	N/A
CaCl2 . 2H2O	Fisher	C79-500
Cannula holder	KOPF	1966
Centering scope	KOPF	1915
Dental Cement Liquid	Lang Dental	REF1404
Dental cement Powder	Lang Dental	REF1220-C
D-glucose	Sigma	G8270
Electric drill	KOPF	1911	While drilling a hole avoid rupturing dura mater
Eye lubricant (Optixcare)	CLC Medica	N/A
Glass Bead sterilizer (Germinator 500)	VWR	101326-488	Place instruments in sterile water to let them cool before surgery
Glucose Assay Kit	Cayman chemical	10009582
H2O2	Sigma	H1009-500ml	Apply 3% H2O2 on skull surface to make the cranial sutures visible.
Hair Clipper	WAHL	N/A
heating pad	Heatpax	19520483
Hemostat	N/A	N/A
Isoflurane (Fluriso)	Zoetis	NDC1385-046-60
KCl	VWR	0395-500g
Magnetic stand	WPI	M1
Magnifying desk lamp	Brightech	LightView Pro Flex 2
Metal Spatula	N/A	N/A
MgCl2 . 6H2O	Fisher	BP214-500
Micromanipulator (Right handed)	WPI	M3301R
Micromanipulator with digital display	KOPF	1940
Na2HPO4 . 7H2O	Fisher	S373-500
NaCl	Sigma	S7653-5Kg
NaH2PO4 . H2O	Fisher	S369-500
Neosporin	Johnson & Johnson	N/A	Apply topical oinment to prevent infection
Parafilm	Bemis	DM-999
Rimadyl (Carprofen) 50mg/ml	Zoetis	N/A	5 mg/kg, subcutaneous, for analgesia
Scalpel	N/A	N/A
Stereotaxic allignment system	KOPF	1900
Sterile 27 gauge needle	BD	305109
Sterile cotton tip applicators (Solon)	AMD Medicom	56200
Sterile nylon sutures (5.0)	Oasis	MV-661	Use non-absorable suture for closing the wound
Sterile sharp scissors	N/A	N/A
Sterile surgical blades	VWR	55411-050
Surgical gloves (Nitrile)	Ammex	N/A	Change gloves if there is suspision of contamination
Tray	N/A	N/A
