LISW waveform
The reproducibility of the LISW pressure waveform was measured 5x at 2.0 J/cm2 as follows. The waveforms were generally similar and stable and showed a sharp increase with time width, peak pressure, and impulse of 0.43±0.4 µs, 92.1 ± 6.8 MPa, and 14.1 ± 1.9 Pa∙s (median ± SD), which corresponds to SW characteristics (Figure 1B). LISWs are characterized by a fast rise time, high peak pressure, short duration, and positive pressure dominance. When applied to biological tissue, the target is placed directly onto the living tissue through the jelly, and it can be considered that the SW has almost the same characteristics as the measured SW applied to the tissue. After exposure to LISW, the occurrence of TMP was assessed using a small digital endoscope. None of the mice in the LISW energy group exhibited TMP after exposure (Figure 1C).
Auditory assessment
An ABR examination was performed to determine auditory function. ABR is a measurement of the sound-evoked potential in the auditory pathway, and ABR P1 represents accumulated neural activity in the cochlear nerve. One day after LISW exposure, the exposed ear showed a significant difference in the ABR threshold shift among the different LISW groups (two-way ANOVA, p < 0.0001; Figure 2A). This increase in the ABR threshold shift persisted for up to 1 month after LISW exposure in the 2.25 and 2.5 J/cm2 groups (two-way ANOVA, 2.25 J/cm2, p < 0.0001; 2.5 J/cm2, p < 0.0001). In particular, the high-frequency region exhibited a notable increase in ABR threshold shift. However, ABR thresholds recovered to a level that was not significantly different from preirradiation in the 2.0 J group (two-way ANOVA, 2.0 J/cm2, p = 0.76), indicating that the threshold elevation was energy-dependent. Regarding ABR P1 amplitudes, all LISW-irradiated groups showed a significant decrease in ABR P1 amplitudes at all frequencies 1 day and 1 month after LISW exposure (two-way ANOVA, p < 0.0001; Figure 2B). The unexposed ear (control; left ear) exhibited no noticeable alterations in ABR hearing threshold following LISW exposure (data not shown).
Survival of HCs and SGN
Microscopic observation of LISW-exposed ears revealed no mechanical damage to the cochleae, such as fracture and dislocation of the ossicles, round window membrane rupture, or intracochlear hemorrhage, following LISW exposure (data not shown), which is consistent with previous findings6,14.
Fluorescent immunostaining of HCs with Myo7A, synaptic ribbons with CtBP2, and the cochlear nerve with NF is shown in Figure 3A. No severe cochlear damage, such as the loss of HCs or nerve fibers, was observed in any of the groups. However, the quantitative assessment of Myo7A positive OHCs survival differed significantly between the groups (two-way ANOVA, p = 0.002; Figure 3B). The 2.5 J/cm2 group showed significantly lower survival rates of OHCs than the control group, especially in the high-frequency region (two-way ANOVA, 2.5 J/cm2, p = 0.0002). However, the survival rates of IHCs were comparable among the groups, indicating that OHCs are vulnerable to high-energy LISW (two-way ANOVA, p = 0.76). A quantitative assessment of synaptic ribbon survival is shown in Figure 3C. Synaptic ribbons were significantly reduced in both the 2.25 and 2.5 J/cm2 groups compared to the control (two-way ANOVA, 2.25 J/cm2, p < 0.0001; 2.5 J/cm2, p < 0.0001), and the higher frequencies exhibited a stronger tendency to decrease, similar to that of ABR threshold shift and OHC survival.
Next, the SGN density was assessed, as shown in Figure 3D. There was a significant difference in SGN density among the groups (two-way ANOVA, p = 0.76), and the 2.5 J/cm2 group showed significantly lower survival rates of SGN compared to the control groups (two-way ANOVA, 2.5 J/cm2, p = 0.007). However, 2.0 and 2.25 J/cm2 groups showed comparable SGN survival compared to the controls. This result indicates that the severity of cochlear degeneration and hearing dysfunction depends on the LISW energy exposure, which is consistent with the ABR and HC survival results.
Stereociliary bundle
We observed a notable increase in the ABR threshold, approximately 30 dB, in both the 2.25 and 2.5 J/cm2 groups at frequencies above 20 kHz, which persisted up to 1 month following LISW exposure (as shown in Figure 2A). However, the 30-dB threshold shift we observed cannot be solely attributed to the loss of OHCs, degeneration of cochlear synapses, or a reduced number of SGCs (Figure 3). A previous study indicated that the ABR threshold shifts were minimal when the number of synaptic ribbons decreased by 50%19. Therefore, we performed SEM to investigate the cause of ABR threshold elevation. Following LISW exposure at an intensity of 2.5 J/cm2, some stereociliary bundles of OHCs appeared to be disrupted, particularly in high-frequency regions (Figure 4A), which may be one of the causes of enhanced ABR threshold following LISW exposure. Quantitative assessment of stereociliary disruption revealed that the disruption ratio tended to be higher in the higher-frequency region in an energy-dependent manner (Figure 4B).

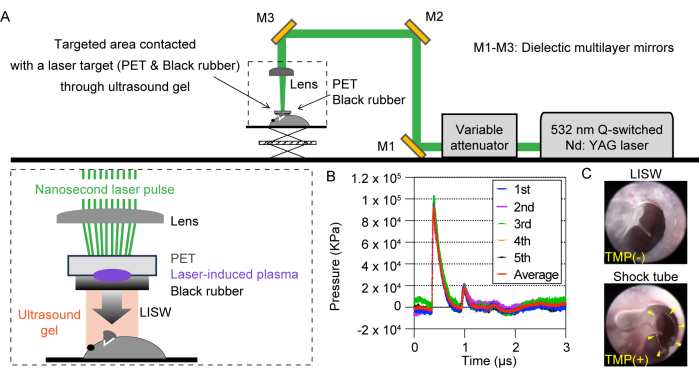

Figure 1: Experimental settings and pressure profile of LISW. (A) Experimental setup for generating LISW in animals. (B) Characteristics of the LISW pressure waveforms set at 2.0 J/cm2. (C) Representative images of the tympanic membrane. TMPs were not observed in any of the LISW-exposed ears. As a reference, representative blast-induced TMP (yellow arrowheads) is shown using a blast tube. Abbreviations: LISW = laser-induced shock wave; PET = polyethylene terephthalate; TMP = tympanic membrane perforation; YAG = yttrium aluminum garnet; SHG = second harmonic generation. Please click here to view a larger version of this figure.

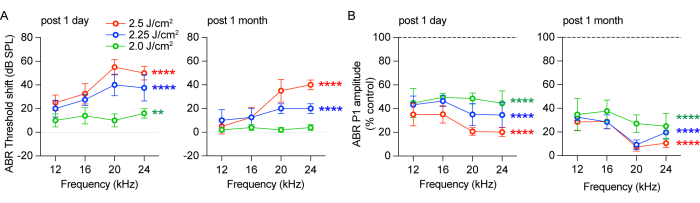

Figure 2: ABR results after exposure to LISW. (A) Significant ABR threshold shifts were observed in all groups 1 day after exposure to LISW. The ABR threshold shifts in the 2.25 and 2.5 J/cm2 groups remained significantly elevated for up to 1 month after exposure to LISW. (B) The ABR P1 amplitude 1 day and 1 month after exposure to LISW significantly decreased in all the groups. Asterisks indicate significant differences among groups compared to the preexposure values (**p < 0.001, ****p < 0.0001). Error bars indicate the standard error of the mean. Abbreviations: ABR = auditory brainstem response; LISW = laser-induced shock wave; P1 = peak 1; SPL = sound pressure level. Please click here to view a larger version of this figure.

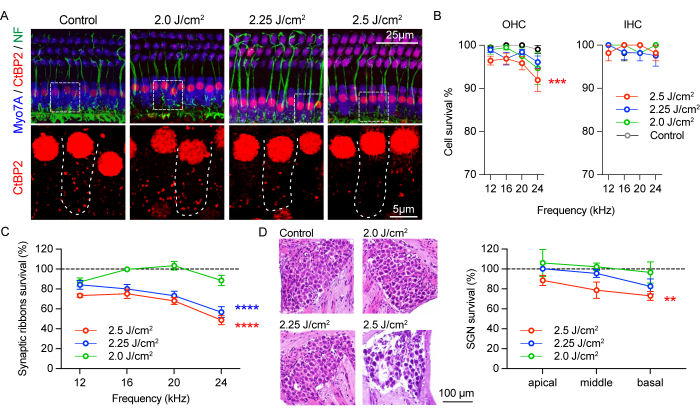

Figure 3: Cochlear pathology after exposure to LISW. (A) Confocal fluorescence images of the organ of Corti in the 20 kHz region stained with Myo7A (blue), CtBP2 (red), and NF (green) following exposure to LISW. (B) The average percentages of surviving HCs are shown in the cytocochleograms. Quantitative assessment revealed a significant loss of OHCs at 2.5 J/cm2, although there was no significant difference in IHC survival between groups. (C) The survival rate of presynaptic ribbons compared to pre-exposure values was significantly decreased in the 2.25 and 2.5 J/cm2 groups. (D) Representative photomicrographs of SGNs in all groups 1 month after exposure to LISW. The SGN survival rate decreased significantly at 2.5 J/cm2. Asterisks indicate significant differences compared to pre-exposure values (**p < 0.001, ****p < 0.0001). Error bars indicate the standard error of the mean. Scale bars = 5 µm (A), 100 µm (D). Abbreviations: LISW = laser-induced shock wave; IHC = inner hair cell; NF = neurofilament; OHC = outer hair cell; SGN = spiral ganglion neuron. Please click here to view a larger version of this figure.

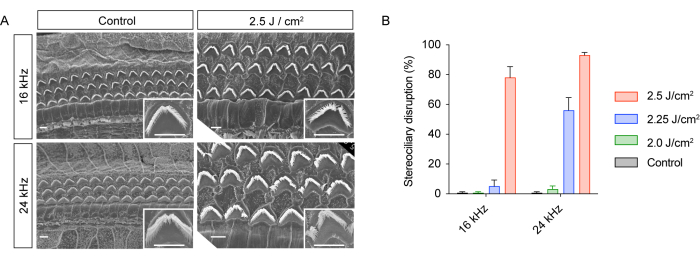

Figure 4: Surface structures of OHCs. (A) Representative scanning electron microscopy images of OHC stereocilia in the 16 kHz and 24 kHz regions of the organ of Corti one month after exposure to LISW. Stereociliary disruption is seen in enlarged images of the boxed area in the 2.5 J/cm2 (24 kHz area) group. Scale bar -= 2 µm. (B) The stereociliary disruption rate was higher with an increase in LISW overpressure. Abbreviations: LISW = laser-induced shock wave; OHC = outer hair cells. Please click here to view a larger version of this figure.
