Preparation of Washed Human Platelets for Quantitative Metabolic Flux Studies

Summary

Platelet metabolism is of interest, particularly as it relates to the role of platelet hyper- and hypoactivity in bleeding and thrombotic disorders. Isolating platelets from plasma is necessary for some metabolic assays; presented here is a method for isolating of intracellular metabolites from washed platelets.

Abstract

Platelets are blood cells that play an integral role in hemostasis and the innate immune response. Platelet hyper- and hypoactivity have been implicated in metabolic disorders, increasing risk for both thrombosis and bleeding. Platelet activation and metabolism are tightly linked, with the numerous methods to measure the former but relatively few for the latter. To study platelet metabolism without the interference of other blood cells and plasma components, platelets must be isolated, a process that is not trivial because of platelets shear sensitivity and ability to irreversibly activate. Presented here is a protocol for platelet isolation (washing) that produces quiescent platelets that are sensitive to stimulation by platelet agonists. Successive centrifugation steps are used with the addition of platelet inhibitors to isolate platelets from whole blood and resuspend them in a controlled, isosmotic buffer. This method reproducibly produces 30%–40% recovery of platelets from whole blood with low activation as measured by markers of granule secretion and integrin activity. Platelet count and fuel concentration can be precisely controlled to allow the user to probe a variety of metabolic situations.

Introduction

Platelets are small (2–4 µm diameter), anucleate cells that play an important role in hemostasis, the tightly regulated process of clot formation¹. While vital for vascular integrity, platelets are also implicated in adverse health events. Platelets are involved in deep vein thrombosis (DVT) and arterial thrombosis (AT), which are clots that occlude blood vessels, leading to diminished blood supply locally, or, if pieces of the clot break off (embolize), they can block blood supply to the lungs, heart, or brain^2,3,4,5,6,7. Platelet hyperreactivity is a comorbidity of hypertension, diabetes, and cancer, leading to increased incidence of DVT and AT^8,9,10. Platelet activation and metabolism are tightly linked^11,12, leading to increased interest in targeting platelet metabolism as a therapeutic strategy^13,14. There is debate about the exact metabolic rewiring that occurs upon activation, and this is an active field of study¹⁵. This increased interest in platelet dysfunction in disease and its ties to metabolism underscores the need for a repeatable method to isolate platelets and study their metabolism.

Human platelets are typically obtained by venipuncture and then isolated from whole blood.  Washed platelets are separated from whole blood via successive washing and centrifugation steps¹⁶. This was originally done by Mustard’s group¹⁷, and modified slightly by Cazenave’s group¹⁸. Another alternative is gel filtered platelets, which can be obtained from platelet rich plasma (PRP) by size exclusion chromatography using a packed column of agarose gel beads¹⁹. Many washing protocols exist for both human and rodent blood, and are optimized for various assays^20,21,22,23, but not for measuring platelet metabolism.

Techniques to study platelet metabolism include bioenergetic measurements via Seahorse XF analyzer^{11,24,25,26,27}, extracellular flux measurements^11,13,24, metabolomics^14,28, and isotope assisted metabolic flux analysis (¹³C-MFA)²⁹. In metabolomic studies, the goal is typically to determine altered pathways between two different conditions (for example, resting vs activated platelets¹⁴). Metabolomic studies involve the use of liquid chromatography-mass spectrometry (LC-MS). These studies can be done for intra- or extracellular metabolites and are frequently coupled with pathway analysis or principal component analysis (PCA)^14,28. Isotope assisted metabolic flux analysis (¹³C-MFA) involves feeding cells a labeled substrate known as a tracer, and measuring how this tracer propagates through a reaction network with LC-MS. This technique allows for the calculation of fluxes through metabolic pathways with reaction level resolution^29,30. In whole blood and platelet rich plasma (PRP), fuel concentration (glucose, glutamine, acetate, etc) is subject to donor-to-donor variability, and albumin and sex hormone binding globulin present in plasma can alter the active concentration of hormones, drugs, and other biologically relevant molecules³¹. Washed platelets offer a method to suspend platelets in a user-defined medium, including known fuel concentrations, that is compatible with ¹³C-MFA³².

Described here is a method for platelet washing to produce platelets that can be used in metabolic assays. The protocol produces quiescent platelets with low red blood cell and white blood cell contamination.  Platelet activation status was monitored via flow cytometry of platelet activation markers. This protocol reproducibly achieves at least 30%–40% platelet recovery relative to the platelet count in whole blood. The washed platelets obtained with this technique are suitable for the metabolic analysis techniques, and the intracellular metabolite extraction method can be tailored to analysis of the user’s choosing (LC-MS, GC-MS, photometric assay, etc).

Protocol

The study received Institutional Review Board approval from the University of Colorado Anschutz Medical Campus. Written consent was obtained from all study participants. Participants reported they did not consume alcohol for the previous 48 h or non-steroidal anti-inflammatory drugs (NSAIDs) for the previous ten days. This project is supported by the National Heart, Lung, and Blood Institute of the National Institutes of Health under award number R61HL141794.

1. Blood collection

1. Set up for blood draw. It is recommended blood collection is carried out by a trained phlebotomist.
2. Perform venipuncture on the inner arm using a 19 G needle.
3. Collect the first ~2 mL into an additive-free vacutainer and dispose. This is to remove chemical signaling molecules from damaged endothelial cells that may activate platelets. After the initial 2 mL is collected, remove tourniquet to reduce shear stress on platelets.
4. Collect the rest of blood into antiocoagulent citrate dextrose (ACD-A) vacutainers in a ratio of 14:3 (blood:ACD-A). Gently invert each vacutainer after blood collection to mix blood and anticoagulant.

2. Platelet Washing

Figure 1: Successive centrifugation and resuspension steps involved in platelet washing. Please click here to view a larger version of this figure.

NOTE: Avoid air bubble generation. Use transfer pipettes to remove bubbles when they are formed, especially prior to centrifuging. Each time the tubes of blood/platelets are open/closed, its recommended to breath into the tube prior to closing the cap to increase CO₂ level.

1. Pre-heat centrifuge to 37 °C to reduce temperature effects. Between each centrifugation step in the protocol, maintain the centrifuge at 37 °C.
2. Preheat water bath to 37 °C. Place modified Tyrode’s buffer with glucose in the water bath.
   NOTE: modified Tyrode’s buffer recipe can be found in Supplementary File 1.
3. Combine collected whole blood from all vacutainers into 50 mL polypropylene conical tubes. Using a bevel cut pipette tip cut at a 45° angle, take appropriate sample volume to conduct a cell count (see Cell Counting).
4. Remove any bubbles generated by carefully aspirating with a narrow bore transfer pipette.
5. Let blood rest in water bath for 25 minutes at 37 °C This allows platelets in a reversibly activated state (from being removed from the body, transferred from tube to tube, etc.) to return to a resting state.
6. To prevent activation during centrifugation, add 500 nM prostaglandin I₂ (PGI2) and 0.02 U/mL of apyrase to whole blood and mix gently by inverting once.  Remove any bubbles generated using a narrow bore transfer pipette.
   NOTE: Instructions for proper PGI₂ and apyrase recipe can be found in Supplementary File 1.
7. Centrifuge whole blood to obtain platelet rich plasma (PRP) (15 minutes at 250 x g for 42 mL of whole blood) with no brake (37 °C).
8. Gently collect the PRP (top yellow layer above the buffy coat and red blood layer) into a new 50 mL conical tube using a wide bore transfer pipette.
9. When transferring, tilt a clean conical tube and gently run the PRP down the side of the tube. Avoid air bubbles.
10. Leave approximately 3 mm of PRP behind to avoid disturbing the buffy coat (the layer of white blood cells between the PRP and the red blood). If disturbed, this will look like a sudden swirl of white in the transfer pipette.
11. Take cell count (See Counting Platelets) to determine resuspension volume for next wash step.
12. Allow to rest for 10 minutes at 37 °C.
13. Using a bevel cut pipette tip, take sample for flow cytometry (see Flow Cytometry).
14. Add 500 nM PGI₂ and 0.02 U/mL apyrase to PRP and mix by gently inverting once.
15. Centrifuge for 10 minutes at 1000 x g at 37 °C (acceleration:0 brake: 0). Do not use brake. The pellet is not compact, and sudden brake can cause remixing.
16. While centrifuging, determine resuspension volume. Assume 75% recovery. Make cell density approximately 3x10⁵ cells/μL.
17. Aspirate supernatant using a plastic wide bore transfer pipette for the bulk volume and a 1 mL pipette (uncut tip) for the remainder of the liquid near the pellet. Avoid touching pellet at bottom of tube.
18. Add 500 nM PGI₂ and 0.02 U/mL of apyrase to modified Tyrode’s buffer. Slowly add calculated amount of buffer from step 16 by trickling down the side of the conical tube.
19. Using a bevel cut tip and a 1 mL pipette tip, gently resuspend pellet by gently pipetting up and down several times.
    1. Set volume to 300 μL, depress plunger all the way while above the liquid line, then place pipette below liquid and come up to first stop. This will allow the scientist to resuspend the pellet without accidentally creating air bubbles that may activate the platelets.
    2. Occasionally, there is a ring of visible red blood cells at the bottom of the pellet. Avoid resuspending this.
20. Once the pellet is resuspended, use a wide bore transfer pipette to transfer resuspended pellet to a new conical tube, leaving any red cells or visibly clumped cells behind.
21. Repeat steps 11-20. Ensure to add 500 nM PGI₂ and 0.02 U/mL from a fresh aliquot to modified Tyrode’s buffer (do not re-use modified Tyrode’s buffer from step 18, PGI₂ is too unstable).
22. Take a sample for a cell count. Adjust platelet concentration as necessary with modified Tyrode’s buffer.
23. Use a bevel cut pipette tip to take a sample for flow cytometry.
24. Allow the platelets to rest for 1 h at 37 °C to allow time for the inhibitors to wear off and allow any reversibly activated platelet to return to a resting state.
25. Gently mix with a wide bore pipette. Take samples for flow cytometry.
26. The washed, resting platelets are now ready to be used for metabolic analysis.

3. Counting platelets

1. Platelets can be counted using either an automated blood cell counter (follow manufacturer’s instructions) or a hemocytometer³³.

4. Flow Cytometry

1. Preparation
   1. Detailed protocols and reviews of best practices for setting up antibody mixes and preparing the flow cytometer to measure platelet activation can be found elsewhere^34,35.
2. Sampling
   1. When taking a sample for flow cytometry, collect platelet suspension using a bevel cut pipette tip. Slowly add this to microcentrifuge tube with antibodies, then flick gently to mix. Allow to incubate for 30 s.
   2. Using bevel cut pipette tip, transfer platelet suspension/antibody mix to appropriate well on 96 well plate.
   3. Immediately add fixant to well to fix cells.
   4. Run on flow cytometer within 8 h of fixation.
3. Agonist sensitivity tests
   1. After washing, set aside 2 15 mL conical tubes, one for a resting control and one as a thrombin activated control.
   2. Gently pipette 100 μL of platelet suspension into each conical tube using a bevel cut pipette tip. Allow to rest at 37 °C for 1 h.
   3. After the hour rest, add 0.1 U/mL of thrombin to one tube (instructions for thrombin preparation can be found in Supplementary File 1), and vehicle to the other. Incubate at 37 °C for 15 min.
   4. Take a flow cytometry sample of each tube to determine platelet sensitivity to agonist.

5. Sampling for Quantitative Metabolic Flux Analysis

1. Quenching
   NOTE: Quenching metabolism is a necessary step for measuring accurate metabolic fluxes. Rapidly chilling cells and maintaining their temperature at or below 4 °C slows metabolism enough that it can be assumed to be essentially halted so that the sampled cells accurately reflect the metabolism of cells from the bulk. There are a variety of methods that can be used, but to balance the need for rapid chilling and minimizing leakage, use cold ( -4 °C) normal saline³⁶. If salt will interfere with subsequent analysis, another fluid can be used (methanol/water, ethanol, etc.)³⁷.
   1. Prepare and freeze aliquots of normal saline. Make each saline aliquot at 6x the volume of the desired sample.
      NOTE: normal saline recipe can be found in Supplementary File 1.
   2. Pre-chill microcentrifuge to 0 °C.
   3. Collect platelet suspension in partially frozen normal saline (< -4 °C) in a 1:6 ratio (eg, collect 150 μL of platelet suspension into 750 μL of saline in microcentrifuge tubes).
      NOTE:Do not leave the platelet/saline solution on ice for more than 15 min.
   4. Centrifuge at 16,000 x g, 0 °C for 10 min.
   5. Save the supernatant for external metabolite analysis, and the pellet for intracellular metabolite extraction and measurement. Store both at -20 °C until ready for analysis.
   6. Repeat this process over desired time interval and number of sample time points.
2. Intracellular Metabolite Extraction
   1. Add 0.5 mL of pre-chilled 7:3 methanol-water at -20 °C to the quenched pellet. Vortex vigorously for 1 min.
   2. Freeze in liquid nitrogen, thaw at 0 °C, then repeat for 2 more cycles.
   3. Centrifuge the suspensions at 16,000 x g for 10 minutes at -4 °C.
   4. Collect the supernatant in a new microcentrifuge tube.
   5. Use the pellet from step 3 and repeat the extraction protocol (steps 1-3) with 50:50 methanol:water. Add the second collected extract to the first. Dry overnight.
   6. Resuspend the dried extract in 150 µL of LC-MS grade water (or other dissolvent appropriate for intended analysis). Mix for 15 minutes at 4 °C. Briefly vortex and transfer to 0.22 μm microcentrifuge tubes to remove cell debris. Centrifuge for 5 minutes at 16,000 x g and 4 °C.
   7. Remove from centrifuge, pipette an additional 50 μL optima water onto the filter, and centrifuge again (5 min, 16,000 x g and 4 °C) to rinse the filter. Collect for analysis.

Results

Representative results in Figure 2 represent 6 different blood donors, including 3 males and 3 females. The platelet yield relative to whole blood is shown in Figure 2A. Final platelet recovery was an average of 52% ± 3% (standard deviation, n=6). Final platelet count compared to white blood cell contamination was measured using an automated hematology analyzer. White blood cell counts were less than 0.1% of total cells (Figure 2B). Through the wash process and the hour rest, platelets maintained low P-selectin exposure, but responded strongly to thrombin treatment (Figure 2C). Bound fibrinogen spikes after the first 1000 x g spin, but returns to below 5% after the second 1000 x g spin. Like P-selectin exposure, bound fibrinogen drastically increases following thrombin treatment after the hour rest (Figure 2D). Representative gating for size, singlets and CD42a positivity are shown in Figure 3A-C. Events that pass these successive gates are used to look for P-selectin exposure and bound fibrinogen. Representative gating for P-selectin positive and fibrinogen positive platelets are shown in Figure 3D-E. Figure 3D shows a platelet sample treated with vehicle control and Figure 3E shows a platelet sample 15 minutes after 0.1 U/mL of thrombin was added.

Washed platelets were used to conduct a quantitative uptake and excretion experiment, shown in Figure 4. Platelets were washed, and 5 mmol/L of glucose and 20 mmol/L of acetate were added to the final washed suspensions. 0.1 U/mL of thrombin or vehicle was added to washed platelet suspensions after an hour rest. Samples were collected and quenched every 15 minutes after thrombin addition for 30 minutes. The supernatants were used to measure changes in concentration of extracellular lactate, glucose, and acetate using automated photometric assays. Flux was calculated by taking the regression slope of the concentration of the metabolite over time. Figure 4 shows the calculated metabolite fluxes for three representative donors. Lactate fluxes for all donors was positive, indicating lactate was being produced, and glucose and acetate fluxes were negative, indicating they were being consumed. While there is variation in the fold change, thrombin treatment led to an increase in the magnitude of fluxes compared to resting for each donor.

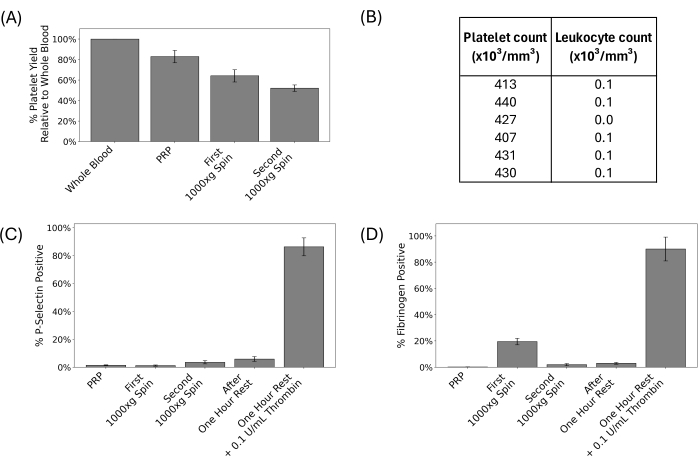

Figure 2: (A) Percent of platelets recovered relative to whole blood at each step of the wash process. n=6, error bars represent standard deviation. (B) Platelet and leukocyte cell count at the end of the wash process. (C) Percent of platelets positive for P-Selectin expression, measured by flow cytometry. n=6, error bars represent standard deviation. (D) Percent of platelets positive for fibrinogen, measured by flow cytometry. n=6, error bars represent standard deviation. . Please click here to view a larger version of this figure.

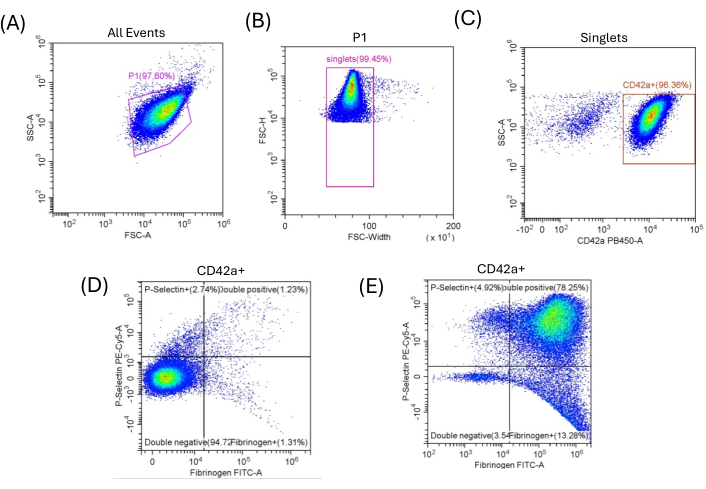

Figure 3: Representative gating for platelet flow cytometry. Platelets are (A) gated for size with forward scatter (FSC) and side scatter (SSC), (B) then gated for single cells with FSC-width and FSC-height, and (C) gated for CD42a positivity. Events that pass these successive gates are used to look for activation markers. (D) P-selectin and fibrinogen expression for a resting control platelet sample. Activation markers measured here are P-Selectin PECy5 and FITC-Fibrinogen. (E) P-selectin and fibrinogen expression for a 0.1 U/mL thrombin treated platelet sample. Activation markers measured here are P-Selectin PECy5 and FITC-Fibrinogen.. Please click here to view a larger version of this figure.

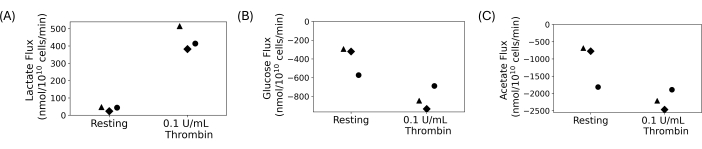

Figure 4: (A) Lactate excretion rates for three different donors for a resting and thrombin activated condition. (B) Glucose uptake rates for three different donors for a resting and thrombin activated condition. (C) Acetate uptake rates for three different donors for a resting and thrombin activated condition.  Please click here to view a larger version of this figure.

Supplementary File 1: Buffer and reagent preparation recipes and instructions. Please click here to download this File.

Discussion

Platelets are very sensitive to their environment, including shear stress and presence of agonists^38,39. This makes platelets challenging to handle and isolate, making the use of inhibitors and wide bore pipettes crucial⁴⁰. Proper storage and preparation of PGI₂ is vital, as failing to prepare PGI₂ in basic PBS will result in rapid degradation of PGI₂⁴¹. To minimize the risk of shear induced activation, use wide bore pipettes, bevel cut pipette tips, and a 19-gauge phlebotomy needle.

Inevitably, a portion of the platelets will be lost at each step of the wash process (Figure 2A). Not all platelets will end up in the plasma layer, and collecting plasma too close to the buffy coat layer risks white blood cell contamination. In addition, a population of platelets clump and sink to the bottom upon resuspension, emphasizing the importance of transferring the resuspended pellet to a clean tube after each resuspension. Notice in Figure 2D, there is an increase in fibrinogen binding as after the first 1000 x g spin which then goes down after the second 1000 x g spin. The samples for flow cytometry were collected after a 10-minute rest period in each case. It is possible that part of this population recovers its quiescent nature, but because this population is present after the first 10-minute rest, part of this activated population may clump and fall to the bottom of the tube upon resuspension.

While the use of flow cytometry is not strictly necessary, it is beneficial to monitor if the platelets are quiescent and able to respond to agonists at the end of the wash process. In addition, particularly if a large portion of the platelets appear visually clumpy during the wash, performing flow cytometry at each step can help identify where the problem is arising. Though uncommon, approximately 1 of 20 donor experiments must be excluded because of spontaneous platelet activation during the rest period. Flow cytometry analysis of platelet activation markers is a valuable tool to validate the quiescence and sensitivity to agonist prior to experiments involving platelets.

To measure platelet response to agonist using flow cytometry, some studies allow the platelets to incubate in the agonist and antibody cocktail for 10-30 minutes at room temperature before fixing^42,43,44. After the hour rest, a 20-minute incubation at room temperature prior to fixing the resting control platelets results in an overestimate of activation. This activation does not occur when platelets are incubated for 20 minutes at 37 °C, suggesting this apparent activation occurs because the inhibitors have worn off and the sudden temperature change activates the platelets. Waiting 20 minutes to fix during the washing process also does not induce this artificial activation, which could be due to attenuation of the action of the inhibitors during the hour rest. To capture the true activation state of the platelets, it is recommended to perform the incubation at 37 °C or to fix them after only a short (30 second) incubation with antibodies.

Washed platelets offer a way to study platelets without the interference of other blood cells and plasma components. They are ideal for studies in which the extracellular environment must be manipulated, including metabolic studies. The density of the final platelet suspension is tunable and able to be controlled to minimize variability in platelet counts between people. For metabolic studies, custom concentrations of platelet carbon substrates can be controlled. Representative results shown in Figure 4 are from an uptake and excretion experiment in which glucose and acetate were added as carbon substrates, and lactate was produced. While there is biologic variability between donors in Figure 4, lactate production increases upon thrombin treatment, while glucose and acetate consumption increases. This agrees with literature; platelets are known to increase their rate of aerobic glycolysis and oxidative phosphorylation upon activation^13,14,15,45.  This technique can be applied to study platelets under different nutrient conditions or with different ions in the final platelet suspension.

While washed platelet studies are valuable, it is important to keep in mind that the artificial environment does not recapitulate the environment in vivo. Therefore, washed platelets should be used only in situations where investigators are interested in platelet function alone. As with all in vitro studies, the results must be interpreted cautiously. It is recommended that the platelets be resuspended in modified Tyrode’s buffer with a calcium concentration of 2 mM after the final wash. The P-selectin and fibrinogen binding expression have only been measured up to 1.5 hours after the wash process (2.5 hours including the hour rest), so it is recommended the scientist use the washed platelet suspension within that time window, or otherwise validate the fidelity of the platelets. This study did not measure other classic metrics of platelet functionality, such as aggregation.

Washed platelets prepared with our protocol are quiescent, validated by flow cytometric measurements of P-selectin and fibrinogen. The metabolic substrates, hormones, and platelet agonists in the extracellular environment can be precisely controlled, allowing the scientist to study platelet metabolism in a system of their choosing.

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
0.22 µM filter Spin-X tubes	Millapore-Sigma	CLS8160	Reagent prep
19 G x 3/4" needle	McKesson Corporation	448406	Phlebotomy
21 G 1.5 inch needle with luer lock	Amazon	B0C39PJD23	Reagent prep
96 well plate, half area	Greiner Bio-One	675101	Flow cytometry
ACD-A vaccutainers	Fisher Scientific	364606	Phlebotomy
Adapter	McKesson Corporation	609	Phlebotomy
Alcohol swab	VWR	15648-916	Phlebotomy
Apyrase from potatoes	Sigma	A6410-100UN	Reagent prep
CD42a Monoclonal Antibody	Thermo Fisher Scientific	48-0428-42	Flow cytometry
Chilled microcentrifuge	ThermoFisher Scientific	75002441	Quenching
D-Glucose	Sigma	G7021	Reagent prep
FITC Anti-Fibrinogen antibody	Abcam	4217	Flow cytometry
Flow cytometer	Beckman Coulter	82922828	Flow cytometry
Gauze	VWR	76049-110	Phlebotomy
Glycerol	Sigma Aldrich	G5516	Reagent prep
HEPES	Sigma Aldrich	H4034	Reagent prep
Human alpha-thrombin	Prolytix	HCT-0020	Flow cytometry
KCl	Sigma Aldrich	P9333	Reagent prep
KH2PO4	Sigma Aldrich	P5655	Reagent prep
MgCl2	Sigma	M8266	Reagent prep
Microcentrifuge tubes	VWR	87003-292	General
Na2HPO4	Sigma	S3264	Reagent prep
NaCl	Sigma Aldrich	S7653	Reagent prep
NaHCO3	Sigma Aldrich	S5761	Reagent prep
Narrow bore transfer pipette	VWR	16001-176	Platelet washing
Paraformaldehyde solution, 4% in PBS	Santa Cruz Biotechnology	sc-281692	Flow cytometry
PECy5 Mouse Anti-Human CD62P	BD Pharmingen	551142	Flow cytometry
Plate cover	Thermo Fisher Scientific	AB0626	Flow cytometry
Polypropylene 15 mL conical tubes	VWR	89039-658	Reagent prep
Polypropylene 50 mL conical tubes	VWR	352070	Platelet washing
Prostaglandin I2 (sodium salt)	Cayman Chemical	18220	Reagent prep
SKC Inc. C-Chip Disposable Hemocytometers	Fisher Scientific	22-600-100	Cell counting
Syringe	BD Pharmingen	14-823-41	Reagent prep
Tourniquet	VWR	76235-371	Phlebotomy
Vacutainer needle holder	BD	364815	Phlebotomy
Vortexer	VWR	102091-234	Reagent prep
Water bath	Thermo Fisher Scientific	TSGP02	Platelet washing
Wide bore transfer pipette	VWR	76285-362	Platelet washing
