A Single Intravenous Dose of Indole-producing Attenuated Brucella in NOD Mice: Assessment of Type 1 Diabetes Onset and Islet Immune Remodeling

Summary

This protocol describes intravenous administration of an indole-producing attenuated Brucella melitensis strain to NOD/ShiLtJ mice, followed by longitudinal diabetes monitoring, pancreatic histology, and optional high-plex spatial proteomics and single-cell RNA sequencing to assess islet immune reprogramming.

Abstract

Type 1 diabetes (T1D) results from autoimmune destruction of pancreatic β cells, and current therapies fail to restore durable immune tolerance. Metabolically engineered bacteria producing immunomodulatory metabolites represent a promising single-dose therapeutic strategy. Here, this paper presents a comprehensive protocol in which a single intravenous administration of an indole-producing attenuated Brucella melitensis strain BmΔvjbR::tnaA is used to assess effects on the onset of autoimmune diabetes in prediabetic female NOD/ShiLtJ mice.

The protocol begins with preparing BmΔvjbR::tnaA from frozen glycerol stocks, growing it in selective media to mid-log phase, and calculating colony-forming units based on optical density. Female NOD mice, <5-week-old are restrained without anesthesia and injected intravenously via lateral tail vein with a defined bacterial dose in phosphate-buffered saline while maintained on heating pads. Blood glucose is monitored 2x weekly after a 2 h fast for 70–105 days, with diabetes defined as glucose ≥250 mg/dL on two consecutive readings. At experimental endpoints, harvested pancreas are fixed in neutral-buffered formalin for 72 h, paraffin-embedded, and sectioned for hematoxylin and eosin staining, insulin immunohistochemistry, and total islet area quantification. Formalin-fixed paraffin-embedded sections are submitted for spatial proteomics with a 25-marker antibody panel to visualize regulatory and effector immune populations. Finally, fresh pancreatic tissue undergoes single-cell isolation, 3′ library preparation, sequencing, and Seurat-based bioinformatics analysis to profile transcriptional changes across immune and stromal populations.

This integrated protocol enables reproducible single-dose bacterial therapy delivery and multi-modal characterization of islet immune remodeling, providing a framework for testing metabolite-engineered microbes in autoimmune models and dissecting tissue-specific immune mechanisms at single-cell resolution.

Introduction

Type 1 diabetes (T1D) is a chronic autoimmune disease characterized by immune-mediated destruction of insulin-producing pancreatic β cells, leading to lifelong insulin dependence and increased risk of vascular complications¹. The NOD/ShiLtJ mouse recapitulates key features of human autoimmune diabetes, including spontaneous insulitis and progression to overt diabetes, and is widely used as a preclinical model for mechanistic and therapeutic studies^1,2,3. Current T1D therapies—including immunosuppressive drugs, monoclonal antibodies, and adoptive regulatory T-cell (Treg) therapies—can transiently slow disease progression but often fail to provide durable restoration of immune tolerance or sustained preservation of β-cell mass^{1,2,4,5,6,7,8,9,10,11}.

Targeting Tregs and other regulatory populations is a major focus of emerging T1D therapies, including autologous polyclonal Treg infusions, engineered antigen-specific Tregs, and IL-2–based regimens^{1,2,4,5,6,7,8,9,10,11}. However, a pro-inflammatory microenvironment within pancreatic islets can undermine the efficacy of these approaches, emphasizing the need to locally reprogram tissue-resident immune networks^2,7. Microbial-derived tryptophan metabolites, particularly indole and related compounds, can modulate both innate and adaptive immunity by promoting regulatory T-cell differentiation, inducing anti-inflammatory macrophage polarization, and suppressing Th17 responses^12,13. Live microbial therapeutics and metabolically engineered bacteria therefore represent a promising strategy to deliver immunomodulatory metabolites in situ and reshape tissue immunity^{12,13,14,15,16,17,18}.

We previously developed a metabolically engineered Brucella melitensis strain, BmΔvjbR::tnaA, that constitutively produces indole and controls autoimmune arthritis by expanding Tregs and remodeling inflammatory microenvironments^14,15,16. Attenuated Brucella strains such as BmΔvjbR have been extensively characterized as vaccine platforms and can be genetically modified to carry immunoregulatory payloads^14,15,16.

Here, we present a detailed protocol for evaluating a single intravenous dose of BmΔvjbR::tnaA in the NOD/ShiLtJ model, including bacterial preparation, standardized intravenous administration, diabetes monitoring, and multi-modal analysis of pancreatic tissue by histology, high-plex spatial proteomics, and single-cell RNA-seq. This workflow provides a practical framework for testing metabolite-engineered microbes as single-dose immunotherapies in organ-specific autoimmunity. A prior dose-response analysis demonstrated safety and tolerability up to 1 × 10¹⁰ CFU of the attenuated strain.

Protocol

All animal experiments were conducted in strict accordance with ethical guidelines and approved by the Institutional Animal Care and Use Committee (IACUC) of Texas A&M University (Protocol Number: 2021-0123).

1. Preparation and characterization of BmΔvjbR::tnaA

1. Bacterial strain background and storage
   ​NOTE: BmΔvjbR::tnaA is derived from Brucella melitensis 16M with deletion of the vjbR virulence regulator and insertion of the Escherichia coli tnaA gene for constitutive indole production, as previously described^14,15,16.
   1. Maintain glycerol stocks at −80 °C in 20% glycerol.
2. Bacterial culture on selective agar
   1. Retrieve a frozen glycerol stock from −80 °C storage. Streak 10–20 µL onto tryptic soy agar (TSA) plates supplemented with chloramphenicol (25–30 µg/mL).
   2. Incubate plates at 37 °C under ambient CO₂ conditions for 48–72 h until individual colonies (2–3 mm diameter) are visible.
      CAUTION: Work with Brucella strains requires appropriate biosafety level facilities (minimum BSL2). Follow institutional biosafety protocols and required approvals.
3. Liquid culture preparation
   1. Select a fresh TSA plate (≤1 week old). Pick 2–3 isolated colonies using a sterile loop.
   2. Inoculate into 10 mL of tryptic soy broth (TSB) supplemented with chloramphenicol (25–30 µg/mL) in a sterile 15 mL tube. Incubate at 37 °C with shaking at 250 rpm under ambient CO₂ conditions.
      ​NOTE: For scale-up, use a 250 mL baffled Erlenmeyer flask.
4. Growth monitoring and harvest
   1. Blank the spectrophotometer using sterile TSB supplemented with chloramphenicol.
   2. Measure OD₆₀₀ every 2–3 h.
   3. Continue incubation until OD₆₀₀ reaches 2.0 ± 0.2 (approximately 18–24 h).
      CRITICAL STEP: Harvest at OD₆₀₀ = 2.0 ± 0.2 for consistent bacterial concentration and viability.
      ​NOTE: Under these conditions, OD₆₀₀ ≈ 2.0 corresponds to mid-to-late log phase.
5. CFU estimation
   1. Estimate bacterial concentration using the relationship:
      OD₆₀₀ = 1 corresponds to 5 × 10⁹ CFU/mL.
      ​NOTE: A 10 mL culture at OD₆₀₀ = 2.0 contains approximately 1 × 10¹¹ CFU.
   2. OPTIONAL: Prepare 10-fold serial dilutions (10⁻⁶ to 10⁻⁹) in sterile PBS. Plate 100 µL onto TSA supplemented with chloramphenicol. Incubate at 37 °C for 48–72 h. Count colonies to confirm CFU.
6. Bacterial harvest and concentration
   1. Transfer the 10 mL culture to a sterile 15 mL conical tube.
   2. Centrifuge at 3,000–4,000 × g for 10 min at room temperature.
   3. Carefully aspirate and discard the supernatant without disturbing the pellet.
7. Resuspension for injection
   1. Add 1 mL of sterile, endotoxin-free 1× phosphate-buffered saline (PBS, pH 7.4) to the bacterial pellet. Gently resuspend by pipetting 10–15x until a homogeneous suspension is achieved with no visible clumps.
      ​NOTE: The final concentration is approximately 1 × 10¹¹ CFU/mL.
8. Storage and use
   1. Keep the bacterial suspension on ice in a closed tube. Use the suspension for intravenous injections within 4 h of preparation.
      NOTE: Do not freeze or store overnight, as bacterial viability decreases.
      ​PAUSE POINT: Bacteria may be held on ice for up to 4 h; same-day use is recommended.

2. NOD/ShiLtJ mouse procurement, housing, and preparation

1. Obtain female NOD/ShiLtJ mice. Acclimate mice for at least 7 days prior to experimentation.
   NOTE: Use female mice due to higher and more consistent diabetes incidence.
2. House mice in individually ventilated cages under specific pathogen-free conditions. Maintain up to five mice per cage.
3. Provide bedding, environmental enrichment, food, and water ad libitum. Maintain temperature at 20–24 °C, humidity at 40–60%, and a 12 h light/dark cycle.
4. Use mice younger than 5 weeks of age. Record baseline body weights.
5. Randomize mice at the cage level into treatment and control groups. Assign unique identifiers (ear tag or tail tattoo) to each mouse.
   ​NOTE: Maintain a master record of all mice and group assignments.
6. Transfer cages to the procedure room at least 30 min prior to injection. Place the cages on heating pads set to 37–40 °C to promote tail vein dilation.

3. Intravenous administration via lateral tail vein

1. Using sterile technique, draw 100 µL of the bacterial suspension into sterile insulin syringes (29G–30G). Label each syringe with the corresponding mouse ID.
2. Prepare control syringes containing 100 µL of sterile PBS.
   NOTE: Prepare syringes immediately before injection.
3. Place each mouse in a restrainer, allowing access to the tail.
   NOTE: Do not use anesthesia for tail vein injections.
4. Wipe the tail with 70% ethanol and allow to air dry.
5. Visualize the lateral tail veins under adequate lighting.
   TIP: Warm the tail if veins are not visible.
6. Hold the distal third of the tail with gentle tension. Insert the needle bevel-up at a shallow angle (10–15°) into the lateral vein.
7. Inject 100 µL slowly over 5–10 s. Withdraw the needle and apply gentle pressure with sterile gauze.
   ​CRITICAL STEP: Confirm successful intravenous injection by absence of resistance, swelling, or blanching.
8. Return the mouse to its cage on a heating pad. Observe for 5–10 min for signs of distress. Record any adverse events.
9. Perform injections for all mice in randomized order within a 2 h window.

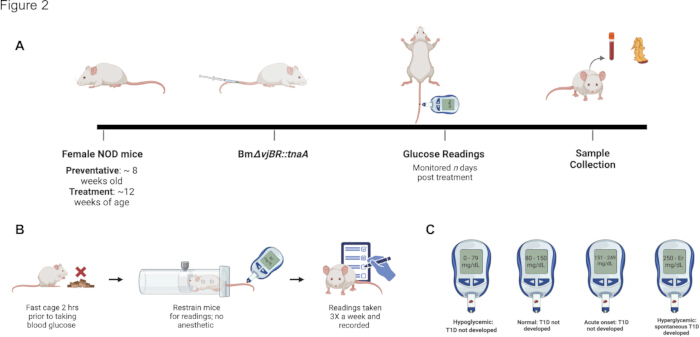

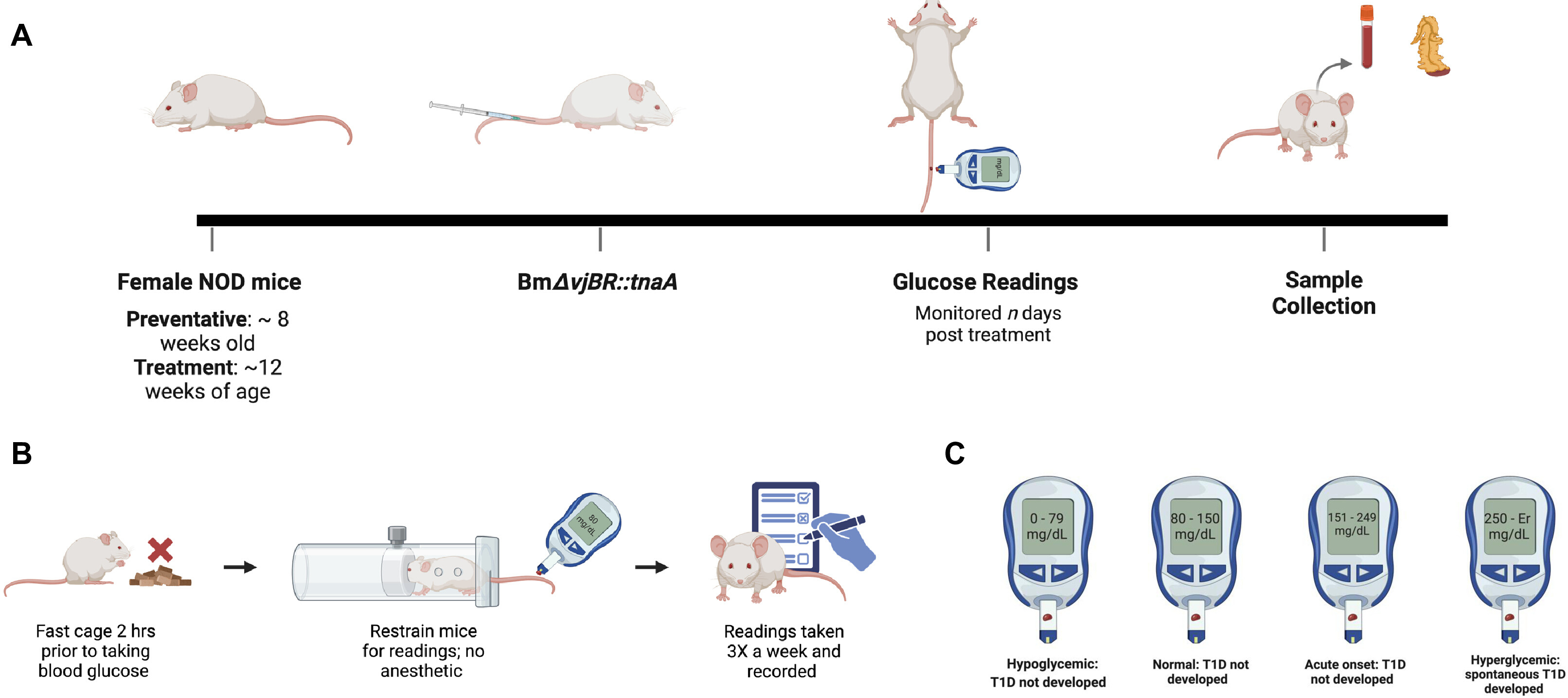

4. Blood glucose monitoring and diabetes definition

1. Begin glucose monitoring 7 days after injection. Measure blood glucose 2x weekly until study endpoint.
2. Remove food 2 h prior to measurement while maintaining water access.
3. Restrain the mouse. Clean the tail tip with 70% ethanol.
4. Nick the tail using a sterile lancet or needle. Discard the first drop of blood. Collect the second drop on a glucometer test strip. Record blood glucose values along with mouse ID and date.
   ​NOTE: Use a new site if the tail tip becomes scarred.
5. Define diabetes as blood glucose ≥ 250 mg/dL on two consecutive measurements separated by at least 24 h.
6. Euthanize mice exhibiting severe disease signs according to institutional guidelines.

5. Pancreas harvest, fixation, and processing

1. Euthanize mice according to approved protocols. Dissect and collect the pancreas carefully, including all lobes.
2. Place the pancreas into 10% neutral buffered formalin at a minimum 10:1 fixative-to-tissue volume ratio. Fix for 72 h at room temperature.
   CAUTION: Handle formalin in a chemical fume hood with appropriate PPE.
3. Transfer tissues to 70% ethanol after fixation.
4. Submit fixed tissues to a histology core facility for paraffin embedding, sectioning at 5 µm thickness on positively charged slides, hematoxylin and eosin staining, and insulin immunohistochemistry.
   ​NOTE: Request unstained sections if additional downstream analyses are planned.

6. Histological evaluation and islet area quantification

1. Acquire whole-slide images using a slide scanner or microscope.
2. Open images in the referenced software. Manually annotate islets using appropriate tools.
3. Measure islet area using annotation tools.
4. Export measurements for analysis.
   ​NOTE: Total islet area includes endocrine and infiltrating cells.

7. Various downstream analyses

1. Calculate mean islet area per mouse. Compare groups using appropriate statistical tests.
2. Optional: Spatial proteomics analysis (see Supplemental Table S1)
   1. Prepare FFPE sections on positively charged slides. Submit samples to a spatial proteomics service provider. Provide antibody panel specifications.
3. Optional: Single-cell RNA sequencing (see Supplemental Table S2)
   1. Harvest pancreas and place them in cold medium.
   2. Submit samples to a genomics core facility for single-cell isolation and library preparation.
   3. Process sequencing data using appropriate pipelines (e.g., Cell Ranger, Seurat).
   4. Deposit sequencing data in a public repository prior to publication.

Results

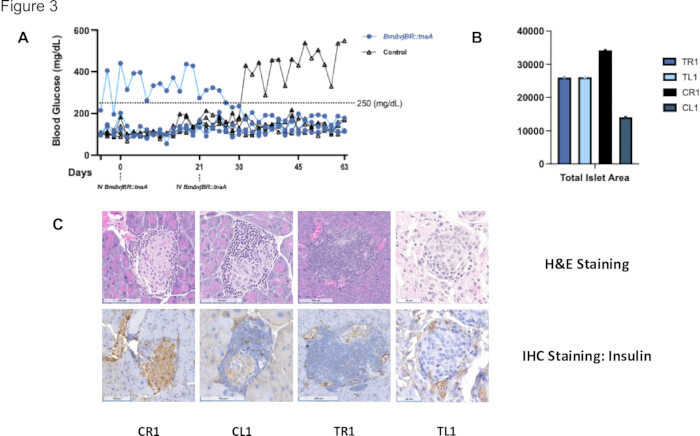

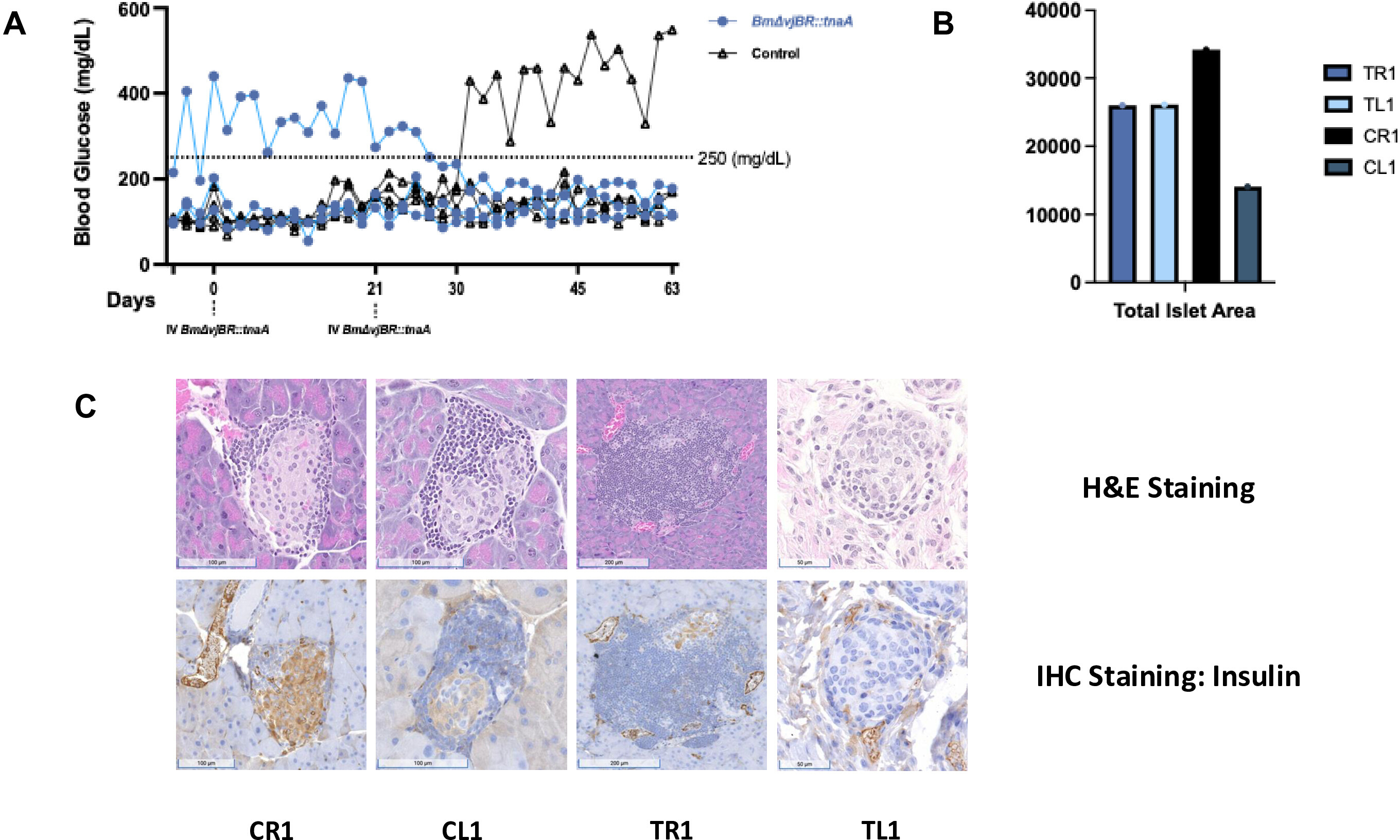

While the broader protocol described in this manuscript has since been optimized into a single-dose preventive regimen, these pilot outcomes are presented here solely to illustrate the expected histological and glycemic readouts achievable with this workflow.

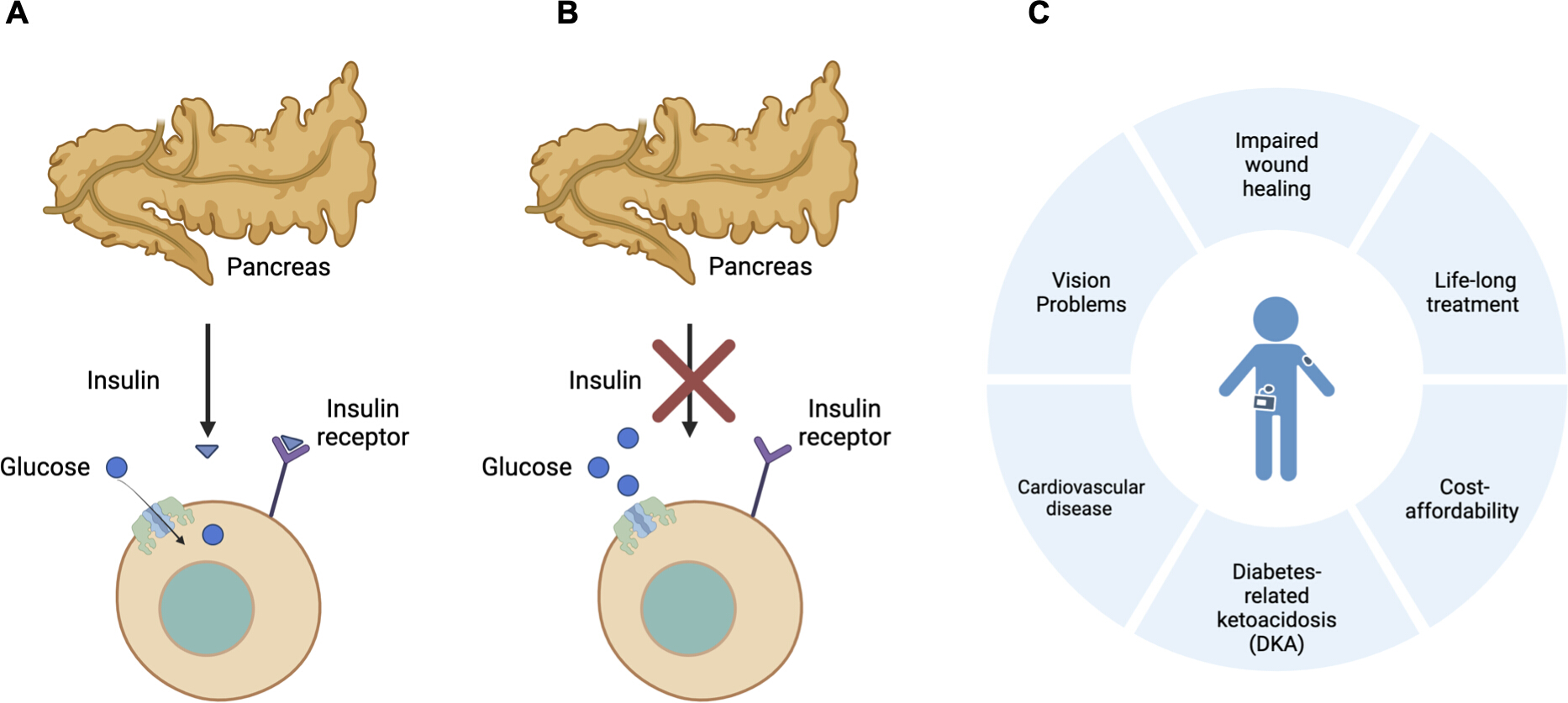

The overall disease context and contrast between healthy and type 1 diabetic pancreas are illustrated schematically in Figure 1A. The autoimmune destruction of β cells and resulting loss of insulin production...

Discussion

A critical limitation of the representative outcomes presented herein is that the data provided to illustrate the analytical endpoints (Figure 3) were derived from an early pilot cohort utilizing a two-dose schedule. Because this protocol has been refined to a single-dose preventative regimen, future larger-scale studies utilizing the optimized single-dose protocol described here are required to establish formal statistical efficacy.

This JoVE protocol describes a...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
10% Neutral Buffered Formalin (NBF)	VWR	10790-714
10x Genomics Chromium Controller	TIGSS Molecular Genomics Workspace, Texas A&M University
70% Ethanol	VWR	89125-164
Adhesive microscope slides for FFPE	Leica Biosystems	3800084E
Akoya mouse FFPE antibody panel (~25 markers)	Akoya Biosciences	[Panel ID/custom panel]
Bioanalyzer or TapeStation with DNA HS kits	TIGSS Molecular Genomics Workspace, Texas A&M/ Agilent
BmΔvjbR::tnaA bacterial strain	Lab stock (Song/de Figueiredo labs)
Cell Ranger pipeline	10x Genomics	v7.1
Chloramphenicol	Research Products International	56-75-7
Chromium Next GEM Single Cell 3' kit	10x Genomics via TIGSS core
Collagenase from Clostridium histolyticum	Millipore Sigma	C7657-100MG
DAPI nuclear stain	Akoya Biosciences	[Service-provided]
FFPE embedding, H&E staining, insulin IHC, and slide scanning	VMBS Histology Laboratory, Texas A&M University	https://vetmed.tamu.edu/vmbs-histology-lab/
Glucose test strips	EKF Diagnostics / Fisher Scientific	22-022-649
Glucose test strips (alternate)	Ascensia Diabetes Care	CONTOUR NEXT test strips
Glycerol (bulk, 500 mL)	Millipore Sigma	G7893-500ML
Glycerol (sterile, 100 mL)	Sigma Aldrich (G Biosciences)	G5516-100ml
GraphPad Prism (or R survival package)	GraphPad Software / R	v10.2
Handheld glucometer	Ascensia Diabetes Care	CONTOUR NEXT EZ
Illumina NextSeq 2000 sequencer	TIGSS Molecular Genomics Workspace, Texas A&M University
Insulin syringes,29–30 G (U-100)	VWR	10002-702
Lancets for diabetes testing	Becton, Dickinson and Company (BD)	366594
Liberase TL Research Grade	Millipore Sigma	5401020001
Low-temperature heating pads	Conduct Science	RWD-69025
Miltenyi nuclei/cell isolation kit	TIGSS Molecular Genomics Workspace, Texas A&M/ Miltenyi Biotec
Mouse heating pad (alternate)	Kent Scientific	RightTemp
Mouse restrainers	Braintree Scientific	TV-RED 150-STD
NOD/ShiLtJ mice (female, 5 weeks)	The Jackson Laboratory	Strain #001976
P2 XLEAP 100-cycle flow cell kit	Illumina via TIGSS core
PhenoCycler data acquisition and QC service	Akoya Biosciences
PhenoCycler reagents and imaging workflow	Akoya Biosciences	[Service-provided]
PhenoCycler-Fusion system	Akoya Biosciences
Phosphate-buffered saline (PBS), 1x	Thermo Fisher	10010023
Protector RNase Inhibitor	Millipore Sigma	3335402001
Qubit Fluorometer and dsDNA HS Assay Kit	TIGSS Molecular Genomics Workspace, Texas A&M/ Thermo Fisher
QuPath	Open source	v0.4.3
R software	R Project	v4.0+
Seurat (R package)	Satija Lab / CRAN	v4.3
StarDist	Open source	v0.8.3
Tryptone Soy Agar (TSA)	VWR	CA90002-706
