Assessment of Left Ventricular Myocardial Fibrosis and Edema in Atrial Fibrillation Using Cardiovascular Magnetic Resonance

Summary

This protocol describes a standardized, one-stop cardiovascular magnetic resonance (CMR) procedure for characterizing the structure, function, and myocardial tissue properties of the left atrium and left ventricle in patients with atrial fibrillation (AF). It covers patient preparation, image acquisition, and post-processing, together with representative imaging findings in patients with AF.

Abstract

Progressive population aging has driven a steady rise in the incidence of atrial fibrillation (AF), making the management of its long-term prognosis an increasingly important clinical concern. In addition to forming a vicious cycle with progressive atrial dysfunction, AF promotes adverse remodeling and functional impairment of the ventricles, thereby increasing the risk of heart failure. Cardiovascular magnetic resonance (CMR), as the gold standard for evaluating cardiac function, cannot only accurately assess functional abnormalities of the atria and ventricles, but also its quantitative assessment techniques, including T1 mapping, T2 mapping, and extracellular volume (ECV) fraction, enable early and precise quantification of ventricular myocardial pathology. The principal aim of this study is to provide a comprehensive assessment of the left atrium and left ventricle in patients with AF using a one-stop CMR protocol based on multi-parametric quantitative myocardial analysis, providing reliable data for clinical treatment decisions, preoperative assessment, and long-term follow-up.

Introduction

Atrial fibrillation (AF), the most common form of sustained arrhythmia, is rising steadily in incidence¹. This progressive disorder typically begins with structural and functional derangement of the left atrium (LA) and ultimately leads to left ventricular (LV) dilation and impaired systolic and diastolic function, commonly evolving from a paroxysmal to a persistent form². AF is characterized by structural, electrical, and contractile remodeling of the atrium. It is also associated with systemic inflammation and diffuse fibrosis, which eventually give rise to fibrotic and inflammatory changes in the ventricle as well³. A growing body of evidence indicates that myocardial fibrosis and inflammation are closely linked to the pathogenesis of AF⁴. Pathological studies have confirmed that patients with AF exhibit diffuse myocardial fibrosis of the left ventricle⁵.

Cardiovascular magnetic resonance (CMR) offers multi-parameter, multi-plane, and multi-sequence imaging, enabling comprehensive evaluation of the heart's structure, function, blood flow, and tissue characteristics. Its clinical application value is receiving increasing attention. Conventional imaging techniques (late gadolinium enhancement and T2WI) are mostly qualitative or semi-quantitative and are helpful for evaluating focal myocardial lesions. However, they have significant limitations for diffuse lesions and early micro-lesions⁶. The CMR quantitative techniques (T1 mapping, T2 mapping, and ECV) have effectively addressed this deficiency. T1 and T2 mapping are inherent properties of the tissue, representing the longitudinal and transverse relaxation times of the tissue, respectively. The extracellular volume fraction (ECV) refers to the percentage of the extracellular matrix volume in the total myocardial volume⁷. Theoretically, normal myocardial tissue has fixed values of T1, T2 mapping, and ECV under the same conditions. In disease states, pathological changes occur in the myocardial cells and/or the interstitial matrix, and these values will also change accordingly. T1 mapping, T2 mapping, and ECV of CMR allow quantitative assessment of myocardial fibrosis and inflammation^8,9.

Studies have shown that quantitative CMR techniques were significantly influenced by factors such as the manufacturer of the scanning equipment, field strength, and even the sequence, and it is recommended to establish normal reference values suitable for this center based on different equipment, field strengths, and sequences⁷. Studies¹⁰have shown that the normal global T1 and T2 reference values on a 3.0T MR scanner were 1193 ms ± 34 ms and 36 ms ± 2.5 ms, respectively. Another meta-analysis¹¹ on native T1 and ECV in the normal population showed that the pooled mean of native T1 was 976 msec (95% confidence interval [CI]: 969 ms, 983 ms) at 1.5 T and 1159 ms (95% CI: 1143 ms, 1175 ms) at 3.0 T; the pooled mean of ECV was 25.9% at 1.5 T (95% CI: 25.5%, 26.3%) and 3.0 T (95% CI: 25.4%, 26.5%). An inverse linear relationship has been reported between the post-contrast native T1 time of the LV myocardium and the overall degree of myocardial fibrosis^12,13. LV T1 mapping can serve as a quantitative indicator of increased myocardial fibrosis in patients with hypertrophic cardiomyopathy¹⁴, non-ischemic dilated cardiomyopathy¹⁵, and acute or chronic myocardial infarction¹⁶. Studies have further shown that LV myocardial interstitial fibrosis in patients with AF is closely related to cardiac dysfunction^17,18, and that patients with AF display higher T1 and T2 mapping values than those without AF¹⁹. The present study quantitatively analyzed atrial and ventricular function, along with tissue characteristics (T1 mapping, T2 mapping, and ECV), in patients with AF, providing comprehensive quantitative data to inform treatment strategies.

Protocol

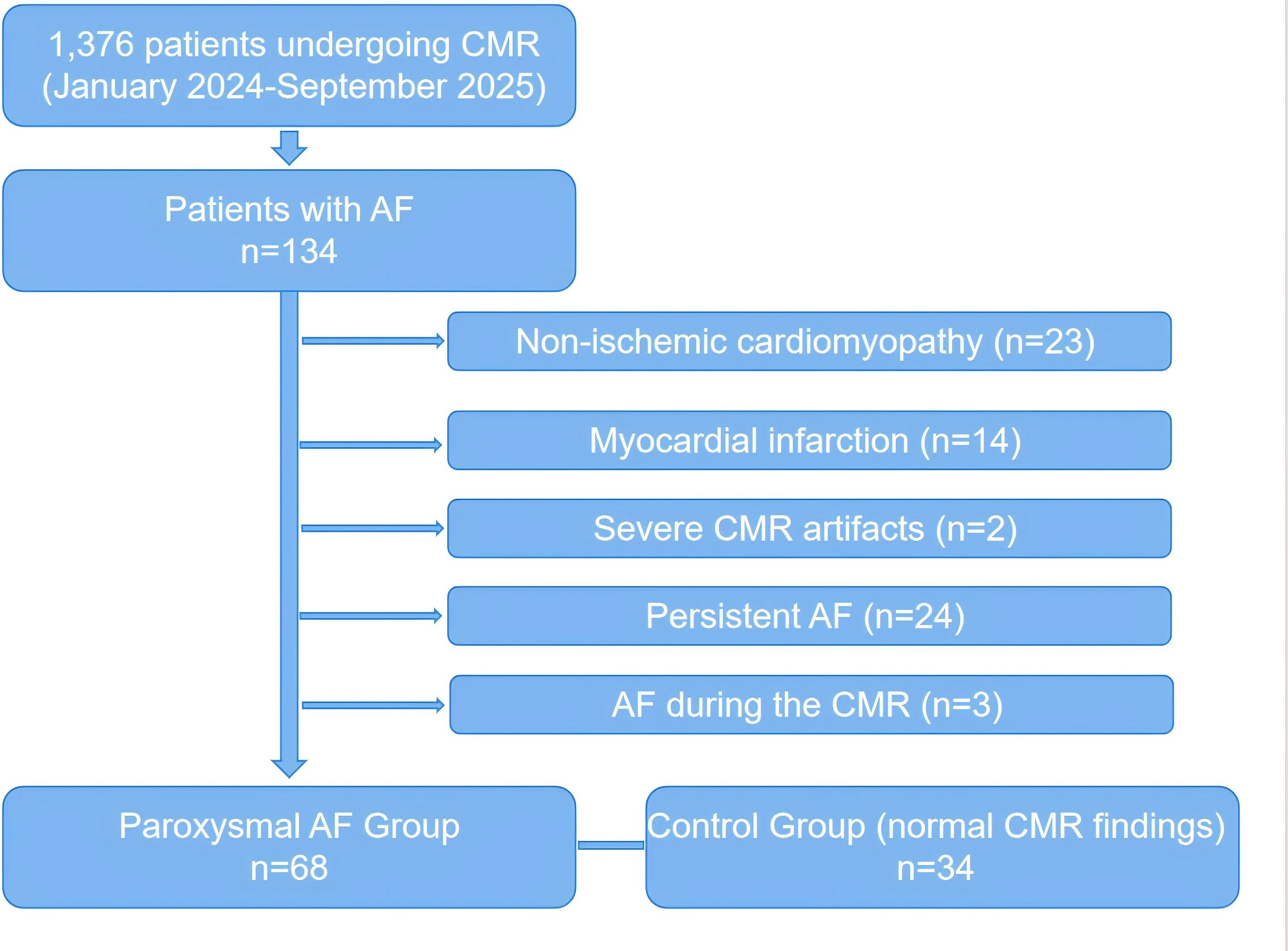

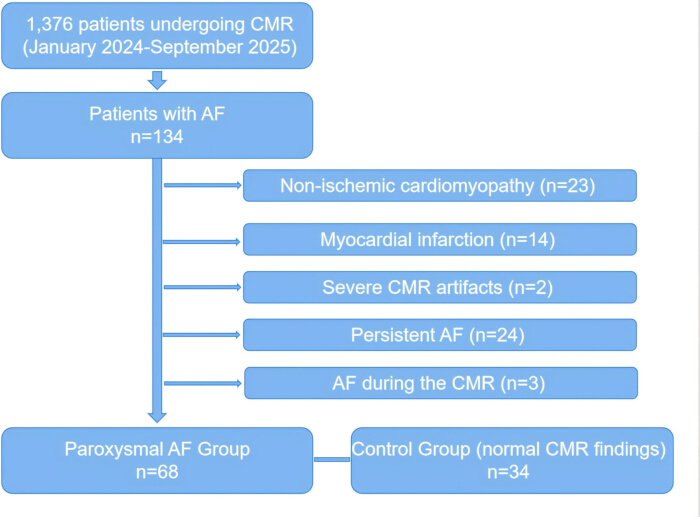

This study enrolled consecutive patients with paroxysmal atrial fibrillation who underwent CMR examination at the China-Japan Union Hospital of Jilin University between January 2024 and September 2025. The study was approved by the Ethics Committee of the China-Japan Union Hospital of Jilin University (approval number: 2021092704) and was conducted in accordance with the Declaration of Helsinki. Confidentiality of patient data was strictly maintained throughout the research.

1. Preparation before scanning

1. Accurately record the heart rate, blood pressure, weight, and height.
2. Exclude contraindications to magnetic resonance imaging (MRI), including renal insufficiency, implanted cardiac electronic devices, other implanted metal devices in the body, cochlear implants, etc.
3. Explain the relevant precautions before the examination, and instruct the participant to remain still throughout the scan.
4. Instruct the participant to hold their breath at end-expiration and maintain a consistent respiratory amplitude so that the imaging position remains reproducible across acquisitions.

2. CMR scanning

NOTE: Perform all CMR examinations on a 3.0 T CMR system equipped with a dedicated cardiac phased-array surface coil and an MR-compatible electrocardiography (ECG) gating unit.

1. Cardiac cine imaging
   1. Acquire cine images with a balanced steady-state free precession (bSSFP) sequence during an end-expiratory breath-hold using retrospective ECG gating.
   2. Include three standardized long-axis views (2-, 3-, and 4-chamber views) together with 12–14 short-axis slices covering the entire ventricle, and reconstruct 25 frames per cardiac cycle.
   3. Use the following main scanning parameters: matrix 216 × 256, FOV 340 mm × 340 mm, TR 3.0 ms, TE 1.7 ms, flip angle 45°–55°, temporal resolution 30–55 ms, slice thickness 8 mm, and slice gap 2 mm.
2. Late gadolinium enhancement (LGE)
   1. Use a two-dimensional phase-sensitive inversion recovery rapid small-angle excitation sequence.
   2. Inject the gadolinium-based contrast agent (GBCA) through the median cubital vein at a flow rate of 2 mL/s and a dose of 0.2 mmol/kg. Ensure that the flow rate is not too rapid, as this may cause contrast agent leakage. Acquire LGE images 10–15 min after GBCA injection.
   3. Include LV short-axis and 2- and 4-chamber views. Use the following main scanning parameters: TR 4.1 ms, TE 1.6 ms, TI 300 ms, flip angle 20°, FOV 260 mm × 350 mm, matrix 130 × 256, and slice thickness 8 mm.
3. Pre-contrast T1 mapping
   1. Acquire native T1 maps using the motion-corrected spin-echo real steady-state free precession (SSFP)-based modified Look-Locker inversion recovery (MOLLI) sequence.
   2. Scan three LV short-axis slices (basal, mid, and apical segments).
   3. Use the following main scanning parameters: TR 2.8 ms, TE 1.18 ms, flip angle 35°, FOV 270 mm × 320 mm, matrix 144 × 256, and slice thickness 10 mm.
4. Post-contrast T1 mapping
   1. Repeat post-contrast T1 mapping of the previously acquired short-axis slices approximately 15 min after intravenous injection of the contrast agent. Use the same scanning planes and parameters as those used for pre-contrast T1 mapping.
      ​NOTE: Immediately review each T1 mapping image during the examination and repeat the acquisition without delay if artifacts are present. Acquire pre- and post-contrast T1 maps at identical slice locations. Ensure that the myocardium in the basal and apical slices is displayed completely and clearly. Collect venous blood on the same day before the MR examination to determine the hematocrit.
5. Native T2 mapping
   1. Acquire native T2 maps using the steady-state free precession (SSFP) sequence based on T2-preparation pulses. Use a single breath-hold acquisition mode and enable motion correction (MOCO) to reduce cardiac pulsation and respiratory motion artifacts.
   2. Scan three LV short-axis slices corresponding to those used for T1 mapping.
   3. Use the following main scanning parameters: TR 207.5 ms, TE 1.3 ms, flip angle 12°, FOV 360 mm × 360 mm, slice thickness 8 mm, and matrix 256 × 166. Acquire the original images with three different T2 preparation times (TET2P = 0 ms, 30 ms, 55 ms), and use these images for subsequent fitting to calculate native T2 values.

3. CMR image analysis

NOTE: Use the cvi42 CMR analysis software to perform CMR post-processing. Transfer the imaging data to the CMR analysis software.

1. Analyze the left atrium and bilateral ventricular volumes and functions.
   1. Bilateral ventricular volumes and functions
      1. Use the Function SAX module (ventricular function analysis using short-axis images) to analyze bilateral ventricular function.
      2. Select the ventricular short-axis cine images and click Detect LV/RV Contours at ED/ES Phases. Allow the software to automatically delineate the left ventricular endocardial and epicardial borders and the right ventricular endocardial border. Manually adjust the contours if the automatic delineation is inaccurate.
      3. Obtain the automatically calculated biventricular functional parameters, including left ventricular ejection fraction (LVEF), left ventricular end-diastolic volume (LVEDV), left ventricular end-diastolic volume index (LVEDVI), left ventricular end-systolic volume (LVESV), left ventricular end-systolic volume index (LVESVI), right ventricular ejection fraction (RVEF), right ventricular end-diastolic volume (RVEDV), right ventricular end-diastolic volume index (RVEDVI), right ventricular end-systolic volume (RVESV), and right ventricular end-systolic volume index (RVESVI).
         ​NOTE: Ensure that the difference between the left and right ventricular stroke volumes is within 5 mL.
   2. Left atrial volumes and functions
      1. Use the Strain module to measure left atrial (LA) volumes from the LV 2- and 4-chamber cine images. Manually delineate the LA endocardial and epicardial borders at end-systole and end-diastole. Exclude the pulmonary vein ostia and the left atrial appendage from the contours.

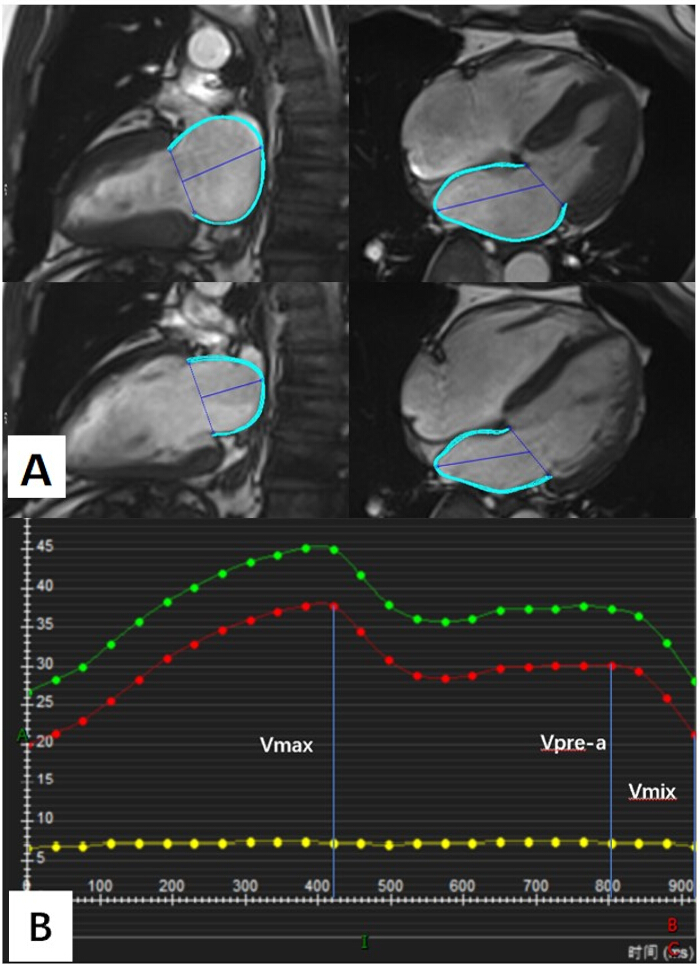

      2. Allow the software to automatically propagate the LA contours across all cardiac phases and generate the LA volume (LAV) curve (Figure 1). Identify the three cardiac phases corresponding to end-LV systole, early diastole before active LA contraction, and end-LV diastole. Obtain the maximum LA volume (Vmax), pre-atrial contraction LA volume (Vpre-a), and minimum LA volume (Vmin).
      3. Calculate the left atrial ejection fractions (LAEF), including total LAEF (LAEFtotal), passive LAEF (LAEFpassive), and active LAEF (LAEFactive), using the following formulas:
         Calculation formulas:
         LAEF _total＝ (V_max－V_min) /V_max；
         LAEF _passive＝ (V_max－V_pre-a) /V_max；
         LAEF _active＝(V_pre-a－ V _min) /V_pre-a
2. Quantitative analysis of T1 mapping
   1. Use the Tissue T1 module to acquire pre- and post-contrast T1 values. Manually delineate the left ventricular endocardial and epicardial borders on each pre- and post-contrast image. Click Create T1 Map to generate the pre- and post-contrast T1 maps. Enter the hematocrit value in the T1 Options menu, and click Create ECV Map to generate the extracellular volume (ECV) map.
      NOTE: Avoid including regions that may bias the measurements, such as the LV blood pool adjacent to the endocardium and pericardial fat adjacent to the epicardium.
3. Quantitative analysis of T2 mapping
   1. Use the Tissue T2 module to acquire native T2 maps. Manually delineate the left ventricular endocardial and epicardial borders on each image. Click Create T2 Map to generate the T2 map.
      NOTE: Avoid including regions that may bias the measurements, such as the LV blood pool adjacent to the endocardium and pericardial fat adjacent to the epicardium.

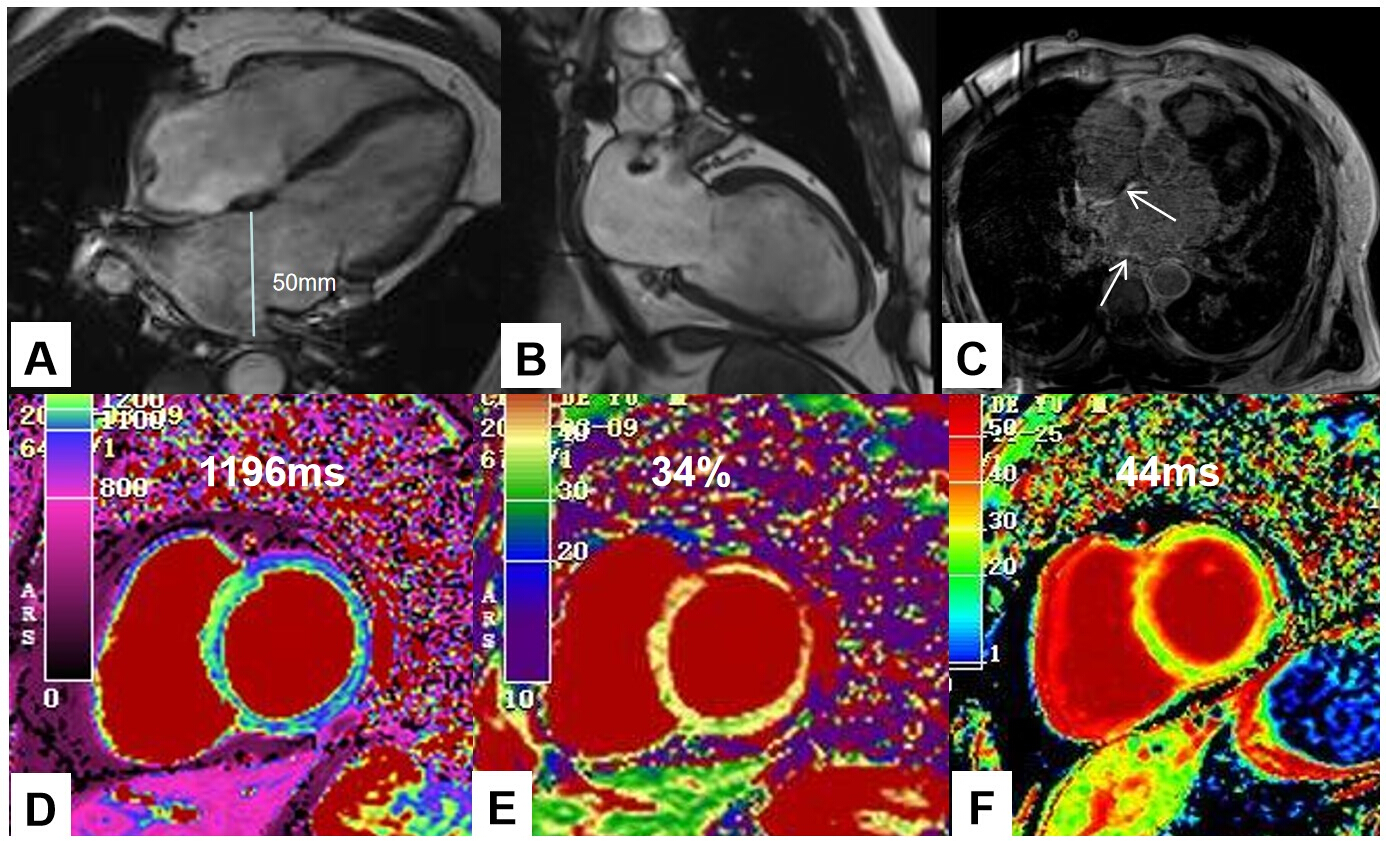

Results

Statistical analyses

All analyses were performed with SPSS 29. For the baseline information and quantitative parameters of CMR, if the indicators followed a normal distribution, they were expressed as mean ± standard deviation; if they did not follow a normal distribution, they were represented by median and interquartile range. The comparison of measurement data or count data between the two groups was conducted using the two-independent-sample t-test or the χ^2<...

Discussion

Atrial fibrillation (AF) is among the most common arrhythmias, and its principal pathological basis is well recognized to be structural, electrical, and functional remodeling of the left atrium. For this reason, attention has traditionally centered on structural and functional changes of the atrium. The major adverse consequence of AF is the induction of new heart failure or the aggravation of pre-existing heart failure, a process that may be mechanistically linked to left ventricular interstitial fibrosis and inflammati...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
cvi42 CMR Analysis Software	Circle Cardiovascular Imaging (Canada)	www.circlecvi.com	Image post-processing, ventricular function, atrial strain, T1/T2 mapping, and ECV analysis
Dedicated cardiac phased-array surface coil	Siemens Healthineers	www.siemens-healthineers.com	Cardiac imaging surface coil
Gadolinium-based contrast agent (GBCA)	Manufacturer not specified	N/A	Intravenous contrast agent for LGE imaging and post-contrast T1 mapping
IBM SPSS Statistics version 29	IBM	www.ibm.com/products/spss-statistics	Statistical analysis
MAGNETOM Spectra 3.0 T Magnetic Resonance Imaging System	Siemens Healthineers	www.siemens-healthineers.com	3.0 T cardiovascular magnetic resonance scanner
MR-compatible electrocardiography (ECG) gating unit	Siemens Healthineers	www.siemens-healthineers.com	ECG gating during CMR acquisition
