Western Blot Analysis of Microtubule-Associated Protein Light Chain 3 to Monitor Autophagosomal Dynamics in Mouse-Derived Pancreatic Cancer Cells

Summary

LC3 immunoblotting is a widely used method for monitoring autophagy but requires careful optimization. This protocol describes a robust approach for LC3-II detection and quantification in KPC-derived pancreatic cancer cells, including key technical considerations and a standardized workflow for densitometric analysis using Fiji.

Abstract

Autophagy plays a complex role in pancreatic ductal adenocarcinoma (PDAC), contributing to tumor progression, stress adaptation, and therapy resistance. Accurate assessment of autophagosomal dynamics is therefore essential for studies of cancer biology. Among the available methods, immunoblotting of microtubule-associated protein light chain 3 (LC3) is widely used to monitor autophagosomal dynamics by distinguishing between the cytosolic (LC3-I) and lipidated, autophagosome-associated (LC3-II) forms. However, the low molecular weight of LC3 and the minimal difference in electrophoretic mobility between these isoforms present technical challenges that require careful optimization. Presented here is a reproducible protocol for the semi-quantitative analysis of LC3-II levels by Western blot in KPC-derived murine pancreatic cancer cells. The method incorporates optimized conditions for cell lysis, electrophoresis, protein transfer, and antibody-based detection to ensure reliable separation and detection of LC3 isoforms. In addition, a standardized workflow for densitometric analysis of LC3-II bands using Fiji (ImageJ) is provided. The sensitivity of the method is demonstrated through the detection of increased LC3-II levels under conditions of autophagy induction (gemcitabine treatment) and impaired autophagic flux (VMP1 knockdown). Critical technical parameters that influence data interpretation, including lysis buffer composition and antibody specificity, are also examined, together with common experimental pitfalls. Although LC3 immunoblotting alone is insufficient to fully define autophagic flux, when combined with complementary assays it provides a robust and accessible approach for monitoring autophagic activity. The protocol can be adapted to other experimental contexts, facilitating mechanistic studies of autophagy in cancer models.

Introduction

Macroautophagy (hereafter referred to as autophagy) is a regulated degradative pathway through which cells degrade cytoplasmic material, including proteins and dysfunctional organelles. A hallmark of autophagy is the formation of a double-membraned structure known as the autophagosome, which sequesters cellular cargo and subsequently delivers it to lysosomes for degradation^1,2,3. In normal cells, autophagy contributes to the controlled turnover of proteins and organelles, thereby limiting oxidative stress and reducing the risk of tumor development. In cancer cells, however, t....

Protocol

All procedures involving animals were performed in accordance with institutional guidelines and approved by the Institutional Animal Care and Use Committee (IACUC) of Massachusetts General Hospital under protocol #2019N000111. The KPC-derived pancreatic cancer cell line used in this study was previously established in the Mostoslavsky laboratory under this approved protocol. The list of reagents, chemicals, and equipment information is provided in the Table of Materials.

1. Cell preparation

1. Seed low-passage Kras^G12D; Trp53^f/+; p48-Cre (hereafter referred to as KPC)-derived ....

Results

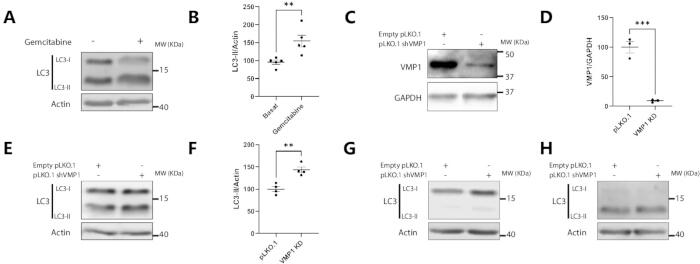

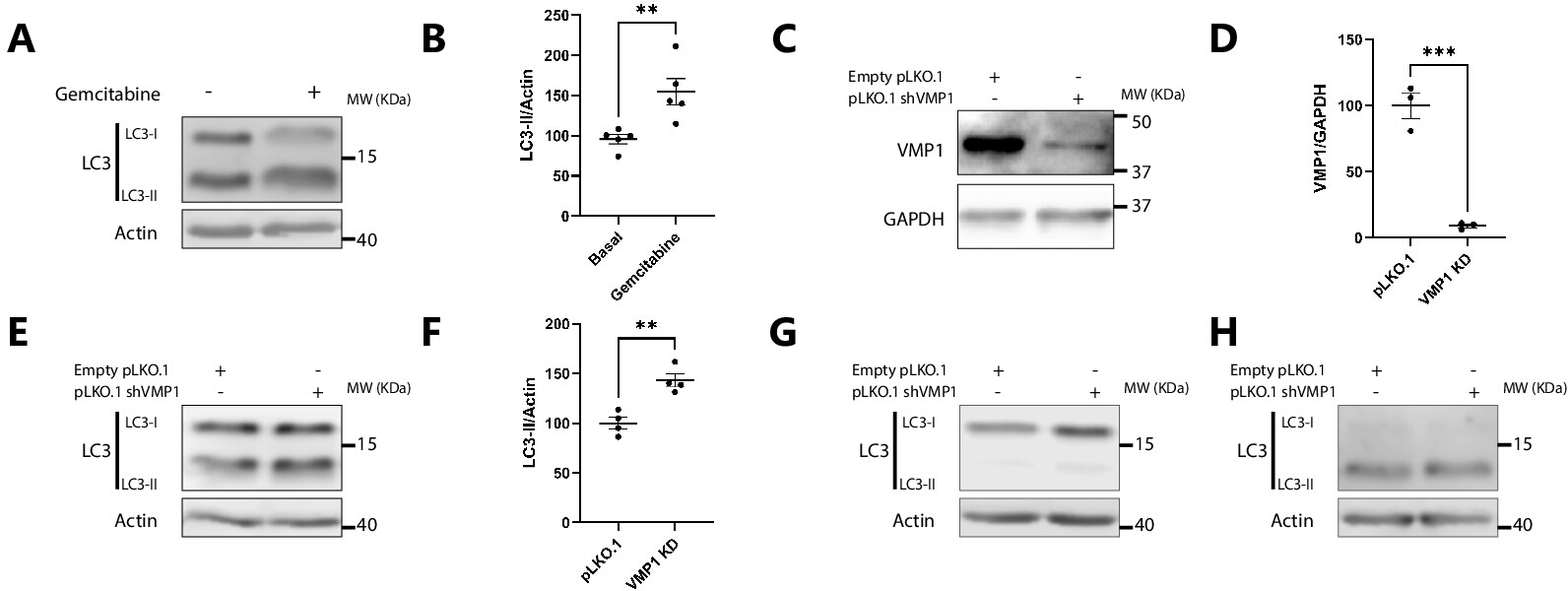

This protocol describes Western blotting to monitor LC3 dynamics in a KPC-derived pancreatic cancer cell line under different experimental conditions. The protocol generates chemiluminescent images of LC3 and a loading control. In this study, actin was used as the loading control.

Two representative applications of the protocol are shown. First, control KPC cells were compared with gemcitabine-treated KPC cells. Gemcitabine is a chemotherapeutic agent previously reported to induce autophagy in.......

Discussion

This article describes the technical optimization and standardization of a classical LC3 immunoblotting protocol in KPC-derived pancreatic cancer cells. Given the increasingly recognized role of autophagy and autophagy-related proteins in pancreatic cancer development and progression²³, this standardized workflow provides a reliable approach for monitoring LC3 dynamics. The protocol can be applied to evaluate the autophagosomal pool under a variety of experimental conditions, including chemotherap.......

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
C-DiGit Blot Scanner	LI-COR BioScience	3600	Used for chemiluminescent detection in Step 5.6
10x Phosphate-Buffered Saline (PBS)	Corning	46-013-CM	Used to prepare sterile 1x PBS for washing cells prior to passaging in Step 1.1.
2-Mercaptoethanol (β-mercaptoethanol)	Sigma-Aldrich (Merck)	M3148	Used to prepare 4× Laemmli sample buffer for SDS-PAGE sample preparation in Step 3.8.
3D Shaker	DLAB	SK-D1807-E	Used for incubating membranes in blocking, primary, and secondary antibody solutions, as well as during wash steps (Steps 4.6, 4.8, 4.9, 4.11, 4.12, and 4.13).
6 Well- Cell Culture Plate	SORFA	SCP-11-006	Used to seed cells in Step 1.1.
Acrylamide	Sigma-Aldrich (Merck)	A8887	Used to prepare the 15% SDS-PAGE gel required for Steps 4.2–4.5.
Anti-Glyceraldehyde-3-Phosphate Dehydrogenase, mouse monoclonal, clone 6C5	Merck Millipore	MAB374	RRID:AB_2107445 Reactivity: human, feline, pig, mouse, rabbit, fish, canine, rat. Used as a loading control to evaluate knockdown efficiency (Figures 2C and 2D).
Anti-mouse IgG, HRP-linked Antibody	Cell Signaling Technology	7076	RRID: AB_330924. Used to prepare the secondary antibody solution in Step 4.10.
Anti-rabbit IgG, HRP-linked Antibody	Cell Signaling Technology	7074	RRID: AB_2099233. Used to prepare the secondary antibody solution in Step 4.10.
Anti-β-Actin (ACTB) Antibody mouse monoclonal, AC-15	Sigma-Aldrich (Merck)	A1978	RRID:AB_476744 Reactivity: sheep, carp, feline, chicken, rat, mouse, Hirudo medicinalis, rabbit, canine, pig, human, bovine, guinea pig. Used as a loading control in Figures 2A, 2B, 2E, 2F, 2G, and 2H.
Bromophenol blue	Sigma-Aldrich (Merck)	B0126	Used to prepare 4× Laemmli sample buffer for SDS-PAGE sample preparation in Step 3.8.
Ethylenediaminetetraacetic acid (EDTA)	Sigma-Aldrich (Merck)	E9884	Used to prepare the low-detergent lysis buffer (Figures 2G and 2H).
Fetal Bovine Serum	NATOCOR	Lintc-634	Used to prepare complete medium for culturing cells (Steps 1 and 2).
Fiji	Open-source software	N/A	Image analysis software
Glycerol	Sigma-Aldrich (Merck)	G5516	Used to prepare 4× Laemmli sample buffer for SDS-PAGE sample preparation in Step 3.8.
Glycine	Sigma-Aldrich (Merck)	G7126	Used to prepare transfer buffer for Step 4.5.
Immun-Blot PVDF Membrane, Roll, 0.2 µm, 26 cm x 3.3 m	Bio-Rad	1620177	Used for transfer in Step 4.5.
Intercept (TBS) Blocking Buffer	LI-COR BioScience	927-60001	Used for blocking in Step 4.6, and for preparing primary and secondary antibody solutions in Steps 4.7 and 4.10.
LC3 A/B (D3U4C) Rabbit Monoclonal Antibody	Cell Signaling Technology	12741	RRID: AB_2617131 Reactivity: human, mouse, rabbit. Used to prepare the primary antibody solution in Step 4.7.
LC3B (D11) Rabbit Monoclonal Antibody	Cell Signaling Technology	3868S	RRID: AB_2137707 Reactivity: Human. Used as the LC3 primary antibody in Figure 2H.
Methanol	Anedra	6197	Used to activate the PVDF membrane and prepare transfer buffer in Step 4.5.
Millex-HV Syringe Filter Unit, 0.45 μm PVDF	Merck Millipore	SLHV033RS	Used to filter lentivirus-containing medium (Step 1.1).
Mini digital dry bath	Labnet International, Inc.	D 5060075	Used to heat samples in Step 4.1.
Mini-PROTEAN Tetra electrophoresis system	Bio-Rad	1658025FC	Used for SDS-PAGE and transfer in Steps 4.2, 4.3, and 4.5.
MISSION shRNA targeting mouse Vmp1 (TRCN0000279038)	Sigma-Aldrich (Merck)	SHCLND-NM_029478	Used to generate stable VMP1-knockdown cell lines (Step 1.1).
N,N'-Methylenebisacrylamide (Bis-acrylamide)	Sigma-Aldrich (Merck)	M7279	Used to prepare the 15% SDS-PAGE gel required for Steps 4.2–4.5.
Nabigem 1g Gemcitabine	Microsules Argentina	M3060584-3	Used for gemcitabine treatment in Step 2.
Pen-Strep Solution	Sartorius	03-031-1B	Used to prepare complete medium for culturing cells (Steps 1 and 2).
Pierce BCA Protein Assay Kit	Thermo Fisher Scientific	23227	Used for protein quantification (Step 3.7).
Pierce Protease Inhibitor Tablets	Thermo Fisher Scientific	A32953	Used to prepare lysis buffer in Step 3.2.
Polyethylenimine HCl MAX, Linear (PEI MAX), MW 40,000	Polysciences	24765-1	Used for transfection with lentiviral plasmids (Step 1.1).
Potassium chloride (KCl)	Sigma-Aldrich (Merck)	P9333	Used to prepare PBS in Step 3.1.
Potassium phosphate monobasic (KH2PO4)	Sigma-Aldrich (Merck)	P5655	Used to prepare PBS in Step 3.1.
PowerPac Basic Power Supply	Bio-Rad	1645050	Used for SDS-PAGE and transfer in Steps 4.2, 4.3, and 4.5.
Prestained ProteinLadder	Genbiotech	PM201	Used for SDS-PAGE in Steps 4.2 - 4.4.
Puromycin (10 mg/mL solution)	InvivoGen	ant-pr-1	Used for selection of stably transduced cells (Step 1.1).
RPMI 1640	Genbiotech	MC2012L	Used to prepare complete medium for culturing cells (Steps 1 and 2).
Sodium chloride (NaCl)	Sigma-Aldrich (Merck)	S9888	Used to prepare PBS in Step 3.1, lysis buffers in Step 3.2, and TBS in Step 4.9.
Sodium dodecyl sulfate (SDS)	Sigma-Aldrich (Merck)	L3771	Used to prepare lysis buffer in Step 3.2 and the 15% SDS-PAGE gel required for Steps 4.2–4.5.
Sodium fluoride (NaF)	Sigma-Aldrich (Merck)	S7920	Used to prepare the low-detergent lysis buffer (Figures 2G and 2H).
Sodium phosphate dibasic (Na2HPO4)	Sigma-Aldrich (Merck)	S9763	Used to prepare PBS in Step 3.1.
Sorval ST 16R Centrifuge	Thermo Fisher Scientific	75004380	Used to centrifuge cells in Step 1.1 and lysates in Step 3.5.
Sustrato quimioluminiscente SuperSignal West Pico PLUS	Thermo Fisher Scientific	34577	Used for chemiluminescent detection in Step 5.1.
Thermo Scientific 1300 Series A2 Class II, Type A2 Biosafety Cabinet	Thermo Fisher Scientific	1386	Used for sterile cell culture handling in Steps 1.1, 1.3, and 2.1.
Thermo Scientific BB 150 CO2 Incubator	Thermo Fisher Scientific	BB150-2TCS-L	Used for culturing cells in Steps 1.2, and 2.2.
TMEM49/VMP1 (D1Y3E) Rabbit Monoclonal Antibody	Cell Signaling Technology	12929	RRID: AB_2714018 Reactivity: human, mouse, rat. Used as a primary antibody to verify VMP1 knockdown efficiency in Figures 2C and 2D.
Tris base	Sigma-Aldrich (Merck)	T1503	Used to prepare transfer buffer for Step 4.5.
Tris hydrochloride (Tris-HCl)	Sigma-Aldrich (Merck)	T3253	Used to prepare lysis buffers in Step 3.2, 4× Laemmli sample buffer in Step 3.8, the 15% SDS-PAGE gel required for Steps 4.2–4.5, and TBS in Step 4.9.
Triton X-100	Sigma-Aldrich (Merck)	T8787	Used to prepare lysis buffers in Step 3.2.
Trypsin EDTA	Gibco	11570626	Used to passage cells in Step 1.1.
