Of note, this study focuses on describing the nuances of variant review in IGV for clinical reporting. The final clinical reporting should be dependent on each individual laboratory's validated pipeline, quality criteria, and reporting policy. A complete discussion of this important topic is beyond the scope of the current study; however, recommended standards and guidelines have been put together by the American College of Medical Genetics and Genomics and the Association for Molecular Pathology7 and are regularly implemented in clinical laboratories.
Clinical Vignette #1 interpretation:
Given the high VAF, balanced strand distribution, and known incidence of KRAS c.34G>T (p.G12C) in lung cancer (Figure 2A), the variant in case A can result in targeted therapy and, as such, is crucial to report clinically. Despite a positive call for the same KRAS c.34 G>T variant in the second (sarcoma) case (Figure 2B), multiple warning signs of a false-positive call are present: (1) the reported variant allele fraction (VAF) is ~1%, which is vastly below what a driver event would be expected to be in the setting of a sample estimated to have even a low tumor cellularity (20%) and (2) the reads supporting this variant show strand bias, appearing almost exclusively on the forward-strand. Together with a lack of biological plausibility for this type of cancer, the evidence suggests that the finding in case B is an artifact.
Clinical Vignette #2 interpretation:
This vignette illustrates multiple distinct errors about which clinicians must be aware. First, variant callers may appropriately or inappropriately call adjacent genetic variants either as two SNVs or as a single MNV (Figure 2C). This is due to the difference in the implementation of haplotype-aware variant calling algorithm in somatic variant callers. Only a few, more recently published variant callers, incorporate this feature14,15. Second, technical and nomenclature-based variations such as these are fed into external databases by sequencing centers using different bioinformatic pipelines. They therefore may contain multiple distinct accounts of what ought to be listed as a single genetic variant. Unless database phasing occurs periodically, this can have a variety of untoward effects for clinical interpretation downstream. Taken together, these possible sources of error can conspire to lead to an incorrect patient report. This complex scenario highlights the value of variant visualization using high-quality software such as IGV.
Clinical Vignette #3 interpretation:
Given the multi-read support for the duplication and known mechanism of constitutive activation of KIT with exon 9 duplications in GIST, we can conclude that this KIT c.1504_1509dup (p.A502_Y503dup) variant is real and not an artifact (Figure 3). KIT mutations are frequent drivers in GISTs, occurring in approximately 90% of cases. Accurate variant characterization is critical here because while exon 11 activating mutations are the most common, exon 9 mutated GISTs behave differently with respect to tyrosine kinase inhibitor sensitivity, thus altering the therapeutic approach. Given the clinical importance of KIT mutations in GISTs, this variant should be included in the final report.
Clinical Vignette #4 interpretation:
Given the coverage track, stereotypical short deletion appearance, and read support, and the known mechanism of constitutive activation of EGFR exon 19 deletions in NSCLC, we can conclude that this EGFR c.2235_2249del (p.E746_A750del) variant is real and not an artifact (Figure 4). Many EGFR mutations, including this well-known exon 19 deletion, are highly susceptible to tyrosine kinase inhibitors. Given the clinical importance of EGFR mutations in NSCLCs, this variant should be included in the final report.
Clinical Vignette #5 and Vignette #6 interpretation:
The heatmap views confirm the EGFR amplification and the breakpoint junction between exons 1 and 8, evaluated with BLAT, confirm both findings in this patient (Figure 5 and Figure 6). EGFR amplification is generally considered a prognostic factor of more aggressive disease, and EGFRvIII gene rearrangement is a GBM-specific biomarker and is potentially targetable16,17.
Selected workflows may be reproduced using files saved to the main branch of the GitHub repository https://github.com/Eitan177/Demo_IGV (updated 6/9/2026), which contains six session files, one for each vignette, five pairs of bam and bai files, one for each vignette using an alignment file, and 10 seg files for vignette five, which uses segment files rather than alignment files.

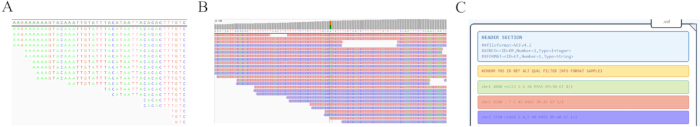

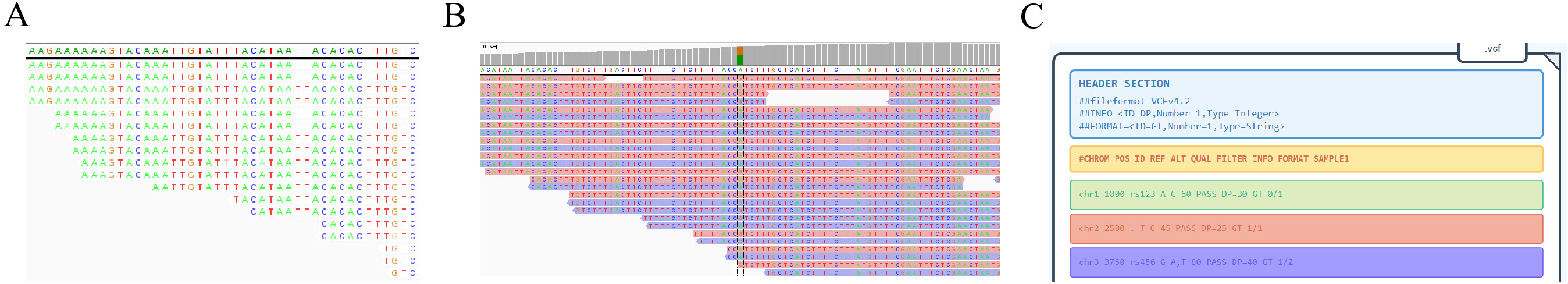

Figure 1: NGS file standards and sequencing workflow. (A) Short reads generated on a flow cell are tracked by optical measurements and stored in FASTQ format, which includes both sequence data and per‐base quality scores. These reads are then sorted and aligned to a reference genome, yielding a BAM file with each read "piled up" at its matching locus. (B) Discrepancies between the reference and the reads (e.g., point mutations, small indels) are identified by variant‐calling algorithms. (C) Finally, these detected variants are compiled into a VCF file, summarizing their positions, reference/alternate bases, and other annotation data. Please click here to view a larger version of this figure.

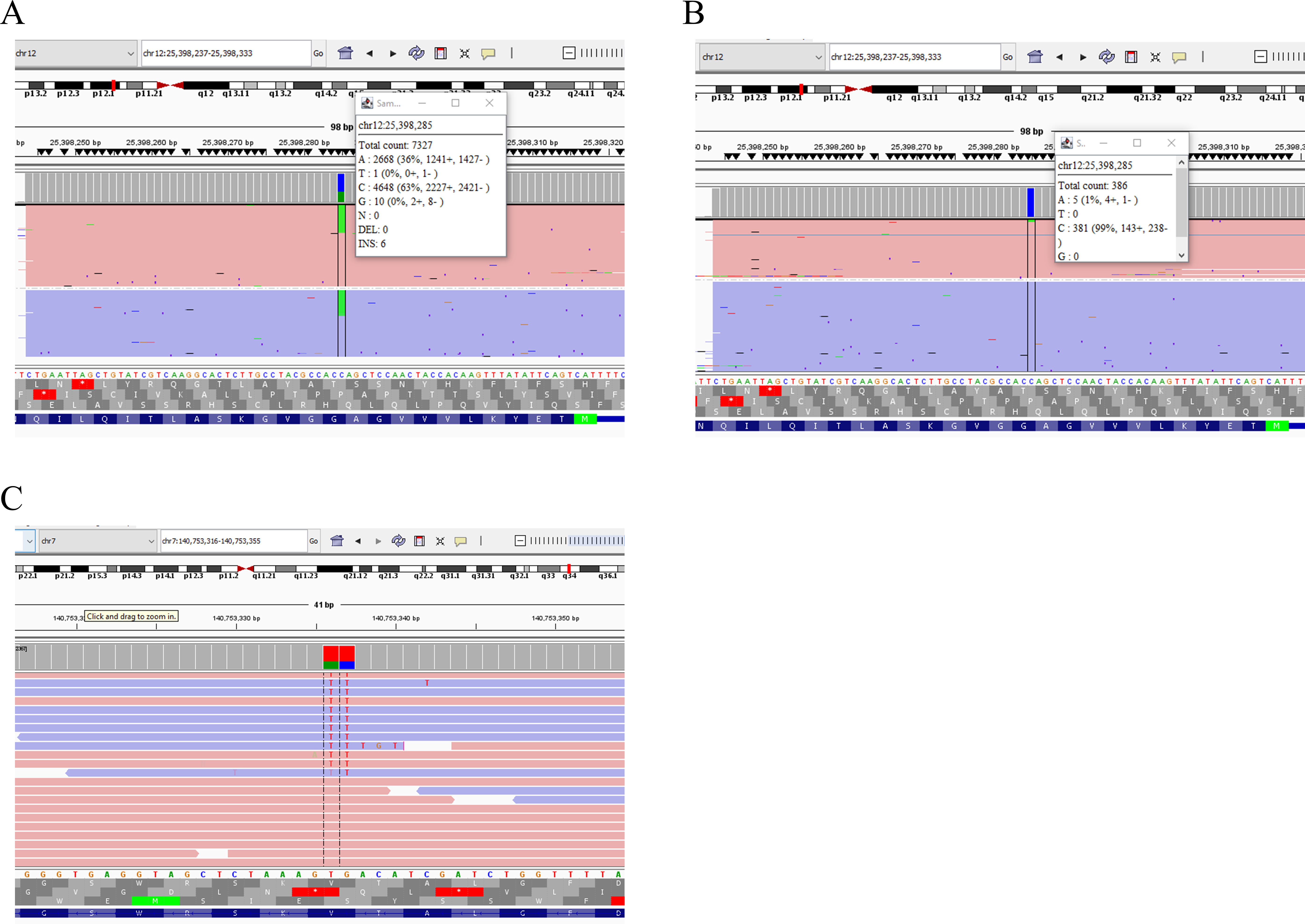

Figure 2: IGV‐based visualization of KRAS c.34G>T (p.G12C) and BRAF c.1798_1799delinsAA (p.V600K). (A) Visualizing a real variant (KRAS c.34G>T (p.G12C)) in IGV, demonstrating a high read depth (thousands of reads) and ~35–40% of reads carrying a G→T change. Forward (red) and reverse (blue) reads are balanced, suggesting a true heterozygous mutation. (B) Suspected artifact in non‐relevant tissue showing a variant with minimal read support (1% VAF). Most variant reads appear on the forward strand (red), indicating strand bias. (C) A complex variant BRAF c.1798_1799delinsAA (p.V600K) seen in IGV revealing a two‐base substitution (GT→AA) in cis. Please click here to view a larger version of this figure.

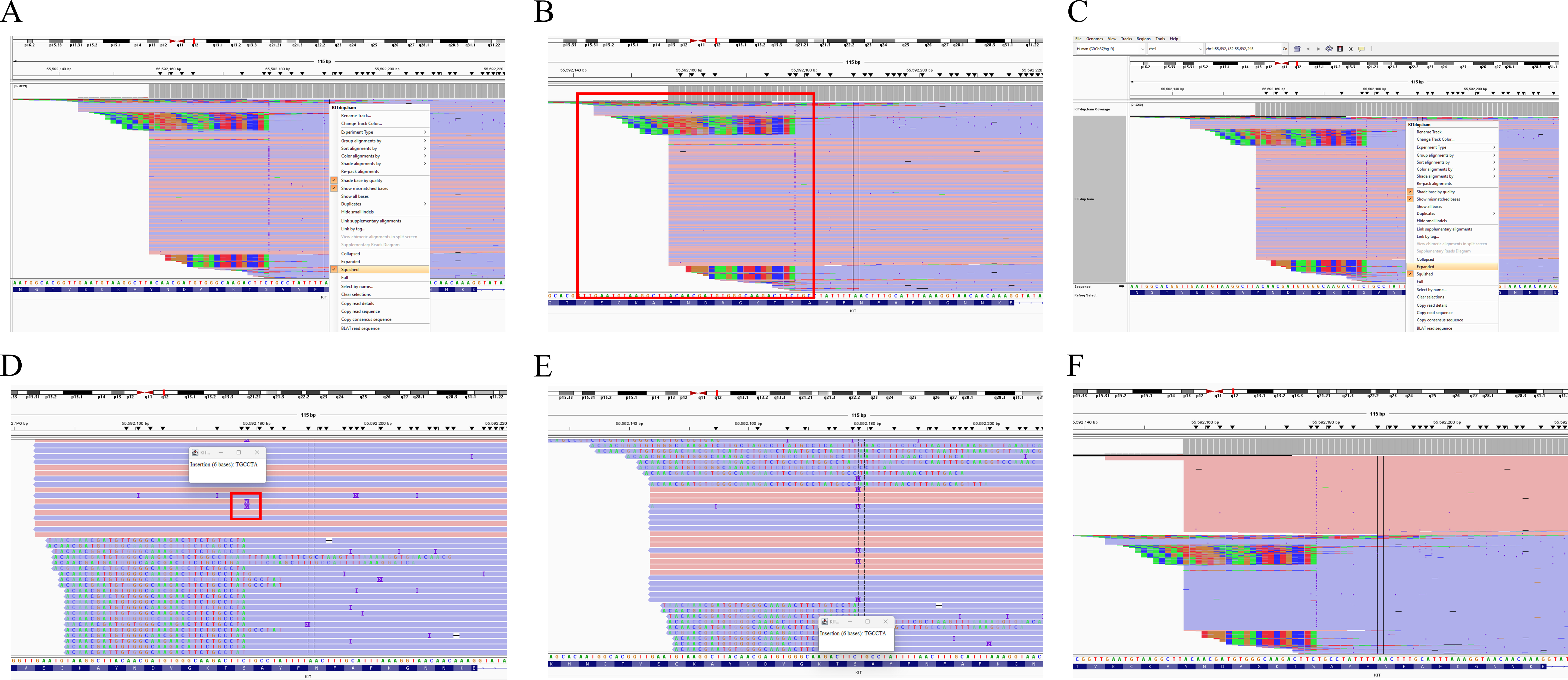

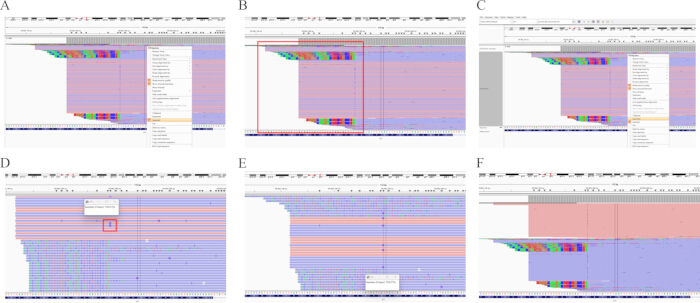

Figure 3: Visualizing a small insertion. (A) "Squished" view of KIT exon 9 in IGV helps to identify the region of interest. (B) Region of interest (red box) identified by visualizing the insertion bar and soft clipped bases. (C) Setting the "Expanded" view in IGV to allow visualization of the insertion. (D) Clicking on the insertion bar (red box) displays the inserted sequence. (E) The inserted sequence is compared to the reference sequence to identify the duplicated bases. (F) Sorting the reads by read-strand, showing that soft clipped bases correspond to the insertion in the reverse reads. Please click here to view a larger version of this figure.

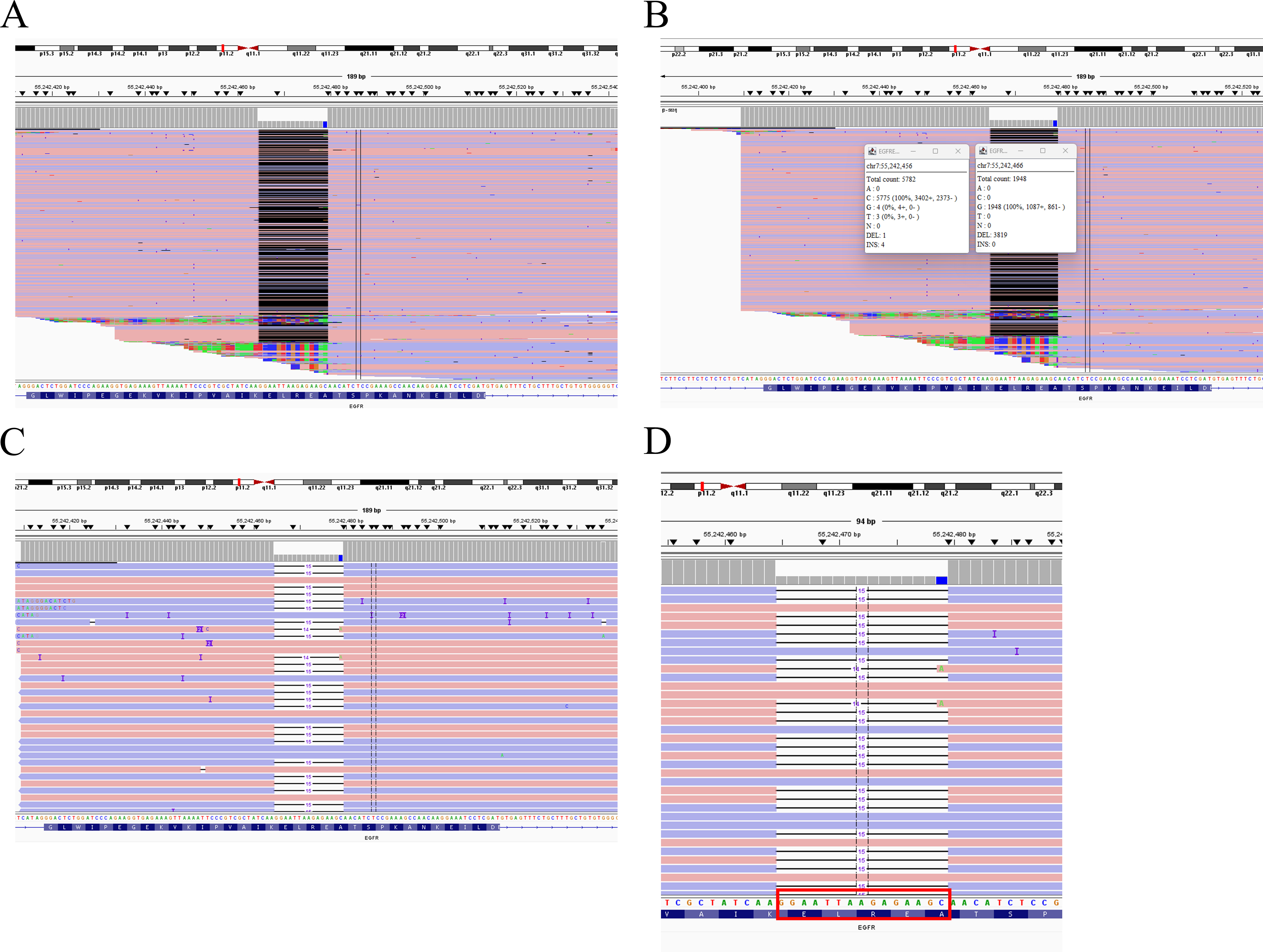

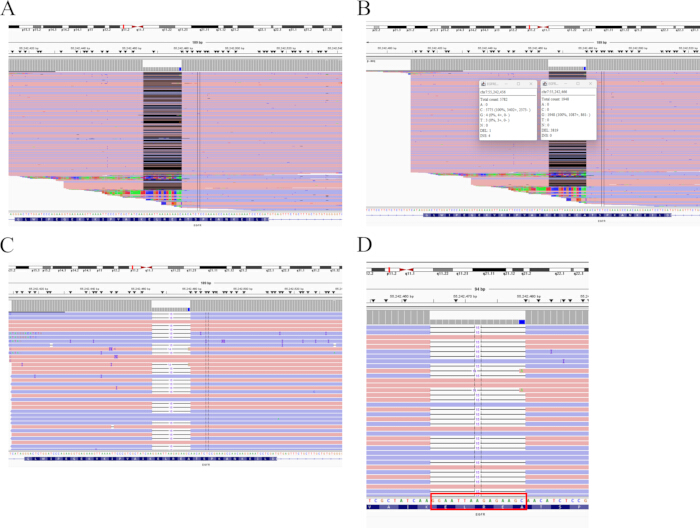

Figure 4: Visualizing a small deletion. (A) "Squished" view of EGFR exon 19 showing the deletion present in numerous reads. (B) Using the coverage track to review the number of reads at positions within and adjacent to the deletion. (C) "Expanded" view showing the deletion, identifying the number of deleted bases. (D) Comparison with the reference sequence (red box) identifies the deleted bases. Please click here to view a larger version of this figure.

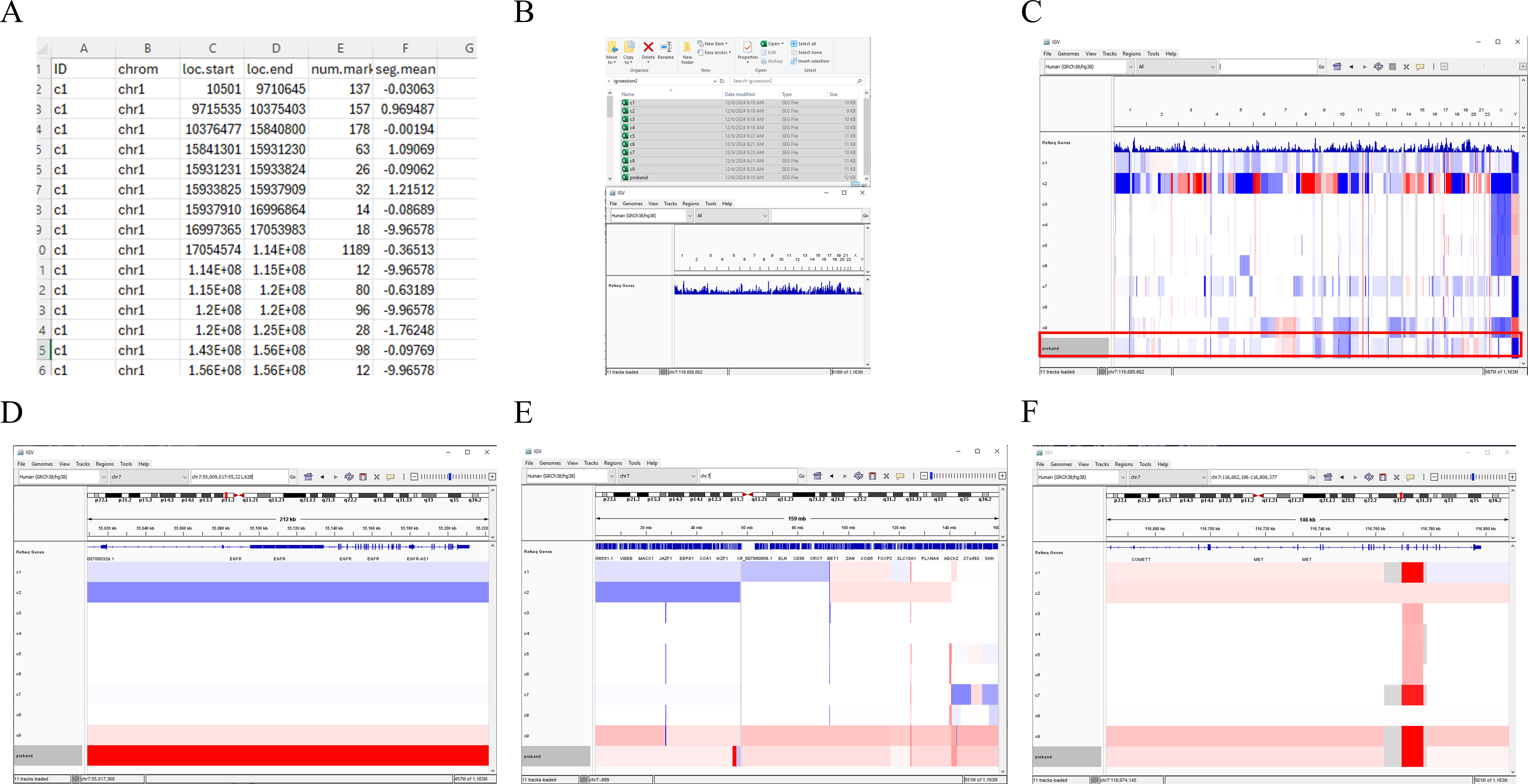

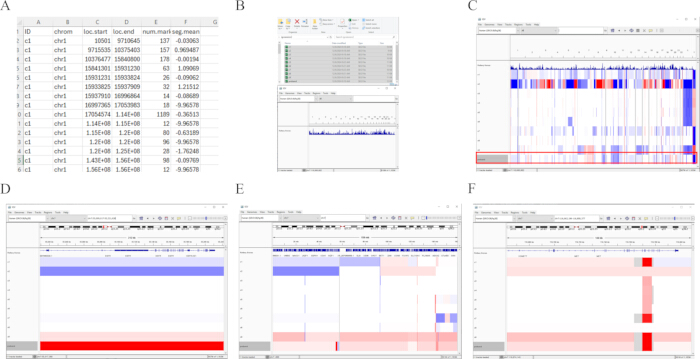

Figure 5: Visualizing a copy number gain. (A) There are six columns in a seg file: sample ID, chromosome, start, end, markers in the segment, and mean of the segment. (B) Loading the seg files directly into IGV allows for convenient visualization. (C) Visualization of the data in a genome-wide view. Each sample will appear as a row of data, with colors specifying values, red for >0 and blue for <0, with more intense colors reflecting values farther from 0. Upon opening the sample of interest and nine random samples from the same run, the results in a multi-sample heatmap with ten rows. The sample of interest is highlighted at the bottom in the red box. (D) Narrowing the view to the EGFR locus, a red bar is seen in the sample of interest at the bottom, and white or blue bars for the random samples. This color differential between the sample of interest and the random samples in other rows demonstrates that the amplification call in the sample of interest is above background or noise at this locus. (E) Zooming out to chr7, a contrast is noted between the locus containing EGFR in our sample and not in the random samples. The EGFR amplification displays as a red sliver in the bottom sample. (F) Narrowing the view to the MET locus, MET amplification is replicated to varying degrees across the nine random samples along with the sample of interest, suggesting this amplification call is an artifact. This highlights the difference in appearance between a true copy number call at the EGFR locus and an artifact. Please click here to view a larger version of this figure.

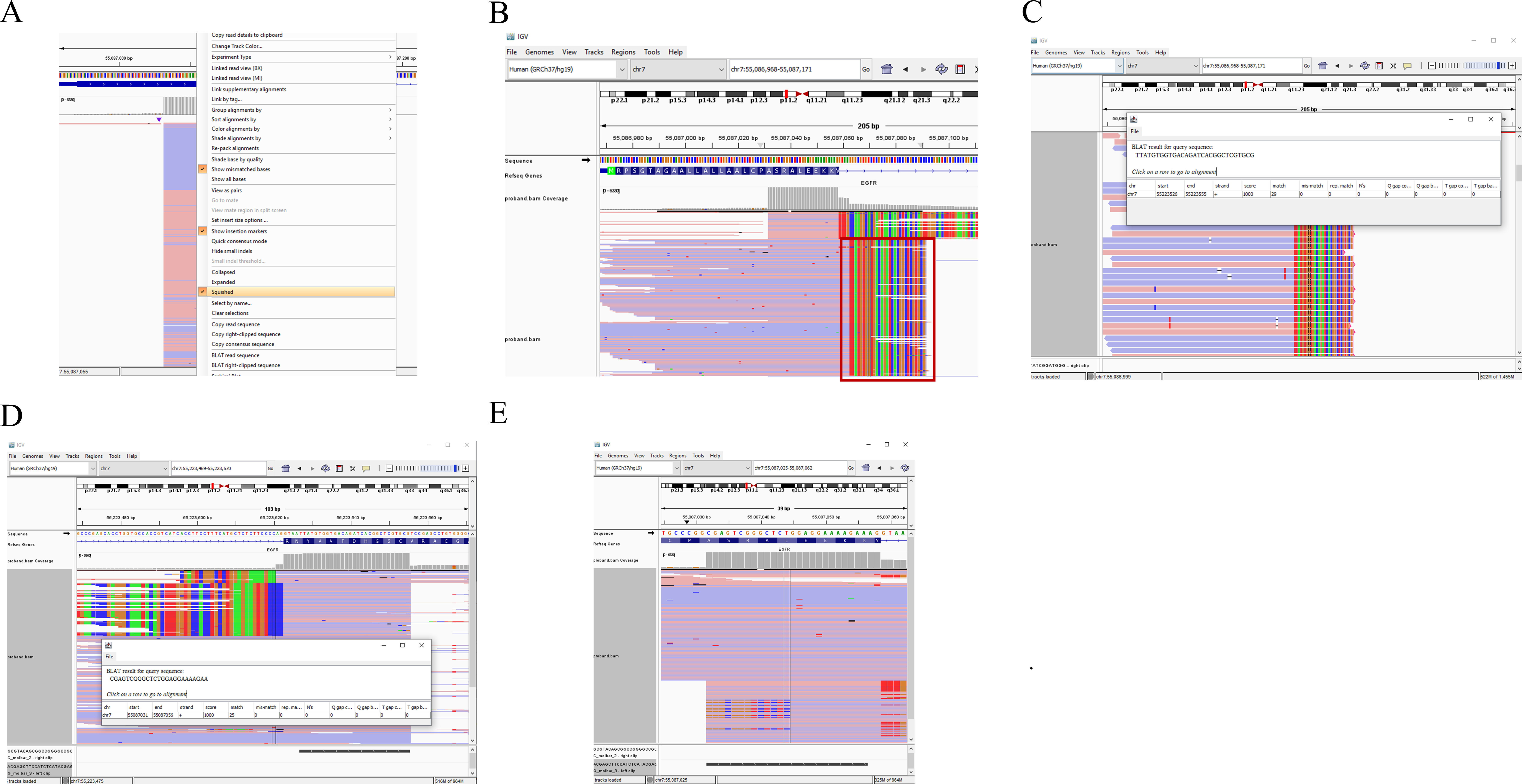

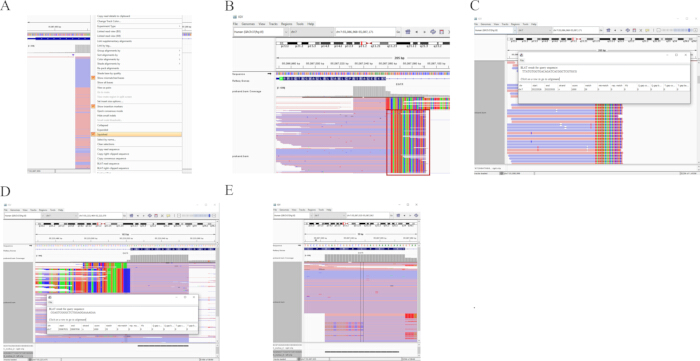

Figure 6: Visualizing an EGFRvIII gene rearrangement. Prior to working through this case, ensure that visualization of soft-clipped bases has been set up (See Supplementary File 1 for additional details). (A) Navigate to the first candidate junction and set the view of the alignment track to "Squished". (B) Move across the locus, iteratively applying the sort-by-base shortcut, "control-s", until a pileup of similarly soft-clipped reads becomes visible at the top of the alignment track. The greater quantity of similarly soft-clipped reads (red box) in the pileup, the greater the confidence of a structural rearrangement. (C) The BLAT tool pulls up the sequence of the soft-clipped bases and identifies where in the genome that sequence is present along with a quantitative score measuring how closely the sequence aligns with a specific sequence in a target database. Selection of a particular row will navigate to that location. (D) Using the "control-s" sort by base function again demonstrates a soft-clip pileup, this time on the opposite side of the reads. To confirm that there are no additional bases in the sample with respect to the hg38 reference, right-click a read with a run of soft-clipped bases and again BLAT the soft-clip bases. The ensuing table displays the first breakpoint of the junction, the locus initially visualized, the exon 1-intron 1 junction. (E) Selection of the top row returns to the first breakpoint. The bases at the junction of the BLAT reference alignment are identical to the soft-clipped bases used as the query, indicating that the entire run of soft-clipped reads is contained in the reference sequence alignment. Please click here to view a larger version of this figure.
Supplementary File 1: Recommended IGV setup.Please click here to download this file.
Supplementary File 2: Condensed workflows.Please click here to download this file.
