Thulium, Erbium, and Diode Lasers for Intracanal Decontamination: Anti-Enterococcus faecalis Activity and Thermal Safety Ex Vivo

Summary

This protocol compares diode, thulium, and erbium lasers for intracanal disinfection in an ex vivo Enterococcus faecalis root canal model by evaluating antibacterial efficacy and external root surface temperature to identify safe and effective irradiation parameters.

Abstract

Laser-assisted irrigation has emerged as a promising adjunct for root canal disinfection; however, evidence directly comparing different laser systems under standardized experimental conditions remains limited. This ex vivo study compared the antibacterial efficacy and thermal safety of an 808 nm diode laser, a 1940 nm thulium laser, and a 2940 nm erbium laser for intracanal decontamination against Enterococcus faecalis. Standardized infected human root canal specimens were treated using clinically relevant irradiation parameters. Antibacterial efficacy was evaluated by colony-forming unit (CFU) reduction and bacterial growth curve analysis, while thermal safety was assessed by measuring external root surface temperature changes during laser irradiation. All three laser systems demonstrated greater antibacterial activity than saline-treated controls. The erbium laser achieved the highest mean inhibition rate (99.0%) at 30 mJ for 30 s while maintaining external root surface temperature increases below the accepted 10°C thermal safety threshold. The thulium laser produced comparable antibacterial activity but exceeded the thermal safety threshold at its highest irradiation settings. The diode laser demonstrated lower antibacterial efficacy and greater temperature increases than the thulium and erbium lasers under the tested conditions. Within the limitations of this ex vivo model, the 2940 nm erbium laser demonstrated the most favorable balance between antibacterial efficacy and thermal safety and represents a promising adjunctive approach for intracanal disinfection.

Introduction

The main cause of pulpitis and apical periodontitis is bacterial infection of the root canal system¹. According to one study, Enterococcus faecalis has been identified as the leading bacterial isolate in patients with chronic or recurrent infection following endodontic treatment^2,3. This bacterium possesses numerous virulence factors, including biofilm formation; it can penetrate the dentinal tubules to depths of up to 800 µm and survive under nutrient-limited conditions^2,3. These properties contribute to its resistance to standard intracanal disinfectants used during root canal therapy, as well as to the body’s natural defense mechanisms. Therefore, the inability to eliminate all remaining E. faecalis from the root canal system is a significant cause of endodontic treatment failure⁴.

Current root canal treatment combines mechanical debridement through instrumentation with chemical irrigation to help eliminate microorganisms from the root canal system⁵. Although mechanical instrumentation is highly effective at reducing bacterial populations, many areas within the complex root canal anatomy remain inaccessible to instrumentation alone⁵. Therefore, chemical irrigants play an important role in disinfecting the root canal system. Studies have shown, however, that even the most potent chemical agents fail to completely eliminate bacterial biofilms⁶. Furthermore, some chemical agents used during endodontic treatment may compromise the structural integrity of dentin^6,7. To improve disinfection efficacy and achieve more complete removal of bacterial biofilms from the root canal system, several methods of activating chemical irrigants have been explored. Among these, laser-activated irrigation has emerged as one of the more promising alternatives⁸. Diode, thulium, and erbium lasers have also been evaluated for their potential to produce photothermal and photomechanical effects capable of disrupting bacterial cell walls and biofilms⁹.

The interaction between each of these laser types and the tissues with which they interact varies significantly according to wavelength. Diode lasers, which typically emit light at wavelengths ranging from 808 to 980 nm, are absorbed by chromophores in biological tissues, resulting in a photothermal reaction in which proteins are denatured and bacteria are killed¹⁰. Thulium lasers operate at 1940 nm and exhibit high absorption by water. Therefore, thulium lasers have been shown to be well suited for wet environments, including root canals filled with irrigating solution¹¹. Due to their high water absorption, thulium lasers can rapidly heat and vaporize fluid when used in irrigated root canals. Vaporization generates shock waves that may help disrupt bacterial biofilms. Erbium lasers, particularly those operating at 2940 nm, have the highest absorption coefficient for water among dental lasers¹². In irrigated canals, this property can generate explosive vaporization and shock waves that mechanically detach and kill bacteria while potentially limiting heat transfer to the surrounding dentin¹³.

Although interest in laser technology for endodontic practice continues to increase, much remains unknown regarding the optimal clinical parameters for different laser systems. Current methods for clinical use are typically based on empirical experience or manufacturer-recommended guidelines, with limited evidence-based support¹⁴. In addition, most studies to date have evaluated the antimicrobial effects of lasers; however, an important aspect of laser therapy has received comparatively less attention: the risk of thermal injury to the periodontal tissues. It is generally accepted that an increase in external root surface temperature of more than 10°C may result in permanent damage to the periodontal ligament and surrounding bone¹⁵. There appears to be no published head-to-head comparison of different laser systems that systematically evaluates both their antimicrobial efficacy and thermal safety under controlled experimental conditions.

The primary purpose of this ex vivo study was to investigate and compare the antimicrobial efficacy and thermal safety of three laser systems—an 808 nm diode laser, a 1940 nm thulium laser, and a 2940 nm erbium laser—for eliminating E. faecalis biofilm from root canal walls. To identify parameter combinations that achieve effective bacterial elimination while maintaining thermal safety, this study evaluated clinically relevant irradiation parameters. It is anticipated that these findings will help clinicians select safe and effective laser-assisted approaches for endodontic disinfection.

Protocol

This study was conducted in accordance with the ethical standards of Shanghai Fourth People’s Hospital, School of Medicine, Tongji University, and was approved by the Institutional Review Board (Approval No. 2026013-001). The extracted human teeth used in this study were collected from patients who underwent tooth extraction for orthodontic or periodontal reasons. Written informed consent was obtained from all participants before sample collection. No additional clinical intervention was performed for the purpose of this study. The study was conducted in accordance with institutional requirements for the use of extracted human teeth.

Specimen Preparation and Selection Criteria
A total of 141 single-rooted permanent teeth (mandibular incisors and premolars) that had been recently extracted were received from the Stomatology Dept., affiliated with Tongji University at Shanghai Fourth People’s Hospital. All teeth were removed due to orthodontic or periodontal reasons. Informed consent was obtained from each patient. Included in this study were teeth with roots of at least ten millimeters as determined by a periodontal probe, intact teeth with no carious lesions or cracks, complete root formation, and root curvature of less than ten degrees according to Schneider's method. Excluded from this study were teeth with multiple canals, canal calcification, internal resorption, or previous endodontic treatment. Following extraction, all visible calculus and soft tissue remnants were removed using a periodontal scaler. The teeth were then stored in 0.9% saline solution at 4°C until use to prevent dehydration, and all experiments were conducted within three months of extraction. The specimens were assigned to the experimental groups using a predefined alternating allocation sequence. Specifically, specimens were sequentially allocated to each group in an alternating manner until the required sample size for each group was reached. No formal a priori power calculation was performed. The sample size was selected based on previous comparable ex vivo studies, the number of irradiation parameter combinations evaluated, and the availability of eligible extracted teeth.

Root Canal Preparation and Sterilization
Each tooth crown was removed at the cementoenamel junction using a low-speed diamond saw under continuous water cooling to obtain a standardized 10 mm root segment. The working length was determined as 1 mm short of the apical foramen using a size 10 K-file. Root canals were prepared using the ProTaper Universal nickel–titanium rotary system according to the manufacturer’s instructions, following the sequence S1, S2, F1, F2, and F3 until an apical preparation size of F3 was achieved. During instrumentation, the canals were irrigated with approximately 2 mL of 5.25% sodium hypochlorite after the use of each rotary file, resulting in a total irrigation volume of approximately 10 mL per canal. A final rinse was performed with 5 mL of 17% EDTA for 1 min, followed by 5 mL of sterile saline. The apical foramen was sealed with flowable resin composite to create a closed canal system. Prepared roots were sterilized by autoclaving at 121°C for 20 min, stored in sterile phosphate-buffered saline (PBS) at 4°C, and inoculated with bacteria within 24 h after sterilization.

Bacterial Strain and Culture Conditions
E. faecalis ATCC 29212 was used to establish the infected root canal model. The strain was cultured on brain heart infusion (BHI) agar at 37°C for 24 h under aerobic conditions. A single colony was transferred to BHI broth and incubated at 37°C for 18–24 h. The bacterial suspension was adjusted to approximately 1.5 × 10⁸ CFU/mL, equivalent to a 0.5 McFarland standard, using an optical density at 600 nm (OD₆₀₀) value of 0.08–0.10.

Establishment of E. faecalis Infected Root Canal Model
To establish an infected root canal biofilm model, the external surface of each sterilized root was coated with two layers of clear nail polish to prevent bacterial penetration through the cementum. The apical region was coated after the apical foramen had been sealed with flowable resin composite, whereas the canal orifice was left uncoated to permit bacterial inoculation. Using a sterile micropipette, 10 µL of the E. faecalis suspension was transferred into each individual root canal to fill the entire length of the canal without spilling over. Inoculated samples were then individually placed in sterile 24-well culture plates, with 1.5 mL of BHI broth added to each well. Samples were cultured at 37°C under aerobic conditions for 21 days. The growth medium was removed and replaced with fresh sterile BHI broth every 2 days to provide nutrients for continued bacterial growth and to remove accumulated cellular debris. No additional inoculation with E. faecalis was performed during medium replacement. After completion of the incubation period, all viable samples were washed once with PBS to remove loosely attached planktonic bacteria before experimental testing. Two randomly selected samples were used to visualize mature biofilm formation and bacterial penetration into the dentinal tubules by scanning electron microscopy (SEM). The specimens were fixed in 2.5% glutaraldehyde at 4°C for 24 h, rinsed three times with PBS, dehydrated through a graded ethanol series (30%, 50%, 70%, 80%, 90%, and 100%), with each step lasting 10 min, then split longitudinally, air-dried, mounted on aluminum stubs, sputter-coated with gold, and examined by SEM.

Experimental Groups and Laser Irradiation Protocols
The 135 infected root samples were divided into three primary experimental groups according to the laser system used: the 808 nm Diode Laser Group, the 1940 nm Thulium Laser Group, and the 2940 nm Erbium Laser Group. There were 45 samples in each laser group, which were further subdivided according to the irradiation parameters. The diode laser was operated at average powers of 1.0, 1.5, or 2.0 W, and each power setting was applied for 10, 20, or 30 s, resulting in nine subgroups with three samples per subgroup. The thulium laser was operated at average powers of 1.5, 2.5, or 3.5 W, and each power setting was applied for 10, 20, or 30 s, also resulting in nine subgroups with three samples per subgroup. The erbium laser operated in a super-short pulse mode at a fixed frequency of 15 Hz. Pulse energies of 10, 20, or 30 mJ were applied for 10, 20, or 30 s, generating nine subgroups with three samples per subgroup. Both the 808 nm diode laser and the 1940 nm thulium laser were operated in continuous-wave mode.

In total, six additional samples were included, with three samples each assigned to the negative and positive control groups. The negative control group was treated with sterile saline, whereas the positive control group was treated with 5.25% sodium hypochlorite (NaOCl) for 30 s.

For the laser groups, a standardized irradiation protocol was followed. The optical fiber was introduced into the root canal to the working length and moved in a slow, continuous spiral motion from the apical to the coronal direction throughout the irradiation period. Laser-specific delivery fibers or tips were used rather than a single interchangeable fiber. The 808 nm diode laser was delivered through a 200 µm end-firing fiber, the 1940 nm thulium laser through a 200 µm end-firing fiber, and the 2940 nm erbium laser through a 400 µm radial-firing tip. The delivery fiber or tip was withdrawn at an approximate rate of 1 mm/s. After reaching the canal orifice, it was returned to the working length, and the apical-to-coronal spiral movement was repeated until the assigned irradiation duration was completed.

For the thulium and erbium lasers, the canals were kept filled with sterile saline during irradiation to simulate water-assisted laser activation. Approximately 10 µL of sterile saline was introduced into each canal to fill the canal to the level of the canal orifice before irradiation. The saline was replenished before each irradiation cycle, when necessary, to maintain a fluid-filled canal throughout treatment. For the diode laser group, the canals were dried with sterile paper points before irradiation because the 808 nm diode laser has relatively low absorption in water and was used to produce a direct photothermal antibacterial effect within the canal. By contrast, the 1940 nm thulium and 2940 nm erbium lasers have substantially greater water absorption and were therefore applied in saline-filled canals to facilitate water-mediated photothermal and photomechanical effects. The laser treatment was repeated once daily for three consecutive days.

Measurement of External Root Surface Temperature
Real-time temperature changes on the external root surface were measured during the first day of laser irradiation. Each root specimen was fixed vertically on a retort stand at room temperature (22°C ± 1°C). A K-type thermocouple connected to a digital thermometer was placed in firm contact with the mid-third of the external root surface, perpendicular to the long axis of the root. The thermocouple probe was positioned using an adjustable clamp and secured to the root surface with heat-resistant adhesive tape to maintain firm and consistent contact throughout the measurement. The thermocouple probe was calibrated before each measurement session using boiling water (100°C) and an ice–water mixture (0°C). Temperature readings were recorded at 50 ms intervals throughout the irradiation period (10, 20, or 30 s). Both the baseline temperature and the maximum temperature recorded during or immediately after laser irradiation were measured for each specimen. The temperature increase from baseline to peak temperature was calculated as ΔT. A ΔT exceeding 10°C was considered the threshold for potential damage to the periodontal tissues.

Microbiological Evaluation: Colony Counting and Inhibition Rate
To determine the antibacterial effect of the laser treatments, samples were collected after each laser treatment. The canal was dried with sterile paper points. A new sterile size 40 Hedström file was used for each specimen to obtain dentin chips from the canal walls, thereby preventing cross-contamination between samples. Each dentin chip was transferred into a separate microcentrifuge tube containing 1 mL of sterile PBS. The tubes were vortexed vigorously for 30 s to release bacteria from the dentin chips. Serial 10-fold dilutions ranging from 10⁻¹ to 10⁻⁶ were prepared by transferring 100 µL of the bacterial suspension into 900 µL of sterile PBS at each dilution step. Aliquots (30 µL) of each dilution were spread onto separate brain heart infusion agar plates, which were incubated at 37°C for 24 h. Colonies were counted and recorded as colony-forming units (CFU). Each dilution was plated in triplicate, and the mean colony count from the three plates was used for analysis. The plates were coded before counting, and the investigator performing the colony counts was blinded to the treatment assignments.

Here, C is the mean CFU count of the negative control (saline) group and T is the mean CFU count of the experimental group.

Bacterial Growth Curve Analysis

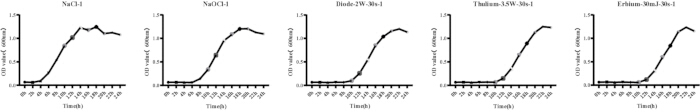

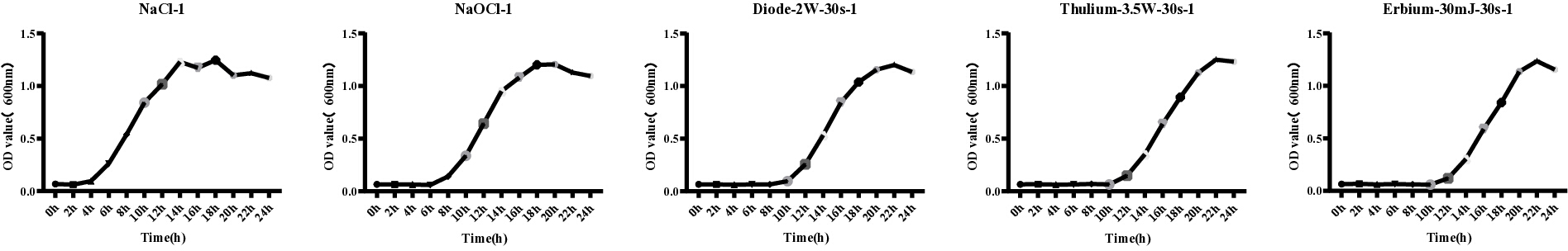

The effect of various laser treatments on bacterial growth kinetics was investigated by plotting growth curves. On Day 3 after the final laser treatment, the canals were washed with 5 mL of sterile saline solution. The canal contents were collected using sterile paper points, which were then transferred into a centrifuge tube containing 5 mL of BHI broth. The tube was vortexed to suspend the bacteria in the broth. The bacterial suspension was adjusted to 1 × 10⁶ CFU/mL. The bacterial concentration was adjusted based on OD₆₀₀ measurements using a previously established calibration curve for E. faecalis ATCC 29212 and was subsequently verified by viable colony counting. An aliquot of 200 µL of the suspension was added to each well of a sterile 96-well microplate. In addition, 20 µL of sterile mineral oil was added to each well to minimize evaporation. The microplate was placed in a spectrophotometer/incubator maintained at 37°C, and OD₆₀₀ was measured every hour for 24 h. Before each OD600 measurement, the microplate was subjected to orbital shaking at approximately 300 rpm for 10 s to ensure a homogeneous bacterial suspension. Each sample was tested in five replicate wells.

Statistical Analysis
All numerical data are presented as the mean ± standard deviation (SD). Statistical analyses were performed using SPSS Version 26.0. Data distribution was evaluated using the Shapiro–Wilk test. Analysis of variance (ANOVA) was used to compare more than two groups, followed by Tukey's honestly significant difference (HSD) test for pairwise comparisons. Comparisons between two groups were performed using an independent-samples t-test. Homogeneity of variance was assessed using Levene’s test before applying parametric tests. When the assumption of homogeneity of variance was violated, Welch’s correction was applied, as appropriate. Statistical significance was defined as P < 0.05. Graphs were generated using GraphPad Prism Version 9.0.

Results

Antibacterial Activity of Different Laser Treatments Against E. faecalis

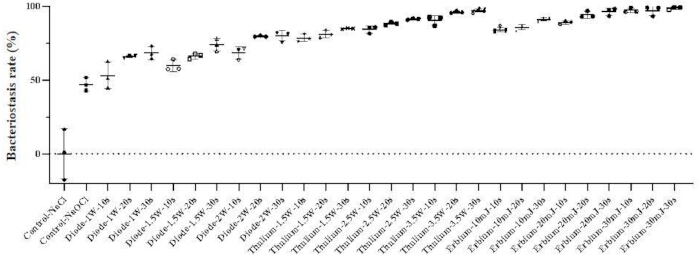

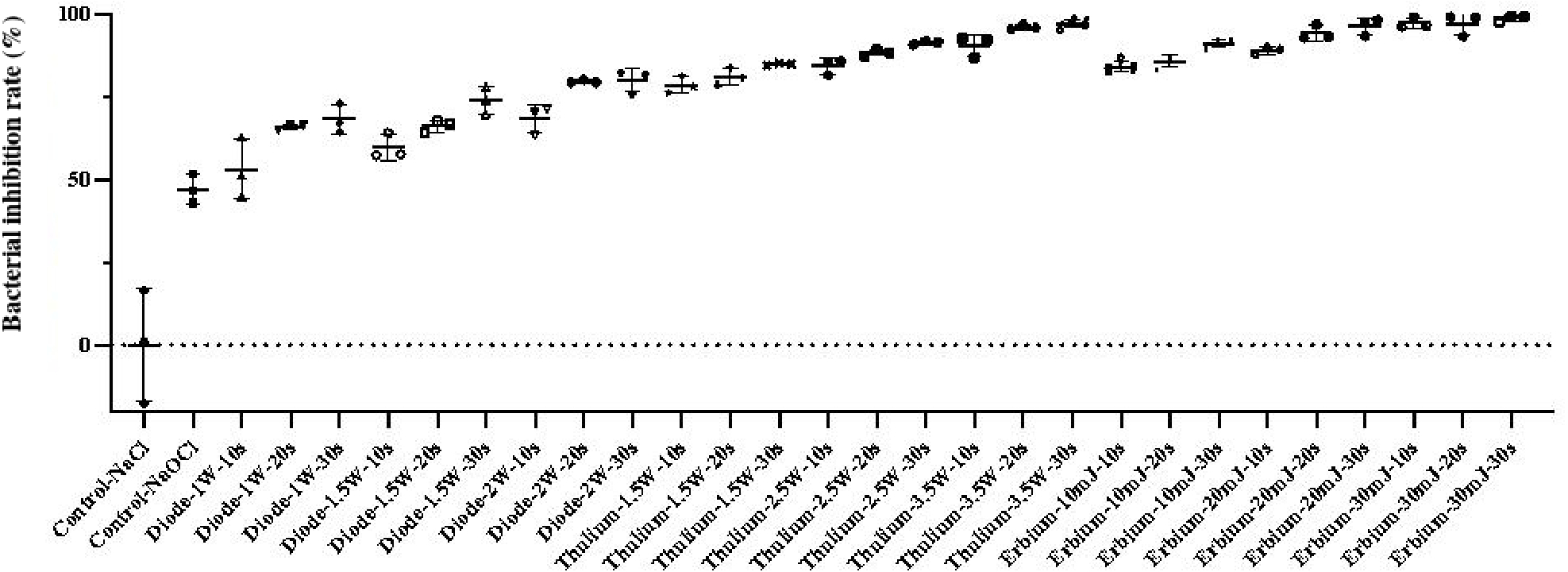

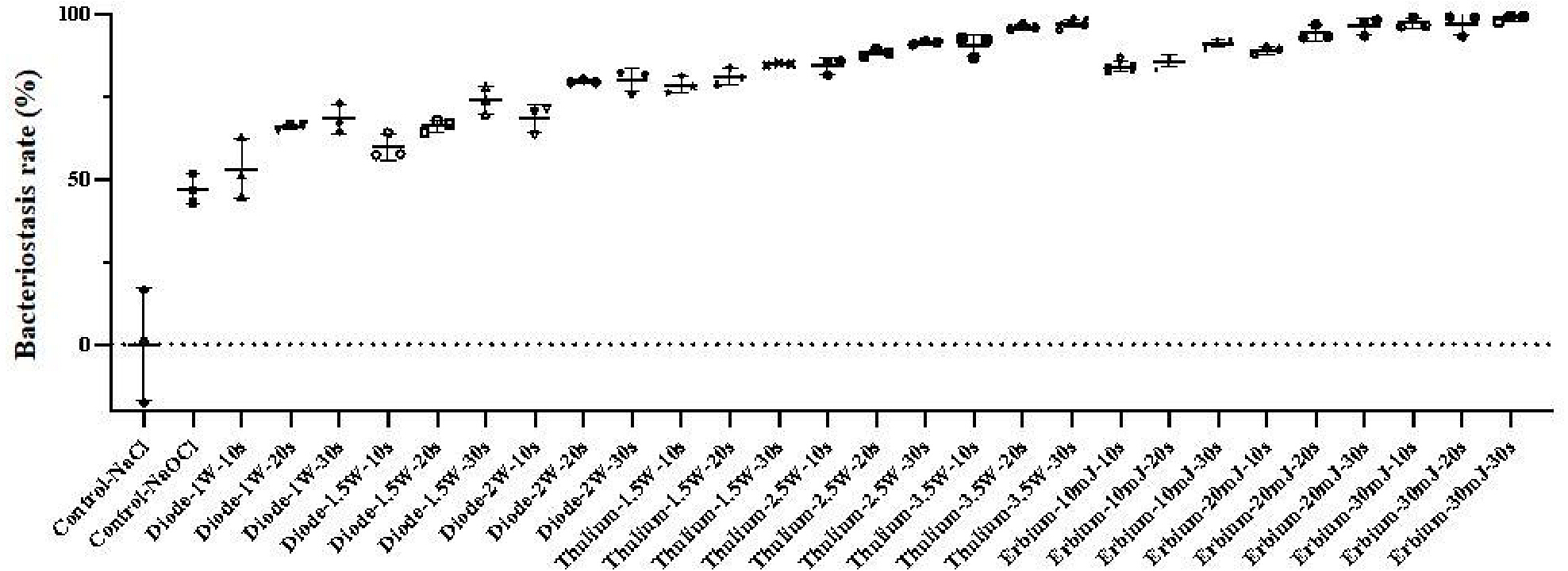

The antibacterial effectiveness of the three laser systems against E. faecalis was evaluated by determining CFU counts after three consecutive treatments. The results are shown in Figure 1 and Supplementary Figure 1. The sterile saline negative control group demonstrated substantial bacterial growth, with a mean colony count gray value of 396618.7 ± 67787.5. The 5....

Discussion

The present ex vivo study compared the antibacterial efficacy and thermal safety of 808 nm diode, 1940 nm thulium, and 2940 nm erbium lasers for eliminating E. faecalis biofilms from infected root canals. All three laser systems demonstrated greater bacterial inhibition than 5.25% NaOCl; however, their antibacterial efficacy and thermal profiles differed substantially. The 2940 nm erbium laser achieved the most favorable overall balance, combining the highest antibacterial activity with the smallest increase in ...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
0.9% saline solution	Beyotime	ST341-500ml	Tooth storage, irrigation, and negative control
1.5 mL microcentrifuge tube	Axygen	MCT-150-C	Sample collection and serial dilution
24-well culture plate	Corning	3524	Biofilm incubation
96-well microplate	Corning	3599	Bacterial growth curve assay
Autoclave	Tuttnauer	2540E	Sterilization of prepared roots
Brain heart infusion (BHI) agar	BD Biosciences	211065	Bacterial culture and CFU enumeration
Brain heart infusion (BHI) broth	BD Biosciences	237500	Bacterial culture and growth curve analysis
Clear nail polish	Beyotime	C0187	Sealing the external root surface
Diamond saw (low-speed)	Buehler	IsoMet Low Speed Saw	Crown sectioning
Digital thermometer (K-type thermocouple compatible)	OMEGA Engineering	HH802U	External root surface temperature measurement
Enterococcus faecalis ATCC 29212	American Type Culture Collection (ATCC)	ATCC 29212	Bacterial strain
Ethylenediaminetetraacetic acid (EDTA), 17%	Sigma-Aldrich	E9884	Final canal rinse
Flowable resin composite	3M ESPE	6031A2	Sealing the apical foramen
GraphPad Prism	GraphPad Software	Version 9.0 • RRID: SCR_002798	Graph generation
Hedström file, size 40	Dentsply Maillefer	80603010042	Dentin chip collection
K-file, size 10	Dentsply Maillefer	800-0210	Working length determination
Laser system, 1940 nm thulium-doped fiber	Menovex Medical Technology (Shenzhen) Co., Ltd. (Arpadent)	TN20	Laser irradiation
Laser system, 2940 nm Er:YAG	PointNix Co., Ltd.	Modular-beam	Laser irradiation
Laser system, 808 nm diode	elexxion AG	Claros Nano	Laser irradiation
Micropipette	Eppendorf	3123000063	Sample inoculation
Mineral oil (sterile)	Sigma-Aldrich	M5904	Prevention of evaporation during bacterial growth curve assay
Nickel-titanium rotary file system (F3 preparation)	Dentsply Sirona	ProTaper Gold	Root canal preparation
Optical fiber for 1940 nm thulium-doped fiber laser	Menovex Medical Technology (Shenzhen) Co., Ltd. (Arpadent)	400 µm diameter	Laser irradiation
Optical fiber for 2940 nm Er:YAG laser	PointNix Co., Ltd.	600 µm diameter	Laser irradiation
Optical fiber for 808 nm diode laser	elexxion AG	elexxion longlife 200, 200 µm (Art. No. 10063)	Laser irradiation
Periodontal probe	Hu-Friedy	PCPUNC156	Root length measurement
Periodontal scaler	Hu-Friedy	SJ34-35	Removal of calculus and soft tissue
Phosphate-buffered saline (PBS)	Gibco / Thermo Fisher Scientific	10010023	Washing and bacterial dilution
Pipette tips (10 µL, 200 µL, 1000 µL)	Axygen	T-300 / T-200-Y / T-1000-B	Liquid handling
Retort stand	Biosharp	BS-IT-01	Root specimen fixation
Scanning electron microscope (SEM)	Hitachi High-Technologies	TM4000Plus	Biofilm imaging
Shaking incubator	Thermo Fisher Scientific	MaxQ 4000	Broth culture incubation
Sodium hypochlorite (NaOCl), 5.25%	Sigma-Aldrich	425044	Canal irrigation and positive control
Spectrophotometer/incubator (microplate reader)	BioTek / Agilent Technologies	Epoch 2	Optical density at 600 nm (OD600) measurements
SPSS	IBM	Version 26.0 • RRID: SCR_002865	Statistical analysis
Sterile paper points	Dentsply Maillefer	Absorbent Paper Points, ISO 20, 0.02 taper, 28 mm	Canal drying and bacterial sampling
Thermocouple probe (K-type)	OMEGA Engineering	88000	Temperature measurement
Vortex mixer	Scientific Industries	Vortex-Genie 2	Mixing bacterial suspensions
