Binocular Rivalry
1. Equipment
- To easily produce binocular rivalry, use a pair of red-cyan glasses (Figure 1).
Figure 1. A pair of red-cyan rivalry glasses. The glasses make it possible to present two overlaid images such that only one arrives to each eye. The red lens will filter out all but red light before it reaches a viewer’s eye, and the cyan lens will filter out all but blue light. This means that a blue tinted image won’t make it to the eye with the red lens, and a red tinted image won’t make it to the eye behind the blue lens - A stopwatch will also be necessary.
2. Stimulus
- An easy demonstration having to do with rivalry involves nonsense words superimposed on something meaningful.
- In PowerPoint©, create a slide with the word ‘Hello’ written in blue, and on top of it write the letters ‘Cfbal’ written in red. Make the word on top 50% transparent. It will look like this (Figure 2).
Figure 2. Sample stimulus for a demonstration of binocular rivalry. The word ‘Hello’ is written in blue, and in a 50% transparent red, the nonsense letters ‘Cfbal’ are written on top.
3. Running the Experiment
- Print the slide on a piece of white paper. Seat a participant in front of the paper and ask them to put on the glasses.
- Set the stopwatch to countdown 120 seconds.
- Instruct the participant that every ten seconds they will be asked to report what they see, and that they should answer in one of three ways, ‘Hello,’ ‘Cfbal,’ or ‘Mixed / Unclear’.
- Begin the count, and every ten seconds, ask the participant what they see. Mark down the responses.
Source: Laboratory of Jonathan Flombaum—Johns Hopkins University
Why do people have two forward-facing eyes? By presenting the brain with two ever so slightly different images it becomes possible to comprehend visual problems that are far more difficult to process through a single eye. Chief among these is the problem of 3-D perception, seeing the world in three dimensions, despite retinal inputs in only two dimensions.
What happens if each eye receives two completely different images? That does not happen in nature, to be sure, but it can be contrived in the laboratory in a set-up called binocular rivalry.
Binocular rivalry is a common laboratory paradigm for investigating the ways that the brain integrates information from two eyes, and in recent years, the mechanisms responsible for producing conscious experience.
1. Equipment
- To easily produce binocular rivalry, use a pair of red-cyan glasses (Figure 1).
Figure 1. A pair of red-cyan rivalry glasses. The glasses make it possible to present two overlaid images such that only one arrives to each eye. The red lens will filter out all but red light before it reaches a viewer’s eye, and the cyan lens will filter out all but blue light. This means that a blue tinted image won’t make it to the eye with the red lens, and a red tinted image won’t make it to the eye behind the blue lens - A stopwatch will also be necessary.
2. Stimulus
- An easy demonstration having to do with rivalry involves nonsense words superimposed on something meaningful.
- In PowerPoint©, create a slide with the word ‘Hello’ written in blue, and on top of it write the letters ‘Cfbal’ written in red. Make the word on top 50% transparent. It will look like this (Figure 2).
Figure 2. Sample stimulus for a demonstration of binocular rivalry. The word ‘Hello’ is written in blue, and in a 50% transparent red, the nonsense letters ‘Cfbal’ are written on top.
3. Running the Experiment
- Print the slide on a piece of white paper. Seat a participant in front of the paper and ask them to put on the glasses.
- Set the stopwatch to countdown 120 seconds.
- Instruct the participant that every ten seconds they will be asked to report what they see, and that they should answer in one of three ways, ‘Hello,’ ‘Cfbal,’ or ‘Mixed / Unclear’.
- Begin the count, and every ten seconds, ask the participant what they see. Mark down the responses.
Binocular rivalry is a common laboratory paradigm for investigating how the brain integrates information from our two eyes.
During normal visual perception, our eyes receive roughly the same image on each of the two retina. The brain takes advantage of this redundancy to make sense of what is observed.
By presenting two different images to each eye separately, scientists can study how the brain coordinates and interprets their separate signals. Tricking the brain with two independent images is referred to as binocular rivalry.
This video demonstrates methods for using binocular rivalry, including how to design the stimulus, perform the experiment, and how to analyze and interpret data.
In this simple experiment, participants are asked to wear red-cyan glasses and report how a generated stimulus is interpreted.
In this case, the pair of glasses filter material to each eye, such that the red lens will filter out all but red light before it reaches the participant?s eye, and the cyan lens will filter out all but blue light.
The generated stimulus involves superimposing tinted words: a red, nonsense word, such as Cfbal, over a blue, meaningful word, like Hello.
When the filter glasses are worn by the participant, the blue tinted word Hello will not make it to the eye behind the red lens, and the red tinted non-word Cfbal will not make it to the eye behind the cyan lens.
During a period of 120 sec, participants are asked to report every 10 sec whether the meaningful word Hello or the nonsense word Cfbal is observed, or if it is too unclear, to say Unclear.
Along the time course of how each participant responds, the dependent variable is the number of times participants report observations among the three categories.
If binocular rivalry is produced, the participant?s responses will vary across time because the brain cannot easily perceive both words simultaneously.
Moreover, participants will report more observations of seeing the word Hello because of a tendency of the brain to perceive meaningful images over the nonsensical.
To demonstrate binocular rivalry, first gather a pair of red-cyan glasses and a stopwatch.
To conduct this study, create a stimulus slide with the word ?Hello? written in blue, and on top of it, write the letters ?Cfbal? written in red. Make the word on top 50% transparent.
After printing the stimulus slide on a white piece of paper, greet the participant.
Once the participant is seated, explain the instructions of the task, and then tell them to put on the filter glasses.
Before collecting data, set the stopwatch to countdown 120 sec. Inform each participant that they will be asked to report every 10 sec whether they see the word Hello or Cfbal, or the word appears Unclear.
Every 10 sec, ask the participant what they see and record each response across the 12 instances.
To analyze how each participant perceived the stimulus, plot every response as a function of time. Notice that the participant tends to only be aware of one of the words at a time.
However, over time the word that the participant is aware of at any given moment can change quickly and frequently. This suggests that the brain recognizes that something is not right. As a result, the brain tries to present a stable image to the participant but can?t decide what the right stable image is.
To examine the overall distribution of response types, average the percentages of each response type across participants. Notice that the observation of Hello dominated.
This suggests that the brain evaluates the contents of each image and prefers to bring to awareness things that make sense, are familiar, and have meaning.
Binocular rivalry forms the basis for most 3D movies and games. By wearing special glasses, the brain is tricked into seeing 3D when the screen it is looking at is actually 2D.
In addition, binocular rivalry lets researchers with neuroimaging tools, such as high-density EEG, know when the nature of a person?s conscious experience is changing suddenly?like the participant in this demonstration who went from seeing one word to the other.
Researchers can then map those changes in conscious experience onto events taking place in the brain at those moments. For example, different states of wakefulness?whether a person is asleep, relaxed, or wide awake and even on edge?each correlates with different brain waves, measured using EEG recordings
Current research is trying to determine whether changes between states of wakefulness correlate with changes in conscious perception, diagnosed using the binocular rivalry paradigm.
You?ve just watched JoVE?s introduction to Binocular Rivalry. Now you should have a good understanding of how to design and perform the experiment, as well as analyze results and apply the phenomenon of visual perception.
Thanks for watching!?

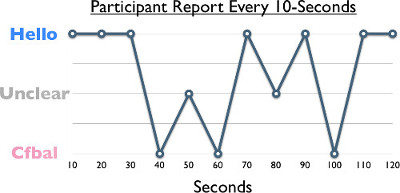

The results can be graphed by plotting the raw data (Figure 3), which is what the participant reported seeing as a function of time.
Figure 3. Participants reports what he sees every 10-seconds. The majority of ...
Binocular rivalry forms the basis for most 3D movies and games—although these days, they usually use other kinds of filters, not red and cyan. The logic is the same though: If two images are different in just the right ways, and presented to each eye separately, then the brain can be tricked into seeing 3D when the surface it is looking at is actually 2D, like a movie screen.
If you look at this picture (Figure 5) with the glasses, it should appear to be 3D.
