Establishment of the in vitro chondrocyte inflammatory model
To investigate the molecular mechanisms underlying osteoarthritis pathology, an in vitro inflammatory model was established using C28/I2 human chondrocytes stimulated with IL-1β. The validity of this model was confirmed by assessing the expression of collagen type II alpha 1 chain (Col-II), a primary component of the hyaline cartilage extracellular matrix and a hallmark of healthy chondrocytes. Quantitative analysis revealed that exposure to IL-1β led to a statistically significant reduction in Col-II mRNA expression relative to the control group. This phenotypic alteration indicates an initial shift toward a catabolic state resembling the osteoarthritic microenvironment, thereby providing a foundational model for subsequent mechanistic studies (Figure 1).

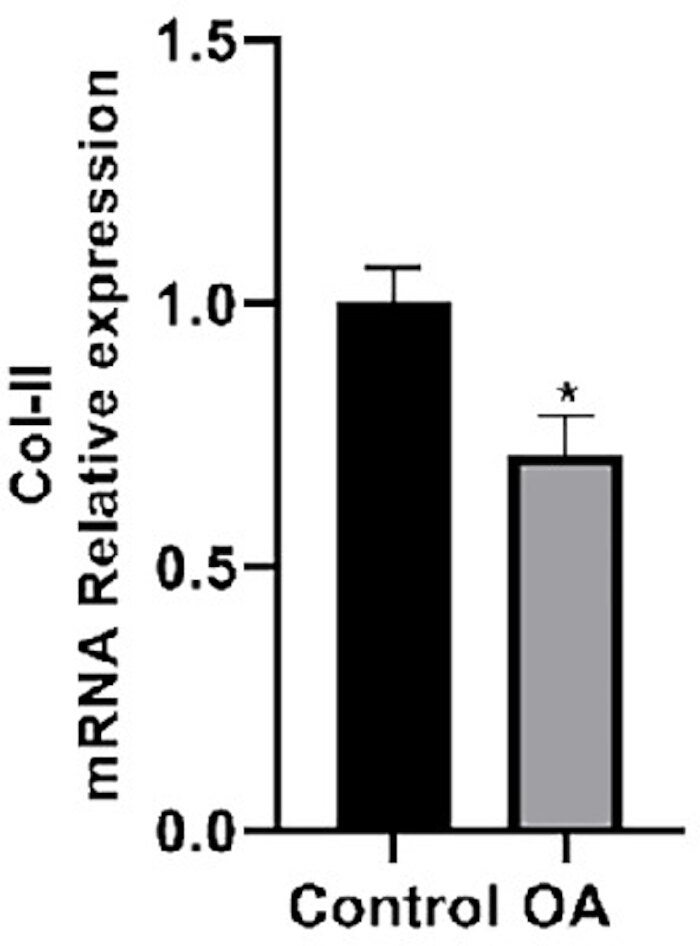

Figure 1: Establishment of the in vitro osteoarthritis (OA) model in C28/I2 human chondrocytes. Cells were treated with 20 ng/mL IL-1β for 24 h. The relative mRNA expression of Col-II was determined by qPCR, with β-actin serving as the normalization control. Data are presented as the mean ± standard deviation (SD) from three independent biological replicates (n = 3). Statistical analysis was performed using one-way ANOVA. *P < 0.05 compared to the Control group. Please click here to view a larger version of this figure.
Validation of SPRY2 overexpression efficiency in C28/I2 cells
Before assessing the functional role of Sprouty2 (SPRY2) in this model, the transfection efficiency of the SPRY2 overexpression vector was verified. Chondrocytes were transfected with either the overexpression plasmid (OE) or a negative control empty vector (NC). Both qPCR and Western blot analyses showed robust upregulation of SPRY2 at the mRNA and protein levels in the OE group compared with the NC and untreated control groups. These data, presented in Figure 2, confirm that the experimental system maintained elevated SPRY2 levels, enabling investigation of its specific biological effects.

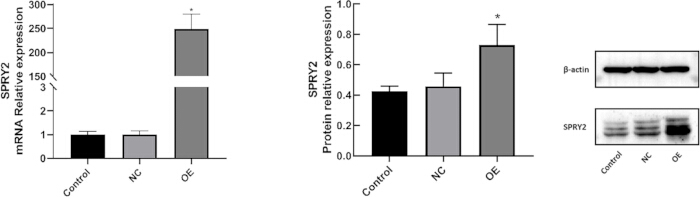

Figure 2: Validation of SPRY2 overexpression in C28/I2 chondrocytes. Cells were transfected with either an empty vector (NC) or a SPRY2 overexpression plasmid (OE). The relative mRNA and protein levels of SPRY2 were evaluated via qPCR and Western blot, respectively. β-actin was utilized as an internal loading control. Data are expressed as the mean ± SD (n = 3). *P < 0.05 compared to the NC group. Please click here to view a larger version of this figure.
SPRY2 overexpression attenuates autophagy and modulates apoptosis markers under inflammatory conditions
Subsequent experiments sought to determine whether SPRY2 functions as a regulator of autophagy and apoptosis within the inflammatory context. Following the establishment of the OA model, IL-1β treatment alone induced a marked increase in the autophagy markers Beclin-1 and LC3-II, suggesting a compensatory autophagic response to inflammatory stress. Concurrently, Bcl-2 expression was elevated in the model group. However, the introduction of the SPRY2 overexpression vector significantly altered this profile. As depicted in Figure 3, the Model+OE-SPRY2 group exhibited a significant reduction in both Beclin-1 and LC3-II mRNA levels compared to the Model and Model+NC groups. Furthermore, SPRY2 overexpression attenuated the inflammation-induced elevation of Bcl-2. These findings suggest that SPRY2 negatively regulates the expression of autophagy-associated markers in inflammatory chondrocytes.

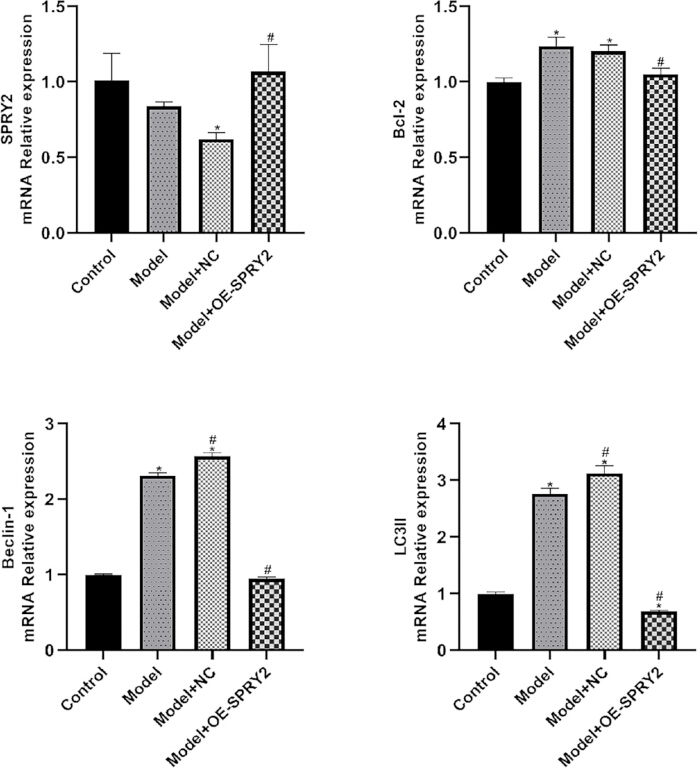

Figure 3: SPRY2 overexpression attenuates autophagy and modulates apoptosis markers under IL-1β-induced inflammatory conditions. The relative mRNA expression levels of SPRY2, Bcl-2, Beclin-1, and LC3-II were quantified by qPCR in Control, Model (IL-1β-treated), Model+NC, and Model+OE-SPRY2 groups. β-actin served as the internal control. Data are presented as the mean ± SD (n = 3). Statistical significance was determined by one-way ANOVA followed by the S-N-K post hoc test. *P < 0.05 compared to the Control group; #P < 0.05 compared to the Model+NC group. Please click here to view a larger version of this figure.
miR-590-5p upregulates autophagy-associated markers and promotes chondrocyte survival
Next, the functional impact of miR-590-5p on autophagy-associated and survival-related markers was investigated. As shown in Figure 4, transfection with a miR-590-5p mimic in the OA model significantly increased Bcl-2, Beclin-1, and LC3-II expression, contrasting with the inhibitory effects observed after SPRY2 overexpression. Conversely, inhibition of miR-590-5p markedly reduced Bcl-2 and Beclin-1 expression, whereas the reduction in LC3-II did not reach statistical significance. These results suggest that miR-590-5p increases expression of autophagy-associated markers and survival-related Bcl-2 in chondrocytes, warranting further investigation into its potential downstream regulatory targets.

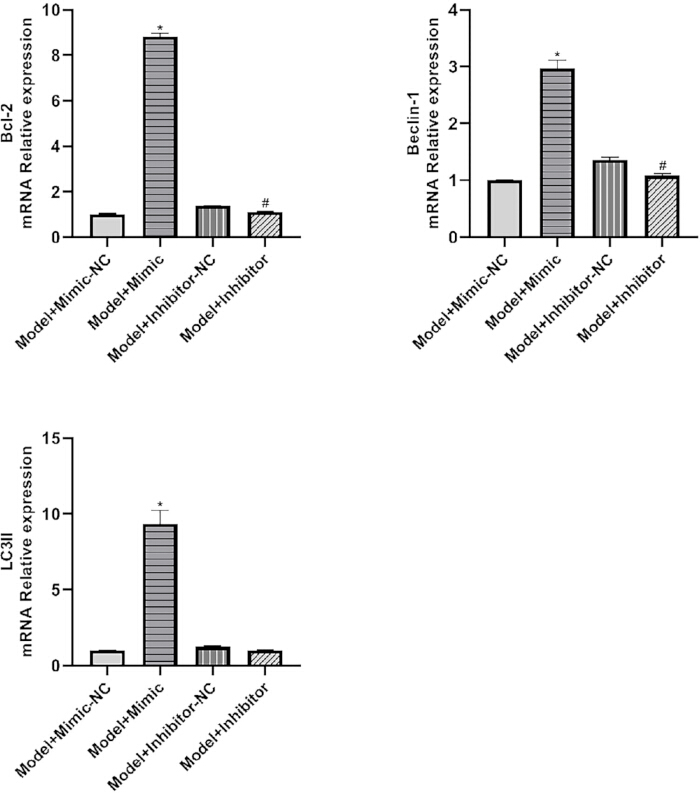

Figure 4: miR-590-5p increases autophagy-associated marker expression and survival-related Bcl-2 expression. The relative mRNA expression levels of Bcl-2, Beclin-1, and LC3-II were measured by qPCR in the OA model following transfection with a miR-590-5p mimic, inhibitor, or their respective negative controls (NC). β-actin served as the normalization control. Data are shown as the mean ± SD (n = 3). *P < 0.05 compared to the Model+Mimic-NC group; #P < 0.05 compared to the Model+Inhibitor-NC group (for Bcl-2 and Beclin-1). Please click here to view a larger version of this figure.
IL-1β modulates the miR-590-5p/SPRY2 axis and autophagy-associated marker expression
To elucidate the upstream regulatory mechanisms controlling SPRY2 and its relationship with miR-590-5p, their expression profiles were examined under inflammatory conditions. Following morphological observation of the IL-1β-induced C28/I2 cell model (Figure 5A), the transfection efficiencies for SPRY2 genetic manipulation were verified. Both qPCR and Western blot analyses confirmed robust SPRY2 upregulation in the overexpression (OE) group and successful knockdown across the small interfering RNA (siRNA) groups compared to their respective controls (Figures 5B and 5C). Conversely, miR-590-5p levels were significantly upregulated following IL-1β treatment.

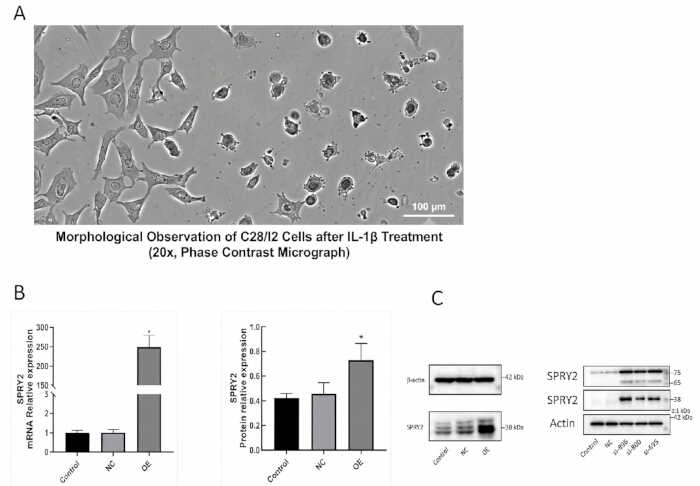

Figure 5: Morphological observation and validation of SPRY2 transfection efficiencies. (A) Morphological observation of C28/I2 cells following IL-1β treatment (20×, phase contrast micrograph). (B) Relative mRNA and protein expression levels of SPRY2 in Control, NC, and SPRY2 overexpression (OE) groups. (C) Representative Western blot images confirming SPRY2 overexpression (left) and SPRY2 knockdown by specific siRNAs (si-896, si-800, si-695) compared to controls (right). β-actin served as the internal loading control. Data are expressed as the mean ± SD (n = 3). *P < 0.05 compared to the Control group. Please click here to view a larger version of this figure.
To determine whether this inverse expression pattern reflected a potential regulatory relationship, TargetScan Human 7.1 was used to identify an 8mer putative binding site for hsa-miR-590-5p within the 3′-UTR of human SPRY2 (nucleotides 236–243). The sequence alignment in Figure 6 illustrates the predicted seed-region complementarity. Rescue experiments were then performed to functionally examine whether miR-590-5p modulation altered SPRY2 expression in the OA model. After confirming the transfection efficiencies of the miR-590-5p mimic and inhibitor (Figures 7A, B), rescue assays showed that miR-590-5p inhibition reversed the OA-associated suppression of SPRY2 mRNA expression (Figure 7C). The miR-590-5p mimic did not further reduce SPRY2 expression beyond the marked suppression induced by IL-1β, whereas miR-590-5p inhibition significantly increased SPRY2 expression relative to the inhibitor negative control. These findings support an inverse, putative regulatory relationship between miR-590-5p and SPRY2 in inflammatory chondrocytes.

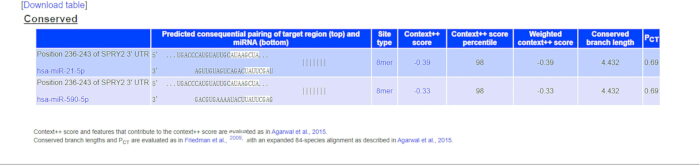

Figure 6: In silico prediction of the putative miR-590-5p/SPRY2 regulatory interaction. Bioinformatic analysis was performed using TargetScan Human 7.131,32 to identify putative miRNA binding sites. The schematic illustrates the predicted sequence alignment and seed-region complementarity between hsa-miR-590-5p and the 3′-UTR of human SPRY2 (nucleotides 236–243). Please click here to view a larger version of this figure.

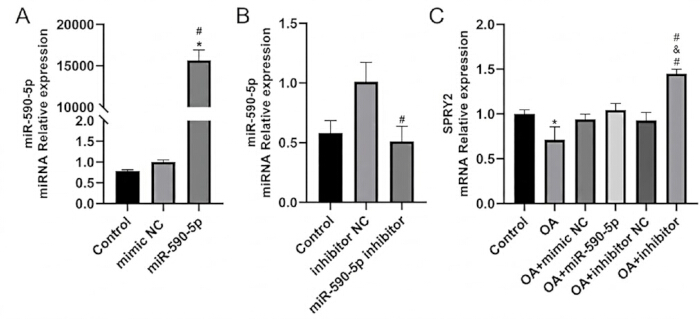

Figure 7: Effects of miR-590-5p modulation on SPRY2 expression in chondrocytes. Transfection efficiencies were confirmed by qPCR for the miR-590-5p mimic (A) and inhibitor (B) relative to their respective controls. (C) Relative SPRY2 mRNA expression was measured across the indicated experimental groups following miR-590-5p modulation in the OA model. U6 and β-actin were used as internal controls for miRNA and mRNA quantification, respectively. Data are presented as mean ± SD (n = 3). *P < 0.05 compared to the Control group; #P < 0.05 compared to the respective Mimic-NC or Inhibitor-NC group; &P < 0.05 compared to the OA+Inhibitor-NC group. Please click here to view a larger version of this figure.
Consistent with the results in Figure 4, changes in autophagy-associated markers paralleled the effects expected from reduced SPRY2 expression, suggesting that miR-590-5p may enhance their expression by relieving SPRY2-mediated inhibition. Taken together, these findings support a putative signaling axis in which IL-1β upregulates miR-590-5p, miR-590-5p suppresses SPRY2 expression, and reduced SPRY2 is associated with increased Beclin-1 and LC3-II marker expression.
DATA AVAILABILITY:
The data for this study are provided in Supplementary File 1.
Supplementary File 1: The datasets used for this study, including qPCR source data, Western blot source images, and statistical analysis outputs.Please click here to download this file.
