Implementation of the standardized protocol and cohort stratification
The participant-flow log reports that 216 individuals were assessed, 6 were excluded, and 210 were enrolled. Seventeen were lost before the day-90 assessment, and two additional participants were lost before day 180, leaving 191 complete cases for the longitudinal and modeling analyses (Supplementary Figure 1). The 19 noncompleters were documented in the screening and follow-up log for participant-flow reporting but were not included in the analytic dataset, and no outcome values were imputed. The analysis file, therefore, contains the prespecified complete-case cohort of 191 participants.
At day 180, 139 of 191 participants were classified as having good adherence and 52 as having poor adherence (Table 1). Urban residence and sex differed between adherence groups in univariate comparisons, whereas other baseline variables should be reported with their exact effect estimates and P-values rather than described collectively as balanced. The female poor-adherence cell contained five participants, so sex-related estimates require cautious interpretation.
Quantitative characterization of adherence decay and transitions
Among the 191 complete cases, good adherence was 84.3% (161/191; exact 95% CI, 78.3%–89.1%) for days 1–30, 77.0% (147/191; 70.3%–82.7%) for days 31–90, and 72.8% (139/191; 65.9%–79.0%) for days 91–180 (Figure 2). The overall paired difference was significant (Cochran Q = 31.0, df = 2, P < 0.001). The observed day-30/day-90/day-180 patterns were good/good/good (n = 138), good/good/poor (n = 8), good/poor/poor (n = 15), poor/good/good (n = 1), and poor/poor/poor (n = 29) (Figure 3). We refer to these descriptively as adherence-state transitions, without implying that a new validated behavioral construct has been established.
Sensitivity and longitudinal responsiveness of psychosocial metrics
Among complete cases, mean BMQ-NCD values were 13.06 (SD 2.60) at day 30, 12.06 (3.03) at day 90, and 10.88 (3.84) at day 180; mean Family APGAR values were 8.20 (1.28), 7.79 (1.45), and 7.23 (1.84), respectively. Both Friedman omnibus tests and Bonferroni-adjusted paired Wilcoxon tests yielded P < 0.001 (Table 2; Figure 4). Individual questionnaire totals should be regenerated directly from the item-level case-report forms before the final analysis is locked.
Parameter weighting and synthesis of the predictive tool
The day-30 prediction model retained four prespecified predictorsretained four prespecified predictors (Table 3): urban residence (adjusted OR, 3.64; 95% CI, 1.54–8.62; P = 0.0033), male sex (adjusted OR, 0.22; 95% CI, 0.06–0.76; P = 0.0174), day 30 BMQ-NCD per point (adjusted OR, 1.68; 95% CI, 1.39–2.05; P < 0.001), and day 30 Family APGAR score per point (adjusted OR, 1.99; 95% CI, 1.39–2.86; P < 0.001). The fitted intercept was -10.3811. Figure 5 displays the same coding and one-point scale used in Table 3, and Figure 6 maps the unrounded coefficients to the nomogram.
Methodological validation: Accuracy and calibration
The model's apparent AUC was 0.879 (bootstrap 95% CI, 0.821–0.928), and the optimism-corrected AUC after 1,000 successful bootstrap resamples was 0.867 (Figure 7). The apparent Brier score was 0.118, and the optimism-corrected calibration slope was 0.923. These values describe internal performance in the 191 complete cases and do not constitute external validation.

Figure 1: Standardized operational roadmap for post-stroke adherence monitoring. This flowchart illustrates the four-phase protocol implemented in the study: Phase 1 (Enrollment and baseline), Phase 2 (Acute care discharge), Phase 3 (Systematic longitudinal monitoring), and Phase 4 (Risk evaluation and analysis). This roadmap serves as the Standard Operating Procedure (SOP) for the proposed methodology. Please click here to view a larger version of this figure.

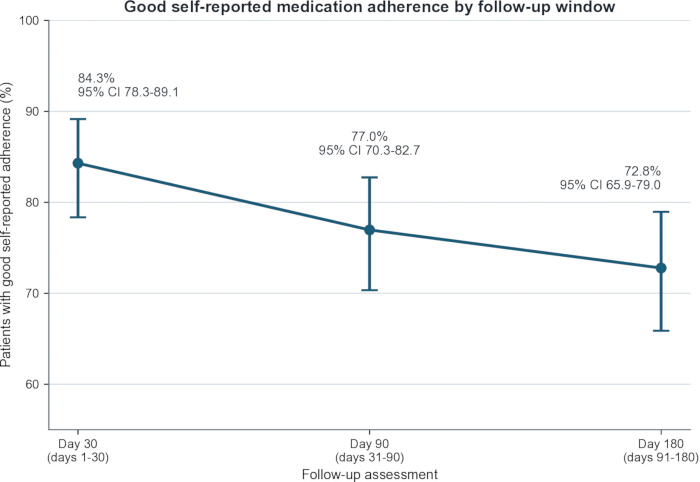

Figure 2: Longitudinal good-adherence proportions. The figure shows complete-case good-adherence proportions for days 1–30 at the day-30 assessment (84.3%), days 31–90 at the day-90 assessment (77.0%), and days 91–180 at the day-180 assessment (72.8%). Error bars are two-sided 95% Clopper-Pearson exact confidence intervals. Adherence was classified as good when the exposure-day-weighted composite self-reported adherence percentage was at least 80%. Please click here to view a larger version of this figure.

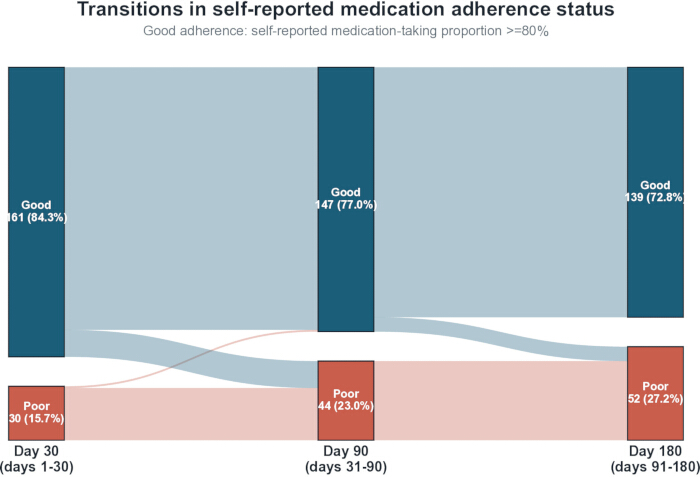

Figure 3: Individual adherence-state transitions. The alluvial diagram shows each complete-case participant's good or poor adherence classification at day 30, day 90, and day 180. Ribbon widths represent participant counts. The term adherence-state transition is descriptive and is not presented as a previously validated construct. Please click here to view a larger version of this figure.

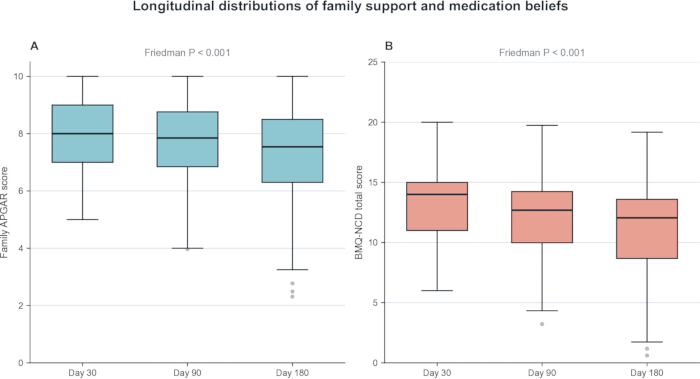

Figure 4: Family APGAR and BMQ-NCD distributions across time. Boxes representing (A) family APGAR and (B) BMQ-NCD distributions represent the interquartile range, center lines the median, whiskers values within 1.5 times the interquartile range, and points beyond the whiskers individual observations. Overall comparisons use Friedman tests; paired comparisons use Wilcoxon signed-rank tests with Bonferroni correction. BMQ-NCD is the Necessity total minus the Concerns total. Please click here to view a larger version of this figure.

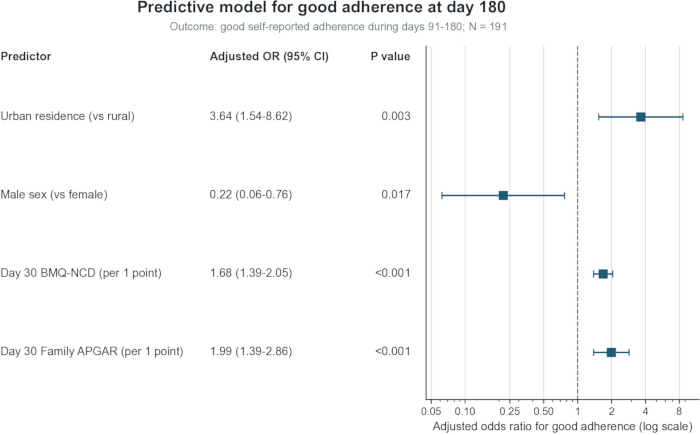

Figure 5: Adjusted associations in the day-30 prediction model. Points are adjusted ORs and horizontal bars are 95% CIs for urban versus rural residence, male versus female sex, and one-point increases in baseline day 30 BMQ-NCD and Family APGAR. The horizontal axis is logarithmic, and the vertical reference line denotes OR = 1. Please click here to view a larger version of this figure.

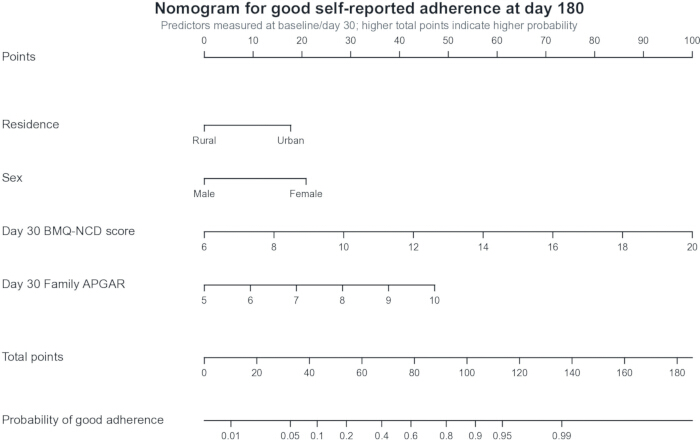

Figure 6: Nomogram for internally estimated probability of good adherence at Day 180. The nomogram uses: residence, sex, day 30 BMQ-NCD, and day 30 Family APGAR score. Predictor values map to points; total points map to estimated probability. Higher BMQ-NCD indicates that perceived necessity outweighs concerns, and higher Family APGAR indicates better perceived family functioning. The nomogram requires external validation before clinical use. Please click here to view a larger version of this figure.

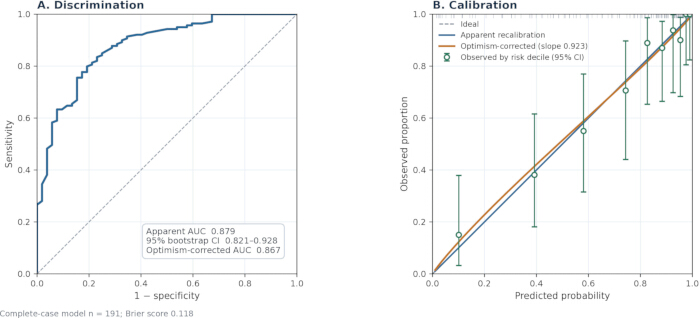

Figure 7: Internal validation of the day-30 prediction model. (A) The ROC curve shows an apparent AUC of 0.879 (bootstrap 95% CI, 0.821-0.928) and an optimism-corrected AUC of 0.867. (B) The calibration panel compares predicted and observed probabilities. The ideal line denotes perfect calibration, the apparent curve describes the fitted sample, and the bias-corrected curve reflects 1,000-resample bootstrap optimism correction. Shaded or boundary lines, if displayed, represent 95% confidence limits; rug marks show the distribution of predicted probabilities. Please click here to view a larger version of this figure.
| Characteristic | Overall (N = 191) | Poor adherence (N = 52) | Good adherence (N = 139) | P value |
| Age, years | 59.2 +/- 13.1 | 59.6 +/- 14.2 | 59.1 +/- 12.7 | 0.797 |
| Age group, n (%) | | | | 0.822 |
| <65 years | 120 (62.8%) | 32 (61.5%) | 88 (63.3%) | |
| >=65 years | 71 (37.2%) | 20 (38.5%) | 51 (36.7%) | |
| Sex, n (%) | | | | 0.015 |
| Female | 41 (21.5%) | 5 (9.6%) | 36 (25.9%) | |
| Male | 150 (78.5%) | 47 (90.4%) | 103 (74.1%) | |
| Residence, n (%) | | | | <0.001 |
| Rural | 92 (48.2%) | 36 (69.2%) | 56 (40.3%) | |
| Urban | 99 (51.8%) | 16 (30.8%) | 83 (59.7%) | |
| Education, n (%) | | | | 0.224 |
| Primary school or below | 59 (30.9%) | 21 (40.4%) | 38 (27.3%) | |
| Middle school | 50 (26.2%) | 13 (25.0%) | 37 (26.6%) | |
| High school/technical | 36 (18.8%) | 10 (19.2%) | 26 (18.7%) | |
| College degree or above | 46 (24.1%) | 8 (15.4%) | 38 (27.3%) | |
| Marital status, n (%) | | | | 0.905 |
| Married | 175 (91.6%) | 47 (90.4%) | 128 (92.1%) | |
| Unmarried | 9 (4.7%) | 3 (5.8%) | 6 (4.3%) | |
| Divorced/widowed | 7 (3.7%) | 2 (3.8%) | 5 (3.6%) | |
| Occupation, n (%) | | | | 0.138 |
| Employed/professional | 36 (18.8%) | 9 (17.3%) | 27 (19.4%) | |
| Worker | 25 (13.1%) | 7 (13.5%) | 18 (12.9%) | |
| Farmer | 39 (20.4%) | 16 (30.8%) | 23 (16.5%) | |
| Retired | 45 (23.6%) | 7 (13.5%) | 38 (27.3%) | |
| Self-employed/other | 46 (24.1%) | 13 (25.0%) | 33 (23.7%) | |
| Monthly income, CNY, n (%) | | | 0.208 |
| <3000 | 39 (20.4%) | 14 (26.9%) | 25 (18.0%) | |
| 3000-4999 | 56 (29.3%) | 17 (32.7%) | 39 (28.1%) | |
| >=5000 | 96 (50.3%) | 21 (40.4%) | 75 (54.0%) | |
| NIHSS score at discharge | 2.0 [0.0-4.5] | 2.0 [0.8-5.0] | 2.0 [0.0-4.0] | 0.603 |
| Length of hospital stay, days | 8.0 [6.0-10.0] | 7.0 [5.0-9.0] | 8.0 [7.0-10.0] | 0.021 |
Table 1: Characteristics of the study population for methodological validation (N = 191). This table summarizes the demographic and clinical profiles of the participants, stratified by their 180-day self-reported medication adherence status (Good vs. Poor). Categorical variables are presented as frequencies (n) and percentages (%). P-values are provided for descriptive between-group comparisons and were not used for predictor selection.Please click here to download this Table.
| Measure | Day 30, mean +/- SD | Day 90, mean +/- SD | Day 180, mean +/- SD | Change (day 180 - day 30), mean +/- SD | Friedman chi-square (df = 2) | Global P value |
| BMQ-NCD total score | 13.06 +/- 2.60 | 12.06 +/- 3.03 | 10.88 +/- 3.84 | -2.18 +/- 1.90 | 382.0 | <0.001 |
| Family APGAR score | 8.20 +/- 1.28 | 7.79 +/- 1.45 | 7.23 +/- 1.84 | -0.97 +/- 0.91 | 357.5 | <0.001 |
Table 2: Longitudinal BMQ-NCD and family APGAR scores. This table reports each scale at day 30, day 90, and day 180 as mean (SD) and median (IQR). Overall P-values are from Friedman tests; paired post-hoc P-values are from Wilcoxon signed-rank tests with Bonferroni correction. BMQ-NCD is the BMQ-Specific Necessity total minus the Concerns total (range, -20 to 20).
| Predictor | β coefficient | Standard error | Wald z | P value | Adjusted OR (95% CI) | Coding / unit |
| Intercept | -10.3811 | 2.0697 | -5.016 | <0.001 | — | Model intercept |
| Urban residence | 1.2921 | 0.4396 | 2.94 | 0.0033 | 3.64 (1.54–8.62) | Urban vs rural (reference) |
| Male sex | -1.5215 | 0.6395 | -2.379 | 0.0174 | 0.22 (0.06–0.76) | Male vs female (reference) |
| Baseline BMQ-NCD | 0.5211 | 0.0995 | 5.238 | <0.001 | 1.68 (1.39–2.05) | Per 1-point increase |
| Baseline Family APGAR | 0.6887 | 0.1847 | 3.728 | <0.001 | 1.99 (1.39–2.86) | Per 1-point increase |
Table 3: Full multivariable logistic regression specification for good adherence at day 180 (N = 191). The table reports the intercept and regression coefficients, standard errors, Wald statistics, P-values, adjusted ORs, and 95% confidence intervals for the final multivariable logistic regression model. Good adherence is coded 1, and poor adherence is coded 0. Residence is Urban = 1 versus Rural = 0; sex is Male = 1 versus Female = 0; day 30 BMQ-NCD and day 30 Family APGAR are modeled per one-point increase.
Supplementary Figure 1: Participant flow and cohort selection for the longitudinal medication adherence study.Please click here to download this file.
Supplementary File 1: The complete analytic dataset.Please click here to download this file.
