Standardized Workflow for Human Fecal Sample Collection and Automated Deoxyribonucleic Acid Extraction Using a Magnetic Particle Processor

Summary

The goal of this protocol is to standardize human fecal sample collection and automated deoxyribonucleic acid extraction using a magnetic particle processor.

Abstract

Gut microbiome sequencing has become an important approach for investigating microbial community dynamics in healthy and diseased states. Alterations in microbial composition have been associated with several lifestyle- and age-related disorders, including diabetes, leukemia, and neurodegenerative diseases. Because different microorganisms exhibit distinct physiological characteristics and environmental requirements, standardized fecal sample collection, transport, and processing are essential to preserve sample integrity and minimize technical variability. Variations introduced during pre-analytical handling and deoxyribonucleic acid (DNA) extraction can influence downstream microbiome analyses and affect data interpretation. The goal of this protocol is to provide a standardized workflow for human fecal sample collection and automated DNA extraction using the MagMAX Microbiome Ultra Nucleic Acid Isolation Kit (nucleic acid extraction kit) and the KingFisher Flex System (automated magnetic particle processor). The workflow integrates controlled sample handling with automated nucleic acid extraction to reduce manual variability and improve procedural consistency. The protocol includes standardized fecal sample collection, storage, preparation, automated extraction, and nucleic acid recovery from complex fecal matrices. Representative results demonstrate successful recovery of DNA suitable for downstream applications, including 16S ribosomal ribonucleic acid (rRNA) gene sequencing and shotgun metagenomic sequencing. The standardized workflow supports reproducible sample processing, facilitates scalability for microbiome studies, and promotes greater consistency across experiments. The visual demonstration provides practical guidance for implementing standardized fecal sample processing and automated nucleic acid extraction for gut microbiome research.

Introduction

The gut microbiome is a complex microbial ecosystem that influences host metabolism, immunity, and neurological function and is increasingly implicated in diverse diseases, including metabolic disorders, Parkinson’s disease, cancer, and neurodegeneration^1,2. It plays an important role in maintaining host physiology by influencing metabolism, immune function, nutrient absorption, and resistance to pathogenic microorganisms^3,4. Robust and reproducible microbiome measurements are essential for translating these associations into mechanistic insights and clinical applications. Advances in next-generation sequencing (NGS) technologies have revolutionized our understanding of the complex microbial communities residing in the gastrointestinal tract. However, pre-analytical variables, such as fecal sample collection procedures, storage conditions, handling, transportation, and deoxyribonucleic acid (DNA) extraction methods, can selectively alter microbial community structure, DNA yield, and sequencing outcomes^5,6. Such methodological inconsistencies often complicate comparisons across studies.

Among the critical pre-analytical steps, DNA extraction represents one of the most influential determinants of microbiome data quality^7,8. An ideal extraction protocol should consistently produce high-quality, high-molecular-weight DNA with minimal contamination across large numbers of samples. Automated nucleic acid extraction platforms can improve reproducibility, reduce manual handling errors, reduce the risk of contamination, and increase throughput. The performance of these automated extraction platforms depends substantially on protocol parameters, including sample homogenization, bead-beating conditions, lysis chemistry, incubation conditions, and magnetic bead handling^9,10. Therefore, establishing a standardized workflow that integrates uniform fecal sample collection with automated DNA extraction is essential for generating reliable and reproducible microbiome datasets.

Here, we present a standardized workflow for human fecal sample collection, handling, and automated DNA extraction using the nucleic acid extraction kit and automated magnetic particle processor described above. The protocol emphasizes controlled sample handling, effective mechanical and chemical lysis, inhibitor removal, and quality control measures appropriate for downstream applications, including 16S ribosomal ribonucleic acid (rRNA) gene amplicon sequencing, whole-genome sequencing, quantitative polymerase chain reaction (PCR), and shotgun metagenomic sequencing. The visual demonstration provides practical guidance for standardized fecal sample processing and automated nucleic acid extraction to support reproducible and scalable gut microbiome research.

Protocol

The study was conducted in accordance with the guidelines of the SKAN Research Trust Institutional Ethics Committee and was approved by the committee (Approval No. SKAN/IEC/2025/04). Written informed consent was obtained from all participants before sample collection.

NOTE: All reagents, consumables, and equipment are listed in the Table of Materials.

1. Assemble the fecal sample collection kit

1. Assemble a fecal sample collection kit containing a sterile fecal catcher, a sterile screw-cap collection tube (30–50 mL capacity) with an attached spatula, a collection tube pre-filled with stabilization buffer, disposable gloves, absorbent material, a biohazard-labeled sealable transport bag, and an instruction sheet (Figure 1).
2. Label each collection tube with a unique sample identifier, the date, and the time of collection using a permanent marker or a preprinted label.
3. Include an instruction sheet describing the sample collection procedure, handling precautions, storage conditions, and transport requirements.
   ​NOTE: The stabilization buffer is supplied prefilled in the fecal collection tube as part of the fecal collection kit. The manufacturer does not disclose the composition or volume of the stabilization buffer. Collect approximately 2–5 g of fecal material directly into the prefilled collection tube according to the manufacturer’s instructions.

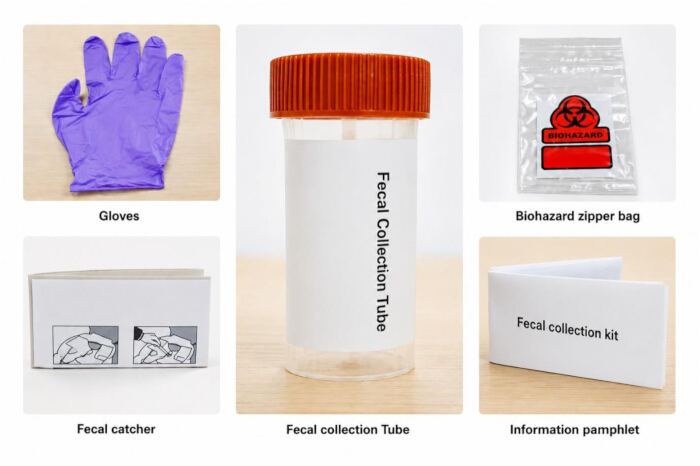

Figure 1. Components of the fecal sample collection kit.
The fecal sample collection kit includes disposable gloves, a sterile fecal catcher, a sterile screw-cap fecal collection tube with an attached spatula, a biohazard-labeled sealable transport bag, and an instruction pamphlet provided to participants for fecal sample collection, handling, storage, and transport. Please click here to view a larger version of this figure.

2. Prepare the participant for sample collection

1. Instruct the participant to wash their hands before sample collection.
2. Instruct the participant to empty their bladder before bowel movement to avoid urine contamination of the fecal sample.

3. Collect the fecal sample using a fecal catcher

1. Place a sterile fecal catcher on the toilet seat to prevent contact between the fecal sample and toilet water.
2. For adhesive fecal catchers, unfold the device carefully along the indicated edges without tearing it. Follow the manufacturer’s instructions provided with the fecal catcher, and attach the device securely to the rear portion of the toilet seat to create a stable collection surface.
3. For non-adhesive fecal catchers, position the device across the toilet bowl according to the manufacturer’s instructions to provide stable support.
4. Ensure that the fecal catcher does not contact toilet water during sample collection.
5. Instruct the participant to complete the bowel movement directly onto the fecal catcher.
6. Put on the disposable gloves provided in the collection kit before handling the sample.
7. Open the sterile collection tube and use the attached spatula to collect fecal material from at least four to five distinct regions of the stool, including the outer surface and inner core. This approach typically yields approximately 2–5 g of fecal material, which is sufficient for DNA extraction.
8. Avoid collecting fecal material that has contacted the edges of the fecal catcher or any external surfaces.
9. Close the collection tube securely immediately after sample collection.
10. Mix the fecal sample thoroughly with the stabilization buffer by manually shaking the closed collection tube vigorously until the sample is uniformly suspended and no large clumps remain.
11. Place the sealed collection tube into the leak-proof biohazard-labeled transport bag containing absorbent material.
12. Carefully release the fecal catcher into the toilet along with the stool, ensuring that the contents do not spill. Flush the toilet to dispose of the fecal catcher and stool together.

4. Store and transport fecal samples

1. Store the samples according to the specifications of the stabilization buffer used.
2. Store the samples at room temperature if the stabilization buffer supports ambient preservation. Alternatively, store the samples at 4°C for short-term storage (≤24–48 h) or at −20°C to −80°C for long-term storage.
3. Store samples in accordance with the manufacturer’s recommendations. Samples collected using the stabilization buffer employed in this study are stable for up to 2 years at room temperature.
4. Transport the samples in leak-proof biohazard bags containing absorbent material to prevent leakage and contamination.
5. Maintain the samples under the recommended temperature conditions during transport. Use insulated containers and cooling elements when required.
6. Ensure compliance with institutional biosafety guidelines and applicable local regulations for transporting biological specimens.

5. Receive and log samples

1. Inspect each sample upon receipt in the laboratory for proper labeling, tube integrity, and evidence of leakage.
2. Assign a laboratory-specific identifier, if required, and record the collection date and time, storage conditions, and transport duration.
3. Exclude samples showing leakage, improper labeling, or compromised integrity.

6. Prepare the plates

NOTE: Prepare all plates before initiating the extraction workflow. Perform all steps involving reagents and biological samples in a clean environment while wearing appropriate personal protective equipment, including a laboratory coat, gloves, and eye protection. Figure 2 shows the automated magnetic particle processor (Figure 2A), plate-loading positions (Figure 2B), deep-well plate adapter (Figure 2C), plate-compatible centrifuge (Figure 2D), bead-beating instrument (Figure 2E), cushioning support (Figure 2F), plate holder (Figure 2G), 96-well bead plate (Figure 2H), deep-well plate (Figure 2I), and Elution Plate (Figure 2J).

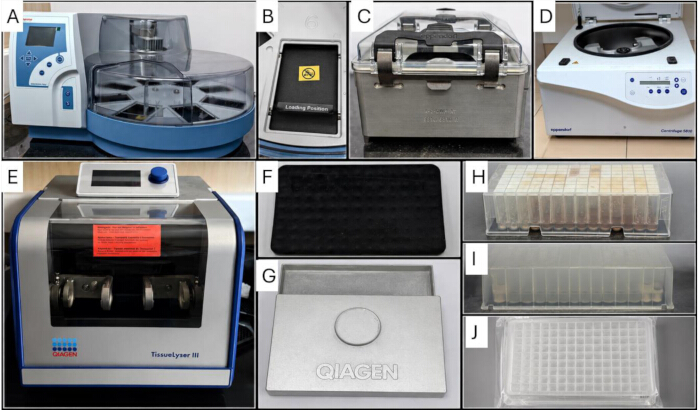

Figure 2. Equipment and consumables used for automated fecal deoxyribonucleic acid (DNA) extraction.
(A) Automated magnetic particle processor. (B) Plate-loading position within the automated magnetic particle processor. (C) Deep-well plate adapter for centrifugation. (D) Plate-compatible centrifuge. (E) Bead mill homogenizer. (F) Cushioning support used during bead beating. (G) Deep-well plate holder (adapter) for bead beating. (H) Ninety-six-well bead plate supplied with the nucleic acid extraction kit. (I) Ninety-six-well deep-well plate. (J) Ninety-six-well Elution Plate. Please click here to view a larger version of this figure.

1. Remove the tip comb plate from its packaging and keep it ready for instrument loading.
2. Prepare the Elution Plate (Figure 2J) by adding 200 µL of elution buffer supplied with the nucleic acid extraction kit to each well of a 96-well plate. Seal the plate with clear adhesive film to prevent contamination. Keep the plate sealed until loading it into the automated magnetic particle processor. Label the plate as Elution Plate.
3. Prepare Wash Plate 4 by adding 1 mL of 80% ethanol to each well of a deep-well plate. Seal the plate with adhesive film to prevent evaporation and contamination.
4. Prepare Wash Plate 3 by adding 1 mL of freshly prepared 80% ethanol to each well of a separate deep-well plate. Seal the plate with adhesive film.
5. Prepare Wash Plate 2 by adding 1 mL of wash buffer to each well of a deep-well plate. Seal the plate with adhesive film.
6. Prepare Wash Plate 1 by adding 1 mL of wash buffer to each well of a deep-well plate. Seal the plate with adhesive film.

7. Set up the automated magnetic particle processor

1. Turn on the automated magnetic particle processor. Verify that the correct 96-deep-well magnetic head and the 96-well deep-well heating block are installed.
2. Run the appropriate instrument check protocol (for example, the Check_96dw_tip protocol) using a clean tip comb and an empty compatible well plate before processing samples.
3. Confirm that the required extraction program is available on the automated magnetic particle processor.
   NOTE: Use of an incorrect magnetic head or heating block can reduce nucleic acid yield and damage the instrument.

8. Perform sample lysis

1. Prepare a plate map to record the position of each sample in the 96-well plate.
2. Centrifuge the 96-well bead plate (Figure 2H) at 2,750 × g for 10 s using a plate-compatible centrifuge (Figure 2D) and adapter (Figure 2C) to collect the beads at the bottom of each well.
   NOTE: This step prevents bead loss during removal of the plate seal.
3. Remove the plate seal carefully without disturbing the beads.
4. Add 800 µL of lysis buffer to each well of the bead plate.
5. Avoid aspirating the beads during pipetting.
6. Thaw frozen fecal samples at room temperature until completely thawed. Mix the samples gently to homogenize them, and proceed immediately to DNA extraction. Avoid repeated freeze-thaw cycles because they can reduce DNA quality and yield.
   NOTE: For fresh samples, vortex each fecal sample tube containing the stabilization solution for 5–10 s to ensure sample homogenization.
7. Transfer 200 µL of each homogenized sample into the corresponding well of the bead plate.
8. Use a single-channel pipette fitted with sterile filtered wide-bore (cut) pipette tips to transfer the samples. Avoid repeated pipetting to minimize bead loss and subsequent reduction in DNA yield.
9. Seal the plate securely with adhesive film, ensuring that all wells and plate edges are completely sealed.

9. Perform mechanical lysis (bead beating)

1. Secure the sealed plate in the bead-beating instrument (Figure 2E) using the appropriate plate holder (Figure 2G) and cushioning support (Figure 2F).
2. Balance the instrument by placing a plate of equal weight opposite the sample plate.
3. Set the instrument to 30 Hz for 2 min and start the run.
4. Allow the run to proceed without interruption.
5. Remove the plate carefully after completion of the run without disturbing the seal.
   NOTE: Use the cushioning support to prevent damage to the plate during bead beating.

10. Perform post-lysis processing

1. Centrifuge the plate at 2,750 × g for 5 min at room temperature using a balanced configuration.
2. Carefully transfer 400 µL of the supernatant from each well to a new deep-well plate designated as the Sample Plate.
3. Avoid transferring any beads during this step.
   NOTE: The Sample Plate does not contain beads and does not require pre-centrifugation.
4. Seal the Sample Plate if not proceeding immediately.
   NOTE: Store the sealed lysate plate at 4°C overnight, if necessary. Alternatively, store the sealed Sample Plate at −20°C for up to 3 months. Thaw the samples to room temperature before further processing.

11. Prepare the binding bead mixture

1. Prepare the binding bead mixture immediately before use by combining 500 µL of nucleic acid binding buffer with 20 µL of magnetic beads per sample. Mix thoroughly to obtain a homogeneous suspension.
2. Calculate the total volume of binding bead mixture required based on the number of samples.
3. For a full 96-well plate, prepare the binding bead mixture by adding 48.00 mL of nucleic acid binding buffer and 1.92 mL of magnetic beads to a sterile conical tube. Mix thoroughly to obtain a final volume of 49.92 mL (520 µL per well).
   NOTE: Prepare sufficient volume for one or two additional wells to compensate for pipetting variability.
4. Mix the binding bead suspension gently by inversion until homogeneous.
5. Transfer the binding bead mixture to a clean reagent reservoir.
6. Immediately before dispensing, resuspend the magnetic beads by pipetting the suspension up and down three to four times to prevent bead settling.
7. Dispense 520 µL of the binding bead mixture into each well of the prepared Sample Plate using a multichannel pipette.
8. Pipette slowly because of the viscosity of the solution, and avoid bubble formation. Gently resuspend the binding bead mixture in the reagent reservoir before each dispensing step to maintain uniform bead distribution across all wells.

12. Modify the MagMAX_Microbiome_Stool_Flex instrument program (modified extraction program)

1. Download and install BindIt software (protocol-editing software) according to the manufacturer’s instructions.
2. Download the instrument program from the manufacturer’s website.
3. Launch the protocol-editing software and allow it to initialize.
4. Click Open and select the downloaded instrument program.
5. Modify the protocol parameters as described in Table 1.
6. Save the modified protocol and close the software.
7. Connect the computer to the automated magnetic particle processor using a USB or RS-232C serial cable.
   NOTE: Ensure that the automated magnetic particle processor is turned off before connecting the computer.
8. Turn on the automated magnetic particle processor and allow it to complete initialization.
9. Launch the protocol-editing software and confirm that it detects the automated magnetic particle processor.
10. Transfer the modified extraction program to the automated magnetic particle processor.
11. Confirm successful transfer of the modified extraction program, then turn off the automated magnetic particle processor.

Step	Action	Parameters
1	Binding	Mix; 5 collection cycles; 37°C
2	Collect beads	5 magnetic collection cycles
3	Wash 1	Mix for 20 s × 3 cycles; 37°C
4	Wash 2	Mix for 20 s × 3 cycles; 37°C
5	Wash 3	Mix for 20 s × 2 cycles; 37°C
6	Wash 4	Mix; 1 cycle; 37°C
7	Dry	Air dry for 2 min
8	Elution	75°C; 6 mixing cycles; preheating enabled
9	Collect beads	3 magnetic collection cycles
10	Transfer eluate	Transfer purified nucleic acid to the Elution Plate

Table 1: Automated extraction program for the magnetic particle processor.
Summary of the automated extraction program executed by the automated magnetic particle processor during deoxyribonucleic acid (DNA) extraction. The program includes nucleic acid binding, magnetic bead collection, sequential wash steps, air drying, elution, and transfer of purified DNA to the Elution Plate. The operating parameters for each automated step are listed.

13. Perform automated nucleic acid extraction

1. Turn on the automated magnetic particle processor (Figure 2A) by switching on the main power supply followed by the instrument power button. Allow the system to complete initialization.
2. Using the instrument control panel, select the modified extraction program and initiate the run.
3. When prompted, load the tip comb plate into position 7 and press Start to proceed. Refer to Table 2 for the plate loading positions (Figure 2B).
4. Remove the sealing film from the Elution Plate and load it into position 6, ensuring the correct orientation (well A1 aligned with the designated position). Press Start to proceed.
5. Remove the sealing film from Wash Plate 4 containing 80% ethanol, load the plate into position 5 with the correct orientation, and press Start.
6. Remove the sealing film from Wash Plate 3 containing 80% ethanol, load the plate into position 4, and press Start.
7. Remove the sealing film from Wash Plate 2, load the plate into position 3, and press Start.
8. Remove the sealing film from Wash Plate 1, load the plate into position 2, and press Start.
9. When prompted, load the Sample Plate into position 1, ensuring the correct orientation.
10. Close the instrument lid and press Start to initiate the automated extraction run.
11. Allow the program to run uninterrupted until completion (approximately 35–40 min).
    NOTE: Table 1 summarizes the automated extraction program executed by the instrument.

Plate	Position	Plate type	Reagent	Volume per well
Sample Plate	1	96-deep-well plate	Sample lysate + binding bead mixture	920 µL
Wash Plate 1	2	96-deep-well plate	Wash buffer	1,000 µL
Wash Plate 2	3	96-deep-well plate	Wash buffer	1,000 µL
Wash Plate 3	4	96-deep-well plate	80% ethanol	1,000 µL
Wash Plate 4	5	96-deep-well plate	80% ethanol	1,000 µL
Elution Plate	6	96-well plate	Elution buffer	200 µL
Tip Comb Plate	7	Standard deep-well plate	96-deep-well tip comb	N/A

Table 2: Plate loading configuration for automated nucleic acid extraction.
Plate loading positions, plate types, reagents, and reagent volumes used for automated DNA extraction with the magnetic particle processor. The Sample Plate contains the sample lysate and binding bead mixture. N/A indicates that no liquid reagent was added to the Tip Comb Plate.

​14. Elute and store nucleic acids

1. Open the instrument after completion of the run and remove the Elution Plate carefully to avoid spilling the eluates.
   NOTE: If visible magnetic bead carryover is present in the Elution Plate, transfer the eluates to a standard 96-well plate and place the plate on a magnetic stand for 5–10 min. Transfer the clarified supernatant to a fresh 96-well plate or appropriately labeled tubes using a multichannel pipette.
2. Transfer the eluted DNA to appropriately labeled tubes or storage plates.
3. Store the eluted DNA at 4°C for short-term use, at −20°C for storage of up to 6 months, or at −80°C for long-term storage.

15. Perform post-run cleanup

1. Remove all used plates and tip combs from the automated magnetic particle processor.
2. Dispose of all consumables in accordance with institutional biosafety and chemical waste disposal guidelines.
3. Clean any spills using an appropriate laboratory disinfectant.
4. Turn off the automated magnetic particle processor, followed by the main power supply.

Results

Fecal samples from seven participants were successfully collected using the described collection workflow, yielding specimens with sufficient mass and appropriate consistency for downstream processing. Samples were stored at room temperature following collection. The majority of samples exhibited a uniform texture and coloration, consistent with appropriate collection and storage conditions, whereas a small subset showed minor variability in consistency, which may reflect biological variation among participants. No visib...

Discussion

The protocol described here provides a standardized workflow for human fecal sample collection and automated DNA extraction for microbiome studies. Critical steps include representative fecal sampling from multiple regions of the stool, thorough homogenization with the stabilization buffer, proper storage and transport under recommended conditions, efficient mechanical lysis, and careful handling during automated extraction. Consistent adherence to these steps minimizes technical variability and supports reproducible DNA...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
80% Ethanol (prepared from absolute ethanol)	Merck	ET00161000	Prepare fresh from absolute ethanol as described in the protocol.
Absorbent material	Kimtech	34256	Included in the transport bag.
Adhesive plate sealing film	Applied Biosystems	4306311	MicroAmp Clear Adhesive Film.
Automated magnetic particle processor (KingFisher Flex Purification System with 96 deep-well head)	Thermo Fisher Scientific	5400630	Automated nucleic acid extraction system.
Biohazard-labeled sealable transport bag	Zymo Research	R1180	Leak-proof transport bag for specimen transport.
BindIt software	Thermo Fisher Scientific	5189009	Software used to modify and transfer the automated extraction protocol.
Collection tube with attached spatula (30–50 mL)	Zymo Research	R1180	Sterile screw-cap collection tube.
Cushioning support	QIAGEN	69984	TissueLyser Adapter Set (used as cushioning support during bead beating).
Deep-well plate (96-well)	Thermo Fisher Scientific	95040460	KingFisher Deepwell 96 Plate.
Disposable gloves	Zymo Research	R1180	Powder-free recommended.
Elution buffer	Applied Biosystems	A42357	Supplied with the MagMAX Microbiome Ultra Nucleic Acid Isolation Kit.
Fecal catcher	Zymo Research	R1180	Sterile collection device.
Heating block (96-well deep-well)	Thermo Fisher Scientific	Supplied with instrument	Component of the KingFisher Flex Purification System.
Laboratory coat	Local supplier	N/A	Personal protective equipment.
Lysis buffer	Applied Biosystems	A42357	Supplied with the MagMAX Microbiome Ultra Nucleic Acid Isolation Kit.
Magnetic beads	Applied Biosystems	A42357	Supplied with the MagMAX Microbiome Ultra Nucleic Acid Isolation Kit.
Magnetic head (96-deep-well)	Thermo Fisher Scientific	Included with 5400630	Ninety-six-deep-well magnetic head supplied with the KingFisher Flex system.
Magnetic stand (96-well)	Thermo Fisher Scientific	12332D	Required only if magnetic bead carryover is observed.
Multichannel pipette	Eppendorf	3125000052	Compatible with 96-well plates.
NanoDrop spectrophotometer	Thermo Fisher Scientific	ND-ONE-W	Used to determine A260/280 and A260/230 ratios.
Nucleic acid binding buffer	Applied Biosystems	A42357	Supplied with the MagMAX Microbiome Ultra Nucleic Acid Isolation Kit.
Permanent marker	Sharpie	3002	Alternatively, use preprinted labels.
Pipette tips, sterile filtered (10 µL)	Tarsons	528100	Sterile graduated filter tips.
Pipette tips, sterile filtered (200 µL)	Tarsons	528104	Sterile graduated filter tips.
Pipette tips, sterile filtered (1,000 µL)	Tarsons	529106	Sterile filter tips; cut to prepare wide-bore tips where indicated in the protocol.
Plate adapter for centrifuge	Eppendorf	5820710004	Rotor A-2-DWP-AT deep-well plate adapter.
Plate-compatible centrifuge	Eppendorf	5810	Compatible with the Rotor A-2-DWP-AT adapter.
Plate holder for bead beating	QIAGEN	69984	TissueLyser Adapter Set 2 × 96.
Preprinted labels (optional)	Brady	BBP12	Alternative to permanent marker.
Qubit dsDNA HS Assay	Thermo Fisher Scientific	Q33231	Fluorometric assay used for DNA quantification.
Qubit fluorometer	Thermo Fisher Scientific	Q33327	Instrument used for fluorometric DNA quantification.
Reagent reservoir	Thermo Fisher Scientific	8093	Matrix Reagent Reservoir.
Sample stabilization buffer	Zymo Research	R1180	DNA/RNA Shield Fecal Collection Kit.
Sterile conical tube	HiMedia	TCP106H	Used for preparation of the binding bead mixture.
TissueLyser III bead mill homogenizer	QIAGEN	9003240	Mechanical lysis instrument.
Tip comb plate	Thermo Fisher Scientific	97002534	KingFisher 96 Tip Comb for deep-well magnets.
Wash buffer	Applied Biosystems	A42357	Supplied with the MagMAX Microbiome Ultra Nucleic Acid Isolation Kit.
