Method Article

High-Speed Time-Lapse Atomic Force Microscopy to Capture Nucleosome Dynamics

July 8th, 2025

In This Article

Abstract

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

Source: Stumme-Diers, M. P., et al., Probing The Structure And Dynamics Of Nucleosomes Using Atomic Force Microscopy Imaging. J. Vis. Exp. (2019)

In this video, we demonstrate high-speed time-lapse atomic force microscopy, AFM, imaging techniques to study the dynamics of nucleosome complexes. As the AFM tip scans across the surface of the nucleosome, it detects alterations in the nucleosome height and records the DNA unwrapping over time.

Protocol

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

1. Continuous Dilution Assembly of Mono-nucleosomes

  1. Generate and purify an approximately 400 bp DNA substrate that contains an off-centered Widom 601 nucleosome positioning sequence.
    NOTE: To limit the unwanted formation of di-nucleosomes, each ‘arm' flanking the positioning sequence should not exceed ~150 bp.
    1. Use plasmid pGEM3Z-601 along with the designed primers and amplify the substrate DNA using PCR. For the 423 bp substrate with 122 and 154 bp arm lengths used here, use forward (5'-CAGTGAATTGTAATACGACTC-3') and reverse (5'-ACAGCTATGACCATGATTAC-3') primers.
    2. Add tubes containing....

Access restricted. Please log in or start a trial to view this content.

Results

$$\rightleftharpoonup{xx}$$ $$\longleftharp{xx}$$, $$\longrightharp{xx}$$,

Laboratory syringe pump for precise liquid handling in chromatography and PCR experiments.

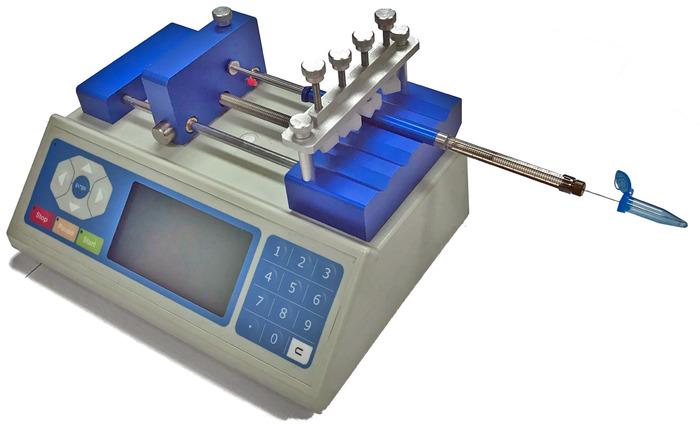

Figure 1: Schematic of the syringe pump used for microscale nucleosome assembly. The assembly mixture is positioned to be in contact with the end of the syringe needle. As the dilution buffer is delivered by the syringe pump to the assembly mixture the concentration of NaCl is decreased, promoti.......

Access restricted. Please log in or start a trial to view this content.
