A Method for Generating Pulmonary Neutrophilia Using Aerosolized Lipopolysaccharide

Summary

We describe a method for inducing neutrophilic pulmonary inflammation by challenge to aerosolized lipopolysaccharide by nebulization, to model acute lung injury. In addition, basic surgical techniques for lung isolation, tracheal intubation and bronchoalveolar lavage are also described.

Abstract

Acute lung injury (ALI) is a severe disease characterized by alveolar neutrophilia, with limited treatment options and high mortality. Experimental models of ALI are key in enhancing our understanding of disease pathogenesis. Lipopolysaccharide (LPS) derived from gram positive bacteria induces neutrophilic inflammation in the airways and lung parenchyma of mice. Efficient pulmonary delivery of compounds such as LPS is, however, difficult to achieve. In the approach described here, pulmonary delivery in mice is achieved by challenge to aerosolized Pseudomonas aeruginosa LPS. Dissolved LPS was aerosolized by a nebulizer connected to compressed air. Mice were exposed to a continuous flow of LPS aerosol in a Plexiglas box for 10 min, followed by 2 min conditioning after the aerosol was discontinued. Tracheal intubation and subsequent bronchoalveolar lavage, followed by formalin perfusion was next performed, which allows for characterization of the sterile pulmonary inflammation. Aerosolized LPS generates a pulmonary inflammation characterized by alveolar neutrophilia, detected in bronchoalveolar lavage and by histological assessment. This technique can be set up at a small cost with few appliances, and requires minimal training and expertise. The exposure system can thus be routinely performed at any laboratory, with the potential to enhance our understanding of lung pathology.

Introduction

Lipopolysaccharide (LPS) is a cell wall component of gram negative bacteria¹. Challenge to LPS is a well-documented model of acute lung injury, a syndrome characterized by acute neutrophilic inflammation and edema². In addition, pulmonary neutrophilia is also a hallmark of chronic obstructive pulmonary disease (COPD)³, and LPS challenge in humans has been used to model COPD exacerbations⁴. Thus, experimental models of LPS exposure are clinically relevant and valuable tools to understand human pathology.

The objective of the pulmonary delivery of aerosolized LPS described here is to generate a neutrophilic inflammatory response in the conducting and respiratory airways, without systemic involvement. Several techniques of LPS challenge have been described previously. Intra-venous injection of LPS is the most commonly used route of administration. Although this technique is easily accessible, the primary damage is to the endothelium, with secondary destruction of the pulmonary epithelium following neutrophil migration to the lung. Intra-venous administration also induces systemic inflammation², which may complicate the clinical picture in animal models. Systemic inflammation is in contrast not observed with intra-tracheal administration. This technique, however, is labor intensive and requires anesthetics as well as considerable training^5,6 . Furthermore, pulmonary deposition by this route of administration is dependent on breathing⁷. Thus, pulmonary deposition is affected by the depth of anesthesia needed for the intra tracheal administration and variable deposition in the airways may be observed. In contrast, pulmonary delivery with aerosolized LPS requires minimal training, and can easily be accomplished on a large number of animals with little or no variation between individuals^5,8 . A recent study confirms that aerosol delivery is superior to the intra-tracheal route with regard to deposition, and that more relevant doses of LPS induce neutrophilic inflammation with this model⁸.

Previous studies have demonstrated that challenge to aerosolized Psuedomonas aeruginosa LPS generates a marked inflammatory response in the airway lumen and lung parenchyma, including the alveolar spaces^9,10. The inflammation is characterized by a predominance of neutrophils and presence of pulmonary edema, and can thus be used to address pathogenesis of acute lung injury and gain further knowledge of the mechanisms contributing to disease pathology.

Protocol

The animal studies were approved by the Northern Stockholm animal welfare ethics committee. The experimental procedures were performed in compliance with Swedish law.

1. Generating an LPS Aerosol

1. Dissolve 0.5 g purified P. aeruginosa LPS in 50 ml sterile saline with gentle agitation and verify dissolution. Dilute 1 ml dissolved LPS in 9 ml sterile saline, to a final concentration of 1 mg/ml. Protect from light with aluminum foil and store at -20 °C.
2. Thaw solubilized LPS in the dark at room temperature and mix well immediately before use.
3. In a ventilated level II biohazard hood, insert a red inlet into a nebulizer, and connect the nebulizer to pressurized room air via the tubing provided by the manufacturer (review scheme presenting the experimental devices in Figure 1).
   CAUTION: appropriate personal protective equipment, including a half face piece reusable respirator with particulate filters, goggles, gloves and protective garments should be used during the course of exposure.

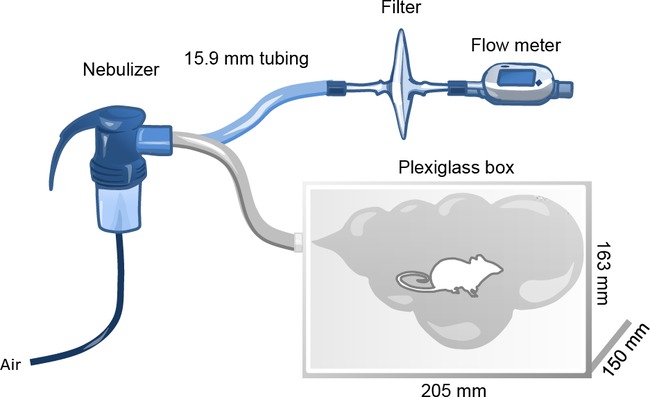

Figure 1: Schematic presentation of the experimental devices used for generating an aerosol. The inlet of the nebulizer is connected to an air supply. The outlet of the nebulizer is first connected to a flow meter via a 15.9 mm tube and an air filter, and air supply is adjusted to 5.0 L/m at 2 kbar pressure. The outlet is next connected to a Plexiglas box fitted with removable lids and 5 mm holes to prevent pressure build-up.

4. Connect the outlet of the nebulizer to a mass flowmeter via an air filter. Connect the mass flowmeter to an electrical supply.
5. Adjust the air supply to 5 L/min, with pressure remaining at 1.0-2.0 bar.
6. Remove the mass flowmeter and disconnect the air supply.
7. Connect the outlet of the nebulizer to a 15.9 mm tube, which bifurcates and connects to two Plexiglas boxes with the dimensions: 150 x 163 x 205 mm, fitted with removable lids. Each box should have a 5 mm hole in the side opposing the inlet, to prevent pressure build-up.
8. Place up to 5 mice in each Plexiglas box and close the lids.
9. Open the nebulizer and fill the insert with at least 4 ml LPS dissolved in sterile saline or vehicle alone (sterile saline; the volume should not exceed 8 ml). Re-connect the inlet to the air supply.
10. Allow the aerosol to flow into the closed Plexiglas boxes for 10 min. Monitor the animals continuously. Make sure the air supply remains tightly secured to the inlet of the nebulizer.
11. Disconnect the air supply. With the lids closed, let the animals remain in the Plexiglas boxes for 2 min.
12. Open the lids and allow for the aerosol to disperse, and return the animals to the cages. If the animals appear wet, place the cages on a heating pad set to low heat, to prevent hypothermia.
13. Monitor the animals continuously for the first 30 min, and thereafter every 2 hr for the first 6 hr. The animals should exhibit normal respiratory pattern and activity during and after the nebulization procedure.

2. Bronchoalveolar Lavage (BAL)

1. At the experimental end point, deeply anesthetize the animals with isoflurane to effect as recommended by your institution’s veterinary staff.  Pinch the hind paw to check for a withdrawal reflex to ensure sufficient depth of anesthesia to conduct major surgery. Spray down the fur of the animals with 70% ethanol.
2. Open the abdomen using scissors, and sever the aorta to exsanguinate the animal. Place a piece of tissue over the abdomen to soak up the blood.
3. Follwing euthanasia, use a single anterior-posterior cut of the scissors to expose the thorax. Lift up the rib cage by the anterior tip of the sternum and use the scissors to puncture the diaphragm at the most ventral point, without cutting into any lung lobe. Open the ribcage by making two cuts in the anterior-posterior direction (meeting below the jaw).
4. Gently pull apart the rib cage using forceps, and cut the trachea below the larynx.
5. Lift up the trachea with the forceps and remove the lungs by cutting the ligaments connecting the lobes to the thoracic cavity, and gently pulling by the adipose and cardiac tissue.
6. Insert a polyethylene tube (inner diameter: 0.58 mm; outer diameter: 0.965 mm) into the trachea and secure the tube with a string of silk thread.
7. Tie off the multilobe (the four lobes of the right lung) with silk thread.
8. Insert a 23 gauge needle into the polyethylene tube and slowly inject 250 µl of ice-cold sterile PBS into the single lobe with a 1 ml syringe.
9. Carefully tap the lungs 30 times and collect the liquid through the syringe. Repeat the procedure with 200 µl PBS (approximately 300 µl PBS should be recovered from the single lobe from the total injected volume of 450 µl).
10. Keep the bronchoalveolar lavage fluid (BALF) on ice, or enumerate the BAL cells immediately. Count the cells with a heamocytometer, using Turk solution to stain the cells¹¹. Calculate the total cell number by multiplying the number of cells with the dilution factor of the staining solution and the volume within the counted field of the heamocytometer.
11. Prepare differential cell counts from cytocentrifuged cells as described elsewhere¹¹.

3. Formalin Fixation of Lung Tissue for Histological Assessment

1. Remove the multilobe and snap-freeze on dry ice. Store at -80 °C.
2. Mount a 60 ml syringe with the plunger removed on a metal support stand. Fill the syringe with 10% formalin to the height of 20 cm above the laboratory bench, representing 20 cm of constant pressure.
3. Connect the 23 gauge needle secured to the trachea to the 60 ml syringe via a plastic tube with a valve to control the flow of formalin.
4. Insufflate the lung lobe with formalin for 5 min. Disconnect the needle and remove it together with the polyethylene tube from the trachea while pulling on the silk thread to close the trachea and retain the pressure in the lung.
5. Submerge the lung lobe in formalin and fix for 24 hr at 4 °C.
6. Wash the fixed tissue three times for at least 20 min with 70% ethanol, and dehydrate to xylene through the following regimen (1 hr each):
   • 3x 70% ethanol
   • 3x 95% ethanol
   • 3x 100% ethanol
   • 3x xylene
   • 1x (liquid) paraffin
7. Embed dehydrated tissue in paraffin, cut in 4-5 µm sections, and stain with hematoxylin and eosin to allow for histological assessment.

Results

Challenge to aerosolized P. aeruginosa LPS usually yields a marked inflammatory response in the airway lumen and alveolar space, characterized by a predominance of neutrophils at both early and late time points.

Aerosolized LPS induces pulmonary neutrophilia

C57BL/6by and BALB/c mice were exposed to aerosolized P. aeruginosa LPS or vehicle alone and neutrophils were enumerated in BALF. The total cell number in BALF of C57BL/6by mice exposed to an aero...

Discussion

Aerosolized LPS generates an inflammatory response in the airways, characterized by neutrophils in the epithelial submucosa, spaces surrounding the conducting airways, as well as the alveolar spaces. This is, together with the increased total protein content in BALF, indicative of plasma leakage, representative of the pathology of acute lung injury. As LPS induces a sterile inflammation, the reaction is independent of the adaptive immune response, and there are limitations to the relevance to bacterial infections. The te...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Purified Pseudomonas aeruginosa LPS	Sigma-Aldrich		Harmful. Recomended purification. LPS purified from other bactria may be used.
Pari LC sprint star nebulizer	PARI Respiratory Equipment Inc.	023G1250
TSI mass flowmeter 4040	TSI	4040	Alternative product from supplier may be used.
Saint-Gobain 15.9 mm Tygon tube	Sigma-Aldrich	Z685704	Recomended brand.
Plexiglas boxes with removable lids	Custom built	N/A	150 x 163 x 205 mm (a 2 mm hole on the side).
3M Half Facepiece Reusable Respirator	3M	7503	Recomended brand.
3M Advanced Particulate Filters (P100)	3M	2291	Recomended brand.
Scissors	VWR	233-1104	Preferred scissors may be used.
Forceps	VWR	232-1313	Preferred forceps may be used.
Intramedic PE50 polyethylene tube	BD	427411	Recomended brand.
Ethicon 2-0 Perma-hand silk tread	VWR	95056-992	Recomended brand.
26 ½ gage needle			Alternative suppliers exist.
1 ml BD slip-tip syringe, non-sterile	BD	301205	Alternative suppliers exist.
60 ml BD Luer-Lok syringe, non-sterile, polypropolene	BD	301035	Alternative suppliers exist.
Fluka Hematoxylin-Eosin	Sigma-Aldrich	3972	Alternative suppliers exist.
Türk's solution	Merck Millipore	109277
Table top centrifuge			Alternative manufacturers exist.
Cytospin 4 cytocentrifuge	Thermo Scientific	A78300003	Alternative centrifuge can be used.
HEMA-3 stat pack	Fisher Scientific	23-123-869	Alternative staining kits exists.
Formalin solution, neutral buffered, 10%	Sigma-Aldrich	HT501128	Alternative suppliers exist.
