Identification of Key Factors Regulating Self-renewal and Differentiation in EML Hematopoietic Precursor Cells by RNA-sequencing Analysis

Summary

RNA-sequencing and bioinformatics analyses were used to identify significantly and differentially expressed transcription factors in Lin-CD34+ and Lin-CD34- subpopulations of mouse EMLcells. These transcription factors might play important roles in determining the switch between self-renewing Lin-CD34+ and partially differentiated Lin-CD34- cells.

Abstract

Hematopoietic stem cells (HSCs) are used clinically for transplantation treatment to rebuild a patient's hematopoietic system in many diseases such as leukemia and lymphoma. Elucidating the mechanisms controlling HSCs self-renewal and differentiation is important for application of HSCs for research and clinical uses. However, it is not possible to obtain large quantity of HSCs due to their inability to proliferate in vitro. To overcome this hurdle, we used a mouse bone marrow derived cell line, the EML (Erythroid, Myeloid, and Lymphocytic) cell line, as a model system for this study.

RNA-sequencing (RNA-Seq) has been increasingly used to replace microarray for gene expression studies. We report here a detailed method of using RNA-Seq technology to investigate the potential key factors in regulation of EML cell self-renewal and differentiation. The protocol provided in this paper is divided into three parts. The first part explains how to culture EML cells and separate Lin-CD34+ and Lin-CD34- cells. The second part of the protocol offers detailed procedures for total RNA preparation and the subsequent library construction for high-throughput sequencing. The last part describes the method for RNA-Seq data analysis and explains how to use the data to identify differentially expressed transcription factors between Lin-CD34+ and Lin-CD34- cells. The most significantly differentially expressed transcription factors were identified to be the potential key regulators controlling EML cell self-renewal and differentiation. In the discussion section of this paper, we highlight the key steps for successful performance of this experiment.

In summary, this paper offers a method of using RNA-Seq technology to identify potential regulators of self-renewal and differentiation in EML cells. The key factors identified are subjected to downstream functional analysis in vitro and in vivo.

Introduction

Hematopoietic stem cells are rare blood cells that reside mainly in the adult bone marrow niche. They are responsible for the production of cells required to replenish the blood and the immune systems¹. As a kind of stem cells, HSCs are capable of both self-renewal and differentiation. Elucidating mechanisms that control the fate decision of HSCs, toward either self-renewal or differentiation, will offer valuable guidance on the manipulation of HSCs for blood disease researches and clinical usage². One problem faced by the researchers is that HSCs can be maintained and expanded in vitro to a very limited extent; the vast majority of their progeny are partially differentiated in culture².

In order to identify key regulators that control the processes of self-renewal and differentiation at a genome-wide scale, we used a mouse primitive hematopoietic progenitor cell line EML as a model system. This cell line was derived from murine bone marrow^3,4. When fed with different growth factors, EML cells can differentiate into erythroid, myeloid, and lymphoid cells in vitro⁵. Importantly, this cell line can be propagated in large quantity in culture medium containing stem cell factor (SCF) and still retaining their multipotentiality. EML cells can be separated into subpopulations of self-renewing Lin-SCA+CD34+ and partially differentiated Lin-SCA-CD34- cells based on surface markers CD34 and SCA⁶. Similar to short-term HSCs, SCA+CD34+ cells are able of self-renewal. When treated with SCF, Lin-SCA+CD34+ cells can rapidly regenerate a mixed population of Lin-SCA+CD34+ and Lin-SCA-CD34- cells and continue to proliferate⁶. The two populations are similar in morphology and have similar levels of c-kit mRNA and protein⁶. Lin-SCA-CD34- cells are capable of propagating in media containing IL-3 instead of SCF³. Unveiling the key regulators in the EML cell fate decision will offer better understanding of cellular and molecular mechanisms in early developmental transition during hematopoiesis.

In order to investigate the underlying molecular differences between the self-renewing Lin-SCA+CD34+ and partially differentiated Lin-SCA-CD34- cells, we used RNA-Seq to identify differentially expressed genes. In particular, we focus on transcription factors, as transcription factors are crucial in determining cell fate. RNA-Seq is a recently developed approach that utilizes the capabilities of next-generation sequencing (NGS) technologies to profile and quantify RNAs transcribed from genome^7,8. In brief, total RNA is poly-A selected and fragmented as the initial template.The RNA template is then converted into cDNA using reverse transcriptase. In order to map full-length RNA transcripts, using intact, non-degraded RNA for constructing cDNA library is important. For the purpose of sequencing, specific adapter sequences are added to both ends of cDNA. Then, in most cases, cDNA molecules are amplified by PCR and sequenced in a high-throughput manner.

After sequencing, the resulting reads can be aligned to a reference genome and a transcriptome database. The number of reads that map to the reference gene is counted and this information can be used to estimate the gene expression level. The reads can also be assembled de novo without a reference genome, enabling the study of transcriptomes in non-model organisms⁹. RNA-seq technology has also been used to detect splice isoforms^10-12, novel transcripts¹³ and gene fusions¹⁴. In addition to the detection of protein-coding genes, RNA-Seq can also be used to detect novel and analyze transcription level of non-coding RNAs, such as long non-coding RNA^15,16, microRNA¹⁷, siRNA etc.¹⁸. Because of the accuracy of this method, it has been utilized for detection of single nucleotide variations^19,20.

Before the advent of RNA-Seq technology, microarray was the main method used for analyzing gene expression profile. Pre-designed probes are synthesized and subsequently attached to a solid surface to form a microarray slide²¹. mRNA is extracted and converted to cDNA. During the reverse transcription process, fluorescently labeled nucleotides are incorporated into the cDNA and the cDNA can be hybridized onto the microarray slides. The intensity of the signal collected from a specific spot depends on the amount of cDNA binding to the specific probe on that spot²¹. Compared with RNA-Seq technology, microarray has several limitations. First, microarray relies on the pre-existing knowledge of gene annotation, while RNA-Seq technology is able to detect novel transcripts at relative high background level, which limits its use when gene expression level is low. Besides, the RNA-Seq technology has much higher dynamic range of detection (8,000 fold)⁷, whereas, due to background and saturation of signals, the accuracy of microarray is limited for both highly and lowly expressed genes^7,22. Finally, microarray probes differ in their hybridization efficiencies, which make the results less reliable when comparing relative expression levels of different transcripts within one sample²³. Although RNA-Seq has many advantages over microarray, its data analysis is complex. This is one of the reasons that many researchers still use microarray instead of RNA-Seq. Various bioinformatics tools are required for RNA-Seq data processing and analysis²⁴.

Among several next-generation sequencing (NGS) platforms, 454, Illumina, SOLID and Ion Torrent are the most widely used ones. 454 was the first commercial NGS platform. In contrast to the other sequencing platforms such as illumina and SOLID, the 454 platform generates longer read length (average 700 base reads)²⁵. Longer reads are better for initial characterization of transcriptiome due to their higher assemble efficiency²⁵. The main disadvantage of the 454 platform is its high cost per megabase of sequence. The Illumina and SOLID platforms generate reads with increased numbers and short lengths. The cost per megabase of sequence is much lower than the 454 platform. Due to the large numbers of short reads for the Illumina and SOLID platforms, data analysis is much more computationally intensive. The price of the instrument and reagents for sequencing for the Ion Torrent platform is cheaper and the sequencing time is shorter²⁵. However, the error rate and the cost per megabase of sequence are higher compared to the Illumina and SOLID platforms. Different platforms have their own advantages and disadvantages and require different methods for data analysis. The platform should be chosen based on the sequencing purpose and the availability of funding.

In this paper, we take Illumina RNA-Seq platform as an example. We used EML cell as a model system to investigate the key regulators in EML cell self-renewal and differentiation, and provided a detailed methods of RNA-Seq library construction and data analysis for expression level calculation and novel transcript detection. We have shown in our previous publication that RNA-seq study in EML model system², when coupled with functional test (e.g. shRNA knockdown) provide a powerful approach in understanding the molecular mechanism of the early stages of hematopoietic differentiation, and can serve as a model for the analysis of cell self-renewal and differentiation in general.

Protocol

1. EML Cell Culture and Separation of Lin-CD34+ and Lin-CD34- Cells Using Magnetic Cell Sorting System and Fluorescence-activated Cell Sorting Method

1. Preparation of baby hamster kidney (BHK) cell culture medium for stem cell factor collection:
   1. Culture BHK cells in DMEM medium containing 10% FBS in 25 cm² flask (Table 1) at 37 °C, 5% CO₂ in a cell culture incubator.
   2. When cells grow to 80 - 90% confluence, wash cells once with 10 ml of PBS. Add 5 ml of 0.25% trypsin-EDTA solution to the monolayer and incubate the cells for 1-5 min at room temperature (RT) until the cells are detached.
   3. Pipet the solution up and down gently to break up clumps of cells. Add 5 ml of complete DMEM to the flask to stop trypsin activity. Collect cells by centrifugation at 200 x g for 5 min at RT.
   4. Remove the medium and resuspend the cell pellet in 10 ml of fresh BHK cell culture medium.
   5. Transfer 2 ml of the cell suspension from the step 1.1.4 to a new 75 cm² flask and add 48 ml of fresh BHK cell culture medium to the flask.
   6. Culture the BHK cells for two days and collect the culture medium. Passage the medium through a 0.45 μm filter. Store the medium in -20 °C until further use.
2. EML cell culture:
   1. Culture EML cells (in suspension) in EML basic medium containing BHK cell culture medium (Table 1) at 37 °C, 5% CO₂ in a cell culture incubator.
   2. Maintain the EML cells at low cell density (0.5-5 x 10⁵ cells/ml) with the peak density less than 6 x 10⁵ cells/ml. Split the cells every 2-3 days at the ratio of 1:5. Passage EML cells gently and discard the culture after passaging for 10 generations.
3. Depletion of lineage positive cells:
   1. Harvest the EML cells by centrifugation at 200 x g for 5 min and wash the cells once with PBS. Collect the cells by centrifugation at 200 x g for 5 min.
   2. Resuspend the cells with PBS and count the cells with a hemocytometer. Determine the antibody concentration in the subsequent cell separation step according to the number of the cells (please refer to the instructions offered by the provider of the cell isolation system).
   3. Isolate the lineage negative (Lin-) cells using lineage antibody cocktail (cocktail of biotin-conjugated monoclonal antibodies CD5, CD45R (B220), CD11b, Anti-Gr-1(Ly-6G/C), 7-4 and Ter-119) and a magnetic activated cell sorting system according to manufacturer’s instructions.
4. Separation of Lin-CD34+ and Lin-CD34- cells:
   1. Spin down the Lin- cells from the step 1.3.3 at 200 x g for 5 min. Resuspend the cell pellet with PBS and count the cells with a hemocytometer.
   2. Wash the cells twice with FACS buffer and pellet the cells at 200 x g for 5 min.
   3. Label five 1.5 ml microcentrifuge tubes with the number 1, 2, 3, 4, 5 respectively. Resuspend the cells with 100 µl FACS buffer per 10⁶ cells (10⁶ cells per tube).
   4. Add 1 µg of Anti-Mouse CD34 FITC antibody to tube 1 and tube 2 and mix the tubes gently.
   5. Incubate all tubes at 4 °C for 1 hr in the dark.
   6. Add 0.25 µg of PE-conjugated Anti-Sca1 antibody and 20 µl of APC-conjugated Lineage Cocktail antibodies to tube 1, 0.25 µg of PE-conjugated Anti-Sca1 antibody to tube 3, and 20 µl of APC-conjugated Lineage Cocktail antibodies to tube 4.
   7. Mix all the tubes gently and incubate the cells at 4 °C for an additional 30 min in the dark.
   8. Add 300 µl of FACS buffer to the cells and spin down the cells at 200 x g for 5 min.
   9. Wash the cells with 500 µl of FACS buffer for three times.
   10. Resuspend the cell pellet in 500 µl of FACS buffer.
   11. Use the cells in tubes 2, 3, 4, and 5 for setting up compensation. Isolate Lin-SCA+CD34+ and Lin-SCA-CD34- cells in tube 1 using FACS Aria.

2. RNA Preparation and Library Construction for High-throughput Sequencing

1. Isolation, quality analysis and quantification of RNA:
   1. Extract total RNA from Lin-CD34+ and Lin-CD34- cells respectively using TRIzol following the manufactures’ protocol.
   2. Remove the contaminated DNA using deoxyribonuclease I (DNase I) following the manufacture’s protocol. Optionally, store the RNA at -80 °C at this step for further use.
   3. Assess the quality of total RNA using Bioanalyzer according to the instructions offered by the supplier. Use RNA sample with RNA Integrity Number (RIN) lager than 9.
2. Library Construction and high-throughput sequencing:
   NOTE: This protocol describes RNA-Seq using Illumina platform. For other sequencing platforms, different library preparation methods are required.
   1. Use 0.1-4 µg of high quality total RNA per sample for library preparation. Normally 2 µg of total RNA can be extracted from 10⁵ EML cells.
   2. Use a RNA-sequencing sample preparation system for RNA purification and fragmentation, first and second strand cDNA synthesis, end repair, 3’ ends adenylation, adapter ligation and PCR amplification, following the detailed standard procedures from the provider’s instructions.
      1. Positively select PolyA mRNA using oligo-dT magnetic beads and fragment the mRNA.
      2. Perform reverse transcription using random primers to obtain the cDNA and subsequently synthesize the second strand of cDNA to generate double stranded cDNA.
      3. Remove the 3' overhangs and fill the 5' overhangs by DNA polymerase. Adenylate 3' ends to prevent cDNA fragments from ligating to one another.
      4. Add multiplex indexing adapters to both ends of the dscDNA. Perform PCR for the enrichment of DNA fragments.
   3. Measure the A260/A280 to obtain information about the concentration of library using a spectrophotometer.
   4. Assess the library quality and measure the size range of DNA fragments using a Bioanalyzer.

3. Data Analysis

For reference of software used in this part, please see (Table 2).

1. Data file processing for downstream analysis:
   1. Convert .bcl (base call file) file to .fastq file using CASAVA software (Illumina, version 1.8.2).
      1. Fire up the ‘Terminal’ in Linux system. Go to the data folder that contains the data file from an Illumina HiSeq2000 sequencing machine. Suppose the result folder is ‘NASboy1/JiaqianLabData/HiSeq_RUN/2013_07_11/130627_SN860_0309_A_2013-166_H0PW9ADXX/’, type in the command in Figure S1A, and enter the data folder.
      2. Install CASAVA 1.8.2 in the Linux system. Suppose the outputfolder is ‘Unaligned’, use the command in Figure S1B to prepare the configuration file for converting. Use the option --fastq-cluster-count 0 to ensure only one .fastq file is created for each sample. The generated .fastq file is in .gz format. Unzip it for downstream analysis (Figure S1B).
      3. After the ‘Unaligned’ folder has been generated, go to the ‘Unaligned’ folder (Figure S1C).
      4. Use the command in Figure S1D to begin the converting process. The ‘-j’ parameter supplies the cpu number that will be used.
      5. After the system finished the converting process, go to the result folder under ‘Unaligned’ folder (Figure S1E).
      6. Use the command in Figure S1F to decompress the .fastq.gz file into .fastq file under each sample folder.
2. Detect novel transcripts and evaluate the expression level using Tuxedo Suite²⁶:
   1. Map the paired-end RNA-Seq reads to the mouse reference genome (UCSC version mm9, obtained from http://cufflinks.cbcb.umd.edu/igenomes.html) using Tophat software (version 1.3.3)²⁷, which uses the Bowtie read mapper (version 0.12.7)²⁸. Tophat is supplied with “-no-novel-juncs” option to improve estimation accuracy of expression level.
      1. Put the .fastq files in a folder where the mapping process will be implemented. Suppose there are 2 .fastq files (rename to Example1.read1, Example1.read2) for a paired-end sequencing sample, use the command in Figure S2 to do the mapping (adjust the parameters according to the system setting). The “-p” parameter supplies the cpu number that will be used. The “–r” and “–mate-std-dev” parameters can be obtained from library QC or inferred from a subset of aligned reads (Figure S2).
   2. Assemble the mapped reads into RNA transcripts using the Cufflinks software (version 1.3.0)²⁹. Run Cufflinks using the annotation file of known genes (same .gtf file used by Tophat) and .bam file produced by Tophat.
      1. After Tophat finished running, in the same folder, use the command in Figure S3A to run cufflinks to construct transcriptome and estimate transcript expression level. The ‘mm9_repeatMasker.gtf’ and genome sequence files in the ‘GenomeSeqMM9’ folder can be obtained from UCSC Genome Browser.
      2. The resulting genes.expr and transcripts.expr files contain the expression value of genes and transcripts (isoforms). Copy and paste the file contents to an Excel file and manipulate with spreadsheet application (Figure S3B).
      3. Use the command in Figure S3C to compare the resulting ‘transcripts.gtf’ file to the reference ‘mm9_genes.gtf’ file in order to identify novel transcripts.
      4. The resulting .tmap file contains the comparison result. Copy and paste the file contents to an Excel file and manipulate with spreadsheet application. Transcripts with class code ‘u’ can be considered as ‘novel’ compared to the reference .gtf file provided (Figure S3D).
         NOTE: For downstream analysis convenience, set the FPKM values to 0.1 if the values are under 0.1.
         NOTE: Step 3.2.3 - 3.2.6 is optional for those who wish to improve accuracy of novel transcripts’ expression estimation. This will take a much longer time, because mapping and transcriptome construction need to be run more than once.
   3. Run Tophat using default parameters and then run cufflinks to generated .gtf file using the command in Figure S3E.
   4. Compare the resulting .gtf file to the reference genome .gtf file using the command in Figure S3F.
   5. Parse the resulted .tmap file as described in the step 3.2.2.4. Copy and paste the file contents to an Excel file and manipulate with spreadsheet application. Transcripts with class code ‘u’ can be considered as ‘novel’ compared to the reference .gtf file provided.
   6. After the step 3.2.5, there is a .combined.gtf file in the folder which can be used as the reference .gtf file. A second run of Tophat and cufflinks can be performed as described in the step 3.2.1 and 3.2.2 to obtain a more accurate FPKM estimation of novel transcripts.
3. Detect differentially expressed genes using DESeq package³⁰.
   1. The input of DESeq is a raw read counts table. To obtain such a table, use the htseq-count script distributed with the HTSeq Python package which can be downloaded from HTSeq website (http://www-huber.embl.de/users/anders/HTSeq/doc/count.html).
      1. Ensure that samtools, python, and htseq-count programsare installed in the system. Obtain raw read count numbers from tophat output by using the command in Figure S4A.
      2. Prepare ‘Raw_Count_Table.txt’, ‘ExperimentDesign.txt’ files using Excel. Copy and save the content in .txt format for the DESeq R package (Figure S4B).
      3. Install R program in the system. In the terminal, type ‘R’ and press ENTER.A screen message will appearas showed in Figure S4C.
      4. Read ‘Raw_Count_Table.txt’, ‘ExperimentDesign.txt’ into R using the command in Figure S4D.
      5. Load DESeq package using the command in Figure S4E.
      6. Factorize conditions in R (Figure S4F).
      7. Use the command in Figure S4G to run negative binominal test on the normalized count table.
      8. Use the command in Figure S4H to output significant differential expressed genes in a .csv file.
4. Lookup transcription factors’ (TFs) FPKM values across samples using Excel. Intersect DE gene table and TFs table. Genes belong to both table are differentially expressed transcription factors.
   1. Go to the website http://www.bioguo.org/AnimalTFDB/download.php and download the transcription factors. Then lookup the DE transcription factors in the Excel (Figure S5).
5. Generating .bigwig file for UCSC genome browser visualization.
   1. Download ‘bedtools’ software package from the website https://github.com/arq5x/bedtools2 and install the software in the system³¹. Download the UCSC tools ‘bedGraphToBigWig’ from the website http://hgdownload.cse.ucsc.edu/admin/exe/ and install the software in the system.
   2. In the folder containing the .bam file, use the command in Figure S6A to convert .bam file generated by tophat into .bed file.
   3. After the .bed file is produced, use the command in Figure S6B to generate .bigwig file. The file ‘ChromInfo.txt’ can be obtained from following url: http://hgdownload.cse.ucsc.edu/goldenPath/mm9/database/chromInfo.txt.gz.
   4. Observe a custom track on UCSC Genome Browser. Refer to the website http://genome.ucsc.edu/goldenPath/help/customTrack.html on how to display a custom track using UCSC genome browser.

Figure S1: Converting .bcl file to .fastq file using CASAVA software.

Figure S2: Mapping reads to reference genome using Tophat.

Figure S3: Detection of novel transcripts and expression level estimation.

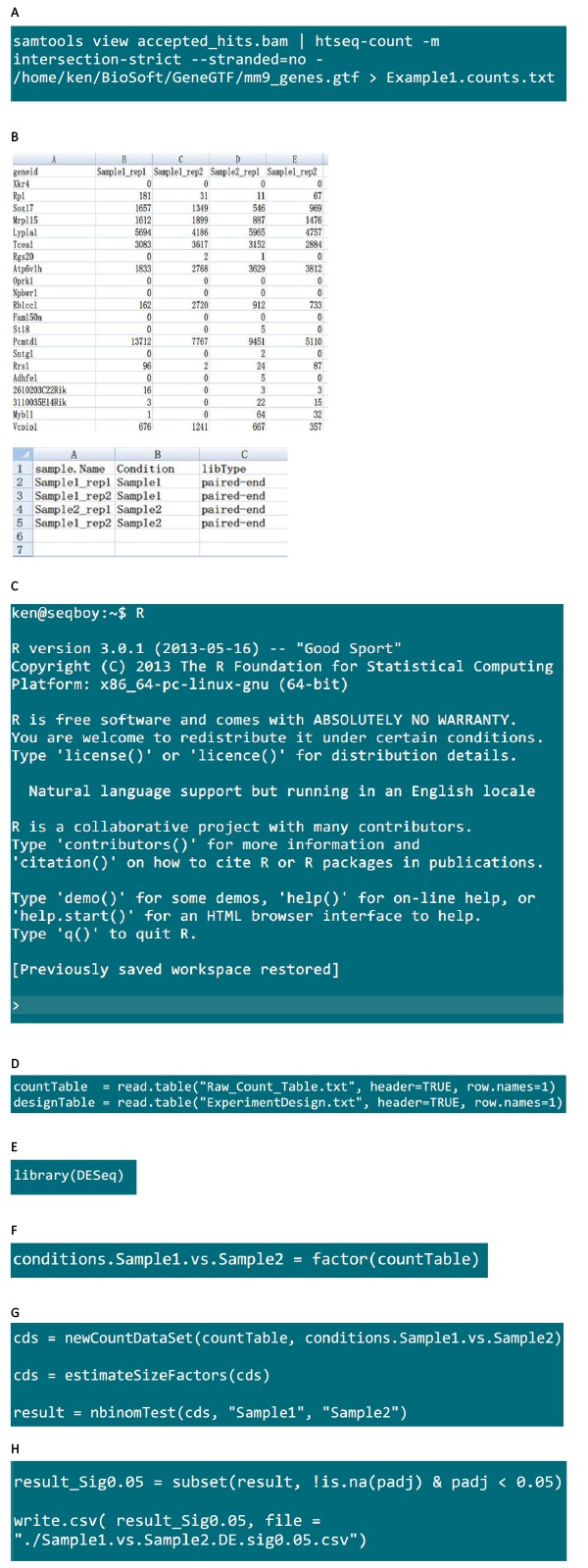

Figure S4: Calling differential expressed gene using DESeq package.

Figure S5: Identification of differentially expressed transcription factors.

Figure S6: Converting mapping result for data visualization.

Results

In order to analyze differentially expressed genes in Lin-CD34+ and Lin-CD34- EML cells, we used RNA-Seq technology. Figure 1 shows the workflow of the procedures. After isolation of lineage negative cells by magnetic cell sorting, we separated Lin-SCA+CD34+ and Lin-SCA-CD34- cells using FACS Aria. Lin-enriched EML cells were stained with anti-CD34, anti-Sca1 and lineage cocktail antibodies. Only Lin- cells were gated for analysis of Sca1 and CD34 expression. Two populations (SCA+CD34+ and SCA-CD34- EML ...

Discussion

Mammalian transcriptome is very complex^34-38. RNA-Seq technology plays an increasingly important role in the studies of transcriptome analysis, novel transcripts detection and single nucleotide variation discovery etc. It has many advantages over other methods for gene expression analysis. As mentioned in the introduction, it overcomes the hybridization artifacts of microarray and can be used to identify novel transcripts de novo. One limitation of RNA-sequencing is relative short rea...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Antibiotic-Antimycotic	Invitrogen	15240-062	BHK cell culture
Anti-Mouse CD34 FITC	eBioscience	11-0341-81	FACS sorting
Anti-Mouse Ly-6A/E (Sca-1) PE	eBioscience	12-5981-81	FACS sorting
APC Mouse Lineage Antibody Cocktail	BD Biosciences	558074	FACS sorting
BD FACSAria Cell Sorter	BD Biosciences	Special offer sysmtem	FACS sorting
Corning™ Cell Culture Treated Flasks 75 cm2	Corning incorporated	430641	Cell culture
Corning™ Cell Culture Treated Flasks 25 cm2	Corning incorporated	430639	Cell culture
Deoxyribonuclease I, Amplification Grade	Invitrogen	18068-015	Library preparation
DMEM	Invitrogen	11965-092	BHK cell culture
DPBS	Gibco	14190	Cell culture
HI FBS	Invitrogen	16140071	BHK cell culture
Horse Serum	Invitrogen	16050-122	EML cell culture
IMDM	HyClone	SH30228.02	EML cell culture
L-Glutamine	Invitrogen	25030-081	Cell culture
Lineage Cell Depletion Kit, mouse	Miltenyi Biotec	130-090-858	Isolation of lineage negative cells
NanoVue Plus spectrophotometer	GE Healthcare	28-9569-62	Quality control
Thermo Scientific™ Napco™ 8000 Water-Jacketed CO2 Incubators	Thermo Scientific	15-497-002	Cell culture
Penicillin-Streptomycin	Invitrogen	15140-122	EML cell culture
TRIzol® Reagent	Invitrogen	15596-018	RNA exraction
TruSeq™ RNA Sample Prep Kit v2 -Set B (48 rxn)	Illumina	RS-122-2002	Library preparation
2100 Electrophoresis Bioanalyzer Instrument	Agilent	G2939AA	Quality control
0.25% Trypsin-EDTA	Gibco	25200	Cell culture
0.45 µm Syringe Filters	Nalgene	190-2545	Cell culture
