Imaging Ca2+ Dynamics in Cone Photoreceptor Axon Terminals of the Mouse Retina

Published: May 6, 2015 doi: 10.3791/52588


We describe a protocol to monitor Ca2+ dynamics in the axon terminals of cone photoreceptors using an ex-vivo slice preparation of the mouse retina. This protocol allows comprehensive studies of cone Ca2+ signaling in an important mammalian model system, the mouse.


Retinal cone photoreceptors (cones) serve daylight vision and are the basis of color discrimination. They are subject to degeneration, often leading to blindness in many retinal diseases. Calcium (Ca2+), a key second messenger in photoreceptor signaling and metabolism, has been proposed to be indirectly linked with photoreceptor degeneration in various animal models. Systematically studying these aspects of cone physiology and pathophysiology has been hampered by the difficulties of electrically recording from these small cells, in particular in the mouse where the retina is dominated by rod photoreceptors. To circumvent this issue, we established a two-photon Ca2+ imaging protocol using a transgenic mouse line that expresses the genetically encoded Ca2+ biosensor TN-XL exclusively in cones and can be crossbred with mouse models for photoreceptor degeneration. The protocol described here involves preparing vertical sections (“slices”) of retinas from mice and optical imaging of light stimulus-evoked changes in cone Ca2+ level. The protocol also allows “in-slice measurement” of absolute Ca2+ concentrations; as the recordings can be followed by calibration. This protocol enables studies into functional cone properties and is expected to contribute to the understanding of cone Ca2+ signaling as well as the potential involvement of Ca2+ in photoreceptor death and retinal degeneration.


Vision begins with the light-induced activation of the phototransduction cascade in retinal photoreceptors. Rod photoreceptors allow vision at low light levels, whereas cone photoreceptors mediate colour and high-resolution daylight vision. Many photoreceptor-specific genes are susceptible to mutations that lead to degeneration of these cells. A number of molecular markers associated with photoreceptor loss have been identified1, but so far the detailed molecular mechanisms and the sequence of events remain unclear. Altered Ca2+ homeostasis was speculated to be a trigger of photoreceptor cell death, a hypothesis supported by the up-regulation of the activity of Ca2+-dependent calpain-type proteases during the degeneration process2,3. However, to date, this hypothesis is not backed by physiological measurements of Ca2+. Inconsistencies in several studies on the effect of Ca2+ channel blockers in retinal diseases further challenged the involvement of Ca2+ in cell death4-6, calling for methods to directly assess Ca2+ in mammalian cone photoreceptors.

Previously, most electrical recording and Ca2+ imaging studies have been performed in amphibian and reptilian models because of the easier access to cones7-9. However, mammalian photoreceptor physiology may be different from that of non-mammals10 and especially, in the context of human hereditary retinal degeneration, a better understanding of mammalian photoreceptor physiology is a key to the development of innovative treatments. Many mouse models mimicking human retinal diseases are available but little is known about Ca2+ dynamics in mouse cones11. Electrical techniques are not suitable for high-throughput recordings from cones, in particular not in mice, where rods (~97%) significantly outnumber cones (~3%)12. Moreover, sensitive electrophysiological techniques such as whole-cell patch-clamp recordings disturb the intracellular milieu and provide data on Ca2+ currents but not on absolute intracellular Ca2+ concentrations. Hence, despite the lower temporal resolution, imaging is the method of choice when addressing questions about cone Ca2+ dynamics. The key issue with imaging is how to selectively label the cones with a fluorescent Ca2+ indicator dye. Proper compartmentalization and cell specificity is hard to achieve by “bulk-loading” synthetic Ca2+ indicator dyes into the tissue. As a consequence, labelled cones, rods13,14, and Müller glial cells cannot be reliably distinguished. Also, synthetic dyes tend to leak out of the cells, preventing prolonged recordings under consistent conditions. Furthermore, loading synthetic Ca2+ indicators in their AM-ester form is problematic, as it requires detergents (e.g., DMSO) and generates formaldehyde15. For absolute Ca2+ measurements, ratiometric indicators are mandatory. However, the best currently available synthetic ratiometric indicator Fura-2 requires excitation light in the range of 700 to 760 nm (for two-photon excitation), which, depending on its intensity, can in itself stimulate the cones, and thus impede studies of cone Ca2+ dynamics under physiological illumination conditions.

Unlike synthetic dyes, genetically-encoded Ca2+ indicators can be expressed in a cell type-selective manner. They do not leak out of cells, and therefore, if bleaching is avoided, prolonged and reliable ratiometric measurements are possible. Cell type-selective expression of Ca2+ biosensors, when combined with two-photon microscopy, represents a powerful tool to assess and study subcellular Ca2+ under largely physiological conditions13,16,17. Here, we describe a protocol to study light stimulus-evoked cone Ca2+ dynamics in a transgenic Ca2+ biosensor mouse line (HR2.1:TN-XL), which expresses the FRET-based Ca2+ biosensor TN-XL18 selectively in cones, under the human red opsin promoter HR2.119. To access the cone terminals, an ex-vivo slice preparation20 was employed. The protocol was already successfully used in three studies on cone function in healthy mice10,21,22. Moreover, the protocol allows studying cone Ca2+ signaling in specific genetic conditions, e.g., by crossbreeding mouse models for hereditary retinal degeneration with HR2.1:TN-XL mice.


All animal procedures were carried out adhering to the guidelines and laws for animal protection determined by German Federal Government and approved by the institutional animal welfare committee of the University of Tübingen.

1. Animal Models

  1. HR2.1:TN-XL Ca2+ biosensor mouse
    1. Use the transgenic HR2.1:TN-XL mouse line expressing the Ca2+ biosensor TN-XL selectively in cone photoreceptors10. Use 3 - 6 weeks old mice of either sex raised with a standard 12 hrs day/night rhythm.

2. Retinal Dissection

  1. Physiological solution
    1. Prepare freshly 2 L of extracellular solution, containing 125 mM NaCl, 2.5 mM KCl, 1 mM MgCl2, 1.25 mM NaH2PO4, 26 mM NaHCO3, 0.5 mM L-glutamine, and 20 mM (+) glucose. Mix until all ingredients dissolve.
    2. "Bubble" extracellular solution with carboxygen (95% O2, 5% CO2) for 5 - 10 min. Add CaCl2 to reach a concentration of 2 mM.
    3. After bubbling the extracellular solution, measure its pH. The pH should be 7.4, otherwise it is likely that mistakes have been made during the preparation of the solution. Keep bubbling rate and solution temperature constant throughout experiment to ensure constant pH.
    4. Separate the stock into 2 flasks, one for retina dissection and one for the recording setup (perfusion).
  2. Eye enucleation and isolation of retina (5 - 10 min)
    1. Maintain a dim red illumination in the working area for enucleation. Use LEDs with a peak wavelength of 650 nm (or longer) to avoid bleaching of cones during dissection.
    2. Dark-adapt the mouse for 2 hrs by putting its cage into a well-ventilated, lightproof box to ensure that cones are fully sensitized at time of recordings.
    3. Anaesthetize the mouse under a laboratory hood with isoflurane (5%) using a vaporizer and a gas-tight container that holds a standard mouse cage. Carefully follow the manufacturer´s instructions when handling the vaporizer. Use gloves and face mask to reduce exposure to allergens.
    4. Use a binocular microscope with a 10 - 40X magnification for dissection.
    5. Sacrifice the anaesthetized mouse by decapitation.
    6. For orientation, mark the top of each eye (= dorsal) with a waterproof pen. Keep track on whether using left or right eye.
    7. Remove the eye carefully using curved scissors by cutting the optic nerve behind the eyeball. For dissection, transfer the eyeball to a Petri dish containing freshly carboxygenated extracellular solution. For transferring the eyeball, hold it by the optic nerve stump.
    8. Pierce the eye at any point along the border between the cornea and the sclera (i.e., at the ora serrata) with a sharp injection needle.
    9. Hold the eye at the sclera with a pair of forceps and gently insert one scissors blade into the hole made in the previous step. Cut along the ora serrata to separate the anterior part of the eye (cornea, lens, vitreous body) from the posterior part (eyecup). Cut the eyecup radially (towards the optic disc) at the position of the pen mark to indicate the dorsal position on the retina.
      Note: Prepared this way, the eyecups can be kept in constantly carboxygenated solution for later use.
    10. Turn the eyecup in the Petri dish such that the dorsal cut points away from oneself. Grab the sclera on the left and the right side of the eyecup with a pair of forceps each by inserting the forceps tips between retina and sclera.
    11. Detach the retina by gently inverting the scleral part of the eyecup. Finally, cut the optic nerve using micro dissecting scissors to free the retina from the sclera.
      Note: This is a critical step. Avoid damage to the retina (e.g., by touching and squeezing it with forceps).
    12. Hold one of the edges of the retina with a pair of forceps and gently remove debris and vitreous body from the retinal surface using a second pair of forceps. When the retinal surface is clean, use micro dissecting scissors to make three additional shorter, radial cuts (approximately every 90°). These cuts allow one to carefully flatten the retina with the photoreceptor side facing down in the Petri dish (Figure 1A).
  3. Slice preparation (10 - 15 min)
    1. Prepare beforehand nitrocellulose filter membranes for retinal slicing and glass cover-slips for mounting slices and transferring them to the recording chamber. Cut nitrocellulose filter membrane into approximately 10 x 5 mm sized rectangular pieces using scissors. Cut coverslips into approximately 10 x 5 mm sized rectangular pieces using a glasscutter.
    2. Slowly immerse a glass slide into the extracellular solution close to tissue. Gently, pull the retina onto the glass slide with the ganglion cell side up by grabbing it at the very edge using a pair of forceps. This process reduces mechanical damage and folding of tissue.
    3. Choose the region of the retina that is related to the respective research question (see also Discussion). Remember, the long cut made in step 2.2.9 marks the dorsal retinal half (Figure 1A). Cut a rectangular, approximately 1 x 2 mm sized piece out of the selected retinal region using a curved scalpel blade. Wipe off excess solution around the tissue.
    4. Place the filter membrane on top of the piece of retina such that the ganglion cell side adheres to the membrane. Immediately, add a drop of extracellular medium onto the membrane to firmly attach the tissue to the membrane.
    5. Transfer the membrane-mounted retinal tissue to the slicing chamber containing fresh extracellular solution.
    6. Cut retina into vertical slices of 200 µm thickness (Figure 1B) using a fresh razor blade attached to a tissue chopper23. Change blade for every retinal piece.
      Note: The razor blade needs to be perfectly aligned with the surface of the slicing chamber bottom such that the whole membrane splits simultaneously, as indicated by a “clicking” sound when cutting – otherwise the blade may bend and damage the slice.
    7. Glue a single membrane-mounted slice to a glass cover-slip by applying high vacuum grease to the membrane ends only (Figure 1C). Keep the glass surface below the retina free from grease.
    8. Keep coverslip-mounted slices covered by a drop of extracellular solution in the holding chamber – a closed and lightproof container, e.g., a Petri dish with the lid covered with aluminium foil – under a carboxygen atmosphere at RT. Introduce carboxygen by bubbling a small water reservoir to keep the atmosphere in the holding chamber humidified; this prevents the slices from drying out.
    9. Allow slices to rest in the holding chamber for 10 - 15 min before moving them (one by one) to the recording chamber. Slices can be maintained up to 4-5 hrs in holding chamber at RT (~21 °C).

3. Two-photon Ca2+ Imaging

  1. Two-photon microscopy
    1. Use a Movable Objective Microscope (MOM)-type two-photon microscope. Both MOM design and imaging procedures were described earlier24, for details see also10,21,25 (for sources and companies, see Table 1).
      Note: Any upright two-photon microscope that fulfils the following minimal requirements can be used: It has to be equipped with (a) a pulsed laser tuneable to ~860 nm, (b) a minimum of two simultaneously acquired fluorescence channels, (c) filters for eCFP and citrine fluorescence, (d) a light stimulator (for possible designs, see24,26), and (e) software that allows recording time-lapsed image sequences at a frame rate sufficient to resolve the Ca2+ signals of interest.
    2. Start the two-photon imaging system as indicated by the manufacturer. Strictly follow the facility’s laser safety guidelines. Start the laser and tune it to ~860 nm.
    3. Transfer a slice from the holding chamber to the recording chamber and immediately start perfusing with carboxygenated extracellular solution. Maintain a perfusion flow rate of 2 ml/min and a temperature of 37 °C in the recording chamber.
    4. Use a 20X 0.95 NA water immersion objective. If available, use a CCD camera in combination with an infra-red LED below recording chamber to locate the retinal slice (Figure 2). Otherwise locate slice using two-photon imaging (see 3.1.5).
    5. Switch to two-photon imaging to view biosensor expression. Turn on the two detection channels for fluorescence imaging of eCFP and citrine.
    6. Use the image acquisition software that controls the two-photon microscope to scan and select a row of cone terminals for recording (Figure 3A). Set image acquisition to 128 x 16 pixel images (31.25 Hz) or a similar configuration. Restrict scanned area to cone terminals to avoid bleaching of photopigments in outer segments.
      Note: For the TN-XL calcium sensor (τ = ~0.6 sec for Ca2+ binding, τ = ~0.2 sec for Ca2+ unbinding; see16) a minimum frame rate of ~8 Hz is recommended.
  2. Light stimulation and recording
    1. Use a sub-stage full-field light stimulator as described elsewhere10,21,26 to perform the following steps.
      Note: A simple solution for a full-field light stimulator is to use two band-pass-filtered LEDs (e.g., “blue”: 360 BP 12, “green”: 578 BP 10) that match the wavelength sensitivities of mouse cones but at the same time do not overlap with the filters used for fluorescence detection (cf. 3.2.4). The light from the LEDs is focused by the condenser through the bottom of the recording chamber (Figure 2). For details on this stimulator design, its calibration, the light intensities used and the evoked cone photo-isomerisation rates, see10,21,26.
    2. Turn on the laser and allow cones to adapt to the scanning laser and the stimulus background light (20 - 30 sec, see also Potential Pitfalls) before presenting light stimuli (see 3.2.3) or applying pharmacological agents.
    3. Start presentation of arbitrary stimuli (e.g., flashes of light, as shown in Figure 3B,C). In the case of the stimulator described in step 3.2.1, generate the stimuli by modulating the intensity of the two LEDs over time using a microprocessor board controlled by customized software (for details, see10,21,26).
    4. Start recording the two fluorescence channels (e.g., at 483 nm for “blue” FRET-donor eCFP and at 535 nm for “yellow” FRET-acceptor; for specs see Table 1) simultaneously using the respective image acquisition software (see also 3.1.6). For example, in the case of light flashes (Figure 3B,C), record at least 8 - 10 stimulus presentations (trials).
  3. “In-slice” Ca2+ calibration
    1. Record Ca2+ signals in cone terminals (as described in 3.1.6 and 3.2.4) and extract the baseline Ca2+ level in a set of cones (as described in 3.4).
    2. Switch to “Ca2+ free” extracellular medium with 5 µM ionomycin (dissolved in DMSO) and 10 mM EGTA (or, alternatively, BAPTA) added. Record cone terminals again every 5 min to determine the minimal fluorescence ratio (Rmin), i.e., the ratio in the (near) absence of intracellular Ca2+. This may take anywhere between 15 - 30 min.
      Note: A perfusion system is required that allows switching between different reservoirs.
    3. Switch to extracellular medium with 5 µM ionomycin (dissolved in DMSO) and 2.5 mM Ca2+. After an incubation time of 5 min, record cones again every 5 min to measure the maximal fluorescence ratio (Rmax), i.e., the ratio in the presence of saturating concentrations of intracellular Ca2+. Following ionomycin application, it may take between 3 - 15 min for the Ca2+ ratio to become stable.
      Note: Exposing the slices to high Ca2+ and ionomycin for a longer period will eventually damage the cells. Include only cells in the analysis that retain their normal morphology. Concentrations (i.e., EGTA, ionomycin) may need to be adapted. For more details on the Ca2+ calibration protocol, see13,17.
  4. Data analysis
     Note: Use an image processing and data analysis software package compatible with the respective microscope software and capable of running custom analysis scripts.
    1. Load an imaging data file and draw regions of interest (ROIs) around each cone terminal (Figure 3A). For each frame, average fluorescence intensity within the ROI and subtract background fluorescence, before calculating the ratio (R) between FRET-acceptor (citrine) and donor (eCFP) fluorescence (R=FA/FD; Figure 3B,C). This ratio is typically used as a proxy for relative intracellular Ca2+ concentration, but after calibration (see 3.3), also absolute concentrations can be estimated (see 3.4.3).
      Note: The pedicles can be recognized by their location in the outer plexiform layer and their morphology (somewhat flattened “blobs” smaller than the cone somata, located at the end of the cone axon).
    2. Average stimulus trials (Figure 4A). Extract response parameters from averaged traces (Figure 4B), such as Ca2+ baseline level (Rbase) prior to light stimulation, peak amplitude (Ramp), and area under the curve (RA) as measures for response size. Also, extract response kinetics from averaged traces, such as response rise (trise) and decay time (tdecay) (= respective time intervals between 20% and 80% of Ramp; see illustration in Figure 4B). For more details on how to determine these parameters, see10.
    3. Calculate an estimate of the absolute cone Ca2+ concentration based on the measurements from steps 3.3.1-3.3.3. Use the ratios for minimal and maximal Ca2+ concentration, Rmin and Rmax, respectively, the donor fluorescence in the Ca2+-bound (FD,Ca-bound) and -unbound (FD,Ca-free) state, as well as the in-vivo dissociation constant (K= 0.77, see16) for TN-XL with the following equation (analogue to27):

Equation 1

Representative Results

By combining vertical slices (Figure 1) prepared from HR2.1:TN-XL mouse retina with two-photon imaging (Figure 2), we were able to perform ratiometric measurements of light stimulus-evoked Ca2+ signals in cone photoreceptor axon terminals. This approach represents a significant improvement in accessing and visualizing mouse cones over the pre-existing optical imaging methods with synthetic Ca2+ indicators. For instance, the cone-specific expression of the genetically-encoded ratiometric Ca2+ biosensor TN-XL greatly facilitated the identification of cone axon terminals (see ROIs in Figure 3A). Therefore, our protocol eliminates the risk of recording signals of unclear origin, as for example “mixed” signals with contributions from both cone and rod axon terminals.

Our approach allows resolving single-trial responses at the level of the individual cone axon terminal. Light-evoked extrusion of Ca2+ from the cone terminal is marked by an increase and a decrease in donor and acceptor fluorescence, respectively (Figure 3B). Decrease in fluorescence ratio (R) corresponds to the extrusion of Ca2+ from the cone terminal (Figure 3C), caused by the light-induced hyperpolarization of the cone and subsequent closure of voltage-gated Ca2+ channels. Because several cone axon terminals can be monitored simultaneously (Figure 3A), data acquisition is very efficient and hundreds of cone Ca2+ responses can be collected in a single experiment. By assessing these responses quantitatively (Figure 4), cone Ca2+ signals can be compared and evaluated in a range of conditions (see Discussion).

It is often sufficient to use the ratio between FRET-acceptor (citrine) and -donor (eCFP) fluorescence (FA/FD; for details, see 3.4) as a relative measure of the intracellular Ca2+ level. Yet, whenever necessary, the ratio can be calibrated to obtain absolute intracellular Ca2+ concentrations ([Ca2+]) (Figure 5). At the background illumination used in this protocol (for details, see10 and Figure 3 legend), calibration yielded an estimate for the absolute resting [Ca2+] in “wild-type” HR2.1:TN-XL mouse cone terminals of 243 ± 159 nM (mean ± S.D.), which is within the range reported for mice in the literature11.

Figure 1

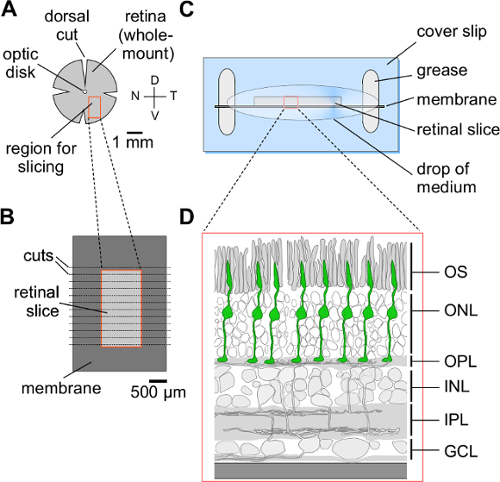

Figure 1. Preparation of vertical retinal slices. (A) Isolated and flattened retina prepared for slicing. (B) Rectangular piece of retina (see red box in A) mounted on filter paper membrane (dark grey) after slicing. (C) Top view of the membrane-mounted retinal slice fixed on a glass coverslip using grease. (D) Schematic drawing of a part of a retinal slice (see red box in C). Cone photoreceptors are indicated in green. V, ventral; D, dorsal; N, nasal; T, temporal; OS, outer segment; ONL, outer nuclear layer; OPL, outer plexiform layer; INL, inner nuclear layer; IPL, inner plexiform layer; GCL, ganglion cell layer. Please click here to view a larger version of this figure.

Figure 2

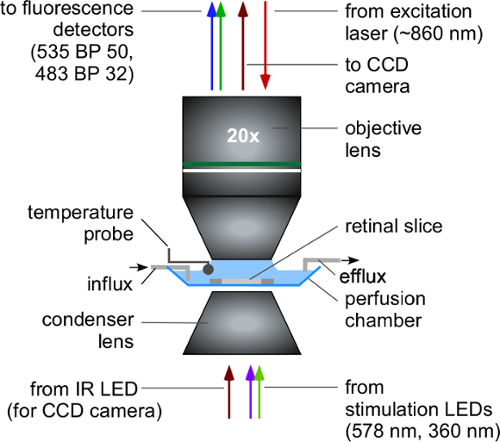

Figure 2. Two-photon imaging of retinal slices: Illustration of the recording configuration. Top: Water-immersion objective lens focusing the beam of the scanning laser (red downward arrow) into the retina, and collecting the emitted fluorescence (upward arrows). The lens also collects transmitted infrared light from an illumination LED mounted below the condenser when imaging the slice using a CCD camera. Center: Retinal slice mounted in the recording chamber and perfused with extracellular solution. Bottom: Condenser lens focusing the light from the stimulation LEDs (and the infrared LED for CCD camera imaging) through the transparent bottom of the recording chamber into the retinal tissue. IR LED, infrared light-emitting diode; CCD, charge-coupled device; BP, band-pass. Please click here to view a larger version of this figure.

Figure 3

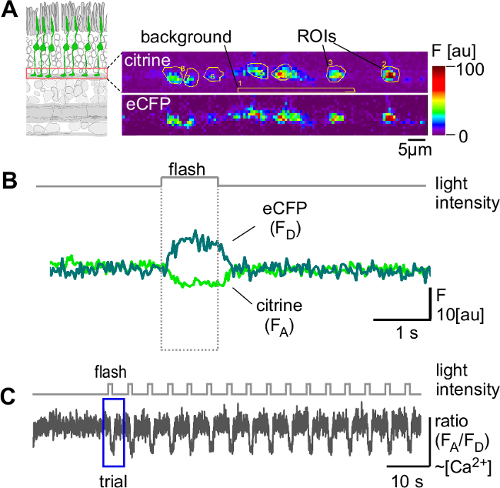

Figure 3. Light-evoked Ca2+ responses in axon terminals of mouse cone photoreceptors. (A) Left: Recordings focused on synaptic terminals (red box) of cone photoreceptors (green) in retinal slices. Right: Example for a recorded region with 7 individual terminals. Fluorescence was recorded using two channels: one for the FRET-acceptor citrine (top; 535 BP 50) and one for the FRET-donor eCFP (bottom; 480 BP 32). (B) Light-evoked changes in citrine (FA) and eCFP (FD) fluorescence recorded in a single ROI. (C) Ca2+ responses (as ratio FA/FD) of a cone terminal to a series of 1 sec bright light flashes in 5 sec intervals. ROI, region of interest; BP, band-pass filter; F, fluorescence intensity; a.u., arbitrary units; FRET, Förster resonance energy transfer; eCFP, enhanced cyan fluorescence protein. Stimulus intensity (as photo-isomerization rate in 103·P·s-1 per cone): 13.0 and 12.8 for M- and S-opsins, respectively, adding onto a background level (= LEDs off, excitation laser scanning) of ~10. Please click here to view a larger version of this figure.

Figure 4

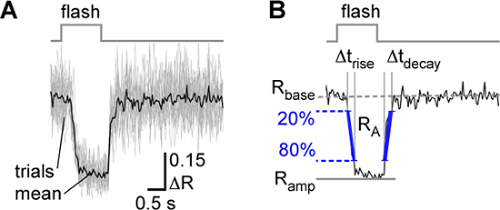

Figure 4. Exemplary quantitative analysis of light-evoked cone Ca2+ responses. (A) Light-evoked Ca2+ responses (as ΔR) from a single cone terminal (single trials: grey traces, n=16; mean: black trace). (B) Parameters determined for the mean Ca2+ response: Resting Ca2+ level (Rbase) representing the baseline prior to light stimulation, response size as area-under-the-curve (RA) and peak amplitude (Ramp), kinetics of response onset (trise, time interval from 20% to 80% of Ramp) and offset (tdecay, time interval from 80% to 20% of Ramp). Please click here to view a larger version of this figure.

Figure 5

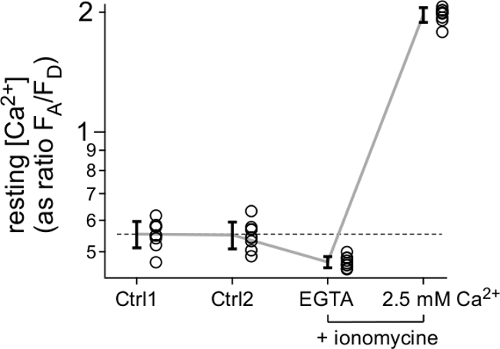

Figure 5. Estimating absolute Ca2+ concentration. Resting Ca2+ concentration ([Ca2+], as ratio FA/FD) recorded in 8 cone axon terminals in a TN-XL mouse (circles, with mean ± S.D.) for different extracellular solutions: twice in standard extracellular medium (Ctrl 1 and 2), then with minimal (“zero”) [Ca2+] (10 mM EGTA) and with high [Ca2+] (2.5 mM), the latter two conditions in the presence of 5 µM ionomycin to equilibrate extracellular and intracellular Ca2+. Please click here to view a larger version of this figure.


Pre-existing protocols using electrophysiological single-cell recordings or Ca2+ imaging with synthetic fluorescent indicators struggle to record the Ca2+ dynamics in mouse cone photoreceptors for a number of technical reasons (see Introduction). The protocol described here allows the measurement of Ca2+ signals and even absolute Ca2+ levels in individual, identified mouse cone terminals in an efficient and relatively simple way.

This protocol has already been successfully used in three studies addressing different aspects of cone function in healthy mouse retina. In the first study10, the HR2.1:TN-XL mouse was characterized using immunohistochemistry, ERG recordings, two-photon Ca2+ imaging, and pharmacology, showing that the cone-specific expression of the Ca2+ biosensor does not hamper cone anatomy and function. In the second study21, chromatic and achromatic response properties of mouse cones were mapped across the retina, demonstrating striking differences in cone function between the “green” opsin-dominated dorsal and the “blue” opsin-dominated ventral mouse retina. These regional differences in cone properties matched the differential contrast distribution in the natural environment (i.e., sky vs. ground), suggesting that the different spectral types of mouse cones provide for (near) optimal sampling of achromatic contrasts and, thus, may offer an evolutionary advantage. In the third study22 the reciprocal feedback that cone axon terminals receive from horizontal cells was investigated. As all proposed horizontal cell feedback mechanisms act on voltage-gated Ca2+ channels in the cone axon terminals28, cone terminal Ca2+ can serve as a proxy for horizontal cell-to-cone interactions. The study by Kemmler and coworkers22 supports the view that horizontal cells use a complex feedback system comprising several mechanisms to control photoreceptor glutamate release.

These studies illustrate the versatility of the described protocol and show that it can be adapted to a wide range of questions concerning cone function and its synaptic circuits. In addition, the protocol enables studying local Ca2+ signaling in the different cone compartments, towards a better comprehension of cone physiology. Such knowledge is important to understand pathophysiological processes in degenerating cones, to eventually allow for the rational development of potential therapeutic approaches, in particular for degenerative diseases affecting cones.

In the HR2.1:TN-XL mouse line, the Ca2+ biosensor is expressed throughout the cone, with the exception of the outer segment. This provides an opportunity for direct and ratiometric assessment of Ca2+ dynamics in different cone compartments. Since changes in Ca2+ currents in the outer segment are reflected in terminals via the membrane potential and the resulting activation of voltage-gated Ca2+ channels, processes in the outer segment can be observed indirectly.

Potential pitfalls:

The dissection of the retina is a critical step: In the mouse, the retina separates from the eyecup usually between photoreceptor outer segments and pigment epithelium. Therefore, the light-sensitive photoreceptor outer segments of the isolated retina are exposed and extremely sensitive to mechanical damage. Great care must be taken not to damage by touching the photoreceptor side with tools or by moving the tissue sideways on an adhesive surface (e.g., a filter membrane).

High-quality retinal slices can be recognized under the microscope by their clean cutting surface and by a well-organized photoreceptor layer with clearly defined outer segments. Functional assessment of slice quality can be quickly done by flashing bright light stimuli and determining the percentage of responsive cones (e.g., in a field of view with 10 - 20 cones). Here, response quality should be evaluated by calculating the signal-to-noise ratio (S/N) (amplitude of baseline noise before the light stimulus vs. amplitude of the light response); a S/N of 2 - 3 should be considered as the minimum threshold. Typically, we discard slices with less than 50% responsive cones. Also slices with cones that display excessive spontaneous spiking behaviour (see Figure 4 in10) should be discarded.

Slices in the recording chamber that meet the aforementioned anatomical and functional criteria show consistent responses for 1 - 2 hr (for details on response consistency, see10). Because slices survive for hours in the holding chamber, a successful experiment can last up to 6 hr. It is noteworthy that there are some restrictions with respect to studying long-ranging spatial interactions between cones and horizontal cells, as slicing inevitably severs lateral connections in retinal networks. However, increasing the thickness of retinal slices to 300 µm ameliorates this issue22.

The use of vertical retinal slices avoids scanning of light-sensitive cone outer segments by the excitation laser and, thus, largely prevents opsin bleaching (for extensive discussion, see10,21). Nevertheless, the recorded Ca2+ signals not only depend on the light stimuli, but also get affected by a background illumination component generated by the scanning excitation laser. In fact, the effective background illumination in such two-photon imaging experiments is a combination of scattered laser light, fluorescent light emitted by the recorded cells, and any LED stimulus background component. Therefore, cones should be allowed to adapt for at least 20 - 30 s to laser scanning (with the background component of the light stimulus turned on) prior to recording.

Advantages and applications:

While some applications for this cone Ca2+-imaging protocol have been described above10,21,22, other applications can be envisioned: Pharmacological studies in combination with cone Ca2+ imaging may validate Ca2+ signaling pathways in cones and could be used to test efficacy and potency of drugs targeting different players in Ca2+-signaling10. However, a key application may be to study diseases affecting cone function. Many retinal degeneration mouse models mimicking human diseases are available. For instance, the cone photoreceptor loss 1 (cpfl1) mouse is a primary cone degeneration model suffering from a Pde6c mutation29. Conversely, the rod degeneration 1 (rd1) mouse suffers from a Pde6b mutation. While this causes primary rod photoreceptor degeneration30, once rd1 rod loss is completed, secondary cone degeneration sets in1. Crossbreeding these animals with the HR2.1:TN-XL line will allow studying and comparing Ca2+ dynamics in both primary and secondary cone degeneration and is likely to provide valuable insights into the role of Ca2+ during cone cell death. Also, pharmacologically induced cone degeneration – for instance using selective PDE6 inhibitors – may serve to identify the downstream mechanisms of cone degeneration10,29,31.

In summary, the protocol described here allows measuring Ca2+ in subcellular compartments of mouse cone photoreceptors and presents great opportunities to uncover cone physiology under a wide range of physiological and pathophysiological conditions. Additionally, this protocol may be used for the screening of pharmacological agents designed to interfere with cone Ca2+-signaling and thus help to establish new therapies for cone diseases.


The authors have nothing to disclose.


This work was supported by the Deutsche Forschungsgemeinschaft (DFG) (Werner Reichardt Centre for Integrative Neuroscience Tübingen, EXC 307 to T.E. and T.S.; KFO 134 to B.W. and F.P.D.), the German Federal Ministry of Education and Research (BMBF) (BCCN Tübingen, FKZ 01GQ1002 to T.E and T.B.), and the European Union (DRUGSFORD; HEALTH-F2-2012-304963 to M.K. and F.P.D).


Name Company Catalog Number Comments
High vacuum grease Dow Corning 1018817 http://www.dowcorning.com
Cover slips R. Langenbrinck 24 x 60 mm; http://www.langenbrinck.com
Glass slides R. Langenbrinck 76 x 26 mm; http://www.langenbrinck.com
Blades for tissue chopper MARTOR KG ARGENTAX No. 1044 0.25 mm; http://www.martor.de
Tissue chopper Custom-build Based on a design by F. Werblin23, adapted by T. Schubert
Nitrocellulose filter membrane gridded Merck Millipore AABG01300 Filter type: 0.8 µm; http://www.emdmillipore.com
Isoflurane CP CP pharma AP/DRUGS/220/96 http://www.cp-pharma.de
UV/green LED-based full-field stimulator Custom-build for details, see10
Open source microprocessor board Arduino http://www.arduino.cc
Imaging software CfNT Custom-written developed by Michael Müller, MPI for Medical Research, Heidelberg, Germany
IgorPro Wavemetrics http://www.wavemetrics.com
VC3-4 System focal perfusion system ALA Scientific Instrument with 100 μm-diameter tip manifold; http://www.alascience.com/
Mai Tai HP DeepSee (Ti:Sapphire laser) Newport Spectra-Physics http://www.spectra-physics.com
Movable objective microscope (MOM),
Designed by W. Denk, MPImF, Heidelberg, Germany
Sutter Instruments http://www.sutter.com/MICROSCOPES/index.html
Name Company Catalog Number Comments
XLUMPlanFL 20X/0.95w objective Olympus http://www.olympusamerica.com
Vaporizer 100 series Surgivet http://www.surgivet.com
Ionomycin, Calcium salt Life technologies I24222 http://www.lifetechnologies.com
EGTA Sigma-Aldrich E3889 https://www.sigmaaldrich.com
Dimethyl sulfoxide (DMSO) Sigma-Aldrich 101191250 http://www.sigmaaldrich.com
Leica MZ95 leica microsystems http://www.leica-microsystems.com/
