Residue-specific Incorporation of Noncanonical Amino Acids into Model Proteins Using an Escherichia coli Cell-free Transcription-translation System

Summary

An easy-to-use, cell-free expression protocol for the residue-specific incorporation of noncanonical amino acid analogs into proteins, including downstream analysis, is presented for medical, pharmaceutic, structural and functional studies.

Abstract

The canonical set of amino acids leads to an exceptionally wide range of protein functionality. Nevertheless, the set of residues still imposes limitations on potential protein applications. The incorporation of noncanonical amino acids can enlarge this scope. There are two complementary approaches for the incorporation of noncanonical amino acids. For site-specific incorporation, in addition to the endogenous canonical translational machineries, an orthogonal aminoacyl-tRNA-synthetase-tRNA pair must be provided that does not interact with the canonical ones. Consequently, a codon that is not assigned to a canonical amino acid, usually a stop codon, is also required. This genetic code expansion enables the incorporation of a noncanonical amino acid at a single, given site within the protein. The here presented work describes residue-specific incorporation where the genetic code is reassigned within the endogenous translational system. The translation machinery accepts the noncanonical amino acid as a surrogate to incorporate it at canonically prescribed locations, i.e., all occurrences of a canonical amino acid in the protein are replaced by the noncanonical one. The incorporation of noncanonical amino acids can change the protein structure, causing considerably modified physical and chemical properties. Noncanonical amino acid analogs often act as cell growth inhibitors for expression hosts since they modify endogenous proteins, limiting in vivo protein production. In vivo incorporation of toxic noncanonical amino acids into proteins remains particularly challenging. Here, a cell-free approach for a complete replacement of L-arginine by the noncanonical amino acid L-canavanine is presented. It circumvents the inherent difficulties of in vivo expression. Additionally, a protocol to prepare target proteins for mass spectral analysis is included. It is shown that L-lysine can be replaced by L-hydroxy-lysine, albeit with lower efficiency. In principle, any noncanonical amino acid analog can be incorporated using the presented method as long as the endogenous in vitro translation system recognizes it.

Introduction

The genetic code is universal to the biosphere. It codes for a set of 20 canonical amino acids, which is sometimes extended by selenocysteine¹ or pyrrolysine². It is the ribosome that translates the genetic code with the help of tRNAs into chains of amino acids that fold into proteins. The functional groups of the canonical amino acids, in combination with posttranslational modifications, contribute to an exceptionally wide range of protein function^3,4. In principle, functional limitations due to the limited set of canonical amino acids can be overcome by incorporating further, noncanonical amino acids (ncAAs) that enable new chemistries and new functionalities^3,4.

There are two complementary approaches for the incorporation of ncAAs: the site- or the residue-specific incorporation. The former method entails considerable technical difficulties, since the canonical set of aminoacyl-tRNA-synthetases (aaRS) and tRNAs must be expanded by an orthogonal aaRS-tRNA pair that must not interact with the endogenous translation machinery. Based on careful engineering, this approach incorporates the ncAAs as single point mutations at the desired protein sites. Site-specific incorporation of ncAAs is genetically encoded by a codon that is not assigned to a canonical amino acid (cAA), usually a stop codon^5-9. This method entails changes in function at a given site rather than across the entire protein^10-13.

In contrast, residue-specific incorporation relies on erroneous recognition of the noncanonical amino acid by the canonical translation machinery. The incorporation occurs due to the lack of substrate specificity of the aaRS. The residue-specific incorporation of ncAAs, built on the work of Cohen and coworkers¹⁴, has led to important applications^3,10, among them bio-orthogonal labeling^15-17 of proteins or structure elucidation of proteins in X-ray crystallography¹⁸.

As natural aaRS generally prefer their cognate amino acid over an isostructural ncAA, efficient in vivo residue-specific incorporation usually requires an auxotrophic expression host not capable of synthesizing the canonical analog of the ncAA. The host cells are cultivated in growth medium that delivers only a low concentration of the analogous cAA. Its exhaustion in combination with the consecutive supplementation with the ncAA forces the expression host to incorporate the ncAA into the model protein at multiple, canonically prescribed sites. In contrast to the site-specific approach, this generally has a deep impact on the entire protein structure, leading to considerably modified physical and chemical properties of proteins^19,20. However, most of the ncAAs are growth inhibitors for the expression host³, as they are incorporated into many other proteins besides those of interest during recombinant gene expression. This clearly limits the in vivo approach. The in vivo incorporation of amino acids that are toxic or have strong influence on the protein structure remains particularly challenging. However, these molecules are among the most promising to engineer proteins with extraordinary functions.

One example is the toxic, noncanonical, naturally occurring L-canavanine (Can), an analog of L-arginine (Arg). It affects and blocks Arg associated regulatory and catalytic reaction pathways, and its presence in the living cell can lead to immediate death^3,21-23. Its incorporation into proteins at arginine positions can reduce protein stability^21-23. Due to the resulting toxicity, expression of canavanine containing proteins in Escherichia coli (E. coli) and other common expression hosts remains a challenge. For these reasons, complete in vivo incorporation of Can at all Arg positions has appropriately been confirmed only once²⁴, using an elaborated single-protein production system. However, Can has been proposed as an anti-cancer agent^25-27, and as a stimulator for autoimmune diseases in humans²⁸. Additionally, it is subject of various studies on its anti-metabolic, antibacterial, antifungal and antiviral properties²⁵. These properties raise a demand for efficient and easy-to-perform methods to express Can containing proteins for pharmaceutic, medical and functional studies.

Although many problems that are connected to in vivo production can be circumvented using cell-free expression systems, in vitro residue-specific approaches have only been poorly explored. The cell-free residue-specific incorporation of an L-tryptophan analog²⁹ and multiple ncAAs³⁰ have been reported. These methods are based on the highly efficient T7 RNA polymerase. The T7 RNA polymerase entails bacteriophage-like transcription, thereby reducing genetic functionality in comparison to endogenous transcription.

The complete residue-specific incorporation of Can into a model protein at all Arg positions was recently reported³¹, using a cell-free expression system³². A slight modification of the same system enabled site-specific incorporation of different pyrrolysine analogs into a model protein via stop codon suppression³³. The employed cell-free system^31-33 is based on an all E. coli transcription-translation system. Nevertheless, it enables protein expression as efficiently as in current bacteriophage systems (0.5 - 1 mg/ml of recombinant protein)³², while retaining much of the original transcription-translation modularity.

In this work, a detailed protocol is provided on how the residue-specific incorporation of ncAAs can be realized, using this all E. coli cell-free system³². Additionally, further steps to prepare the expressed proteins for appropriate evaluation via HPLC-ESI mass spectroscopy are proposed. To expand the properties of this cell-free system, this work does not only refer to the published incorporation of Can³¹ but also presents new data related to the noncanonical L-lysine analog L-hydroxy-lysine.

The following protocol for the residue-specific incorporation of ncAAs is an adaptation of a protocol recently published in JoVE³⁴. The latter protocol describes how to perform highly efficient cell-free expression with standard amino acids. Furthermore, it presents the preparation of the crude cell free extract, the amino acid solution, the energy stock solution and the energy buffer used in this approach. The following protocol focuses on modified steps in comparison to the previous protocol in order to enable the residue-specific incorporation of ncAAs. Calibrated pipets, low-binding pipette tips and micro-centrifuge tubes are recommended for the preparation. In the following, IUPAC abbreviations for the amino acids are used.

Protocol

Caution! Please consult all relevant material safety data sheets (MSDS) before use. Several of the used chemicals are acutely toxic. Personal protective equipment is required (eyeshield, dust mask, gloves, lab coat, full length pants, closed-toe shoes) as well as working in a fume hood.

1. Amino Acid Solution Preparation

1. Stock solution preparation of the ncAA (168 mM)
   NOTE: The stock solution preparation of the ncAA is described for the Arg analog Can as an example. Accordingly adapt the values for other ncAAs.
   1. Place a 1.5 ml reaction tube onto a microbalance. Weigh out 46.1 mg of Can inside the reaction tube for the preparation of 1 ml of a 168 mM solution. Use a sterile microspatula. For a racemic mixture of the ncAA, double the concentration of the stock solution.
   2. Add 977 µl of sterile ddH₂O. Thoroughly vortex until Can is in complete dissolution.
      NOTE: For a total solution volume of 1 ml, the physical volume of the dissolved amino acid has to be compensated. For any of the amino acids, estimate half of the solid mass in mg as the corresponding volume increase in µl (100 mg solid will take a volume of 50 µl in the solution)³⁵. Most amino acids can be dissolved at this concentration. If not, reduce the concentration until complete dissolution.
   3. Directly use the ncAA stock solution for the preparation of the amino acid solutions in section 1.2 or flash freeze it in liquid nitrogen and store it at –20 °C. CAUTION! For safety, wear an eyeshield and Cryo-gloves to be protected from liquid nitrogen splashes.
2. Preparation of the amino acid solutions
   NOTE: For the preparation of the amino acid solutions, use the amino acid sampler providing the L-isomers of the 20 cAAs in separate stock solutions (1.5 ml, buffered with HEPES/KOH, < 0.1% NaN₃, pH 7.5), each at a concentration of 168 mM, except for L-Leucine (140 mM). For a homemade preparation of these stock solutions (buffered with KOH), follow this protocol³⁵.
   1. Thaw the stock solutions of the 20 cAAs (amino acid sampler or prepared according to ³⁵) and of the ncAA (prepared in section 1.1) at RT.
   2. After thawing, frequently vortex the stock solutions to redissolve any precipitated amino acids. As some amino acids are harder to dissolve, incubate them in a heating block at 37 °C until complete dissolution. Cys may not fully dissolve. Place all amino acids on ice, except for Asn, Phe and Cys — keep these at RT to avoid precipitation.
   3. Use the following values to use one-seventh of the complete kit.
      NOTE: Scale down appropriately to work with smaller volumes and to save parts of the kit for further experiments. Scale up for incorporation of ncAAs into model proteins on a large scale. To prevent frequent thawing, which is likely to reduce the stability of the amino acids, aliquot the individual amino acid stock solutions into volumes of 200 µl. This 200 µl aliquot volume and the aliquot volumes used in step 1.2.4.1 account for losses due to pipetting.
   4. First, prepare an amino acid master mix solution that will be split in step 1.2.4.3 to finalize the preparation of 3 differently composed amino acid solutions (sections 1.2.5 - 1.2.7). In these solutions, concentrate all amino acids at 6 mM, except for Leu (5 mM).
      1. Transfer 1.4 ml of sterile ddH₂O into a 15 ml centrifuge tube. Put it on ice. Add 175 µl of each amino acid stock solution. Add one after another, except for the stock solution of the cAA (e.g., Arg) to be replaced by the ncAA (e.g., Can). Thoroughly vortex after each addition and put the solution back on ice.
         NOTE: Leu is at 5 mM in the 3 differently composed amino acid solutions, compared to 6 mM for the other amino acids. The reduced concentration does not reduce the expression efficiency. Scaling up to 6 mM is suitable as well.
      2. Transfer the amino acid stock solutions in the following order to avoid precipitation: Ala, Arg, Asn, Asp, Gln, Glu, Gly, His, Ile, Lys, Met, Phe, Pro, Ser, Thr, Val, Trp, Tyr, Leu, and Cys. Remember to not add the stock solution of the cAA (e.g., Arg) that is analogous to the ncAA (e.g., Can). Finally, thoroughly vortex. Incubate at 37 °C to make the solution as clear as possible.
      3. Split this amino acid master mix solution into three equal volumes of 1.35 ml. Transfer each of the split volumes into 1.5 ml reaction tubes. Keep them on ice.
   5. Prepare an amino acid solution that consists of all 20 cAAs at a concentration of 6 mM each, except for Leu that is 5 mM. To the first volume of 1.35 ml, as a result of the split in step 1.2.4.3, add 50 µl of the 168 mM stock solution of the cAA (e.g., Arg) that is analogous to the ncAA (e.g., Can). Thoroughly vortex.
      1. Put back on ice. Aliquot this 1.4 ml solution in volumes of 16 µl into reaction tubes. Note that this solution volume approximately leads to 85 aliquots. Label these aliquots "+ cAA" (e.g., + Arg).
      2. Flash freeze the aliquots in liquid nitrogen and store at -80 °C. CAUTION! For safety, wear an eyeshield and Cryo-gloves to be protected from liquid nitrogen splashes.
   6. Prepare an amino acid solution that is composed of 19 cAAs except for the cAA (e.g., Arg) that is analogous to the ncAA (e.g., Can). Add each amino acid to a concentration of 6 mM, except for Leu (5 mM).
      1. Add 50 µl of sterile ddH₂O to the second volume of 1.35 ml, as a result of the split in step 1.2.4.3. Thoroughly vortex and put back on ice. Aliquot this 1.4 ml solution in volumes of 16 µl into reaction tubes. Note that this solution volume approximately leads to 85 aliquots. Label these aliquots "- cAA" (e.g., - Arg).
      2. Flash freeze the aliquots in liquid nitrogen and store at -80 °C. CAUTION! For safety, wear an eyeshield and Cryo-gloves to be protected from nitrogen splashes.
   7. Prepare an amino acid mixture that contains 19 cAAs and the ncAA (e.g., Can) that substitutes the canonical one (e.g., Arg). Add each amino acid to a concentration of 6 mM, except for Leu (5 mM).  To the last 1.35 ml volume, as a result of the split in step 1.2.4.3, add 50 µl of the 168 mM stock solution of the ncAA (e.g., Can). Label it "+ ncAA" (e.g., + Can). Thoroughly vortex and put back on ice.
      1. Aliquot this 1.4 ml solution in volumes of 16 µl into reaction tubes. Note that this solution volume approximately leads to 85 aliquots. Label these aliquots "+ ncAA" (e.g., + Can).
      2. Flash freeze the aliquots in liquid nitrogen and store at -80 °C. CAUTION! For safety, wear an eyeshield and Cryo-gloves to be protected from nitrogen splashes.
         NOTE: The 16 µl aliquot volumes used in the steps 1.2.5.1, 1.2.6.1 and 1.2.7.1 are slightly higher than required to account for losses due to pipetting.

2. Energy Buffer Preparation

NOTE: Each batch of crude extract is unique and requires optimized concentrations of Mg- and K-glutamate³⁴. The crude extract aliquot volume depends on the protein concentration³⁴. Use the provided calculation template (Supplemental Material 1) for different values. Find further instructions in Supplemental Material 1 figure legend, explaining how to employ this template.

1. Prepare and store at -80 °C the 14x energy solution and crude extract aliquots according to the unmodified protocol³⁴. Calibrate the crude extract depending on the Mg- and K-glutamate concentrations for optimized expression efficiency³⁴.
   NOTE: The final composition of 14x energy solution is: 700 mM HEPES (pH 8), 21 mM ATP, 21 mM GTP, 12.6 mM CTP, 12.6 mM UTP, 2.8 mg/ml tRNA, 3.64 mM CoA, 4.62 mM NAD, 10.5 mM cAMP, 0.95 mM folinic acid, 14 mM spermidine, 420 mM 3-PGA.
2. Thaw on ice the 100 mM Mg-glutamate stock solution, 3 M K-glutamate stock solution, 14x energy solution and 40% PEG-8000 to prepare the master mix. Keep them on ice.
3. Mix 9.18 µl of 100 mM Mg-glutamate stock solution, 3.06 µl of 3 M K-glutamate stock solution, 21.86 µl of 14x energy solution, 15.3 µl of 40% PEG-8000 and 1.6 µl sterile ddH₂O in a reaction tube. Thoroughly vortex this master mix after each addition, and keep it on ice.
4. Aliquot the master mix (51 µl) into volumes of 16 µl (3 aliquots) into reaction tubes. Frequently vortex the master mix during aliquoting. Flash freeze the aliquots in liquid nitrogen.
   NOTE: The 16 µl aliquot volume as well as the master mix volume are slightly higher than required to account for losses due to pipetting.
5. Use a strainer to collect the energy buffer tubes. Store the tubes at -80 °C. CAUTION! Wear an eyeshield and Cryo-gloves to be protected from nitrogen splashes.

3. Preparation and Execution of Cell-free Reactions for Residue-specific Incorporation of ncAAs

1. First, prepare the DNA vector solution in ddH₂O.
   1. For highly efficient protein expression, use the expression vector pBEST-OR2-OR1-Pr-UTR1-deGFP-T500³². Clone the gene that codes for the model protein into this vector^36,37.
      NOTE: Alternatively, use other promoters that are recognized by σ⁷⁰ as well, but note that expression efficiency may be reduced.
   2. Transform^37,38 the vector in E. coli strain KL 740³² (Yale CGCS#:4382), purify amplified vector DNA^37,39 and quantify the concentration of the DNA solution^40-42. Store the DNA solution at -20 °C or directly use it for the cell-fee reaction preparation (steps 3.4.1, 3.4.2 and 3.4.3).
2. Calibrate the cell-free expression efficiency depending on the used vector construct concentration according to the unmodified protocol³⁴. Use the optimal concentration that leads to highest protein yields for the cell-free reaction preparation (steps 3.4.1, 3.4.2 and 3.4.3).
   NOTE: The preparation of cell-free reactions is exemplified using a 90 nM vector DNA stock solution that leads to a final vector concentration of 10 nM in the cell-free reaction and follows the above optimal values of Mg- and K-glutamate as well as the extract aliquot volume. Use the calculation template for different values.
3. Thaw on ice 3 crude extract aliquots each of 30 µl volume (prepared according to unmodified protocol³⁴), 1 amino acid solution aliquot labeled "+ cAA" (e.g., + Arg), 1 amino acid solution aliquot labeled "- cAA" (e.g., - Arg) and 1 amino acid solution aliquot labeled "+ ncAA" (e.g., + Can) (prepared in sections 1.2.5 - 1.2.7), 3 energy buffers aliquots (prepared in section 2) and the vector DNA solution (prepared in section 3.1).
   NOTE: The crude extract is slightly viscous and it may contain air bubbles. Remove air bubbles by centrifuging at 10,000 x g for 30 sec at 4 °C. Put crude extract aliquots back on ice.
4. Prepare 3 differently composed cell-free reactions (each 90 µl final volume) by mixing crude extract (33.33%), energy buffer (16.67%), 1 of the 3 differently composed amino acid solution aliquots (16.67%) and vector DNA solution. Optionally, add further biomolecules (DNA, proteins, tRNA, etc.), but appropriately reduce the volume of ddH₂O.
   1. Prepare the reference cell-free reaction (90 µl) expressing the unmodified model protein.
      1. Add the 15 µl of energy buffer, 15 µl of the amino acid solution aliquot labeled "+ cAA" (e.g., + Arg), 10 µl of 90 nM vector DNA solution and 20 µl of sterile ddH₂O to the 30 µl of crude extract. Mix by pipetting up and down and gently vortex after the addition of each ingredient.
      2. Aliquot the 90 µl of cell-free reaction in 15 equal volumes of 6 µl. Transfer each of the 15 volumes into a separate reaction tube. Close the tubes and put them back on ice. Label all reaction tubes as "CFR(+cAA)" (e.g., CFR(+Arg)).
   2. Prepare the negative control cell-free reaction (90 µl), where neither the cAA (e.g., Arg) nor the noncanonical analog (e.g., Can) are added.
      1. Add the 15 µl of energy buffer, 15 µl of the amino acid solution aliquot labeled "- cAA" (e.g., - Arg), 10 µl of 90 nM vector DNA solution and 20 µl of sterile ddH₂O to the 30 µl of crude extract. Mix by pipetting up and down and gently vortex after the addition of each ingredient.
      2. Aliquot the 90 µl of cell-free reaction in 15 equal volumes of 6 µl. Transfer each of the 15 volumes into a separate reaction tube. Close the tubes and put them back on ice. Label all reaction tubes as "CFR(-cAA)" (e.g., CFR(-Arg)).
   3. Prepare the cell-free reaction (90 µl) that is supposed to residue-specifically incorporate the ncAA (e.g., Can) into the expressed model protein.
      1. Add the 15 µl of energy buffer, 15 µl of the amino acid solution aliquot labeled "+ ncAA" (e.g., + Can), 10 µl of 90 nM DNA solution and 20 µl of sterile ddH₂O to the 30 µl of crude extract. Mix by pipetting up and down and gently vortex after the addition of each ingredient.
         NOTE: The expression efficiency may be reduced in comparison to the expression with standard amino acids. If necessary, simply scale up the cell-free reaction volume.
      2. Aliquot the 90 µl of cell-free reaction in 15 equal volumes of 6 µl. Transfer each of the 15 volumes into a separate reaction tube. Close the tubes and put them back on ice. For increased reaction volumes, accordingly aliquot in further volumes of 6 µl. Label all reaction tubes as "CFR(+ncAA)" (e.g., CFR(+Can)).
5. Incubate all tubes at 29 °C O/N.
   NOTE: Only small reaction volumes enable adequate oxygen diffusion into the reaction that is crucial for highly efficient protein expression. Reaction volumes greater than 10 µl require active oxygenation through agitation³⁴. For large volumes, split the reaction into volumes smaller than 15 µl.
6. After cell-free expression, pool all identically composed split cell-free reactions of 6 µl. First, pool all 15 split cell-free reactions of 6 µl labeled "CFR(+cAA)" (e.g., CFR(+Arg)). Then, pool all 15 split cell-free reactions of 6 µl labeled "CFR(-cAA)" (e.g., CFR(-Arg)). Finally, pool all 15 split cell-free reactions of 6 µl labeled "CFR(+ncAA)" (e.g., CFR(+Can)). For increased reaction volumes, accordingly pool further volumes of 6 µl.
7. Check the expression level of the model protein in all three pooled, differently composed cell-free reactions by performing denaturing SDS-PAGE^43,44 (section 4.1).
   NOTE: Use this method for a preliminary evaluation of the incorporation experiment.
8. Prepare the cell-free expressed model proteins for an appropriate analysis via HPLC-ESI mass spectroscopy (section 4.4). First, purify⁴⁵ them (section 4.2). Finally, exchange the buffer (section 4.3) to avoid high background noise during mass spectroscopy.
   NOTE: The sections 3.4.1, 3.4.2 and 3.4.3 lead to typical cell-free reaction conditions³⁴: 8.9 - 9.9 mg/ml protein (from crude extract), 4.5 - 10.5 mM Mg-glutamate, 40 - 160 mM K-glutamate, 1 mM of each amino acid except leucine, 0.83 mM leucine, 50 mM HEPES, 1.5 mM ATP and GTP, 0.9 mM CTP and UTP, 0.2 mg/ml tRNA, 0.26 mM CoA, 0.33 mM NAD, 0.75 mM cAMP, 0.068 mM folinic acid, 1 mM spermidine, 30 mM 3-PGA, 2% PEG-8000 and 10 nM pBEST-OR2-OR1-Pr-UTR1-gene_of_model_protein-T500. If desired, a different procedure of cell-free reaction preparation can be conducted that leads to the reaction conditions above.

4. Preliminary Evaluation via SDS-PAGE^43,44 and Preparation of the Cell-free Expressed Model Proteins for HPLC-ESI Mass Spectrometry

1. SDS-PAGE of the cell-free reactions
   NOTE: Perform denaturating SDS-PAGE for a quick and preliminary analysis of the expressed proteins without any further purification or extraction, and execute the following steps.
   1. Thaw the protein standard on ice. Ensure that it consists of proteins with molecular weights similar to the expressed model protein for its localization on the gel (step 4.1.13).
      NOTE: Here, the used standard provides proteins over a wide range of molecular weights (myosin: 212 kDa, maltose-binding-protein-β-galactosidase: 158 kDa, β-galactosidase: 116 kDa, phosphorylase b: 97 kDa, serum albumin: 66 kDa, glutamic dehydrogenase: 56 kDa, maltose-binding-protein: 43 kDa, thioredoxin reductase: 35 kDa, triosephosphate isomerase: 27 kDa, trypsin inhibitor: 20 kDa, lysozyme: 14 kDa, aprotinin: 7 kDa, insulin A: 3 kDa, B chain: 2 kDa).
   2. Since cell-free reactions are slightly viscous due to the high protein concentration, dilute them with sterile ddH₂O 5 - 10 times before SDS-PAGE to ensure appropriate gel migration and to avoid saturation after staining. In order not to waste too much sample, dilute 1 µl of cell-free reaction in 4 µl of sterile ddH₂O. Prepare the dilution in reaction tubes, thoroughly vortex and shortly spin the liquid down with a mini centrifuge for 2 - 3 sec at 2,000 x g.
   3. Add 5 µl of 2x loading buffer to 5 µl of diluted cell-free reaction. Thoroughly vortex and spin down with a mini centrifuge for 2 - 3 sec at 2,000 x g.
      NOTE: Here, after addition, the biomolecules are dissolved in 62.5 mM Tris/Cl^-, 10% glycerol, 2% SDS, and 0.0025% bromophenol blue at pH 6.8, a typical composition. Using other loading dyes that lead to slightly different dilution conditions may be suitable as well.
   4. Thoroughly vortex the protein standard and transfer 15 µl of it into a reaction tube.
      NOTE: Depending on gel size and for other protein standards, the recommended volume can differ from the above.
   5. Place the reaction tubes into a heating block. Check if the lids of the tubes are properly closed. Heat at 95 - 100 °C for 3 - 5 min. Do this to denature the proteins and to enable SDS-wrapping around the protein backbone.
      NOTE: Some protein standards must NOT be heated, see supplier instructions.
   6. Meanwhile, transfer the running buffer into the gel electrophoresis chamber. The content of 1x running buffer is 25 mM Tris, 192 mM glycine, 0.1% SDS at pH 8.3 (with HCl).
   7. Fix the precast 4 - 20% gradient Tris-Glycine-SDS gel (10 cm x 10 cm x 1 mm) to the electrophoresis chamber. Remove the comb and rinse the wells with a syringe loaded with running buffer.
      NOTE: The gel concentration strongly depends on the size and nature of the expressed model protein. The above concentration separates the E. coli crude extract proteins as well as low molecular weight model proteins. Self-cast gels are suitable as well.
   8. Remove the tubes from the heating block. Spin the liquid down with a mini centrifuge for 2 - 3 sec at 2,000 x g. Shortly vortex and repeat spinning down for 2 - 3 sec at 2,000 x g.
   9. Transfer the 15 µl of protein standard (24 - 48 µg protein) and 10 µl (11 - 22 µg protein) of each sample into the wells and start electrophoresis. Here, SDS-PAGE is performed at 125 V and 20 - 40 mA for approximately 90 min, a typical protocol.
   10. Carefully extract the gel from the cassette. Transfer it into the fixing solution (50% methanol, 10% acetic acid, 40% ddH₂O) for 30 min. CAUTION! Methanol is toxic by inhalation and in contact with skin. Wear protective gloves and work under a fume hood.
   11. Transfer the gel into staining solution (0.025% Coomassie brilliant blue G-250, 10% acetic acid, 90% ddH₂O). Stain for 60 min.
   12. Transfer the gel into destaining solution (10% acetic acid, 90% ddH₂O) for 60 - 120 min.
       NOTE: Fixing, staining and destaining strongly depend on the size and nature of the expressed protein. This protocol applies to a wide range of proteins of rather small molecular weights⁴⁶.
   13. Displace the gel onto a matte transparency on a white background that generates an appropriate contrast for the stained protein bands.
2. Purification of the His-tagged⁴⁵ model proteins from the cell-free reactions
   NOTE: For protein purification, several methods exist that deliver similar results. This protocol purifies cell-free expressed model proteins that have a C-terminal polyhistidine-tag (His-tag). It uses a purification kit suitable for proteins that are expressed in the small reaction volumes of cell-free protein expression. It is identical for the purification of native or modified model proteins. Thus, it is generally described on the basis of one single cell-free reaction.
   1. For an appropriate HPLC-ESI mass spectroscopic analysis, extract and purify the model proteins from the cell-free reaction and execute the following steps.
      1. Mix equal volumes of 90 - 150 µl of His-binding buffer and 90 - 150 µl of cell-free reaction. Pipette up and down, followed by gentle vortexing.
         NOTE: Using His-binding buffer is recommended. However, cell-free reaction medium can be a starting material as long as the model protein is soluble, pH is between 7.5 - 8, imidazole/His concentration is < 10 mM, concentration of strong reducing agents is < 15 mM and no metal-chelating agents are present. If your mixture volume exceeds 300 µl, split it into equal volumes and aliquot theses volumes into different reaction tubes for the following purification steps.
      2. Prepare the column system. Thoroughly vortex the stock solution of the His-affinity gel until the gel resin is completely dissolved. Transfer 250 µl of gel resin into the column. Use a 1 ml pipette tip for the viscous gel resin. Place the column into a collection tube.
      3. Centrifuge column/collection tube for 5 - 10 sec at 13,000 - 15,000 x g. Ensure that the gel resin is completely drained. If not, extend the centrifugation time by additional 5 - 10 sec, but pay attention that the affinity gel is not over-dried. Accordingly extend the centrifugation time in steps 4.2.1.5, 4.2.1.7 and 4.2.1.9.
         NOTE: The gel resin is completely drained if it becomes stiff and no supernatant remains on top.
      4. Transfer 150 - 300 µl of the cell-free reaction/His-binding buffer to the column. If the mixture volume exceeds the recommended volume, split over several spin columns. Resuspend the gel resin by frequent tapping and gentle vortexing during an incubation time of at least 2 min. For volumes greater than 200 µl, incubate for additional 1 - 2 min.
         NOTE: Sufficient incubation time is crucial for binding of the model proteins to the gel resin.
      5. Centrifuge column/collection tube for 5 - 10 sec at 13,000 - 15,000 x g. Discard the flow-through and place the column back into the collection tube.
      6. Add 250 µl of His-wash buffer. Resuspend the gel resin by tapping and gentle vortexing.
      7. Centrifuge column/collection tube for 5 - 10 sec at 13,000 - 15,000 x g. Discard the flow-through and place the column back into the collection tube. Repeat step 4.2.1.6 and centrifuge again for 5 - 10 sec at 13,000 - 15,000 x g.
      8. Place the column into a standard 1.5 ml reaction tube. Add 150 µl of elution buffer and resuspend the gel resin by tapping and gentle vortexing. Reduce the volume to 100 µl for higher purified model protein concentrations after elution in the next step 4.2.1.9.
         NOTE: The total abundance of purified model protein may be reduced due to possible incomplete elution of all gel resin-bound proteins, if the elution buffer volume is reduced.
      9. Centrifuge column/reaction tube for 5 - 10 sec at 13,000 - 15,000 x g to dilute the purified protein in the elution buffer. If split before, pool all solutions into one stock solution.
      10. Before executing the buffer exchange, determine the protein concentration using standard methods, e.g., the Bradford assay^47,48.
          NOTE: For an appropriate HPLC-ESI mass spectroscopy (section 4.4), use optimal protein concentrations that are usually about 0.5 mg/ml with required volumes of 20 - 50 µl. If the concentration is below 0.2 mg/ml, concentrate the protein solution after the buffer exchange using a spinning vacuum concentrator. In this case, first read section 4.3.8 to appropriately adapt the exchanging buffer.
3. Buffer exchange for HPLC-ESI mass spectroscopy
   NOTE: Exchange the His-tag elution buffer to avoid high background noise in mass spectroscopic analysis due to high concentration of imidazole (> 150 mM) and other salts such as NaH₂PO₄ (> 300 mM) or NaCl (> 50 mM)⁴⁹. The following buffer exchange protocol uses a prehydrated gel filtration spin column system. It is identically executed for native or modified model proteins. Thus, it is generally described on the basis of one single cell-free reaction. Note that there are other easy-to-perform buffer exchange methods, e.g., mini-dialysis cartridges.
   1. Prepare 100 ml of protein storage buffer (50 mM Tris-Cl pH 8, 100 mM NaCl, and 10% glycerol). Weigh out into an autoclavable 100 ml bottle 605.7 mg Tris-Base, 584.4 mg NaCl and add 10 ml of glycerol. Fill up to approximately 80 ml and adjust the pH value to 8 by adding NaOH. Steadily check the pH value with a pH meter. Finally, fill up to the 100 ml mark.
      NOTE: Use this buffer to stabilize a wide range of model proteins and not to disturb mass spectroscopic analysis, as long as HPLC is performed prior to the mass spectroscopic measurement. However, depending on the nature of the expressed model protein, use other buffers that might be better suitable. If your target protein is not stable at pH 8, adjust the pH accordingly. Do not use higher glycerol concentrations.
   2. Warm up the gel filtration spin columns for at least 15 min to RT.
   3. Resuspend the prehydrated gel by gentle tapping or vortexing and remove air bubbles.
   4. First remove the bottom cap, and then take the top cap away. Place the column into a wash tube (at least 2 ml). Transfer the column/wash tube into the centrifuge. Each column possesses an orientation mark. Centrifuge at 1,000 x g for 2 min to remove the gel storage buffer. Discard the flow-through.
      NOTE: Pay attention to proceed in this order. Ensure that the column has the same orientation in all further centrifugation steps.
   5. Add up to 400 µl of the protein storage buffer. Centrifuge for 2 min at 1,000 x g. Repeat this to completely load the protein storage buffer into gel. Carefully add up to 100 µl of the solution of the purified model protein. Pipette directly onto the center of the gel bed.
      NOTE: Solution volumes of purified proteins, particularly of modified proteins, might be higher. Split such solutions over several buffer exchange columns. Proteins must have molecular weights higher than 5 kDa for this kind of buffer exchange.
   6. Place the column into a collection tube and centrifuge for 2 min at 1,000 x g.
      NOTE: This step leads to the dilution of the purified model protein in the protein storage buffer. If split before, pool all solutions into one stock solution.
   7. Flash freeze the protein solution in liquid nitrogen and store at -80 °C or directly analyze it via HPLC-ESI mass spectroscopy⁵⁰ (section 4.4). CAUTION! Wear an eyeshield and Cryo-gloves to be protected from nitrogen splashes.
   8. Perform the following steps of the protocol to concentrate the protein solution using a spinning vacuum concentrator that carefully evaporates the solvent⁵¹.
      NOTE: These steps are required if the protein concentration is too low for HPLC-ESI mass spectroscopy (< 0.2 mg/ml). The solution volume and model protein concentration is roughly the same before and after buffer exchange. The concentration process is described by means of the following example: After His-tag purification, the model protein is dissolved in 100 µl His elution buffer (step 4.2.1.9) and has a concentration of 0.07 mg/ml (step 4.2.1.10).
      1. To ensure that the protein concentration and the solution volume are after evaporation at least 0.2 mg/ml and 20 µl, respectively, dilute, before buffer exchange, the protein storage buffer prepared in step 4.3.1 at least threefold but at most fivefold. Equally evaporate in the following at least two third (66.67 µl) or at most four fifth (80 µl).
         NOTE: Dilution of the protein storage buffer before the buffer exchange is crucial to take into account that concentration values of this buffer (step 4.3.1) are still realized in spite of evaporation. After dilution of the protein storage buffer, first perform the buffer exchange (steps 4.3.2 - 4.3.6) before executing the following steps 4.3.8.2 - 4.3.8.4.
      2. After buffer exchange, put the complete 100 µl of model protein solution in an open tube into the spinning vacuum concentrator.
         NOTE: The model protein is dissolved in the diluted protein storage buffer. Incline it towards the rotation center to avoid liquid-loss during rotation. Ensure that an open blank of the same volume of H₂O is symmetrically placed to balance the spinning system.
      3. Close the lid of the concentrator and start rotation. To assure protein stability, concentrate at RT or at low temperatures up to 30 °C.
         NOTE: The used concentrator automatically accelerates to 170 x g and establishes the vacuum. In the following it accelerates to its maximum speed of 240 x g.
      4. Frequently interrupt the concentration process to survey the liquid volume. Stop the concentration, when the remaining solution volume is between 20 µl and 33 µl.
         NOTE: Accordingly adapt the steps 4.3.8.1 - 4.3.8.4 for other solution volumes (step 4.2.1.9) and other protein concentrations (step 4.2.1.10). Flash freeze the concentrated protein solution in liquid nitrogen and store at -80 °C, or directly analyze it via HPLC-ESI mass spectroscopy⁵⁰. CAUTION! Wear an eyeshield and Cryo-gloves to be protected from nitrogen splashes.
4. HPLC-ESI mass spectrometric analysis ⁵⁰ of model proteins
   1. Perform HPLC separation of 5 - 15 µl protein solution (prepared in section 4.3) on a C5 reverse-phase column (3 µm, 100 x 2.1 mm) with a gradient of 20% - 90% acetonitrile and 0.1% of formic acid over 25 min and subsequent ESI mass spectrometry with detection on a time-of-flight mass analysator in the range of 300 - 3,000 m/z.
      NOTE: Depending on the nature of the expressed model protein, use other solvents or columns that might be better suitable.
   2. Deconvolute measured mass spectra using appropriate software⁵² to calculate zero-charge masses.

Representative Results

This protocol guides through the cell-free residue-specific incorporation of ncAAs into model proteins. It proposes SDS-PAGE for a preliminary evaluation of the incorporation experiment and further steps to prepare the model proteins for an appropriate HPLC-ESI mass spectroscopic analysis.

Here, representative results of the cell-free residue-specific incorporation of the Arg analog Can, as well as the Lys analog L-hydroxy-lysine (Hyl) are presented. The different amino acid solutions, the energy buffer, the vector DNA coding for the model protein and cell-free reactions are prepared as described above. The reference cell-free reaction is provided with the amino acid solution consisting of the 20 cAAs. For each experiment, a negative control cell-free reaction is supplied with the amino acid solution that lacks the canonical analog of the ncAA in question. For each approach, one cell-free reaction expresses the model protein in the presence of the amino acid solution, where the cAA is substituted by the noncanonical analog. His-tag purification, buffer exchange and HPLC-ESI mass spectrometric analysis are executed according to the above described protocol.

The model protein is the C-terminal His-tagged deGFP³², a truncated version of EGFP⁵³. Its one letter amino acid sequence can be found in (Supplemental Material 2). This model protein contains 6 Arg and 18 Lys positions, respectively. The expression vector is pBEST-OR2-OR1-Pr-UTR1-deGFP-T500.

In the case of complete incorporation of the ncAA, one can assume that the negative control reaction does not express deGFP, since one of the 20 cAAs is missing. Contrary, deGFP must be detectable in the other two reactions: the native one in the reference cell-free reaction and the modified protein in the cell-free reaction that is provided with the ncAA.

Figure 1A shows the preliminary SDS-PAGE evaluation of the Can incorporation experiment. The reference cell-free reaction has the highest deGFP expression level. In the cell-free reaction that is provided with Can, deGFP is expressed at slightly lower concentration. No deGFP expression can be detected in the negative control. This SDS-PAGE result is a good indication for a successful incorporation of Can into the target protein deGFP.

To prove the hypothesized complete incorporation of Can into deGFP, both purified model proteins, visualized in Figure 1B, are analyzed through HPLC-ESI mass spectroscopy. Figure 1C shows the deconvoluted mass spectra of the purified deGFP molecules. The deconvoluted mass of deGFP that is expressed in the reference cell-free reaction is 26,192.8 Da. For deGFP expressed in the Can containing cell-free reaction a mass of 26202.5 Da appears. The expected masses for the native deGFP6Arg and the modified deGFP6Can with Arg being fully replaced by Can are 26,193 Da and 26,204 Da, respectively. The mass difference of 1.5 Da for deGFP6Can is within the error of spectrum deconvolution. Thus, the full incorporation of Can into deGFP at all 6 Arg positions is confirmed.

The two peaks of reduced intensity correspond to the native deGFP6Arg and modified deGFP6Can that did not attain their mature fluorophore. The fluorophore is autocatalytically generated by elimination of a H₂O molecule, followed by oxidation. This leads to a mass increased by 20 Da if this process does not proceed.

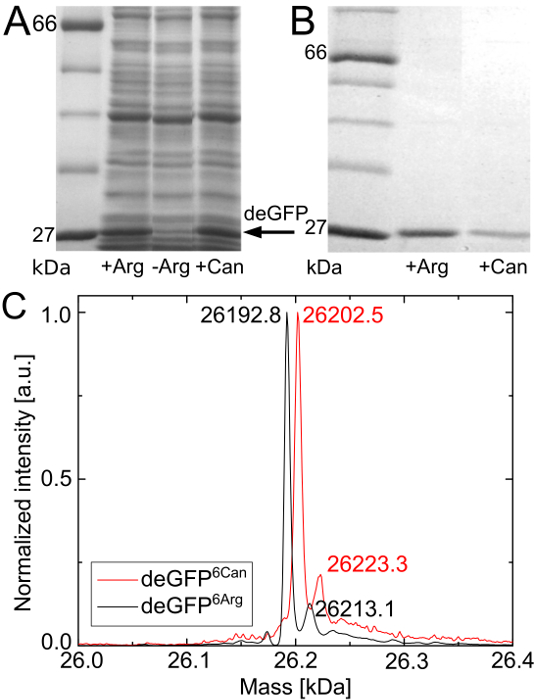

Figure 1. SDS-PAGE evaluation of the Can incorporation experiment and HPLC-ESI mass spectroscopy of the cell-free expressed and purified deGFP molecules. (A) Preliminary evaluation of the Can incorporation experiment using SDS-PAGE. From left to right: Protein standard, reference cell-free reaction, negative control and cell-free reaction providing Can instead of Arg. (B) SDS-PAGE after His-tag purification and buffer exchange of the expressed deGFP molecules. From left to right: Protein standard, purified deGFP from the reference reaction, purified deGFP from the Can containing reaction. (C) Confirmation of full incorporation of Can by HPLC-ESI mass spectroscopy. The expected masses of the native deGFP and the modified deGFP with Arg fully replaced by Can are 26,193 Da and 26,204 Da, respectively. Each spectrum is normalized to its highest intensity (counts). Peak positions are indicated in Da. For visualization purposes, the gel lanes are extracted from the gel pictures, joined together, are converted into gray scale format, size is optimized and contrast as well as brightness are enhanced. Original gel lanes are presented in Supplemental Material 3. Please click here to view a larger version of this figure.

Figure 2A shows the preliminary SDS-PAGE evaluation of the Hyl incorporation experiment. In the cell-free reaction that is provided with Hyl, deGFP is expressed. Contrary to the first experiment, a weak deGFP band can be observed in the negative control reaction. This might be due to Lys residues in the cell-free reactions. This enables a faint deGFP expression in the negative control reaction, where neither Lys nor Hyl are added.

For HPLC-ESI mass spectroscopy, the deGFP molecules of the cell-free reaction provided with Hyl are purified and the buffer is exchanged (Figure 2B).

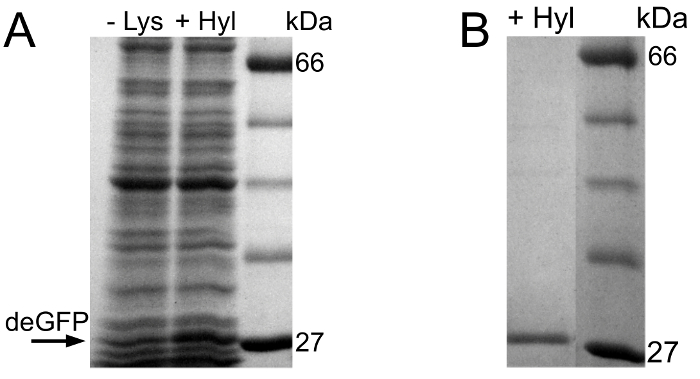

Figure 2. SDS-PAGE evaluation of the Hyl incorporation experiment. (A) From left to right: Negative control cell-free reaction, cell-free reaction containing Hyl and protein standard. (B) SDS-PAGE after His-tag purification and buffer exchange of the expressed deGFP molecules. From left to right: Purified deGFP from the Hyl containing reaction and protein standard. For visualization purposes, the gel lanes are extracted from the gel pictures, joined together, are converted into gray scale format, size is optimized and contrast as well as brightness are enhanced. Original gel lanes are presented in Supplemental Material 3. Please click here to view a larger version of this figure.

Figure 3 shows the deconvoluted mass spectrum of purified deGFP molecules. Figure 3A confirms the hypothesis of already present Lys residues in the cell-free reactions. The predominant peak of the spectrum corresponds to the native deGFP (expected mass: 26,193 Da). Again, deGFP molecules of a 20 Da higher mass that did not develop their fluorophore can be detected. The Lys residues are preferentially loaded onto the tRNA^Lys by lysyl-tRNA-synthetase leading to a high expression level of the native deGFP18Lys.

The mass difference between Hyl and Lys is 16 Da. Due to the presence of Hyl that is in competition to the Lys residues all possible deGFP species are generated (deGFP18Hyl, deGFP17Hly+1Lys, …, deGFP16Hyl+2Lys) (Figure 3B). Admittedly, the peak of deGFP1Hyl+17Lys overlaps with the peak of the native deGFP that did not produce its fluorophore (Figure 3A) and the mass of some peaks differs more than 2 Da from the expected mass. These mass differences can be attributed to high noise due to low amounts of the deGFP species. However, Hyl is generally incorporated by the cell-free system. Further improvements have to be done to abolish Lys residues in the cell-free reactions.

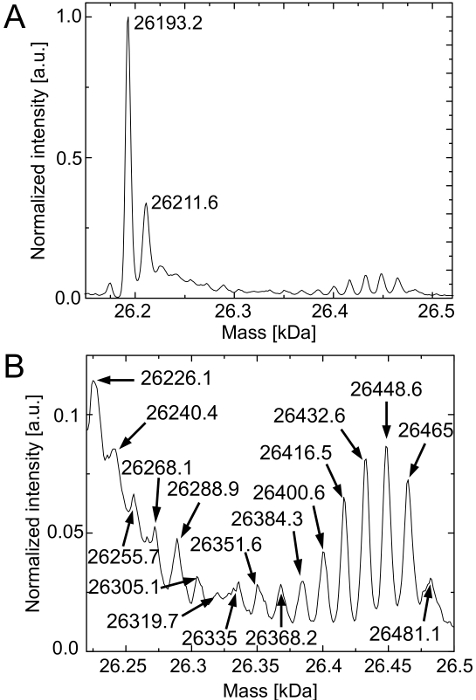

Figure 3. HPLC-ESI mass spectroscopy of the purified deGFP molecules of the cell-free reaction containing Hyl. (A) The native deGFP18Lys is predominantly detected (expected masses: with fluorophore 26,193 Da, without mature fluorophore 26,213 Da). (B) Magnification reveals the existence of all possible deGFP species (deGFP18Hyl, deGFP17Hly+1Lys, deGFP16Hyl+2Lys,…, deGFP1Hyl+17Lys). Their expected masses are 26,193 Da + N x 16 Da (N = 1, …, 18). The spectrum is normalized to its highest intensity (counts). Peak positions are indicated in Da. Please click here to view a larger version of this figure.

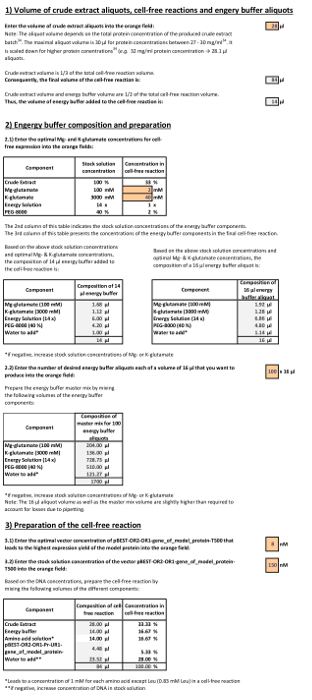

Supplemental Material 1. Calculation template. In section 2, the preparation of the energy buffer master mix is exemplified using crude extract aliquots of 30 µl and optimal Mg- and K-glutamate concentrations of respectively 3 mM and 30 mM. This example leads to a master mix volume that yields 3 energy buffer aliquots. In section 3, the preparation of the cell-free reaction is exemplified using a 90 nM DNA stock solution leading to an optimal vector DNA concentration of 10 nM in the cell-free reaction. Please click here to download this file.

For an appropriate traceability, the use of the calculation template is exemplified by insertion of these typical values that differ from the above example: Crude extract volume: 28 µl, optimal Mg-glutamate: 2 mM, optimal K-glutamate: 40 mM, number of desired buffer aliquots: 100, optimal vector concentration in cell-free reaction: 8 nM, DNA vector stock solution: 150 nM.

First enter 28 µl as crude extract volume into the orange field of the first template section. Then, enter into the second template section 2 mM and 40 mM as optimal Mg- and K-glutamate concentrations into the orange fields. Taking into account the optimal Mg- and K-concentrations, the composition of a 15 µl energy buffer, as well as a corresponding, scaled up 16 µl aliquot is calculated. Below, accordingly enter 100 as desired number of energy buffer aliquots (16 µl). The template adapts the volumes of the different buffer components for the 1,700 µl master mix as follows: 204 µl of 100 mM Mg-glutamate stock solution, 136 µl of 3 M K-glutamate stock solution, 728.73 µl of 14x energy solution, 510 µl of 40% PEG-8000 and 121.27 µl sterile ddH₂O. Finally, in the third template section, enter 8 nM and 150 nM as optimal vector concentration in the cell-free reaction and respectively, vector DNA stock solution concentration. The template adapts the volumes of the different components that must be added to the 28 µl of crude extract to finalize the preparation of a 90 µl cell-free reaction as follows: 15 µl of energy buffer, 15 µl of one of the 3 differently composed amino acid solutions, 4.80 µl of vector DNA solution (150 nM), and 27.20 µl of sterile ddH₂O.

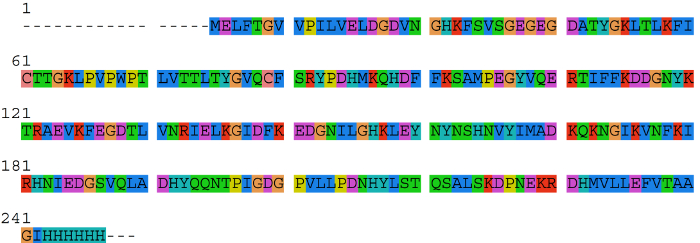

Supplemental Material 2. One letter amino acid sequence of the model protein deGFP. This model protein contains 6 Arg and 18 Lys positions. Please click here to view a larger version of this figure.

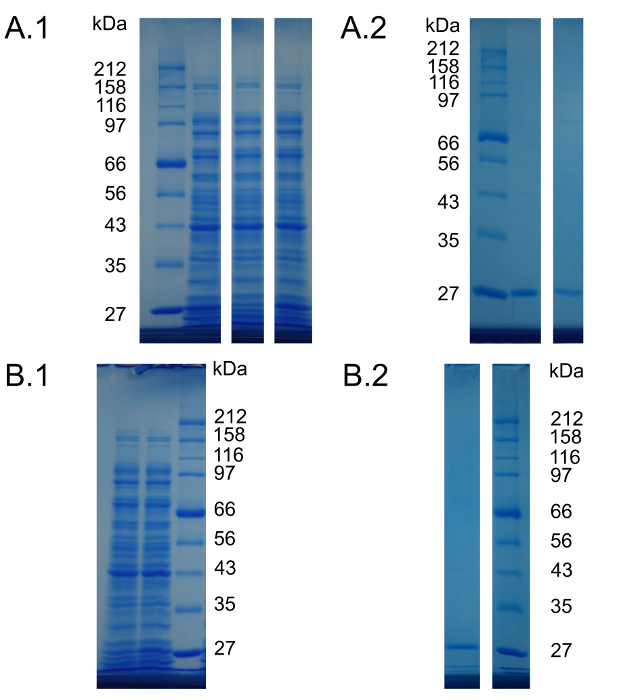

Supplemental Material 3. Full length and unmodified gel lanes that correspond to the gel pictures presented Figure 1 and 2. The gel lanes presented in each individual subfigure are extracted from the same SDS polyacrylamide gel. In Figure 1 and 2 these lanes were joined together for presentation purposes. Molecular weights of the protein standard bands are indicated beside the figures. (A.1) Uncropped gel lanes of Figure 1A. From left to right: Protein standard, reference cell-free reaction, negative control and cell-free reaction providing Can instead of Arg. (A.2) Uncropped gel lanes of Figure 1B. From left to right: Protein standard, purified deGFP from the reference reaction, purified deGFP from the Can containing reaction. (B.1) Uncropped gel lanes of Figure 2A. From left to right: Negative control cell-free reaction, cell-free reaction containing Hyl and protein standard. (B.2) Uncropped gel lanes of Figure 2B. From left to right: Purified deGFP from the Hyl containing reaction and protein standard. Please click here to view a larger version of this figure.

Discussion

An-easy-to use cell-free expression system as a viable strategy to residue-specifically incorporate ncAAs into proteins, is presented. To this end, the crude extract is supplemented with vector DNA coding for the protein of interest, the energy buffer and the corresponding amino acids. Note that the crude extract aliquot volume depends on the crude extract protein concentration³⁴. The cell-free expression efficiency is optimized depending on the vector DNA construction concentration. The volumes of the energy buffer components vary as function of optimized Mg- and K-glutamate concentrations in order to enable high yields of the cell-free expressed model protein.

A preliminary evaluation of the incorporation experiment can be obtained by performing SDS-PAGE of the unpurified cell-free reaction medium. For a more detailed analysis, HPLC-ESI mass spectroscopy is proposed as a means to check for complete, residue-specific incorporation of the ncAA. As a preparation for the latter, spin column systems are used to enable His-tag purification and buffer exchange with the small volumes that we use in this protocol.

Including HPLC-ESI mass spectroscopy, the entire protocol can be performed within 2 days. It does not include any particularly critical steps. However, concentration optimizations of Mg- and K-glutamate as well as of vector DNA are crucial in order to express high yields of the model protein. The use of the highly efficient expression vector pBEST-OR2-Or1-Pr-UTR1-gene_of_model_protein-T500 is strongly recommended. Elution of His-tagged proteins is usually due to high concentration of imidazole (> 150 mM) and other salts such as NaH₂PO₄ (> 300 mM) or NaCl (> 50 mM) that generate high background noise in mass spectroscopic analysis⁴⁹. Exchange of such elution buffers with a suitable protein storage buffer stabilizes the model protein and drastically reduces background noise during mass spectroscopic analysis.

As a result, Can replaces Arg at all six positions within the model protein. In the expression system, no Arg residues can be detected. This simplifies the residue-specific incorporation of Arg analogs compared to other expression systems that require further depletion strategies^29,30. The presented cell-free approach circumvents the inherent limitations of in vivo approaches that are due to Can toxicity, or the strong dependency on mRNA sequence in single protein production strategies^24,31. Contrary to the employed in vitro system, in vivo cleavage of Can to homoserine and hydroxyguanidine does occur³¹.

However, the cell-free system retains a sufficient amount of Lys to compete with analogs such as Hyl. The HPLC-ESI mass spectroscopic analysis shows that the model protein contains both, the canonical as well as the noncanonical analog in different proportions. The residue-specific incorporation of Lys is possible in general, but for complete substitution, further depletion strategies, or specially engineered aaRS and tRNA optimized for the recognition of ncAAs need to be developed.

We achieved excellent yields of cell-free expressed, modified model proteins by adding the ncAA at the same concentration as the canonical ones. The incorporation efficiency depends on the nature of the ncAA to be incorporated. Even higher yields might still be realizable by optimizing the concentration of the ncAA.

The presented results demonstrate the applicability of the employed system for the residue-specific incorporation of ncAAs as long as they are accepted by the canonical endogenous translational system. For the residue-specific incorporation of specific ncAAs, one further needs to check if the residues of the analogous cAA disturb the expression system.

Cell-free transcription-translation systems can be engineered from different organisms to respond to different demands⁵⁴. The all E. coli transcription-translation machineries of the here presented cell-free system enable the usage of bacteriophage and E. coli promoters, and they can act in parallel or consecutively in cascades⁵⁵. The general applicability and usability make the method a potent tool for further research in amino acid toxicity and therapeutic application.

Materials

Name	Company	Catalog Number	Comments
Protective eyewear	Sigma-Aldrich, St. Louis, USA	Z758841
Nitrile gloves (size S)	Sigma-Aldrich, St. Louis, USA	Z768960	Catalog numbers other sizes: Z768979 for M, Z768987 for L and Z768995 for XL
Eppendorf Safe-Lock Tube 1.5 ml (PCR clean)	Eppendorf, Hamburg, Germany	30123.328
Microbalance Discovery DV114CM	Ohaus, Greifensee, Switzerland	80104140
Microspatula (L 6 5/8 in., stainless steel, rod diam. 0.09 in.)	Sigma-Aldrich, St. Louis, USA	Z243213
L-Canavanine	Sigma-Aldrich, St. Louis, USA	C9758	Acute toxicity: wear eyeshields, dust mask, protective gloves
Hydroxylysine (racemic mixture)	Sigma-Aldrich, St. Louis, USA	H0377
Cryo-gloves (size S, water resistent)	Sigma-Aldrich, St. Louis, USA	Z183490	Catalog numbers other sizes: Z183512 for M, Z183520 for L and Z183539 for XL
RTS Amino Acid Sampler	Biotechrabbit, Hennigsdorf, Germany	BR1401801	For homemade preparation of amino acid stock solutions, follow this protocol35 and use the solid amino acid kit LAA21-1KT, L-proline (81709-25G), L-cysteine (30089-25G), L-histidine (53319-25G) and L-lysine (L5501-5G)  (all from Sigma-Aldrich, St. Louis, USA)
HEPES	Sigma-Aldrich, St. Louis, USA	H6147
ATP	Sigma-Aldrich, St. Louis, USA	A8937
CTP	Affymetrix, Santa Clara, USA	14121
GTP	Affymetrix, Santa Clara, USA	16800
UTP	Affymetrix, Santa Clara, USA	23160
tRNA (from E. coli, pack size 100 mg)	Sigma-Aldrich, St. Louis, USA	10109541001	Catalog number for pack size of 500 mg is 10109550001
CoA	Sigma-Aldrich, St. Louis, USA	C4282
NAD (from yeast )	Sigma-Aldrich, St. Louis, USA	N6522
cAMP	Sigma-Aldrich, St. Louis, USA	A9501
Folinic acid	Sigma-Aldrich, St. Louis, USA	F7878
3-PGA	Sigma-Aldrich, St. Louis, USA	P8877
Mg-glutamate	Sigma-Aldrich, St. Louis, USA	49605
K-glutamate	Sigma-Aldrich, St. Louis, USA	G1149
pBEST-OR2-OR1-Pr-UTR1-deGFP-T500	Addgene, Cambridge, USA	Plasmid #40019
4-20% precast Tris-Glycine Gels (10 cm x 10 cm x 1 mm, 10 courses)	Anamed Elektrophorese, Groß-Bieberau / Rodau, Germany	TG 81610
SDS running buffer (10 x concentrate, 5,000 ml)	Anamed Elektrophorese, Groß-Bieberau / Rodau, Germany	TG 50001
SDS loading buffer (2 x concentrate, 50 ml)	Anamed Elektrophorese, Groß-Bieberau / Rodau, Germany	TG 05002
Unstained protein marker, broad range (2-212 kDa)	New England Biolabs, Ipswich, USA	P7702S
Methanol	Merck, Darmstadt, Germany	1060091011	Toxic by inhalation, in contact with skin and if swallowed: wear protective gloves and work under fume hood
Acetic acid (99.8%)	VWR International, Darmstadt, Germany	20104.447
Coomassie Blue G-250 (10 g)	Biozym Scientific, Hessisch Oldendorf, Germany	902120
His-Spin Protein Miniprep kit	Zymo Research Europe, Freiburg, Germany	P2002	Product also distributed by Zymo Research Corporation, Irvine, USA
Trizma Base	Sigma-Aldrich, St. Louis, USA	T1503
Hydrochloric acid	Sigma-Aldrich, St. Louis, USA	H1758
Glycerol, 99%	VWR International, Darmstadt, Germany	24397.296DB
CentriPure Z25 mini spin columns	Genaxxon bioscience, Ulm, Germany	CP-0205-Z100
Sodium chloride	Sigma-Aldrich, St. Louis, USA	S9888
Concentrator 5301	Eppendorf, Hamburg, Germany	5301 000.210
2xYT	MP biomedicals, Santa Ana, USA	113012032
Bacto-Agar	BD Diagnostics, Franklin Lakes, USA	214010
Bead-beating tubes (polypropylene microvials)	Biospec, Bartlesville, USA	522S
Beads, 0.1 mm dia.	Biospec, Bartlesville, USA	11079101
BL21 Rosetta 2 E. coli strain	Merck, Darmstadt, Germany	71402
Bradford BSA protein assay Kit	Bio-Rad, München, Germany	500-0201
Chloramphenicol	Sigma-Aldrich, St. Louis, USA	C1919
Cuvettes, 1.5 ml	Thermo Fisher Scientific, Waltham, USA	14-955-127
DTT	Sigma-Aldrich, St. Louis, USA	D0632
Micro Bio-Spin Chromatography Columns	Bio-Rad, München, Germany	732-6204
Nunc 384-well optical bottom plates	Thermo Fisher Scientific, Waltham, USA	142761
Nunc sealing tape	Thermo Fisher Scientific, Waltham, USA	232701
PEG-8000	Promega, Madison, USA	V3011
Potassium phosphate dibasic solution	Sigma-Aldrich, St. Louis, USA	P8584
Potassium phosphate monobasic solution	Sigma-Aldrich, St. Louis, USA	P8709
Slide-A-Lyzer dialysis cassettes, 10k MWCO (Kit)	Thermo Fisher Scientific, Waltham, USA	66382
Spermidine	Sigma-Aldrich, St. Louis, USA	85558
1 L centrifuge bottle	Beckman-Coulter, Brea, USA	A98813
4 L Erlenmeyer flask	Kimble Chase, Vineland (NJ), USA	26500-4000
Avanti J-26XP centrifuge	Beckman-Coulter, Brea, USA	393127	Or equivalent centrifuge able to centrifuge 1 L bottles.
Forma 480 orbital shaker	Thermo Fisher Scientific, Waltham, USA	480	Or equivalent shaker able to shake chest-size 6 x 4 L .
JLA-8.1000 rotor	Beckman-Coulter, Brea, USA	363688	Or equivalent 5,000 x g rotor for the centrifuge above, able to centrifuge 1 L bottles.
Mini-Beadbeater-1	Biospec, Bartlesville, USA	3110BX
Microfuge 22R refrigerated microcentrifuge	Beckman-Coulter, Brea, USA	368831	Or equivalent centrifuge able to centrifuge 2 ml reaction tubes.
Heating block HLC HBT 130	Labexchange, Burladingen, Germany	24465	Or equivalent heating block able to heat samples in reaction tubes up to 100 °C.
Eppendorf MiniSpin centrifuge	Eppendorf, Hamburg, Germany	5452000018	Or equivalent centrifuge able to centrifuge 2 ml reaction tubes.
IKA Vortex 3 (4 mm orbital shaker diameter, 0 - 2,500 rpm)	Sigma-Aldrich, St. Louis, USA	Z654760	Or equivalent vortex.
Scotsman AF103 ice flaker machine	Kälte-Berlin, Berlin, Germany	AF103	Or equivalent ice flaker machine.
MyTemp mini digital incubator	Sigma-Aldrich, St. Louis, USA	Z763314	Or equivalent incubator able to heat samples at 29 °C.
EcoCell electrophoresis cell / chamber	Anamed Elektrophorese, Groß-Bieberau / Rodau, Germany	AN12005	Or equivalent electrophoresis chamber able to perform vertical gel electrophoresis with the above precast gels or other gels used.
Power-phor power supply for electrophoresis cell / chamber	Anamed Elektrophorese, Groß-Bieberau / Rodau, Germany	AN12001	Or equivalent power supply able to supply above used electrophoresis cell / chamber with power
VWR Signature Ergonomic High Performance Single-Channel Variable Volume Pipettors Starter Kit 1	VWR International, Darmstadt, Germany	613-5278	Or equivalent micropipettes enabling to pipette similar volumes with the same precision
VWR Signature Ergonomic High Performance Single-Channel Variable Volume Pipettors Starter Kit 2	VWR International, Darmstadt, Germany	613-5279	Or equivalent micropipettes enabling to pipette similar volumes with the same precision
Pipetman Tips Diamond D10ST (0.1 - 10 µl)	Gilson, Middleton, USA	F171101	Or equivalent low-binding pipette tips enabling to pipette similar volumes with the same precision
Pipetman Tips Diamond D200ST (2 - 200 µl)	Gilson, Middleton, USA	F171301	Or equivalent low-binding pipette tips enabling to pipette similar volumes with the same precision
Pipetman Tips Diamond D1000ST (100 - 1,000 µl)	Gilson, Middleton, USA	F171501	Or equivalent low-binding pipette tips enabling to pipette similar volumes with the same precision
50 ml centrifuge tubes with screw caps (sterile)	VWR International, Darmstadt, Germany	50-0156
15 ml centrifuge tubes with screw caps (sterile)	VWR International, Darmstadt, Germany	525-0150
14 ml polypropylene tubes (round bottom, two-position vent stopper, sterile)	Greiner Bio-One, Frickenhausen, Germany	187262
Discovery BIO Wide Pore C5 HPLC Column (3 µm particle size, L x I.D. 10 cm x 2.1 mm)	Sigma-Aldrich, St. Louis, USA	567227-U
Agilent 1260 HPLC machine	Agilent Technologies, Santa Clara, USA	G1312B
6500 Series Accurate-Mass Quadrupole Time-of-Flight (Q-TOF) LC/MS	Agilent Technologies, Santa Clara, USA	G6530BA
Acetonitrile	Sigma-Aldrich, St. Louis, USA	270717
FLUOstar Omega microplate reader	BMG Labtech, Ortenberg, Germany	415-101	Or equivalent microplate reader able to measure the fluorescence of the expressed model protein
Hanna Checker pH meter	Sigma-Aldrich, St. Louis, USA	Z351091
Formic acid eluent additive for LC-MS	Sigma-Aldrich, St. Louis, USA	56302
