A Fluorescence-based Assay of Phospholipid Scramblase Activity

doi: 10.3791/54635 Published: September 20, 2016


We describe a fluorescence-based assay to measure phospholipid scrambling in large unilamellar liposomes reconstituted with opsin.


Scramblases translocate phospholipids across the membrane bilayer bidirectionally in an ATP-independent manner. The first scramblase to be identified and biochemically verified was opsin, the apoprotein of the photoreceptor rhodopsin. Rhodopsin is a G protein-coupled receptor localized in rod photoreceptor disc membranes of the retina where it is responsible for the perception of light. Rhodopsin's scramblase activity does not depend on its ligand 11-cis-retinal, i.e., the apoprotein opsin is also active as a scramblase. Although constitutive and regulated phospholipid scrambling play an important role in cell physiology, only a few phospholipid scramblases have been identified so far besides opsin. Here we describe a fluorescence-based assay of opsin's scramblase activity. Opsin is reconstituted into large unilamellar liposomes composed of phosphatidylcholine, phosphatidylglycerol and a trace quantity of fluorescent NBD-labeled PC (1-palmitoyl-2-{6-[7-nitro-2-1,3-benzoxadiazole-4-yl)amino]hexanoyl}-sn-glycero-3-phosphocholine). Scramblase activity is determined by measuring the extent to which NBD-PC molecules located in the inner leaflet of the vesicle are able to access the outer leaflet where their fluorescence is chemically eliminated by a reducing agent that cannot cross the membrane. The methods we describe have general applicability and can be used to identify and characterize scramblase activities of other membrane proteins.


or Start trial to access full content. Learn more about your institution’s access to JoVE content here

The photoreceptor rhodopsin, a prototypical G protein-coupled receptor (reviewed for example in reference 1), is the first phospholipid scramblase to be identified and biochemically verified 2,3. Scramblases are phospholipid transporters that increase the intrinsically slow rate of transbilayer phospholipid movement to physiologically appropriate levels in a bidirectional, ATP-independent manner 4-6. Examples of their actions can be found in the endoplasmic reticulum and bacterial cytoplasmic membrane where constitutive scrambling is needed for membrane homeostasis and growth, as well as for a variety of glycosylation pathways 5. Regulated phospholipid scrambling is needed to expose phosphatidylserine (PS) on the surface of apoptotic cells where it acts as an "eat-me"-signal for macrophages 7 and provides a procoagulant surface on activated blood platelets to catalyze the production of protein factors needed for blood clotting. In photoreceptor disc membranes, rhodopsin's scrambling activity has been suggested to counteract the phospholipid imbalance between the two membrane leaflets of the bilayer that is generated by the ATP-dependent, unidirectional lipid flippase ABCA4 4,8,910-12.

Despite the physiological importance of scramblases, their identity remained elusive until rhodopsin was reported as a scramblase in photoreceptor discs 2, members of the TMEM16 protein family were identified as Ca2+-dependent scramblases needed for PS exposure at the plasma membrane (reviewed in reference 13), and the bacterial protein FtsW was proposed as a Lipid II scramblase required for peptidoglycan synthesis 14. These discoveries were based on the reconstitution of purified proteins in liposomes and demonstration of scramblase activity in the resulting proteoliposomes using the methodology described here. Other potential scramblases 15-21 — the MurJ and AmJ proteins implicated in peptidoglycan biosynthesis, WzxE and related proteins implicated in scrambling O-antigen precursors, MprF protein needed to translocate aminoacylated phosphatidylglycerol across the bacterial cytoplasmic membrane, and Xkr8 family members that have been proposed to expose PS on the surface of apoptotic cells — remain to be tested biochemically. This highlights the importance of a robust assay to identify and characterize scramblase activity.

Here, we describe the reconstitution of purified opsin, the apoprotein of the photoreceptor rhodopsin, into large unilamellar vesicles (LUVs), and subsequent analysis of scramblase activity in the resulting proteoliposomes using a fluorescence-based assay. There are several well-described protocols available in the literature for the heterologous expression and purification of opsin, therefore we will not describe it in this protocol; we use the protocols described in Goren et al. 3 which yields FLAG-tagged, thermostable opsin at about 100 ng/µl in 0.1% (w/v) dodecylmaltoside (DDM).

Reconstitution is achieved by treating LUVs with sufficient detergent so that they swell but do not dissolve. Under these conditions, a membrane protein — supplied in the form of protein-detergent micelles — will integrate into the liposomes and become reconstituted into the liposome membrane upon detergent removal, resulting in proteoliposomes. To reconstitute opsin (obtained as a purified protein in 0.1% (w/v) DDM), LUVs are prepared from a mixture of POPC (1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine) and POPG (1-palmitoyl-2-oleoyl-sn-glycero-3-[phospho-rac-(1-glycerol)]) and saturated with DDM before adding opsin and NBD-PC. The detergent is then removed by treating the sample with polystyrene beads.

The principle underlying the fluorescence-based assay is shown in Figure 1B. LUVs are symmetrically reconstituted with a trace amount of NBD-PC or other NBD-labeled fluorescent phospholipid reporter (Figure 1A). On adding dithionite, a membrane-impermeant dianion, NBD-PC molecules in the outer leaflet of the LUVs are rendered non-fluorescent as the nitro-group of NBD is reduced to a non-fluorescent amino-group. As neither NBD-PC molecules nor dithionite are able to traverse the membrane on the time-scale of the experiment (<10 min), this results in 50% reduction of the fluorescent signal. However, if the liposomes are reconstituted with a scramblase, NBD-PC molecules in the inner leaflet can scramble rapidly to the outside where they are reduced. This results in the total loss of fluorescence in the ideal case (Figure 1C).

Figure 1

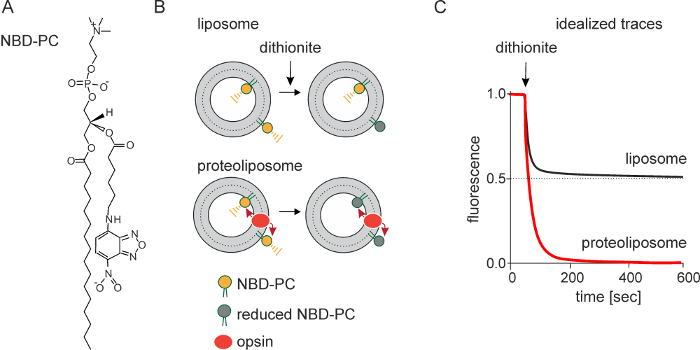

Figure 1: Schematic representation of the scramblase activity assay. The assay uses a fluorescent NBD-labeled reporter lipid; NBD-PC is shown (A). Large unilamellar vesicles are reconstituted with a trace amount of NBD-PC. Reconstitution produces symmetric vesicles, with NBD-PC distributed equally in the outer and inner leaflets. Dithionite (S2O42-) chemically reduces the nitro-group of NBD to a non-fluorescent amino-group. Treatment of protein-free liposomes with dithionite (B, top) causes a 50% reduction of fluorescence since only the NBD-PC molecules in the outer leaflet are reduced: dithionite is negatively charged and cannot cross the membrane to react with NBD-PC molecules in the inner leaflet. Dithionite treatment of opsin-containing proteoliposomes (B, bottom), i.e., scramblase-active proteoliposomes, results in 100% loss of fluorescence as opsin facilitates movement of NBD-PC between the inner and the outer leaflet. (C) shows idealized fluorescence traces obtained on treating protein-free liposomes and opsin-containing proteoliposomes with dithionite. The rate of fluorescence loss is the same in both cases indicating that the chemical reduction of NBD by dithionite is rate-limiting, and that scrambling occurs at a rate equal to or greater than the rate of the chemical reaction. Traces obtained from an actual experiment are shown in Figure 3. Please click here to view a larger version of this figure.

The methods we describe can be used to reconstitute and assay other purified proteins, as well as mixtures of membrane proteins obtained, for example, by extracting microsomes with detergent 22.
