A Simple and Efficient Method for In Vivo Cardiac-specific Gene Manipulation by Intramyocardial Injection in Mice

Summary

Here we present a protocol for cardiac-specific gene manipulation in mice. Under anesthesia, the mouse hearts were externalized through the fourth intercostal space. Subsequently, adenoviruses encoding specific genes were injected with a syringe into the myocardium, followed by protein expression measurement via in vivo imaging and Western blot analysis.

Abstract

Gene manipulation specifically in the heart significantly potentiate the investigation of cardiac disease pathomechanisms and their therapeutic potential. In vivo cardiac-specific gene delivery is commonly achieved by either systemic or local delivery. Systemic injection via tail vein is easy and efficient in manipulating cardiac gene expression by using recombinant adeno-associated virus 9 (AAV9). However, this method requires a relatively high amount of vector for efficient transduction, and may result in nontarget organ gene transduction. Here, we describe a simple, efficient, and time-saving method of intramyocardial injection for in vivo cardiac-specific gene manipulation in mice. Under anesthesia (without ventilation), the pectoral major and minor muscles were bluntly dissected, and the mouse heart was quickly exposed by manual externalization through a small incision at the fourth intercostal space. Subsequently, adenovirus encoding luciferase (Luc) and vitamin D receptor (VDR), or short hairpin RNA (shRNA) targeting VDR, was injected with a Hamilton syringe into the myocardium. Subsequent in vivo imaging demonstrated that luciferase was successfully overexpressed specifically in the heart. Moreover, Western blot analysis confirmed the successful overexpression or silencing of VDR in the mouse heart. Once mastered, this technique can be used for gene manipulation, as well as injection of cells or other materials such as nanogels in the mouse heart.

Introduction

Cardiac disease is the leading cause of morbidity and mortality worldwide^1,2. The lack of effective therapeutic strategies for life-threatening heart conditions including myocardial infarction and heart failure attracts intensive exploration of underlying pathomechanisms and identification of novel therapeutic options³. For these scientific explorations, cardiac-specific gene manipulation is widely used^4,5. Cardiac gene manipulation can be achieved by genome editing using the powerful transcription activator-like effector nuclease (TALEN) and clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR associated protein 9 (Cas9) tools, or by delivery of ectopic genetic materials (e.g., virus vectors carrying genes encoding proteins of interest)⁶. Though genome editing allows precise and spatiotemporal genome modifications in living mice, it is still a time-consuming and labor-intensive practice⁶. Alternatively, cardiac-specific gene manipulation by virus vector or small interfering RNA (siRNA) complex delivery are routinely performed⁶.

Virus vector delivery to the adult mouse heart is achieved by roughly two strategies: systemic or local injection. Systemic injection of cardiotropic serotype of AAVs such as AAV9 is noninvasive for cardiac specific gene manipulation⁷. However, this method requires a relatively high amount of vector necessary for efficient transduction and gene expression, and may result in significant transduction of nontarget organs such as the muscle and liver⁷. Local virus injection is achieved by intramyocardial injection or intracoronary delivery⁷. Intracoronary delivery leads to a more even distribution of virus within the heart compared to intramyocardial injection. However, the disadvantages of this technique are the rapid wash out of viral vectors to the systemic circulation and transduction in nontarget organs⁸, and its requirement of devices for pressure measurement during the operation. By contrast, intramyocardial injection enables better virus retention in the myocardium as well as site specific delivery, but it fails to evenly distribute viral vector⁷. For small animals, intracoronary delivery is technically difficult to perform, while systemic AAV9 injection and intramyocardial injection are more commonly practiced^4,5,7. Though systemic injection is easy to perform, conventional intramyocardial injection requires mechanical ventilation and thoracotomy, causes extensive tissue damage, and is time-consuming.

In this report, we described an easy, time-saving, and highly efficient method for intramyocardial injection. Adenovirus encoding luciferase and VDR, or shRNA targeting VDR, was injected to manipulate cardiac gene expression. Once mastered, this method can be used for gene manipulation, as well as injection of cells or other materials in the mouse heart.

Protocol

All animal experiments were carried out according to the National Institutes of Health Guidelines on the Use of Laboratory Animals, and were approved by the Institute's Animal Ethics Committee. Male C57BL/6J mice (aged 8 - 10 weeks) were used for all the experiments. Mice were housed under pathogen-free conditions at 24 °C ± 4 °C, under a 12-h light/dark cycle, with free access to water and food.

1. Preparation of Adenovirus Solution

1. Upon arrival of the purified adenovirus solution, store the solution in a -80 °C freezer.
   NOTE: The adenovirus injection was performed in viable mice. To ensure the sterility of the adenovirus vector, the adenovirus (encoding luciferase, VDR, or shRNA targeting VDR) were prepared and purified commercially^9,10.
2. On the day of operation, take out the purified adenovirus solution (3 x 10¹⁰ plaque forming units [pfu]/mL) from the -80 °C freezer, and thaw adenovirus vector solution on ice.
3. Put on a facemask, sterile gloves, and sterile gown.
4. Prepare a 50-µL Hamilton syringe which has been sterilized the day before the operation.
   NOTE: For sterilization, the Hamilton syringe was wrapped in gauze and placed in a high temperature/high pressure sterilizer. The mode of "Sterilization for the solid" was selected and sterilization was commenced by pressing the "start" button.
5. After complete thawing of the purified adenovirus solution, spray the tube containing adenovirus solution with 75% ethanol, and move the adenovirus solution into a laminar flow sterile hood.
6. In a laminar flow sterile hood, aspirate 50 µL adenovirus solution using the Hamilton syringe without a needle, followed by attachment of a 30 G needle to the Hamilton syringe.
7. Hold the syringe with the 30 G needle upward, and gently push the plunger of the syringe until the needle is filled with adenovirus solution (confirmed by the appearance of the first solution drops from the needle tip).
   NOTE: It takes approximately 45 µL solution to fill the 30 G needle, so now almost no solution is visible in the syringe.
8. Use the above prepared syringe to carefully aspirate another 30 µL adenovirus solution, and place the loosely capped syringe on ice for subsequent use.

2. Anesthesia and Operative Preparation

1. Add 20 mL isoflurane into an isoflurane vaporizer, and connect the isoflurane vaporizer to an oxygen tank.
2. Open the valve and let the oxygen flow from the oxygen tank to the isoflurane vaporizer. Maintain the oxygen flow rate at 2 L/min via an oxygen flow monitor in the isoflurane vaporizer.
3. Induce anesthesia of the mouse with 4% isoflurane in 100% oxygen (2 L/min) for 2 min in a plastic cage connected to the isoflurane vaporizer.
4. Take out the anesthetized mouse from the plastic cage, and secure it on a plastic platform in the prone position in a laminar flow sterile hood, and maintain anesthesia with 2% isoflurane in 100% oxygen (2 L/min) via a nose cone.
5. Confirm adequate anesthesia by the absence of toe pinch response.
6. Apply sterile ophthalmic cream to each eye to protect the corneas from drying.
7. Shave the chest and the upper abdomen. Apply commercially available depilatory cream to the shaved site for 1 min. Remove the depilatory cream and remaining fur with wet gauzes.
8. Sterilize the surgical site (left lower part of the chest) with 3 scrubs of iodine-chlorhexidine based antiseptic (e.g. entoiodine). Cover the surgical site with a sterile drape.

3. Intramyocardial Injection of Adenovirus in Mouse Heart

1. Take off the gloves and put on a new pair of sterile gloves.
2. Sterilize forceps, a micro-mosquito hemostat, a pair of surgical scissors, and a needle holder on the day before operation in a high temperature/high pressure sterilizer (see step 1.4 note).
3. Make a 0.5-cm skin incision along the line connecting the xiphoid and axilla. Bluntly dissect the pectoral major and pectoral minor muscles with forceps and a micro-mosquito hemostat.
4. Expose the intercostal spaces by retracting the pectoral major and pectoral minor muscles. Pierce through and open the fourth intercostal space (or the widest intercostal space by observation) with a micro-mosquito hemostat.
5. Push the heart toward the incision to externalize the heart with the index finger of the non-dominant hand by gently pressing against the right side of the chest wall.
6. Gently secure the externalized heart with the index finger and thumb of the non-dominant hand.
7. Inject a total of 30 µL adenovirus solution into the myocardium of the left ventricle in three sites (ventral, dorsal, and lateral wall of the left ventricle) via the Hamilton syringe filled with adenovirus (Figure 1C) with the dominant hand.
8. After completion of injection, immediately place the heart back into the intrathoracic space.
9. Manually evacuate the air in the intrathoracic space by gently pressing the chest wall toward the skin incision site.
   Note: Successful air evacuation can be evidenced by flapping of the pectoral major and pectoral minor muscles caused by the expelled air.
10. Close the skin by horizontal mattress suture with a 5-0 silk suture.
    Note: The pectoral major and pectoral minor muscles should not be sutured, because they are only bluntly dissected and their anatomical structures are intact throughout the operation.

4. Postoperative Management

1. Administer buprenorphine (3 mg/kg) twice daily via subcutaneous injection to reduce post-operative pain for the first 48 h after operation¹¹.
2. After operation, immediately maintain the mice on a heat pad (37 °C) until fully recovered. Place the mouse back to the cage after it fully recovers.
3. Sterilize the used Hamilton syringe and 30 G syringe needle in a high temperature/high pressure sterilizer (see step 1.4 note). Collect the sterilized 30 G syringe needle in a sharps container.

5. In Vivo Imaging for Measuring Cardiac Luciferase Expression

1. On day 5 after adenovirus injection, prepare a fresh stock solution of luciferin at 15 mg/mL in Dulbecco's phosphate buffered saline (DPBS). Filter the solution through a 0.2 µm filter.
2. Intra-peritoneally inject the awake mice with the luciferin solution at 150 mg/kg body weight.
3. Turn on the imaging system.
4. After automatic self-test of the imaging system, select the imaging mode as "Luminescent," and make the following settings: Exposure: Auto; Binning: 8; FStop: 1; Excitation: Block; Emission: Open.
5. At 10 min after luciferin injection, anesthetize the mice by chloral hydrate injection (300 mg/kg body weight). Confirm adequate anesthesia by the absence of toe pinch response.
6. Secure the anesthetized mice on a heated imaging stage in the prone position, with the chest directed towards the camera.
7. Collect images (1 image for each mouse) and quantify the intensity of signals by drawing identical circular measurement regions of interest (ROI) around the chest.
8. After the collection of images, sacrifice the mice and collect the tissues as mentioned in the following section.

6. Harvesting Tissues

1. At different time points after virus injection (Figure 1B), anesthetize the mice with 4% isoflurane, and maintain anesthesia with 2% isoflurane via a nose cone, and secure it on a plastic platform in the prone position.
2. Make a midline ventral incision in the anterior neck. Expose the right common carotid artery by retracting the omohyoid and sternocleidomastoid muscles.
3. Sacrifice the mice by transecting the right common carotid artery and draining the blood.
4. Make a midline ventral incision in the abdomen. Cut the ribs from both sides of the rib cage along the midclavicular line, and transect the diaphragm.
5. Expose the heart by lifting the xiphoid. Find the ascending aorta and gently remove the perivascular fat tissue.
6. Cannulate the aorta and retrogradely perfuse the heart with a 30 G needle attached to a 1 mL syringe filled with 0.5 mL of 4 °C phosphate buffer solution (PBS).
7. After perfusion, excise the heart, and divide it into the left and right ventricles. Excise the liver, lung, and spleen.
8. After two washes in cold PBS (4 °C), store all the collected tissues separately in cryogenic vials in liquid nitrogen.

7. Determination of Protein Expression

1. Prepare homogenization buffer by adding protease inhibitor cocktail into commercially available lysis buffer at a ratio of 1:100. Calculate the total volume based on the number of samples to be processed. Keep the prepared homogenization buffer at 4 °C for subsequent use.
2. Take out the tissues from the liquid nitrogen tank. Weigh the tissue on high-precision scales (approximately 60 mg for each piece of tissue).
3. Transfer the tissue to a new 1.5-mL microcentrifuge tube. Immediately add 200 µL homogenization buffer and precooled 1.5-mm steel balls (4 °C) into the microcentrifuge tube.
4. Secure the microcentrifuge tubes in precooled (4 °C) metal holders in an automatic tissue grinding machine, and commence homogenization by starting the machine with the following settings: Frequency: 70 Hz; time: 120 s.
5. After homogenization, centrifuge the homogenate (16,000 × g, 4 °C), and carefully transfer the supernatant to a new 1.5-mL tube with a 100 µL pipette.
6. Add loading buffer solution (5x) to the protein supernatant at a ratio of 1:4, and denature the protein at 100 °C for 5 min.
7. The protein expression levels in the heart and other organ tissues are further monitored by Western blot analysis (representative results are shown in Figure 2C and Figure 3) according to the protocol previously described¹².

Results

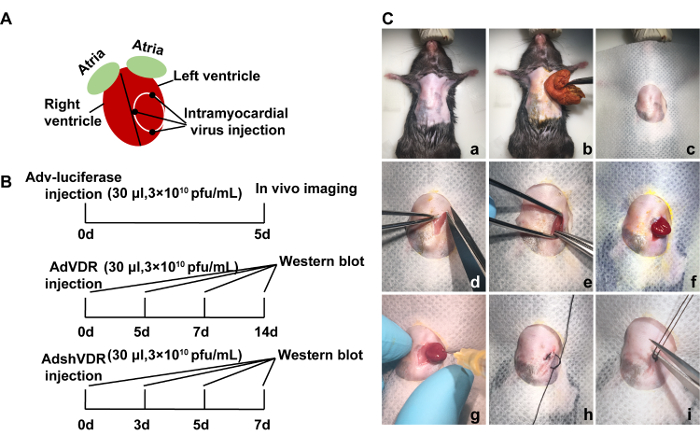

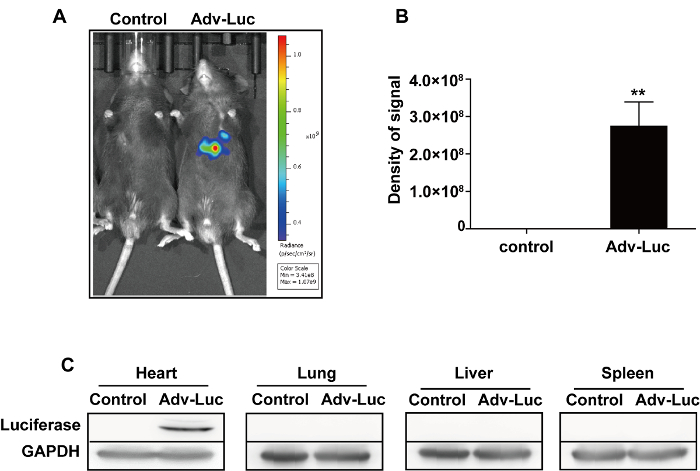

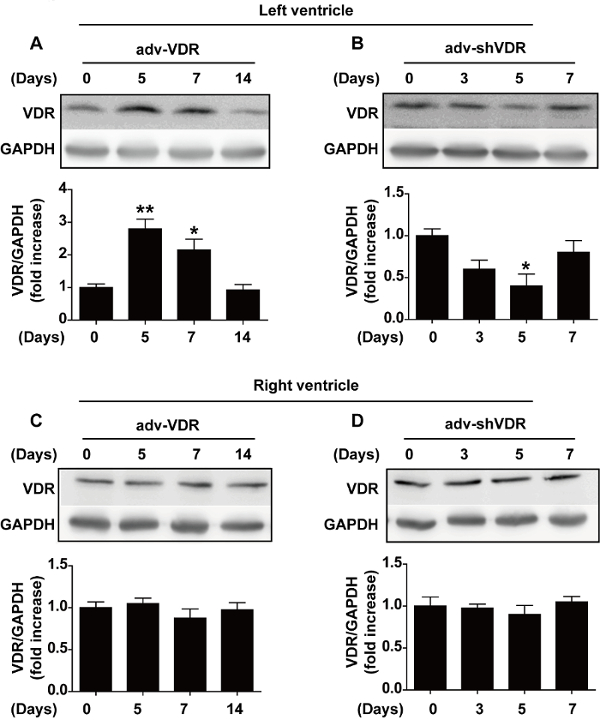

The experiment protocol and some of the key steps for the reported method are shown in Figure 1. At 5 days after intramyocardial injection of adenovirus encoding luciferase (Adv-luc), in vivo imaging in adv-luc injected mice indicated robust overexpression of luciferase specifically in the heart (Figure 2A, B), which was confirmed by Western blot analysis (Figure 2C), sugges...

Discussion

The current report demonstrates a modified technique for intramyocardial injection of viral vectors for cardiac gene manipulation, which was modified from a method for myocardial infarction induction by Gao et al.¹³ Currently, in vivo characterization of specific gene functions most often involve the generation of knockout or transgenic mice^3,14,15,16

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Equipments
Laminar flow sterile hood	Fengshi Animal Experimental  Equipment Techonology Co., Ltd. (Soochow, China)	FS-CJ-2F
Centrifuge	Thermo Scientific (Waltham, USA)	75005282
Tissue grinding machine	Scientz Biotechnology Co., Ltd. (Ningbo, China)	Scientz-48
High temperature/high pressure sterilizer	Hirayama (Saitama, Japan)	HVE-50
Isoflurane vaporizer	Matrix (Orchard Park, USA)	VIP3000
IVIS  Lumina III imaging system	PerkinElmer (Waltham, USA)	CLS136334
Precision balance	Sartorius (Göttingen, Germany)	28091873
Instruments
Eppendorf pipette (100 µL)	Eppendorf (Westbury, USA)	4920000059
Eppendorf pipette (10 µL)	Eppendorf (Westbury, USA)	4920000113
Forceps	Shanghai Medical Instruments (Group) Ltd., Corp.	JD4020	Curved tip
Hamilton syringe	Hamilton (Nevada, USA)	80501	Volume 50 μL
Micro-mosquito hemostat	F.S.T (Foster City, USA)	13011-12	Curved, tip width 1.3mm
Needle holder	Shanghai Medical Instruments (Group) Ltd., Corp. (Shanghai, China)	J32110
Surgical scissors	F.S.T (Foster City, USA)	14002-12
1-mL Syringe	WeiGao Group Medical Polymer Co.,Ltd. (ShangDong, China)
Materials and reagents
Anti-GAPDH antibody	CST (Danvers,  USA)	#2118
Anti-Luciferase antibody	Abcam (Cambridge, UK)	ab187340
Anti-rabbit IgG	CST (Danvers,  USA)	#7074
Anti-VDR antibody	Abcam (Cambridge, UK)	ab109234
Buprenorphine	Thermo Scientific (Waltham, USA)	PA175056
Chloralic hydras	LingFeng Chemical (ShangHai, China)
Cryogenic Vials	Thermo Scientific (Waltham, USA)	375418	1.8 mL
Depilatory cream	Veet (Shanghai, China)
Dulbecco's phosphate buffered saline	Gibco (Grand Island,  USA)	14040133
Entoiodine	LiKang (Shanghai, China)	310132
EP tube	Sarstedt (Newton, USA)	PCR001
Filter	Millipore (Bedford, USA)		Pore size 0.2 µm
Isoflurane	Yipin Pharmaceutical Company (Hebei, China)
Luciferin	Promega (Madison, USA)	P1041
Lysis buffer for western  blot	Beyotime (Shanghai, China)	P0013J	Without inhibitors
Ophthalmic cream	Apex Laboratories ( Melbourne, Australia))
PBS	Gibco (Grand Island,  USA)	10010023
Protease inhibitor cocktail	Thermo Scientific (Waltham, USA)	78438
5-0 silk suture	Shanghai Medical Instruments (Group) Ltd., Corp. (Shanghai, China)
Steel ball	Scientz Biotechnology Co., Ltd. (Ningbo, China)		Width 1.5 mm
Syringe needle	Kindly Medical Devices Co., Ltd. (Zhejiang, China)		30 gauge
Warm mat	Warmtact Electrical Heating Technology Co., Ltd. (Guangdong, China )	NF-GNCW
