High-throughput DNA Extraction and Genotyping of 3dpf Zebrafish Larvae by Fin Clipping

Summary

Zebrafish have been used as reliable genetic model organisms in biomedical research, especially with the advent of gene-editing technologies. When larval phenotypes are expected, DNA extraction and genotype identification can be challenging. Here, we describe an efficient genotyping procedure for zebrafish larvae, by tail clipping, as early as 72-h post-fertilization.

Abstract

Zebrafish (Danio rerio) possess orthologues for 84% of the genes known to be associated with human diseases. In addition, these animals have a short generation time, are easy to handle, display a high reproductive rate, low cost, and are easily amenable to genetic manipulations by microinjection of DNA in embryos. Recent advances in gene editing tools are enabling precise introduction of mutations and transgenes in zebrafish. Disease modeling in zebrafish often leads to larval phenotypes and early death which can be challenging to interpret if genotypes are unknown. This early identification of genotypes is also needed in experiments requiring sample pooling, such as in gene expression or mass spectrometry studies. However, extensive genotypic screening is limited by traditional methods, which in most labs are performed only on adult zebrafish or in postmortem larvae. We addressed this problem by adapting a method for the isolation of PCR-ready genomic DNA from live zebrafish larvae that can be achieved as early as 72 h post-fertilization (hpf). This time and cost-effective technique, improved from a previously published genotyping protocol, allows the identification of genotypes from microscopic fin biopsies. The fins quickly regenerate as the larvae develop. Researchers are then able to select and raise the desired genotypes to adulthood by utilizing this high-throughput PCR-based genotyping procedure.

Introduction

The zebrafish (Danio rerio) is a vertebrate organism widely used as a model for disease investigation as well as for preclinical testing of therapeutic hypotheses^1,2,3. These animals have a short generation time, are easy to handle, display a high reproductive rate, low cost, and are easily amenable to genetic manipulations by microinjection of DNA in embryos⁴. Through the increasing development of novel transgenic and gene editing technologies such as Zinc-Finger nucleases (ZFN)⁵, TAL-like Effector Nucleases (TALENs)^6,7, and the Clustered Regularly Interspaced Short Palindromic Repeats (CRISPR)/CRISPR-associated 9 (Cas9) system⁸, the zebrafish is poised to substantially improve the understanding of several pathologic conditions. These technologies have been used to create targeted knockouts in both somatic and germline cells in zebrafish, efficiently engendering genetically modified animals⁸. Recent examples in the literature include the successful development of genetic models of epilepsy and metabolic disorders in zebrafish^3,9,10,11,12.

With the progress made in zebrafish genome editing, rapid and reliable genotyping has become an undeniable rate-limiting step. Identification of specific DNA mutations adjacent to the predicted genome-editing target site is an essential stage of the protocol. Traditionally, genotyping techniques by fin clipping are usually only performed in juvenile or adult zebrafish. However, the time spent raising zebrafish to adulthood (>2 months) considerably delays advancements in research. In many cases, adulthood cannot be achieved due to the knockout of essential genes (e.g., in disease modeling) or gain-of-function mutations leading to detrimental phenotypic effects. In addition, several assays require pooling of larvae, such as in RNA or metabolite extraction, and thus involve prior identification of the genotypes, which can be challenging when only post hoc genotyping techniques are available. These aforementioned examples highlight the importance of larval genotyping techniques which are at the same time precise and enable full recovery and normal development of the larvae. Early stage zebrafish genotyping does not currently appear to be widely used; this is reflected by recent publications of disease models in which larval genotypes are identified via post-mortem genotyping rather than genotyping prior to the execution of the experiment^12,13,14. In this paper, a larval fin clip strategy is presented aiming to improve previously established genotyping procedures.

In the past, strategies employing proteinase K digestion to genotype live zebrafish larvae have led to variable polymerase chain reaction (PCR) efficiency¹⁵. Although a more recently published microscopic tail biopsy technique provided more promising results¹⁶, we and other groups were not able to reproduce the high efficiency and DNA recovery reported by the authors. A major setback of the protocol described by Wilkinson et al.¹⁶ could be the transfer of the tail tissue to the PCR tube. Due to its microscopic size, it is hard to ensure that the fin was properly collected and dispensed by pipetting. To address this barrier, we have developed an improved protocol for genotyping large numbers of live zebrafish larvae with nearly 100% efficiency⁹. Using a microscalpel, the tip of the fin tail is removed and placed onto a piece of filter paper. The piece of filter paper containing the tissue can be readily visualized and correctly placed into a PCR tube. Genomic DNA extraction is then performed, followed by PCR amplification of the region of interest to genotype the specimen. The advantages of this method include a high PCR efficiency, a low false positive rate and a low mortality rate. Additionally, genotyping of large numbers of embryos is possible using this protocol. The protocol described herein allows fin-clipping of hundreds of larvae within 2 - 3 h using this approach and correct identification of genotyped fish and tail regeneration within two days.

Protocol

Procedures involving animal subjects have been approved and are in accordance with animal care guidelines provided by the Canadian Council on Animal Care and the University of Ottawa animal care committees.

1. Preparation

1. Prepare the dissection surface by taping a 9 cm Petri dish lid with autoclave tape across its interior surface. Position it under a stereo-microscope.
2. Place 3 - 5 days post-fertilization (dpf) zebrafish larvae in a Petri dish and anesthetize in ˜1.5 mM Tricaine in 1x E3 embryo media (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl₂, 0.33 mM MgSO₄, pH 7.2).
3. Cut off the end of a P1000 pipette tip with a pair of scissors or a razor blade to a diameter of 2 mm to accommodate a 3 dpf larva with minimal stress.

2. Fin Clipping of Zebrafish Larvae

1. Pick up an anesthetized larva using the modified P1000 micropipette and place the zebrafish larva onto the positioned autoclave tape on the Petri dish lid.
2. Remove excess Tricaine solution surrounding the larva using a micropipette. The area should be as dry as possible to successfully section and pick up the fin but still wet to ensure survival.
3. Using a micro scalpel, section the caudal fin under a stereo-microscope as indicated in Figure 1, as described in Wilkinson et al¹⁶. During the incision, apply a steady downward pressure within the pigment gap site of the caudal fin, distal to the limit of the blood circulation (Figure 1A). Apply gentle pressure to avoid damaging the notochord.

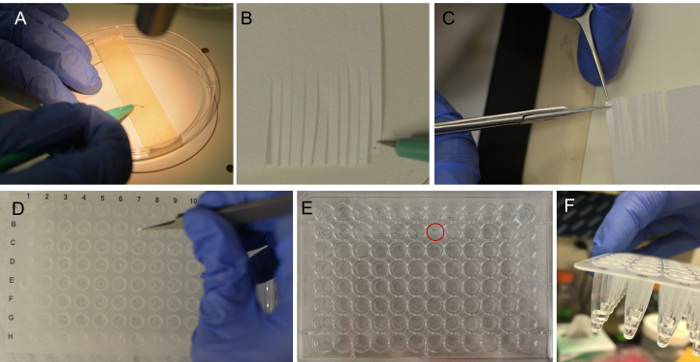

4. Visualize the sectioned fin under the microscope and position the piece on top of the tip of the microscalpel blade (Figure 2A). Place the microscalpel containing the fin onto the surface of a small piece of filter paper.
   NOTE: Due to the presence of melanocytes in the transected tissue, this step allows visualization of the fin as a small black spot (Figure 2B).
5. Using scissors and tweezers (Figure 2C), transfer the filter paper containing the fin to a 96-well PCR plate, containing 25 μL of 50 mM NaOH solution per well (Figure 2D).
6. Prepare a flat-bottom 96-well plate, numbering the well according to the label of the PCR plate. Using the modified P1000 pipette filled with 200 µL of fresh 1x E3 embryo media, carefully collect the zebrafish larva using gentle pressure. Dispense the larva in the 96-well tissue culture plate, in the same well number as the PCR plate (Figure 2E).
7. Make sure that the filter paper is well submerged in the solution (Figure 2F). Clean the blade of the microscapel and tweezers between each cut to prevent cross-contamination by dipping it into 70% EtOH solution. Wipe the blade with clean paper tissue/wipe.
8. Repeat steps 2.1 - 2.7 until all embryos have been clipped.
9. Store the larvae in the 96-well plate at 28 °C until the genotypes have been identified.
   NOTE: The embryo media does not need to be changed, since the protocol can be easily completed in less than 2 days. If more time is needed, a media change is recommended.

3. Genomic DNA Extraction

1. Seal the 96-well PCR plate and centrifuge the samples at 1,000 x g for 1 min to make sure all the filter papers are submerged within the NaOH solution.
2. For tissue lysis, heat the samples in a thermocycler at 95 °C for 5 min followed by cooling to 4 °C for 10 min.
3. Add 6 μL of 500 mM Tris-HCl, pH 8.0 to each sample. Vortex.
4. Briefly centrifuge the plate at 1,500 x g, for 5 min at room temperature.
5. Use 1.5 μL of the DNA supernatant per PCR reaction.
6. Prepare a PCR to genotype the larvae, as shown in Table 1-2.
   NOTE: This protocol was tested for two applications: multiplex PCR reactions revealing the genotype using agarose gels⁹, and heteroduplex melting assay (HMA) revealing the genotypes using polyacrylamide gel electrophoresis (PAGE)¹⁷.

4. Alternative Genomic Extraction Using a Chelating Resin

1. Complete step 2.5 by adding filter paper with the clipped fin to a 96-well PCR plate, containing 30 μL of 5% chelating resin (styrene-divinylbenzene copolymer containing paired iminodiacetate ions).
   NOTE: This type of resin is commonly used for tissue lysis and preparation of PCR-ready DNA in a fast and efficient manner¹⁸.
2. Follow steps 2.6 - 2.8 as indicated.
3. Seal the 96-well PCR plate and briefly centrifuge the samples to make sure all filter paper is submerged within the chelating resin.
4. For tissue lysis, heat the samples in a thermocycler at 95 °C for 15 min followed by cooling to 4 °C for 10 min.
   NOTE: This step allows lysis and subsequent binding of the polar resin beads to cellular components while DNA and RNA remain in solution.
5. Briefly centrifuge the samples to pellet the resin beads and obtain the DNA in the suspension.
6. Follow steps 3.5 - 3.6 to complete genotyping procedure.

5. Application 1: Multiplex PCR Followed by Agarose Gel Analysis

1. Following Table 1, set up a multiplex PCR reaction to enable the discrimination between homozygous mutants, heterozygotes, and WT larvae. Use a 96-well thermal cycler to perform the PCR reactions using the cycling conditions described in Table 3.
   NOTE: The PCR reactions can also be performed in any other conventional PCR thermal cycler. This example describes the PCR strategy used by Pena, et al.⁹ to identify aldh7a1 WT and 5-bp insertion mutant alleles in the same multiplex reaction.
2. Prepare a 1% agarose gel in sodium borate buffer, stained with 1x GelRed.
   NOTE: 20x sodium borate buffer stock is made of 40 mL of 10 M NaOH, 1800 mL of ddH₂O, pH adjusted to 8.5 with 76 g of boric acid and then completed to 2 L final volume using ddH₂O.
3. Run the gel in 1x sodium borate buffer for 15 min at 250 V. To facilitate the process, if possible, use a gel system that is compatible with multichannel pipets to enable higher throughput capabilities by reducing the time to load samples.
4. Image the gel under ultraviolet (UV) light to allow discrimination of the different genotypes.

6. Application 2: Heteroduplex Melting Assay

1. Prepare PAGE 12% gels using the 1.5 mm spacer plate and the 15-samples combs. Prepare two PAGE gels using 12.21 mL of ddH₂O, 2.52 mL of 10x Tris/Borate/EDTA (TBE), 10 mL of 30% acrylamide, 250 μL of 10% ammonium persulfate (APS) and 20 μL of tetramethylethylenediamine (TEMED). Use 1x TBE buffer (0.089 M Tris-HCl, 0.089 M boric acid and 0.002 M ethylenediaminetetraacetic acid (EDTA)) as running buffer.
2. Heat the PCR products at 94 °C for 5 min.
3. Cool the tubes on ice or in the thermocycler for 10 min at 4 °C.
4. Load 10 μL per PCR sample and 8 μL of molecular weight marker.
5. Run the PAGE at 150 V in 1x TBE using a vertical electrophoresis system for 1 h or until the molecular weight marker almost reaches the foot line of the glass plate.
6. Image the gel under UV light to allow discrimination of the different genotypes.

Results

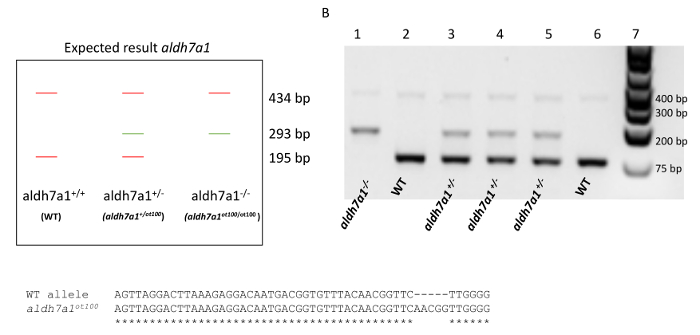

The efficiency of the protocoll was demonstrated by genotyping the offspring of an heterozygous cross (aldh7a1^+/ot100, here shown as aldh7a1^+/-) (Figure 3A-C)⁹. The aldh7a1^ot100 mutant allele has a 5-base pair (bp) insertion in the first coding exon of the zebrafish aldh7a1 gene that leads to frameshift and loss-of-function due to an ...

Discussion

Gene editing tools have been employed to precisely introduce mutations and transgenes in zebrafish over the past years^5,6,7,8. When performing disease modeling in zebrafish, early larval or juvenile phenotypes are often observed^9,12,13,14. The protocol presented here ...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Petri dish	Corning	430167
Microscalpel	World Precision Instruments	500249
Stereomicroscope	Nikon	SMZ1500
Tricaine/Ethyl 3-aminobenzoate methanesulfonate	Sigma-Aldrich	E10521
96-well Tissue-culture plate	Costar	3595
96-well PCR plate	Fisher	14230232
NaOH	Fisher	S25548A
Tris base	Sigma-Aldrich	T1503
NaCl	Fisher	BP358-10
KCl	Sigma-Aldrich	P3911
MgSO4	Sigma-Aldrich	230391
5% Chelex 100 sodium form	Sigma-Aldrich	C7901
GelRed 1x	Biotium	41003
Boric Acid	Sigma-Aldrich	B6768
Sub-Cell Model 192 system	Bio-Rad	1704508
30 % Acrylamide/Bis Solution, 37.5: 1	Bio-Rad	1610158
GoTaq Green Master Mix, 2X	Promega	M7123
paper wipes (Kimwipes® disposable wipers)	Sigma-Aldrich	Z188956
1kb-plus molecylar weight marker	Thermo Scientific	SM1343
Nuclease free water	Sigma-Aldrich	W4502
Sub-Cell Model 192 system (high-throughput agarose gel system)	Bio-Rad	1704508
vertical gel electrophoresis system Mini-PROTEAN Tetra Cell	Bio-Rad	1658004
