An Ex Vivo Choroid Sprouting Assay of Ocular Microvascular Angiogenesis

doi: 10.3791/61677 Published: August 6, 2020
Yohei Tomita1, Zhuo Shao2, Bertan Cakir1, Yumi Kotoda1, Zhongjie Fu1,3, Lois E.H. Smith1

Abstract

Pathological choroidal angiogenesis, a salient feature of age-related macular degeneration, leads to vision impairment and blindness. Endothelial cell (EC) proliferation assays using human retinal microvascular endothelial cells (HRMECs) or isolated primary retinal ECs are widely used in vitro models to study retinal angiogenesis. However, isolating pure murine retinal endothelial cells is technically challenging and retinal ECs may have different proliferation responses than choroidal endothelial cells and different cell/cell interactions. A highly reproducible ex vivo choroidal sprouting assay as a model of choroidal microvascular proliferation was developed. This model includes the interaction between choroid vasculature (EC, macrophages, pericytes) and retinal pigment epithelium (RPE). Mouse RPE/choroid/scleral explants are isolated and incubated in growth-factor-reduced basal membrane extract (BME) (day 0). Medium is changed every other day and choroid sprouting is quantified at day 6. The images of individual choroid explant are taken with an inverted phase microscope and the sprouting area is quantified using a semi-automated macro plug-in to the ImageJ software developed in this lab. This reproducible ex vivo choroidal sprouting assay can be used to assess compounds for potential treatment and for microvascular disease research to assess pathways involved in choroidal micro vessel proliferation using wild type and genetically modified mouse tissue.

Introduction

Choroidal angiogenesis dysregulation is associated with neovascular age-related macular degeneration (AMD)1. The choroid is a microvascular bed present underneath the retinal pigment epithelium (RPE). It has been shown that reduced blood flow in the choroid is associated with progression of AMD2. The intricate relationship between vascular endothelium, RPE, macrophages, pericytes and other cells is responsible for the homeostasis of the tissue3,4,5. Therefore, a reproducible assay modeling choroidal microenvironment is critical for the study of neovascular AMD.

Ex vivo angiogenesis assays and in vitro endothelial cell cultures can complement studies of microvascular behavior in vivo, for testing new drugs and for studies of pathogenesis. Endothelial cells such as human retinal microvascular endothelial cells (HRMECs), Human Umbilical Vein Endothelial Cells (HUVEC), isolated primary animal brain or retinal ECs are often used in in vitro studies for ocular angiogenesis research6,7,8. HRMECs in particular have been widely used as a model of in vitro choroidal neovascularization (CNV)9 by assessing endothelial proliferation, migration, tubular formation, and vascular leakage to evaluate interventions6,10. However, ECs in culture are limited as a model of CNV because of the lack of interactions with other cell types found in the choroid and because most EC used in these assays do not originate from choroid. Mouse choroidal ECs are difficult to isolate and maintain in culture.

The aortic ring assay is widely used as a model of macro vascular proliferation. Vascular sprouts from aortic explants include ECs, pericytes and macrophages11. The aortic ring assay models large vessel angiogenesis well12,13,14. However, it has limitations as a model of choroidal neovascularization as aortic rings are a macrovascular tissue lacking the characteristic choroidal microvascular environment, and sprouts from large vessels may differ from sprouts from capillary networks involved in microvascular pathology. Recently a group published an ex-vivo retinal assay15,16. Although, it is suitable for retinal neovascular disease, it is not as appropriate for choroidal neovascularization as seen in AMD.

The choroidal sprouting assay using mouse RPE, choroid, and scleral explanted tissue was developed to better model CNV. The tissue can easily be isolated from mouse (or other species) eyes17. This assay allows reproducible evaluation of pro- and anti-angiogenic potential of pharmacologic compounds and evaluation of the role of specific pathways in choroidal neovascularization using tissue from genetically modified mice and controls18. This choroidal sprouting assay has been referenced in many subsequent publications9,10,18,19,20. Here, the method involved in the use of this assay are demonstrated.

Subscription Required. Please recommend JoVE to your librarian.

Protocol

All animal experiments described were approved by the Institutional Animal Care and Use Committee at Boston Children’s Hospital (ARCH protocol number 19-04-3913R).

1. Preparation

  1. Add 5 mL of Penicillin/Streptomycin (10000 U/mL) and 5 mL and 10 mL of commercially available supplements to 500 mL of complete classic medium with serum. Aliquot 50 mL of the medium initially.
    NOTE: Do not return any medium back to the stock to avoid contamination.
  2. Put an aliquot of complete classic medium on ice.
  3. Use 70% ethanol to clean the dissecting microscope, forceps, and scissors.
  4. Prepare two cell culture dishes (10 cm), one on the dissection microscope, one on ice; put 10 mL of complete classic medium in each dish.

2. Experimental steps (Figure 1)

  1. Sacrifice C57BL/6J mice around postnatal (P) 20 using 75-100 mg/kg ketamine and 7.5 -10 mg/kg xylazine injected intraperitoneally. Keep the eyes in complete classic medium on ice before dissection.
  2. Remove the connective tissue (muscle and fatty tissue) and optic nerve on the eye.
  3. Use a micro-scissor to circumferentially cut 0.5 mm posterior to the corneal limbus. Remove the cornea/iris complex, vitreous and the lens.
  4. Make a 1 mm incision perpendicular to the cut edge towards the optic nerve and cut a circumferential band of 1 mm width. Separate the central and peripheral regions of the complex. Use forceps to peel off the retina from RPE/choroid/sclera complex.
  5. Keep the peripheral choroid band in complete classic medium on ice; isolate the other eye and repeat the process to cut a second band.
  6. Cut the circular band into 6 ~equal square pieces (~1 mm x 1 mm).
    NOTE: Never touch any edge.
  7. Thaw the basal membrane extract (BME) per manufacture’s instruction. Add 30 µL/well of BME into the center of each well of a 24 well tissue culture plate. Make sure the droplet of BME forms a convex dome at the bottom of the plate without touching the edges.
    NOTE: Thaw the BME overnight in a refrigerator. BME should be on the ice any time after thawing.
  8. Place the tissue in the middle of the BME.
    NOTE: Do not flatten the choroid explant; generally, let the tissue expand within the BME. The orientation of the tissue (scleral side up or down) does not impact the experimental outcome.
  9. Incubate the plate at 37 °C for 10 min to let the gel solidify.
  10. Add 500 µL of the complete classic medium/well.
  11. Change the classic medium every other day (500 µL). Choroid sprouting can be observed after 3 days with a microscope.
    NOTE: For growth factor treatment, starve the tissue for 4 h. Dilute a trial compound in growth factor-reduced medium (1:200 boost instead of 1:50).

3. SWIFT-Choroid computerized quantification method17 (Figure 2)

NOTE: A computerized method to measure the area covered by growing vessels was used. A macro plugin to ImageJ software is needed prior to quantification (see Supplemental Information for further detail).

  1. Open the choroid sprouting image with ImageJ and check “Image | Type| 8-bit” with gray scale.
  2. Go to “Image | Adjust | Brightness/Contrast (Ctrl/shift/C)” and optimize the contrast.
  3. Use the magic wand function to outline and remove from the image the choroid tissue which are present in the center of the sprouts (using shortcut key “F1”) (Figure 2A,B).
    NOTE: Set the tolerance rate of the magic wand to 20-30%.
  4. Remove the background of the image with the free selection tools (Figure 2C). Go to “Image | Adjust | Threshold (Ctrl/shift/T)”. Use the threshold function to define the microvascular sprouts against the background and periphery (Figure 2D).
  5. Click “F2” and a summary will appear. Save an image of the selected area by clicking “Save”. Save in the same folder as the original image for future reference.
  6. After a group of samples is measured, copy the recorded for data analysis.
    NOTE: It is also possible to measure the area (µm²) by “Analyze | Set Scale” using images with scale bars.

Subscription Required. Please recommend JoVE to your librarian.

Representative Results

Comparison of choroid sprouting growth per day

We dissected the choroid with sclera, embedded in BME and cultured them for 6 days (Figure 1). The choroid sprouting in C57BL/6J mice from day 3 to day 6 were examined with a microscope and quantified with SWIFT-Choroid a semi-automated quantification method in ImageJ. In a representative case, the choroidal sprouting area (the vessels extending from the explant, excluding the explant itself) was 0.38 mm2 at Day 3 (Figure 3A), 1.47 mm2 at Day 4 (Figure 3B), 5.62 mm2 at Day 5 (Figure 3C), and 10.09 mm2 at Day 6 (Figure 3D).

Free fatty acid receptor (FFAR)4 suppression exacerbates choroidal neovascularization ex vivo.

The effects of loss of FFAR4 (also known as G -protein coupled receptor 120) on choroidal vascular sprouting were evaluated using the choroid sprouting assay18. The choroid, RPE, and sclera complex were dissected from Ffar4 knock out (-/-) and Ffar4+/+ mice and cultured as described above. The sprouting area in Ffar4-/- increased choroidal vascular growth compared to Ffar4+/+ at day 6 (p = 0.004) (Figure 4A,B). The treatment of FFAR4 agonist (1 μM) reduced the choroidal sprouting area compared to untreated mice at day 6 (p = 0.03) (Figure 4C,D).

Figure 1

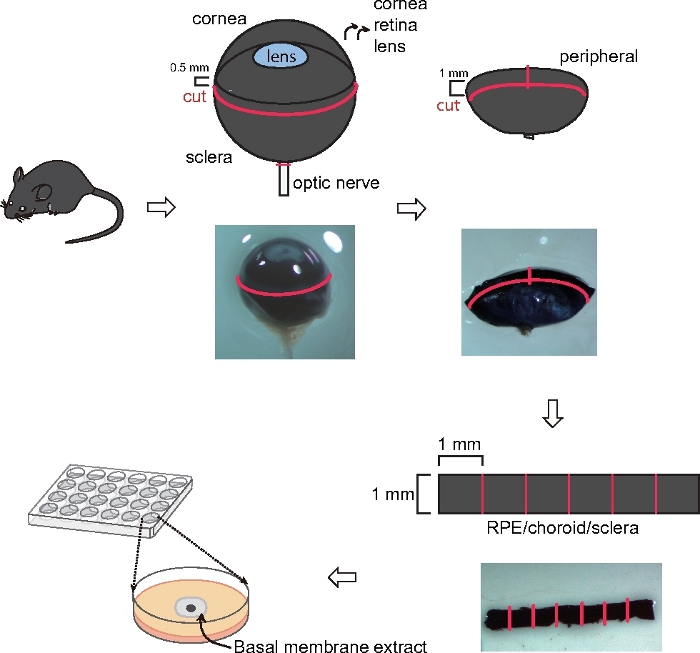

Figure 1: Schematic illustration showing choroid sprouting assay.
Eyes were first enucleated and cut circumferentially about 0.5 mm posterior to the limbus. The cornea, iris, lens and vitreous were removed. Then a 1 mm cut was made from the edge of the eye cup towards the optic nerve. A band was then cut circumferentially about 1.0 mm posterior to the cut edge and the band and the peripheral regions of the complex were separated. The band was cut into approximately 1 mm x 1 mm pieces and embedded in BME. Then using a microscope, the microvascular sprouts from the choroid were visualized. Please click here to view a larger version of this figure.

Figure 2

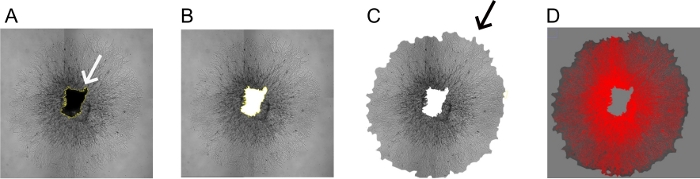

Figure 2: SWIFT-Choroid computerized quantification method.
(A,B) Magic wand function was used to outline the choroid tissue (white arrow) in the center of the sprouts and it was removed digitally (Shortcut key “F1”). (C, D) The background of the image was removed with the free selection tools (black arrow). Microvascular sprouts were then defined by using the threshold function against the background and periphery. Please click here to view a larger version of this figure.

Figure 3

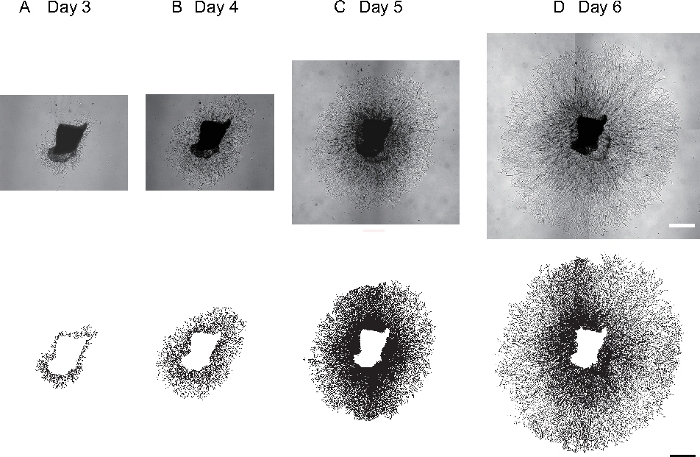

Figure 3: Mouse peripheral choroid sprouting.
(A-D) Representative images of choroid sprouts with a C57BL/6J mouse and demonstrations of SWIFT-Choroid method quantifying the area of the sprouts. The choroidal sprouting area was 0.38 mm2 at Day 3 (A), 1.47 mm2 at Day 4 (B), 5.62 mm2 at Day 5 (C), and 10.09 mm2 at Day 6 (D). Scale bar; 500 µm. Please click here to view a larger version of this figure.

Figure 4

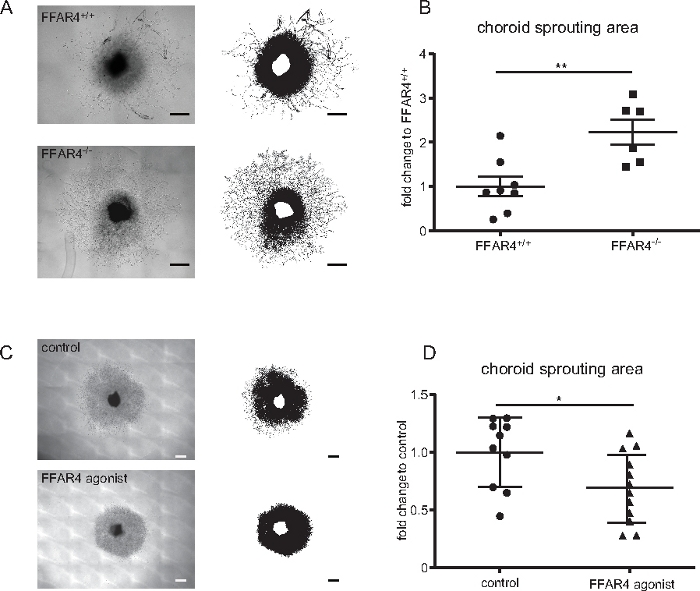

Figure 4: Free fatty acid receptor (FFAR) 4 suppression exacerbate choroidal neovascularization.
(A) Representative images of the sprouting assay with choroid from Free fatty acid receptor (Ffar)4+/+ compared with Ffar4 knock out (-/-) mice: upper image shows the choroid of Ffar4+/+ while lower image shows Ffar4-/- choroid. (B)Ffar4-/- showed increased choroid sprouting compared to Ffar4 +/+ mice (n = 6-8). (C) Representative images of choroid sprouting: upper image demonstrates vehicle treatment (control); lower image demonstrates FFAR4 agonist treatment. (D) FFAR4 agonist suppressed choroidal sprouting compared to control (n = 10–12). Scale bars = 500 μm. The data were analyzed by Student’s t-test and were expressed as mean ± SE. *p < 0.05; **p < 0.01. This figure has been modified from Tomita et al.18. Please click here to view a larger version of this figure.
