Non-Destructive Evaluation of Regional Cell Density Within Tumor Aggregates Following Drug Treatment

Summary

The present protocol develops an image-based technique for rapid, non-destructive, and label-free regional cell density and viability measurement within 3D tumor aggregates. Findings revealed a cell-density gradient, with higher cell densities in core regions than outer layers in developing aggregates and predominantly peripheral cell death in HER2+ aggregates treated with Trastuzumab.

Abstract

Multicellular tumor spheroid (MCTSs) models have demonstrated increasing utility for in vitro study of cancer progression and drug discovery. These relatively simple avascular constructs mimic key aspects of in vivo tumors, such as 3D structure and pathophysiological gradients. MCTSs models can provide insights into cancer cell behavior during spheroid development and in response to drugs; however, their requisite size drastically limits the tools used for non-destructive assessment. Optical Coherence Tomography structural imaging and Imaris 3D analysis software are explored for rapid, non-destructive, and label-free measurement of regional cell density within MCTSs. This approach is utilized to assess MCTSs over a 4-day maturation period and throughout an extended 5-day treatment with Trastuzumab, a clinically relevant anti-HER2 drug. Briefly, AU565 HER2+ breast cancer MCTSs were created via liquid overlay with or without the addition of Matrigel (a basement membrane matrix) to explore aggregates of different morphologies (thicker, disk-like 2.5D aggregates or flat 2D aggregates, respectively). Cell density within the outer region, transitional region, and inner core was characterized in matured MCTSs, revealing a cell-density gradient with higher cell densities in core regions compared to outer layers. The matrix addition redistributed cell density and enhanced this gradient, decreasing outer zone density and increasing cell compaction in the cores. Cell density was quantified following drug treatment (0 h, 24 h, 5 days) within progressively deeper 100 µm zones to assess potential regional differences in drug response. By the final timepoint, nearly all cell death appeared to be constrained to the outer 200 µm of each aggregate, while cells deeper in the aggregate appeared largely unaffected, illustrating regional differences in the drug response, possibly due to limitations in drug penetration. The current protocol provides a unique technique to non-destructively quantify regional cell density within dense cellular tissues and measure it longitudinally.

Introduction

Researchers have largely turned to benchtop 3D culture in vitro systems to study some of the key features of tumor progression. Much of this research has been led by the re-emergence of multicellular tumor spheroids (MCTSs) and more complex organoids^1,2. Although these models are avascular, they provide a powerful tool for recapitulating physiological and pathological processes that occur in vivo^3,4,5. In particular, medium-sized models (300-500 µm diameter) can mimic key tumor features such as 3D structure, pathophysiological gradients, and metastatic signaling due to hypoxia within the core. It is well documented that these models display the characteristic concentric layers seen in vascularized in vivo tumors, namely, an outer layer of proliferative cells, a transitional layer of senescent/quiescent cells, and cells experiencing hypoxia in the core^3,6,7,8,9. Unique insight can be gained from these models by characterizing cell behavior within these layers, during development and in response to the drug. However, the requisite MCTS size, necessary to develop the gradients that make them such powerful in vitro models, drastically limits the tools used for non-destructive assessment. Indeed, one of the biggest challenges with non-destructive analysis of MTCSs is quantifying cell-scale details. Bright-field and phase-contrast microscopy are routinely utilized to assess 3D MCTSs growth and development non-destructively. However, these modalities are limited to 2D projections, lacking the capacity to visualize the crucial 3D structure of these models^10,11,12,13. Information on cytotoxicity and cell proliferation is typically collected through fluorescent imaging (i.e., light-sheet microscopy, confocal microscopy) or ex vivo immunohistological staining^14,15,16. While these approaches provide valuable, high-resolution information on tissue structure, cellular density, and cellular function, they often require sample preparation such as optical clearing, fixing/staining, or embedding that prevents longitudinal analyses.

Optical Coherence Tomography (OCT) is a non-destructive structural imaging modality that has the potential to overcome some of the challenges mentioned above. It boasts cellular resolution and a sufficiently wide field of view (up to 10 mm x 10 mm) capable of visualizing entire multicellular aggregates^17,18,19. Importantly, due to the visible nature of the light used, this technique is completely non-destructive and label-free¹⁷. Also, samples can be imaged in situ without requiring sample preparation, such that samples can be taken straight from the incubator, quickly scanned with OCT (scan duration ~5-10 min), then returned to the incubator, enabling longitudinal characterization. Many studies seeking to use OCT to analyze tumor spheroid behavior have recently emerged. In one of the most exciting demonstrations, Huang et al. used OCT to non-destructively detect necrotic cores within large tumor spheroid models, noting that live and dead cell regions possess discernible differences in optical attenuation, which may be utilized for label-free viability monitoring²⁰. Similarly, Hari et al. conducted refractive index (RI) measurements of human colon cancer (HCT116) spheroids imaged with OCT to study the presence of hypoxia within the samples²¹. Their measurements were not sufficient for direct inferences, though they did observe lower RI in locations that correlated with the site, though not size, of necrotic cores, later identified via confocal microscopy. Abd El-Sadek et al. used OCT to visualize and quantify regional tissue viability of breast cancer tumor models²². They reported two OCT-based methods for visualizing tissue dynamics and showed a moderate correlation between differences in these metrics and microscopy-identified regions of live/dead cells.

Our published work using OCT built upon this prior literature to establish a quantitative, non-destructive approach to measure the 3D morphology and cell count within MCTSs breast cancer models during development^10,23. Using Imaris 3D rendering image analysis software to count the number of cell-sized objects (i.e., spots) imaged within the OCT volume scans, the cell counts were non-destructively measured in MCTSs that were statistically similar to those determined via hemocytometer upon aggregate dissociation. However, due to the structural nature of OCT, cell membranes still present after cell death by necrosis may be erroneously counted as live cells. Furthermore, this characterization was extended to non-destructively track cell viability within individual aggregates subjected to a drug regimen with promising success¹⁰. Importantly, it was noted that similar cell viability was reported from our OCT-Imaris approach with what was benchmarked within these samples upon dissociation. This non-destructive and label-free cell approach enables cells to be counted within 3D constructs and dense aggregates longitudinally without sacrificing the construct/aggregate structure.

The present work reports an improved approach to directly quantify regional cell density within dense aggregates by leveraging the ability of OCT-Imaris to measure both 3D aggregate morphology and cell number. This methodological advancement provides a more detailed picture of cells' spatial distribution and proliferation within the characteristic concentric layers of MCTSs models. Rather than simply calculating an overall average aggregate cell density, such local density measurements can reveal cell density gradients, such as those associated with compaction. This regional assessment is also applied to aggregates treated with a chemotherapeutic to assess regional drug response, as measured by changes in local cell density. This combination of OCT and advanced imaging analysis methods provide quantification of regional cell viability, which may be used to explore drug penetration based on which regions experience decreases in cell density. This is the first report to non-destructively quantify regional cell density and viability in response to the drug within dense cellular tissues and measure it longitudinally. Such characterization of three-dimensional cell density and spatial distribution throughout entire MCTSs may help optimize drug delivery in cancer treatment and improve the understanding of cancer model progression.

Protocol

AU565 (HER2+) and MDA-MB-231 breast cancer cell lines were used for the present study (see Table of Materials).

1. Preparing tumor aggregates

1. Prepare AU565 (HER2+) breast cancer cell growth media using Roswell Park Memorial Institute (RPMI) 1640 basal medium (+) in L-glutamine supplemented with 10% (v/v) fetal bovine serum and 1% penicillin/streptomycin (see Table of Materials).
2. Prepare MDA-MB-231 triple-negative breast cancer cell growth media using Dulbecco's Modified Eagle's Medium (DMEM) supplemented with 10% (v/v) fetal bovine serum (FBS), 100 U/mL of penicillin/streptomycin, and 2 mM of L-glutamine (see Table of Materials).
3. Prepare 70%-90% confluent cell cultures of both cell lines (~3-4 days of preparation) in standard conditions (37 °C, 5% CO₂, 95% relative humidity). Detach cell monolayers from their culture flasks following standard trypsinization method.
   NOTE: Prevent overexposure of cells to the trypsin, affecting their viability.
   1. For AU565 cells, aspirate cell media from the flask using a pipette (or, if available, using a vacuum pump connected via tubing to an autoclaved glass pipette tip) and replace with 2 mL Trypsin-EDTA. Leave the flask for 3 min at room temperature, and then move to the incubator for 4 additional minutes. Afterward, add 6 mL of growth media to the flask to neutralize the trypsin.
   2. For MDA-MB-231 cells, aspirate cell media from the flask in the same manner as performed in step 1.3.1 and replace with 1.5 mL Trypsin-EDTA. After 7 min of incubation, add 8.5 mL of growth media to the flask to neutralize the trypsin.
4. Add 10 µL of the cell suspension to a hemocytometer to determine the number of cells in the suspension²⁴. Resuspend cells in media at the desired concentration of 2.5 × 10⁵ cells/mL.
5. Dispense 50 µL of cell suspension into each well of a round-bottom, non-adherent, 96-well plate. For suspensions prepared without Matrigel (basement membrane matrix, see Table of Materials), add 50 µL of plain growth media to each well.
   1. For suspensions prepared with the basement membrane matrix, remove the matrix vial from -20 °C storage and place it in the refrigerator to thaw overnight. Prepare a container with growth media and refrigerate for 10 min to chill.
   2. Using a frozen pipette tip, add the matrix to chilled media such that the final concentration of this solution is 5%. Add 50 µL of this media to each well, such that the final concentration of matrix in these wells is 2.5%³.
      NOTE: In prior work, the aggregate morphology was assessed for these cell lines^10,25, and found that MDA-MB-231 aggregates form spheroids with the addition of the membrane matrix, while MDA-MB-231 cultures without the matrix and AU565+/- matrix all form disk-shaped aggregates. Quantified sphericity of >0.8 on a scale from 0 (plane) - 1.0 (perfect sphere) was used to identify sufficiently spherical aggregates and thus expected to have the requisite surface-to-volume ratio for in vivo-like behavior^26,27.
6. Centrifuge the plates at 123 x g for 10 min at room temperature immediately following seeding to ensure the collection of a cell pellet at the bottom of each well.
   NOTE: This step must take place as quickly after seeding as possible. The authors observed that too much time in between these steps allows the cells to settle across the bottoms and sides of each well, inhibiting their ability to collect and aggregate at the bottom of the well.
7. Incubate the plates for 4 days, at which point the cell aggregates are considered to be matured.
   NOTE: AU565 aggregates prepared with the basement membrane matrix require an additional 5-day culture period for the drug response study (9 days total, media change on day 4).

2. Administration of Trastuzumab (TZM) to AU565 cell aggregates

1. Prepare 500 µg/mL of TZM solution (see Table of Materials) in AU565 growth media. On Day 4, add 10 µL of this solution to each well, such that the final concentration within each well is 50 µg/mL.
2. Culture aggregates for 5 additional days following the addition of TZM and assess at key time points.
   ​NOTE: For the present study, time points of 0 h (immediately prior to drugging), 24 h, and 120 h post-drug were used to analyze the drug.

3. Optical Coherence Tomography imaging

NOTE: Samples herein were imaged with Optical Coherence Tomography (OCT) during each day of maturation (1-4), and then again on day 5 (24 h post-drug-addition) and day 9 (120 h post-drug-addition) for selected drugged aggregates. A commercial Spectral-Domain Optical Coherence Tomography (SDOCT, see Table of Materials) system for OCT imaging was used for the current study. Although this approach is amenable to almost any OCT system, and the procedure followed will be generally similar between different systems, some of the detailed steps that follow are specific to the present equipment.

1. Utilize an OCT system for structural imaging. Set the A-scan rate to 5.5 kHz for high-resolution image collection. Set the index of refraction to 1.33 for samples in a liquid medium. Set the voxel size to 1.10 x 1.10 x 2.58 µm³.
2. In the Image Parameters window on the right side of the screen, set the field of view (FOV) by inputting X, Y, and Z values (in mm) such that the sample is encompassed within this region of interest.
   NOTE: FOV for these studies was typically set to 1.5 x 1.5 x 0.5 mm³. Ensure that the sample fits within this region by alternating the 'Angle' input between 0 and 90 degrees and performing visual confirmation.
3. Click on 3D Acquisition Mode, and then click on Record to collect the 3D volume scan of the sample.

4. Image analysis

1. Export the OCT file into the software format (Imaris, see Table of Materials).
   1. Open the OCT file in the software development kit. Click on Export, set the file type to .jpg, and export the images into an empty folder.
   2. Open the image processing software (FIJI, see Table of Materials) and import the image sequence from the folder where the exported JPEGs are stored. Use software to stitch the image sequence together, and then save this file as a TIFF image.
2. Create a volume reconstruction following the steps below.
   1. Open Imaris and navigate to the converted TIFF file within the Arena. Go to Edit > Image Properties and input the voxel size (in µm) from the OCT image into the corresponding XYZ boxes. Then, click on OK.
      NOTE: Within the sample object tree on the left-hand side of the screen, deselect the Volume tab to prevent software lag.
   2. Click on Add New Surfaces above the objects tree. In the menu below the tree, click on Skip Automatic Creation and edit manually. Within the Display Adjustment window, manually slide the red and black arrows to enhance the contrast between the sample and the background and improve sample visualization.
   3. Adjust the 'Slice position' to the slice at one edge of the sample, i.e., where the sample signal first appears. Use the escape key to change the mouse from the Navigation mode to the Select mode, and then click on Draw. Manually trace the outline of the region displaying the signal.
   4. Advance the slice position by entering the next position into the input box. This next position must be ≤100 slices further into the sample than the prior one. Manually trace the region displaying the signal.
   5. Repeat Step 4.2.4 through the thickness of the sample until the opposite edge of the sample is reached. Then, click on Create Surface in the left menu to stitch these slices together and complete the volume reconstruction.
   6. Click on Edit, and then click on Mask Selection. This creates a new channel in the Display Adjustment window containing only the isolated sample. Morphologic characteristics of the sample can now be found in the Statistics > Detailed tab.
      NOTE: This approach was followed to determine the sphericities and volumes reported within this current study.
3. Obtain a sample's total cell density following the steps below.
   1. Above the object tree, select Add New Spots. In the Algorithm Settings menu, deselect all boxes. Click on the Blue Arrow to move to the Source Channel screen.
      1. From the drop-down menu that appears, select the masked channel created in step 5.2.8, typically named Channel 2. Input the average cell diameter for the sample in the XY diameter box. Ensure that Background Subtraction is checked.
         NOTE: For this work with AU565 and MDA-MB-231 cells, the diameter was set to 10 µm. This selection is based on cell size (explained in the Discussion section).
   2. Click on the Blue Arrow to move to the Classify Spots screen. In the graph at the bottom of the menu, click and drag the left edge of the yellow threshold to the left edge of the graph, such that all objects are included in the yellow shaded threshold. Then, click on the Green Arrow to complete the spot creation.
   3. Obtain the number of objects identified (i.e., sample cell count) by clicking on Statistics > Overall > Total Number of Spots.
   4. To determine average aggregate cell density, divide the aggregate's cell count (measured in step 4.3.3) by aggregate volume (determined in step 4.2.6).
4. Assess the regional density in concentric layers of spherical aggregates (Figure 1A).
   1. Following morphologic and cell density analysis, assess the regional density. Click on the surface created in step 4.2.5 and navigate to the Surfaces Style/Quality tab. Change selection to Center Point and change pixel width to ≤20 for best visibility. Navigate to Statistics > Detailed > Position and record the location of the center spot.
   2. Select Add New Reference Frame from the menu above the object tree. Check the Visible and Fix boxes next to XY in the menu. Click and drag the center of the reference frame icon such that it is in line with the center spot. Deselect the XY Visible and Fix boxes and select them for XZ.
      1. Once again, click and drag the center of the reference frame icon such that it is in line with the center spot. Lastly, repeat this for the YZ plane, alternating between these three fixed planes until the reference frame perfectly aligns with the center spot. Double click on the reference frame in the object tree and rename it Center or Similar.
   3. Click on the spots created in step 4.3 and navigate to Statistics > Detailed > Position Reference Frame. Click on Position X Reference Frame until it sorts from highest to lowest value. Record the highest value - this indicates the furthest edge of the sample, i.e., sample radius.
      NOTE: Since the samples used here are circular in the XY plane, calculations can be performed along the X or Y axis with similar results. For samples that do not exhibit X-Y symmetry (asymmetric, ellipsoid, irregular geometries, etc.), it is recommended to perform these analyses along multiple axes.
   4. Navigate to Statistics. In the bottom-right corner of the menu, click on Export All Statistics to File and save data into a spreadsheet.
   5. Perform manual calculations to identify concentric layers along the X-axis.
      NOTE: Samples used in this study were approximately 500 µm in diameter; thus, there are two outer 200 µm thick concentric zones and one inner 100 µm thick central zone. It is recommended to maintain zones that are 200 µm thick because the diffusion behaviors are expected to change over this distance^7,28,29,30. In keeping with this reasoning, it is also recommended to use more concentric zones for larger samples and vice versa for smaller samples.
   6. Set a 200 µm outer layer region by subtracting 200 µm from the outer radius found in step 4.4.3. Thus, the outer region will encompass spots with X-positions between X_radius and X_{outer,inner-edge} (Figure 1A, orange region).
   7. Set a transitional region by subtracting 200 µm from X_{outer,inner-edge}. The transitional region will encompass spots with X-positions between X_{outer,inner-edge}, and X_{transitional,inner-edge} (Figure 1A, pink region).
   8. Set a central core region encompassing the remaining spots between the sample center and X_{transitional,inner-edge} (Figure 1A, blue region).
   9. Open the saved spreadsheet file created in step 4.4.4. Navigate to the Distance from Origin Reference Frame tab.
   10. Calculate the number of spots in the core region using the function' COUNTIF (Column_x, "< X_{transitional,inner-edge}"), where Column_x is the 'Distance from Origin Reference Frame' column. The resulting value is the cell number in this region. Divide this value by the volume of the region to obtain cell density.
   11. In a similar manner, calculate the number of cells in the transitional region using 'COUNTIF (Column_x, "< X_{outer,inner-edge}") - COUNTIF(Column_x, "> X_{transitional,inner-edge}").
   12. Calculate the number of cells in the outer region using 'COUNTIF (Column_x,"> X_{transitional,inner-edge}").
5. Assess the regional cell density in non-spherical samples via 'Regional Plugs' (Figure 1B).
   NOTE: For non-spherical samples that do not have concentric layers, the 'Regional Plug' method is developed to sample local cell density at various radial depths throughout the aggregate.
   1. Repeat steps 4.4.1-4.4.3 to set the central reference frame (Figure 1B, central yellow circle) and obtain the total sample radius.
   2. Perform manual calculations to identify the placement of reference frames within the transitional and outer regions such that cell density can be assessed in the sample at these locations.
      1. To calculate the outer location, subtract 50 µm from the sample radius value from step 4.5.1 and use this value as the X-position.
         NOTE: Use the same Y and Z position values recorded in step 4.5.1 for all plugs within a given sample to measure cell density along the X-axis of the sample (Figure 1B, leftmost yellow circle).
      2. Above the object tree, click on Add New Spots and click on Skip Automatic Creation, Edit Manually. With the pointer in 'select' mode, hold shift+click to place a spot on the screen. In the left menu, input the XYZ position values calculated above. Adjust the XY and Z diameters to ≤20 for best visibility.
      3. Repeat step 4.4.2 to add a reference frame at this spot location. Rename this reference frame in the object tree outer or similar.
      4. To calculate the transitional (midpoint) location, find the average of the X_center position value and the X_outer position values. Use this value as the X position for the transitional reference frame. As above, use the same Y and Z values recorded in step 4.5.1 for all plugs within a given sample to measure cell density along the X-axis of the sample (Figure 1B, middle yellow circle).
      5. Repeat step 4.4.2 to place the middle reference frame at this location, renaming it 'transitional' or similar once created.
   3. Click on the spots created in step 4.3 and navigate to Statistics. In the bottom-right corner of the menu, click on Export All Statistics to File and save data into a spreadsheet.
   4. Open the spreadsheet. Navigate to the Distance from Origin Reference Frame tab. Each object’s distance to the reference frames is shown in column A, and the grouping of reference frames for each object is shown in column G. Use the ‘MOD’ function to numerically assign each distance to its corresponding reference frame, where 0 is the center frame, 1 is the transitional, and 2 is the outer.
   5. Filter the values in this column to work with the distances in each reference frame. For each of the reference frames, calculate the number of objects within 50 micrometers of the frame using the function 'COUNTIF (Column_x, "≤50"), where Column_x is the 'Distance from Origin Reference Frame' column for each group. The resulting value corresponds to the number of cells in that regional plug. Divide this value by the volume of the 100-μm plug to obtain cell density.
6. Perform the Spatially-Refined Regional Plug method (Figure 1C).
   NOTE: This approach was used to assess regional cell viability in response to drug application. Including more reference frames improves the resolution of cell densities able to be calculated throughout the model thickness.
   1. Repeat steps 4.4.1-4.4.3 to set the center reference frame (Figure 1C, central yellow circle) and obtain the sample radius.
   2. Perform manual calculations to determine additional locations of interest. To do this, add 100 µm to the X_center value, and then use the Y and Z values of the center point to define the first location along the center axis. Add a reference frame to this position as in step 4.4.2 (Figure 1C, yellow circle adjacent to center circle).
      NOTE: Add fewer µm at this step if seeking higher resolution density tracking.
   3. Repeat steps 4.6.2, adding 100 µm (or desired number of µm) to each sequential X-location to establish an axis of equally-spaced plugs through the thickness of the sample. Place the last reference frame ≤50 µm away from the outer radius of the sample (Figure 1C, yellow circles).
   4. Repeat steps 4.5.3-4.5.5 to obtain cell counts within each 100 µm diameter plug. Divide these values by the volume of each corresponding plug to obtain local cell density.
   5. Repeat all steps in this section for OCT data collected at each timepoint of the drug trial. Comparing cell count at each location through the treatment time course should reveal where cell density is decreasing (i.e., regions experiencing cell death) and, consequently, how deep the drug is penetrating (i.e., which layers see a drop in cell density vs. those that maintain or display an increase in cell density levels).

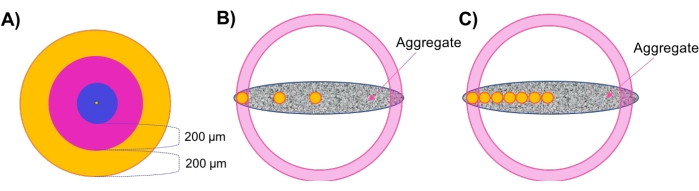

Figure 1: Schematic illustration. (A) The concentric layer (shells) approach for assessing regional cell density in spherical aggregates. (B) The regional plug method was developed to evaluate local cell density in non-spherical aggregates, where small (100 µm diameter) spherical plugs (shown in yellow) are used as density indicators at each zone/thickness. (C) The spatially-refined regional plug method is employed for drug penetration studies. Please click here to view a larger version of this figure.

Results

In a prior publication, a method was established for the non-destructive measurement of global cell density within cellular aggregates using OCT¹⁰. Herein, this technique is extended to assess the regional cell density of developing cell aggregates. Figure 1 shows a schematic of this extension, where cell density can be evaluated in concentric layers of a spheroid or more locally by looking instead at small (100 µm diameter) spherical plugs, denoted by the yellow circ...

Discussion

Significance
Multicellular tumor spheroids (MCTSs) are powerful 3D in vitro models for studying tumor progression and drug screening^1,2,3. Advancing the utility of these relatively simple aggregate models relies heavily on the characterization of their key features, such as morphology and cell density, which are known to influence both tumor model progression and therapeutic response. However, the...
