Using Reference Reagents to Confirm Robustness of Cytokine Release Assays for the Prediction of Monoclonal Antibody Safety

Summary

The use of cytokine release assay reference reagents allows for more reproducible and standardized in vitro safety profiles of immunotherapeutic monoclonal antibodies. Here we describe how cytokine release assays can be used alongside a reference reagent panel to predict the safety of some therapeutic monoclonal antibodies.

Abstract

New immunostimulatory antibody drugs designed to either directly stimulate specific immune cells or indirectly enhance the immune response by blocking or activating an endogenous regulator of the immune system have the potential to cause serious immune-related adverse events such as cytokine release syndrome (CRS). It is, therefore crucial to assess the safety profile of such drugs with a combination of in vivo and in vitro experiments before first-in-human dose administration. Cytokine release assays (CRAs), where the proposed antibody therapeutic is co-cultured with human immune cells (such as peripheral blood mononuclear cells (PBMCs), whole blood, or otherwise) and the amount of inflammatory cytokine produced is measured, are critical for hazard identification. However, different labs using different control antibodies can threaten the harmonization of CRAs, and clinically relevant controls (such as TGN1412) can be difficult to source, which can lead to less accurate or reliable results or data which are difficult to compare between laboratories. The inclusion of positive and negative controls in a CRA can ensure the accuracy and reliability of the results. The National Institute for Biological Standards and Control (NIBSC) has produced a panel of lyophilized antibody controls intended for use in various CRA platforms to harmonize results across various laboratories and assay methods. A set of three different positive control antibodies include anti-CD52, anti-CD3, and anti-CD28 superagonist (SA), which are known to induce dose-dependent CRS in patients. Each antibody is provided with an isotype-matched negative control antibody. This panel of reference reagents has previously been shown to have good inter-lab reproducibility and are suitable controls to increase the confidence and robustness of safety data from a variety of CRA platforms.

Introduction

Induced cytokine release can be an anticipated and desired effect of some immunomodulatory monoclonal antibodies (mAbs). However, the unanticipated release of pro-inflammatory cytokines can result in cytokine release syndrome (CRS) in patients characterized by fever, fatigue, and even multiple organ failure¹. It is, therefore crucial that new immunostimulatory mAbs are tested in vitro for their potential to cause CRS by measuring the release of cytokines in a cytokine release assay (CRA).

TGN1412 is a monoclonal antibody that was developed as a potential treatment for B cell chronic lymphocytic leukemia by acting as a CD28 superagonist (CD28SA), capable of activating T-lymphocytes by crosslinking the co-stimulatory receptor CD28². In 2006, six healthy volunteers who were administered TGN1412 in a clinical trial experienced severe side effect, including CRS, within hours of receiving the drug¹. This led to the trial being stopped and TGN1412 being withdrawn from further development. Other antibodies which are known to cause CRS as a side effect include the anti-CD52 mAb, Campath-1H³, and the anti-CD3 mAb, Muromonab (OKT3)⁴. Given their ability to induce dose-dependent CRS in patients, TGN1412, OKT3, and Campath-1H are suitable positive control antibodies for the generation of robust and reliable results from a CRA. Yet, these control antibodies were not previously easily obtainable because of high costs or restricted availability.

However, a remanufactured lyophilized reference panel of these three antibodies^5,6,7 alongside isotype-matched negative controls was recently made available by the National Institute for Biological Standards and Control (NIBSC). This panel of reference reagents has previously been shown to have good inter-laboratory reproducibility⁸ and is, therefore a suitable control to increase the confidence and robustness of safety data from a variety of CRA platforms. Thus, the rationale behind the use of this protocol alongside these reagents is to improve upon CRA harmonization, with the advantage of these reagents having been validated in an international collaborative study⁸.

Here we describe how best to use this panel of reference reagents in a solid-phase (SP) PBMC CRA and an aqueous-phase (AQ) whole blood (WB) CRA to predict antibody-induced CRS. Both of these CRA formats are complementary due to the mode of antibody presentation (indirect for the solid phase versus direct for the aqueous phase) and due to the fact that they target different groups of responder cells. The same protocol may be adapted for use with diluted whole blood (dWB) or with endothelial: PBMC co-cultures.

Protocol

The following protocol follows the guidelines of NIBSC research ethics committee. In accordance with applicable regulations and guidelines, obtain written informed consent of healthy donor or patients. Use sterile techniques to perform all the preparation steps of the protocol in a laminar flow cell culture hood. See Table of Materials for details about all reagents and equipment.

1. Preparation of coated plates with mAb for solid phase (SP) assay

1. Reconstitute contents of the reference reagent ampoules with 1 mL of sterile distilled water. Allow 5-10 min for rehydration before mixing the antibody solution and transferring to a sterile capped tube.
2. After reconstitution in 1 mL of water the stock concentration of the following recombinant antibodies will be 200 µg/mL: anti-CD3 (15/162), anti-CD52 (15/178), IgG1K isotype control (15/198) for anti-CD52, IgG2a isotype control (15/218) for anti CD3, IgG4 isotype control (15/232) for anti-CD28SA.
3. After reconstitution in 1 mL of water the stock concentration of anti-CD28SA (15/144) will be 100 µg/mL. For short term storage up to 7 days, transfer the reconstituted material in a sterile capped tube to 4 °C.
4. Dilute the reconstituted antibodies and test antibodies to 10 µg/mL in sterile PBS and coat the wells of a sterile non-TC treated U-bottom polypropylene 96-well microtiter plate with 100 µL of diluted antibody solution (1 µg/well) and incubate overnight at 4 °C.
   NOTE: It is important to use polypropylene plates for protein adsorption, for these were used in the validation of the standard reagents⁹.

2. Preparation of PBMCs

1. Collect a minimum of 30 mL of peripheral whole blood (WB) into heparinized/heparin containing tubes and invert several times to ensure proper mixture with the sodium heparin.
2. Transfer 15 mL of WB in a separate tube to be used later in the preparation of aqueous phase whole blood assay (step 3.1)
3. Dilute the remaining 15 mL of blood in a 1:1 volume ratio with PBS or serum-free RPMI-1640 media and gently layer the diluted blood over the top of 15 mL of density gradient medium (e.g., lymphoprep, Ficoll-Hypaque) in a 50 mL tube.
4. Centrifuge the tube at 500 x g for 20 min at room temperature in a swing-out rotor with no brake and with a reduced acceleration to separate the blood into its different components.
5. After centrifugation, the density gradient will separate as a top layer of plasma followed by a thin layer of buffy coat containing PBMCs and a bottom layer containing red blood cells (RBCs) and polymorphonuclear granulocytes including neutrophils and eosinophils. Carefully harvest the PBMCs by inserting a pipette directly through the upper plasma layer to the PBMCs. Alternatively, remove the upper layer prior to collection of cells.
6. Gently resuspend the buffy coat in 10 mL of PBS or serum-free RPMI-1640 media. Centrifuge the tube again at 500 x g for 10 min to pellet the cells. Remove the supernatant and discard it.
7. Repeat wash step 2.6. and resuspend pellet in 2 mL of RPMI with 10% FCS (complete RPMI-1640, cRPMI)
8. Count cells using a haemocytometer¹⁰.
9. Adjust PBMCs to a concentration of 1 x 10⁶ cells/mL in cRPMI.

3. Preparation of aqueous phase (AQ) whole blood (WB) cytokine release assay

1. Add 190 µL of WB to the wells of a 96-well U-bottom polystyrene plate. If not already at 100 µg/mL, pre-dilute all treatment antibodies and reference reagents to 100 µg/mL in PBS.
2. Add 10 µL of diluted antibodies to 190 µL of WB to give a final antibody concentration of 5 µg/mL antibody in 95% WB.
3. Incubate plate for 48 h in a humidified incubator at 37 °C.

4. Preparation of solid phase (SP) PBMC cytokine release assay

1. With a multichannel pipette remove and discard the antibody solution from the coated plates (described in step 1), fill a reagent reservoir with PBS and wash the plate 3x with 200 µL of PBS to remove unbound mAbs.
2. Add 200 µL of the cell suspension from step 2.8 to each well. Incubate the plate for 48 h in a humidified incubator at 37 °C, 5% CO₂.

5. Collection of supernatant or plasma

1. After incubation for 48 h with control and test mAbs, centrifuge plates at 400 x g for 5 min and collect the cell-conditioned medium or plasma, taking care to not disturb the cell pellet. Freeze the collected supernatant or plasma at -20 °C.
   ​NOTE: Make sure not to disturb the red blood cell pellet when collecting the plasma.

6. Performing quantification of cytokines in the supernatant or plasma

1. Using the collected supernatant or plasma, perform cytokine analysis of IFN-γ, IL-2, TNF-α and IL-6 concentrations using the preferred multiplex option. An example method of multiplex cytokine analysis using a cytometric bead assay has previously been published¹¹.
   NOTE: Please refer to the Table of Materials for the multiplex kit which was used in the generation of the representative results.

Results

The results of the SP assay should demonstrate a release of IL-2, IFN-γ, IL-6 and TNF-α¹² in the pg/mL range from all positive control antibodies at 48 h and should be statistically significantly greater than matched isotype controls. Our representative results demonstrate that the positive control antibodies, αCD28, αCD3 and αCD28SA induce significantly high levels of IFN-γ , IL-6 and TNF-α in comparison to matched isotype controls, when run in the PBMC SP assay (Figure 1). This assay is also characterized by a high fold-change of IL-2 release from stimulation with αCD28SA compared to its matched isotype (859.0). Whereas αCD3 and αCD52, while still inducing IL-2 expression, result in lower fold-changes than αCD28SA (6.2 and 3.3 for αCD3 and αCD52, respectively, Figure 2).

In the WB AQ assay (Figure 3), the level of detectable cytokines is noticeably less than in PBMC SP assay but is characterized by a greater sensitivity to stimulation by αCD52 antibody (Figure 2 and Figure 3) with mean fold-changes of IL-2, IFN-γ and IL-6 above 100.

A test antibody for which future first-in-human dosing might be anticipated not to cause any unanticipated significant increases in cytokine release compared to relevant isotype controls. Although, rather than stopping the development of a new therapeutic mAb, a positive result in a CRA should be considered as part of the risk/benefit management¹³. When developing a new CRA platform, the assay should be repeated using a different set of donors to ensure reproducibility of the platform. Importance should also be given to account for the variability of response between donors¹⁴, and so a well-powered experiment is recommended¹⁵. In order to understand the breadth of responses and get a complete representation of variability that could be observed in donor responses, the assay should ideally be performed with multiple individual donors in addition to assaying the therapeutic in replicate experiments.

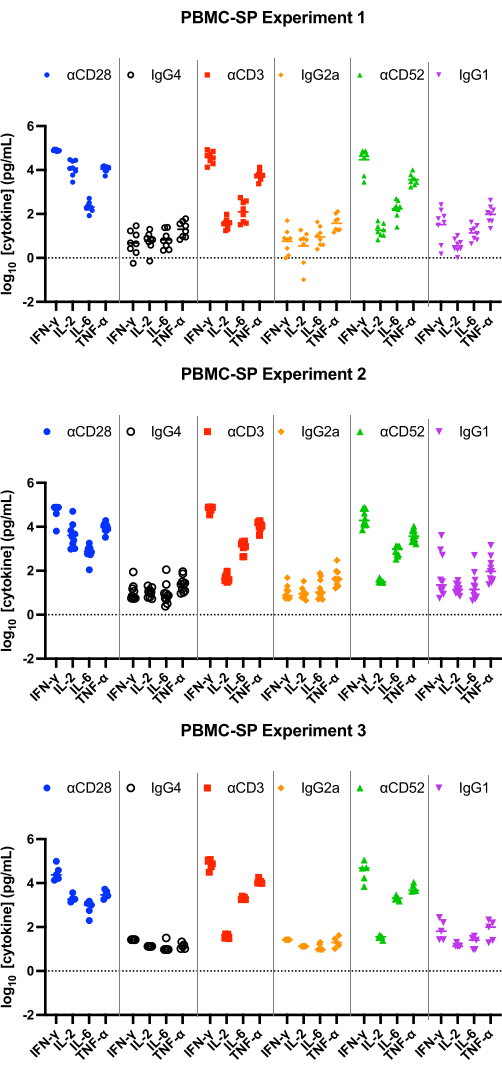

Figure 1: Cytokine release from PBMC-SP experiment. Representative results of IFN-γ, IL-2, IL-6 and TNF-α release obtained from PBMC-SP cytokine release assays (3 independent experiments each containing 5-8 donors per experiment; n=8, n=10, n=5 [top to bottom]) after 48 h when using reference reagent antibodies. Abbreviations: PBMC = peripheral blood mononuclear cells; SP = solid phase; IFN-γ = interferon-gamma; IL-2 = interleukin 2; IL-6 = interleukin 6; TNF-α = tumour necrosis factor alpha. Please click here to view a larger version of this figure.

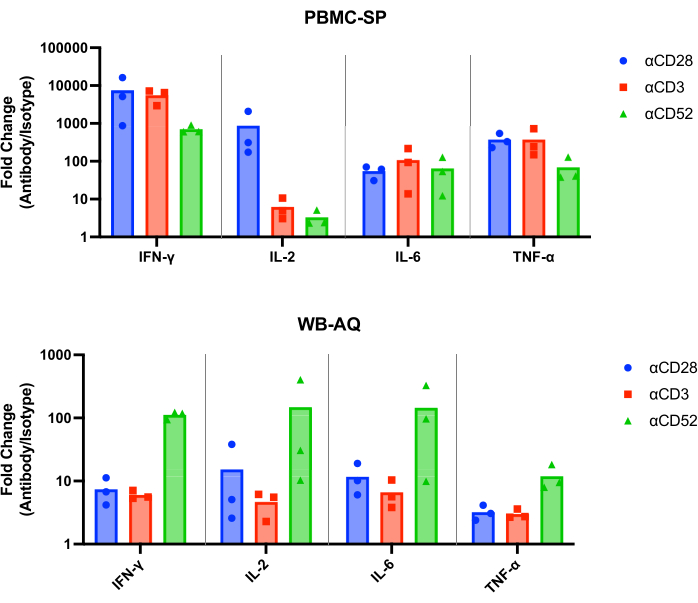

Figure 2: Cytokine fold change increase from PBMC-SP and WB-AQ experiments. Fold change of IFN-γ, IL-2, IL-6 and TNF-α release of CRS-inducing antibody reference reagents relative to their matched isotype controls, obtained from PBMC-SP and WB-AQ cytokine release assays after 48 h. Abbreviations: PBMC = peripheral blood mononuclear cells; SP = solid phase; WB = whole blood; AQ = aqueous (phase); IFN-γ = interferon-gamma; IL-2 = interleukin 2; IL-6 = interleukin 6; TNF-α = tumour necrosis factor alpha; CRS = cytokine release syndrome. Please click here to view a larger version of this figure.

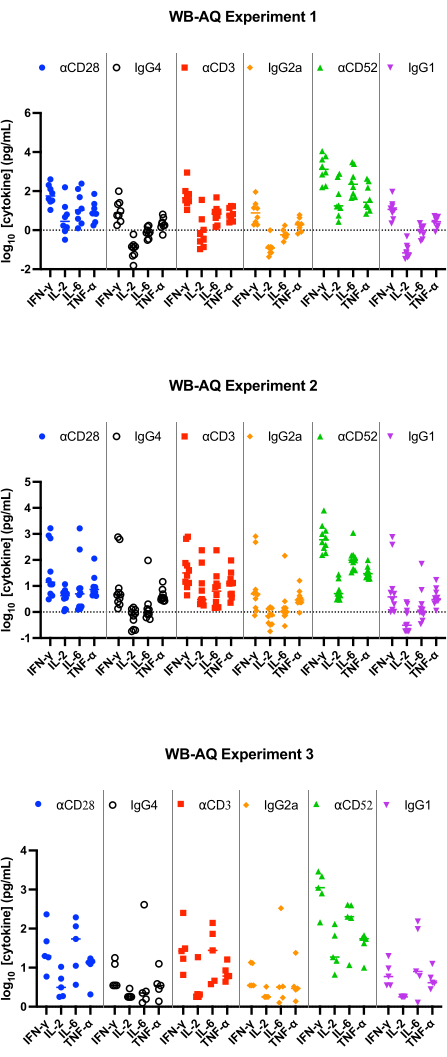

Figure 3: Cytokine release from WB-AQ experiment. Representative results of IFN-γ, IL-2, IL-6 and TNF-α release obtained from WB-AQ cytokine release assays (3 independent experiments each containing 5-8 donors per experiment; n=8, n=10, n=5 [top to bottom]) after 48 h when using reference reagent antibodies. Abbreviations: WB = whole blood; AQ = aqueous (phase); IFN-γ = interferon-gamma; IL-2 = interleukin 2; IL-6 = interleukin 6; TNF-α = tumour necrosis factor alpha. Please click here to view a larger version of this figure.

Discussion

Described here are methods of measuring cytokine release from PBMCs and WB following antibody-mediated stimulation from an antibody-coated plate or with antibody in solution, using a panel of reference reagents for positive and negative controls. Each of these assays have their own associated strengths and weaknesses. PBMC and WB assays are complementary since the proportion of various immune cells such as lymphocytes, monocytes and granulocytes are different in the two experimental matrices used for CRAs. It is interesting to observe that although a WB assay might better represent the in vivo condition as opposed to PBMC monoculture, the former platform is less predictive of T-cell mediated CRS risk from TGN1412 and OKT3¹⁵; a result of glycophorin A on RBCs inhibiting IL-2 mediated T-cell expansion¹⁶. Nevertheless, the prediction of CRS risk from anti-CD52 remains intact in WB CRA, owed to the presence of neutrophils (lost during conventional density gradient methods described in step 2, used for PBMC isolation).

The format of the CRA (SP or AQ presentation) is critical for detection of specific mechanism of CRS. For example, aqueous phase presentation of the mAb to human lymphocytes^17,18, employed during pre-clinical in vitro safety tests of TGN1412 failed to identify CRS risk likely due to lack of localized cell receptor clustering and engagement¹⁹ and consequent T cell activation mediated by antibody in aqueous phase. In fact, TGN1412-mediated CRS could only be accurately detected in SP format that artificially replicates Fc-gamma receptor (FcγR) cross-linking, as presented here, or by contact-dependent priming in PBMC preculture at high density and Fc interaction with CD32+ immune cells (such as B-cells²⁰ and monocytes²¹).

In addition to these platforms, there are other ways of performing CRA with more complex co-culture systems. An example of an alternative CRA to those described in these methods is to co-culture PBMCs with autologous blood outgrowth endothelial cells (BOECs)²². This assay was described in 2015 as an improvement to the then conventional mixed-donor HUVEC:PBMC assay by removing the confounding tissue mismatch. It demonstrates better sensitivity to anti-CD28SA CRS than the WB assay, and also overcomes the limitation of the PBMC monoculture assay by mimicking the combination of endothelial cells and leukocytes present in vivo, but at the cost of more lengthy procedural steps requiring specialized cell culture techniques²².

Furthermore, while this protocol focuses specifically on IFN-γ, IL-2, IL-6 and TNF-α release, colleagues at MHRA have previously looked at IL-12 and others in this setting²³. IL-12 production is increased by these positive control CRS antibodies, although it isn't particularly sensitive, and therefore perhaps not a great predictor of CRS in this modality. Some cytokines, such as IL-15 among others, were never tested although the 4 cytokines evaluated in our protocol provide a good indication of potential risk of CRS. Of course, depending on the modality and antibodies tested other cytokines could be assessed.

Combined, these observations highlight the importance of noting that although the use of reference reagents can help to identify CRS risk of new antibodies, care should be taken to avoid a sub-optimal CRA platform which might fail to identify CRS potential. Crucially, the predicted mechanism of action of a therapeutic, whether via its Fc region or its hypothesized action upon antigen-expressing cells, must match the biology of the assay. Therefore, while differences in the mechanism of action of the test therapeutic and reference reagents discussed in this article may pose a potential limitation in such a way that a relevant CRA for the test antibody might be incompatible with the biology of the reference reagents, the assay provides a robust, reliable platform for hazard identification. Results from several CRA formats covering various mechanisms of actions and immune cell subsets may however be necessary for optimal confidence in the safety evaluation data.

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
1.5 ml  Microcentrifuge Tubes, Natural (Sterile)	Starlab	S1615-5510
Fetal Bovine Serum, qualified, heat inactivated	ThermoFisher	10500064
Heparinized tubes	ThermoFisher	12967676
Heracell 150i CO2 Incubator	ThermoFisher	16406639
MESO QuickPlex SQ 120 Human Proinflammatory Panel 1 V-PLEX kit	Meso Scale Discovery	K15049
MESO QuickPlex SQ 120MM	Meso Scale Discovery	AI1AA-0
Neubauer Improved Haemocytometer Counting Chamber	Hawksley	AS1000
Panel of lyophilized recombinant antibody controls for Cytokine Release Assays	NISBC	19/156
PBS	ThermoFisher	10010023
Polypropylene 96-well microtiter plate	Corning	3879
Polystyrene 96-well microtiter plate	Corning	3799
RPMI 1640	ThermoFisher	11875093
Sorvall ST 40 Centrifuge	ThermoFisher	75004525
Sterile water	ThermoFisher	15230162
