Oblique Lumbar Interbody Fusion at L5-S1 Segment Through an Approach Between the Psoas Muscle and the Great Vessels

Summary

The protocol presents an OLIF L5-S1 technique that offers a more feasible approach for lumbosacral fusion sharing a common surgical plane with OLIF L2-5. This facilitates reproducible multi-level interbody fusions extending from L2 to S1 through a retroperitoneal oblique corridor between the Psoas muscle and the great vessels.

Abstract

Over the years, the oblique lateral interbody fusion (OLIF) technique has gained significant recognition for treating various spinal conditions in lumbar segments L2-L5. However, the adoption of OLIF for the L5-S1 segment has not been widely embraced by the spinal surgery community, given that significant concerns remain regarding the applicability of OLIF for lumbosacral fusion. In this study, a cohort of 20 patients underwent interbody fusion at the L5-S1 level using the OLIF technique through a single retroperitoneal oblique approach positioned between the Psoas muscle and the great vessels. The procedure involved discectomy and endplate preparation accomplished through a surgical window created on the anterolateral side of the L5-S1 disc. For secure interbody fusion cage placement, a supplementary cage insertion approach was employed. All patients were followed up for a minimum of 12 months. The mean preoperative visual analog scale (VAS) score for lower back pain was 6.3 ± 1.5 and experienced a significant reduction to 1.2 ± 0.8 at 12 months. The VAS score for lower limb pain significantly decreased from 5.6 ± 1.4 preoperatively to 0.8 ± 0.3 at 12 months after the surgery. Furthermore, the preoperative Oswestry disability index (ODI) improved from 82.4% ± 16.2% to 8.1% ± 2.0% at 12 months. Radiographic evaluations after surgery confirmed improved lumbosacral junction reconstruction for all patients. At the final follow-up, successful bony fusion was observed in all cases. Based on these findings, the OLIF technique for L5-S1 fusion represents an attainable approach for lumbosacral reconstruction. The procedure's success hinges on a comprehensive preoperative plan and precise intraoperative techniques.

Introduction

Lumbar interbody fusion represents the mainstay of treatment for many lumbar disorders. The most commonly performed techniques are posterior lumbar interbody fusion (PLIF) and transforaminal lumbar interbody fusion (TLIF). The advent of minimally invasive spine surgery has given rise to the lateral lumbar interbody fusion (LLIF) approach, a minimally invasive transpsoas approach to the lumbar spine. This approach, also known as the minimally invasive lateral transpsoas approach, offers advantages, including reduced blood loss, shorter operative times, decreased hospital stays, and diminished postoperative pain. Despite its merits, LLIF is associated with a risk of injury to the neural structures of the lumbar plexus, a concern held by various spine surgeons¹. In response to these challenges, the oblique lumbar interbody fusion (OLIF) technique has emerged as an innovative approach for lumbar spine reconstruction^1,2,3,4. As an alternative to LLIF, OLIF holds several theoretical advantages, including avoiding disruption to the Psoas muscle, preventing lumbosacral plexus injury, and consistent access to the lower lumbar levels without necessitating neuromonitoring^3,4. In recent years, OLIF has achieved broad recognition as an effective procedure for addressing an array of spinal pathologies within the L2-L5 segments, encompassing degenerative disc disease, lumbar spondylosis, spondylolisthesis, lumbar stenosis, and scoliosis^2,5,6,7.

Capitalizing on advancements in surgical techniques and instruments, numerous spine surgeons have ventured into L5-S1 interbody fusion using the OLIF approach (OLIF L5-S1)^{2,6,7,8,9,10,11,12}. Theoretically, the application of OLIF at the lumbosacral junction offers a larger surface area for robust fusion, re-establishment of anterior column support, and simultaneous achievement of indirect decompression and sagittal alignment correction. However, the anatomic intricacies of the retroperitoneal oblique corridor to the L5-S1 disc present technical hurdles to spine surgeons, especially the complexities posed by neurovascular structures and disruptions involving the iliac crest^{2,9,11,12,13,14}. Despite limited recent literature discussing OLIF L5-S1, this approach has not gained the same widespread acceptance within the spine community as OLIF L2-5. Concerns about the feasibility of OLIF L5-S1 for lumbosacral fusion persist in the scientific community^2,13,14, with many variations in the L5-S1 OLIF technique employed by previous studies.

Since 2017, OLIF has become one of the techniques of choice for achieving lumbosacral fusions in our department. The potential anatomic space between the iliac vessels and psoas muscle allows the OLIF procedure at L5-S1. Additionally, specialized instruments are available for OLIF at the lumbosacral junction to avoid the obstruction of the iliac crest. This study outlines the developed OLIF L5-S1 technique through detailed case illustrations. The method provides a consistent means to achieve fusion at the lumbosacral segment using a single retroperitoneal oblique corridor between the Psoas muscle and the great vessels.

Protocol

This study was carried out in accordance with the clinical ethics committee guidelines of the First Affiliated Hospital of Zhejiang University. Written informed consent was obtained from all participating patients. The OLIF L5-S1 technique is indicated for patients with various spinal pathologies of L5-S1 involving degenerative disc disease, lumbar spondylosis, low-grade spondylolisthesis, and scoliosis. Patients with a history of trauma, neoplasia, or infection were excluded.

1. Patient position

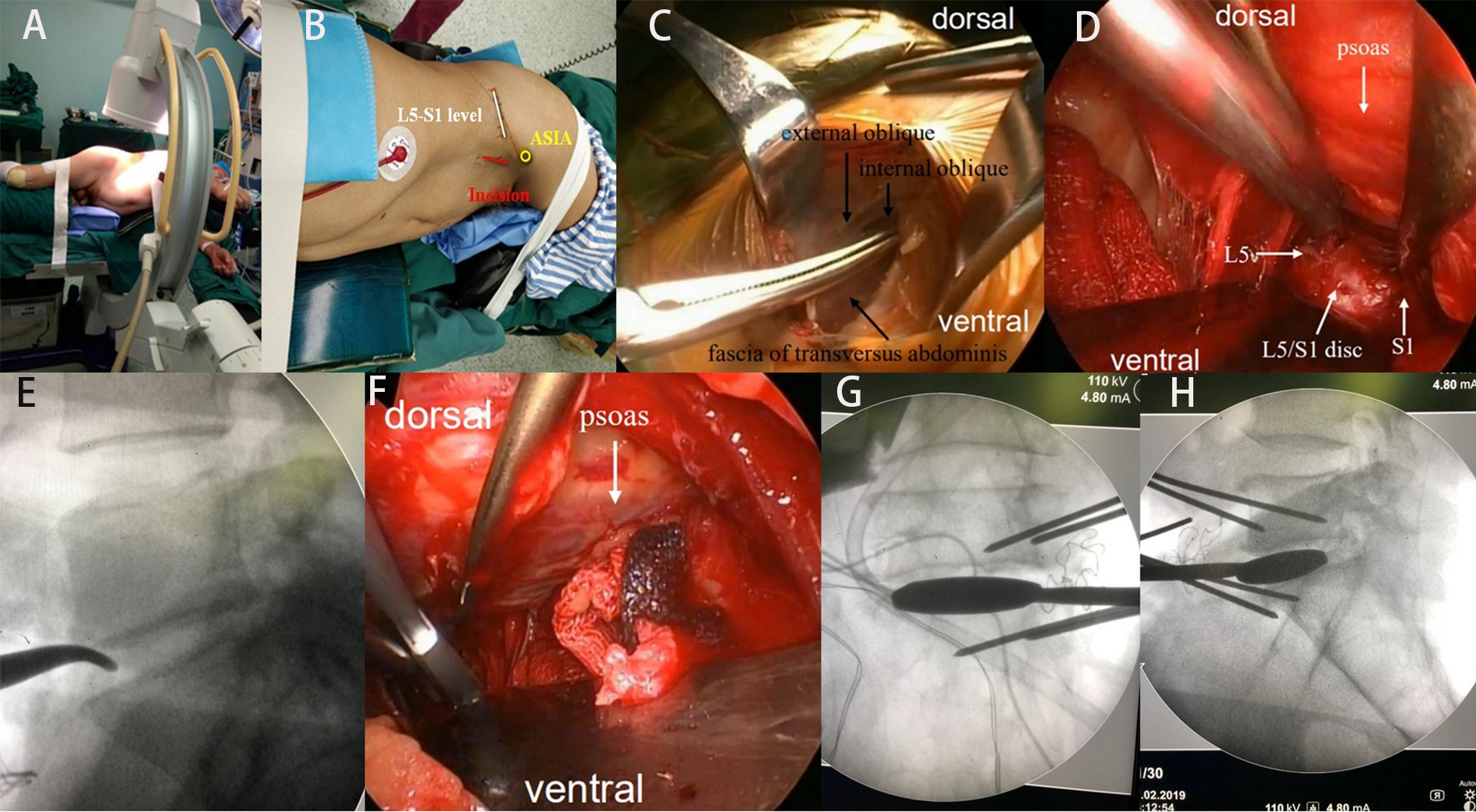

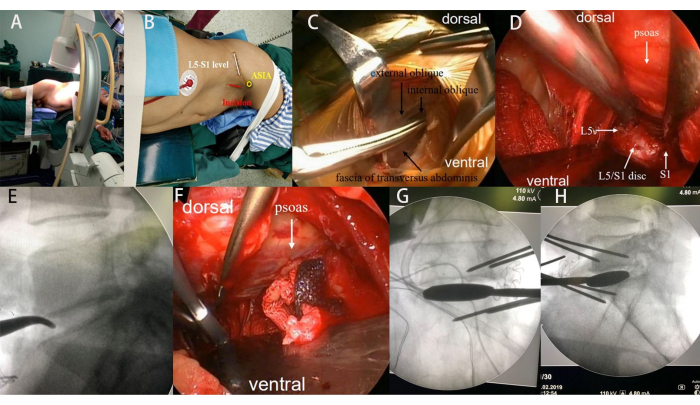

1. All patients were operated under general anesthesia with endotracheal intubation. Place patients in a lateral decubitus position on a radiolucent table, with fixation at the greater trochanter and shoulder (Figure 1A,B).
2. Use a left-sided approach for multi-level spine reconstruction involving the L5-S1 junction to minimize the risk of injury to the great vessels. In the case of patients with a scoliotic spine convex or prior left-sided abdominal surgery, a right-sided approach was considered.

2. Approaching the L5-S1 intervertebral disc between the Psoas muscle and the great vessels

1. Obtain an accurate lateral view of the lumbar spine using fluoroscopy. Mark the anterior superior iliac spine (ASIS) and L5-S1 disc locations on the skin. Roughly 2 cm anterior to ASIA, make a 4 cm oblique anterolateral incision toward the midpoint landmark of the L5-S1 disc (Figure 1B).
2. After making a skin incision, use a vascular clamp to dissect the external oblique, internal oblique, and transversus abdominis muscles along their fiber lines (Figure 1C). Make a blunt dissection to access the retroperitoneal space and the retroperitoneal fat, peritoneum, and ureter. Shift the tissues and organs forward using tonsil sponges.
3. Extend the retroperitoneal dissection over the anterior Psoas muscle border until the iliac vessels are visualized.
4. Use a handheld retractor to gently mobilize the left iliac artery anteriorly to expose the entry to the L5-S1 disc, guided by the left common iliac vein. Dissect with a suction apparatus to clear fatty connective tissue in this region. This meticulous dissection creates a surgical window approximately 1.8 cm wide on the anterolateral side of the L5-S1 disc (Figure 1D).
5. If the iliolumbar vein was encountered at the L5-S1 disc entry point, preserve it unless it obstructs the surgical field. In instances of obstruction, use bipolar cautery or clipping to manage the vein before the discectomy.

3. Exposure of surgical field at the L5-S1 disc

1. Once the L5-S1 level is confirmed via fluoroscopy (Figure 1E), use a handled retractor and Kirschner wires to sustain proper exposure, avoiding the need for expansion retractors.
2. Position the handled retractor laterally to the iliac vessels, offering gentle retraction. Insert Kirschner wires into the L5 and S1 vertebral bodies, minimizing Psoas major muscle retraction and keeping the iliolumbar vein outside the surgical window. Position the Kirschner wires close to the end plate while minimizing the neurovascular risk.

4. Discectomy and cage insertion

1. Perform discectomy and endplate preparation within the surgical field. Carry out discectomy using a pituitary rongeur, followed by the preparation of the endplate using elongated angled curettes, as previously described by Kim et al.⁸. Carry out sequential trials with different-sized cages for disc space distraction and contralateral annulus release (Figure 1F-H).
2. After selecting an appropriate cage size based on preoperative planning and intraoperative trial sizing, place a bone graft and bone marrow from the iliac crest within the cage.

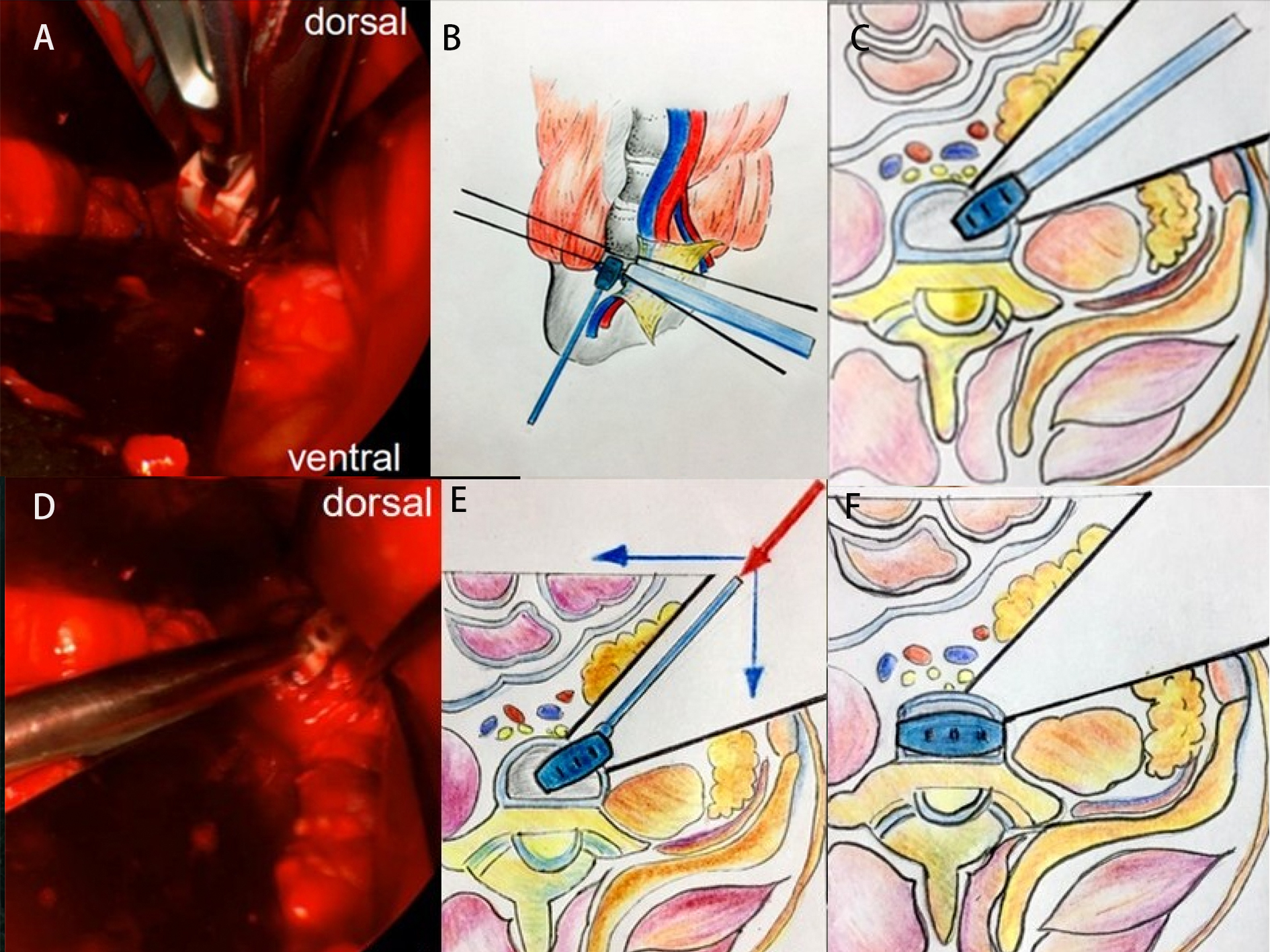

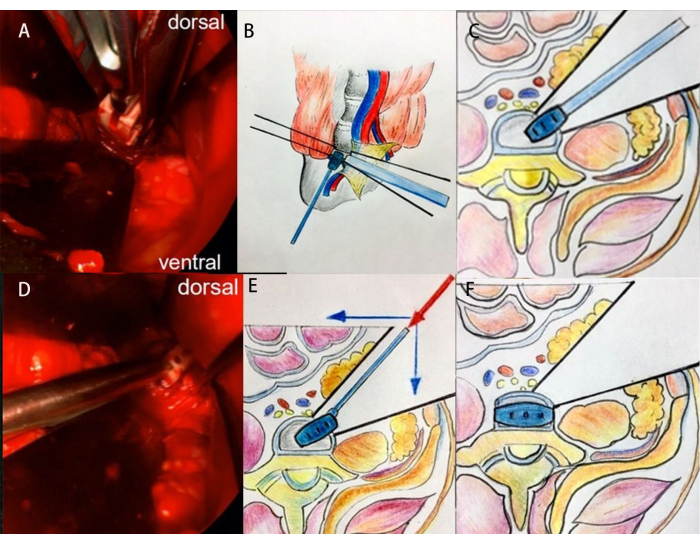

3. For L5-S1, the elevated position of the iliac crest poses a challenge for conventional cage insertion. Use a supplementary cage insertion approach to navigate this obstacle (Figure 2A-F).
4. Insert the cage obliquely until approximately 75% of the cage is within the disc space. Use a shorter implant inserter to tap the anteromedial corner of the cage, allowing orthogonal turning and further insertion (Figure 2D-F).
5. Apply strict radiological anteroposterior and lateral radioscopic control during cage insertion until optimal positioning is achieved intraoperatively. Use a small retractor to shield the iliac vessels.

5. Pedicle screws fixation

1. Carry out posterior fixation using pedicle screws in the prone position. Mark pedicle entry points via fluoroscopy before surgery. Choose the connecting point of the transverse process, the upper articular process, and the vertebral lamina as the entry point for the pedicle.
2. Perform a longitudinal midline skin incision with a scalpel, followed by the identification of the anatomical cleavage between the multifidus and longissimus muscles to expose the pedicle screw entry points. Insert pedicle screws with their positions confirmed using fluoroscopy. The pedicle screws were located within the pedicles.
3. Close the fascia with running stitches and close the skin with an intradermic suture.

6. Postoperative period

1. Remove the incision drain on the first postoperative day. Carry out postoperative pain control using nonsteroidal anti-inflammatory drugs, narcotic analgesics, and muscle relaxants.
2. Obtain early lumbar X-rays at 2 to 3 postoperative days to verify cage and pedicle fixation positions.
3. Allow the patients to ambulate with waist circumference protection. Most patients were discharged within 4 to 5 days after the operation.

7. Radiographic and clinical evaluation

1. Obtain radiographs preoperatively, immediately postoperatively, and at 3-6 months, 9-12 months, and the last follow-up. Perform CT scans at 9 and 12 months postoperatively and at the final follow-up to assess bone union. Determine fusion status by continuous trabeculae bridging bone formation without gaps between the vertebral endplate and the cage.

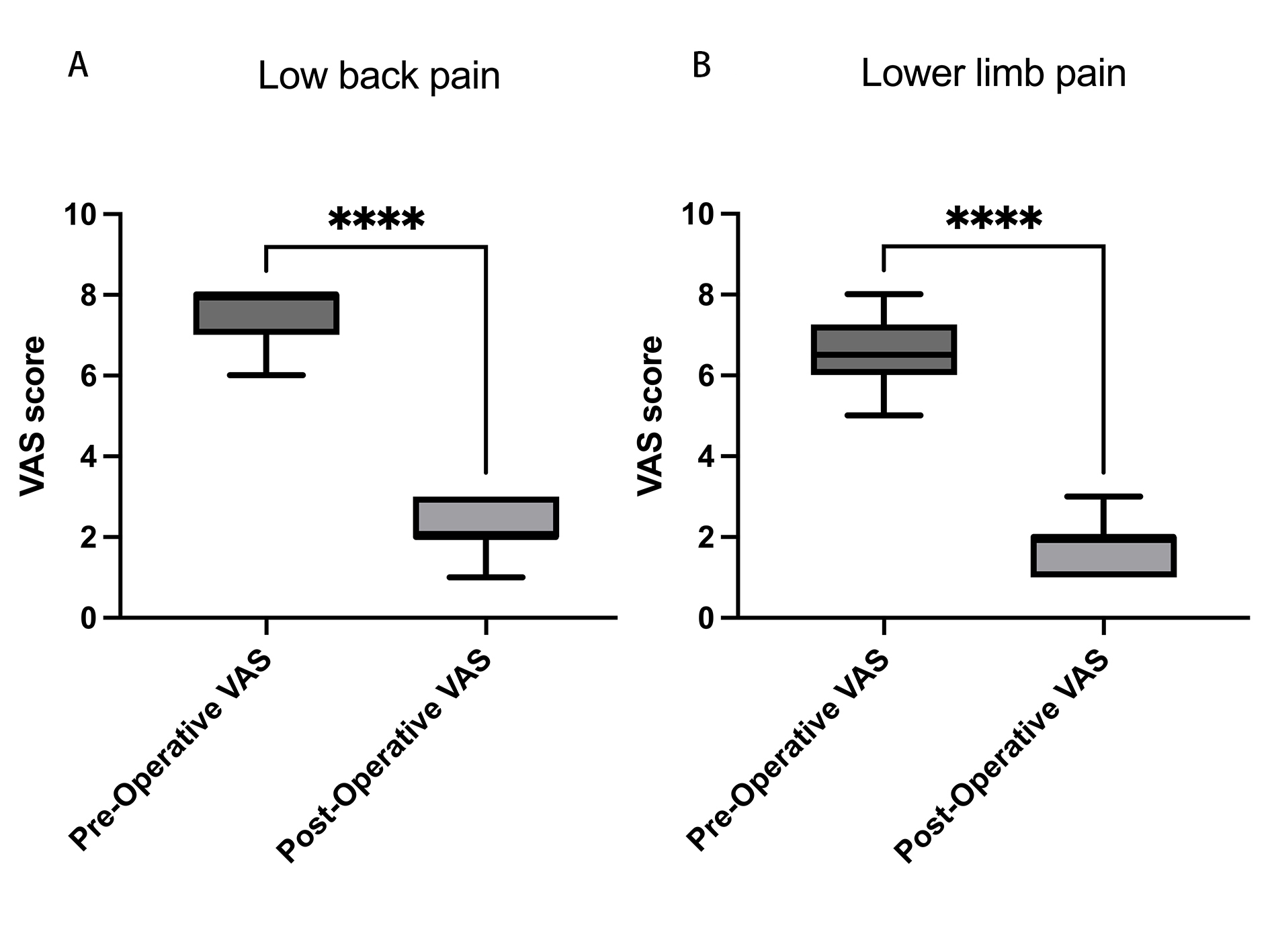

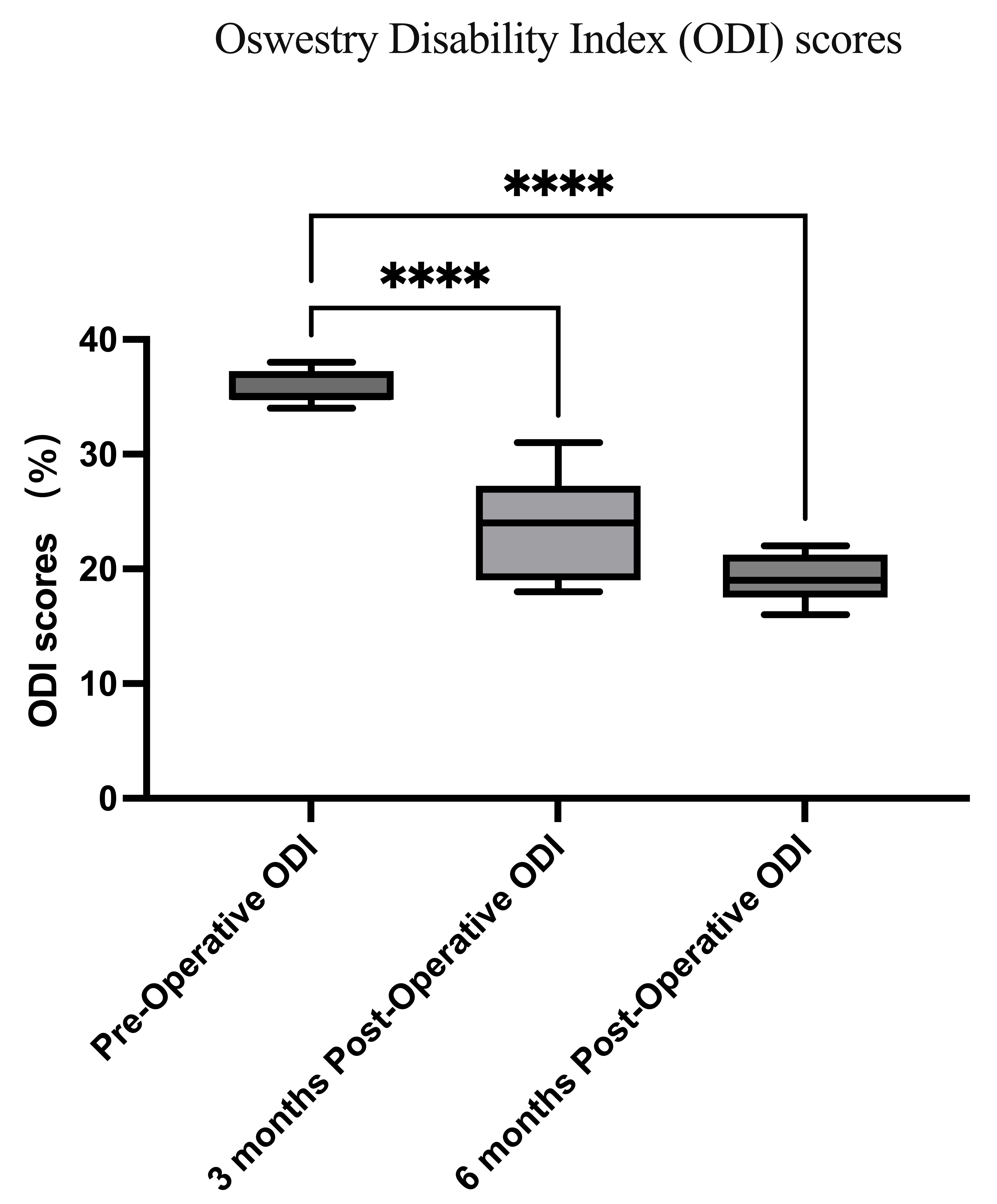

2. Assess lower back pain using a visual analog scale score. The Oswestry disability index was recorded preoperatively, at 1 and 12 months, postoperatively. Document perioperative data and complications.

Results

Clinical outcomes
A total of 20 patients underwent OLIF L5-S1 via a retroperitoneal oblique corridor between the Psoas muscle and the great vessels. The study population exhibited female predominance (n=12, 60%), with a mean age of 55.4 ± 6.8 years. OLIF L5-S1 procedures were performed on patients with isthmic spondylolisthesis (n=10), degenerative disc disease (n=6), and degenerative spondylolisthesis (n=4). The procedures included single-level (n=16) and two-level cases (n=4), involving L4-L5 (n=4)...

Discussion

An increasing body of evidence from recently published studies suggests that OLIF therapy brings technical advantages and favorable outcomes for lumbar degenerative diseases, especially in the L2-5 segments^2,5,6,7. While recognizing these benefits, efforts have been made to extend the use of OLIF to the lumbosacral junction. However, the technical strategy for performing OLIF at L5-S1 remains s...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Fluoroscopy System	Allengers
Handheld retractor	gSource	gS 36.9362
Kirschner wire	Sklar surgical instruments	SKU 40-1535
OLIF cages	Medtronic Sofamor Danek, Memphis, Tennessee, USA
Pedicle screws	Beijing Fule Technology Development Co. , Ltd China
Tonsil sponge	teleflex	MC-008133
Vascular clamp
