Quantifying Antibody-Dependent Cellular Cytotoxicity in a Tumor Spheroid Model: Application for Drug Discovery

Summary

Here, we present a method to identify compounds that modulate the ADCC mechanism, an important cancer cell-killing mechanism of antitumor antibodies. The cytotoxic effect of NK cells is measured in breast cancer cell spheroids in the presence of Trastuzumab. Image analysis identifies live and dead killer and target cells in spheroids.

Abstract

Monoclonal antibody-based immunotherapy targeting tumor antigens is now a mainstay of cancer treatment. One of the clinically relevant mechanisms of action of the antibodies is antibody-dependent cellular cytotoxicity (ADCC), where the antibody binds to the cancer cells and engages the cellular component of the immune system, e.g., natural killer (NK) cells, to kill the tumor cells. The effectiveness of these therapies could be improved by identifying adjuvant compounds that increase the sensitivity of the cancer cells or the potency of the immune cells. In addition, undiscovered drug interactions in cancer patients co-medicated for previous conditions or cancer-associated symptoms may determine the success of the antibody therapy; therefore, such unwanted drug interactions need to be eliminated. With these goals in mind, we created a cancer ADCC model and describe here a simple protocol to find ADCC-modulating drugs. Since 3D models such as cancer cell spheroids are superior to 2D cultures in predicting in vivo responses of tumors to anticancer therapies, spheroid co-cultures of EGFP-expressing HER2+ JIMT-1 breast cancer cells and the NK92.CD16 cell lines were set up and induced with Trastuzumab, a monoclonal antibody clinically approved against HER2-positive breast cancer. JIMT-1 spheroids were allowed to form in cell-repellent U-bottom 96-well plates. On day 3, NK cells and Trastuzumab were added. The spheroids were then stained with Annexin V-Alexa 647 to measure apoptotic cell death, which was quantitated in the peripheral zone of the spheroids with an automated microscope. The applicability of our assay to identify ADCC-modulating molecules is demonstrated by showing that Sunitinib, a receptor tyrosine kinase inhibitor approved by the FDA against metastatic cancer, almost completely abolishes ADCC. The generation of the spheroids and image acquisition and analysis pipelines are compatible with high-throughput screening for ADCC-modulating compounds in cancer cell spheroids.

Introduction

Multicellular tumor spheroids (MCTS) are widely used three-dimensional (3D) models that form due to the tendency of adherent cells to aggregate and represent an important tool for gaining mechanistic insight into cancer cell biology. They can be generated from a broad range of cell types by numerous techniques, such as liquid-based and scaffold-based 3D cultures¹. Their main advantage over monolayer 2D models is that they recapitulate the main features of in vivo tumors, namely structural organization and hypoxia, by mimicking the biological behavior of tumor cells, especially the mechanisms leading to therapeutic escape and drug resistance². Thus, since MCTS can improve the predictability of toxicity and drug sensitivity, they are widely used to study cancers in 3D and could enhance the development of effective drugs for different types of cancer³.

To study any disease, there is a critical need for relevant and convenient models. Setting up models for cancer immunology studies is challenging because the immune system consists of multiple cell types. Each cell type has several subtypes and a broad spectrum of activation states. These different immune cell types interact with cancer cells and other tumor components, ultimately influencing the outcome of the disease. 2D in vitro cell culture methods fail to recapitulate these complex cellular interactions, as they lack translatability and are unable to predict the action of a drug at the system level (e.g., in tissues)^4,5. Moreover, mouse models also have severe limitations due to the fundamental differences between the human and murine immune systems. 3D culture systems can, therefore, fill the current gaps in available models, providing an alternative method and improving our understanding of cancer immunology⁶. Specifically, spheroid models might be used for testing immunotherapies, mainly to assess the efficiency of drug screening and therapeutic antibodies for enhancing immune cell infiltration and anti-tumoral effects against the spheroid targets⁷. Furthermore, the potential of MCTS composed of cells in different metabolic and proliferative states to study the interactions between stroma cells (e.g., lymphocytes, macrophages, fibroblasts) and cancer cells and for the development of new anticancer strategies has been amply demonstrated⁸. Hence, there is a vital need to corroborate predictive and accurate platforms in order to boost the drug-testing process, taking into account the pathophysiology of the tumor microenvironment.

Breast cancer (BC) is the most frequent cancer diagnosed worldwide in women. The clinical classification of this heterogeneous disease is based on the presence of transmembrane receptors e.g., estrogen (ER) and progesterone (PR) receptors (collectively called hormone receptors, HR) along with the overexpression or amplification of the human epidermal growth factor receptor 2 (HER2) protein/oncogene. Based on the immunohistochemical expression of these receptors, four subtypes are commonly recognized: luminal A (HR+/HER2-), luminal B (HR+/HER2+), HER2-positive (HR-/HER2+) and triple-negative breast cancer (HR-/HER2-). The HER2+ group constitutes 10-15% of BC cases and is characterized by high HER2 expression with absence of ER and PR, having a worse prognosis compared to luminal tumors, and requiring specific drugs directed against the HER2/neu protein⁹.

BC development is a multi-step process, and an early diagnosis is essential for a successful treatment of the disease¹⁰. However, despite recently emerged personalized BC treatment options (e.g., endocrine and anti-HER2 antibody therapies), BC continues to challenge oncologists. Just like surgery, chemotherapy, and radiotherapy, these personalized therapies can also have severe adverse effects and patients can develop resistance to these agents, making it a long-term challenge to determine the best strategy^11,12. Hence, improved understanding of the interplay between the tumor and its microenvironment is essential and expected to provide new directions for the development of novel treatments that are taking into account the specificities of the different BC subtypes¹³. A new wave of immunotherapies, such as antibody drug conjugates, adoptive T-cell therapies, vaccines and novel HER2-directed monoclonal antibodies (mAbs) are being studied in a broad population of patients with HER2-expressing tumors¹⁴.

Trastuzumab, for example, represents an efficient treatment modality for HER2+ BC. As part of its mode of action, Trastuzumab mediates fragment crystallizable gamma receptor (FcγR)-dependent activities. FcγRs are distinguished by their affinity for the Fc fragment and the immune response they initiate. Activating FcγRIIIa (CD16A) on natural killer (NK) cells is crucial for mediating antibody-dependent cellular cytotoxicity (ADCC), while triggering FcγRIIa (CD32A) and FcγRIIIa on macrophages induces antibody-dependent cellular phagocytosis (ADCP)¹⁵. Studies on animal models showed that mice lacking FcγRI (CD64) and FcγRIII (CD16) receptors were unable to initiate protective immune responses against tumor-specific antigens, revealing that ADCC is likely a major mechanism of action for the mAb Trastuzumab¹⁶.

Since NK cells resort to tumor cell-bound Abs for cancer cell killing by ADCC, expression of Fc receptors is critical for an efficient treatment with Trastuzumab¹⁷ (Figure 1). Moreover, their action is efficiently balanced by a stimulation of activating and inhibitory receptors, e.g., Killer-cell immunoglobulin-like (KIR) receptors¹⁸.

Figure 1. Mechanism of ADCC in the context of an antitumor response. The Fcγ receptor of a natural killer (NK) cell recognizes the Fc region of an antibody, which had previously bound to a surface antigen on a cancer cell. This immunological synapse leads to the degranulation of the NK cell which releases cytotoxic mediators such as granzymes and perforin. These molecules contribute to pore formation in the cell membrane and activate apoptotic pathways causing programmed cell death of the target cell (image created with Biorender.com). Please click here to view a larger version of this figure.

Immunotherapy development for HER2+ BC represents an evolving field. In this case, one should consider interactions between various components of the immune system. Furthermore, previous publications have extensively tested combination therapies involving all types of traditional, immune or cell therapies to identify synergizing combinations¹⁹.

Several 3D models of HER2+ BC have previously been used for drug discovery. For instance, Balalaeva et al. used SKBR-3 spheroids overexpressing HER2 to assess the cytotoxicity of the HER2-targeted immunotoxin 4D5scFv-PE40²⁰. In another study, a 3D Matrigel-based HER2+ BC culture system was established to measure cell growth in response to Trastuzumab and endocrine agents²¹. These studies highlight the importance of tumor spheroid models of HER2 overexpressing cancer cells in representing an effective strategy to clinically improve therapeutic responses²².

Our group previously identified Sunitinib, a multitargeted tyrosine kinase inhibitor, as an inhibitor of Trastuzumab-dependent ADCC in JIMT-1 HER2+ BC cells in a 2D culture assay. The study revealed that Sunitinib induces autophagy and impairs NK cells killing function, downregulating HER2 expression and enhancing surface attachment of JIMT-1 cells¹⁷.

Here we established a novel 3D, spheroid ADCC model (NK.92.CD16+Trastuzumab+JIMT-1-EGFP cancer cells) to be used for high-throughput screening applications and, in order to validate the above-mentioned findings, Sunitinib was used as a model compound. First, we generated EGFP expressing JIMT-1 cells¹⁷ and grew spheroids from these cells. ADCC was induced by NK cells together with Trastuzumab, and spheroids were kept in culture in the presence or absence of test compounds for 24 h (Figure 2). Quantification of ADCC is based on the detection of apoptotic cancer cell death (Annexin V staining) using a High-Content Analysis system.

Figure 2. ADCC in a 3D spheroid co-culture system. Our experimental settings are based on a 3D spheroid system that can more accurately model the in vivo microenvironment compared to 2D models. JIMT-1 EGFP breast cancer cells were seeded on a concave cell repellent bottom to form a round-shaped cellular cluster, called spheroid. ADCC was then initiated by adding NK92.CD16 natural killer cells (E:T ratio = 20:1) and an anti-HER2 monoclonal antibody, Trastuzumab. The experimental model has proved efficient and easily applicable for the identification of ADCC modifying test compounds (image created with Biorender.com). Please click here to view a larger version of this figure.

We demonstrated that acquiring data in this manner can be done in real time and is statistically robust for the use in high-content screening in cancer drug discovery. Importantly, this model allows for an extended validation of a larger set of compounds, and it can be applied to several assays of interest.

Protocol

1. Setting up the JIMT-1-enhanced fluorescent protein (EGFP) spheroid model

1. To form a U-shaped cell-repellent bottom, coat the 96-well plate with 0.5% agarose-PBS solution (30 µL/well). Incubate the plate at room temperature for approximately 30-45 min.
2. Wash the JIMT-1-EGFP cells twice with 2 mL of sterile PBS (generation of JIMT1-EGFP cell line was reported in a previous publication¹⁷). Use T25 tissue culture flasks and JIMT-1 media (DMEM/F-12 medium supplemented with 20% fetal bovine serum (FBS), 0.3 U/mL insulin (100 IU/mL, Humulin R), and 1% penicillin-streptomycin) for the cell culture.
3. Add 2 mL of trypsin-EDTA to the flask and incubate it for 10 min in a CO₂ incubator.
4. Tap the flask to check if JIMT-1 cells detached after the incubation time.
5. Use 2 mL of JIMT-1 medium to stop the digestion and collect the cell suspension into a 15 mL tube.
6. Count the cells in a Bürker chamber with 0.4% trypan blue (80 µL of the dye + 20 µL of the cell suspension) and adjust the cell number to 20,000 cells/mL.
7. Pipette 100 µL of the cell suspension (2000 cells/well) to each well of the 96-well plate (pre-coated with 0.5% agarose-PBS solution as indicated in 1.1).
8. Allow cells to clump together during a 3-day incubation time at 37 °C in a CO₂ incubator.
9. Regularly check the size and shape of spheroids with an inverted microscope.

2. Coating of the HCS plate

NOTE: To prevent the attachment of JIMT-1-EGFP spheroids to the glass surface of the plate, coating the High-Content Screening (HCS) plate is crucial (otherwise high-content analysis would not be possible).

1. On day 3 after induction of spheroids, coat the 96-well high-content screening plate with Pluronic-F127 (0.5% in DMSO, 50 µL/well) and incubate the plate for 45 min at room temperature.
2. Aspirate the coating solution and wash the wells twice with DMEM/F-12-serum free medium (100 µL/well).

3. Transfer of spheroids to the HCS plate

1. Using a 1 mL pipette, transfer the spheroids in triplicates to the glass bottom 96-well HCS plate.

4. Pre-treatment of JIMT-1 EGFP spheroids with test compounds

1. Add the test compound (e.g., Sunitinib diluted in DMSO at a concentration of 40 µM) by pipetting 10 µL/well and add 10 µL of fresh JIMT-1 medium to the control (CTL) wells.
2. Incubate the plate for 1 h in a CO₂ incubator at 37 °C.

5. Induction of ADCC by adding the effector cells

NOTE: CD16.176V.NK92 cells (hereinafter referred to as NK cells) were cultured in α-MEM supplemented with 20% FBS, 1% MEM-NEAA, 1% Na-pyruvate, 1% glutamine, 1% penicillin-streptomycin and 100 IU/mL of IL-2.

1. Collect the NK cells in the flask into a 15 mL tube. Count the cells with trypan blue (80 µL of the dye + 20 µL of the cell suspension) and adjust the cell density to 20:1 effector-to-target (E:T) ratio (40,000 NK cells/well).
2. Stain the NK cells with 10 µM Cell Tracker Blue (CTB, 1 µL in 1 mL of α-MEM NK medium) and place them into a CO₂ incubator at 37 °C for 1 h.
3. Centrifuge the NK cells at 150 x g for 3 min at room temperature twice to wash the excess of the dye with 1 mL of α-MEM medium.
4. Resuspend the NK cell pellet in 1 mL of fresh JIMT-1 medium.
5. Add the stained NK cells along with the anti-HER2 antibody (Ab) (Trastuzumab, dissolved in sterile distilled H₂O) to the target JIMT-1 spheroids by pipetting 55 µL/well of CTB-stained NK cells and 55 µL/well of 10 µg/mL Ab in JIMT-1 medium (total volume of treatment added for the ADCC is 110 µL/well and the final Sunitinib concentration is 20 µM).
   NOTE: For the selection of Ab concentration and E:T ratio, we relied on our previous publication¹⁷. Preliminary experiments were performed with different E:T ratios and concentrations of Trastuzumab to assess which was the most effective in inducing ADCC in spheroids (Supplementary Figure S1).
6. Add 110 µL/well of fresh JIMT-1 medium to control (CTL) wells.
7. Incubate the plate for 24 h in a CO₂ incubator at 37 °C.
   NOTE: As NK92 cells are known to exert non-specific cytotoxic functions, for control use JIMT-1 cells co-incubated with both NK cells alone and with an isotype control or a F(ab')₂ Ab. Here F(ab')₂-Trastuzumab (TR-F(ab')₂) was used as a negative CTL. TR-F(ab')₂ fragment was prepared as reported by Tóth et al.¹⁹ and added in the same volume as Trastuzumab along with NK cells as described in 5.5. Concentration was adjusted to 6.6 µg/mL corresponding to an equimolar concentration with Trastuzumab²³.

6. Annexin V-647 staining of spheroids

1. To measure apoptotic cell death, stain the spheroids with Annexin V-Alexa Fluor 647 conjugate for 1 h in JIMT-1 medium (1:100) by pipetting 50 µL/well.

7. Imaging

NOTE: The plate is imaged at 24 h after the addition of the NK effector cells to the target cells. For imaging, a High-Content Analyzer and an image analysis software are used.

1. Select the type of microplate from the list of plates using the Plate Type option. Use 96-well High-Content Screening (HCS) plate.
2. Select Two Peak autofocus as the assay is carried out in plates with 10x objective with 0.3 numerical aperture (NA), using the Autofocus and Objective options, respectively. Choose confocal mode with the Opt. Mode option and apply Binning 2 using the Binning option.
3. For imaging spheroids, select the appropriate channels using the Channel Selection option. To detect the EGFP-transduced JIMT-1 cells choose EGFP (integration time 200 ms, laser power 50%, stack height 2.0 µm; ex: 488 nm em: 500-550 nm), and to detect apoptotic cells use Alexa 647 (integration time 100 ms, laser power 50%, stack height 10.0 µm; ex: 640 nm em: 650-760 nm). To visualize the NK cells within the spheroids, choose the following channel: DAPI (integration time 100 ms, laser power 50%, stack height 2.0 µm; ex: 405 nm em: 435-480 nm).
4. In Layout Selection option, select Z-stacks since cells in the spheroids tend to be on different focal planes of the microscope. 10 planes (with distance of 10 µm) are sufficient to cover the whole spheroid region. Set the values of the first plane and last plane at 0 µm and 90 µm, respectively.
   NOTE: Before starting the measurement, sample images can be taken with the snapshot function in order to check the correct settings.
5. Set the number of wells and fields for imaging using the Define Layout option.

8. High-content analysis (HCA)

NOTE: Analyze the images with the Harmony software or export images for analysis using a preferred third-party software. For the analysis of ADCC efficiency, the fluorescence intensity of Annexin V 647 is measured. Target cells killed by ADCC appear in the peripheral area of the spheroids. Therefore, the Annexin V positive cells are measured in this spheroid "ring". In order to validate this method, analyses were performed with different parameters to assess which was the most reliable and producing the best results (Supplementary Figure S2). An ADCC well is shown in the video in order to demonstrate step-by-step the image analysis process.

1. Identify the spheroids by the EGFP fluorescence of JIMT-1 cells using Find Texture Regions option and filter them out by size (> 25,000 µm²).
2. Remove border objects by Select Population option.
3. Since Annexin V positive (apoptotic) cells appear on the periphery of spheroids, measure Annexin intensity in this apoptotic 'Ring', selected by the Select Region option (outer border -90%) to determine apoptotic cell death.
4. Express Annexin V intensity values as mean intensity.

Results

EGFP expressing JIMT-1 cells were generated, and spheroids were grown from these cells. Sunitinib was used as a test compound as it was previously shown to affect the course of ADCC¹⁷. Spheroids were allowed to clump for 72 h. On day 3, 10 µg/mL of Trastuzumab (or equimolar 6.6 µg/mL TR-F(ab')₂¹⁹) and NK cells (20:1) were added to the spheroids in the presence or the absence of 20 µM Sunitinib (1 h pre-treatment), for a total time of 24 h. JIMT-1 alone and JIMT-1 co-incubated with NK cells (20:1) were used as CTLs. Spheroids were stained with Annexin V 647 for 1 h to detect apoptotic cell death and were then imaged with a High-Content Analyzer.

As indicated by Annexin V staining, addition of NK cells along with Trastuzumab to the JIMT-1 cells caused cell death in the tumor spheroids. Annexin positive (apoptotic) cells emerged in the peripheral zone of the spheroids as visible in Figure 3A. On the other hand, the addition of NK cells alone did not result in tumor cell apoptosis. To distinguish between the ability of Trastuzumab to recruit ADCC and its direct biological effect, TR-F(ab')₂ lacking functional FcR binding capability was used as a negative control of Trastuzumab. Since TR-F(ab')₂ was shown to be ineffective in this model (Figure 3B), the effect is likely to be mediated via ADCC. Moreover, pretreatment with Sunitinib reduced Annexin V staining in the spheroids, confirming Sunitinib-induced ADCC resistance and revealing the prevention of apoptotic cell death in JIMT-1 spheroids co-incubated with NK cells and Trastuzumab.

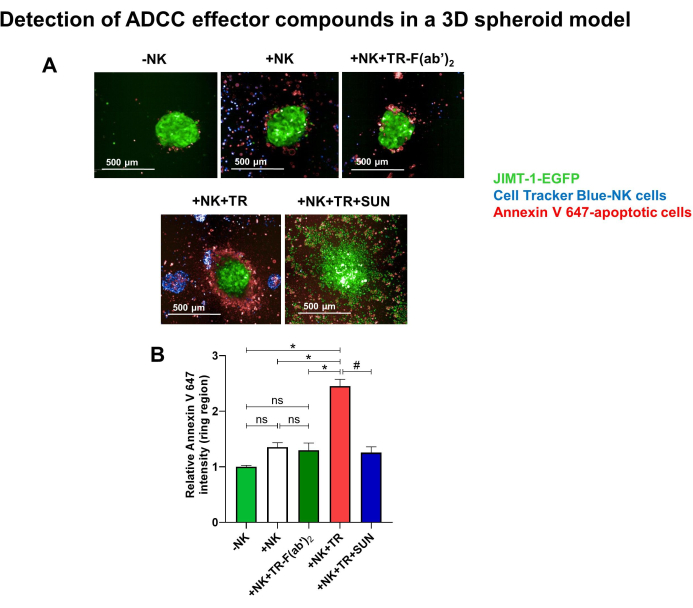

Figure 3. Detection of ADCC effector compounds in a 3D spheroid model. Tumor spheroids were generated with JIMT-1-EGFP cells. After an incubation time of 3 days, spheroids were transferred to a HCS plate, previously coated with Pluronic F-127 to prevent cell attachment. On the next day, 10 µg/mL Trastuzumab (TR) (or equimolar 6.6 µg/mL TR-F(ab')₂ as negative CTL) and NK92.CD16 cells (pre-stained with Cell Tracker Blue) were added to the wells (E:T ratio of 20:1), in the absence or the presence of 20 µM Sunitinib (SUN). JIMT-1 spheroids alone and JIMT-1 spheroids co-incubated with NK cells (20:1) were used as CTLs. (A) After an incubation time of 24 h, Annexin V 647 (red color) was used to stain the spheroids for 1 h to visualize apoptotic cells. (B) Images of 3 spheroids/condition were taken and analyzed for the fluorescence intensity of Annexin V 647 in the peripheral area of the spheroids (ring region). Histogram shows 4 independent experiments (means±SEM). Data were analyzed with Kruskal-Wallis test followed by Dunn's post-hoc test (*p < 0.05, #p < 0.05, ns: not significant). Please click here to view a larger version of this figure.

These data confirm that Sunitinib inhibits ADCC. ADCC enhancing compounds are expected to be identified in a similar fashion. In summary, our HCS assay may be suitable for the identification of compounds affecting ADCC.

Supplementary Figure S1. Optimization of the E:T ratio and the Trastuzumab concentration. JIMT-1-EGFP cells were used to generate spheroids. On day 3, spheroids were transferred to a HCS plate and NK cells were added at different E:T ratios (20:1, 40:1 and 60:1) with 10, 20 and 50 µg/mL Trastuzumab (TR) to see which was the most effective treatment that could induce cell death in the spheroids. Control (JIMT-1-EGFP) was treated with JIMT-1 cell culture media. (A) After 24 h, cells were stained with Annexin V 647 (red color) for 1 h and apoptotic cell death was measured with HCA. Histograms show 3 independent experiments (means±SEM). The columns represent the intensity of Annexin V 647 around the JIMT-1 spheroids. (B) Images of 3 spheroids/condition were analyzed for the Annexin V 647 intensity of the ring region. Data were analyzed using one-way ANOVA followed by Tukey's post-hoc test (*p < 0.05, **p < 0.01, ns: not significant). Please click here to download this File.

Supplementary Figure S2. Evaluation of JIMT-1 cell apoptosis in the spheroids. JIMT-1-EGFP cells were used to generate spheroids. On day 3, spheroids were transferred to a HCS plate and were pre-treated with 20 µM Sunitinib (SUN) for 1 h, then NK cells were added at 20:1 E:T ratio with 10 µg/mL Trastuzumab. After 24 h, cells were stained with Annexin V 647 for 1 h and apoptotic cell death was measured with HCA. Images of 3 spheroids/condition were analyzed for the Annexin V 647 intensity (control: JIMT-1-EGFP, ADCC: 20:1 NK cells+10 µg/mL Trastuzumab, ADCC+SUN: 20 µM Sunitinib+20:1 NK cells+10 µg/mL Trastuzumab). The columns represent the intensity of Annexin V 647 around the JIMT-1 spheroids (ring) (A), in the whole spheroid (B), and in the whole well (C). Histograms show 3 independent experiments (means±SEM). Data were analyzed using one-way ANOVA followed by Tukey's post-hoc test (*p < 0.05, **p < 0.01, ns: not significant). Please click here to download this File.

Discussion

Despite significant improvements in treating BC over the past several decades, patients still regularly develop medication resistance or experience negative side effects²⁴. The high morbidity and mortality linked to BC demand a continuing investigation into the underlying molecular mechanisms, just as robust screening platforms to identify new molecules actionable for therapeutic development²⁵. These strategies require cell culture-based translational assays. 3D tumor culture systems, such as spheroids and tumor organoids have recently emerged as low-cost, easy-to-implement models that represent key aspects of tumor pathophysiology more closely than conventional monolayer cultures. One of these features is the spatially coordinated interaction between various tumor-associated immune cells and cancer cells. This makes 3D co-culture models superior tools for drug screening geared towards modulators acting on immune cells to treat malignancies²⁶.

In this work, we have introduced a novel spheroid model for NK-cell-mediated Trastuzumab-dependent ADCC against JIMT-1 breast carcinoma cells and described an automated imaging and analysis workflow for the evaluation of NK cell-mediated cancer cell killing. The procedure was implemented for a high-content imager and image analysis software allowing for the monitoring of the disease-relevant ability of the NK cells to induce cancer cell apoptosis. The multitargeted tyrosine kinase inhibitor Sunitinib as a compound inducing resistance to Trastuzumab-dependent ADCC in JIMT-1 cells in 2D cell culture assays was previously identified. Sunitinib impairs the killing function of NK cells and induces autophagy, downregulation of HER2 expression, and enhances the adherence of JIMT-1 cells¹⁷. In order to validate our spheroid analysis pipeline for compound identification, we tested Sunitinib as a model compound and are showing that it can significantly hamper the ability of NK cells to kill the cancer cell spheroids reproducing the effect it demonstrated in monolayer.

Our method is simple, comprising the growth of spheroids in agarose-coated 96-well tissue culture plates, a single-time transfer of the formed spheroids into a glass-bottom microplate suitable for HCS and HCA applications, the addition of test compounds and the separately stained NK-cells activated to kill by administration of Trastuzumab, a single-step cell death staining, and the microscopy analysis. No severe manipulations are applied to the wells after the beginning of the co-culturing of the two cell types and the drug treatment to avoid compromising the spheroids' integrity. The assay only takes 4 days to perform. Coating the bottom of 96-well tissue culture plates with 1% low-melting agarose as part of the procedure is a cheap alternative to using ultra-low attachment plates in order to prevent JIMT-1 cells from adhering to the plate's surface and to promote the spontaneous organization of the tumor cells into spheroids. Since image capture is not possible across the agarose cushion and the U-shaped plastic surface, the spheroids needed to be transferred into the imaging plate. Crucial was the passivation of the glass surface of the HCS plate with the bio-inert surfactant, Pluronic-F127 before spheroid transfer. Without this step, spheroids spread out on the bottom of the wells, making the imaging and analysis difficult.

A human tumor cell line stably expressing EGFP was used for forming spheroids¹⁷. The genetically encoded marker offers sustained fluorescence throughout the protocol instead of cell stains. Unsupervised texture analysis of the EGFP signal provides the basis for recognizing the spheroids' compact kernel, which comprises the entire spheroid without cell death induction. When NK cells were added and ADCC was induced, the marked disintegration of the contours sometimes posed a challenge for the image analysis algorithm to delineate the outline of the spheroid. Because Annexin V-positive cells were found mainly at the periphery of the spheroids, this problem was circumvented by evaluating cell death in a peripheral annular region generated by the built-in image segmentation module of the software by extending the well-defined spheroid core. The expansion factor defining the outer boundary of this area was chosen to encompass the penumbra of dying, shredded, and dispersed cells in all cases after visually curating hundreds of spheroid images. Determining the total fluorescence of the apoptotic ring area in the maximal projections of Z-stack images yielded lower experimental errors and a more pronounced ADCC effect than measuring either the whole spheroid area or the entire well area (Supplementary Figure S2). Fluorescent labels were chosen for marking the BC cells (EGFP) and detecting cell death (Alexa 647) to foreclose a need for channel separation. An end-point readout was opted for based on fluorescent labeling for exposed phosphatidylserine, an apoptotic marker, as opposed to monitoring the decrease of EGFP fluorescence to determine the viability of spheroids over time, which could be another option. Annexin staining allowed for more accurate and sensitive identification of cell death. In principle, it is possible to improve the current one-dimensional staining approach by complementing it with additional, more precise cell death markers that can identify the cell death modality (e.g., fluorescent caspase substrates) and the perished cell type.

This method can be amended with minimal changes to study other effector immune cell types (macrophages, T cells, and chimeric antigen receptor [CAR]-expressing immune cells) and activator molecules (e.g., cytokines, interleukins). Aiming at simplicity, robustness, and short processing time, we have not exhausted the possibilities HCA can offer for this assay. The imaging and analysis protocols are amenable to the addition of further fluorescent labels. This assay is adaptable to study more complex spheroids by adding different types of cells and using multiplexed fluorescent probes to distinguish those cell types and specific fluorescent markers to link them to ongoing cellular events^4,5. The protocol can be adapted to any HC imager and the images can be analyzed with any image analysis software incorporating a texture analysis module.

Key aspect of the importance of this protocol, is the use of spheroids. Hence, a number of parameters has to be considered. It is known that cells in 3D culture display an attenuated response to compounds when compared to cells grown in monolayers^21,22. The use of 2D cell cultures does not allow one to predict the effective range of concentrations of a tested agent in the whole organism. When setting up our 3D model, we tested higher compound concentrations and E:T ratios than the ones reported in 2D. For instance, the protocol was optimized by increasing the E:T ratio from 2:1 used in our 2D ADCC assay¹⁷, to 20:1 for the cancer spheroids. The rationale behind this could be that the drugs were unable to effectively penetrate the core of spheroids and mainly affected the cells of the outer layers. On the other hand, increasing the concentration of Trastuzumab did not further enhance the ADCC response (Supplementary Figure S1). This selection might differ between cell lines and target. Thus, it would be interesting to test this protocol on other cell lines, e.g., a non-HER2 BC cell line, taking into account that HER2 expression level is an important determinant the ADCC response²⁰.

In summary, our new method represents a fast and robust platform to analyze the effect of compounds in a 3D immune-cancer model with the potential to be used for high-throughput drug screening. This highlights the relevance of using HER2+ BC spheroids and NK92.CD16 cells in further improving the understanding of the molecular mechanisms of Trastuzumab, thus providing an opportunity to anticipate the effectiveness of Trastuzumab-dependent ADCC into the therapeutic potential in vivo²⁷. The quest for new anti-tumor immune modulators can benefit greatly from this assay. The method can be extended to personalized chemosensitivity testing of patient-derived tumor cell cultures. We have demonstrated that the traditional 2D co-cultures used in the immune cell killing and ADCC tests can be converted into 3D spheroid assays, potentially increasing their translational relevance.
