Vacuum-Forced Agroinfiltration for In planta Transformation of Recalcitrant Plants: Cacao as a Case Study

Summary

Here, we present the first protocol for localized vacuum infiltration for in vivo studies of the genetic transformation of large-sized plants. Using this methodology, we achieved for the first time the Agrobacterium-mediated in planta transient transformation of cacao.

Abstract

Transient in planta transformation is a fast and cost-effective alternative for plant genetic transformation. Most protocols for in planta transformation rely on the use of Agrobacterium-mediated transformation. However, the protocols currently in use are standardized for small-sized plants due to the physical and economic constraints of submitting large-sized plants to a vacuum treatment. This work presents an effective protocol for localized vacuum-based agroinfiltration customized for large-sized plants. To assess the efficacy of the proposed method, we tested its use in cacao plants, a tropical plant species recalcitrant to genetic transformation. Our protocol allowed applying up to 0.07 MPa vacuum, with repetitions, to a localized aerial part of cacao leaves, making it possible to force the infiltration of Agrobacterium into the intercellular spaces of attached leaves. As a result, we achieved the Agrobacterium-mediated transient in planta transformation of attached cacao leaves expressing for the RUBY reporter system. This is also the first Agrobacterium-mediated in planta transient transformation of cacao. This protocol would allow the application of the vacuum-based agroinfiltration method to other plant species with similar size constraints and open the door for the in planta characterization of genes in recalcitrant woody, large-size species.

Introduction

Plant genetic transformation methods are essential for testing the biological functions of genes and are especially useful today given the large number of uncharacterized genes predicted in the post-genomic era¹. These methods can be used to obtain fully transformed lines or to express genes transiently. Stable transformation occurs when the foreign DNA the host has taken up becomes fully and irreversibly integrated into the host genome, and the genetic modifications are passed down to subsequent generations. Transient expression, known as transient transformation, occurs from the multiple copies of T-DNA transferred by Agrobacterium into the cell, which have not been integrated into the host genome, and peaks 2-4 days post infection².

It is worth noting that transient expression assays are often sufficient for the functional characterization of genes and can offer several advantages over stable transformation. For example, transient transformation does not require tissue culture-based regeneration procedures. Another advantage is that it is compatible with in planta functional analysis of genes, existing several successful examples of protocols well standardized for model plant species, such as Arabidopsis thaliana³ and Nicotiana benthamiana⁴, but still limited in non-model species⁵.

The development of transient assays relies on the availability of efficient gene transfer methods. For this, the most popular approaches are based on Agrobacterium infiltration, which takes advantage of Agrobacterium's unique ability to transfer DNA to plant cells⁶. Another useful tool for these analyses is the use of reporter genes, such as green fluorescent proteins (GFP), β-glucuronidase (GUS), luciferase, or RUBY, all of which are employed to track transformation events. Among these reporter systems, RUBY is currently the easiest to visualize and relies on the conversion of tyrosine into betalains through three enzymatic step reactions. As opposed to other reporter systems, the resultant betalains can be readily observed as brightly colored pigments on transformed plant tissue without the need for sophisticated equipment or additional reactants⁷.

When infiltrating an Agrobacterium suspension into the intercellular space of the leaf mesophyll, the most critical step for successful agroinfection is overcoming the physical barrier imposed by the epidermal cuticle of the leaves⁸. While for some plants, a pressure gradient created with a needle-less syringe (syringe Agroinfiltration) is enough for an efficient agroinfiltration, as occurs in Nicotiana benthamiana⁹, other plant species may require a larger pressure gradient such as the one created with the help of vacuum pumps¹⁰. In vacuum-assisted processes, agroinfiltration occurs in two steps. In the first one, vacuum serves to subject the plant material to reduced pressure, forcing the release of gases from the mesophyll air spaces through stomata and wounds. Then, during a repressurization phase, the Agrobacterium suspension infiltrates the intercellular spaces via the stomata and wounds¹¹.

Compared to syringe infiltration, vacuum infiltration allows for higher usage frequency, repeatability, and the ability to control pressure and duration at every stage of the infiltration process¹⁰. In leaves of different plant species such as spinach (Spinacia oleracea)¹², peony (a woody perennial) (Paeonia ostii)¹³, and Cowpea (Vigna unguiculata)¹⁴, vacuum agroinfiltration protocols achieved a deeper infiltration rate than syringe infiltration. Similarly, in tomato (Lycopersicon esculentum)¹⁵, and gerbera (Gerbera hybrida)¹⁶, vacuum agroinfiltration produced stronger and more uniform gene silencing than syringe infiltration. An additional advantage of vacuum infiltration is the lower dependence on genotype, compared to syringe infiltration, which was observed recently in three citrus varieties (Fortunella obovata, Citrus limon, and C. grandis)¹⁷. However, when trying to apply vacuum agroinfiltration to plants that are too large to fit into desiccators, the size of the vacuum chambers can be a limitation, as typically occurs with tropical woody plants.

Below, we describe a protocol that overcomes the spatial limitation of vacuum chambers, testing its utility for in planta transient transformation of cacao leaves. We present the first localized vacuum infiltration method for cacao, which does not require additional equipment and even allows the use of the same laboratory desiccators used for the infiltration of the whole plant, but with a simple adaptation that allows the access of a part of the plant inside the vacuum chamber, allowing its use at different stages of plant development. To test the usefulness of the localized vacuum infiltration method proposed, we selected cacao as a proxy of a large-leaved tropical plant species that is difficult to transform. Using this localized infiltration method, we recently reported the first in planta transient expression in avocado by Agrobacterium-mediated vacuum infiltration with conditions previously optimized for detached leaves¹⁸, and here we report the first in planta transient expression in cacao.

Protocol

1. Agrobacterium tumefaciens culture

1. Thaw electrocompetent cells of Agrobacterium tumefaciens strain LBA4404.
2. Add 1 mL of Yeast Malt (YM; Table 1) broth to a 17 mm x 100 mm culture tube. Save this tube for later, and keep it at room temperature (RT).
3. In a 1.5 mL microfuge tube, add 30 µL of the thawed Agrobacterium cells and 100-250 ng (up to 5 µL) of the DNA containing 35S:RUBY. Mix gently.
   NOTE: The 35S:RUBY was a gift from Yunde Zhao. To avoid sample arcing, reduce the presence of ionic compounds as much as possible. These ionic compounds may be residual salts from the ethanol precipitation of DNA¹⁹.
4. At this point, place a 1 mm electroporation cuvette on ice.
5. Transfer the previous suspension mix to a chilled 1 mm electroporation cuvette. Keep everything on ice. Wipe the metallic electrodes of the cuvette.
6. Set the electroporator to Agr (2.2 kV, ~5 ms, 1 pulse). Place the cuvette inside the electroporation chamber.
7. Press the Pulse button. Register the pulse parameters. If the sample arced, the electroporation process failed.
   NOTE: It is critical to quickly transfer the cells to the YM broth right after the pulse. Delaying this transfer can dramatically reduce the transformation efficiency²⁰.
8. Immediately, use the saved YM broth to transfer the cells from the cuvette to the 17 mm x 100 mm tube. Resuspend the cells gently.
9. Incubate the transformed cells for 3 h at 28 °C and 250 rpm on an orbital incubator.
   NOTE: This culture does not have antibiotics; be cautious about proper aseptic conditions.
10. Streak this culture onto selective YM agar plates²¹. For the transformed LBA4404-RUBY strain, ensure these plates contain rifampicin (25 µg/mL), spectinomycin (50 µg/mL), and streptomycin (50 µg/mL). Incubate this plate overnight in a 28 °C standing incubator.
    NOTE: In this protocol, the vector 35S:RUBY was used, which confers bacterial resistance to spectinomycin (50 µg/mL) and functions as a visual reporter on infiltrated plant tissue.
11. Inoculate colonies from the overnight culture on 12.5 mL of a mixture of YM broth and Luria Bertani (LB) broth (in a 9:1 proportion, respectively), 10 mM of MES, pH 5.7²². Ensure that this selective liquid medium contains the same antibiotics used in step 1.10. Refer to Table 1 to see the ingredients and concentrations for these mediums.
    1. When incubating Agrobacterium, leave enough aeration space for the culture, about 4 to 5 times the liquid volume. Use YM broth for Agrobacterium strain LBA4404 to avoid cell clumping²³.
12. Incubate the culture for 16 h at 250 rpm on a 28 °C orbital incubator.
13. Scale the culture up to 10 times the initial volume with the same medium used in step 1.11.
14. Incubate the culture for 16 h and 250 rpm on a 28 °C orbital incubator.
15. Adjust the overnight culture to an optical density (OD₆₀₀) of 0.4. Add 20 µM of acetosyringone (AS).
16. Incubate at 250 rpm on a 28 °C orbital incubator until OD₆₀₀ reaches about 1.0.
17. Centrifuge the cells at 4 500 x g for 10 min at 20 °C.
18. Resuspend the pellet with suspension solution (10 mM MES, 10 mM MgCl₂, pH 5.7), adjusting OD₆₀₀ to 0.6. Add 200 µM AS²⁴.
    NOTE: Pre-incubate the suspension solution at 28 °C. If the suspension solution is cold when added, the cells will precipitate.
19. Leave the bacterial suspension for 2-24 h in dark conditions and 25 °C. Agitation is not required²².

2. Plant selection

1. Choose a plant with a branch with leaves in the optimal stage for agroinfiltration.
   NOTE: The plant may be full-grown or a mature tree. For cacao, young leaves of C stage are recommended. These leaves are bronze to light green colored; they are not fully expanded nor as rigid as stage D leaves²⁵(Figure 1).
   1. As a control, simultaneously perform agroinfiltration on other plants (e.g., Nicotiana tabacum) with a high agroinfiltration efficiency that is reported for the strain and vector used.
      NOTE: If no positive results are obtained in this control, it is possible that the negative results are due to the strain or the vector used.

3. Vacuum chamber setup

1. As a vacuum chamber, use a desiccator that has a vacuum gauge to measure the vacuum pressure inside.
2. Add 250 µM of Jasmonic acid (JA)^18,26 to the Agrobacterium suspension from step 1.19.
3. Transfer the Agrobacterium culture to a wide-mouth beaker to submerge the selected branch and leaves. Then, place the beaker with Agrobacterium culture inside the desiccator.
4. Place the branch between the desiccator and its lid. Make sure to submerge the desired leaves inside the Agrobacterium culture. Next, use a jump ring, which is a round ring with a cutout that allows the plant branch to enter the desiccator. The Jump Ring also acts as a spacer between the bottom and top of the Desiccator.
5. Ensure that the gasket is structurally stable enough to avoid being squished with the lid, flexible enough to bend and adjust to the circumference of the desiccator, and not made of a porous material.
   NOTE: This study used a stranded metal wire consisting of several smaller wires twisted together, coated with a nonporous plastic material resembling a gasket (Figure 2).
6. To fix the branch onto the desiccator, use silicone impression material. Ensure that the material is sticky, nonporous, chemically inert to the desiccator and the plant, and easy to apply and fill small gaps between the branch, the gasket, and the desiccator.
7. Once the silicone impression material polymerizes (this takes about 1 min) and fixes up the branch in place, close the desiccator. Make sure not to leave any gaps.
8. Connect the desiccator to the vacuum pump (Figure 3).

4. Vacuum infiltration

1. Start the vacuum pump until it gets to -0.07 MPa.
2. Once it reaches this pressure, close the pressure valve and turn off the vacuum pump. Maintain this pressure for 5 min.
3. Open the pressure valve to restore the chamber pressure.
   NOTE: This is a critical step. Restore the chamber pressure gradually and steadily. It may take up to 3 min to fully repressurize the desiccator. Extended re-pressurization increases the number of bacteria infiltrated inside the tissue¹⁰.
4. Repeat this process two more times.
5. Take the branch off the cell suspension and the desiccator.
6. Clean the infiltrated leaves with distilled water.

5. Incubation of infiltrated leaves

1. Let the infiltrated leaves stay in dark conditions at 25 °C for 48 h.
2. Then, expose the infiltrated tissue to a 16/8-h light/dark photoperiod.
3. Evaluate the transient leaf transformation 3-7 days post-infection (DPI).

Figure 1: Cacao leaves developmental stages. (A-E) Developmental stages²⁵. Please click here to view a larger version of this figure.

Figure 2: Vacuum chamber configuration and its components. The vacuum chamber is a desiccator connected to a vacuum gauge. The gasket/ O-ring is cut so it has an opening where the branch will be placed. (A) Vacuum gauge, (B) Lid, (C) Gasket/ O-ring, (D) Pressure valve, (E) Desiccator, (F) Hose. Please click here to view a larger version of this figure.

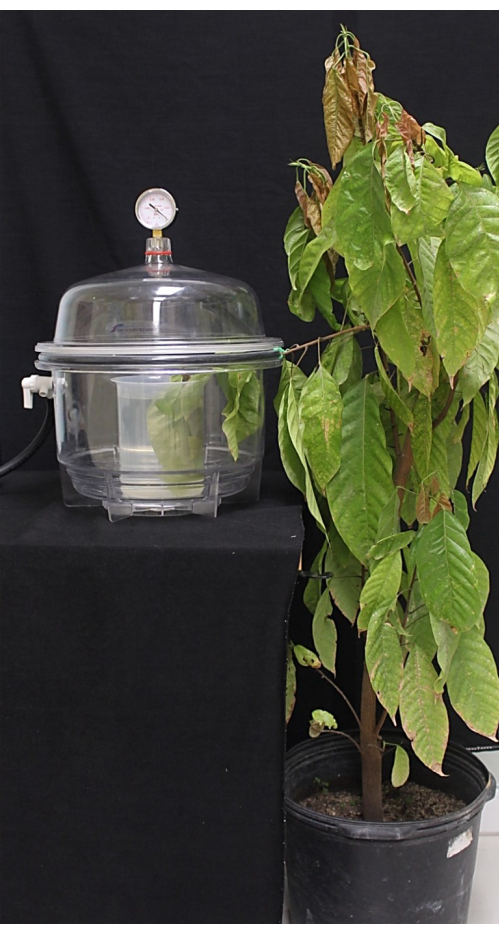

Figure 3: In planta vacuum agroinfiltration system. To avoid vacuum losses during the infiltration process, it is critical to secure the branch to the desiccator and the gasket/O-ring with silicone impression material. (A) Cacao plant, (B) Vacuum chamber, (C) Silicone impression material, (D) Leaves submerged on Agrobacterium suspension, (E) Vacuum pump. Please click here to view a larger version of this figure.

Results

This protocol presents an effective agroinfiltration method for large-sized woody plants. With this protocol, we were able to achieve a vacuum pressure of -0.07 MPa, resulting in the effective, localized infiltration of cacao leaves. In Figure 4, we observe the infiltration system setting up process, and in Figure 5, the final configuration.

Discussion

In this work, we presented an efficient, low-cost agroinfiltration protocol for the in planta transient transformation of woody plants, using cacao plants as an example. Given the well-known constraint that the cuticle of leaves represents for the transformation of plant tissues, we concentrated on developing a strategy to facilitate agroinfiltration by vacuum in woody plants, which are usually recalcitrant to this procedure.

The achieved vacuum pressure inside the vacuum chamber was ...
