Generation, Maintenance, and Identification of Germ-Free Zebrafish Models from Larvae to Juvenile Stages

Summary

This protocol outlines the primary steps for obtaining germ-free (GF) fish embryos and maintaining them from larvae until the juvenile stage, including sampling and detecting their sterile status. The use of GF models with infection is important for understanding the role of microbes in host health.

Abstract

Zebrafish serve as valuable models for research on growth, immunity, and gut microbiota due to their genomic similarities with mammals, transparent embryos developed in a relatively clean chorion environment, and extremely rapid development of larvae compared to rodent models. Germ-free (GF) zebrafish (Danio rerio) are crucial for evaluating pollutant toxicity and establishing human-like disease models related to microbial functions. In comparison to conventionally raised (CR) models (fish in common husbandry), GF zebrafish allow for more accurate manipulation of the host microbiota, aiding in determining the causal relationship between microorganisms and hosts. Consequently, they play a critical role in advancing our understanding of these relationships. However, GF zebrafish models are typically generated and researched during the early life stages (from embryos to larvae) due to limitations in immune function and nutrient absorption. This study optimizes the generation, maintenance, and identification of early GF zebrafish models without feeding and with long-term feeding using GF food (such as Artemia sp., brine shrimp). Throughout the process, daily sampling and culture were performed and identified through multiple detections, including plates and 16S rRNA sequencing. The aseptic rate, survival, and developmental indexes of GF zebrafish were recorded to ensure the quality and quantity of the generated models. Importantly, this study provides details on bacterial isolation and infection techniques for GF fish, enabling the efficient creation of GF fish models from larvae to juvenile stages with GF food support. By applying these procedures in biomedical research, scientists can better understand the relationships between intestinal bacterial functions and host health.

Introduction

The microbiota (i.e., Archaea, Bacteria, Eukarya, and viruses) play crucial roles in maintaining host health and contributing to the development of various diseases by influencing physiological and pathological processes through symbiotic interactions within the intestinal barrier, epithelial surface, and mucin functions in individuals^1,2,3. The composition of the microbiota across different life stages, from infancy to juvenility, adulthood, and aging, as well as its presence in various locations such as nares, oral, skin, and gut sites, is dynamically shaped by diverse habitats and environments⁴. The intestinal microbiota in organisms is involved in nutrient absorption, immune response, pathogen invasion, metabolic regulation, etc^5,6. Studies on patients have demonstrated that disruptions in gut microbiota are related to human obesity, sleep disorders, depression, inflammatory bowel disease (IBD), neurodegenerative diseases (Parkinson's, Alzheimer's), aging, and various cancers^7,8,9. Furthermore, interactive pathways between gut microbiota and hosts involve inflammatory factors, neurotransmitters, metabolites, intestinal barrier, and oxidative stress, as observed in previous research using mice and fish models^10,11.

Recently, multiple bacteria-related approaches or therapies, including potential probiotics and fecal microbiota transplantation (FMT), have been explored for these disorders in clinical and animal models. These explorations are based on discoveries related to the microbiota-gut-brain/liver/kidney axis, microbiota-derived products, and altered receptor activity^12,13. However, the development, various functions, and mechanisms of the microbiota-host system are still incompletely understood and identified due to the complexity of the microbial community and the challenge of generating powerful human-like disease models.

To address these issues, germ-free (GF) animal models were urgently proposed in the mid-19^th century and primarily developed during the 20^th century. Subsequent refinements, including antibiotic-treated and gnotobiotic models, along with advancements in microbial detection and observation technologies, further perfected these models^14,15,16. GF animals, created by erasing their own background and avoiding environmental microbes, offer an excellent strategy for exploring the interactions between microorganisms and their hosts¹⁷. Through the application of animal models and refined protocols, researchers have successfully replicated similar microbial compositions found in patients in GF mice and fish. Additionally, other GF animal models, such as dogs, chickens, and pigs, provide diverse options as research subjects^18,19,20,21. This approach has enabled investigations into the potential therapeutic effects of commensal microbiomes on various diseases, including cancer immunotherapy in humans^16,18. GF models offer more accurate insights into the characteristics and mechanisms of specific bacterial colonization, migration, multiplication, and interaction within hosts. This provides crucial novel insights into the occurrence and development of microbiota-related diseases^22,23. The history of establishing and applying GF zebrafish in microbial research has evolved from the reports of Rawls et al. in 2004 and Bates et al. in 2006 to Melancon et al.'s protocol in 2017^16,24,25. However, the feasibility of adult or breeding GF models is still a prolonged process, accompanied by variable longevity, success rates, and health challenges.

Among various animal models, zebrafish (Danio rerio) stands out as a critical tool for both basic and biomedical research due to its advantageous similarity to human organs and genomics, short developmental cycle, high fecundity, and transparent embryos^19,26. Zebrafish, serving as reliable human disease models, offer a visual representation of physiological and pathological processes in vivo, providing insights into the attractive features of host-microbe interactions. Notably, zebrafish exhibit distinct cell lineages, allowing imaging of intestinal physiology, microbial dynamics, gonads and reproductive development, maturation of the host immune system, behavior, and metabolism²⁷. Zebrafish embryos develop within protective chorions until hatching, becoming larvae at 3 days post-fertilization (dpf). They actively hunt for food at 5 dpf and reach sexual maturity around 3 months post-fertilization (mpf)²⁸. The first successful germ-free (GF) zebrafish, reported by Rawls et al.²⁴, showed that larvae fed with autoclaved feed after yolk absorption exhibited tissue necrosis from 8 dpf and total death at 20 dpf. This indicated the effects of diet or the importance of considering exogenous nutrient supply in experiments involving long-term (>7 dpf) GF fish²⁹. Subsequent studies improved the generation protocol of GF fish, employing sterile food and methods perfected in different fish models¹⁶.

However, most research on GF zebrafish models has focused on early life stages, involving bacterial infection at 5 dpf for 24 h to 48 h, with samples collected before 7 dpf at the conclusion of the experiments^25,30,31. It's widely acknowledged that the microbiota in organisms, including humans and zebrafish, is colonized at the beginning of life and shaped during growth and development. The composition remains stable at adult stages, with the roles of microbiota in the host being crucial throughout life, especially in aging, neurodegenerative, metabolic-related obesity, and intestinal disease aspects³. Thus, perspectives from GF animals with longer survival can provide insights into the mechanisms of microbial roles in host organ development and functions, considering the immature immune and reproductive systems of fish larvae in early life. While bacterial strains in zebrafish intestines have been isolated and identified in previous studies, offering the potential for infecting GF animal models to select probiotics or research bacterial functions in the host^19,25, the generation and application of GF fish models have primarily been restricted to early life stages. This limitation, attributed to the complex production process, high maintenance costs, and associated issues with food and immunity, hinders research efforts aimed at investigating the developmental and chronic effects of microbiota in the host.

The survival rate, behavior, growth, maturation, and overall health of fish, especially in germ-free (GF) models, are significantly influenced by feeding practices, encompassing nutrition intake and absorption during the mouth-open period from early larvae to juveniles^32,33. However, one of the challenges in GF fish husbandry is the scarcity of suitable sterile diets, limiting the effectiveness of nutritional support for sustaining the growth and survival of larvae. Resolving this issue is crucial to restoring the life of GF fish, considering their developmental defense mechanisms and weak digestion abilities due to the absence of an intestinal microbiome. In terms of food, live brine shrimp (Artemia sp.) emerges as the most suitable diet for mouth-open larvae to juvenile fish. It has been observed that fish fed with live brine shrimp exhibit higher growth and survival rates compared to those fed with cooked egg yolk or other natural and synthetic baits³⁴. While early life models of GF fish can survive with yolk support and GF larvae models can be maintained with sterile feeding, generating long-term models from larvae to juveniles and reaching sexual maturity remains challenging. Additionally, flake or powder food is limited by unequal nutritional composition and can impact water quality. In contrast, live Artemia has advantages such as survival in both salt and freshwater, small size suitable for larvae to adults, ease of batching, and higher hatching quality³⁵. Building upon previous methods^16,24,30, we have simplified the complex treatment process and addressed the diet challenge by establishing easily incubated GF live Artemia sp. as sterile food for longer durations than early-life GF fish.

This study presents an optimized protocol covering (1) generation, (2) maintenance, (3) identification of sterile rate, and (4) maintenance and feeding to ensure the growth of germ-free (GF) zebrafish from embryos to larvae and juvenile stages. The results offer preliminary evidence on the hatching, survival, growth, and sterility of GF zebrafish, along with essential indices for GF Artemia sp. as sterile food. The detailed steps in model generation and preparation of sterile live foods provide crucial technical support for constructing and applying long-term GF fish models, as well as GF Artemia sp. in microbiota-host interaction research. The protocol addresses bacterial isolation, identification, and infection on GF fish models, outlining methods for bacterial fluorescence labeling and observing their colonization in fish intestines under a microscope. GF fish, gnotobiotic fish with bacterial infection, or transferred human microbiota models will undergo various detections to elucidate their functions and effects on host immunity, digestion, behavior, transcriptomic regulation, and metabolic aspects. In the long term, this protocol can be extended to different wild-type fish species, such as marine medaka, and potentially to other selected transgenic zebrafish lines correlated to specific tissues or diseases.

Protocol

The fish experiments were conducted in accordance with the guidelines of the Animal Care and Use Committee of Chongqing and the Institutional Animal Care and Use Committee of Chongqing Medical University, China, as well as the standards for experimental animals issued by the State Bureau of Quality and Technical Supervision (Approval ID: GB14922-2001 to GBT14927-2001). Zebrafish (Danio rerio, wild type, AB strain) were sourced from the Institute of Hydrobiology, Chinese Academy of Sciences, and maintained in the laboratory following previously reported procedures³⁶.

1. Adult zebrafish maintenance and embryo collection

NOTE: Drawing upon modifications from previous studies and reports^16,37,38,39, the maintenance of adult zebrafish, larvae rearing, and practices for germ-free (GF) models in our laboratory were carried out following the steps outlined below. The ultra-pure flow system for fish culture was commercially obtained (see Table of Materials). The water, maintained with a balanced pH, salt, and alkali, undergoes filtration during cycling to ensure clean conditions.

1. Maintain adult fish with the following standard procedure in the auto cycle system (see Table of Materials) with a photoperiod of the dark: light = 10 h: 14 h at 28 °C ± 0.5 °C and fed with fresh incubated Artemia sp. twice daily.
2. Put the sexually mature adult zebrafish (male: female = 2:1) into tanks with fresh and clean water the night before.
3. Let the fish spawn the next morning (approximately 8:30 a.m.) under regular light stimulation in the laboratory. After 1-2 h, transfer the fish to another tank.
4. Collect embryos into water from the auto-cycling system as the rearing medium in a culture dish using a disposable Pasteur pipette.

2. Generation of GF zebrafish from embryos to larvae

NOTE: The procedure for generating germ-free (GF) fish is outlined in Figure 1, while the basic developmental indexes of conventional (CR) and GF models are presented in Supplementary Figure 1. Please follow the steps outlined below in a benchtop biological safety cabinet or laminar flow hood using a sterile aseptic technique in a clean room.

1. Wash the embryos using the fish culture water and remove the feces impurities and dead or unfertilized eggs.
2. Transfer the embryos at 2 hpf to sterilized plates (up to 480 embryos per sterile dish with a 10 cm diameter) filled with antibiotic germ-free zebrafish medium (AB-GZM, see Table of Materials) solution and culture at 28.5 °C for 6-8 h.
   NOTE: AB-GZM is used to treat the embryos for several hours to eliminate the surface microorganisms, and GZM without antibiotics is used to culture GF fish in subsequence. Usually, the perfected culture time is 6 h).
3. Exclude eggs with white spots or a whitish appearance, and select those that are normally developed, displaying transparent and intact envelopes for further processing.
4. Rinse the embryos using AB-GZM three times within 10 min.
5. Soak the embryos in 0.2 g/L povidone-iodine solution (PVP-I) for 1 min (see Table of Materials).
   NOTE: Higher concentration and longer than 2 min will influence the death and hatching rate of embryos.
6. Wash the embryos using germ-free zebrafish medium (GZM) three times within 10 min.
7. Add embryos into sodium hypochlorite (NaClO) working solution, tightly cover the 50 mL microcentrifuge tubes, and bleach for 15 min. During this period, suspend the embryos in bleach solution by gently shaking them.
8. Wash the embryos using GZM three times within 10 min.
9. Transfer the embryos to sterile 6-well plates with 5 embryos and 10 mL of GZM per well. Culture them in an ultra-clean platform or incubator with a photoperiod of dark: light = 10 h: 14 h at 28 °C ± 0.5 °C.The culture density will influence the sterile rate.
10. Renew the culture medium daily by removing the spent GZM, collecting it as samples for sterile status detection, and replenishing each well with the same volume of sterile GZM.
11. Record the basic developmental indexes of GF embryos/larvae, including the survival rate, hatching rate, heartbeats, body length and weight, etc¹⁹.
12. Transfer the GF fish to suitable containers (dishes, cell culture flasks, or glass bottles with covers) with expanded volume, providing sterile food throughout the growth process.

3. Maintenance of GF zebrafish from larvae to juvenile

1. Renew the GZM without feeding before 7 dpf and daily detect the sterile states (see step 5).
2. Feed zebrafish larvae from 8 dpf to juvenile stages with sterile egg yolk (10 µL prepared stock solution per well) once daily before changing GZM.
3. Feed GF juveniles from 14 dpf with sterilized egg yolk mixed with GF Artemia sp. once daily (1-3 Artemia/larvae, see step 4), gradually increasing food mass with the growth and development of GF fish.
4. Provide egg yolk until all fish can consume Artemia nauplii.
   NOTE: GF Artemia should undergo sterility testing before use. Assess the number of Artemia nauplii left, observe pursuit and capturing progress, and examine the fish body with consumed food to indicate feeding success.
5. From 28 dpf to early adult stages, feed GF Artemia once daily (3-5 Artemia/larvae) and clean untapped or dead Artemia, and dead fish into the waste GZM as daily samples.
6. During GF fish growth, change the 6-well plates after 7 dpf to sterile plates or cell culture flasks from 8 to 21 dpf, and then to sterile bottles after 21 dpf. Increase culture medium and food mass according to the number and weight of GF fish in each container.
7. Renew GZM daily and check samples to ensure the success of GF models.
   NOTE: Maintaining germ-free (GF) fish models until early adulthood and sexual maturity is challenging, with a low average survival rate at 30 dpf, typically less than 10%. This is primarily attributed to weak immunity, delayed development, and impaired intestinal function.

4. Preparation of GF Artemia nauplii as the sterile food for chronic GF fish models

NOTE: The cultivation and preparation method of germ-free (GF) Artemia is outlined in Figure 2. Note that all the following steps are conducted in a benchtop biological safety cabinet, using a sterile aseptic technique.

1. Rinse 0.25 g of Artemia cysts using 2.4 g/L sodium hypochlorite (NaClO, see Table of Materials) for 5 min.
2. Filter the rinsed Artemia cysts with a sterilized ultra-dense filter (about 170 meshes in aperture) and wash with sterilized ultrapure water three times, each time for 1-2 min.
3. Transfer the washed Artemia cysts into 100 mL of 2.5% sterilized saline water, mix, and package for aseptic hatching according to the steps mentioned below.
4. Pack the 50 mL treated Artemia cysts mixture solution into a sterile bottle with a volume of 100 mL, seal it with film, and incubate in a shaking incubator at 150 rpm, 30 °C for 18 h to 24 h with light.
5. Extract approximately 30 mL of hatching Artemia nauplii from the middle and lower layers using a disposable Pasteur pipette.
   NOTE: Prevent floating eggs and empty shells from reaching the upper layer. The indexes of germ-free (GF) Artemia cysts and nauplii incubated for 24 h are presented in Figure 3.
6. Filter the Artemia with a sterilizing filter and wash them in a sterilizing beaker with sterilizing ultrapure water three times, about 30 s to 1 min for each time. Finally, add 4 mL of sterilized ultrapure water to prepare the Artemia mixed solution.
7. Using a disposable Pasteur pipette, retrieve actively swimming Artemia from the upper layer, wash, and prepare the nauplii solution for feeding and aseptic identification.

5. Identification of GF fish models at the whole life stages

NOTE: Throughout the entire life stages of germ-free (GF) fish, key indexes and daily sample detections are crucial to ensure the success of the models. This step summarizes the common classification of samples and the usual methods for identification (Figure 4).

1. Observe and count the survival status and rate of GF zebrafish larvae daily. In experiments calculating related rates, GF fish are cultured in 24- or 48-well plates with one fish per well.
   1. Survival rate = (number of live fish at the time of observation / total number of eggs) × 100%.
   2. Sterility rate = (number of sterile fish/number of surviving fish) × 100%.
      NOTE: This protocol focuses on the sterile rate of live fish. The number of sterile fish is determined by counting successful GF fish after multiple checks among the live fish. Any dead fish or live fish GF models that have failed due to bacterial presence are eliminated during subsequent GF procedures.
2. Collect the following samples of GF zebrafish larvae.
   1. Culture medium of GF zebrafish from each well or bottle container.
   2. Fish food, such as sterile egg yolk and GF Artemia.
   3. Waste medium, including fragments of egg membrane after hatching and food residue or feces during the feeding periods from larvae to juvenile fish.
   4. Dead fish samples to identify the presence of bacteria.
   5. Fish medium and agents used in embryo treatment as the sterile control.
   6. Samples from materials, operating platform, and incubator, etc.
3. Detect samples collected daily using multiple methods.
   1. First, use the spread plate method and culture plates in an incubator at 30 °C.
      1. Coat with 20-50 µL of waste medium sample on the Trypticase Soy Agar (TSA) plate (see Table of Materials) under aerobic conditions.
      2. Coat with 20-50 µL of waste medium sample on the TSA plate under anaerobic conditions.
      3. Coat with 20-50 µL of waste medium sample on the blood TSA plates (see Table of Materials) under aerobic conditions.
      4. Coat with 20-50 µL of waste medium sample on the blood TSA plates under anaerobic conditions.
   2. Second, use the liquid culture method.
      1. Take 200 µL of sample into aerobic tubes with Brain Heart Infusion Broth (BHI) medium (see Table of Materials) and culture in the shaking incubator at 30 °C, 150-180 rpm.
      2. Add 200 µL of sample into anaerobic tubes with BHI medium and culture in the incubator at 30 °C.
      3. Add 200 µL of sample into aerobic tubes with Trypticase Soy Broth (TSB) medium, then culture in the shaking incubator at 30 °C, 150-180 rpm.
      4. Add 200 µL of sample into anaerobic tubes with TSB medium and culture in the incubator at 30 °C.
   3. Third, use molecular techniques-16s polymerase chain reaction (PCR) assay.
      1. Analyze the wastewater sample with two pairs of primers 27F and 1492R, as well as 63F and 1387R (Table 1).
         NOTE: The PCR master mix was prepared according to Table 2 using a commercially available DNA polymerase kit (see Table of Materials), and the PCR machine was set up with the program specified in Table 3.
      2. After the PCR program is completed, examine the products by 1% agarose gel electrophoresis⁴⁰ at target bands of 1465 bp (using primers 27F and 1492R) or 1324 bp (using primers 63F and 1387R) to infer the sterility of samples.
4. Record and observe sterility tests, including plate and medium culture from 24 h to 3 days and 7 days, during which no colony on plates and no turbidity in liquid indicate the successful construction of GF models. Observe and record the plate and medium at 24 h, 48 h, 72 h, 96 h, 120 h, 144 h, and 168 h.

6. Identification of GF Artemia samples before feeding on GF fish

NOTE: To detect the GF Artemia samples, which are indispensable as live food before feeding on GF fish (Figure 4), follow the steps below.

1. Collect samples of GF Artemia models.
   1. Untreated Artemia cysts.
   2. Treated GF Artemia cysts.
   3. Hatched GF Artemia nauplii.
   4. Sterilized ultrapure water as a control.
2. Detect GF Artemia with the following methods.
   1. Use the spread plate method to detect the samples by coating them on TSA plates and blood TSA plates under aerobic and anaerobic conditions. Incubate them at 30 °C.
   2. Use a liquid medium to detect the samples in aerobic and anaerobic TSB and BHI tubes. Culture in a shaker at 150-180 rpm, 30 °C.
   3. Use PCR assay to detect the presence of bacteria in the samples collected using 16s ribosomal RNA target genes primers 27F and 1492R, 63F and 1387R (Table 1). The volume and program are shown in Table 2 and Table 3.
3. Record the results: Detect the PCR product by 1% agarose gel electrophoresis⁴⁰ for target bands measuring 1465 bp (using primers 27F and 1492R) or 1324 bp (using primers 63F and 1387R). The results of plates and liquid medium can ensure the sterile status of GF Artemia before being used as GF fish food.

7. Isolation and identification of intestinal bacterial strains from zebrafish

NOTE: To explore intestinal functions in vitro and in vivo, it is necessary to isolate bacterial strains from zebrafish, which also provide the species source for potential probiotics screened by infection using GF animals (Figure 5). In this protocol, we describe the traditional dissection method to obtain intestinal contents, while the samples can also be collected directly from live anesthetized fish (data not shown).

1. Choose healthy adult zebrafish and wash them with sterile water. Perform the following steps in the clean bench.
2. Anesthetize the fish with 100 mg/L MS-222 for 5-10 min.
3. Use 75% alcohol to treat the fish's body surface.
4. Dissect the fish intestines and extrude the intestinal contents with TSB or BHI medium.
5. Incubate the intestinal supernatant by applying TSA, blood plate, TSB, and BHI medium in aerobic and anaerobic conditions.
6. Translate the bacteria to gain the signal strain and record the characteristics of different colonies.
7. Store the bacteria within 30% glycerol at -80 °C.
8. Then, identify the intestinal bacteria by genomic DNA extraction and PCR sequencing.
   NOTE: The main steps of bacterial genomic DNA extraction include liquid centrifugation, RNase A and Protease K dissociation, ethyl alcohol extraction, rinsing, and dissolution using commercially available kits following the manufacturer's instructions (see Table of Materials).
9. Analyze the 16S sequences using the National Center for Biotechnology Information (NCBI) and the Basic Local Alignment Search Tool (BLAST) with the Bacteria and Archaea database^40,41(see Table of Materials).
10. Pick the best-matched bacteria and characters to identify the isolated intestinal strains at the genus level.
11. Detect the metabolic functions of bacterial strains using commercially available kits (see Table of Materials).

8. Flu-label, infection, and colonization of bacteria in GF zebrafish intestines

NOTE: Before infecting GF zebrafish, the isolated bacteria were modified with dyes and counted, making microbial colonization and migration visible continuously and in vivo (Figure 6).

1. Choose potential beneficial bacteria or dominant strains with high abundance in the host to infect the GF fish models.
   NOTE: The bacteria used in this study were Aeromonas sp. and Vibrio sp. (see Table of Materials), selected from the 8 genera that were isolated and identified from adult wild-type zebrafish in the laboratory⁴².
2. Label the fresh bacteria with CM-Dil dyes (see Table of Materials) and expose them to GF zebrafish at 5 dpf with a concentration of 10⁶-10⁸ Colony-Forming Units (CFUs)/mL.
3. Observe the fluorescence under the fluorescent microscope with 3× magnification to indicate the colonization and distribution of bacteria in the gut of GF zebrafish larvae from 6 dpf and 14 dpf.
4. Manually count the number of bacteria in GF fish by plate culture at each time point.
5. Detect the colonies and sequences to ensure the infection was successful with the target bacterial strains.
6. Collect samples of GF fish with bacterial infection for subsequent assays, including neuro-behavior, developmental indexes, histopathological analysis, and hormone measurements, etc^43,44,45.
   NOTE: The bacteria used in the infection experiment should be newly recovered and freshly cultured by the liquid medium.

Results

The GF zebrafish models can be efficiently produced by utilizing the abundant eggs spawned by pairs of zebrafish, with the protocol optimized based on previous GF fish models³⁵. A single 6-well plate can culture approximately 30-48 embryos/larvae, allowing for ample data collection and statistical analysis. After sterile treatment, the GF embryos are cultured in a clean incubator till hatching to larvae at 48-72 h, and changed GZM daily with the detection of collected samples, which is crucial to maintaining the germ-free state (Figure 1). After 7 dpf, the food of egg yolk and live Artemia should be prepared for larvae to juvenile stages. During the growth and development of fish, the volume, container, and density of GZM should be regulated or changed in time to avoid death and failure of sterile status. If the detection shows no bacterial pollution, the successful GF models can be maintained as chronic ones from juvenile to early adulthood, but the survival rate is much lower in practice. Finally, the sterile rate, survival rate, development index, behavior, histopathological analysis, and transcription profile of GF and CR fish models can be measured to explore the influence of microbiota and drug screen fields. In this study, the key developmental indexes were compared (Supplementary Figure 1), and the hatching rate of GF fish was 45.7% lower than CR fish, with 60% at 72 hpf. The heart rates of GF larvae at 7 dpf were significantly lower at 18.2 beats/10 s compared to CR fish with 22.6 beats/10 s, but there was no difference between the two groups at 14 dpf with rates of 23.5-23.8 beats/10 s. The survival rate of GF fish at 7 dpf was the same as for CR fish at 86.7%, but decreased to 60% at 14 dpf compared to 80% for CR fish. However, the survival rates of both GF and CR fish decreased to 25%-10% after the mouth-open period when they acquired feeding abilities or habits. The failure to maintain the sterile status of fish was one of the reasons for the lower survival rate. Therefore, feeding and nutrient maintenance from juvenile to early adulthood stages are critical challenges in fish culture.

Another key factor that affects the growth and development of fish is feeding. In this study, we explore multiple methods to obtain GF Artemia as live food for long-term GF zebrafish larvae to juveniles and adults (process shown in Figure 2). Due to the daily use of food for GF fish, the optimized protocol for GF Artemia should be easy, time-saving, and economical in practice. After comparing the active movement and death/immobility of nauplii observed by the microscope, characteristics of nauplii, unhatched eggs, and shell, the method is perfected. After daily incubation, the indexes of fresh GF Artemia obtained from bottles, including the hatching, survival and deformity rate, and the length and weight of nauplii, were observed and measured under the microscope (Figure 3). After treatment, the hatching rate of Artemia cysts was high, with an average of 88.15%, the survival of swimming nauplii was 77.83%, and the malformation rate was 1.87%. The body length of nauplii was 546.70 µm, and the body weight index was 3.80 mg/100, which are suitable for fish catching and feeding from the larvae month-open period to juvenile and adult stages.

The detection of GF fish and GF Artemia is also important for model maintenance. According to sample collection and multiple test methods, the results can provide the success of treated zebrafish embryos and Artemia cysts in the cultured plate and the liquid medium (Figure 4). The various samples collected daily should be detected as sterile in all test methods, which can then indicate the GF models at the time of collecting. The GF Artemia should be detected before feeding on GF fish, or the plate and medium incubator results should refer to the sterile state of fresh live nauplii. That is, cultivate GF Artemia from cysts on TSA plates or TSB or BHI liquid medium glass in shake incubation, which could be used for generating GF Artemia and sterile verification at the same time. The GF Artemia protocol can accommodate a limited number of larvae for feeding. During the feeding process, it was evident that the GF Artemia swam within the GZM and then was captured and consumed by the GF fish larvae.

The applications of GF fish models involve various fields in biology and medicine, allowing the investigation of microbial functions, growth and development, disease mechanisms, and probiotic or drug screening, among others⁴⁶. In this study, for example, two major intestinal bacteria, Aeromonas sp. and Vibrio sp., were isolated from zebrafish. The colony characteristics and identification were performed, and multiple metabolic functions were measured in vitro using commercially available kits (Figure 5). These bacteria were isolated and identified with 16S sequencing, and the blast results were presented in a previous report⁴². The identified bacterial strains enable scientific research on the impact of single or combined microbiota on host health by infecting the GF fish models. The transparency of fish larvae allows the observation of fluorescence-labeled bacterial cells using CM-Dil dyes, revealing colonization and distribution in the intestines of GF fish (shown in Figure 6). After bacterial infection at 5 dpf, GF zebrafish larvae can be imaged with a fluorescence microscope and continuously observed from 6 to 14 dpf, providing insights into microbial functions combined with developmental indexes, histopathological changes, and molecular alterations⁴⁷.

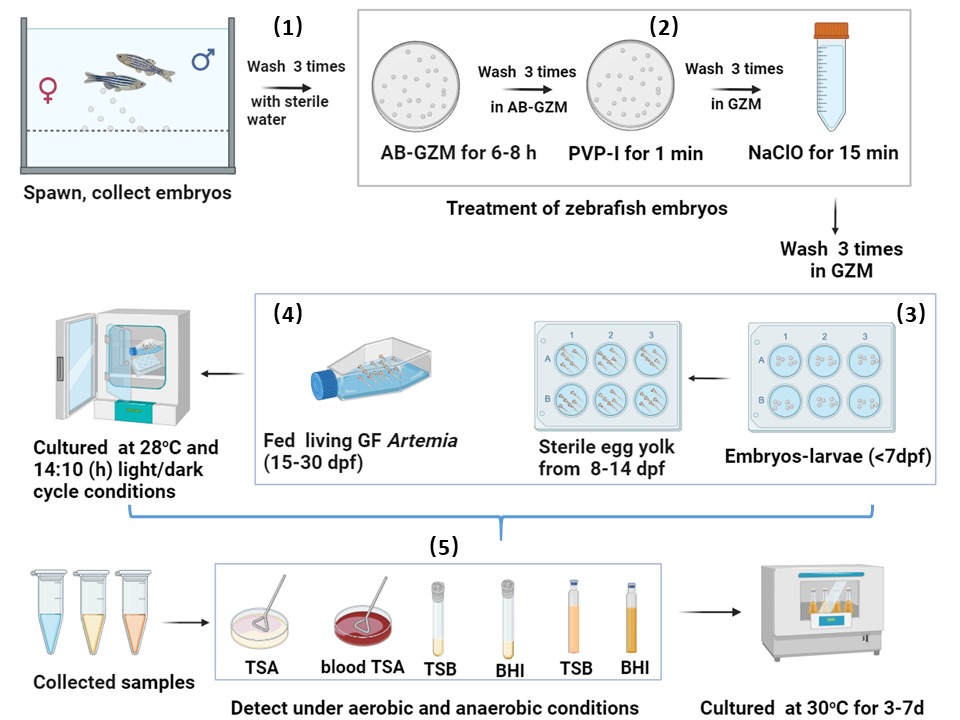

Figure 1: Protocol of GF zebrafish from embryos to larvae and juveniles. Key steps in the generation of GF zebrafish include: (1) Collection of embryos from wild-type zebrafish and placement in AB-GZM. (2) Rinse treatment with PVP-I and NaClO agents to ensure complete sterility. (3) Culture of GF embryos/larvae in 6-well plates with GZM, renewing the medium daily. (4) Regulation of culture conditions for optimal growth and development. (5) Sampling at various developmental stages, followed by sterility testing using plate and liquid medium methods. Please click here to view a larger version of this figure.

Figure 2: Protocol of GF Artemia preparation as live food for GF fish. Key steps include: (1) Rinse treatment of Artemia cysts for complete sterility. (2) Preparation of GF cysts in the medium. (3) Incubation in a salt solution for 24 h to promote hatching. (4) Filtration of failed hatching and empty eggs to collect active nauplii. (5) Washing collected nauplii to remove debris, ensuring high-quality and contaminant-free live food. (6) Sterility testing of the GF Artemia before feeding to GF fish larvae. Please click here to view a larger version of this figure.

Figure 3: Indexes of GF Artemia cysts and nauplii incubated for 24 h. (A) Untreated Artemia cysts with impurity film (scale bar: 500 µm). (B) Treated Artemia cysts with a slightly convex surface after water absorption and a cleaner appearance (scale bar: 500 µm). (C) Microscopic examination of fresh incubated live GF Artemia nauplii (scale bar: 2000 µm) and (D) magnification with a scale bar of 1000 µm. Please click here to view a larger version of this figure.

Figure 4: Sterile detection of GF fish at each life stage and GF Artemia. (A) Sterile tests of CR and GF fish samples using TSB and BHI liquid medium, TSA, and blood plates under aerobic and anaerobic conditions. (B) Sterile tests of untreated Artemia cysts, GF Artemia cysts, and nauplii using TSB and BHI liquid medium, TSA, and blood plates under aerobic and anaerobic conditions. Please click here to view a larger version of this figure.

Figure 5: Isolation and identification of intestinal bacteria in zebrafish. (A) Bacterial strains, characteristics of colonies, 16S sequencing maps (examples: Aeromonas sp. and Vibrio sp.). (B) Genus and NCBI accessions. (C) Metabolic functions of bacteria isolated from zebrafish gut. Please click here to view a larger version of this figure.

Figure 6: Infection and colonization of gut bacteria strains in GF zebrafish. (A) Recovery of isolated and identified bacterial strains for infection experiments. (B) Labeling of bacteria with fluorescent dyes and infection of GF zebrafish larvae at 5 dpf. Magnification: 1x. (C) Observation of the distribution and colonization of bacteria (Vibrio sp.) in gut tissues in vivo. Magnification: 3x. (D) Counting of CFUs of bacteria (Aeromonas sp. and Vibrio sp.) in each fish larva by daily sampling. Data presents mean ± SEM. Please click here to view a larger version of this figure.

Primers	Sequences(5’-3’)	Product length
27F	AGAGTTTGATCMTGGCTCAG	1465 bp
1492R	ACGGYTACCTTGTTACGACTT
63F	CAGGCCTAACACATGCAAGTC	1324 bp
1387R	GGGCGGWGTGTACAAGGC

Table 1: Primers used for bacterial detection.

Components	Units	Volume (µL)
Taq DNA polymerase	2.5 U/µL	0.1
10× Buffer(Mg2+)	---	2.1
dNTP Mixture	2.5 mM	1.6
Primer 27F	10 µM	1
Primer 1492R	10 µM	1
DNA/RNA free H2O	---	13.2
Template DNA	---	1
Total volume	---	20

Table 2: Final concentration and volume of components per reaction.

Step	Temperature	Time	Cycles
Initial denaturation	95 °C	4 min	--
Denaturation	94 °C	1 min	35
Annealing	55 °C	1 min
Extension	72 °C	1 min
Final extension	72 °C	10 min	--
Hold	4 °C	∞	--

Table 3: PCR program for amplification of the 16S rRNA gene.

Supplementary Figure 1: The critical developmental indexes of GF and CR zebrafish models. (A) The hatching rate of CR and GF zebrafish at 72 hpf, and (B) heart beats/10 s of CR and GF fish at 7 dpf and 14 dpf. The survival rates (%) of CR and GF fish decreased from 7 days and 14 days with 86%, 60%-80% to 10%-25% at 30 dpf. Please click here to download this File.

Discussion

Critical steps within the protocols of GF fish and GF food preparation
During the generation of GF fish models, several critical steps were involved, including the preparation of sterile materials, sterilization of embryos, daily renewal of GZM, collection of various samples, and the sterile examination of each sample using multiple methods. Among these steps, the initial treatment of embryos is fundamental and decisive for the success of GF models. Controlling agents, their concentrations, and treatment times are crucial for achieving optimal sterilization rates and hatching success. Careful attention is necessary when handling GF fish embryos to larvae, involving daily medium changes and ensuring that materials and platforms are thoroughly sterilized using ultraviolet light or autoclaving when removing plates from the incubator. Monitoring temperature conditions and operating time during winter is essential to prevent larval death caused by lower temperatures in clean benches.

Sterile egg yolk and GF Artemia should undergo detection before being fed to fish after 7 dpf to ensure their sterile state for long-term GF models. During the feeding period, cleaning food residues is important as part of the samples collected for detection when renewing the waste medium. The container, volume of GZM, and food mass should be adjusted along with the growth and development stages to prevent GF fish loss due to limited surroundings and water quality issues. Regular monitoring and adjustments in these parameters contribute to the successful maintenance of GF fish models.

Modifications and significance of these protocols
The simplified three-step process for generating GF zebrafish embryos, involving optimized agents, concentrations, and exposure times of AB-GZM, PVP-I, and NaClO solutions, ensures a high sterile rate and healthy development of models. Additionally, the sterile detection methods for daily samples have been perfected to include plates and liquid medium cultures under aerobic and anaerobic conditions, along with molecular techniques using common bacterial primers. Further experiences in testing for bacterial and fungal contaminants aim to optimize isolator contaminants and sterile testing during GF animal techniques⁴⁸.

The specific protocol for GF Artemia nauplii as live food for fish models has been investigated in our study, and a patent was granted to PPJ and DSP by the China National Intellectual Property Administration (No. ZL202210482684.8). Long-term GF fish models are consistently constrained by inadequate and unsuitable nutrition, exacerbating weaknesses in gut functions related to digestion and absorption. As a credible food source for medaka and zebrafish models at different life stages, GF Artemia sp. should be easy to prepare with a simple procedure, short incubation time, and real-time sterile detection for daily use. In this method, normal Artemia cysts are rinsed in a sufficient concentration of NaClO to be aseptic and then incubated in a film-coated bottle, as well as on a plate and in a liquid medium for detection. This supports freshly hatching nauplii for GF fish feeding. The sterile rate and hatching rate of Artemia, as well as the body length, weight, and activity of, are excellent, indicating available applications in practice.

The significance of these modifications in GF fish and GF food protocols benefits researchers in generating models at embryos, larvae, juvenile stages, and even early adult and adult stages in marine and freshwater modeµspecies. Long-term GF animals will provide permission as in vivo models in research on drug screening and microbial functions during host growth and development, especially in the maturity of immunity and related intestinal cell lines. For example, zebrafish larvae only possess innate immunity in the first week, then develop the adaptive immunity system during 7-21 dpf, along with thymus maturity^31,49. Moreover, GF fish models can provide the possibility to analyze bacteria-bacteria and microbiota-host interactions with live observation of dynamic colonization and migration processes in organisms^50,51.

Limitations of the method
Culturing GF fish from juveniles to early adults (28 dpf-2.5 mpf) and sexually mature adults (>2.5 mpf) remains challenging due to increased mortality and the risk of bacterial contamination during model maintenance. These limitations primarily arise from the absence of suitable autoculture systems for fish living in a GF environment. These systems should include clean air, water, and a food system to effectively maintain the animals and their environments, ensuring complete isolation from external microorganisms. Unlike other GF animal models such as mice and chickens⁵², obtaining GF zebrafish through anatomical operations from the CR parents is challenging due to their aquatic habits and natural fertilization style.

Treating adult animals as completely devoid of intestinal microbiota is also challenging. While antibiotic treatment may induce a state similar to specific pathogen-free (SPF) animals, characterized by a reduced microbiota detected in fecal samples, achieving true GF adult fish models remains difficult. The challenges involved in establishing and maintaining GF models, especially during the transition from juvenile to long-term states, are significant. The importance of GF offspring, such as GF F1 or F2 eggs from adult GF fish, in microbial research is acknowledged. However, overcoming challenges in establishing and maintaining long-term adult GF fish models requires substantial time.

It's worth noting that gnotobiotic zebrafish with specific bacterial colonization has been developed, showing chronic survival based on GF models. Nevertheless, it remains uncertain whether these models can serve as viable alternatives to GF models in bacterial infection and biomedical research.

Future applications of GF fish models
In this study, we have refined the protocol for generating GF zebrafish models, progressing from embryos to juveniles. This advancement holds significant applications in developmental biology, immunology, human disease research, and organogenesis. Through mass isolation and identification, the study explores the functions, mechanisms, and gut-derived metabolites of single bacterial strains. The investigation involves infecting GF zebrafish models after the vent opens stage^47,53. Additionally, labeled bacteria with fluorescence facilitate the observation of colonization and distribution in live GF larvae, free from other microbial influences⁵⁴. Similar GF fish models, such as marine or freshwater medaka, can be created using comparable methods with various agents or medium changes.

To probe human disease mechanisms, the study employs FMT methods, transferring samples from patients or donors to healthy animals or GF models⁵⁵. Unlike conventionally reared (CR) animals, GF models offer robust evidence of microbial functions, impacts, or responses in the host, particularly when combined with bacteriophages to regulate target bacteria in the microbiota⁴⁶.

In summary, GF zebrafish serve as powerful models for assessing bacterial safety, drug effectiveness, pollutant toxicity, or compound interference, owing to their sensitive and pure intestinal environment. Future exploration of GF fish applications should encompass various fields, with a need to create adult GF fish models for a deeper understanding of microbial functions across different life stages.

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
AB-GZM	Amphotericin:Solarbio;  kanamycin:Solarbio; Ampicillin:Solarbio.	Amphotericin:CAS:1397-89-3; kanamycin:CAS: 25380-94-0; Ampicillin:CAS: 69-52-313.	49.6 mL GZM, 50 µL amphotericin stock solution (250 µg/mL), 25 µL kanamycin stock solution (10 mg/mL), and 250 µL ampicillin stock solution (20 mg/mL).
1.5 mL, 15 mL, 50 mL EP tubes	biosharp	BS-15-M	To collect samples, and hold agents
2.4 g/L NaClO	XILONG SCIENTIFIC Co., Ltd.	CAS: 7681-52-9	Diluted with 8% sodium hypochlorite aqueous solution.
6-well plates, 24-, 48- well plates	LABSELECT	11112	To culture fish
Aeronomas	NCBI database	No.MK178499	2019-JPP-ESN
Anaerobic TSA plates	tryptone:Oxoid ; soy peptone:Solarbio ;NaCl:Biosharp; agar powder:BioFroxx.	tryptone:LP0042B; soy peptone:Cat#S9500; NaCl:BS112; agar powder:9002-18-0.	The TSA plates were prepared with 400 mL medium containing 6 g tryptone, 2 g soy peptone, 2 g NaCl, and 6 g agar powder under the anaerobic system.
Anaerobic work station	GENE SCIENCE	E200G	Bacterial isolation, sterile testing
Analysis	GraphPad Prism 5	v6.07	To analysis the data
API 20 E kits	BioMerieux SA, France	No.1005915090	Ref 20100 Kits to detect bacterial metabolism
Artemia (Brine shrimp)	Shangjia Aquarium Co., Ltd.	Aquamaster brand	Artemia cysts, and brine shrimp eggs
Auto cycle system for fish culture	Ningbo Hairui Technology Co., Ltd	No Cat	Maintain the fish
Autoclave	Zeal Way	G154DWS	Prepare the materials
BHI Aerobic	Coolaber	Cat#PM0640	BHI medium was prepared, wherein 100 mL medium included 3.7 g BHI powder.
BHI Anaerobic	Coolaber	Cat#PM0640	BHI medium was prepared and divided into anaerobic tubes under the anaerobic system.
Biochemical incubator	LongYue Co., Ltd	SPX	For fish and plates
Biosafety cabinet	Haier	HR40-IIA2	Sterile treatment and testing
Bleaching agent of 0.02 g/L NaClO	XILONG SCIENTIFIC Co., Ltd.	CAS: 7681-52-9	Working solution with sodium hypochlorite (NaClO) concentration: Diluted with 8% sodium hypochlorite aqueous solution or 166.6 uL 6% sodium hypochlorite with 500 mL distilled water.
Blood plates	sheep blood:Solarbio	Cat. NO. TX0030	Sterile-defibrinated sheep blood was added into TSA to prepare 5% blood plates.
Cell culture flask	Corning	430639	To culture fish
CM-Dil dyes	Molecular Probes	Cat#C7000	To label the bacteria
Constant temperature shaking incubator	Peiving Co., Ltd	HZQ-X100	Bacterial culture
Database	NCBI	Bacteria and Archaea database	Link: Archaea FTP: ftp://ftp.ncbi.nlm.nih.gov/refseq/TargetedLoci/Archaea/ Bacteria FTP: ftp://ftp.ncbi.nlm.nih.gov/refseq/TargetedLoci/Bacteria/
Disposable Pasteur pipette	biosharp	bs-xh-03l	Used to change water, and transfer eggs
Disposable petri dish	biosharp	BS-90-D	To culture fish
DNA kits	Solaribio	Cat#D1600	Bacterial genomic DNA extraction kits
Electric pipette	SCILOGEX	Levo me	Change water
Exiguobacterium	NCBI database	No.MK178504	2019-JPP-ESN
GZM	Sea salt:LANDEBAO Co., Ltd.	No Cat	Composed of 1 L of water and 1.5 mL of sea salt solution (40 g/L), autoclaved. The content of sea salt in the GZM solution was 60 mg/L.
Laboratory pure water system	Hitech Co., Ltd	Prima-S15	Prepare the agents
Microscope	Nikon	SMZ18	With fluorescent light to observe fish larvae
PCR kits	TIANGEN	Cat#ET101	Taq DNA Polymerase kit
Pipette	LABSELECT	sp-013-10	Change water
Povidone iodine (PVP-I)	Aladdin	Lot#H1217005	Aqueous solution povidone iodine 0.4 g/L pure water.
Timing converter	PinYi Co., Ltd	AL-06	To regulate the light
TSA plates	tryptone:Oxoid ; soy peptone:Solarbio ;NaCl:Biosharp; agar powder:BioFroxx.	tryptone:LP0042B; soy peptone:Cat#S9500; NaCl:BS112; agar powder:9002-18-0.	TSA plates were prepared with 400 mL medium containing 6 g tryptone, 2 g soy peptone, 2 g NaCl, 6 g agar powder.
TSB Aerobic	tryptone:Oxoid ; soy peptone:Solarbio ;NaCl:Biosharp;	tryptone:LP0042B; soy peptone:Cat#S9500; NaCl:BS112;	TSB medium was prepared, wherein 400 mL medium included 6 g tryptone, 2 g soy peptone, and 2 g NaCl.
TSB Anaerobic	tryptone:Oxoid ; soy peptone:Solarbio ;NaCl:Biosharp;	tryptone:LP0042B; soy peptone:Cat#S9500; NaCl:BS112;	TSB medium was prepared and divided into the anaerobic tubes under the anaerobic system.
Ultra-clean workbench	Airtech	SW-CJ-2FD	Sterile treatment and testing
Ultra-pure flow system for fish culture	Marine Biological Equipment company	No Cat	Produce water for fish
Vibrio	NCBI database	No.MK178501	2019-JPP-ESN
