Rat Model of Right-Sided Cardiac Remodeling and Arrhythmia Using Pulmonary Artery Banding

Summary

Right heart failure (RHF) is characterized by right-sided cardiac dilation and hypertrophy, leading to ventricular and atrial malfunction. Cardiopulmonary conditions associated with RHF are accompanied by an increased risk for cardiac arrhythmias. This article describes a standardized model of pulmonary artery banding-induced RHF associated with enhanced ventricular and atrial arrhythmogenesis.

Abstract

Clinical conditions, including chronic obstructive pulmonary disease or pulmonary arterial hypertension (PAH), can lead to chronic right ventricle pressure overload and progressive right heart failure (RHF). RHF can be identified by right-sided cardiac hypertrophy and dilation associated with abnormal myocardial function affecting the RV and the right atrium (RA). We recently demonstrated that severe RHF is accompanied by an increased risk of atrial inflammation, atrial fibrosis, and atrial fibrillation (AF), the most common type of cardiac arrhythmia (CA). Recent studies have shown that RV and RA inflammation plays an important role in the arrhythmogenesis of CA, including AF. However, the impact of inflammation in the development of CA and AF in RHF is poorly described.

Experimental models of RHF are required to better understand the association between right-sided myocardial inflammation and CA. The rat model of monocrotaline (MCT)-induced pulmonary hypertension (PH) is well-established to provoke RHF. However, MCT triggers severe pneumo-toxicity and pulmonary inflammation. Hence, MCT-induced RHF does not help to distinguish whether the subsequent myocardial inflammation originates from the RHF per se or circulating inflammatory signals secreted by the injured lung.

In this article, a mechanical method involving pulmonary artery trunk banding (PAB) was used to provoke right-sided cardiac arrhythmogenesis. The PAB consists of performing a permanent suture of the pulmonary artery trunk for 3 weeks. Such an approach generates increased right-sided pressure overload. At D21 post-PAB, the suture results in hypertrophied, dilated, and inflamed RV and RA. The PAB-induced RHF is also accompanied by vulnerability to ventricular and atrial arrhythmias, including AF.

Introduction

Right heart failure (RHF) is characterized by right ventricular (RV) and atrial (RA) hypertrophy and dilation, leading to right-sided cardiac malfunction in response to chronic RV pressure overload due to the constriction of the pulmonary arteries (PA)¹. Hence, conditions provoking the narrowing of PA can be responsible for an increased risk of RHF^1,2,3,4. Clinical data revealed that RHF is the major cause of hospitalization (56%) in patients with PA hypertension (PAH)². Clinical studies have shown that independent of the cause of PAH, including thromboembolic pulmonary hypertension (PH) and idiopathic PAH, patients are often affected by RHF and are 20% more susceptible to developing cardiac arrhythmias including supraventricular tachyarrhythmias and atrial fibrillation (AF)^2,5,6.

To better understand the association between PAH and RHF, animal studies, including the model of a single dose of monocrotaline (MCT), have been used to provoke severe lung inflammation and RHF^7,8. We recently observed that MCT-induced RHF was associated with RA inflammation and AF⁹. However, due to the importance of MCT-induced pulmonary inflammation and circulating cytokines, it was difficult to describe whether MCT-induced RA inflammation is a consequence of RHF only⁹. Hence, a new model of RHF-induced cardiac arrhythmia was required to study the RA inflammatory status.

The PA trunk banding (PAB) experimental model has been used in various animal species to mimic obstructive PA diseases and to study the associated pathological cardiac remodeling affecting the right side of the heart¹⁰. PAB has been reported as an effective method to induce right RV dysfunction and failure in various studies mimicking RV overload^{10,11,12,13,14,15,16}. Technically, PAB is the placement of a permanent suture on the PA trunk, provoking a mechanical reduction of the PA trunk diameter¹⁰. PAB generates an increased pressure overload to the RV¹⁰. First, as a compensatory adaptation to the sudden increase in RV afterload, the RV cavity is dilated, leading to chronic RV hypertrophy^10,13. RV dilation and hypertrophy affect the tricuspid valves, which become leaky¹³. More precisely, the pronounced dilation of the RV combined with high RV afterload has the effect of stretching the tricuspid valve annulus located between the RV and the RA^13,17. Due to the incomplete occlusion of the valve, a portion of the blood ejected from the RV during systole will be directed toward the RA cavity¹⁷. Leakage of the tricuspid valve can be observed through echocardiography and is called tricuspid regurgitation¹⁷. Then, the RA receives inappropriately high blood pressure, contributing to increased RA dilation and hypertrophy¹³. The chronic RV and RA remodeling are accompanied by local myocardial inflammatory reactions leading to RV and RA fibrosis and loss of function^9,13. Cardiac fibrosis is characterized by the development of low-voltage zones that are less contractile and more susceptible to provoking conduction block and re-entry circuits involved in the development of cardiac arrhythmias, including ventricular fibrillation and AF^18,19.

The originality of this paper resides in the utilization of a standardized method of PAB-induced right-sided cardiac remodeling to provoke and study cardiac arrhythmias inducibility in 3 weeks post-PAB. The main advantages of this surgical approach are: i) the direct control over the reduction of the PA trunk diameter and ii) the avoidance of pulmonary inflammation to focus on RHF-induced myocardial inflammation to study cardiac arrhythmias, including AF.

The approach described here involves a precise microsurgical procedure to create the PAB, assessment of increased RV afterload, echocardiography to observe PAB-induced myocardial structural and functional remodeling, and electrophysiological study to evaluate vulnerability to cardiac arrhythmias, including AF.

Protocol

All procedures described below were approved by the Montreal Heart Institute ethics committee (protocol numbers: 2021-2938-2021-47-01 and 2024-3412-2024-48-01) and strictly followed the Canadian Council on Animal Care (CCAC) guidelines. Male Wistar rats (225-275 g) aged 6-8 weeks were used for the procedures. All animals were housed in the animal care facility of the Montreal Heart Institute, with free access to water and food.

1. Preoperative preparation

1. Sterilize all surgical instruments and materials before surgery using an autoclave of high-pressurized saturated steam at temperatures between 121 °C and 134 °C under 15-30 psi for 30-40 min followed by a drying cycle of 25 min.
2. Prepare all volumes of drugs required for the surgery. Use a multimodal analgesic approach involving buprenorphine (0.05 mg/kg) and ketoprofen (5 mg/kg) injected subcutaneously 30 min before surgery and repeated at 6 h (buprenorphine) and 24 h post-surgery (buprenorphine and ketoprofen). In addition, perform a local analgesia at the incision site (lidocaine 5 mg/mL).
3. Perform a baseline transthoracic echocardiography before the surgery (see detailed procedure for transthoracic echocardiography in steps 6.1-6.13.) to determine the PA diameter and select the appropriate gauge needle that will be used as a lead to generate the expected 60% reduction of the PA diameter during PAB.
   NOTE: In this paper, male Wistar rats of 225-275 g were used, and the utilization of a 19 G needle was appropriate to generate such a 60% reduction of the PA diameter.
4. Prepare a 19 G needle (or the appropriate caliber as determined in step 1.3) that will be used as a lead (see below: steps 4.18 and 4.19) to obtain an optimal PA trunk constriction, provoking severe remodeling of the rat heart. Using a forceps, bend the 19 G to 90-110° (Figure 1A).
   NOTE: Bending the 19 G facilitates i) the positioning near the PA trunk and ii) the application of the ligation during the procedure. The 19 G is used as a lead around which the suture will be installed to reduce the diameter of the PA to 1.0 mm (60 % reduction for rats weighing 225-275 g), which induces a significant RV pressure overload responsible for severe RV remodeling in 3 weeks.

2. Induction of anesthesia and animal preparation

NOTE: Analyses were performed on male Wistar rats (225-275 g) aged 6-8 weeks. Use a heating pad during all steps of the following procedures to keep the animal's body temperature around 37 °C. Apply a rectal probe to monitor the body temperature.

1. Anesthetize the animal with continuously inhaled isoflurane 3% and 100% oxygen 2-3 L/min.
2. Apply eye lubricating gel to protect the cornea from desiccation.
3. Verify the level of anesthesia using the toe pinch reflex.

3. Intubation

NOTE: Intubation was performed as previously described²⁰.

1. Transfer the animal to an inclined intubation station in a supine position. Hold the rat by the upper incisors using a loop of thread to maintain the body in a suspended position at 45° to obtain a better visualization of the throat.
2. Direct a flexible light source to the neck surface to transilluminate through the pharyngoepiglottic region.
3. Extend the tongue using a cotton swab and stabilize it on the maxilla with a curved weighing spatula as a tongue depressor.
4. Visualize the trachea and the vocal cords.
5. Use a 16 G angiocatheter to perform the intubation. Use the catheter as a tracheal tube, and blunt the beveled-tip needle to use as an introducer.
6. Advance the endotracheal tube (16 G angiocatheter) mounted on the introducer (beveled-tip needle) into the trachea, and once positioned, remove the introducer (Figure 1B).
7. Confirm the correct position of the tube by observing a normal breathing pattern (about 80 breaths/min for rats weighting 225 g and about 70 breaths/min for rats weighting 275 g) and the presence of mist on the surface of the metal spatula (or small mirror) when placed at the flange of the canula's hub.
8. Once correctly intubated, rapidly transfer the animal to the surgical station supine over a homeothermic heating pad.
9. Adjust the ventilator's tidal volume and rate according to the body weight of the rat. Rats around 225-275 g receive a tidal volume of 2.0-2.5 mL and 70-80 breaths/min with the ventilator.
10. Connect the endotracheal tube to the ventilator to initiate mechanical ventilation. Place the outflow tip of the ventilator into a water cylinder. The air bubbles coming out of the outflow after each breathing indicate a successful intubation.
11. Once steady breathing is established, secure the endotracheal tube with surgical tape and fix the rectal probe along the tail to monitor the body temperature.

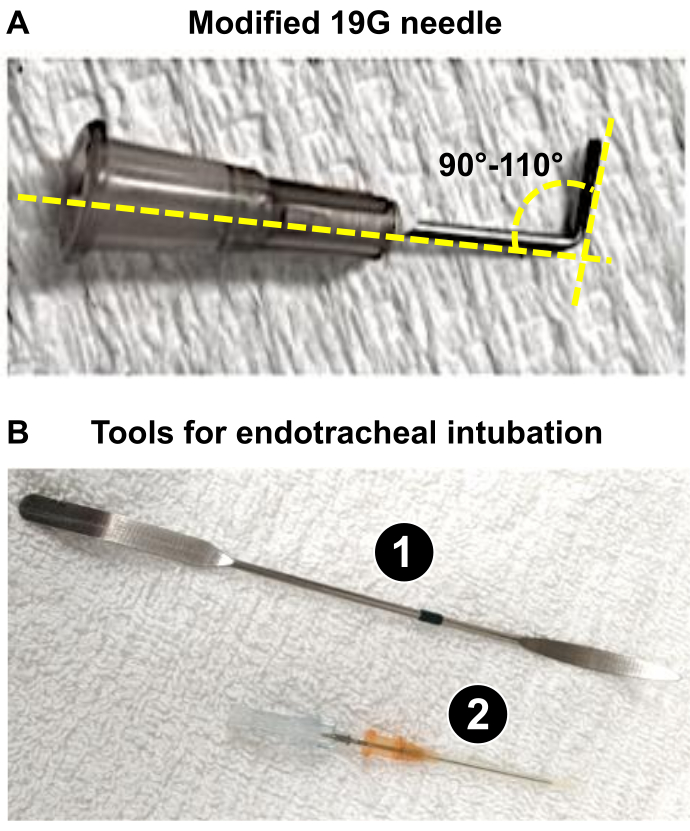

Figure 1: Key instruments required for the preparation of the microsurgical procedure of PAB. (A) Modified 19 G needle used as a lead to obtain a 1 mm diameter of the PA trunk after PAB. (B) Endotracheal tools used or successful intubation of rats. 1. The spatula is used as a tongue depressor on anesthetized rats to expose the trachea. 2. The 16G catheter acts as an endotracheal tube after blunting the tip of its stylus. Please click here to view a larger version of this figure.

4. PAB surgery (Figure 2)

NOTE: All procedures must be performed according to strict aseptic surgery techniques.

1. Shave the left side of the thorax using a clipper and depilatory cream and prepare the skin with applications of 2% chlorhexidine followed by 70% alcohol scrubs (repeated three times).
2. Immobilize the forelimbs in an open position with medical tape, taking care not to overextend the limbs to avoid affecting breathing.
3. Pull the right hind limb slightly downward and fix it along the tail.
4. Extend and adduct the left hind limb and fix it to the right side of the animal to generate a slight right lateral position, exposing the left side of the chest.
5. Use sterile gloves at this step for the remaining part of the surgery.
6. Position a sterile drape over the animal and make a 2-3 cm skin incision on the left side of the thorax, starting about 2 cm above the xiphoid process and oriented diagonally toward the base of the rat's left forelimb.
7. Under the skin, separate the pectoral muscles subsequently (pectoralis minor and major) and move them aside by blunt dissection using round-tip scissors. Use magnetic retractors to hold the muscles, to allow for proper visualization of the rib cage located underneath.
8. De-inflate the lungs by removing the outflow tube (connected to the ventilator) from the water cylinder (see step 3.10). Removal of the outflow tube from the water lowers the pressure into the lungs, which generates the de-inflation of the lobes.
9. Perform a left-side thoracotomy with curved dissecting forceps. Pierce a small hole in the mid-clavicular line of the muscle located between the 3^rd and 4^th ribs.
10. Introduce the curved forceps into the opening and slide it along the left interior wall of the muscle between the two ribs to slightly lift the left chest wall and avoid touching the lungs while cutting the muscle.
11. Use the introduced forceps as a guide and make an incision longitudinally to the ribs on approximately 1 cm with iris scissors. Maintain the left chest wall lifted and manipulate the scissors cautiously to avoid damaging the left lung lobes directly underneath.
12. Expand the intercostal incision to 1-2 cm to the left of the animal using round-tip scissors.
13. Reposition the retractors under the ribs to keep the wound open.
14. Observe the inferior part of the thymus and a portion of the left lobe of the lung.
15. Push aside the thymus and the lungs at this level, given the significant space occupied by these organs. Separate the thymus lobes using blunt dissection with forceps and hold the lung on the left side using wet gauze. Then, expose the upper portion of the heart, the left atrium (LA) as well as the pulmonary trunk, and the aortic arch.
16. Carefully blunt dissect the thin layer of pericardium covering the heart in this area, along with any attached adipose tissue, to help locate the portion where the aorta and the pulmonary trunk are still attached. Minimally dissect the pericardium and avoid touching the pleural membrane.
17. Insert the curved forceps in a closed position in the space between the LA appendage and the pulmonary trunk, in the middle of the visible portion of the vessel, to reach the other side of the vessel (Figure 2A).
    CAUTION: Avoid working too close to the aortic root of the heart to prevent the risk of vessel rupture and hemorrhage.
18. Visualize the tip of the forceps through the conjunctive membrane cranially to the pulmonary trunk. Use the second forceps to dissect over the tip and carefully pierce the membrane to create a small opening. The curved forceps positioned under the pulmonary trunk are then slightly opened in order to grab a 5-0 Silk thread. Retract the forceps to bring the thread from one side to the other of the pulmonary trunk (Figure 2B, C).
19. Perform the constriction of the pulmonary trunk. Firstly, practice a loose double knot of the 5-0 Silk close to the artery. Insert the 19 G needle along the vessel and under the thread. Tight this first knot and fix it with a second simple knot before removing the 19 G (Figure 2D).
    CAUTION: Work rapidly and carefully to minimize the duration of the complete obstruction of the pulmonary trunk.
20. Perform a last simple knot and cut the remaining 5-0 Silk thread around 0.5-1 cm from the knot (Figure 2D).
21. Reposition the thymus lobes and remove the chest retractors.
22. Re-inflate the lungs by pinching off the outflow of the ventilator for 2 s.
23. Close the rib cage by performing a cross-stitch pattern with a synthetic absorbable 5-0 suture thread.
24. Apply a few drops of 0.9% saline over the wound area and compress each side of the chest wall to remove air bubbles and to re-establish the thoracic negative pressure.
25. Reposition the pectoral muscles and wipe off the remaining saline with a sterile gauze.
26. Use a syringe to apply a splash block of lidocaine on the surface and surrounding area of the wound.
27. Close the skin using a synthetic absorbable 5-0 suture thread with needle in a continuous subcuticular pattern.
    NOTE: Sham rats receive the same procedure without steps 4.18 and 4.19.

Figure 2: PAB procedure and validation of 5.0 Silk suture versus metal clips. Photography of the step-by-step isolation and ligation of the PA trunk, showing (A) the exposition and isolation of the PA trunk, (B) the positioning of the suture (5.0 silk) around the PA trunk, (C) the ligation of the PA (PAB) (using a 19 G needle as a lead); (D) the verification of the heart motion and PA-root and RV overload following PAB; (E) a comparison of PAB performed with silk suture versus a metal clip; and (F) the validation of the choice of silk suture for PAB to create more reproducible diameter of 1 mm around the PA trunk. Please click here to view a larger version of this figure.

5. Post-operative recovery

1. Remove the isoflurane while maintaining the rat under mechanical ventilation with oxygen flow only. Turn the rat on its right side or ventral to facilitate breathing.
2. Inject a volume of 0.9% saline subcutaneously into the dorsal neck region to promote fluid recovery (calculated as 10 mL/kg/h of anesthesia).
3. Once autonomous breathing is confirmed, smoothly remove the endotracheal tube.
4. Observe when the rat starts to move by itself and transfer the animal from the heating pad to a new sterile cage for recovery. Provide water and wet food ad libitum.
5. During the post-operative period (4-6 h), place the cage over a heating pad (half of the cage) to help maintain body temperature and closely monitor the animal.
6. Promptly manage any signs of pain, breathing difficulty, or abnormal behavior.
7. In post-operative care, 6 h after the surgery, inject a second dose of 0.05 mg/kg buprenorphine. On the next day, 24 h after the surgery, inject a third dose of 0.05 mg/kg buprenorphine and a second dose of 5 mg/kg ketoprofen.
8. Monitor the rats until their complete health recovery.

6. Transthoracic echocardiography

NOTE: This paper shows data obtained on the 21st day post-surgery, when the rats were subjected to transthoracic echocardiography. However, depending on the research objectives and the requirements of the study design, researchers can define other time points for pre- and post-PAB transthoracic echocardiography.

1. Perform a baseline transthoracic echocardiography before the surgery to determine the PA diameter and to select the appropriate gauge needle used as a lead to generate the expected 60% reduction of the PA diameter during PAB.
   NOTE: In this study, male Wistar rats of 225-275 g were used and the utilization of a 19 G needle was appropriate to generate such a 60% reduction of the PA diameter.
2. Weigh and anesthetize the rats with continuously inhaled isoflurane (3% and 2 L/min O₂).
3. Perform transthoracic echocardiography on each animal using a 12S sector/multi-element probe (4.5-11.5 MHz) and an image-acquisition system.
4. Use color mapping in a two-dimensional (2D) parasternal short-axis view by positioning the 12S probe at the level of the aortic valve. Click on the Color Doppler button on the echo machine to visualize the blood flow pattern crossing the pulmonary artery banding (PAB) area in the pulmonary trunk.
5. Perform continuous wave Doppler (CW) by crossing the PAB guided by color mapping in the 2D parasternal short-axis view to record the properties of the blood flow crossing the PAB area, including the peak velocity (cm/s) and the mean pressure gradient (mmHg). To obtain the Doppler curves, adjust the sample volume at the level of pulmonary artery banding.
6. Apply a 2D apical 4-chamber view by positioning the 12S probe at the level of the apex of the heart to demonstrate the enlargement of the RA and RV following the surgery and determine the RA horizontal dimension at the end cardiac systole (RADs) expressed in millimeters (mm).
7. Apply color mapping in 2D apical 4-chamber view to reveal tricuspid regurgitation due to PAB by acquiring cine-loops on the echo machine.
8. Perform M-Mode echocardiography in apical 4-chamber view by crossing the conjunction of the tricuspid annulus and RV lateral wall to study the tricuspid annulus plane systolic excursion (TAPSE) expressed in mm.
9. Use Tissue Doppler Imaging (TDI) in the apical 4-chamber view at the level of the conjunction of the tricuspid annulus and RV lateral wall for the measurement of the RV lateral wall systolic contractility (Sr) expressed in centimeters per second (cm/s) to evaluate RV systolic performance.
10. Record diastolic trans-tricuspid flow (TTF) using pulsed wave Doppler in the apical 4-chamber view to study RV diastolic properties, including peak velocity in the early filling (E) wave, atrial filling (A) wave, and the ratio of E/A in TTF.
11. Perform M-Mode echocardiography in the parasternal long-axis view at the level of the aortic valve to measure the RV outflow tract at the end of cardiac diastole (RVOT, expressed in millimeters) and the left atrium dimension at the end of cardiac systole (LADs, expressed in millimeters).
12. Perform 2D M-Mode echocardiography in parasternal short-axis view at the level of papillary muscles to assess LV dimensions at end-systole and diastole (LVDs and LVDd); and LV anterior wall thickness at end-diastole (LVAWd), all expressed in millimeters.
13. Perform 2D M-mode in short-axis parasternal view to determine LV fractional shortening (LVFS, expressed in percent) and LV ejection fraction (LVEF, expressed in percent).

7. Electrophysiological study (Figure 3)

1. Maintain the rats under anesthesia after in vivo echocardiography for in vivo transesophageal electrophysiological study (EPS).
2. Insert the ECG electrodes under the skin of the rats (1 near the left forelimb, 1 near the right hind limb, and 1 near the left hind limb).
3. Gently introduce a 4F-quadripolar catheter with an inter-pole distance of 5 mm into the esophagus (Figure 3A).
4. Adjust the transesophageal catheter position close to the RA by precisely determining when the P wave, which represents atrial contractions on surface ECG, matches with the P wave obtained with the transesophageal catheter's ECG (Figure 3A, B).
5. Determine the stimulation threshold for each animal. This threshold is the minimum voltage at which the stimulator directly influences the heart rate.
6. Evaluate AF vulnerability by applying a voltage burst equivalent to 4-times the threshold voltage following a protocol of 3 sets of 12 stimulation bursts, each lasting 3 s at 50 Hz, followed by 2 s of rest (1 min/set). Between each set, the rats had a 1-min resting period^9,13,21.
7. Identify and quantify, after each burst, the occurrence of cardiac tachyarrhythmias, including AF or atrial flutter.
   NOTE: AF is defined as irregular and ultrarapid atrial beats (>800 bpm). Atrial flutter is defined as a regular but rapid atrial rhythm associated with an absence of the P wave or the presence of a regular pattern of multiple P waves between regularly consecutive R-R intervals. Only arrhythmic episodes lasting more than 1 s are considered.
8. Avoid interrupting ongoing episodes of AF or atrial flutter by stopping the next set of stimulations if the sinus rhythm is not recovered on its own within the resting period between two consecutive stimulations.

Figure 3: Illustration of heartbeats at rest and the appropriate position of a transesophageal catheter for in vivo electrophysiological study. (A) Representative ECG of two consecutive heartbeats at rest showing the P-wave, the PR interval, the QRS complex, the QT interval, and the R-R interval. (B) Schematic of a longitudinal section of the heart (1) and the esophagus (2) in which a quadripolar catheter (3) is introduced to stimulate and acquire atrial ECG. (C) Representative ECG signals showing the preferred position of the transesophageal catheter when the atrial signal (red line) from the surface ECG (upper traces) coincides with the atrial signal of the catheter ECG (lower traces). Please click here to view a larger version of this figure.

8. ECG analysis

NOTE: The ECG recordings and stimulations were conducted using an ECG-acquisition software. The analyses were performed using an ECG-analysis software (Figure 3A).

1. Measure the P-wave duration corresponding to the atrial contraction expressed in milliseconds (ms).
2. Determine the PR interval (expressed in milliseconds) corresponding to the duration of the electrical conduction through the atrioventricular (AV) node.
3. Report the duration of the QRS complex (expressed in milliseconds) corresponding to the ventricular depolarization.
4. Evaluated the QT interval (expressed in milliseconds) reflecting the total duration of the ventricular depolarization and repolarization.
5. Quantify the RR interval (expressed in milliseconds) indicating the duration between two consecutive heartbeats and determining the heart rate.

9. Histological analyses

1. Euthanize the rats by exsanguination under isoflurane anesthesia (5%, 2 L/min O₂) on day 21 post-PAB.
2. Isolate the RA and LA to analyze the atrial histological remodeling associated or not with RHF and cardiac arrhythmias.
3. Perform a transverse section of the freshly excised hearts, 5 mm from the apex, to evaluate the ventricular remodeling associated or not with RHF and cardiac arrhythmias.
4. Fix the myocardial samples in formalin and stain the histological slides with Masson's trichrome solution²² to quantify ventricular wall thickness and dilation and atrial fibrosis at D21 post-PAB.

10. Statistical analyses

1. Assess the normality of distributions by the Shapiro-Wilk test. Compare the normally distributed data using Student's t-test.
2. If data are non-parametric distribution, perform a Mann-Whitney test. Analyze categorical variables like AF-inducibility using Fisher's exact test.
3. Express the results as mean ± standard error to the mean (S.E.M.). Consider differences statistically significant at two-tailed P values < 0.05.

Results

Visual confirmation of the appropriate ligation of the PA trunk during surgery
During the PAB procedure, an indication of good positioning of the suture is an immediate augmentation of the blood pressure and prompt dilation of the RV and the root of the PA -trunk at the junction with the RV. The suture must not move to ensure a constant and permanent pressure overload for 3 weeks. In this study, the use of a 5-0 Silk was validated as more stable than a metal clip (Figure 2E

Discussion

The successful performance of the PAB is the most crucial part of this protocol. It is important to properly distinguish the aorta and the PA trunk. The isolation of the PA must be performed meticulously to avoid tearing, bleeding, and death during the procedure. The application of the suture around the 19G lead must be performed quickly and followed by immediate removal of the lead, to avoid too long 'complete obstruction' of the PA due to the presence of the lead.

According to the re...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
0.9% Sodium Chlorine Injection USB (100 ml)	Baxter	JB1302P	Solution used for drugs (analgesic and anti-inflammatory) dilution and for preparing saline water syringes dedicated to rehydrating the animal after the surgery
19 G x 1 1/2 PrecisionGlide Needle	BD	305187	Needle modified (bent and blunted) to be used as a spacer during for the partial constriction of the pulmonary trunk
2" x 2" Non Woven Non-Sterile Ritmed Gauze Sponge, 4-Ply	AMD-Ritmed	A2101-CH	Gauze sponges used to absorb blood from the wound or to gently push organs (ex: thymus) aside.
4" x 4" Non Woven Non-Sterile Ritmed Gauze Sponge, 4-Ply (x200)	AMD-Ritmed	A2100-CH	Gauze sponges used to absorb blood from the wound or to gently push organs (ex: thymus) aside.
5-0 Vicryl Violet Suture RB-1 1/2 Circle Needle 17mm 27"	Ethicon	J303H	Synthetic absorbable sterile surgical suture with a taperpoint needle used for muscle and skin wounds closure.
Anafen (100 mg/mL)	Merial Canada, Inc.	1938126	Diluted injectable solution of ketoprofen administered as a nonsteroidal anti-inflammatory, analgesic and antipyretic drug.
AutoClip System	FST	12020-00	Can be used to close the skin wound. Includes a clip applier, wound clips (9 mm) and a clip remover.
Dumont #5/45 Forceps	FST	11251-35	Dumoxel forceps with tips angled at 45°. Used to tighten the knots around the spacer placed on the pulmonary trunk.
Fine Scissors - Sharp	FST	14060-10	Stainless steel iris scissors dedicated to intercostal muscles incision and suture cutting.
Forane (Isoflurane) 100 mL	Baxter Canada	BAXCA2L9100	Inhalation anesthetic used for rodents during their PAB surgery.
IV Catheter 16 G x 1.77 " (Straight)	BD Insyte	381257	Catheter used as an endotracheal tube with its metal stylet blunted.
Light  LED 130 F - DrMach	Eickemeyer	M130300	LED wall mounted light.
Magnetic Fixator Retraction System: Base plate	FST	18200-50	Metal plate on which the associated fixtures are installed. It is placed around the heating plate.
Magnetic Fixator Retraction System: Elastomer (2 m Roll)	FST	18200-07	Used to attach the retractors to the fixators.
Magnetic Fixator Retraction System: Fixators	FST	18200-02	Movable anchors that can be placed on the base plate.
Magnetic Fixator Retraction System: Retractors	FST	18200-11	Retractors allowing to maintain the surgical wound with the desired opening
Metzenbaum Scissors (Curved)	FST	14017-14	Stainless steel blunt scissors used for blunt dissection of the skin and muscles.
Micro-Adson Forceps	FST	11018-12	Stainless steel serrated forceps used to grasp skin and other tissues.
Oster Golden A5 2-Speed Clipper	Oster Professional	34264416949	Pet grooming clipper used to prepare the surgical field. Since it's meant to be used with large animals, the user needs to be careful with rats.
Rodent heating plate or warming system	Custom made	N/A	Plate connected to a unit equipped with a LED screen displaying the temperature detected by the rectal probe as well as the target temperature.
Rodent Ventilator Model 683	Harvard Apparatus	74240-2	Mechanical ventilator used for small laboratory animals (max 5 kg).
Semken Forceps with Serrations (Curved)	FST	11009-13	Stainless steel forceps used for tissue dissection.
Semken Forceps with Serrations (Straight)	FST	11008-13	Stainless steel forceps used for tissue dissection.
Silky Fresh Hair removal Cream	Veet	62200825036	Hair removal product used to prepare the surgical site after shaving.
Soluprep	3M	103.26	Bottled antiseptic solution tinted with 2% chlorhexidine and 70 % alcohol 225 mL.
Stainless steel spatula 195 mm	Heathrow Scientific	HS15907	Spatula used as a tongue depressor during rat intubation.
Stereomicroscope System SZ61TR	Olympus	88-126	Microscope equipped with binoculars and a built-in camera allowing for video filming.
Sterile Sodium Chloride 0.9% Irrigation Bottle (60 mL)	Saline H2O	25-6048SA-L	Solution used to keep the wound moist throughout the surgery.
Surgical Scissors - Sharp-Blunt (Straight)	FST	14001-12	Stainless steel scissors used to make the initial skin incision.
Suture 5-0 Silk No Needle	Henry Schein	102-6344	Silk thread used to do the constriction of the pulmonary trunk
Systane Ointment	Alcon	2444062	Eyes lubricant providing a temporary relief of burning and irritation caused by the dryness of the eyes during surgery.
SZ2-STU2 stereomicroscope stand	Olympus	N1198900	The arm attached to the base provides a great freedom of movement to the microscope head.
Tissue forceps - 1X2 Teeth	FST	11021-15	Stainless steel forceps allowing to grasp, hold and manipulate tissues (skin and muscles).
Transpore Surgical Tape	3M	1527-1	Medical tape used to immobilized the rats' forelimbs and hindlimbs.
Vetbond Tissue Adhesive (3 mL)	3M	1469SB	Surgical glue that can be applied in small amounts on the skin It can be used as a complement to subcutaneous sutures.
Vetergesic Multidose (0.3 mg/mL) 10 mL	Ceva Canada	2342510	Diluted injectable solution of buprenorphine administered as an analgesic drug.
Veterinary anesthesia evaporator Tec 4	Dispomed	34001 Iso	Enables vaporization of isoflurane and concentration at 0–5%.
