Analysis of break induction by replication stress reagents
U2OS cells were treated with DMSO, 4 of mM hydroxyurea (HU), or 100 nM of CPT for 4 h and analyzed for break accumulation by the NC assay (Figure 6A). While CPT induces breaks during S-phase by blocking topoisomerase-113, HU-induced depletion of nucleotide pools stalls replication forks that are progressively converted into DSBs28. The data indicates that exposure to either HU or CPT triggers break induction in S-phase, which is detectable by NC assay.
Analysis of break induction comparing lysis at different temperatures
Untreated U2OS cells were incubated in lysis buffer either at room temperature (RT) or 4 °C prior to analyses of break induction (Figure 6B). The results indicate that the temperature at which lysis is performed has minimal impact on the migration of tails in the assay.
Temporal analysis of breaks by hydroxyurea (HU)
U2OS cells were left either untreated or treated with 4 mM of HU for 4 h and 8 h prior to analyses of break induction by the NC assay (Figure 7). The results indicate that prolonged stalling of replication forks with HU causes replication fork collapse into DSBs.
Dose-dependent analysis of breaks by camptothecin
U2OS cells were treated with increased doses of CPT for 1 h and harvested for break analyses using the NC assay (Figure 8). Whereas break accumulation is minimal in cells not treated with CPT, the degree of break induction gradually increases with increased dosage of CPT, thus demonstrating the utility of the assay in studying dose-dependent effects on break accumulation during DNA replication.
Comparative analysis of breaks across multiple cell types
Basal levels of DNA breaks were assessed across three divergent mitotic cell types- hTERT immortalized retinal pigment epithelial cells (hTERT-RPE-1), simian virus 40 (SV40) large T-antigen expressing human embryonic kidney cells (HEK293T) and bone osteosarcoma cells (U2OS) (Figure 9). Each cell line demonstrated differential migration of tail moments in the absence of added replication stress, which may be due to differences in cell cycle distribution, chromatin organization, or number of active replication forks. Each cell type was also exposed to 1 µM of CPT for 1 h to validate an increase in replication-dependent DNA breaks.
Analyses of break induction by AC assay
U2OS cells were treated with DMSO, 4 mM of HU, 1 µM of CPT, or 10 µM of PARP inhibitor (PARPi) Olaparib and analyzed for break induction (Figure 10). Cells were treated with DMSO, HU, and PARPi for 2 h while CPT treatment was for 1 h. The results indicate that exposure to replication stress causes break accumulation, which is observable by the AC assay.

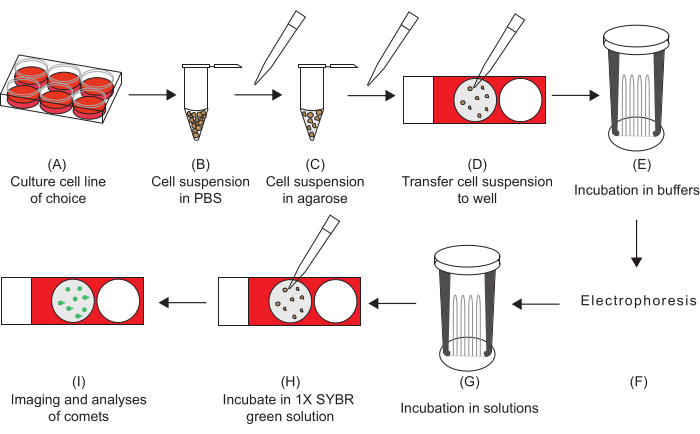

Figure 1: Schematic representation of the NC assay. (A) The required number of cells is seeded the day before in a 6-well dish. (B) After drug treatments, the cells are trypsinized and harvested in cold PBS. (C) The cells are gently resuspended in melted agarose at a ratio of 10:1 (10 µL of agarose for 1 µL of cell suspension) using a pipette tip. (D) The cell suspension is transferred onto a slide well using a pipette tip and spread uniformly to cover the well surface completely with agarose. (E) Following incubation at 4 °C, the slides are immersed in lysis buffer, followed by cold 1x TAE buffer. (F) The samples are subjected to electrophoresis using the appropriate apparatus. (G) The slides are then immersed in the DNA precipitation solution, followed by a 70% ethanol solution. (H) After drying, the wells are stained with 1x SYBR Green solution. (I) The slides are imaged using an epifluorescence microscope. Please click here to view a larger version of this figure.

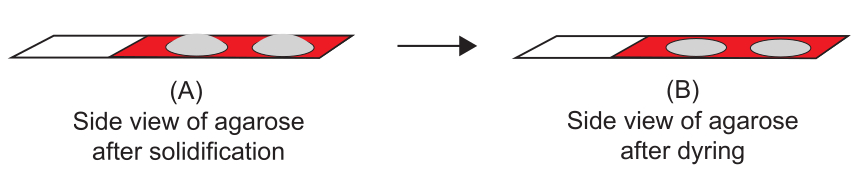

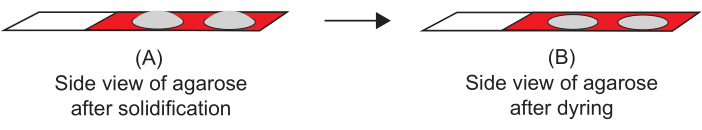

Figure 2: Side view of agarose on comet slide wells. (A) After incubation at 4 °C (step 3.8), the solidified agarose appears as a 'bubble' with a convex shape. (B) After drying at 45 °C (step 5.3), the agarose appears flattened on the well. Please click here to view a larger version of this figure.

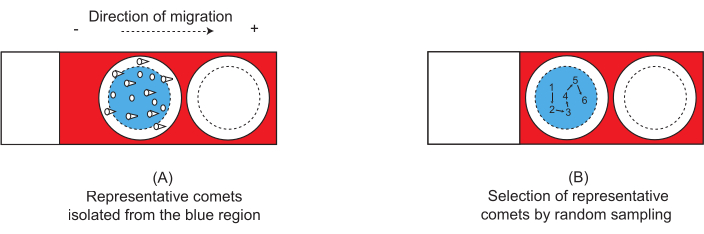

Figure 3: Imaging and analysis of comets. (A) Comets within the inner circle of the well (highlighted in blue) are selected for analysis. Comets toward the outer edge of the well are excluded due to atypically longer tail moments, marking them as outliers. (B) At least 100 representative comets are randomly selected from the blue-colored region. Please click here to view a larger version of this figure.

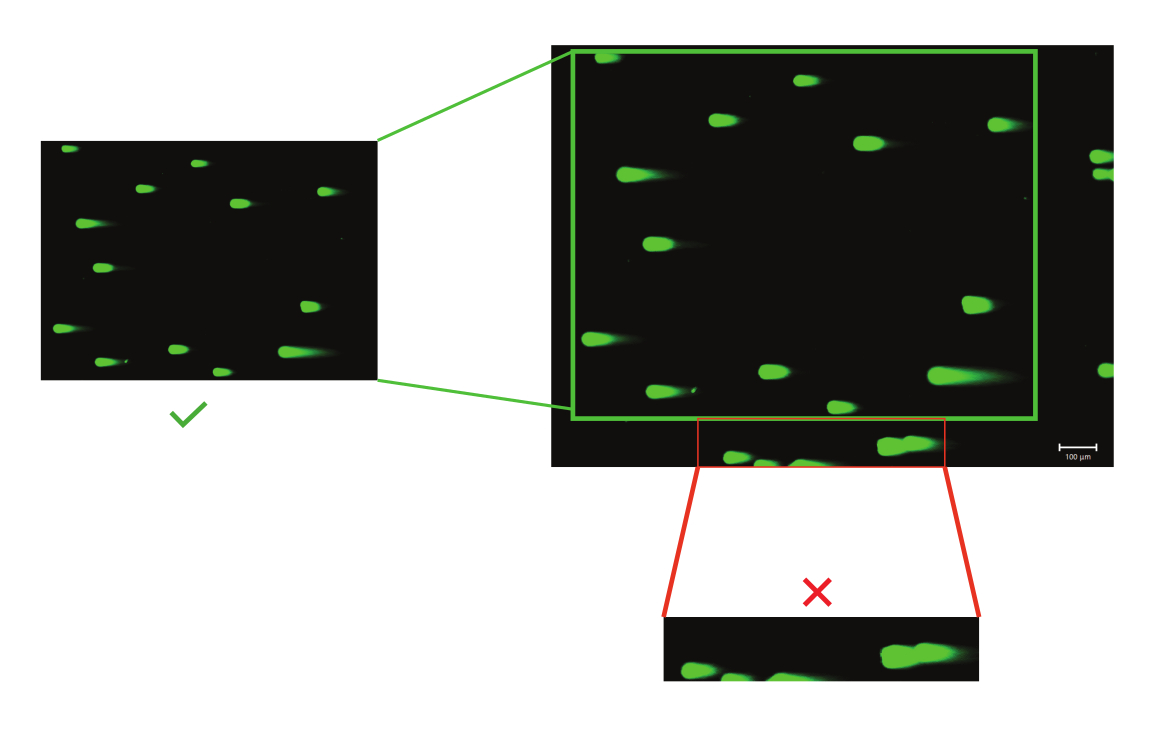

Figure 4: Representative image of comets obtained from the NC assay. The right panel displays a representative field of view for SYBR Green-stained nuclei, while the left panel highlights the region (green outline) used for scoring comets. Nuclei that are partially visible or stacked close to each other (red outline, right panel) are not included in the analysis. Comets selected for scoring should be individually distinguishable, fully contained within the field of view, and exhibit uniform staining intensity. Please click here to view a larger version of this figure.

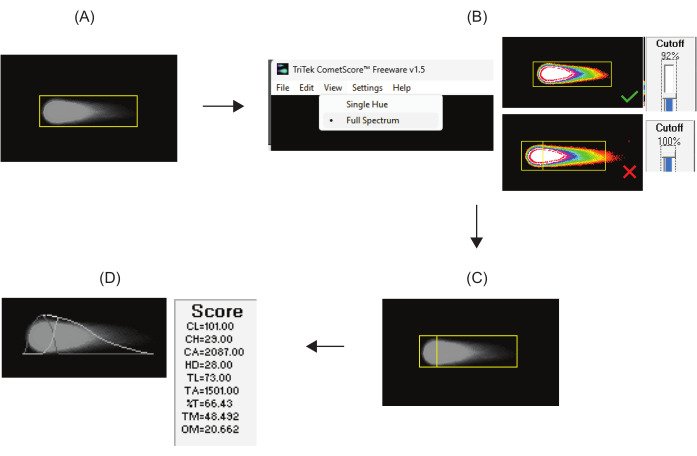

Figure 5: Representative scoring of comets obtained from the NC assay. (A) Individual nuclei are outlined using CometScore software. (B) The full spectrum view (left panel) is enabled, and the threshold (cutoff bar) is adjusted to achieve optimal signal intensity with minimal background. The 'full spectrum' signal should correspond to the 'single hue' image (top image, right panel) and not exceed the outline (bottom image, right panel). (C) The vertical yellow line in the box is aligned with the center of the comet head, using the widest part of the comet head as a reference for consistency. (D) The score for each analyzed comet is reported in the upper right corner. Please click here to view a larger version of this figure.

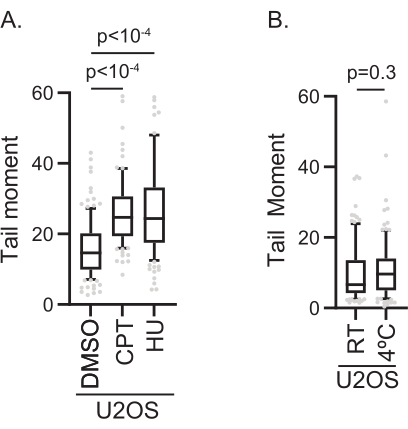

Figure 6: Analysis of break induction by replication stress reagents. (A) U2OS cells were treated with DMSO, 100 nM camptothecin (CPT), or 4 mM hydroxyurea (HU) before break induction analysis. The representative graph shows increased break accumulation in cells treated with CPT or HU. (B) Untreated U2OS cells were seeded on comet slides and incubated for lysis (step 3.9) either at room temperature (RT) or 4 °C to compare the effect of lysis temperature. Tail moments from the analyses are plotted as box-and-whisker plots depicting 10-90 percentile values, with median values represented by horizontal lines within the boxes. P-values were calculated using the Kruskal-Wallis test with Dunn's multiple comparisons (cutoff p-value of 0.05). Please click here to view a larger version of this figure.

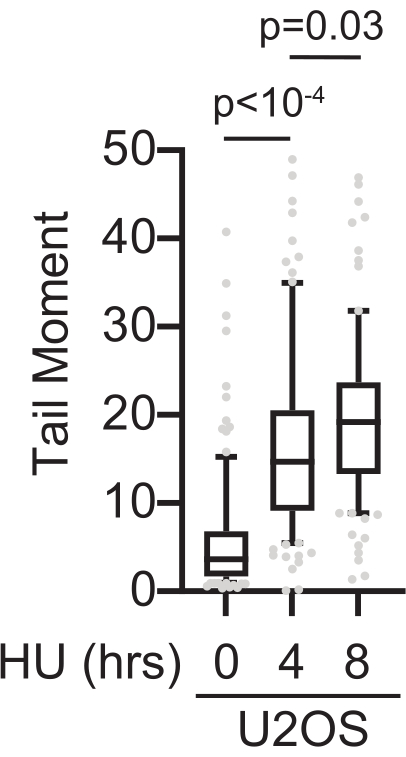

Figure 7: Temporal analysis of breaks induced by hydroxyurea. U2OS cells were either untreated or treated with 4 mM HU for 4 h or 8 h before break induction analysis. The representative graph depicts a gradual increase in break accumulation in cells treated with HU. Tail moments from the analyses are plotted as box-and-whisker plots depicting 10-90 percentile values, with median values represented by horizontal lines within the boxes. P-values were calculated using the Kruskal-Wallis test with Dunn's multiple comparisons (cutoff p-value of 0.05). Please click here to view a larger version of this figure.

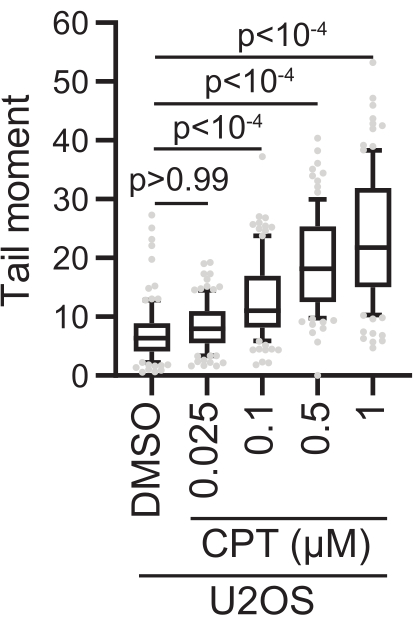

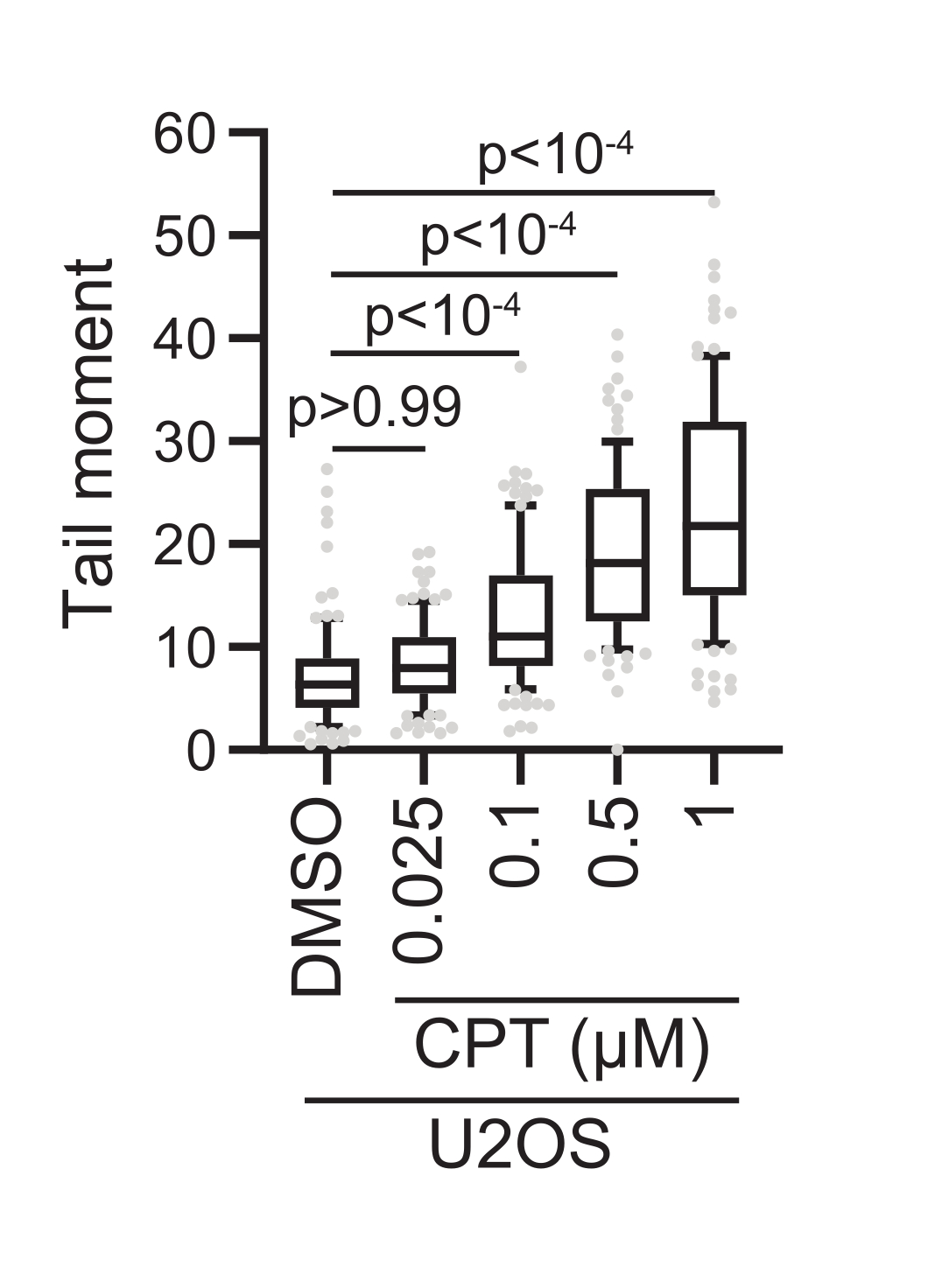

Figure 8: Dose-dependent analysis of breaks induced by camptothecin. U2OS cells were treated with either DMSO or increasing concentrations of CPT (25 nM, 100 nM, 500 nM, and 1 µM) for 1 h before break analysis. Tail moments from the analyses are plotted as box-and-whisker plots depicting 10-90 percentile values, with median values represented by horizontal lines within the boxes. The representative graph shows a dose-dependent increase in breaks induced by CPT. P-values were calculated using the Kruskal-Wallis test with Dunn's multiple comparisons (cutoff p-value of 0.05). Please click here to view a larger version of this figure.

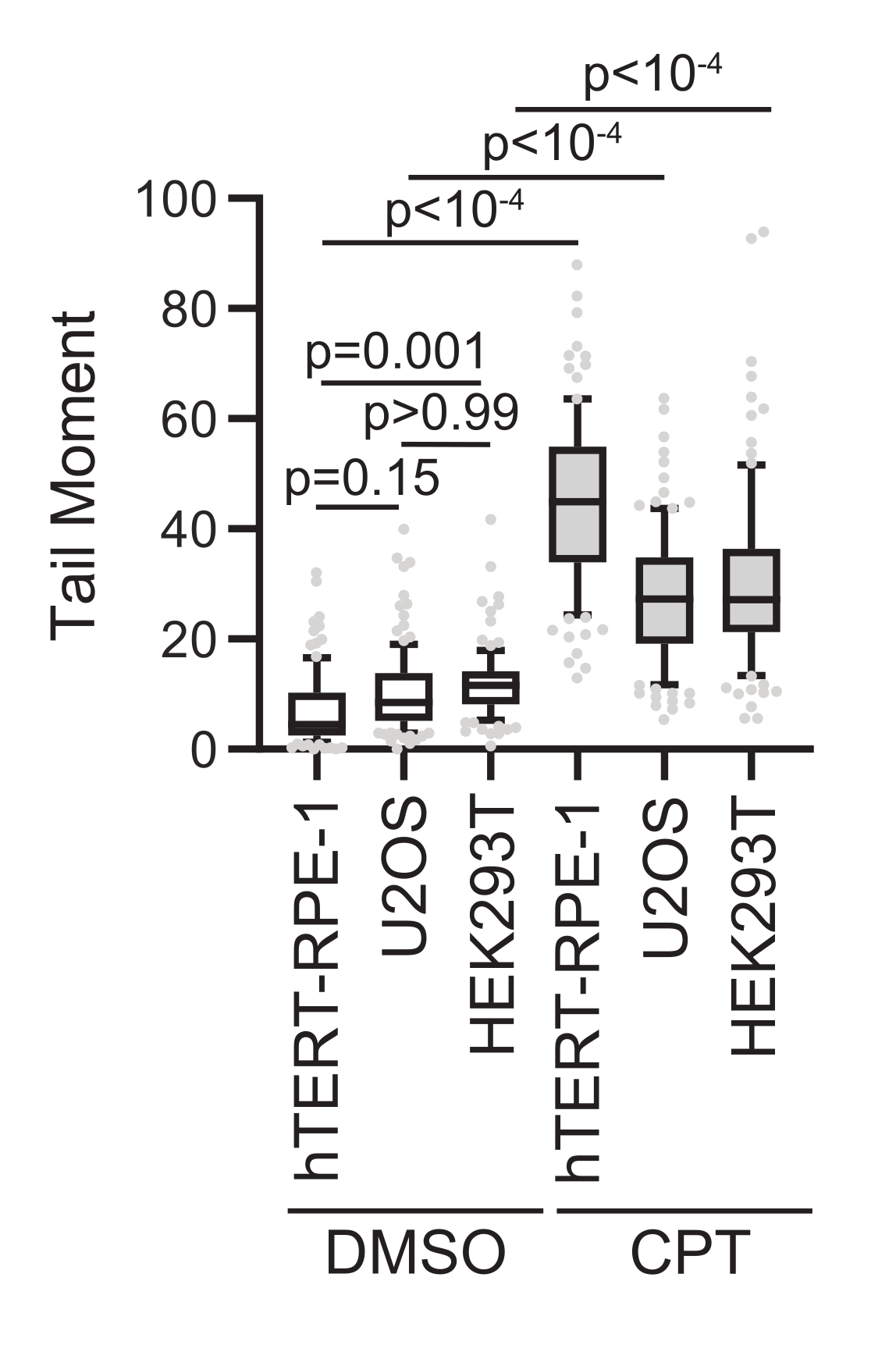

Figure 9: Comparative analysis of breaks across multiple cell types. hTERT-RPE-1, HEK293T, and U2OS cells were treated with either DMSO or 1 µM CPT for 1 h. The representative graph shows the relative extent of DNA damage across the three cell types in the presence or absence of CPT. Tail moments from the analyses are plotted as box-and-whisker plots depicting 10-90 percentile values, with median values represented by horizontal lines within the boxes. P-values were calculated using the Kruskal-Wallis test with Dunn's multiple comparisons (cutoff p-value of 0.05). Please click here to view a larger version of this figure.

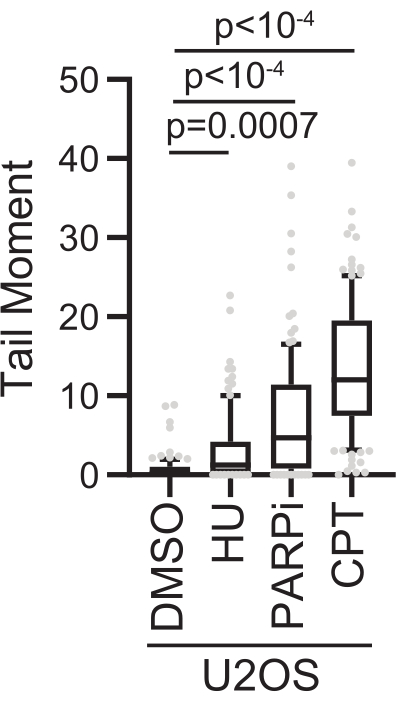

Figure 10: Analysis of break induction by the AC assay. U2OS cells were treated with DMSO, 4 mM HU, 1 µM CPT, or 10 µM PARP inhibitor Olaparib prior to break induction analysis. Cells were treated with DMSO, HU, and PARP inhibitor for 2 h, while CPT treatment was for 1 h. The representative graph demonstrates increased break accumulation in cells treated with CPT, HU, or PARP inhibitors. Tail moments from the analyses are plotted as box-and-whisker plots depicting 10-90 percentile values, with median values represented by horizontal lines within the boxes. P-values were calculated using the Kruskal-Wallis test with Dunn's multiple comparisons (cutoff p-value of 0.05). Please click here to view a larger version of this figure.
| Reagent | Working solution |
| Lysis Buffer | 0.5% SDS, 200 mM Tris-Cl (pH 7.4), 50 mM EDTA |
| 1x TAE Buffer | 40 mM Tris Base, 20 mM Acetic Acid, 1 mM EDTA in pH 8.45 |
| DNA Precipitation solution | 1 M Ammonium Acetate, 87% Ethanol |
| 70% Ethanol solution | 70% Ethanol in distilled water |
| 1x SYBR Green solution | 1x SYBR Green in 1x TAE buffer |
| DMEM culture media | DMEM with 7.5% FBS |
| DMEM/F12 culture media | DMEM/F12 with 7.5% FBS |
| Alkaline unwinding solution (for use in Alkaline Comet Assay) | 200 mM NaOH, 1 mM EDTA in pH>13 |
Table 1: List of buffers and solutions.
