Method Article

Electroporation of Sliced Human Cortical Organoids for Studies of Gene Function

2.3K views

⸱

DOI:

10.3791/67598

⸱

November 29th, 2024

 ,  ,  ,
1Center for Regenerative Therapies Dresden, TUD Dresden University of Technology

In This Article

Summary

Here, we present the acute genetic manipulation of sliced human cortical organoids by electroporation. These cortical organoid models are particularly amenable to injection as ventricle-like structures can be readily identified after slicing, enabling the functional investigation of human cortical development, neurodevelopmental disorders, and cortical evolution.

Abstract

Human cortical organoids have become important tools for studying human brain development, neurodevelopmental disorders, and human brain evolution. Studies analyzing gene function by overexpression or knockout have been instrumental in animal models to provide mechanistic insights into the regulation of neocortex development. Here, we present a detailed protocol for CRISPR/Cas9-mediated acute gene knockout by electroporation of sliced human cortical organoids. The slicing of cortical organoids aids the identification of ventricle-like structures for injection and subsequent electroporation, making this a particularly well-suited model for acute genetic manipulation during human cortical development. We describe the design of guide RNAs and the validation of targeting efficiency in vitro and in cortical organoids. Electroporation of cortical organoids is performed at mid-neurogenic stages, enabling the targeting of most major cell classes in the developing neocortex, including apical radial glia, basal progenitor cells, and neurons. Taken together, the electroporation of sliced human cortical organoids represents a powerful technique to investigate gene function, gene regulation, and cell morphology during cortical development.

Introduction

The neocortex refers to the outer covering of the cerebral hemispheres and is a structure that is unique to mammals. The neocortex represents the seat of higher cognitive functions1,2,3,4,5. During development, neural stem and progenitor cells give rise to neurons in a process termed neurogenesis. Functional studies investigating human neocortex development provide the basis for elucidating the mechanisms underlying human neural stem cell regulation, neural pathologies, and human brain evolution2,6,7.

Historically, studies of human brain development relied on descriptive histological approaches using post-mortem tissue, with more recent free-floating tissue culture systems enabling functional investigations with human fetal tissue8,9. Additionally, human fetal brain tissue was shown to have the capacity to self-organize into long-term expanding organoids10. Fetal tissue research has provided important insights into human development11,12, yet restricted tissue availability and ethical considerations limit its widespread application for mechanistic studies of human brain development. In the past decade, protocols have been developed that allow the generation of three-dimensional neural organoids from human pluripotent stem cells (hPSC), including human induced PSC (hiPSC)13,14.

Cerebral organoids display important features of the developing brain, such as the formation of ventricle-like structures, apicobasal polarity, cortical cytoarchitecture, interkinetic nuclear migration during radial glia division, and neuronal migration. Importantly, these new human organoid models recapitulate characteristics of the human developing brain that are not modeled well in the mouse, including evolutionarily relevant key neural progenitor types, in particular basal radial glia (or outer radial glia)7,14,15. Several limitations of early cerebral organoid protocols - such as issues with organoid heterogeneity, limited nutrient supply to the inner core, and varied regional identity-have been addressed in recent protocol advancements and further improvements can be expected in the coming years15,16,17,18,19. Human cerebral and cortical organoids have quickly become key models to study human cortical development20, neurological disorders21,22,23,24 and brain evolution25,26,27,28,29, and to perform large-scale screening approaches30,31,32.

For acute genetic manipulation, two methods have primarily been used in animal models of neocortex development: viral delivery by infection of target cells33 and in utero or in vitro electroporation34,35. Injection of DNA - and, more recently, CRISPR/Cas9 ribonucleoprotein (RNP) complexes36- into the lateral ventricles, followed by electroporation, provides the advantage that specific regions of the brain can be targeted based on the orientation of the electroporation electrodes. Electroporation involves brief electric pulses that temporarily increase cell membrane permeability, allowing the introduction of DNA and other charged molecules into cells. In utero electroporation was first performed in the mouse37, where it rapidly became a widely applied methodology for developmental neurobiology. The method was subsequently also applied to other species, such as the rat38,39 and the ferret40,41,42, a gyrencephalic species used to study neocortex expansion and cortical folding3,43,44,45.

Electroporation has also become an important method in human brain organoid research46. In cerebral organoids, electroporation has been applied to visualize cell morphology and neuronal axons14,47, to deliver gene knockdown reagents22,48,49, and for investigation of gene function by overexpression50. The method is not restricted to human models but has also been applied for genetic modification of primate cerebral organoids50,51. Moreover, the electroporation of cortical organoids generated in a Spin Ω spinning bioreactor has been described52.

In this protocol, we outline the electroporation of sliced human cortical organoids15 for studies of gene function in cortical development. Brain region-specific organoids increase reproducibility and consistency, which are critical for the success of quantitative analysis, for example, in disease modeling. In the sliced human cortical organoid protocol15, potent patterning cues are applied during iPSC differentiation to obtain a homogeneous population of dorsal forebrain progenitors, which is followed by the application of culture media that promote tissue growth with fewer instructive signals53,54. Slicing of cortical organoids has been shown to reduce cell death resulting from reduced availability of nutrients and oxygen in the organoid core15. Moreover, slicing supports the development of ventricle-like structures containing abundant basal radial glia, with sustained neurogenesis leading to the formation of an expanded cortical plate-like region15. The repeated slicing in this protocol also makes these cortical organoids particularly suitable to electroporation, as the ventricle lumens can be easily identified and targeted by injection. Electroporation of sliced cortical organoids has been applied to study gene regulatory regions and cortical evolution26,55.

During the electroporation procedure, the injection mix is delivered to the lumen of ventricle-like structures. Upon application of a pulsed electric field, the mix is taken up by apical radial glia that line the ventricle. As apical radial glia divide and give rise to more committed cell types4, the electroporated agents are passed on to basal progenitor cells and neurons. Electroporated progeny are distributed in the ventricular zone (VZ) and subventricular zone (SVZ) after 3 days and span most of the cortical wall, including the cortical plate (CP)-like region, at 7 days post-electroporation during mid-neurogenic stages26,55.

Here, we describe CRISPR/Cas9-mediated gene disruption56 by electroporation in sliced human cortical organoids26. In addition, the electroporation method can also be applied for gene overexpression, visualization of cell morphology and cellular processes by expression of fluorescent proteins, delivery of plasmid libraries for Massive Parallel Reporter Assays (MPRA), delivery of epigenome editing tools and labeling of cells for live imaging.

Protocol

All experiments involving human induced pluripotent stem cells (hiPSC) were performed in accordance with the ethical standards outlined in the 1964 Helsinki Declaration and approved by the Dresden University Hospital Ethical Review Committee (IRB00001473; IORG0001076; ethical approval number SR-EK-456092021).

1. Design of guide RNAs for acute CRISPR/Cas9-mediated gene knockout

  1. Design a pair of guide RNAs (gRNAs) targeting the same exon with a distance of ideally 7-11 bp (avoiding multiples of 3 bp) between the protospacer adjacent motifs (PAMs) to increase the likelihood of protein disruption using software or online tools.
    NOTE: Ideally, exons that encode functional domains should be targeted. Alternatively, the first exons of the transcript can be chosen (Figure 1A). Select the guide RNAs based on activity score (close to 1)57 and specificity score (close to 100 %)58.

2. Culture of human induced pluripotent stem cells

  1. To generate human cortical organoids and to validate gRNA function, use the hiPSC line CRTDi004-A59 which is derived from a healthy donor.
  2. Culture the iPSCs as previously described60 on basal membrane matrix coated 6-well plates in stem cell medium under standard conditions (37 °C, 5% CO2). Induced PSCs should be passaged at 80% confluency using an enzyme for single-cell dissociation with supplementation of ROCK pathway inhibitor (1:1,000) during the first 24 h.
    NOTE: Other iPSC lines may be used for organoid generation and gRNA validation.

3. Extraction of genomic DNA from human induced pluripotent stem cells

  1. Use 2 wells of 80%-90% confluent hiPSC of a 6-well plate for genomic DNA extraction. Dissociate the cells from the plate with an enzyme to make a single-cell suspension. Take the cells up in 1 mL of stem cell medium (total volume), then spin for 10 min at 600 x g and remove the supernatant.
  2. Resuspend the cell pellet in 250 µL of lysis buffer (50 mM TrisHCl (pH 7.5), 100 mM NaCl, 0.5 % SDS, 5 mM EDTA in H2O) and 12.5 µL of Proteinase K (10 mg/mL stock). Incubate for 2 h at 55 °C and 250 rpm.
  3. Mix in 100 µL of 5 mM NaCl. Spin for 10 min at 18,000 x g at 4 °C and transfer the supernatant into new 1.5 mL reaction tubes.
  4. Add 250 µL of isopropanol, invert the tubes several times, and spin for 15 min at 18,000 x g at 4 °C.
  5. Remove the supernatant, wash with 500 µL of 70 % EtOH (molecular biology grade), invert the tubes, and spin for 10 min at 18,000 x g at 4 °C.
  6. Finally, completely remove the supernatant by carefully pipetting it off and pressing the open reaction tubes on paper towels.
  7. Let the pellet air dry for 10 min at RT, then dissolve the pellet in 100 µL of nuclease-free water for 30 min at 37 °C.
  8. Measure the concentration of the DNA with a spectrometer. Isolated genomic DNA is stable at -20 °C for several months.

4. Verification of template recognition by gRNA (in vitro)

NOTE: As the first approach to validate successful template recognition by gRNAs, perform an in vitro Cas9 reaction where double-stranded DNA is cleaved into two fragments that can be distinguished by agarose gel electrophoresis40,61,62.

  1. To generate the template, perform a polymerase chain reaction (PCR) with a high-fidelity PCR master mix and 10 µM primers on genomic DNA isolated from hiPSC (section 3) using the following cycling conditions: initial denaturation at 98 °C for 30 s, 40 cycles [98 °C, 10 s; 60 °C, 30 s; 72 °C, 1 min] and final elongation at 72 °C for 5 min.
    1. Adjust the annealing temperature according to the PCR primers. Ensure the amplicon is 800 bp to 1.5 kb in size with asymmetric localization of the gRNA binding sites.
    2. Resolve the PCR product by gel electrophoresis on a 1.5% agarose gel, cut the corresponding band from the gel and extract the DNA26.
    3. Measure the DNA concentration of the extracted PCR product with a spectrometer.
  2. Assemble the functional gRNA by combining 10 µM of CRISPR RNA (crRNA, custom sequence, 100 µM stock) and 10 µM tracrRNA (100 µM stock) in nuclease-free duplex buffer (5 µL total volume). Incubate the mix for 5 min at 95 °C, then allow it to cool down to room temperature (RT).
  3. Create the ribonucleoprotein (RNP) complex by combining 10 µM of the gRNA from step 4.2 and 1 µM Cas9 enzyme (from Streptococcus pyogenes, 62 µM stock) in PBS for 15 min at RT (25 µL total volume).
  4. To perform the in vitro digestion reaction, mix 1 µM of the RNP complex (from step 4.3) with 0.1 µM DNA template (PCR product from step 4.1) and 1x Cas9 nuclease reaction buffer (containing 200 mM HEPES, 1 M NaCl, 50 mM MgCl2, 1 mM EDTA; pH 6.5; can be stored in aliquots at -20 °C).
    1. Fill up to a final volume of 10 µL with nuclease-free water.
    2. Incubate the reaction at 37 °C for 1 h.
    3. Add 2 mg/mL Proteinase K and incubate for another 10 min at 56 °C to release the DNA substrate from the Cas9 enzyme. Store the digested reaction mix at 4 °C or -20 °C until final analysis.
      NOTE: Using a 10:1 molar ratio of Cas9-RNP:DNA substrate is recommended to obtain the best cleavage efficiency. Dilute the PCR product in nuclease-free water to the required concentration, if necessary. As a negative control, a reaction mix lacking either the gRNA or Cas9 enzyme may be taken along.
  5. Visualize cleaved products by agarose gel electrophoresis on a 2% agarose gel.
    NOTE: Ideally, two differently sized bands should be visible and the template band should have disappeared or be strongly reduced for efficient gRNAs (Figure 1B).

5. Verification of gRNA function in human induced pluripotent stem cells

NOTE: It is recommended to test the efficiency of gRNAs targeting the same cell line from which cortical organoids will be generated26. For this, RNP complexes containing the relevant gRNAs are co-transfected with a GFP expression plasmid into hiPSCs, the cells are cultured for 3 days, and genomic DNA is subsequently isolated for sequencing analysis. For each gRNA test, roughly 200,000 cells are required. Cells should not be more than 70%-80% confluent and should have been passaged at least twice after thawing. It is important to take a negative control (gLACZ)36,63 and a mock condition (nucleofection solution without RNP) along.

  1. Change the medium of the hiPSC to include ROCK inhibitor (1:1,000) 2 h prior to the experiment to increase the viability of the cells in a cell culture hood.
  2. Coat the appropriate number of wells of a 6-well plate with a basal membrane matrix.
  3. Start the nucleofector unit ("X unit" for 16-well strips) and select the program "ES cells, H9" as pre-programmed (pulse CB150). Select the appropriate number of wells of the strip.
  4. Prepare the RNP complexes by combining 24 µM crRNA and 24 µM tracrRNA in Duplex Buffer.
    1. Incubate at 95 °C for 5 min, then let cool down to RT, as described in step 4.2.
    2. In the meantime, dilute the Cas9 enzyme to 8 µM in PBS.
    3. Combine 3 µL of gRNA and 3 µL of Cas9, and incubate 15 min at RT to assemble the RNP.
      NOTE: A molar ratio of 3:1 gRNA:Cas9 gives optimal cleavage efficiency. To test gRNAs as a pair, prepare each RNP separately and combine 1.5 µL of each RNP at the end.
  5. During the 15 min RNP incubation, prepare the hiPSC for nucleofection under a cell culture hood.
    1. Replace the basal membrane coating with 1.5 mL of stem cell medium supplemented with ROCK inhibitor (1:1,000) and 1x Penicillin/Streptomycin per well.
    2. Prepare the nucleofection solution as a master mix on ice following manufacturer's instructions.
    3. Detach hiPSCs from the plate to make a single cell suspension (as described in section 2) and count the cells with Trypan Blue staining in a Neubauer counting chamber.
    4. Pellet 200,000 live cells per gRNA pair at 600 x g for 5 min.
  6. In the cell culture hood, on ice, add 3 µL of RNP to 20 µL of nucleofection solution plus 0.2 µg/µL pCAG-GFP plasmid.
  7. Resuspend the pelleted cells in the 23 µL of the final nucleofection mix and transfer them into 1 well of a 16-well nucleofection strip on ice.
  8. Once all conditions are in the strip, place it in the nucleofector machine X unit outside of the hood and press the Start button to initiate the nucleofection.
  9. Subsequently, transport the nucleofection strip back under the cell culture hood and transfer nucleofected cells to the prepared 6-well plate by rinsing out the strip-wells with some medium from the plate.
  10. Culture the hiPSC for 3 days, changing medium containing 1x Penicillin/Streptomycin daily. After 24 h, the ROCK inhibitor is no longer needed.
  11. Check for GFP signal under a conventional fluorescent microscope (Figure 1C).
    1. On day 3, sort and collect GFP-positive cells by fluorescent activated cell sorting (FACS).
    2. Prepare the sorting buffer with 2% FBS in PBS and keep at 4 °C.
    3. Cool down a table-top centrifuge to 4 °C. Prepare 1.5 mL reaction tubes with 50 µL sorting buffer containing ROCK inhibitor (1:1,000) for collection of cells after FACS on ice and 5 mL polystyrene round-bottom tubes with cell-strainer caps on ice.
    4. Make single-cell suspensions of the nucleofected cells.
    5. Resuspend the cells in 1 mL of stem cell medium containing ROCK inhibitor (1:1,000) per sample and centrifuge at 600 x g for 5 min.
    6. Remove the supernatant and resuspend the cells in 200 µL of sorting buffer with ROCK inhibitor (1:1,000), then add 0.4 µL of DAPI (2 ng/µL) to identify live cells by FACS.
    7. Pipet the cell solution through the cell-strainer cap of the cooled round-bottom tubes to remove any residual cell clumps.
      NOTE: DAPI may compromise cell viability over time, and thus, it is best to add fresh to each sample before sorting.
    8. Sort 10,000 live GFP-positive living (DAPI-negative) cells into the previously prepared 1.5 mL reaction tubes with 50 µL of sorting buffer containing ROCK inhibitor (on ice).
  12. After FACS, directly extract genomic DNA from sorted cells.
    1. Spin down the collected, sorted cells in the sorting buffer at 600 x g for 10 min.
    2. Remove the supernatant and take up the cell pellet in 250 µL of lysis buffer plus 12.5 µL of Proteinase K per sample.
    3. Continue as described in section 3.
    4. Finally, dissolve the DNA pellet in 50 µL of nuclease-free water.
  13. Perform a PCR to generate a template for Sanger sequencing as described in step 4.1. As a control, use the DNA from the gLACZ condition and the primers targeting the gene of interest (same primers as used in section 4). Extract the appropriate bands from the agarose gel electrophoresis, purify it over a column, and send it for Sanger sequencing.
  14. Align Sanger sequencing results using a pairwise, global alignment.
    NOTE: Successful targeting can be identified by superimposed signals or incomplete sequences resulting from random insertions/deletions around the gRNA binding site (Figure 1D).

6. Generation of sliced human cortical organoids

NOTE: Human cortical organoids (hCO) are generated according to the sliced neocortical organoid (SNO) method, as previously described in detail15,60.

  1. Detach small hiPSC colonies from 1 well of a 6-well plate with 1 mg/mL collagenase by incubating for 30-40 min at 37 °C in an incubator. In the meantime, coat a new 6-well plate with the basal membrane matrix.
    1. Stop the enzyme with 1 mL of stem cell medium and collect the colonies with a wide-bore tip in 5 mL of stem cell medium in a 15 mL conical tube.
      NOTE: Any steps mentioning "wide-bore pipet tips" can also be carried out with tips cut to an opening of at least 2 mm in diameter.
    2. Once the colonies have settled to the bottom, remove the old medium and replace it with fresh stem cell medium.
    3. Using a wide-bore tip, distribute the colonies evenly on the coated 6-well plate with 1.5 mL of stem cell medium per well.
    4. Culture the hiPSC for 2-3 days under standard conditions.
  2. Once the hiPSC colonies have reached roughly 1.5 mm in diameter, detach all colonies again with 1 mg/mL collagenase by incubating for up to 1 h at 37 °C.
    1. Stop the enzyme with 6 mL of forebrain medium 115 and collect detached colonies in a 15 mL conical tube using wide-bore tips.
    2. Once the colonies have settled, remove the old medium and wash with 5 mL of forebrain medium 1.
    3. Finally, transfer the colonies to an ultra-low attachment 6-well plate containing 3 mL of forebrain medium 1 per well with wide-bore tips and let them form embryoid bodies (EBs). This step indicates day 0 of the human cortical organoid protocol. From here on, follow the protocol as published15.
  3. On day 7, embed EBs in a basal membrane matrix, with about 20 EBs per "cookie" and culture for 1 week in forebrain medium 2 15. At day 14, mechanically release organoids from the matrix and continue culturing in 6-well ultra-low attachment plates in forebrain medium 315 on an orbital shaker at 120 rpm.
  4. From day 35, 1% v/v basal membrane matrix is supplemented to the medium.
  5. At week 6, embed organoids in 3% low-melting point agarose and cut on a vibratome into 500-µm-thick slices (Figure 2A, B), which supports oxygen and nutrient supply throughout the organoids. If necessary, repeat the slicing of organoids every 4 weeks.
  6. From day 70, culture organoids in forebrain medium 415.

7. Electroporation of sliced human cortical organoids

NOTE: Human cortical organoids can be injected and electroporated as soon as ventricle-like structures are visible, roughly from week 2 onwards. For later-stage organoids (week 5 and older), the electroporation is most efficient and the viability of cells is best when the procedure is performed 2 days after slicing of organoids26,55. After slicing, ventricle-like structures are easy to identify, which aids the injection procedure (Figure 2C, D). Moreover, ventricle-like structures remain partially open for some time after slicing, allowing excess injection solution to escape, which protects the integrity of the adherens junction belt lining the ventricles. The slicing schedule can be shifted to match the experimental timeline. Slicing should be repeated every 3-4 weeks for long-term cultures.

  1. Pull the borosilicate glass capillaries for injections at a microcapillary puller with the following settings: P 500, heat 600, pull 30, velocity 40, time 1. Store the capillaries in a large Petri dish using tape for fixation.
  2. On the day of electroporation, freshly prepare the CRISPRR/Cas9 RNP complex as described in step 5.4 with a final concentration of 24 µM RNP. Co-electroporation of 0.1 µg/µL pCAG-GFP plasmid (or of any other fluorescent reporter) supports the identification of electroporated cells. In addition, add 0.1% Fast Green solution in water to the final injection mix, which enables confirmation of the successful delivery of the mix.
    NOTE: Make separate mixes for each gene of interest and the gLACZ control.
  3. Prewarm Tyrode's solution (one pack Tyrode's salt, 1 g of NaHCO3, 13 mL of 1 M HEPES pH 7.25 in 1 L of dH2O) to 37 °C. Store the remaining Tyrode's solution at 4 °C for several months.
  4. Select hCO with well-developed ventricle-like structures (Figure 2E) and discard any organoids that do not show ventricle-like structures (Figure 2F). Transfer up to 10 organoids to a 6 cm Petri dish containing Tyrode's solution and keep the remaining hCOs in the incubator.
  5. Fill a glass microcapillary with 10 µL of the injection solution with the help of a microloader pipette tip and open the capillary by pinching off the thin end with tweezers. Check if the capillary is open by releasing some injection mix into the Tyrode's solution. Carry out the injections with a microinjector in a continuous setting with controlled gating via a foot switch.
  6. Insert the capillary into the center of ventricle-like structures (Figure 2C) and inject 0.2-0.5 µL of the mix by pressing the foot switch.
    NOTE: Up to 5 ventricles may be injected per hCO with a total of 7-8 hCOs processed per replicate. Ideally, ventricles facing the outside of the hCO should be targeted as these are generally the most well-developed (Figure 2G, H).
  7. Use fine forceps to push the organoid against to restrict movement. Do not actually grab the organoids (Figure 2C).
  8. After injection, use a wide-bore pipet tip to transfer 1-2 organoids into an electroporation chamber containing Tyrode's solution (Figure 2C, D).
  9. Orient the injected organoids towards the electrodes so that apical radial glia in ventricle-like regions facing the outside of the organoid are targeted.
  10. Attach the cables to the electroporation chamber with the injected side of the organoid facing the positive pole (anode; Figure 2D).
  11. Press the Pulse button of the electroporator machine to electroporate with five pulses of 38 V for 50 ms each at intervals of 1 s.
    NOTE: The electroporation settings may depend on the available electroporator and may need to be optimized.
  12. Repeat the injection and electroporation steps until the desired number of organoids is processed.
  13. Collect the electroporated organoids in a medium at RT until all samples for the same condition have been processed. Ensure that they are not outside of the incubator for more than 30 min in total.
  14. Subsequently, return the electroporated hCOs into the appropriate culture medium and culture them without shaking for the first 24 h.
    NOTE: After 2-3 days, the GFP signal should be visible in electroporated hCOs under a fluorescent stereoscope (Figure 2H). The time point of analysis after electroporation should be chosen depending on the biological question to be answered. After 3-7 days, GFP-positive cells are located across the VZ, SVZ, and CP15,60.

8. Fixation and cryosectioning of electroporated human cortical organoids

  1. Fix electroporated organoids in 4% paraformaldehyde (PFA) for 30 min at RT in a 2 mL reaction tube.
    CAUTION: PFA is toxic and carcinogenic. Perform any steps involving PFA under a fume hood. The usage of nitrile gloves and safety goggles is strongly recommended.
  2. Wash once in PBS for 5 min and store in sterile-filtered 30% sucrose in PBS at 4 °C until the tissue is fully saturated with sucrose.
  3. Embed fixed organoids in an embedding medium for frozen tissue specimen plus 15% sucrose in PBS in blocks on dry ice.
  4. Prepare 20-30 µm sections at a cryostat and collect the tissue on adhesive slides26,64.
    NOTE: The protocol can be paused either once the fixed organoids are in sucrose (stable at 4 °C for several months) or embedded in an embedding medium (frozen blocks can be stored in air-tight bags at -20 °C for several months to years).

9. Immunohistochemical analysis of electroporated human cortical organoids

  1. For immunohistochemical analysis26,64, perform antigen retrieval in citrate buffer (10 mM sodium citrate, 0.05% polysorbate 20 in dH2O, pH 6.0) for 1 h at 70 °C in a water bath.
  2. Wash once in PBS for 5 min, then dry slides briefly and circle the sections with a wax pen.
  3. Quench using 0.1 M glycine in PBS (pH 7.4) for 30 min at RT and subsequently wash it twice with PBS for 5 min each.
  4. Cover the sections in blocking buffer (10% horse serum, 0.1% Octoxinol 9 in PBS) and incubate for 30 min at RT.
  5. Prepare the primary antibodies in blocking buffer and incubate on sections overnight at 4 °C.
  6. On the next day, wash three times with PBS for 5 min each, incubate with secondary antibodies and DAPI in blocking buffer for 1 h at RT, and wash three times again with PBS for 5 min each.
  7. Mount the slides in the mounting medium and image at a fluorescent microscope (Figure 3).
    NOTE: It is recommended to include an antibody against the fluorophore used in the injection mix to identify targeted cells since the native signal is often quenched after fixation. Antibodies and dyes used for immunofluorescence staining, as represented in Figure 3, are listed in Table 1.

10. Verification of CRISPR/Cas9-mediated knockout at protein level

  1. To verify the knockout at the protein level, perform immunohistochemistry for the target protein on the electroporated organoids (Figure 3I).
  2. Image both the gLACZ control and the targeted organoids using the same settings to allow comparison of fluorescence intensity (Figure 3I, J). Do this in a zone-specific manner to compare the effect on the different cell types of the developing neocortex. Count cells in ImageJ/Fiji (plugin Cell Counter) or by segmenting using the StarDist plugin65.

Results

CRISPR/Cas9-mediated gene ablation requires the design of gRNAs. Generally, targeting one of the first exons of a gene of interest with a pair of gRNAs spaced 7-11 bp apart (avoiding multiples of 3 bp) works well (Figure 1A). As a first test, the efficiency of template recognition by gRNAs may be interrogated in vitro using a PCR template26,40,62. Efficient targeting and Cas9-mediated cutting are visible in the reduction of the template DNA and the appearance of cleaved DNA products on an agarose gel (Figure 1B). Further gRNA testing may be performed in the iPSC line that is used for cortical organoid generation. This requires the nucleofection of iPSCs, which can be visualized by successful fluorescent reporter expression (Figure 1C). Efficient targeting of the locus of interest can be verified by Sanger sequencing, resulting in a chromatogram that abruptly ends or becomes superimposed around the targeting site (Figure 1D), resulting from a spectrum of indels from double-strand break repair by non-homologous end joining66. Guide RNA efficiency tests in vitro and in iPSC cells aid the selection of efficient gRNA pairs for gene ablation in cortical organoids.

Prior to electroporation, cortical organoids are sliced, which supports the identification of ventricle lumens for injection of the electroporation mix (Figure 2A-C). Injected organoids are then transferred to the electroporation chamber (Figure 2D). For the electroporation, cortical organoids with well-developed ventricle-like structures should be used (Figure 2E), whereas cortical organoids lacking visible structures should be discarded (Figure 2F). The electroporation mix contains a dye that allows the visualization of injected ventricles during the procedure (Figure 2G). After 1-3 days in culture, successfully targeted ventricles are visible by native GFP signal under a fluorescent microscope (Figure 2H).

For in-depth histological analysis, immunohistochemistry of cryosections can be performed. Ideally, multiple targeted ventricles are present within an electroporated cortical organoid (Figure 3A,B). The most optimal electroporations target ventricle-like structures in the outer region of the organoid facing the outside (Figure 3C), as these are typically the most expanded ventricles. In some cases, electroporation may lead to excessive cell death (Figure 3D,E), for example, when plasmid concentrations are too high or electroporation settings are sub-optimal. Electroporations facing the interior of the organoid (Figure 3F) often involve less expanded regions of the ventricle-like structures compared to the exterior. In our experience, it is helpful to focus quantitative analysis on defined regions of the organoid to reduce variability. Sometimes, electroporation may cause disruption of the apical surface (Figure 3G), for example, when the injection volume is too high, causing ventricles to rupture, or when electrical pulses are too strong, leading to cell delamination. Finally, when two adjacent ventricles are targeted (Figure 3H), it may become difficult to assign the boundaries of cortical zones and the origin of targeted cells.

Immunohistochemistry may be used to verify successful CRISPR/Cas9-mediated knockout at the protein level in cells of interest (Figure 3I), exemplified here by targeting the Polycomb Repressive Complex 1 (PRC1) protein PCGF467. Signal intensity may be analyzed in GFP-positive cells in control versus experimental conditions (Figure 3J). Alternatively, if no suitable antibody is available, targeted cells may be isolated by FACS from cortical organoids60 and further analyzed by Sanger or Next Generation Sequencing36. Moreover, the reduction of protein levels may also be analyzed using Western blotting.

CRISPR gene editing; gRNA efficiency; gel electrophoresis; GFP fluorescence; sequencing data analysis.

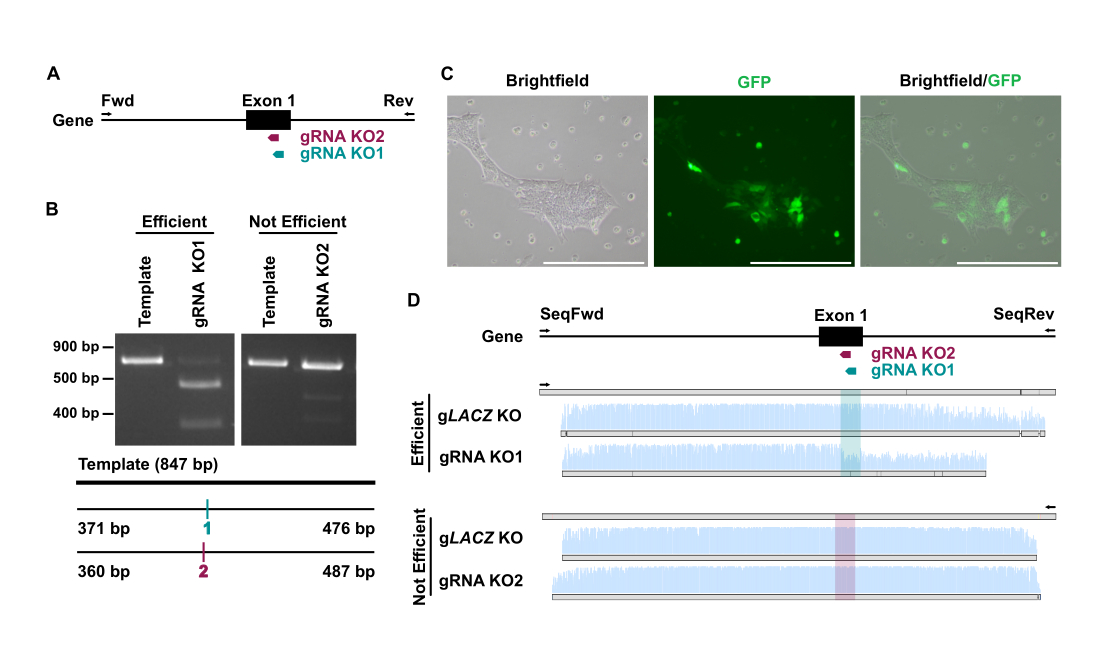

Figure 1: Guide RNA design and validation for acute CRISPR/Cas9-mediated gene knockout. (A) Schematic illustration of guide RNA (gRNA) design strategy, with two gRNAs targeting an exon of a gene of interest. Black arrows indicate PCR primers for template preparation used for gRNA validation. (B) Validation of gRNA efficiency in vitro. PCR-amplified templates were digested with RNP complexes. Upon successful cleavage, two bands of different sizes are visible after gel electrophoresis (left), whereas the template remains uncut for low-efficiency gRNAs (right). (C) Bright-field image (left), GFP fluorescence (middle), and merged images (right) of human induced pluripotent stem cells (hiPSCs) 3 days after nucleofection with the RNP complex and a GFP plasmid. Scale bars: 350 µm. (D) Validation of gRNA efficiency in hiPSCs by Sanger sequencing of amplified DNA from GFP-positive cells. Upon successful cleavage of the double-stranded DNA, sequencing tracks show superimposed signals starting from the gRNA target site (top, KO1). In the case of unsuccessful targeting, the DNA sequence track remains unchanged (bottom, KO2) compared to the LACZ control. Please click here to view a larger version of this figure.

Human cerebral organoid culture: sectioning, injection, electroporation; experimental diagram and results.

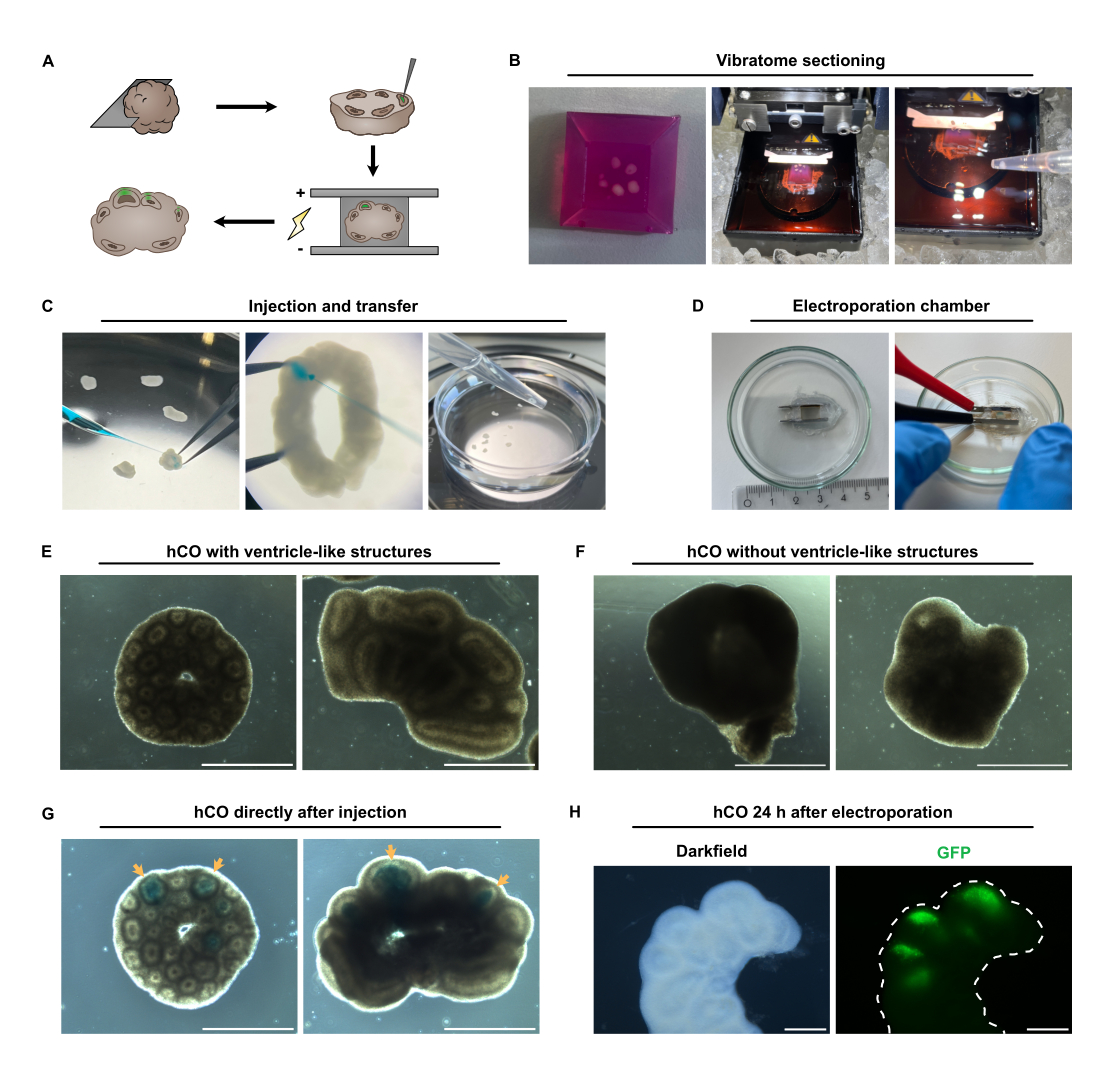

Figure 2: Electroporation of sliced human cortical organoids. (A) Schematic illustration showing the workflow for the electroporation of human cortical organoids (hCOs). First, hCOs are sectioned into 500-µm-thick slices. Two days later, the RNP mix containing a GFP expression plasmid and Fast Green is injected into lumens of ventricle-like structures, preferentially in the outer region of hCOs. For electroporation, hCOs are placed in the electroporation chamber. After several days of culture, a GFP signal can be detected in electroporated areas. (B) Images of vibratome sectioning of hCOs. The organoids are embedded in 3% low-melting point agarose in a medium in a block (left). The block is sectioned into 500-µm-thick slices (middle). The sliced organoids are transferred back into the culture dish with a wide-bore pipet tip (right). (C) Images showing the injection of the mix containing the RNP, pCAG-GFP, and 0.1% Fast Green into ventricle-like structures of the organoids. The organoids are submerged in Tyrode's solution and the thin glass capillary is inserted in the lumen of the center of ventricle-like structures (left). Forceps are used to stabilize the organoids (left and middle). The ventricles on the outside of the organoids are targeted (middle). Injected organoids are transferred to the electroporation chamber, or later the culture dish, with wide-bore pipet tips (right). (D) Images of the electroporation chamber, which is made up of a glass Petri dish and two metal blades that are glued to the glass. The metal blades serve as electrodes and contain holes to attach the cables to connect to the electroporator. The injected side of the hCO, visible through a green shadow, should face the anode (positive pole, red cable) (right). (E) Representative images of hCOs showing well-developed ventricle-like structures. The lighter ring represents the ventricular zone-like area. The darker circle in the center of the ventricle-like structure represents the lumen and should be targeted for injection. (F) Representative images of hCOs lacking well-developed ventricle-like structures, which we recommend not to include for further experiments. (G) Representative images of hCOs after injection of the electroporation mix, in which targeted areas are visible by Fast Green (orange arrows). (H) Representative image of hCO showing native GFP signal 24 h after electroporation. Scale bars: 100 µm. Please click here to view a larger version of this figure.

Embryonic patterning phases in DAPI/GFP microscopy; cell death, ventricle formation analysis.

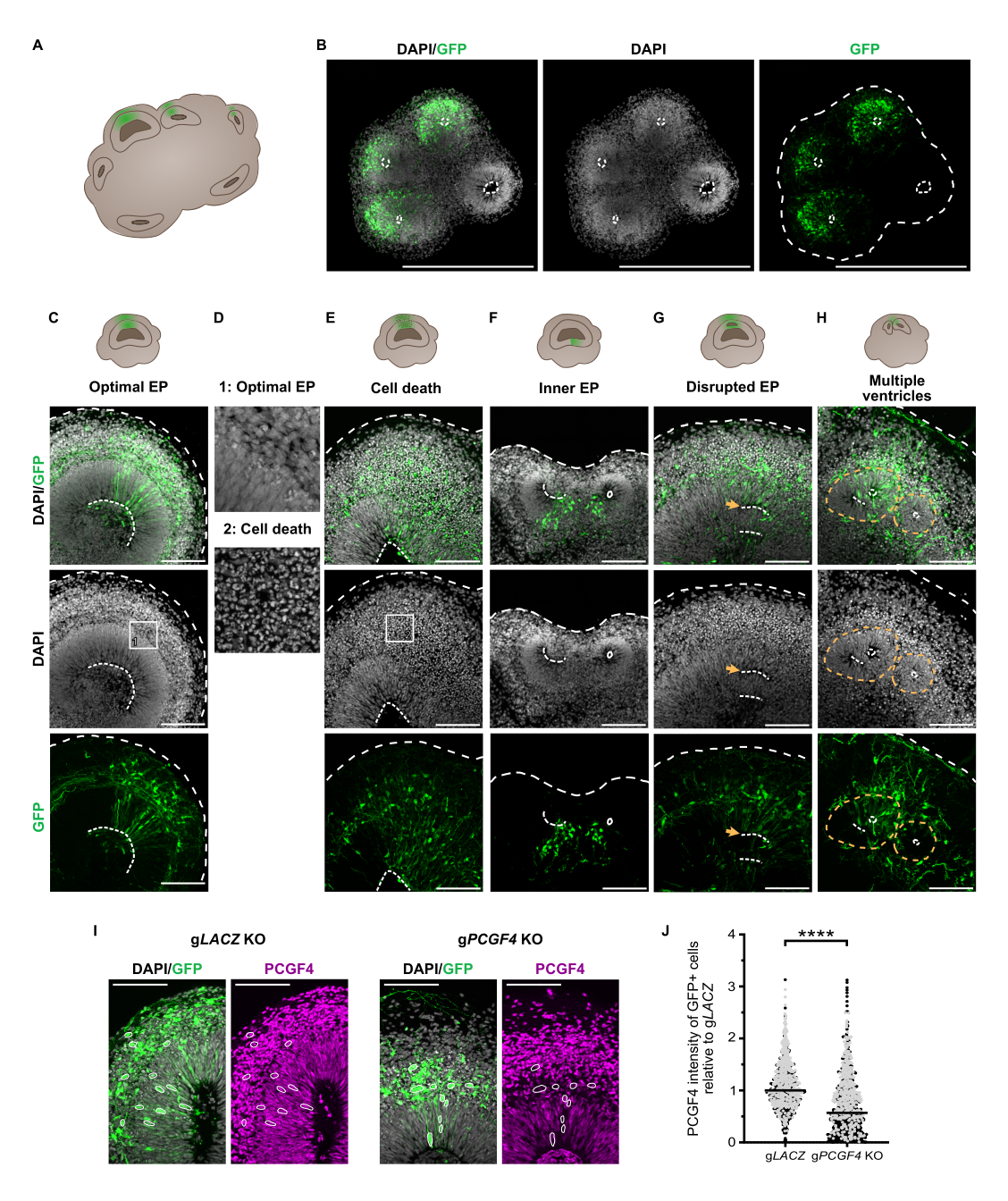

Figure 3: Immunohistochemical analysis of electroporated sliced human cortical organoids. (A) Schematic representing an electroporated human cortical organoid (hCO) with green fluorescent signal. (B) DAPI staining (grey) and immunofluorescence for GFP (green) of a cryosectioned hCO with multiple electroporated ventricles, 7 days after electroporation. (C-H) Example images of different electroporation outcomes, stained for GFP (green) and nuclei (DAPI, grey). (C) An optimal electroporation with intact nuclei (see insert 1, D), an undisrupted ventricle-like structure, and electroporated cells in the area facing towards the outside of the organoid, which is usually most expanded. (E) Example of hCO displaying massive cell death in the electroporated area (see also insert 2, D), characterized by small, DAPI-dense and distorted nuclei. (F) A successful electroporation directed towards the inside of the organoid, which is often more difficult to interpret due to cortical plate-like areas merging with adjacent ventricles. (G) Disrupted ventricle-like structures in the center of the electroporated area (orange arrow). (H) An example of hCO containing multiple smaller ventricles that are partially merged and, therefore, difficult to quantify. (I) DAPI staining (grey) and immunofluorescence for GFP (green) and PCGF4 (magenta) 7 days after electroporation of an RNP complex targeting LACZ (gLACZ KO, left) or PCGF4 (gPCGF4 KO, right) for CRISPR/Cas9-mediated knockout. Circled cells highlight the reduced intensity of PCGF4, indicating successful gene ablation. A uniform signal can be seen in the LACZ control (left). (J) The graph shows the quantified PCGF4 intensity after immunofluorescence in GFP-positive cells for the control (gLACZ KO) and the KO of PCGF4 (gPCGF4 KO) relative to median PCGF4 expression in the gLACZ condition. Each dot represents a cell. Data from 3-4 organoids from two different batches (grey and black) of the same hiPSC line. **** p < 0.0001, Mann-Whitney test. All images were acquired with a laser scanning confocal (B, C) or fluorescent (E-I) microscope. The images represent maximum intensity projections of 10-15 µm thick z-stacks. White dashed lines indicate the apical surface facing the ventricle lumen and the outer surfaces of hCOs. Orange dashed lines indicate the VZ/SVZ border in merged ventricles. Scale bars: 100 µm. Please click here to view a larger version of this figure.

Antibody/DyeDilution
Chicken anti-GFP1:2,000
Mouse anti-PCGF41:300
Alexa Fluor 488 Donkey Anti-Chicken1:1,000
Alexa Fluor 555 Donkey Anti-Rabbit1:1,000
DAPI1 mg/mL stock; 1:1,000

Table 1: List of antibodies and dyes and their dilution used for Immunofluorescence staining.

Discussion

Human cerebral and cortical organoids have become key models to investigate human neocortex development7,16,17. For modeling of human disorders, isogenic hiPSC lines and organoids have become the gold standard68. However, since the generation of novel iPSC lines is time-consuming and costly, the acute manipulation of cortical organoid models for studies of gene function has been widely applied.

Electroporation of cerebral and cortical organoids14,22,26,46,47,48,49,50,51,55 is easy to implement, and many labs that have traditionally used animal models for functional studies are equipped with the required tools. For injection in vivo, the lateral ventricles are typically targeted34,36,37,39,40,41,42. These are modeled in cortical organoids by ventricle-like structures featuring a central lumen that can likewise be injected. Electroporation of cortical organoids primarily targets the end feet of cells lining the ventricles, typically apical radial glia69. The targeting efficiency varies between experiments, but typically, a few 100 to 1,000 GFP-positive cells can be obtained per organoid after 3-7 days of electroporation. The duration of the cell cycle in human neural progenitor cells is roughly twice as long compared to the mouse, where apical radial glia have a cell cycle length of 14 h and basal progenitor cells of 23 h70. Therefore, after 3 days, mainly apical radial glia and intermediate progenitor cells are GFP-positive, whereas GFP-positive cells are distributed across all zones after 7 days. GFP-signal can still be observed several months after electroporation, with GFP-positive cells mainly representing neurons that are scattered throughout the organoid, allowing us to analyze the morphology of individual cells. Targeting of neural progenitor cells lining the ventricle is feasible during the stages where ventricle-like regions are identifiable under the brightfield microscope. In the current protocol15, this is possible from week 2 to week 12 of cortical organoid development, after which point the ventricles shrink and are no longer visible. For an experienced experimenter, it is feasible to inject 50-80 organoids in one session.

While the progeny of apical radial glia inherit gene manipulation reagents during cell division, the direct targeting of mature cells, such as neurons and astrocytes, is not feasible with the standard electroporation approach. Instead, viral targeting methods have been applied to postmitotic cells in the nervous system33,71. In particular, recombinant adeno-associated viruses (AAVs) are widely used for gene transfer in the nervous system as they are easy to produce and transduce terminally differentiated cells with high efficiency71. Moreover, AAVs can be targeted to specific neuronal sub-populations. Different viral targeting approaches, including the use of adeno, Sendai, and lentiviruses, have already been applied in cerebral and cortical organoids15,25,29,30,32,47,72,73,74.

One limitation in cerebral organoid protocols is the development of a necrotic core due to limited oxygen and nutrient supply. Several strategies have been implemented to improve cell viability in the organoid center, including culture of organoids in spinning bioreactors14,54, co-culture of endothelial cells or bioengineering approaches to model vascularization75,76, organoid transplantation into rodent models18,77 and slicing of organoids15,47. Here, we have used the sliced human cortical organoid protocol, which was shown to display reduced hypoxia in the organoid core and support the expansion of ventricle-like structures and the cortical plate-like region15. In addition, the slicing of cerebral organoids is also beneficial for live imaging of basal radial glia, which is located in the subventricular zone, allowing the generation of cell fate decision maps72. Likewise, live imaging was used to study sliced cerebral organoids cultured at the air-liquid interface, which supports neuronal survival and axonal outgrowth47. We found that the slicing of human cortical organoids also makes these organoid models particularly amenable to electroporation, as ventricle-like structures can easily be identified after slicing. Electroporation of cortical organoids enables the introduction of DNA plasmids, classically used for gene overexpression and, more recently, for delivery of entire plasmid libraries55, and of CRISPR/Cas9 gene editing tools for inactivation of gene function26.

The CRISPR/Cas9 technology has revolutionized the investigation of gene function56,57,58,63,66. In this protocol, we have outlined the application of gRNA/Cas9 ribonucleoprotein complexes36 for acute gene inactivation in human cortical organoids. Initial validation of gRNA efficiency was performed in vitro, first in a test tube and second in iPSCs. We find that these straightforward initial tests aid the selection of promising gRNA pairs, particularly in the absence of working antibodies. As more and more tools for CRISPR/Cas9-mediated gene knockout become characterized, the initial validation steps may be omitted in the future. While Next Generation Sequencing of targeted DNA regions isolated from iPSCs is more quantitative and has higher information content, we find that Sanger sequencing can often offer much faster results during the pre-screening of gRNAs. Ultimately, validation of efficient CRISPR/Cas9 editing in cortical organoids and reduction of protein levels in the cells of interest is the most definitive proof of successful CRISPR/Cas9-mediated gene ablation.

The electroporation of sliced human cortical organoids enables acute genetic manipulation for gain- and loss-of-function studies, visualization of cell morphology and neuronal axons, delivery of plasmid libraries for screening approaches and massive parallel reporter assays, labeling of cells for live imaging and delivery of epigenome editing tools. As such, the electroporation of sliced human cortical organoids is a powerful method that can reveal mechanistic insights into human cortical development, neurodevelopmental disorders, and cortical evolution.

Disclosures

The authors declare that they have no conflicts of interest.

Acknowledgements

We are grateful to the facilities of the CRTD and Dresden Concept partners for the outstanding support provided, notably K. Neumann and her team at the Stem Cell Engineering Facility, H. Hartmann and her team at the Light Microscopy Facility, A. Gompf and her team at the Flow Cytometry Facility and Hartmut Wolf of the MPI-CBG workshop for the construction of the electroporation chambers. We thank Joshua Schmidt for his feedback on the manuscript. MA acknowledges funding from the Center for Regenerative Therapies TU Dresden, the DFG (Emmy Noether, AL 2231/1-1), and the Schram Foundation.

Materials

List of materials used in this article
NameCompanyCatalog NumberComments
15 mL PP Centrifuge Tubes, conicalCorning430791
4D-Nucleofector Core UnitLonza
4D-Nucleofector X UnitLonza
5 mL polystyrene round-bottom tube with cell-strainer capCorningFalcon 352235
6-well plate, nunclon treatedThermo Fisher140675For hiPSC culture
6-well plate, ultra low attachmentCorning3471For organoid culture
A83-01STEMCELL Technologies72022Forebrain medium 1 (https://doi.org/10.1016/j.stem.2020.02.002)15
Air compressorAerotec
Alexa Fluor 488 Donkey Anti-Chicken IgY (IgG) (H+L)Jackson Immuno Research703-545-155Secondary antibody, RRID: AB_2340375; dilution 1:1000
Alexa Fluor 555 Donkey Anti-Rabbit IgG (H+L)InvitrogenA-31572Secondary antibody, RRID: AB_162543; dilution 1:1000
Alt-R CRISPR-Cas9 crRNA, 2 nmolIntegrated DNA technologiesCustom design (order as 2 nmol)
Alt-R CRISPR-Cas9 tracrRNAIntegrated DNA technologies10725325 nmol
Alt-R S.p. HiFi Cas9 Nuclease V3Integrated DNA technologies1081060100 µg, from Streptococcus pyogenes
Amphotericin B (Fungizone)Gibco15290018Forebrain medium 2, 3, and 4  (https://doi.org/10.1016/j.stem.2020.02.002)15
Anti-GFP primary antibody (chicken, polyclonal)Abcamab13970RRID: AB_300798; dilution 1:2000
Anti-PCGF4 primary antibody (mouse, monoclonal)Millipore05-637 RRID: AB_309865; dilution 1:300
ApoTome fluorescent microscopeZeiss
Ascorbic AcidSigma Aldrich1043003Forebrain medium 4  (https://doi.org/10.1016/j.stem.2020.02.002)15
B27-supplement (+ vitamin A)Gibco17504044Forebrain medium 3, 4   (https://doi.org/10.1016/j.stem.2020.02.002)15
Banana to Micrograbber Cable KitHarvard Apparatus BTX45-0216
Biometra TRIO-Thermocycler (PCR machine)Analytik Jena846-2-070-723
Capillaries, borosilicate glass with filament, OD 1.2 mm; ID 0.69 mm; 10 cm lengthScience ProductsBF120-69-10Need to be pulled to specific thickness
CHIR-99021STEMCELL Technologies72052Forebrain medium 2  (https://doi.org/10.1016/j.stem.2020.02.002)15
Collagenase Type IVGibco17104019
CRTDi004-AStem Cell Engineering Facility at CMCB DDhttps://hpscreg.eu/cell-line/CRTDi004-ASingle-cell adapted hiPSC line from healthy donor
DAPIRoche102362760011 mg/mL stock, use 1:1000 diluted for IF
Dibutyryl-cAMPSTEMCELL Technologies73884Forebrain medium 4  (https://doi.org/10.1016/j.stem.2020.02.002)15
Dimethyl sulfoxide (DMSO)Sigma AldrichD2650
DMEM/F-12, HEPESFisher Scientific31330095Forebrain medium 1, 2, and 3  (https://doi.org/10.1016/j.stem.2020.02.002)15
DorsomorphinSTEMCELL Technologies72102Forebrain medium 1  (https://doi.org/10.1016/j.stem.2020.02.002)15
Dumont #55 Forceps, straigth, 11 cmFine Science Tools11295-51
ECM 830 Square Wave Electroporation SystemHarvard Apparatus BTX45-2052
EthanolSigma Aldrich32205-1L-M
Ethylenediaminetetraacetic acid (EDTA)Sigma AldrichEDS-500G
Fast Green FCFSigma AldrichF7252
Fetal Bovine Serum (FBS)GE Healthcare SH30070.03
Flaming/Brown Micropipette PullerSutter Instrument Co.P-97For pulling of microcapillaries
Geneious PrimeGraphPad Software LLC d.b.a GeneiousSoftware version 2024.0.5
gLACZKalebic et al., 2016; Platt et al., 20145'-TGCGAATACGCCCACGCGATCGG; underlined nucleotides = PAM
GlutaMAXGibco 35050038Forebrain medium 1, 2, 3, and 4 (https://doi.org/10.1016/j.stem.2020.02.002)15
GlycineSigma AldrichG8898
gPCGF4 KO1this paper5'-TGAACTTGGACATCACAAATAGG (corresponds to the KO images in Figure 3I+J)
gPCGF4 KO2this paper5'-ACAAATAGGACAATACTTGCTGG (corresponds to the KO images in Figure 3I+J)
HEPESmade in house1 M stock
Horse Serum, heat-inactivatedGibco26050088
Human GDNF Recombinant ProteinThermo Fisher450-10Forebrain medium 4  (https://doi.org/10.1016/j.stem.2020.02.002)15
Human/Mouse/Rat BDNF Recombinant ProteinThermo Fisher450-02Forebrain medium 4  (https://doi.org/10.1016/j.stem.2020.02.002)15
Hydrochloric acid (HCl)Sigma Aldrich258148To make TrisHCl
ImmEdge (wax) PenVector LaboraoriesH-4000
Insulin solution humanSigma Aldrich I9278Forebrain medium 3  (https://doi.org/10.1016/j.stem.2020.02.002)15
IsopropanolFisher ScientificBP2618-1
Knockout Serum ReplacementGibco 10828-010Forebrain medium 1  (https://doi.org/10.1016/j.stem.2020.02.002)15
Laser Scanning Confocal 980 MicroscopeZeiss
Low Melting Point Agarose, ultra pureThermo Fisher16520100for embedding of hCOs during vibratome sectioning
Matrigel Growth Factor Reduced (GFR) Basement Membrane Matrix, LDEV-freeCorning354230For organoid culture
Matrigel hESC-Qualified Matrix, LDEV-freeCorning354277For hiPSC culture
MgCl2, 1 MThermo FisherAM9530G
Microinjector PicoPump + Foot SwitchWorld Precision InstrumentsSYS-PV820
Microloader Pipette Tips 0.5 to 20 µLEppendorf5242956003For loading of glass capillaries
Mowiol 4-88Sigma Aldrich81381
mTeSR 1STEMCELL Technologies85850Stem cell medium
N-2 supplementGibco17502048Forebrain medium 2, and 3  (https://doi.org/10.1016/j.stem.2020.02.002)15
NaClSigma AldrichS5886
NaHCO3Sigma AldrichS5761
NEB Next High Fidelity 2x PCR Mastermix New England BiolabsM0541S
Neubauer counting chamberBrand718605
Neurobasal mediumGibco21103049Forebrain medium 4  (https://doi.org/10.1016/j.stem.2020.02.002)15
Non-Essential Amino AcidsGibco 11140050Forebrain medium 1, 2, 3, and 4 (https://doi.org/10.1016/j.stem.2020.02.002)15
Nuclease-Free Duplex BufferIntegrated DNA technologies1072570
O. C. T. CompoundTissue-Tek4583Embedding medium for frozen tissue specimen
P3 Primary Cell 4D-Nucleofector X Kit SLonzaV4XP-3032
ParaformaldehydeFisher ChemicalP/0840/53
pCAG-GFPAddgene11150
Peel-A-Way Embedding Mold TruncatedT12Polysciences Inc.18986-1For embedding of hCOs for vibratome and cryo-sectioning
Penicillin-Streptomycin (10,000 U/mL) Gibco15140122Forebrain medium 1, 2, 3, and 4  (https://doi.org/10.1016/j.stem.2020.02.002)15 and for stem cell medium after nucleofection
Petri Dish 60 mm x 15 mm, No Vent, SterileCorningBP50-02
Petri Dish Platinum Electrode Chamber, 5 mm gapHarvard Apparatus BTX45-0504
Phosphate buffered saline (PBS)made in house
Proteinase KSigma AldrichP2308From Titrachium album; 10 mg/mL stock
QIAquick Gel Extraction KitQiagen28706
RHO/ROCK pathway inhibitor (Y-27632)STEMCELL Technologies72308
SB-431542STEMCELL Technologies72232Forebrain medium 2  (https://doi.org/10.1016/j.stem.2020.02.002)15
Sodium Citrate DihydrateSigma AldrichW302600-1KG-K
Sodium Dodecyl Sulfate (SDS)Sigma AldrichL3771
Sucrose Sigma AldrichS7903
SuperFrost Plus adhesion slidesFisher Scientific10149870
SZX10 with a KL 300 LEDOlympusSZX10Or alternative stereoscope
Thermo ShakerGrant bioPSC24N
Triton-XSigma AldrichT9284a.k.a. Octoxinol 9
Trizma baseSigma AldrichT1503To make TrisHCl
Trypan Blue Solution, 0.4%Thermo Fisher15250061
TrypLE Express Enzyme (1x)Thermo Fisher12604021Dissociation enzmye to make single-cell suspensions
Tween 20Sigma AldrichP1379a.k.a. Polysorbate 20
Tyrode's saltSigma AldrichT2145-10x1l
Vibrating Microtome (vibratome)LeicaVT1200 S
Wide-Bore 1000 µL Universal Fit Filter TipsCorningTF-1005-WB-R-S
β-MercaptoethanolGibco 21985-023Forebrain medium 1, 3, and 4  (https://doi.org/10.1016/j.stem.2020.02.002)15

References

  1. Rakic, P. Evolution of the neocortex: A perspective from developmental biology. Nat Rev Neurosci. 10 (10), 724-735 (2009).
  2. Pollen, A. A., Kilik, U., Lowe, C. B., Camp, J. G. Human-specific genetics: New tools to explore the molecular and cellular basis of human evolution. Nat Rev Genet. 24, 687-711 (2023).
  3. Llinares-Benadero, C., Borrell, V. Deconstructing cortical folding: Genetic, cellular and mechanical determinants. Nat Rev Neurosci. 20 (3), 161-176 (2019).
  4. Florio, M., Huttner, W. B. Neural progenitors, neurogenesis and the evolution of the neocortex. Development. 141 (11), 2182-2194 (2014).
  5. Lui, J. H., Hansen, D. V., Kriegstein, A. R. Development and evolution of the human neocortex. Cell. 146 (1), 18-36 (2011).
  6. Bölicke, N., Albert, M. Polycomb-mediated gene regulation in human brain development and neurodevelopmental disorders. Dev Neurobiol. 82 (4), 345-363 (2022).
  7. Arlotta, P., Pasca, S. P. Cell diversity in the human cerebral cortex: From the embryo to brain organoids. Curr Opin Neurobiol. 56, 194-198 (2019).
  8. Long, K. R., et al. Extracellular matrix components HAPLN1, lumican, and collagen I cause hyaluronic acid-dependent folding of the developing human neocortex. Neuron. 99 (4), 702-719.e6 (2018).
  9. Namba, T., et al. Human-specific arhgap11b acts in mitochondria to expand neocortical progenitors by glutaminolysis. Neuron. 105 (5), 867-881.e9 (2020).
  10. Hendriks, D., et al. Human fetal brain self-organizes into long-term expanding organoids. Cell. 187 (3), 712-732.e38 (2024).
  11. Voices: The importance of fetal tissue research. Cell Stem Cell. 24 (3), 357-359 (2019).
  12. Temple, S., Goldstein, L. S. B. Why we need fetal tissue research. Science. 363 (6424), 207(2019).
  13. Eiraku, M., et al. Self-organizing optic-cup morphogenesis in three-dimensional culture. Nature. 472 (7341), 51-56 (2011).
  14. Lancaster, M. A., et al. Cerebral organoids model human brain development and microcephaly. Nature. 501 (7467), 373-379 (2013).
  15. Qian, X., et al. Sliced human cortical organoids for modeling distinct cortical layer formation. Cell Stem Cell. 26 (5), 766-781.e9 (2020).
  16. Kelava, I., Lancaster, M. A. Dishing out mini-brains: Current progress and future prospects in brain organoid research. Dev Biol. 420 (2), 199-209 (2016).
  17. Pasca, S. P. The rise of three-dimensional human brain cultures. Nature. 553 (7689), 437-445 (2018).
  18. Mansour, A. A., et al. An in vivo model of functional and vascularized human brain organoids. Nat Biotechnol. 36 (5), 432-441 (2018).
  19. Andrews, M. G., et al. Lif signaling regulates outer radial glial to interneuron fate during human cortical development. Cell Stem Cell. 30 (10), 1382-1391.e5 (2023).
  20. Velasco, S., et al. Individual brain organoids reproducibly form cell diversity of the human cerebral cortex. Nature. 570 (7762), 523-527 (2019).
  21. Bershteyn, M., et al. Human ipsc-derived cerebral organoids model cellular features of lissencephaly and reveal prolonged mitosis of outer radial glia. Cell Stem Cell. 20 (4), 435-449.e4 (2017).
  22. Klaus, J., et al. Altered neuronal migratory trajectories in human cerebral organoids derived from individuals with neuronal heterotopia. Nat Med. 25 (4), 561-568 (2019).
  23. Qian, X., et al. Loss of non-motor kinesin KIF26A causes congenital brain malformations via dysregulated neuronal migration and axonal growth as well as apoptosis. Dev Cell. 57 (20), 2381-2396.e13 (2022).
  24. Watanabe, M., et al. Self-organized cerebral organoids with human-specific features predict effective drugs to combat zika virus infection. Cell Rep. 21 (2), 517-532 (2017).
  25. Benito-Kwiecinski, S., et al. An early cell shape transition drives evolutionary expansion of the human forebrain. Cell. 184 (8), 2084-2102.e19 (2021).
  26. Cubillos, P., et al. The growth factor epiregulin promotes basal progenitor cell proliferation in the developing neocortex. EMBO J. 43 (8), 1388-1419 (2024).
  27. Kanton, S., et al. Organoid single-cell genomic atlas uncovers human-specific features of brain development. Nature. 574 (7778), 418-422 (2019).
  28. Mora-Bermudez, F., et al. Differences and similarities between human and chimpanzee neural progenitors during cerebral cortex development. Elife. 5, e18683(2016).
  29. Pollen, A. A., et al. Establishing cerebral organoids as models of human-specific brain evolution. Cell. 176 (4), 743-756.e17 (2019).
  30. Esk, C., et al. A human tissue screen identifies a regulator of ER secretion as a brain-size determinant. Science. 370 (6519), 935-941 (2020).
  31. Fleck, J. S., et al. Resolving organoid brain region identities by mapping single-cell genomic data to reference atlases. Cell Stem Cell. 28 (6), 1177-1180 (2021).
  32. Li, C., et al. Single-cell brain organoid screening identifies developmental defects in autism. Nature. 621 (7978), 373-380 (2023).
  33. Janson, C. G., Mcphee, S. W., Leone, P., Freese, A., During, M. J. Viral-based gene transfer to the mammalian CNS for functional genomic studies. Trends Neurosci. 24 (12), 706-712 (2001).
  34. Tabata, H., Nakajima, K. Labeling embryonic mouse central nervous system cells by in utero electroporation. Dev Growth Differ. 50 (6), 507-511 (2008).
  35. Li, S., Li, Y., Li, H., Yang, C., Lin, J. Use of in vitro electroporation and slice culture for gene function analysis in the mouse embryonic spinal cord. Mech Dev. 158, 103558(2019).
  36. Kalebic, N., et al. CRISPR/cas9-induced disruption of gene expression in mouse embryonic brain and single neural stem cells in vivo. EMBO Rep. 17 (3), 338-348 (2016).
  37. Tabata, H., Nakajima, K. Efficient in utero gene transfer system to the developing mouse brain using electroporation: Visualization of neuronal migration in the developing cortex. Neuroscience. 103 (4), 865-872 (2001).
  38. Walantus, W., Elias, L., Kriegstein, A. In utero intraventricular injection and electroporation of e16 rat embryos. J Vis Exp. 6, e236(2007).
  39. Takahashi, M., Sato, K., Nomura, T., Osumi, N. Manipulating gene expressions by electroporation in the developing brain of mammalian embryos. Differentiation. 70 (4-5), 155-162 (2002).
  40. Kalebic, N., Langen, B., Helppi, J., Kawasaki, H., Huttner, W. B. In vivo targeting of neural progenitor cells in ferret neocortex by in utero electroporation. J Vis Exp. (159), e61171(2020).
  41. Kawasaki, H., Iwai, L., Tanno, K. Rapid and efficient genetic manipulation of gyrencephalic carnivores using in utero electroporation. Mol Brain. 5, 24(2012).
  42. Kawasaki, H., Toda, T., Tanno, K. In vivo genetic manipulation of cortical progenitors in gyrencephalic carnivores using in utero electroporation. Biol Open. 2 (1), 95-100 (2013).
  43. Reillo, I., De Juan Romero, C., Garcia-Cabezas, M. A., Borrell, V. A role for intermediate radial glia in the tangential expansion of the mammalian cerebral cortex. Cereb Cortex. 21 (7), 1674-1694 (2011).
  44. Kalebic, N., et al. Human-specific ARHGAP11B induces hallmarks of neocortical expansion in developing ferret neocortex. Elife. 7, e41241(2018).
  45. Johnson, M. B., et al. Aspm knockout ferret reveals an evolutionary mechanism governing cerebral cortical size. Nature. 556 (7701), 370-375 (2018).
  46. Fischer, J., Heide, M., Huttner, W. B. Genetic modification of brain organoids. Front Cell Neurosci. 13, 558(2019).
  47. Giandomenico, S. L., et al. Cerebral organoids at the air-liquid interface generate diverse nerve tracts with functional output. Nat Neurosci. 22 (4), 669-679 (2019).
  48. O'neill, A. C., et al. A primate-specific isoform of plekhg6 regulates neurogenesis and neuronal migration. Cell Rep. 25 (10), 2729-2741.e26 (2018).
  49. Buchsbaum, I. Y., et al. Ece2 regulates neurogenesis and neuronal migration during human cortical development. EMBO Rep. 21 (5), e48204(2020).
  50. Fischer, J., et al. Human-specific arhgap11b ensures human-like basal progenitor levels in hominid cerebral organoids. EMBO Rep. 23 (11), e54728(2022).
  51. Tynianskaia, L., Esiyok, N., Huttner, W. B., Heide, M. Targeted microinjection and electroporation of primate cerebral organoids for genetic modification. J Vis Exp. 193, e65176(2023).
  52. Denoth-Lippuner, A., Royall, L. N., Gonzalez-Bohorquez, D., Machado, D., Jessberger, S. Injection and electroporation of plasmid DNA into human cortical organoids. STAR Protoc. 3 (1), 101129(2022).
  53. Qian, X., et al. Generation of human brain region-specific organoids using a miniaturized spinning bioreactor. Nat Protoc. 13 (3), 565-580 (2018).
  54. Qian, X., et al. Brain-region-specific organoids using mini-bioreactors for modeling zikv exposure. Cell. 165 (5), 1238-1254 (2016).
  55. Noack, F., et al. Joint epigenome profiling reveals cell-type-specific gene regulatory programmes in human cortical organoids. Nat Cell Biol. 25 (12), 1873-1883 (2023).
  56. Doudna, J. A., Charpentier, E. Genome editing. The new frontier of genome engineering with crispr-cas9. Science. 346 (6213), 1258096(2014).
  57. Doench, J. G., et al. Rational design of highly active sgrnas for crispr-cas9-mediated gene inactivation. Nat Biotechnol. 32 (12), 1262-1267 (2014).
  58. Hsu, P. D., Lander, E. S., Zhang, F. Development and applications of crispr-cas9 for genome engineering. Cell. 157 (6), 1262-1278 (2014).
  59. Völkner, M., et al. Hbegf-tnf induce a complex outer retinal pathology with photoreceptor cell extrusion in human organoids. Nat Commun. 13 (1), 6183(2022).
  60. Schütze, T. M., Bölicke, N., Sameith, K., Albert, M. Brain Organoid Research. , Springer US. New York, NY. (2022).
  61. ALT-R CRISPR-cas9 system-in vitro. cleavage of target DNA with RNP complex. , At https://eu.idtdna.com/pages/products/crispr-genome-editing/alt-r-crispr-cas9-system#resources (2022).
  62. Albert, M., et al. Epigenome profiling and editing of neocortical progenitor cells during development. EMBO J. 36 (17), 2642-2658 (2017).
  63. Platt, R. J., et al. CRISPR-cas9 knockin mice for genome editing and cancer modeling. Cell. 159 (2), 440-455 (2014).
  64. Florio, M., et al. Human-specific gene ARHGAP11B promotes basal progenitor amplification and neocortex expansion. Science. 347 (6229), 1465-1470 (2015).
  65. Schmidt, U., Weigert, M., Broaddus, C., Myers, G. Cell Detection with Star-Convex Polygons. , Springer International Pubs. Cham. (2018).
  66. Wang, J. Y., Doudna, J. A. CRISPR technology: A decade of genome editing is only the beginning. Science. 379 (6629), eadd8643(2023).
  67. Hoffmann, J., et al. Canonical and non-canonical PRC1 differentially contribute to the regulation of neural stem cell fate. bioRxiv. , 2024(2024).
  68. Celotti, M., et al. Protocol to create isogenic disease models from adult stem cell-derived organoids using next-generation crispr tools. STAR Protoc. 5 (3), 103189(2024).
  69. Taverna, E., Götz, M., Huttner, W. B. The cell biology of neurogenesis: Toward an understanding of the development and evolution of the neocortex. Annu Rev Cell Dev Biol. 30, 465-502 (2014).
  70. Arai, Y., et al. Neural stem and progenitor cells shorten s-phase on commitment to neuron production. Nat Commun. 2, 154(2011).
  71. Bedbrook, C. N., Deverman, B. E., Gradinaru, V. Viral strategies for targeting the central and peripheral nervous systems. Annu Rev Neurosci. 41, 323-348 (2018).
  72. Coquand, L., et al. A cell fate decision map reveals abundant direct neurogenesis bypassing intermediate progenitors in the human developing neocortex. Nat Cell Biol. 26 (5), 698-709 (2024).
  73. Fleck, J. S., et al. Inferring and perturbing cell fate regulomes in human brain organoids. Nature. 621 (7978), 365-372 (2023).
  74. Andersen, J., et al. Generation of functional human 3D cortico-motor assembloids. Cell. 183 (7), 1913-1929.e26 (2020).
  75. Nwokoye, P. N., Abilez, O. J. Bioengineering methods for vascularizing organoids. Cell Rep Methods. 4 (6), 100779(2024).
  76. Cakir, B., Park, I. H. Getting the right cells. Elife. 11, e80373(2022).
  77. Revah, O., et al. Maturation and circuit integration of transplanted human cortical organoids. Nature. 610 (7931), 319-326 (2022).

Reprints and Permissions

Tags

Human Brain DevelopmentElectroporation TechniqueGene KnockoutCRISPR Cas9Neural Progenitor CellsOrganoid SlicingImmunohistochemistryApical Radial GliaVentricle Like Structures
Electroporation of Sliced Human Cortical Organoids for Studies of Gene Function
Contact Us
Recommend to Library

Privacy

Terms of Use

Policies

Copyright © 2026 MyJoVE Corporation. All rights reserved.
