Optimizing Photoneuromodulation Techniques to Evaluate the Role of Green Light-Emitting Diodes in Pain Management

Summary

Recent developments in pain research highlight the potential of photoneuromodulation using green light-emitting diodes (GLED) as a non-pharmacological treatment. GLED modulates pain pathways, offering effective pain relief. This article aims to standardize and refine GLED exposure protocols, improving consistency across studies and advancing the clinical application of this therapy.

Abstract

Despite extensive research and the identification of numerous analgesic targets, the range of pharmacological treatments available for pain remains limited. However, a potential paradigm shift could introduce a new wave of non-pharmacological pain treatments with remarkable safety, efficacy, and tolerability. One promising area of investigation is photoneuromodulation using green light-emitting diodes (GLED, 525 nm), which have shown potential in alleviating pain in both acute and chronic conditions, leading to numerous preclinical and clinical studies exploring the efficacy of this therapy. These research projects have demonstrated how exposure to GLED enhances the activity of the endogenous opioid system in the brain and spinal cord after M-cone activation in the retina. The findings suggest that GLED may alleviate pain by modulating the descending pain pathway. In light of the compelling effects of GLED, the proliferation of photoneuromodulation investigations underscores the importance of establishing consistency in well-defined and standardized exposure protocols for preclinical and clinical trials. In preclinical studies, beneficial effects have been observed following a minimum of 2 days of exposure, with protocols involving 8 h of light at 100 lux during the 12 h light phase. In clinical trials, exposure protocols are tailored to the specific pathology under investigation. Exposure for 15 min has proven favorable in the modulation of acute post-surgical pain. For modulation of chronic pain, patients are instructed to use GLED at home for 1 to 2 h a day over 10 weeks. This article details preclinical and clinical protocols to improve reproducibility and consistency in the different studies evaluating photoneuromodulation benefits. By establishing these standardized protocols, this work aims to advance the clinical translation of GLED phototherapy as a viable non-pharmacological treatment for pain.

Introduction

Pharmacological treatments, particularly opioids, continue to be heavily relied upon for managing both acute and chronic pain conditions¹. The effectiveness of pain management can be significantly affected by the frequency and severity of side effects associated with opioid use². For this reason, a substantial amount of patients under opioid treatment do not achieve successful pain management³. Hence, pain physicians and the patient community are increasingly seeking non-pharmacological treatments that avoid the side effects associated with traditional pain medications. Photoneuromodulation has emerged as a promising solution and a safe therapy for managing pain.

Photoneuromodulation (PNM) is a non-invasive technique that uses light-emitting diodes (LED) to regulate biological processes⁴. Phototherapy was established thousands of years ago using sunlight, or heliotherapy, to treat skin conditions⁵. Subsequently, the concept of light influencing biological tissues has broadened, leading to the development of the photoneuromodulation term. PNM research is now expanding worldwide and has shown its effectiveness in a variety of clinical applications, including pain management^6,7,8,9, improving sleep quality in patients with Alzheimer's disease¹⁰, and controlling depression¹¹.

There is a growing emphasis on preclinical research and clinical trials aimed at investigating the mechanisms and therapeutic potential of photoneuromodulation for pain management. Among these approaches, green light-emitting diode therapy (GLED), using a 525 nm wavelength stimulation, has shown promising efficacy in reducing various types of pain, including migraines, fibromyalgia, and post-surgical pain^{12,13,14,15,16}. Clinical trials have demonstrated that green light therapy consistently benefits patients suffering from migraine across multiple studies^12,17,18, by reducing both headache pain and photophobia intensity during active migraine attacks¹⁹, as well as decreasing the frequency and duration of migraine episodes¹². Preclinical studies also demonstrated that exposure to GLED can reverse thermal and mechanical hypersensitivity in a nerve injury model of neuropathic pain²⁰. Further, preclinical studies have explored the mechanisms through which GLED influences pain perception and sensory thresholds^{13,21,22,23,24}. These studies highlight the involvement of M-cones and the subsequent modulation of the ventral lateral geniculate nucleus (vLGN), which increases the activity of enkephalinergic neurons projecting to the dorsal raphe nucleus (DRN)²². Additional research has also emphasized the critical role of the rostral ventromedial medulla (RVM)²¹, a key regulator of descending pain modulation. Collectively, these findings suggest that GLED alters pain perception by modulating visual circuits that act on the descending pain pathways^20,25. However, further research is required to facilitate its translation into clinical use.

In this article, we detail a comprehensive methodology for implementing GLED-based PNM, aiming to provide a reproducible framework for both experimental and clinical use. We describe the design and operation of GLED exposure, outline standardized application protocols, and discuss key considerations for ensuring efficacy and reproducibility. Additionally, we provide a detailed protocol for assessing the activity of both ascending and descending pain pathways, enabling a deeper investigation into their roles in modulating GLED-induced analgesia. By sharing this approach, we aim to advance research in non-pharmacological pain management and contribute to developing accessible, effective, and safer therapies.

Protocol

All animal procedures were approved by the Institutional Animal Care and Use Committee of the University of Arizona and conform to the guidelines for using laboratory animals of the National Institutes of Health. Pathogen-free, adult Sprague Dawley rats (weight at testing: 275-330 g) were housed in standard vivarium rat cages (3 rats per cage) in climate-controlled rooms on a 12-hour light/dark cycle and were allowed ad lib access to food and water. All behavioral experiments were conducted by experimenters blinded to the treatment conditions. All human procedures received approval from the University of Arizona Institutional Review Board (IRB) under protocol number (STUDY00000370). This study is registered with ClinicalTrials.gov under NCT05295225.

1. Light exposure protocol in animals

1. Optimizing light exposure and preparing animal housing
   1. Obtain visible spectrum light-emitting diodes (LED) flex strips with the following characteristics: (i) Green LEDs (Table of Materials), wavelength of 525 nm, power of 8 W, voltage of 120 V, and a 120° beam angle. (ii) White LEDs (Table of Materials), power of 9.6 W, voltage of 120 V, and a 120° beam angle.
   2. Ensure the accuracy of the light spectrum with a spectrometer (for this study, we used the Biomedical Device Prototyping Service from the BIO5 Institute at the University of Arizona).
      NOTE: Green LED should have a Center Wavelength of 525 ± 10 nm (the brightest point of emission), a Full-Width Half Maximum (FWHM) that spans less than 40 nm, and a Record Intensity Drop (where the light intensity drops to 50% of the maximum) which should be at 500 ± 5 nm and 530 ± 5 nm²¹. White LED FWHM should span more than 90 nm. Multiple sources of white light can be used. Experimenters must ensure the low intensity of 525 nm wavelength and a large span of the spectrum, covering multiple wavelengths²¹.
   3. Use a lux meter (Table of Materials) to measure and optimize light intensity. Cover LEDs with black tape (Table of Materials) as needed to obtain the desired intensity.
      NOTE: It is crucial to measure and validate light intensity, as different intensities can affect sensory thresholds in varying ways (Figure 1). If the intensity is not accurate, cover or uncover some of the LEDs until the desired intensity is reached.
   4. Secure the LED strips to the upper edges of wire shelves in a dark room (Table of Materials) to ensure each shelf is equipped with a dedicated light exposure source. Place timers (Table of Materials) on the LED strips to expose the cages for 8 h per day from 6 am to 2 pm.
   5. Install transparent static cages on the shelves. Fully enclose the shelves with dark sheets on all sides (Table of Materials) to optimize exposure while minimizing light interference.
   6. Use a lux meter to obtain the final optimization of light intensity inside the cage by covering or uncovering some of the LEDs (100 lux at the center of each cage) (Supplementary Figure 1).
2. Obtention of baseline sensory behavior and start of exposure
   1. Upon arrival, allow the rats to acclimate to the animal facility for 1 week. After this acclimation period, habituate the rats to the experimenter's handling for at least 7 days.
   2. Categorize the animals into three experimental groups based on their treatment conditions: (1) green light exposure (GLED) combined with surgical intervention, (2) white light exposure (WLED) combined with surgical intervention, and (3) WLED control group with sham surgery.
   3. Acclimate the rats in clear plexiglass boxes on a wire mesh (Table of Materials) for 1 h prior to testing, in the same room as the testing area, with the experimenter preferably present.
   4. To assess preoperative thresholds, measure paw withdrawal thresholds using the Dixon up-and-down method with von Frey filaments²⁶ on the left hind paw (Table of Materials), starting with the 4.31 filament (19.6 mN) to establish the baseline paw withdrawal threshold.
      NOTE: Mechanical sensitivity should be assessed using the "up-and-down" method by determining the withdrawal threshold. If the animal does not respond to the 4.31 filament (19.6 mN), use the thicker 4.56 filament (39.2 mN) (a response is noted visually as withdrawal, shake, or licking of the affected paw). If the animal responds to the 4.31 filament, use the thinner 4.08 (9.8 mN) filament.
      1. Apply each filament perpendicular to the plantar surface of the hind paw while the animals are positioned in suspended wire mesh cages.
      2. Adjust filament pressure, either increasing or decreasing, based on the previous filament size.
      3. Continue using either progressively thicker or thinner filaments, depending on whether the animal had positive or negative subsequent responses, respectively.
      4. Record both negative and positive responses on the datasheet provided in Supplementary Table 1.
         NOTE: Each filament should be applied one at a time in a sequential manner. After the first positive response, test the same paw 4 more times with different filaments. To ensure reliable results across all animals, the experimenter must avoid applying the filament to the footpads.
   5. Acclimate the rats in clear plexiglass boxes on the Hargreaves apparatus (Table of Materials) for 1 h prior to testing in the same room as the testing area to measure thermal sensitivity baseline using the Hargreaves test.
      NOTE: The Hargreaves test requires the rats to remain still for a few seconds. If the rats are still overly active after the initial 1 h habituation period, extend the acclimation time as needed. Ensure the rats are calm and stationary but alert enough to avoid falling asleep. Before conducting the Hargreaves test (Table of Materials), it is crucial to set the infrared light intensity to establish a baseline for measuring pain sensitivity. The goal is for the withdrawal latency to average around 20 s for baseline, which provides enough sensitivity to detect changes in pain response, such as hyper/hypoalgesia. Upon paw withdrawal, a motion detector stops both the stimulus and the timer. To prevent tissue damage, a maximum cutoff of 33.5 s is applied.
   6. To assess preoperative behavioral thresholds, place the infrared laser under the center of the animal's left hind paw (using the guiding lines of the Infrared emitter).
      1. Start the heat stimulus to measure the time it takes for the animal to withdraw its paw in response to the heat (withdrawal latency).
         NOTE: If the average withdrawal latency is not close to 20 s, adjust the intensity and repeat the test until the desired average is determined. The intensity is then kept constant for the remainder of the experiment. In this study, we used a stimulus intensity of 30 (50 W). If the test needs to be repeated, allow 5 min intervals before repeating the test on the same animal.
      2. Record the withdrawal latency on the datasheet provided in Supplementary Table 2.
         NOTE: To avoid affecting the temperature of the heat stimulus, clean up any urine during the trials.
   7. Following the acquisition of baseline sensory behaviors, house the animals in static cages for light exposure with continuous access to food and water for 4 days before the surgery (8 h per day, from 6 am to 2 pm).
3. Induction of pain model and post-surgical evaluation of sensory thresholds
   1. After exposure concludes at 2 pm on day 4, perform an incision surgery following the Brennan model on the left hind paw to induce postoperative pain^27,28.
   2. Continue the exposure on day 5. After the exposure concludes at 2 pm on day 5, conduct the von Frey and Hargreaves tests, as previously described, to evaluate thermal and mechanical hypersensitivity 1 day post-surgery.
   3. Continue the exposure on day 6. After the exposure concludes at 2 pm on day 6, conduct the von Frey and Hargreaves tests, as previously described, to evaluate thermal and mechanical hypersensitivity 2 days post-surgery.
      NOTE: Exclude any animal from the study if it reaches the endpoint criteria established by the Institutional Animal Care and Use Committee.
   4. Perform euthanasia on the animals following the protocols outlined by the Institutional Animal Care and Use Committee after completing the behavioral testing.
4. Animal data analysis
   1. Input the mechanical withdrawal patterns of answers into Allodynia Software (National Instruments, LabView 2015) to evaluate mechanical sensory thresholds²⁹.
      NOTE: The software uses the nonparametric Dixon method, as detailed by Chaplan et al.³⁰.
   2. Report the withdrawal latencies in a spreadsheet for subsequent statistical analysis of thermal allodynia.
   3. Generate a plot displaying the mean sensitivity (thresholds or latencies) as a function of time.

2. Light exposure protocol in humans

1. Setting up the exposure room for human subject evaluation
   1. Begin with preparing the exposure room, ensuring it is completely free of any external light sources to eliminate potential interference.
      NOTE: This step is essential to isolate the effects of the LED lights.
   2. Position the LED lights at a distance of 3-6 feet from the subjects' chair.
      NOTE: This range is based on previous clinical trials to ensure consistent light intensity and effective exposure.
   3. Install the 2 m LED strips, ensuring the desired light intensity range of 90-100 lux using a luxmeter (Table of Materials and Supplementary Figure 2).
   4. Optimize light intensity by repositioning the light strips or covering some of the LEDs, ensuring that subjects receive 90-100 lux in the primary area where they are seated.
2. Familiarization steps for testing mechanical temporal summation evaluation
   1. Before conducting any evaluation, ensure proper hand hygiene by thoroughly washing hands, followed by donning gloves.
   2. Clean and sanitize the calibrated von Frey filament (6.65 mN, equivalent to 300 g of force) to ensure sterility before evaluating mechanical sensitivity.
   3. Request permission to expose the trapezius muscle for the upcoming assessment.
   4. Inform the patient that the von Frey filament will be applied on the non-dominant side of the trapezius muscle until the filament bends.
   5. Instruct the patient to rate their pain on a scale of 0 to 10, where 0 represents no pain, and 10 represents the worst pain imaginable immediately after the operator says "Now".
      NOTE: Ensure the patient provides a prompt and accurate response when the operator says "now".
   6. Apply the filament 3 times at three different points (1 inch apart) on the non-dominant trapezius muscle, allowing a 5 s interval between each application.
   7. Inform the subject that von Frey filament will be applied 10 times on the same spot once per 1 s and ask the subject to rate the pain of the last application.
      NOTE: Use the same spot on the trapezius muscle for all 10 applications.
   8. Measure the temporal summation effect by applying the filament 10 times on the non-dominant trapezius and ask the subject to rate the pain at the end of the stimuli.
3. Testing for mechanical temporal summation
   1. After the familiarization steps, allow a 3 min break and inform the patient that the von Frey filament will be applied to the dominant side of the trapezius muscle.
   2. Clean and sanitize the calibrated von Frey filament.
   3. Instruct the patient to rate their pain on a scale of 0 to 10 immediately after the operator says "Now".
   4. Apply the filament 3 times at 3 different points (1 inch apart) on the dominant trapezius muscle, allowing a 5 s interval between each application. Record the patient response on the record sheet (Supplementary Table 3).
   5. Inform the subject that the von Frey filament will be applied 10 times on the same spot once per 1 s and ask the subject to rate the pain of the last application.
   6. Measure the temporal summation effect by applying the filament 10 times on the dominant trapezius. Record the subject's response on the record sheet (Supplementary Table 3).
   7. Repeat the process two times with 3 min intervals and record subjects' responses on the record sheet (Supplementary Table 3).
4. Familiarization steps for conditioned pain modulation evaluation
   1. Prepare 12 °C cold-water bath (Supplementary Figure 3).
      NOTE: Verify the temperature before the test using the thermometer (Table of Materials). Have extra ice if needed to adjust the temperature during the testing period.
   2. Clean and sanitize the algometer.
   3. Use Medoc software for evaluation of CPM (Table of Materials).
   4. Select the AlgoMed option (Supplementary Figure 4). On the home screen, find and click the Algometer Device to activate it.
   5. Select the correct patient from the list and pick the test program.
   6. Select the site for applying the device. For this familiarization step, choose the non-dominant trapezius muscle from the body diagram (Supplementary Figure 5).
      NOTE: After clicking go to test, one will be directed to the testing screen. Before applying any pressure, the software will require one to perform a pretest, where the device is not applying pressure yet. This pretest must be completed each time a new test is started.
   7. Start a test and 5 s timeout.
   8. Inform the patient that the device measures the amount of pressure applied, and it will be used to apply pressure to the non-dominant side of the trapezius muscle. Ask the patient to say "stop" as soon as they begin to feel any pain.
   9. Click start. The system will impose a 5 s wait before beginning to apply the device.
   10. Apply the algometer on the trapezius by increasing force at a rate of 30 kPa/s (Supplementary Figure 6).
   11. Record the patient response on the record sheet (Supplementary Table 3).
       NOTE: For this study, the maximum pressure applied is 650 kPa. This study specifically assesses the onset of pain, not evaluate pain tolerance.
   12. Inform the participants that they will use an ice water bath for the assessment.
   13. Check the water temperature using the thermometer (Table of Materials) to be around 12 °C. Set a timer for 10 s.
   14. Instruct the participant to immerse their dominant hand in the water up to the wrist, ensuring the hand is relaxed and fingers are spread apart.
   15. Ask the participant to rate their pain on a scale from 0 to 10 when the operator says "now" by the end of 10 s.
   16. Ask for the pain rating at the end of the 10 s and record the patient response on the record sheet (Supplementary Table 3).
5. Testing conditioned pain modulation
   1. Check the water temperature using the thermometer (Table of Materials).
   2. Clean and sanitize the algometer.
   3. After a 3 min break, start the evaluation of conditioned pain modulation (CPM) by requesting permission to expose the dominant trapezius muscle for the upcoming assessment.
   4. Ask the patient to say "stop" as soon as they begin to feel any pain. Click start on the software.
   5. Apply the algometer on the trapezius by increasing the force at a rate of 30 kPa/s and record the patient response on the record sheet (Supplementary Table 3).
   6. Repeat the application 2 more times on different sites of the dominant trapezius muscle, with a 3 min interval between each.
   7. Ensure the algometer is thoroughly cleaned and sanitized before each application to prevent slipping caused by the accumulation of skin oils from subjects.
   8. Record the patient response on the record sheet (Supplementary Table 3). Wait 5 min before moving to the conditioned stimulus testing.
   9. Click start. The system will impose a 5 s wait before beginning to apply the device.
   10. Clean and sanitize the algometer.
   11. Instruct the patient to immerse their non-dominant hand up to the wrist in the ice water bath.
   12. Apply the algometer on the trapezius by increasing the force at a rate of 30 kPa/s and record the patient response on the record sheet (Supplementary Table 3).
   13. Repeat the application two more times on different sites of trapezius muscle, with a 5 min interval between each.
       NOTE: Discontinue the study if a previously undiscovered medical condition is identified after initial screening, particularly if the condition has the potential to interfere with the study.
   14. Following the acquisition of the baseline pre-exposure values, start exposing the patient to the light condition assigned to them.
   15. Instruct volunteers to avoid staring directly at the light source.
       NOTE: Instead, they should allow the light to enter their peripheral vision as they would with any ambient light source in their home (Supplementary Figure 7).
   16. Expose subjects to LED light for 1.5 h.
       NOTE: For prolonged light treatment, subjects self-administer exposure at home for up to 10 weeks. Surveys, such as the Fibromyalgia Impact Questionnaire (FIQ), the HIT-6 (Headache Impact Test), the PSQI (Pittsburgh Sleep Quality Index), and the EQ-5D-5L (to assess overall health), along with pain questionnaires, can be used to monitor the treatment's effects over time.
   17. During the exposure, encourage volunteers to engage in activities that do not require additional light sources, such as reading or writing.
       NOTE: Intensities of 4-100 lux provide sufficient illumination.
   18. Discourage sleeping during the exposure period to ensure full adherence to the protocol.
   19. After light exposure therapy, repeat all the measurements completed at the baseline.
6. Human data analysis
   1. For mechanical temporal summation, calculate the average of the 3 baseline measures and the average of the 3 repeated stimuli.
   2. Calculate the mechanical temporal summation percentage by dividing the average pain rating after the repetitive stimuli by the average baseline pain rating and multiplying the result by 100 to express it as a percentage.
      NOTE: A percentage greater than 100% indicates an increase in pain perception with repeated stimuli, suggesting the presence of temporal summation.
   3. For mechanical conditioned pain modulation (CPM), calculate the average of the last 2 baseline pain thresholds (in kPa) obtained during the unconditioned stimuli (without cold bath).
   4. Calculate the average of the last 2 pain threshold values (in kPa) during the conditioning stimulus.
   5. Use the following equation to calculate CPM:

      NOTE: A CPM value of 0 indicates no change in pain perception, a negative value indicates pain sensory inhibition during the conditioned stimulus, and a positive value indicates pain facilitation during the conditioned stimulus.
   6. Evaluate the changes in both temporal summation and CPM before and after light exposure to assess how the therapy affects the activity of the ascending and descending pain pathways, respectively.

Results

Greenlight exposure increases paw withdrawal latencies in a dose-dependent manner
Figure 1A demonstrates that exposure to green light-emitting diodes (GLED) at various intensities (4, 50, 100, and 200 lux) significantly increased paw withdrawal latencies in a naïve rat model over a 7-day exposure period, indicating an antinociceptive effect of GLED. Baseline latencies before light exposure were comparable across groups. Starting from Day 1, GLED-treated groups began to show a progressive increase in withdrawal latencies compared to the white light-emitting diode (WLED) control group, with the difference becoming statistically significant by Day 4 (p < 0.04). The increase in withdrawal latencies was positively correlated with the intensity of GLED exposure, with the highest intensity (200 lux) yielding the greatest antinociceptive effect, while lower intensities (4 lux) still showed a marked effect, but not significant, relative to the control group.

Antinociceptive effect of GLED is intensity-dependent
The area under the curve (AUC) analysis in Figure 1B further confirms that GLED exposure induces an intensity-dependent antinociceptive response. AUC analysis of paw withdrawal latencies over the 7-day period shows that the highest GLED intensity (200 lux) elicited a significantly stronger antinociceptive response compared to the WLED control group (p = 0.0015). Intermediate intensities of GLED (100 and 50 lux) also produced significant increases in AUC (p = 0.0068 and p = 0.0472, respectively), whereas the lowest intensity (4 lux) did not reach statistical significance compared to WLED (p = 0.7033). These results indicate a clear dose-response relationship, with higher GLED intensities resulting in greater analgesic effects.

Green light exposure alleviates postoperative hypersensitivity in rat
Exposure to GLED at 100 lux reversed mechanical hypersensitivity in a paw surgery-induced pain model. Before surgery, baseline paw withdrawal thresholds were consistent across groups. However, following surgery, rats exhibited a marked decrease in paw withdrawal thresholds, indicating increased mechanical hypersensitivity. This hypersensitivity was effectively reversed after 8 h of daily green LED exposure at 100 lux for 4 days prior to surgery (Figure 2A,B). Thermal hypersensitivity was also assessed, demonstrating a significant decrease in paw withdrawal latency post-surgery. Similar to the mechanical assessments, the hypersensitivity was reversed with 8 h of daily GLED exposure (Figure 2C,D). These findings demonstrate the efficacy of GLED exposure as an antinociceptive intervention in an acute postoperative pain model.

Temporal summation and conditioned pain modulation in human subjects
In healthy subjects, we used mechanical temporal summation (TS) to assess the activity of the ascending pain pathway and mechanical conditioned pain modulation (CPM) to evaluate the activity of the descending pain pathway. Subjects demonstrated a significant increase in mechanical sensitivity during temporal summation (Figure 3A). The percentage increase in mechanical sensitivity in response to repeated stimuli was markedly elevated, indicating an enhanced central facilitation of pain (p = 0.0039). This finding reflects heightened sensitivity to repetitive nociceptive input, consistent with increased temporal summation. The results from the CPM test show a significant decrease in mechanical sensitivity during the conditioned stimulus phase compared to the non-conditioned stimulus phase (Figure 3B). Subjects displayed a robust reduction in mechanical sensitivity, with an average decrease of 37.32% (p = 0.0039). This suggests effective activation of the descending pain inhibitory pathways, as evidenced by the suppression of pain perception during the conditioned stimulus. These assessments offer promising potential for uncovering the underlying mechanisms of pain modulation induced by green light exposure in humans.

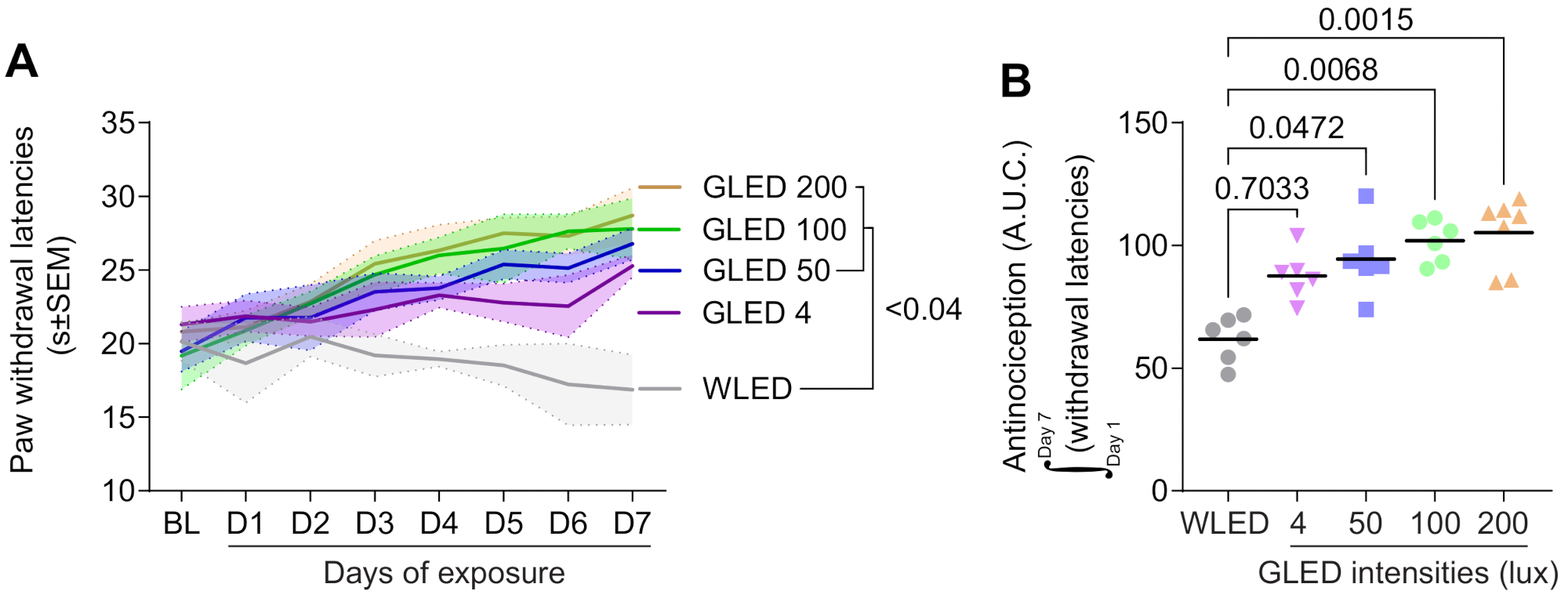

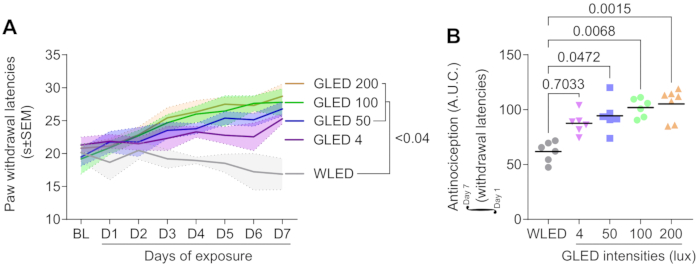

Figure 1. Light intensity affects thermal antinociception in rats. Male rats were exposed to green LED light (λ = 525 nm) or white LED (8 h/day, 100 lux) for 7 consecutive days, with daily assessments of thermal sensitivity using the Hargreaves test. Four intensities of green LED (GLED) were evaluated (4, 50, 100, and 200 lux). (A) Thermal sensitivity was measured before light exposure (BL), and over 7 days of exposure. On day 7, 50 to 200 lux of GLED increases thermal sensory thresholds (two-way ANOVA followed by Tukey's posthoc test, n = 6-7, 0.192 < p < 0.392).(B) Area under the curve analysis (days 1-7) was performed to evaluate the global effect of the light intensity over 7 days. The amplitude of the antinociceptive effect increases with the light intensity (Kruskal-Wallis and Dunn's post-hoc tests, n = 6-7). Data are presented as mean ± SEM. Please click here to view a larger version of this figure.

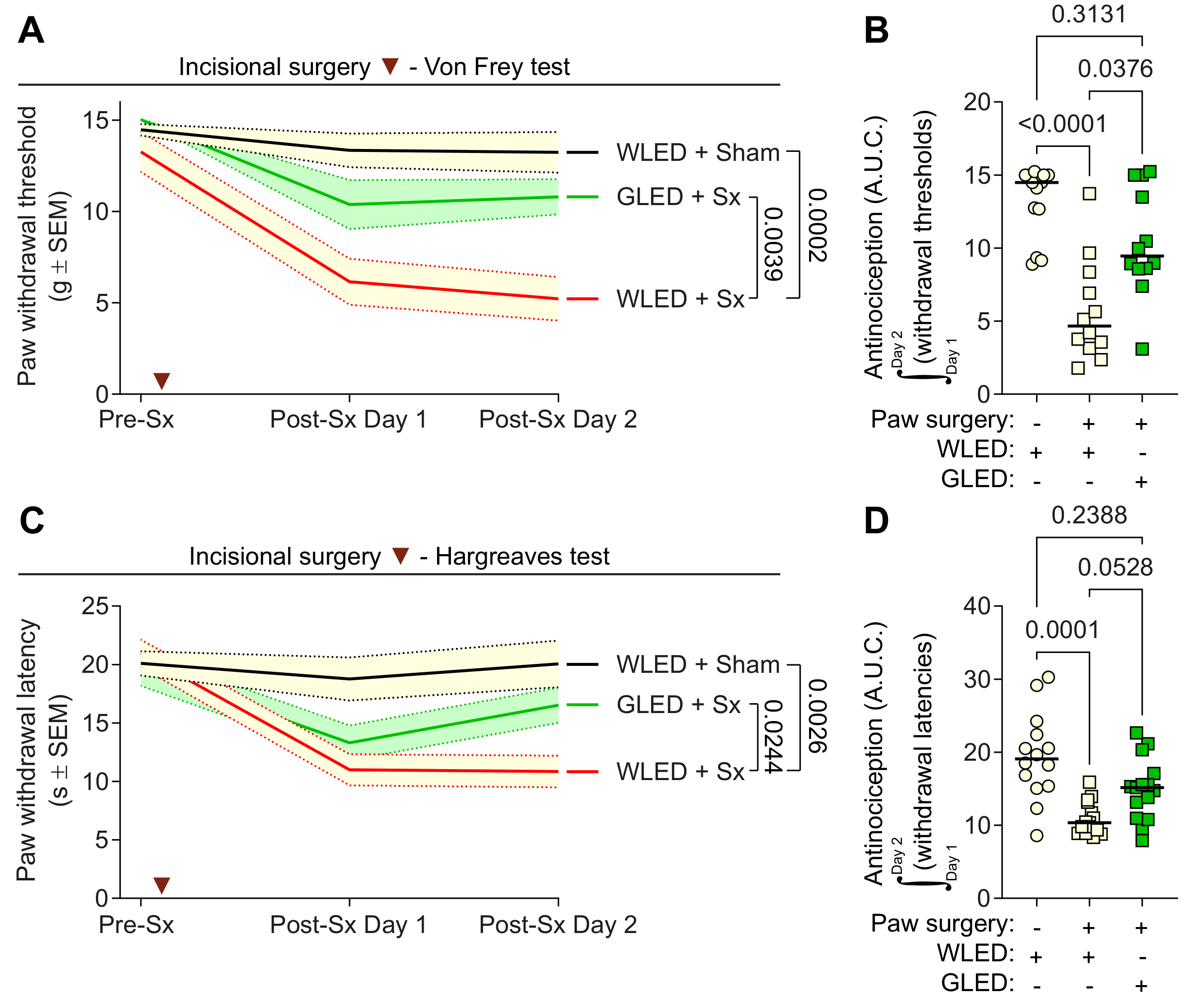

Figure 2. GLED exposure reverses thermal hyperalgesia and mechanical allodynia observed in a rat model of acute postoperative pain. Male rats were exposed to green LED light (λ = 525 nm, GLED) or white LED (8 h/day, 100 lux, WLED) 4 days before incisional surgery (red triangle, Sx) and two days after surgery. Mechanical allodynia and thermal hyperalgesia were assessed using von Frey filaments and Hargreaves tests, respectively. (A) Mechanical hypersensitivity was assessed before and 2 days after surgery. Rats exhibited a significant decrease in paw withdrawal threshold after surgery. This hypersensitivity was reversed by 8 h of daily GLED exposure (two-way ANOVA followed by Tukey's post-hoc test, n=12-14). (B) Area under the curve analyses (from day 1 to 2) for panel A. Exposure to GLED demonstrated attenuation of mechanical hypersensitivity (Kruskal Wallis followed by Dunn's posthoc test). (C) Thermal hypersensitivity was assessed before and 2 days after surgery. GLED exposure increased the paw withdrawal latency observed with paw surgery as compared to the WLED condition (two-way ANOVA followed by Tukey's post-hoc test, n = 14-15). (D) Area under the curve analyses (from day 1 to 2) for panel C. No significant differences were observed between GLED and the control animals that did not receive surgery, as well as animals that received surgery but were exposed to WLED (Kruskal Wallis and Dunn's post-hoc test). Data are presented as mean±SEM. Please click here to view a larger version of this figure.

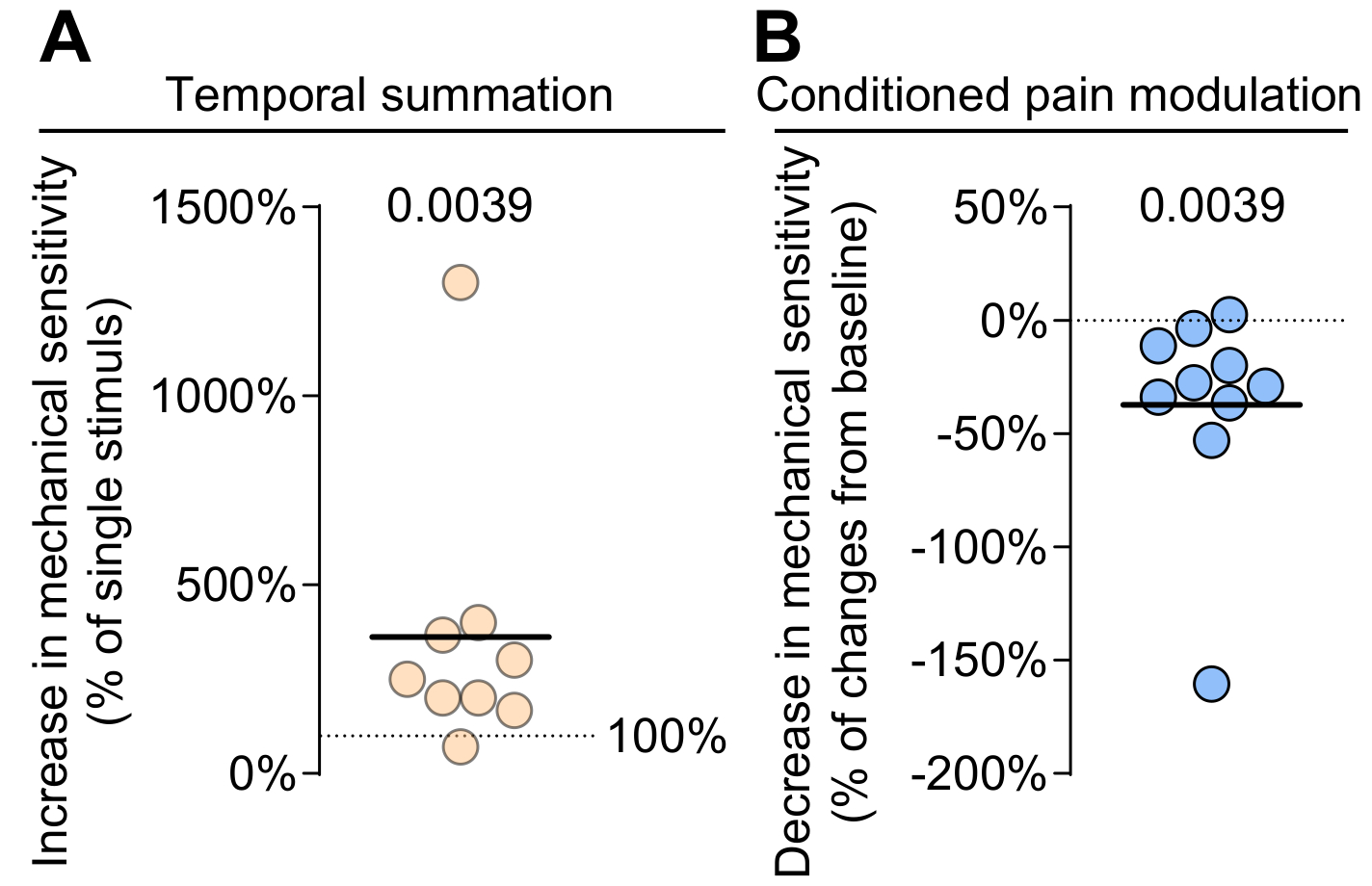

Figure 3. Mechanical temporal summation and conditioned pain modulation observed in healthy subjects. Temporal summation (TS) and conditioned pain modulation (CPM) can be measured in humans to evaluate the activity of the ascending and descending pain pathways, respectively. (A) Mechanical TS for each subject, expressed as a percentage of the initial stimulus. A sequence of 10 stimuli significantly increases pain perception compared to a single stimulation(Wilcoxon signed-ranked test, n = 9).(B) Mechanical CPM, showing the decrease in pain thresholds when the stimulation is applied during another noxious stimulation (12 °C cold water bath was used as the conditioned stimulus). Subjects demonstrated decreased pain sensitivity during CPM (Wilcoxon signed-ranked test, n = 10). Please click here to view a larger version of this figure.

Supplementary Figure 1: Setup for animal housing and light exposure. This image shows the optimized housing setup for rats during light exposure experiments. The setup includes fixed light sources positioned above each cage to ensure consistent exposure. To minimize light interference from external sources and between cages, the shelves are fully enclosed with dark sheets on all sides, creating a controlled environment. This arrangement ensures precise and uninterrupted light exposure for the animals, allowing for an accurate assessment of the effects of GLED exposure.Please click here to download this figure.

Supplementary Figure 2: GLED setup for human subjects' exposure. This image illustrates the installation of 2-meter green LED (GLED) strips used for human subject exposure. The LED strips are tested to ensure a consistent light intensity range of 90-100 lux, which is measured and verified using a luxmeter. This controlled environment is optimized for assessing the effects of green light on human subjects in clinical trials. Please click here to download this figure.

Supplementary Figure 3: Cold-water bath for conditioned pain modulation (CPM) testing. This image shows the setup for the conditioned pain modulation (CPM) evaluation, featuring a cold-water bath maintained at 12 °C. The temperature is carefully verified using a thermometer before each test to ensure accuracy. Extra ice is kept on hand to adjust and maintain the water temperature as needed during testing. Please click here to download this figure.

Supplementary Figure 4: Medoc advanced medical systems software screenshot. This image displays the screenshot of the Medoc advanced medical systems software. The home screen shows the selection of the algometer device, which is activated by clicking the corresponding icon. Please click here to download this figure.

Supplementary Figure 5: Medoc advanced medical systems software screenshot (choosing the test location). This image captures the Medoc advanced medical systems software interface, specifically highlighting the body diagram used for selecting the test location. This selection process is crucial for ensuring accurate pain assessment during conditioned pain modulation (CPM) evaluations, allowing for targeted measurement of pain thresholds in the designated muscle area. Please click here to download this figure.

Supplementary Figure 6: Interface during the application of the algometer on the trapezius muscle. This image showcases the Medoc advanced medical systems software interface while the Algometer Device is being applied to the trapezius muscle. The interface displays real-time data as force is increased at a rate of 30 kilopascals per second, ensuring that the applied force does not exceed 650 kilopascals. Please click here to download this figure.

Supplementary Figure 7: GLED exposure and testing room. This image depicts the setup of the green light-emitting diode (GLED) exposure and testing room. The seating arrangement is designed to ensure that participants are comfortable and alert, minimizing the risk of falling asleep while allowing for full exposure to the light. Please click here to download this figure.

Supplementary Table 1: Data collection sheet for von Frey testing. This table allows experimenters to fill out patterns of responses when using von Frey filaments. Please click here to download this table.

Supplementary Table 2: Data collection sheet for Hargreaves test. This table enables experimenters to record and document response patterns observed during the Hargreaves test. Please click here to download this table.

Supplementary Table 3: Data collection sheet for recording subjects' responses during temporal summation and conditioned pain modulation (CPM). This table provides a structured format for experimenters to document pain responses observed during assessments of temporal summation and conditioned pain modulation. Please click here to download this table.

Discussion

Recent studies have explored the mechanisms underlying green light (GLED) analgesia^{13,21,22,23,24}. However, further standardization of the methodology is needed to enhance its translation into clinical practice. The dose-dependent antinociceptive effects observed in preclinical models highlight the importance of optimizing exposure parameters to maximize therapeutic outcomes. However, these effects observed in rodent models need to be confirmed in clinical settings. To study the effects of GLED in humans, assessing temporal summation (TS) and conditioned pain modulation (CPM) enables researchers to analyze the activity of the ascending and descending pain pathways, respectively. CPM is based on the phenomenon of counter-irritation, where a noxious stimulus applied to one part of the body can inhibit pain in another part by activating the descending inhibitory system³¹. TS refers to an increase in pain perception following the application of a series of noxious stimuli, administered frequently and at the same intensity, to assess the ascending pain facilitatory pathway³². A unique strength of this study lies in the integration of preclinical and clinical protocols, providing a comprehensive framework that bridges the gap between laboratory research and patient care. By employing standardized methodologies across both animal and human models, this work ensures consistency and comparability in evaluating the effects of GLED phototherapy. The inclusion of preclinical models allows for a controlled exploration of mechanisms underlying GLED-induced analgesia, such as the modulation of ascending and descending pain pathways. These findings are directly translatable to human studies, where assessments of temporal summation (TS) and conditioned pain modulation (CPM) provide valuable mechanistic insights into pain modulation in patients.

Based on the promising benefits of photoneuromodulation (PNM), several studies have focused on characterizing the mechanisms underlying GLED-induced analgesia. In preclinical models, animals were typically exposed to 100 lux of GLED for 8 h per day^13,20,21,33. However, the reversal of hypersensitivity varied depending on the pain model and required different exposure durations. For example, in a model of HIV-induced neuropathy, mechanical hypersensitivity was reversed after 3 days of exposure, while the reversal of thermal hyperalgesia required 5 days¹³. Similarly, thermal hyperalgesia in inflammatory pain models was reversed after 2 days of exposure²². These results are consistent with our findings, which demonstrate the importance of dose and duration in achieving optimal antinociceptive effects. Notably, the study described here expands upon this prior work by highlighting the relationship between GLED intensity and analgesia, with higher intensities eliciting stronger effects. This was particularly evident in animals subjected to chronic constriction injury, which showed improvements after 3 days, but with increased intensity (200 lux) and shorter daily exposure (4 h)²³. In the partial sciatic nerve ligation model, benefits were observed after just 1 day of 2-h exposure, suggesting that GLED therapy can be effective even with shorter exposure durations²⁴. In contrast to these chronic pain models, a knee osteoarthritis model required 12 days of exposure at 8 h per day to reverse mechanical hypersensitivity³⁶. Finally, one study on post-surgical pain demonstrated a positive correlation between the duration of GLED exposure and antinociception, indicating that the number of exposure days significantly impacted the analgesic effect²¹. These findings underscore the importance of tailoring exposure duration to the specific pathology and highlight the need for standardized protocols to enable consistent comparisons of PNM effects across different sensory disorders.

In humans, GLED therapy has shown analgesic effects in conditions such as migraine, fibromyalgia, and post-surgical pain^17,34,35,36. Clinical trials on chronic conditions suggest that long-term exposure is necessary, with patients typically reporting pain relief after 2 weeks of daily exposure (1 to 2 h per day). Conversely, short-term exposure, such as the use of green light filtering glasses, demonstrated analgesic effects within just 15 min following dental surgery³⁶. This aligns with literature results, which emphasize the rapid efficacy of GLED in acute pain conditions alongside its sustained benefits in chronic pain management. This study also differs from some previous research by integrating TS and CPM assessments to explore the activity of ascending and descending pain pathways. These standardized evaluations can provide a mechanistic understanding of how GLED modulates pain perception, a feature often missing in earlier clinical studies. Even though preclinical studies point to the involvement of the descending pain pathways, further research is needed to confirm these findings in both preclinical and clinical settings. While clinical trials can rely on CPM evaluation, preclinical studies can also analyze descending control of nociception as a behavioral readout of descending pain inhibition^37,38,39,40. Consistent and standardized measurements of pain pathway activity are essential to elucidate the underlying mechanisms of GLED-induced analgesia.

There are several critical steps in this protocol. First, an accurate light exposure setup is extremely important for both animals and human subjects. Ensuring that GLED exposure intensity is properly optimized and validated using a luxmeter before starting the experiment is crucial, as variations in light intensity can significantly influence sensory thresholds and analgesic outcomes. Additionally, the light spectrum must be verified using a spectrometer to ensure that the GLED wavelengths fall within the specified range for therapeutic efficacy. Isolating the exposure areas by eliminating external light sources is important to make sure there is no light interference and to maintain uniform exposure across all subjects. Additionally, it is of the utmost importance to keep the human subject awake during the exposure time by having them engage in activities that do not require any light source, as the therapy relies on indirect visual exposure. During TS and CPM testing, proper calibration and sanitization of devices such as von Frey filaments (avoid using an already bent one) and algometer are essential to ensure reliable measurements. It is important to address distraction by minimizing environmental noise during the tests. Furthermore, careful handling and acclimation of animal subjects help reduce stress and variability, enhancing the reproducibility of results. Similarly, creating a welcoming and comfortable environment for human participants is critical, as a sterile or unfamiliar laboratory setting can be intimidating and stressful, which may alter sensory processing and affect the accuracy of pain assessments. Ensuring a calming and supportive atmosphere can help participants feel at ease, improving the reliability of the results. Clearly explain to the subjects the difference between the initial familiarization phase and the second testing phase, which they should focus on. Finally, maintaining consistency in pain rating scales across assessments is essential. Using differing scales, such as a 1-100 scale for CPM and a 1-10 scale for TS within the same study, could confuse participants and lead to inaccurate or unreliable ratings. A standardized approach ensures clarity for participants and comparability of results across studies.

Previous study methods have certain limitations, particularly concerning the time commitment required from clinical subjects, who must remain in place for 2 h daily during exposure sessions. This constraint underscores the need for further exploration of alternative exposure methods. Developing portable devices that deliver GLED therapy without confining subjects to specific times or locations could not only enhance participant compliance but also facilitate larger-scale studies. Such innovations would enable more comprehensive investigations into the long-term efficacy and safety of green light therapy.

In summary, the detailed protocol outlined in this report provides a framework for investigating the effects of GLED on pain sensitivity. Continued research and clinical trials will be crucial in validating GLED-induced analgesia and optimizing this therapy for broader clinical applications.

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
24 h Mechanical mini timer for LED strips	bn-link	BND-60/U47	https://www.bn-link.com/products/bn-link-indoor-24-hour-mechanical-outlet-timer-3-prong-2-pack?variant=42704897245237¤cy= USD&utm_medium=product_sync& utm_source=google&utm_content= sag_organic& utm_campaign= sag_organic&gad_source=1& gclid=Cj0KCQjwurS3BhCGARI sADdUH50dy8sYj4Ku2ZmM14-3Yp3iajSY 4TgRze8UvSuyhq81-h 1E6GChOXgaAhwYEALw_wcB
AC 5050 SMD LED Tape Rope Strip Lighting	LED Supply Co	LS-AC50-GR	https://www.ledsupply.com/led-strips/ac-power-5050-led-strips Green Strip Lighting for all exposure rooms 120V AC, 60Hz
AC 5050 SMD LED Tape Rope Strip Lighting	LED Supply Co	LS-AC50-WH	https://www.ledsupply.com/led-strips/ac-power-5050-led-strips White Strip Lighting for all exposure rooms 120V AC, 60Hz
Allodynia Software	National Instruments, LabView 2015		https://www.ni.com/en-us/shop/product/labview.html
Amazon Basics Lightweight Super Soft Easy Care Microfiber 4-Piece Bed Sheet Set with 14-Inch Deep Pockets, Queen, Black, Solid	Amazon Basics Store		Amazon.com: Amazon Basics Lightweight Super Soft Easy Care Microfiber 4-Piece Bed Sheet Set with 14-Inch Deep Pockets, Queen, Black, Solid : Amazon Basics: Home & Kitchen
Computerized Pressure Pain Algometer	Medoc advanced medical systems	ID 00186	https://www.medoc-web.com/algomed
Digital Lux Meter	Edmund Optics	52270	https://www.edmundoptics.com/
Elevated metal mesh stand for Von Frey	Bioseb	BIO-STD2-EVF	https://www.bioseb.com/en/pain-mechanical-allodynia_hyperalgesia/1689-elevated-metal_mesh-stand-30-cm-height-to-fit-up_to-2-pvf-cages.html
Fisherbrand Thermometers	Fischer Scientific	13-201-577	https://www.fishersci.com/shop/products/fisherbrand-10-30-ground-joint-thermometers-6/13201927
Medline Autoclavable Plastic Washbasins	Truway Health	42141606	https://truwayhealth.com/medline-autoclavable-plastic-washbasins/?cmp_id=21122060336&adg_id= &kwd=&device=c& gad_source=1&gclid= CjwKCAjw0aS3BhA3EiwAKaD2ZTHY8_ 7W__ gXC7Wf3Kv3jJa6KQrNI-4JrdYqKM9IO v8moeW6ylEpzRoCnZ8QAvD_BwE
Modular holder cages for rats and mice	Bioseb	BIO-PVF	https://bioseb.com/en/pain-mechanical-allodynia-hyperalgesia/1206-modular-holder-cages-for-rats-and-mice.html
Plantar Test for Thermal Stimulation - Hargreaves Apparatus	Ugo Basile	37570	https://ugobasile.com/products/categories/pain-and-inflammation/plantar-test-for-thermal-stimulation includes semi-transparent glass panel and individual animal enclosures for 6 rats/12 mice
Scotch 700 Electrical Tape, 3/4 in. x 66 ft. x 0.007 in.	3M		https://www.3m.com/3M/en_US/p/d/cbgnawus1596/
Touch Test Sensory Evaluators (von Frey Filaments)	North Coast Medical and Rehabilitation Products	NC12775-99	https://www.ncmedical.com/products/touch-test-sensory-evaluators_1278.html
Touch Test Sensory Evaluators (von Frey Filaments)	North Coast Medical and Rehabilitation Products	NC12775-20	https://www.ncmedical.com/products/touch-test-sensory-evaluators_1278.html
TRINITY EcoStorage 5-Tier , 48 x 24 x 72, Commercial Wire Shelving	Trinity	952471	https://trinityii.com/ecostorage-5-tier-48x24x72-wire-shelving-nsf-with-wheels-chrome/
