Identification of DEGs and hierarchical clustering
Analysis of the GSE54913 dataset identified 473 differentially expressed genes (DEGs), including 357 upregulated and 116 downregulated genes, between schizophrenia patients and controls (Figure 2A,B). Hierarchical clustering of these DEGs distinguished schizophrenia samples from controls (Figure 2C).
Functional enrichment analysis of DEGs
GO enrichment analysis identified terms related to channel activity, including passive transmembrane transporter activity, ion channel activity, gated channel activity, and substrate-specific channel activity (raw P < 0.05; Table 3). KEGG pathway analysis identified insulin secretion, the cAMP signaling pathway, nucleotide excision repair, the TNF signaling pathway, and glutathione metabolism as the top enriched pathways (raw P < 0.05; Figure 3C and Table 4).
Validation of top DEGs by qRT-PCR
The top five downregulated genes (HCN3, OLFML2A, NOX1, MRGPRX1, and BRIP1) and the top five upregulated genes (CCL22, PNMA2, TBX20, ERAS, and C12orf68) were validated by qRT-PCR. The validated genes and corresponding microarray logFC values are listed in Table 5, qRT-PCR validation is shown in Figure 4, and raw Ct values are provided in Supplemental Table S1. The qRT-PCR fold changes were directionally consistent with microarray data for all ten genes (all P < 0.05 by Mann-Whitney U test). Pearson correlation between microarray logFC and qRT-PCR logFC was r = 0.89 (95% CI: 0.66–0.97, P = 0.0004), indicating strong agreement. SUCNR1 and GPR37L1 expression differences were also confirmed (Figure 5A,B).
PPI network analysis
A PPI network was constructed from all DEGs (interaction score > 0.9; Figure 6A). The top ten hub proteins based on degree of connectivity were RTP5 (degree = 14), CXCL1 (degree = 8), CXCL10, GPR37L1, HCAR1, OPRL1, P2RY4, SSTR4, SUCNR1 (degree = 7), and ATM (degree = 5) (Figure 6B and Table 6). A subnetwork of key hub genes was extracted using a subnetwork extraction plugin with default parameters. The subnetwork extraction algorithm identified a densely connected cluster containing RTP5, CXCL1, CXCL10, GPR37L1, HCAR1, OPRL1, P2RY4, SSTR4, and SUCNR1, with a cluster score of 6.2. ATM was not included in the subnetwork because it had lower connectivity with the core cluster (Figure 6C).
Association between verbal memory and SUCNR1/GPR37L1
SUCNR1 expression was significantly elevated, whereas GPR37L1 expression was reduced, in patients with schizophrenia compared with healthy controls (Figure 5A,B). SUCNR1 expression showed a negative correlation with verbal memory scores (r = -0.54, 95% CI: -0.79 to -0.13, R2 = 0.287, P = 0.015; Figure 5C), whereas GPR37L1 expression showed a positive correlation with verbal memory scores (r = 0.59, 95% CI: 0.20 to 0.82, R2 = 0.349, P = 0.0034; Figure 5D). Correlation analyses were performed on all 20 subjects, including 10 schizophrenia patients and 10 healthy controls. With a sample size of 20, the study had 80% power to detect a correlation coefficient of |r| > 0.6 at α = 0.05. Given the modest sample size, these correlational findings are preliminary and require validation in larger independent cohorts.
Data Availability Statement
The GSE54913 dataset analyzed in this study is publicly available from the Gene Expression Omnibus. Raw qRT-PCR Ct values are provided in Supplemental Table S1. The analysis scripts, DEG output files, enrichment results, PPI network files, and figure source files are available at https://sandbox.zenodo.org/records/514960 or 10.5072/zenodo.514960.

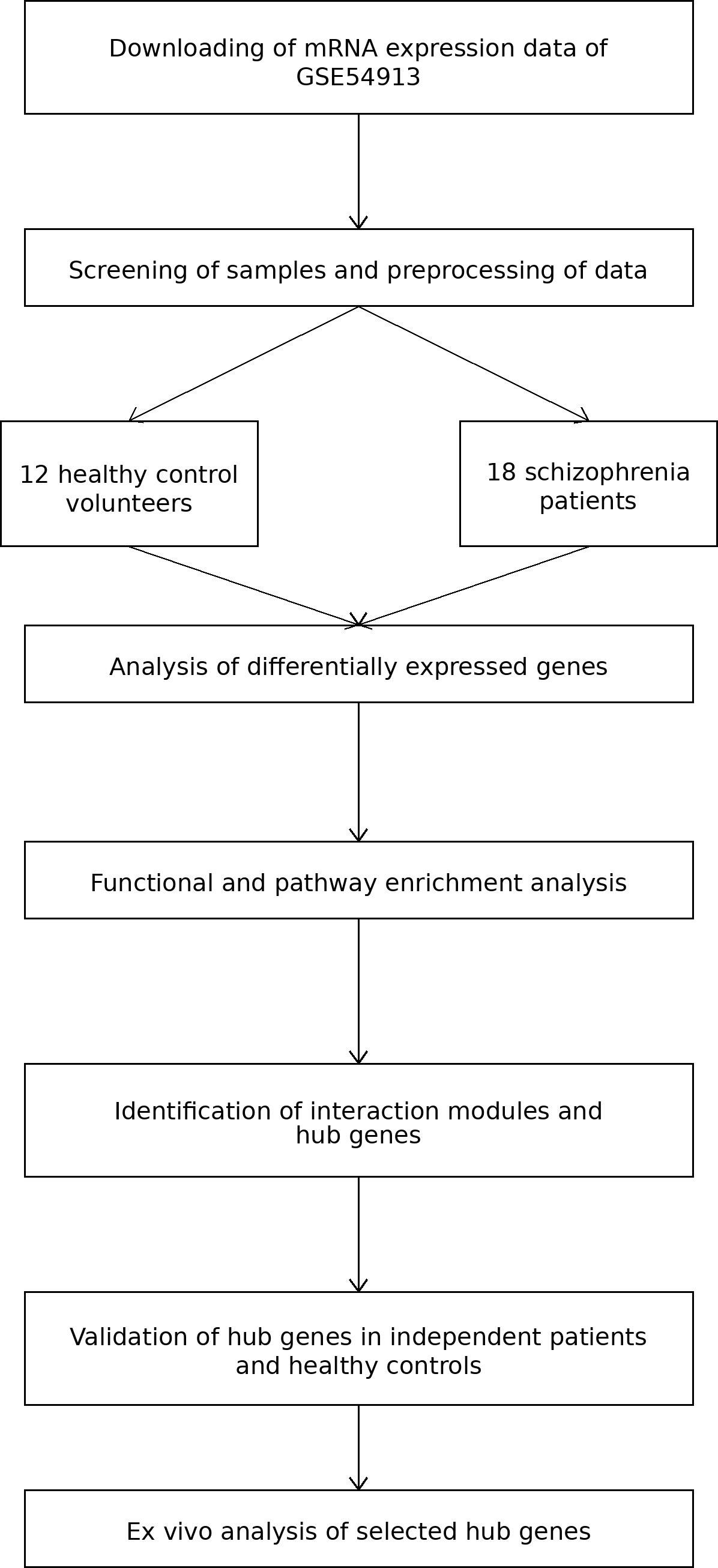

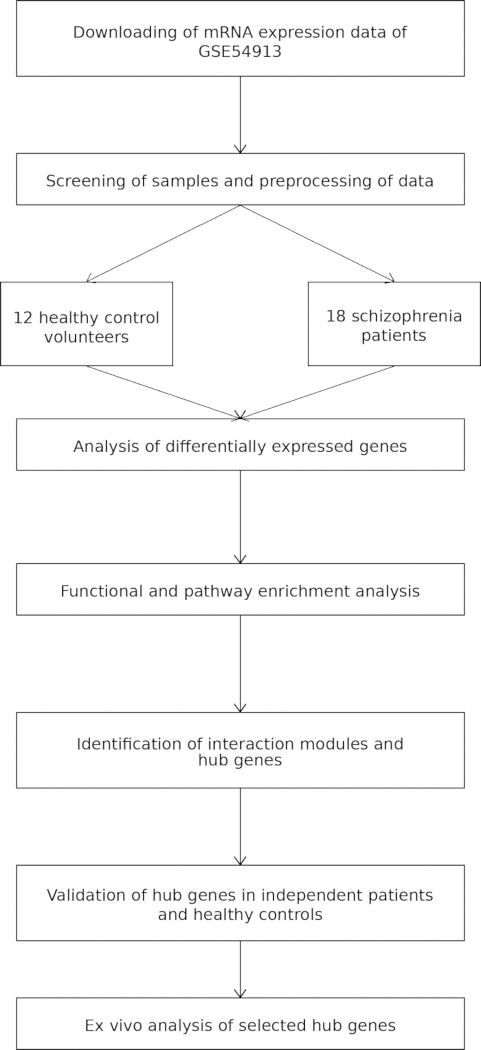

Figure 1: Flow diagram: data collection, preprocessing, analysis, and validation. mRNA microarray analyses on PBMCs obtained from GSE54913. GO functional and pathway enrichment analyses were performed on the DEGs. The top 10 genes ranked by fold change were selected for validation of microarray data using qRT‑PCR. PPI network analysis identified two hub genes. Finally, ex vivo analysis of the two hub genes SUCNR1 and GPR37L1 was conducted. Abbreviations: DEGs = differentially expressed genes; mRNA = messenger RNA; PBMCs = peripheral blood mononuclear cells; qRT‑PCR = quantitative real‑time polymerase chain reaction; PPI = protein–protein interaction. Please click here to view a larger version of this figure.

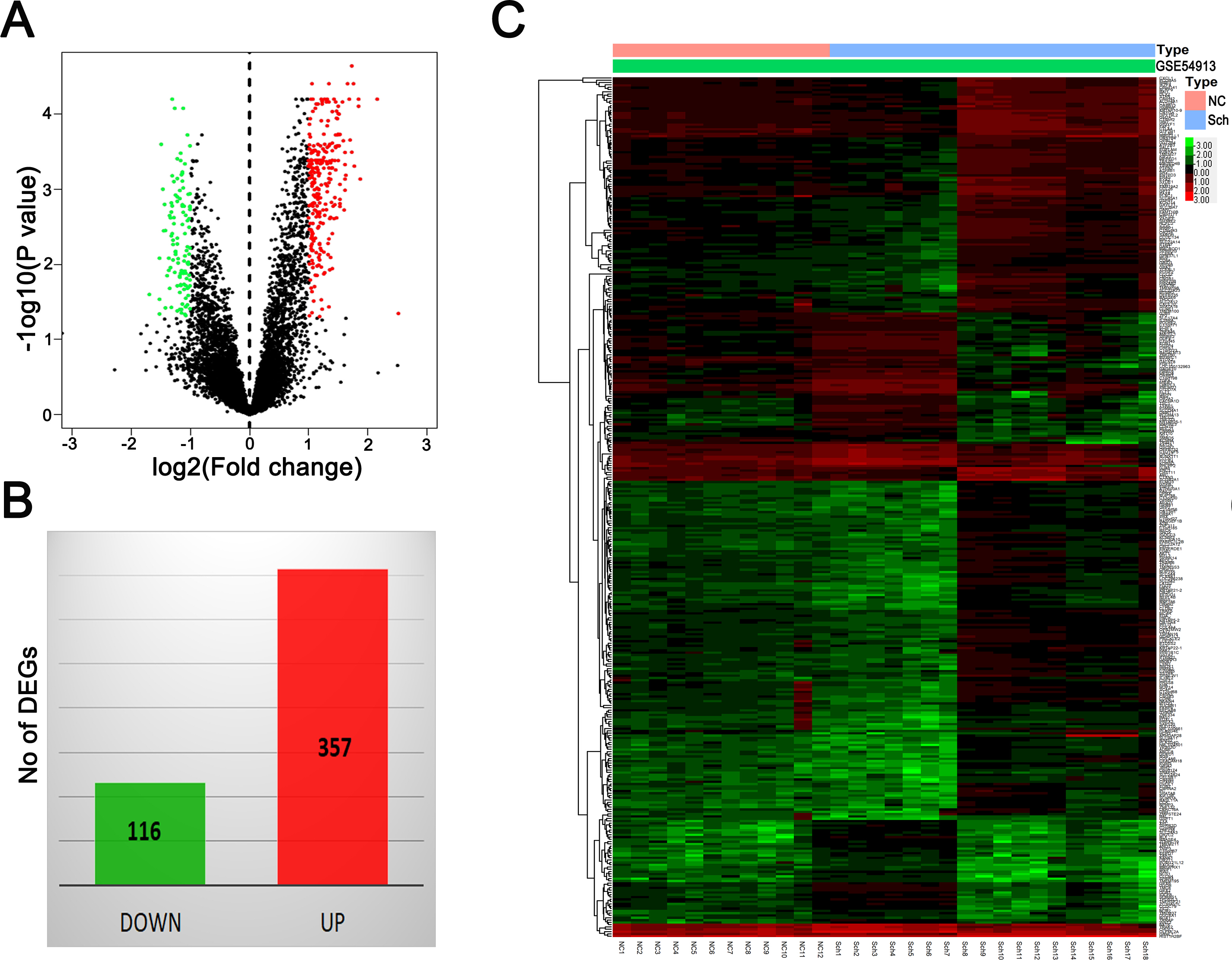

Figure 2: DEG selection and hierarchical clustering analysis. (A) Volcano plot of DEGs. The horizontal axis represents log₂(fold change), and the vertical axis represents –log₁₀(P value). Green and red dots represent differentially expressed genes, and black dots represent non-differentially expressed genes. (B) Numbers of downregulated and upregulated DEGs. (C) Heat map of differentially expressed genes. Red indicates upregulation and green indicates downregulation. Abbreviation: DEGs = differentially expressed genes. Please click here to view a larger version of this figure.

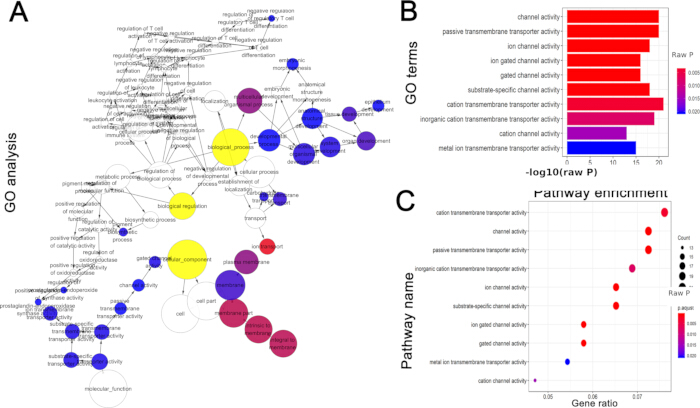

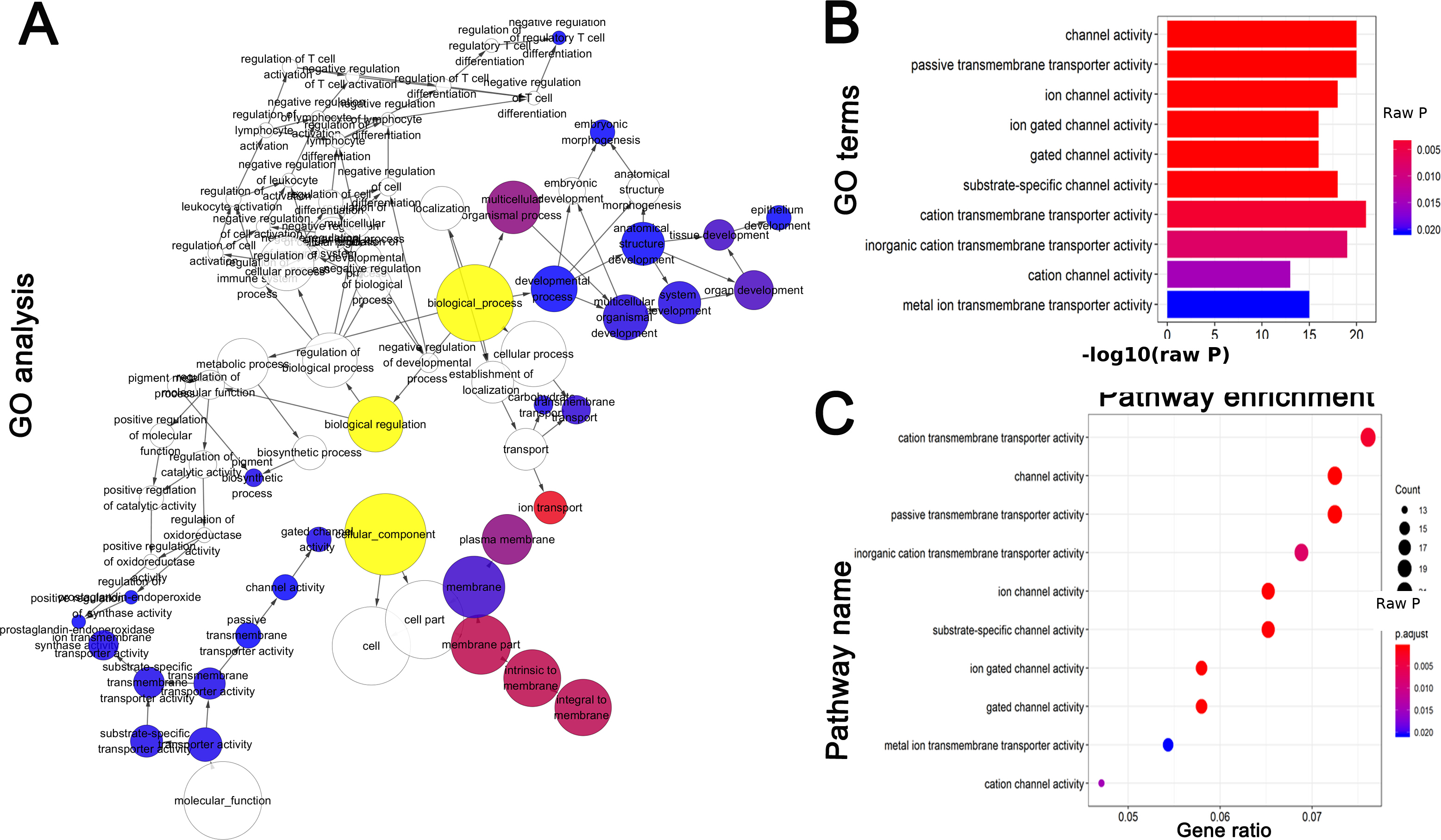

Figure 3: GO and KEGG enrichment analyses of DEGs. (A,B) GO enrichment and (C) KEGG enrichment are shown based on raw P-values. Abbreviations: DEGs = differentially expressed genes; GO = Gene Ontology; KEGG = Kyoto Encyclopedia of Genes and Genomes; BP = biological process; CC = cellular component; MF = molecular function. Please click here to view a larger version of this figure.

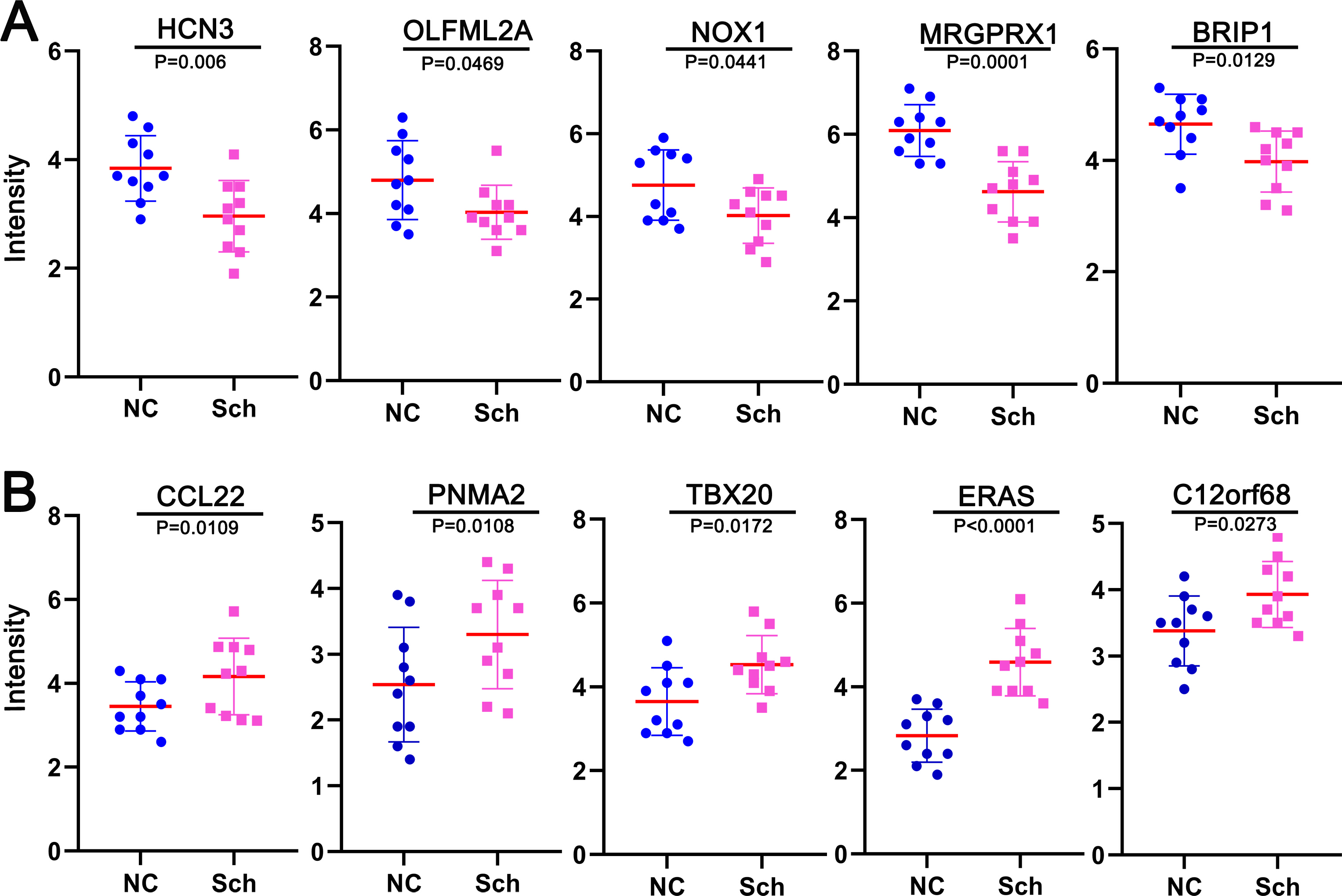

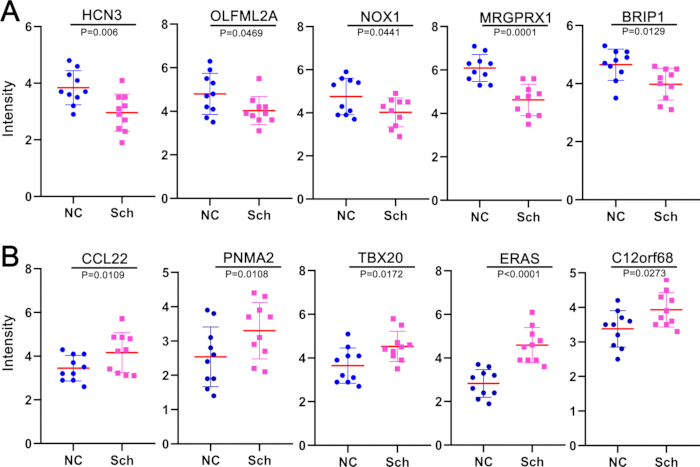

Figure 4: Validation of microarray data for the top ten dysregulated genes using qRT-PCR. (A) Downregulated top five DEGs. (B) Upregulated top five DEGs. Data are mean ± standard error of the mean. P values are shown in the corresponding panels. Abbreviations: DEGs = differentially expressed genes; qRT‑PCR = quantitative real‑time polymerase chain reaction. Please click here to view a larger version of this figure.

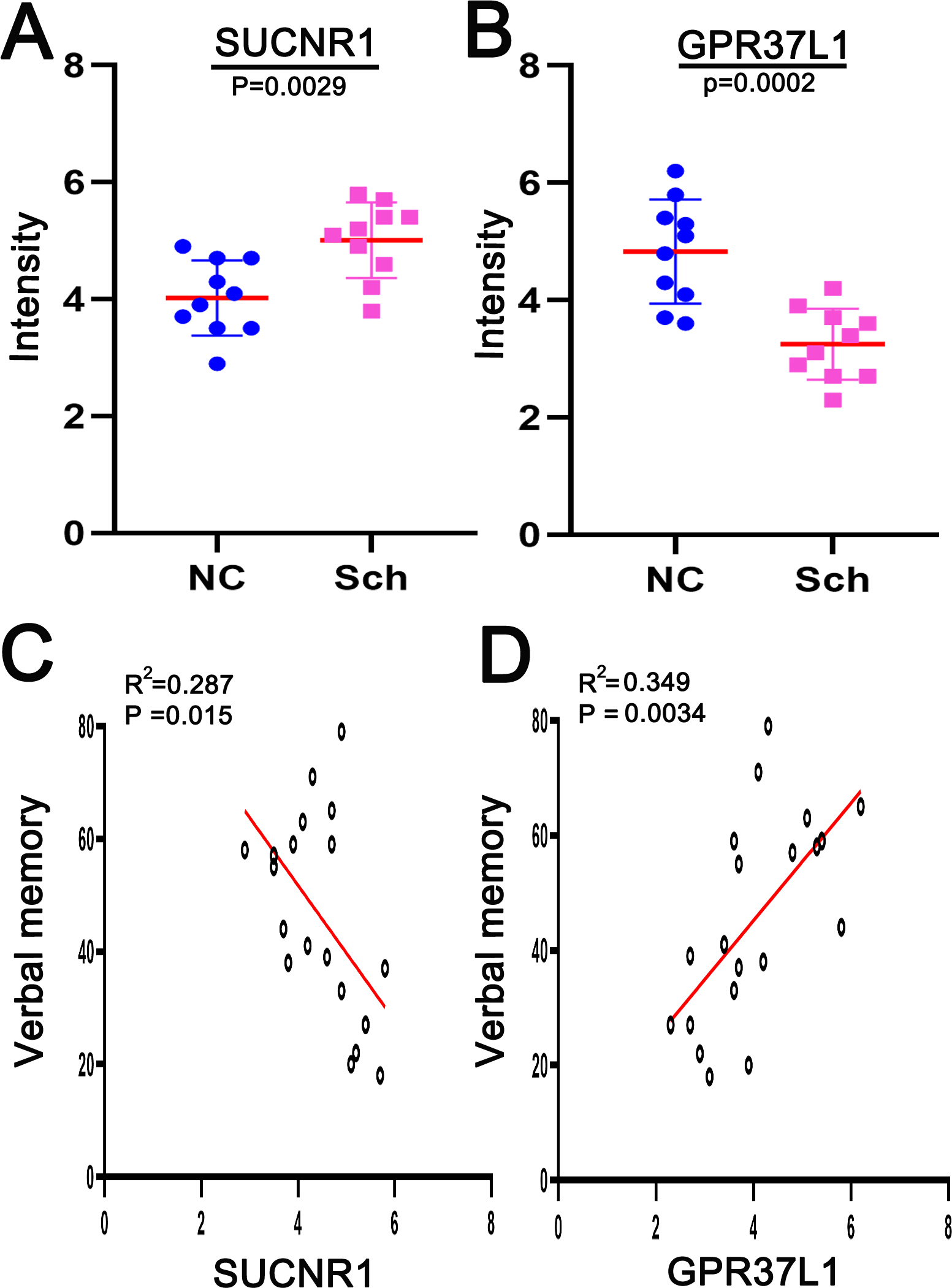

Figure 5: SUCNR1 and GPR37L1 expression in schizophrenia patients and healthy controls. (A) SUCNR1 and (B) GPR37L1 expression determined by qRT-PCR. Correlation between verbal memory and (C) SUCNR1 and (D) GPR37L1 expression. Data are shown as mean ± standard error of the mean where applicable. P values for correlations are shown in the corresponding panels. Please click here to view a larger version of this figure.

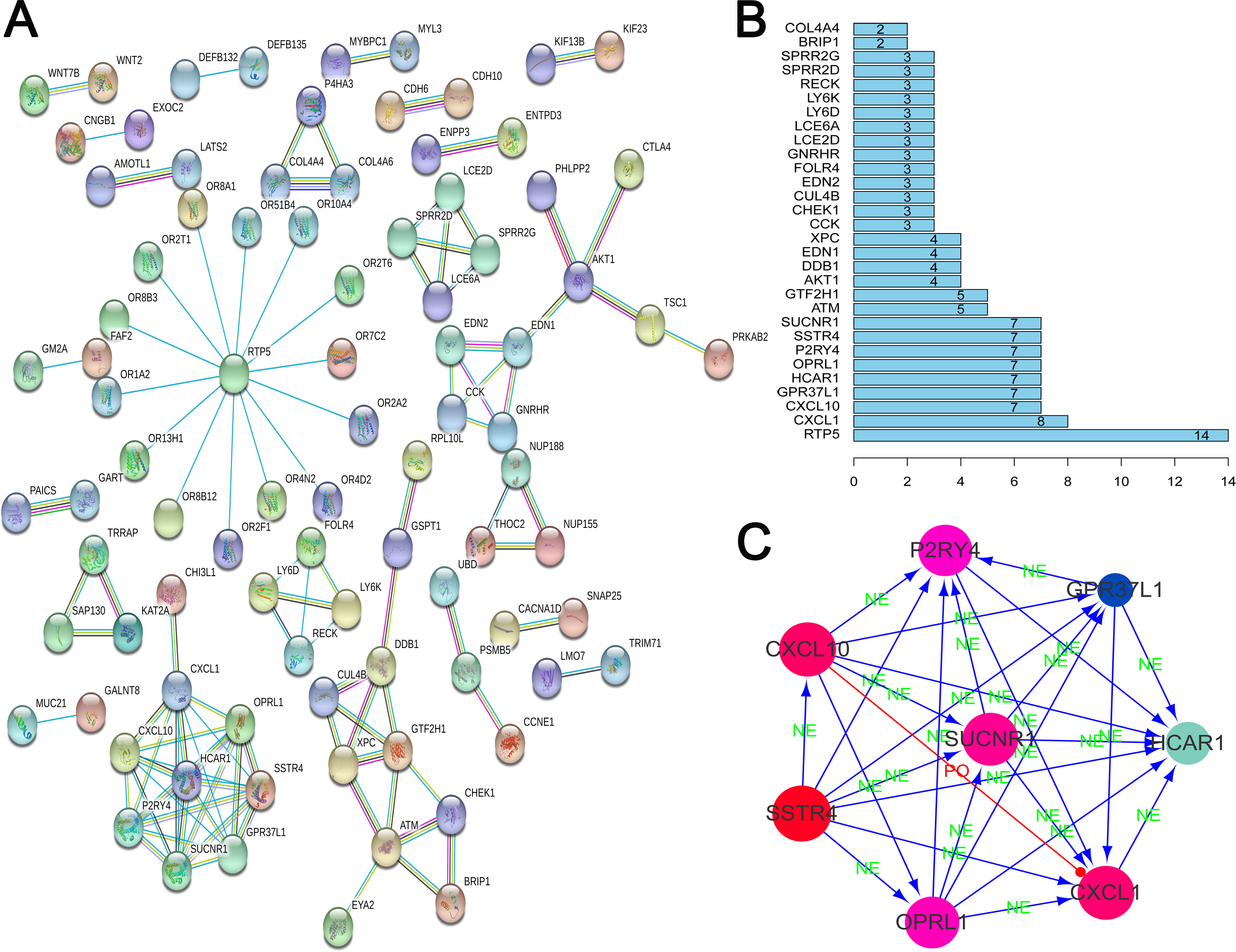

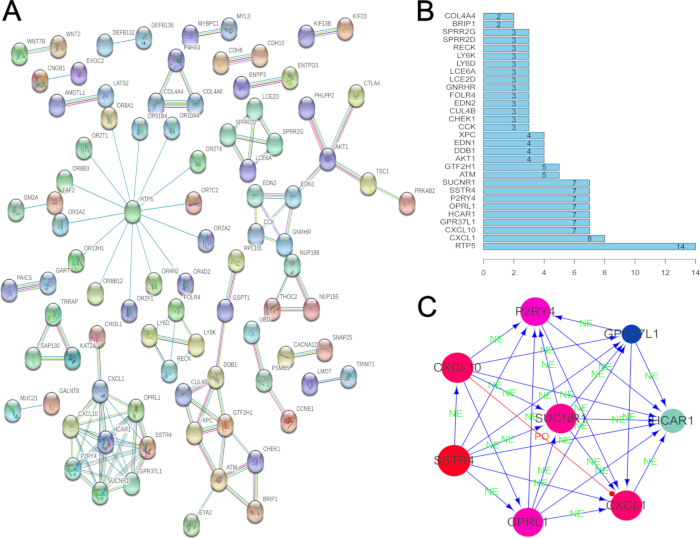

Figure 6: Protein-protein interaction network analysis. (A) PPI network analyzed using a protein-protein interaction database. (B) Proteins ranked by degree of association in the PPI network. (C) Subnetwork visualized using network visualization software after subnetwork extraction analysis. Abbreviation: PPI = protein-protein interaction. Please click here to view a larger version of this figure.
| Variable | Control subjects (n = 10) | Schizophrenia patients (n = 10) |
| Age (year) | 36.5 ± 10.6 | 44.5 ± 9.5 |
| Female sex, n (%) | 5 (50) | 5 (50) |
| Daily sleep time (h) | 5.4 ± 3.1 | 7.5 ± 1.2 |
| Body mass index (BMI; kg/m²) | 25.2 ± 4.1 | 22.9 ± 2.3 |
| Verbal memory score | 61 ± 18 | 30.2 ± 10.8 |
| Data are presented as mean ± standard deviation or number (%). |
Table 1: Baseline characteristics of schizophrenia patients and control subjects.
| Gene symbol | Forward primer sequence (5'→3') | Reverse primer sequence (5'→3') |
| HCN3 | GTCCGCCGGGGCCTGGAT | CCTCCCACTGGTGTATGTAGC |
| OLFML2A | CAGGCAGAGCGGGCGAAG | AATATTTGCGGACTGGGTCA |
| NOX1 | CACCCCAAGTCTGTAGTGGGAG | CCAGACTGGAATATCGGTGACA |
| MRGPRX1 | CTAGGGTACCACGGAGGATT | TGGTTCTGGAGGCTCCTTGC |
| BRIP1 | CAGATGAGGGCG-TAAGTGA | CGTCCTCCGGAGCTCTCTAG |
| CCL22 | TCCATCATCTCTTCTGACTCTGA | CTGTGGGTCAGAGTCAGAAGAGA |
| PNMA2 | GCGGGTCAATTCTCGGGACA | GTCCTGCCCCCAGGTGGTTT |
| TBX20 | GAGGGAAAGTGTGGAGAGCC | AAGGCTGACCCTCGATTTGG |
| ERAS | AGTCTATTATTTCGGGCACC | CCTTCGTGGTTCCCTGAGAC |
| C12orf68 | TTCAACCCCTACACCGAGTT | CTTGAACGTGGACTGCAGC |
| GPR37L1 | ATGTTTCTTGCCGAGCAGTG | CCACATGGAATCGGTCTAT |
| SUCNR1 | ACAGAAGCCGACAGCAGAAT | GCACAGGAAAGCAAAGTCAG |
| β-Actin | CTAAGGCCAACCGTGAAAAG | GCATACAGGGACAACACAG |
| qRT-PCR: quantitative real-time polymerase chain reaction. |
Table 2: PCR primers for qRT-PCR.
| GO ID | Term | Raw P-value | Count |
| GO:0015267 | channel activity | 0.000000056 | 13 |
| GO:0022803 | passive transmembrane transporter activity | 5.78E-08 | 13 |
| GO:0005216 | ion channel activity | 0.000000127 | 12 |
| GO:0022839 | ion gated channel activity | 0.000000131 | 11 |
| GO:0022836 | gated channel activity | 0.000000136 | 11 |
| GO:0022838 | substrate-specific channel activity | 0.00000017 | 12 |
| GO:0005261 | cation channel activity | 0.00000668 | 9 |
| GO:0015276 | ligand-gated ion channel activity | 0.000315 | 5 |
| GO:0022834 | ligand-gated channel activity | 0.000315 | 20 |
| GO:0022890 | inorganic cation transmembrane transporter activity | 0.000487 | 20 |
| GO:0008324 | cation transmembrane transporter activity | 0.0009 | 18 |
| GO:0099094 | ligand-gated cation channel activity | 0.00128 | 16 |
| GO:0005244 | voltage-gated ion channel activity | 0.001382 | 16 |
| GO:0022832 | voltage-gated channel activity | 0.001382 | 18 |
| GO:0046873 | metal ion transmembrane transporter activity | 0.001836 | 21 |
| GO:0022824 | transmitter-gated ion channel activity | 0.002762 | 19 |
| GO:0022835 | transmitter-gated channel activity | 0.002762 | 13 |
| Note: P-values are raw and unadjusted; significance was defined as raw P < 0.05. |
Table 3: Gene ontology analysis of differentially expressed genes (raw P < 0.05).
| ID | Description | Raw P-value | Count |
| hsa04911 | Insulin secretion | 0.007066 | 6 |
| hsa04024 | cAMP signaling pathway | 0.010661 | 10 |
| hsa03420 | Nucleotide excision repair | 0.013724 | 4 |
| hsa04668 | TNF signaling pathway | 0.023694 | 6 |
| hsa00480 | Glutathione metabolism | 0.02466 | 4 |
| hsa04740 | Olfactory transduction | 0.032104 | 15 |
| hsa05222 | Small cell lung cancer | 0.03572 | 5 |
| hsa00590 | Arachidonic acid metabolism | 0.035991 | 4 |
| hsa04080 | Neuroactive ligand-receptor interaction | 0.037546 | 12 |
| hsa05031 | Amphetamine addiction | 0.045653 | 4 |
| hsa05203 | Viral carcinogenesis | 0.046404 | 8 |
| hsa04933 | AGE-RAGE signaling pathway in diabetic complications | 0.04831 | 5 |
| Note: P-values are raw and unadjusted; significance was defined as raw P < 0.05. |
Table 4: Kyoto Encyclopedia of Genes and Genomes enrichment analysis of genes (raw P < 0.05).
| Gene symbol | Official full name | logFC | Raw P-value |
| Downregulated | | | |
| HCN3 | Hyperpolarization-activated cyclic nucleotide-gated channel 3 | -1.489 | 0.0001 |
| OLFML2A | Olfactomedin-like protein 2A | -1.521 | 0.0042 |
| NOX1 | NADPH oxidase 1 | -1.522 | 0.0022 |
| MRGPRX1 | Mas-related G-protein coupled receptor member X1 | -1.526 | 0.0003 |
| BRIP1 | Fanconi anemia group J protein | -1.699 | 0.0018 |
| Upregulated | | | |
| CCL22 | C-C motif chemokine 22 | 2.517 | 0.0041 |
| PNMA2 | Paraneoplastic Ma antigens | 2.159 | 0.0062 |
| TBX20 | T-box transcription factor TBX20 | 1.866 | 0.0001 |
| ERAS | GTPase Eras | 1.846 | 0.0008 |
| C12orf68 | Coiled-coil domain containing 184 | 1.839 | 0.0002 |
| Note: logFC and raw P-values are from the microarray differential expression analysis. |
Table 5: Top ten DEGs ranked by fold change in upregulated and downregulated genes.
| Gene symbol | Description | Co-genes (n) | P-value |
| RTP5 | Receptor transporter protein 5 | 14 | 0.000276 |
| CXCL1 | Growth-regulated alpha protein 1 | 8 | 0.011423 |
| CXCL10 | C-X-C motif chemokine 10 | 7 | 0.046144 |
| GPR37L1 | Prosaposin receptor GPR37L1 | 7 | 0.003792 |
| HCAR1 | Hydroxycarboxylic acid receptor 1 | 7 | 0.046572 |
| OPRL1 | Nociceptin receptor 1 | 7 | 0.039753 |
| P2RY4 | P2Y purinoceptor 4 | 7 | 0.001279 |
| SSTR4 | Somatostatin receptor type 4 | 7 | 0.006742 |
| SUCNR1 | Succinate receptor 1 | 7 | 0.000105 |
| ATM | Serine-protein kinase ATM | 5 | 0.004961 |
| PPI: protein-protein interaction; DEGs: differentially expressed genes. |
Table 6: Top 10 hub genes identified in the PPI network for DEGs.
Supplementary Table 1: Raw qRT‑PCR Ct Values, Complete Bioinformatics Analysis Workflow, and Processed Results (DEG, GO/KEGG, and PPI) for the Study Please click here to download this File.
