Optical System for Assessment of Atrial and Ventricular Mechanics in Langendorff-perfused Mouse Hearts

Summary

This protocol describes the procedure for mouse heart extraction and cannulation, as well as the preparation and configuration of the Langendorff retrograde perfusion system. The experimental setup is coupled with a high-resolution optical system designed to evaluate the mechanical responses of the atria and ventricles while preserving their natural dynamics.

Abstract

The mouse heart serves as a widely used model in cardiovascular research, facilitated by advances in engineering technologies. However, assessment of atrial and ventricular contractility remains challenging due to the small size of the mouse heart. This study introduces a novel methodology for evaluating contractility and heart rate in an intact, isolated heart. Using a Langendorff-perfused mouse heart in combination with a high-resolution optical system enables evaluation of atrial and ventricular contractility. The experimental setup addresses challenges associated with small heart size and rapid contraction rates while acquiring high-resolution signals. Synchronization between stimulus frequency and heart contraction frequency in the range of 420 to 660 beats per minute (bpm) was consistent with results from the auxotonic method. Additionally, measurements of ventricular shortening and atrial dynamic signals allow for the determination of atrioventricular contraction. This method is suitable for assessing contractility and heart rate in an intact, isolated heart without pharmacological or systemic influences. These results demonstrate that the optical system enables measurement of ventricular and atrial shortening responses.

Introduction

There is much to discover in cardiac physiology; key processes, such as cardiac pace-making and excitation-contraction coupling, are central tenets that are continually researched¹. Although the effects of biological noise on cardiac contractility² and pace-making activity remain poorly understood¹, new optical imaging methods have allowed the presentation of new paradigms^3,4.

Two experimental methodologies using the Langendorff system have made invaluable contributions to measuring cardiac function. First, the ....

Protocol

All animal procedures were conducted in accordance with Federal Regulations for Animal Experimentation and Care and were approved by the Animal Care Committee of CINVESTAV (CINVESTAV Zacatenco, D.F., Mexico). In this study, C57BL/6J male mice are used, weighing 28–34 g, and aged 8–14 weeks. All materials and equipment used in the protocol are listed in the Table of Materials. Supplementary Files 1–11 provide supporting diagrams, software guides, analysis programs, pacing data, and application files for the protocol.

1. Stock preparation

1. Prepare two stock solutions in advance an....

Results

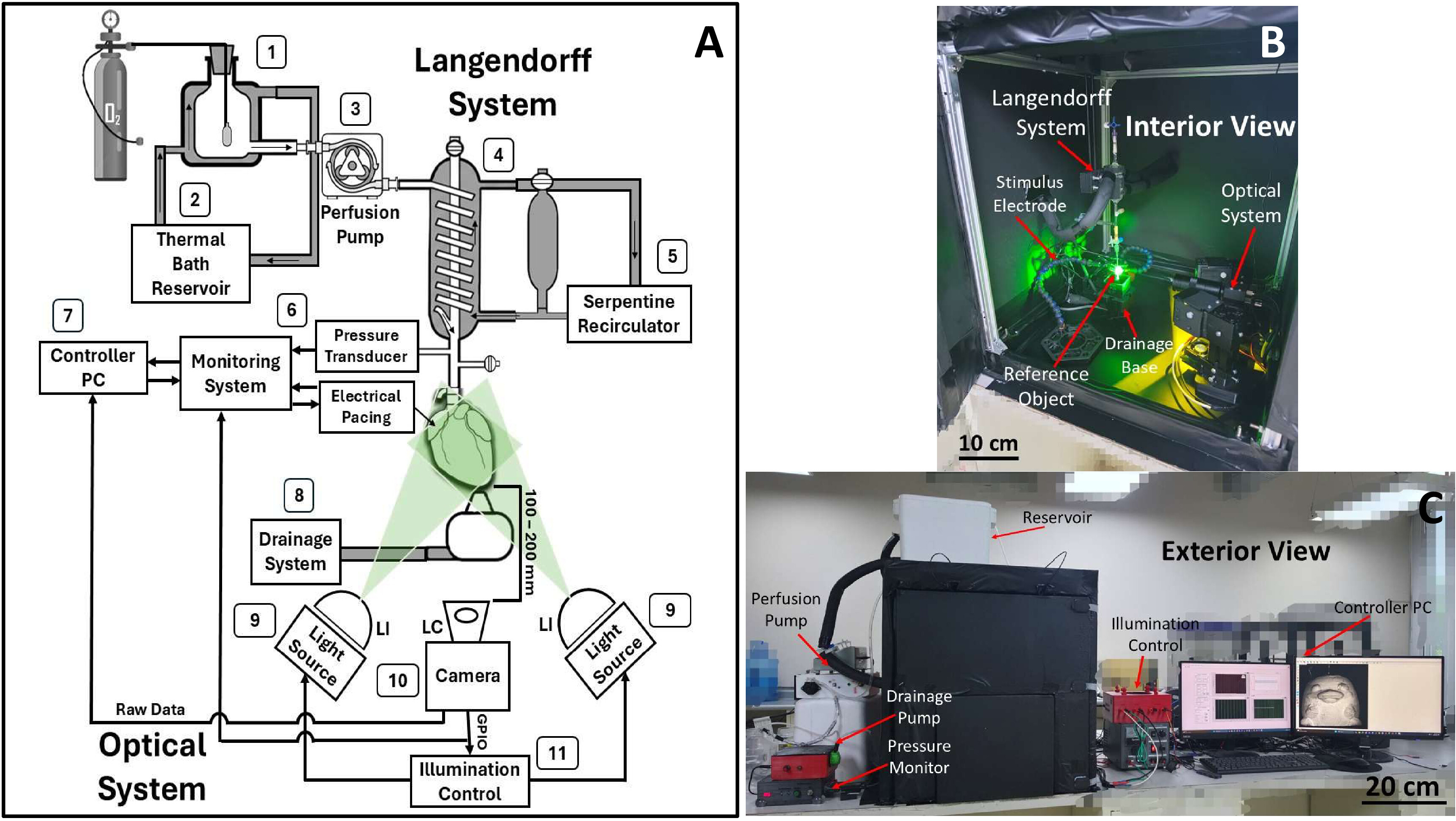

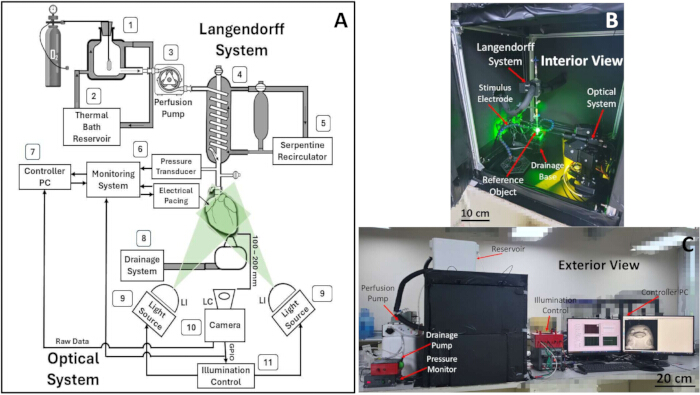

The cardiac mechanical function experiments are performed using the Langendorff apparatus, as shown in Figure 1A (Top). The monitoring and optical systems enable video recording when illumination control is triggered, as shown in Figure 1A (Bottom). Figure 1C illustrates the external view of the thermostatically controlled cabinet, designed to maintain the heart isolated from ambient thermal fluctua.......

Discussion

The mouse heart is very sensitive to temperature variations^2,9,10,11,22. In this experiment, the perfused heart was vertically positioned. We included a slight modification to minimize loss of perfusate temperature and motion artifacts in the Langendorff perfusion method. A recirculation pump was added to the serpentine to minimize loss of perfusate temperatur.......
