Visualization and Mapping of Methoxy-X04-Labeled Amyloid Plaques in an Alzheimer’s Disease Mouse Brain Section
JoVE Encyclopedia of Experiments
Neuroscience
0 views • 3:19 min • May 29th, 2025
Begin with a mouse brain tissue section containing the region of interest in a buffer to maintain hydration during imaging.
The tissue is obtained from an Alzheimer's disease mouse model injected with methoxy X04, a fluorescent dye.

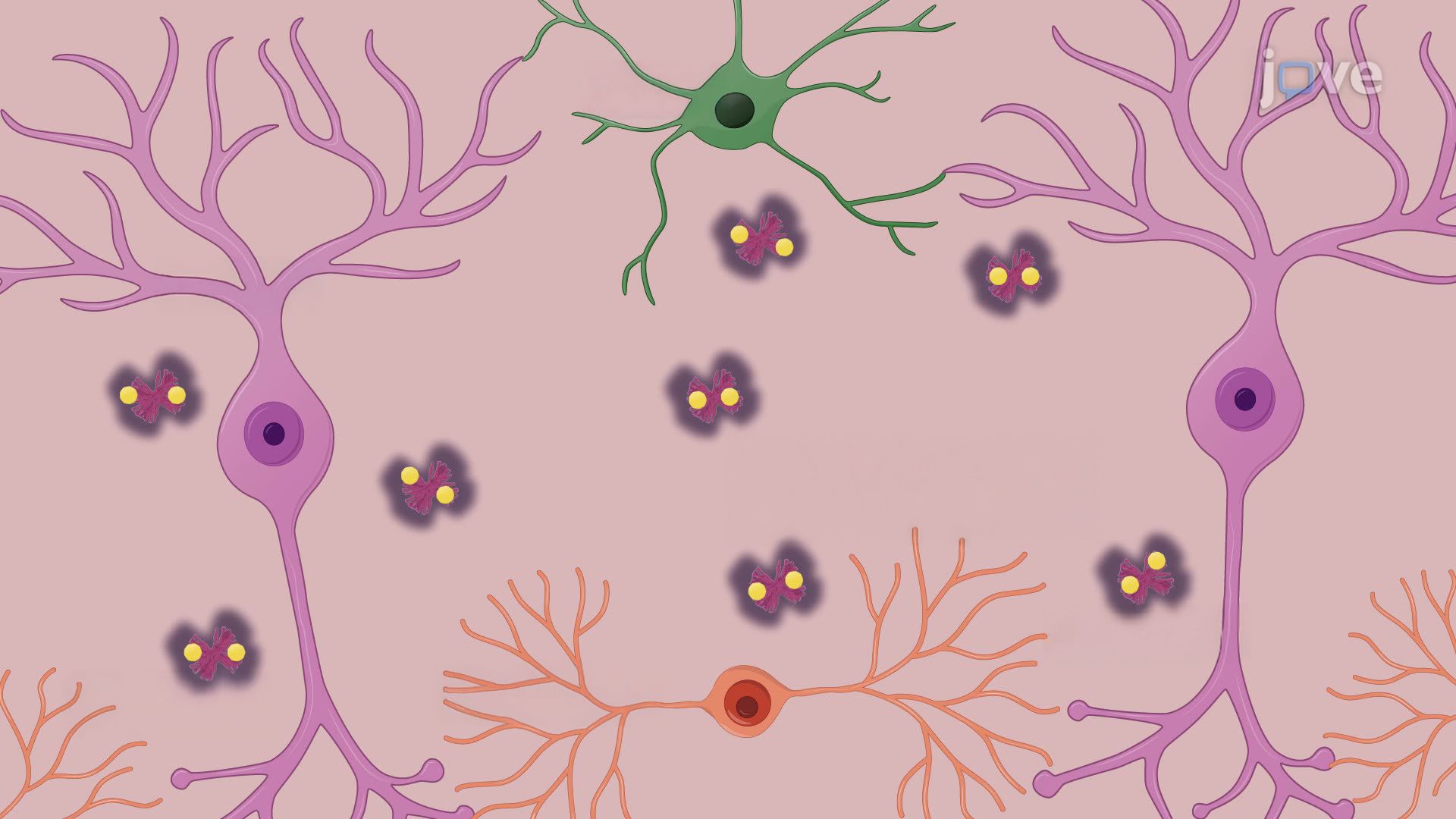

Methoxy X04 specifically binds to β-pleated sheet structures in amyloid plaques and retains its fluorescence for imaging and analysis.
Using a fluorescent microscope with a UV filter, excite the methoxy-X04 and capture the emitted fluorescence to visualize fluorescently labeled amyloid plaques against the surrounding tissue.
Without adjusting the microscope stage, capture images of the same region in bright-field mode to detail tissue structure and fluorescence mode to visualize the plaques.
Align the bright-field and fluorescent images using image processing software to precisely map the plaques onto the anatomical structures.
These images provide detailed visualization of amyloid plaques within their structural context to study Alzheimer's disease pathology.
With the aid of a stereotaxic mouse brain atlas, select brain sections containing the region of interest, and place each section into cryoprotectant in a well of a 24-well culture plate. Next, use a disposable pipette to add a droplet of PBS onto a microscope slide and then place the section on the droplet.
Examine the section under a fluorescent microscope to identify regions containing methoxy-X04-labeled A-beta plaques. Without moving the microscope stage, capture images of the regions of interest in bright field as well as in fluorescence mode. Each image must show the same region in both fields to correlate the plaque to the structural region of the tissue section.
Save and name the images taken according to the animal number. Also, record the well number in the plate and the field of the pictures taken. Place the section back into the designated well once the imaging is completed. Examine the next section in the sequence using the same procedure to avoid drying the sections.
To align the images, open the bright field and UV field images for the same ROI in image J. Then, use the mosaic J Plugin to align the edges of the two images. Save the aligned and combined image according to the well number in a folder, with the number of the particular animal. Combine the images from different sections of the same animal to identify and localize the plaques in the region of interest.
Overview
This article presents a protocol for visualizing and mapping Methoxy-X04-labeled amyloid plaques in mouse brain sections from an Alzheimer's disease model. By combining fluorescence and bright-field microscopy, the method enables precise correlation of amyloid plaques with anatomical structures, facilitating detailed studies of Alzheimer's pathology.
Key Study Components
Area of Science
- Neuroscience
- Microscopy
- Alzheimer's disease research
Background
- Amyloid plaques are a hallmark of Alzheimer's disease pathology.
- Methoxy-X04 is a fluorescent dye that binds specifically to β-pleated sheet structures in amyloid plaques.
- Correlating plaque location with brain anatomy is essential for understanding disease progression.
- Combining light and electron microscopy enhances spatial resolution and context.
Purpose of Study
- To visualize and map amyloid plaques in mouse brain sections using Methoxy-X04 labeling.
- To correlate plaque distribution with anatomical structures via combined imaging modalities.
- To provide a reproducible workflow for studying Alzheimer's disease pathology in animal models.
Methods Used
- Preparation of mouse brain sections from Alzheimer's disease models injected with Methoxy-X04.
- Imaging of tissue sections using fluorescence microscopy to detect labeled plaques.
- Bright-field microscopy to capture anatomical context of the same regions.
- Image alignment and processing using software (e.g., ImageJ and MosaicJ plugin) to overlay fluorescence and bright-field images.
Main Results
- Successful visualization of Methoxy-X04-labeled amyloid plaques within mouse brain sections.
- Accurate mapping of plaques onto anatomical structures by aligning fluorescence and bright-field images.
- Generation of composite images that localize plaques in specific brain regions.
- Establishment of a workflow for systematic analysis across multiple brain sections and animals.
Conclusions
- The protocol enables detailed spatial analysis of amyloid plaques in relation to brain anatomy.
- Combining fluorescence and bright-field imaging provides comprehensive insights into Alzheimer's pathology.
- This method supports reproducible and high-resolution studies of plaque distribution in animal models.
Frequently Asked Questions
Executive Industry Relevance
Precise visualization and mapping of Methoxy-X04-labeled amyloid plaques in Alzheimer’s disease mouse brain sections enables high-resolution spatial analysis of disease pathology. This workflow supports early-stage target validation and mechanistic de-risking by correlating pathological features with anatomical context. The approach enhances predictive confidence for translational research and portfolio triage in neurodegenerative disease pipelines.
Strategic Applications in Biopharma R&D
Early Discovery & Target Validation
- Enables interrogation of amyloid plaque distribution within defined brain regions for mechanistic insight.
- Supports biological de-risking by mapping pathological features to anatomical structures.
- Facilitates functional target validation through spatial correlation of disease markers.
- Improves predictive confidence for advancing neurodegeneration targets.
Screening & Assay Development
- Prepares validated brain sections for downstream quantitative imaging workflows.
- Standardizes imaging and mapping protocols for reproducibility across studies.
- Generates quantitative outputs for plaque localization and burden assessment.
- Enables reliable evaluation of candidate interventions in preclinical models.
Translational & Preclinical Research
- Aligns disease-relevant imaging with translational biomarker strategies.
- Provides continuity from discovery through preclinical validation of Alzheimer’s pathology.
- Supports risk-adjusted advancement decisions based on spatial pathology data.
- Enhances predictive de-risking for neurodegenerative disease programs.
Pipeline & Workflow Integration
This imaging and mapping protocol integrates into the discovery-to-preclinical continuum for Alzheimer’s disease research, supporting both early mechanistic studies and translational biomarker development.
- Discovery Biology: Enables hypothesis testing and pathway clarification by mapping amyloid pathology to brain regions.
- Screening: Provides standardized, reproducible imaging outputs for quantitative comparison.
- Analytics: Delivers spatially resolved measurements for cross-condition analysis and decision-making.
- Translational Research: Supports biomarker alignment and preclinical continuity for Alzheimer’s models.
- Enterprise Reuse: Establishes a reusable imaging and mapping capability for neurodegeneration portfolios.
Operational & Enterprise Impact
- Scientific Value: Increases predictive confidence and reduces mechanistic ambiguity in Alzheimer’s research.
- Operational Value: Standardizes imaging workflows for reproducibility and scalability across studies.
- Strategic Value: Informs go/no-go decisions and improves capital efficiency in neurodegeneration pipelines.
- Portfolio Impact: Enables risk-adjusted prioritization and advancement of disease-modifying candidates.
Implementation Considerations
- Requires expertise in fluorescence and bright-field microscopy for accurate imaging.
- Needs access to image processing software and analytical infrastructure for alignment and mapping.
- Demands cross-team standardization of imaging protocols and data management.
- Adaptation may be needed for different animal models or fluorescent stains.
- Dependent on tissue quality and precise anatomical sectioning for optimal results.
