Carrier-assisted One-pot Sample Preparation for Targeted Proteomics Analysis of Small Numbers of Human Cells

Summary

A protein carrier-assisted one-pot sample preparation coupled with liquid chromatography (LC) - selected reaction monitoring (SRM) termed cLC-SRM is a convenient method for multiplexed targeted proteomics analysis of small numbers of cells, including single cells. It capitalizes on using excessive exogenous protein as a carrier and high-specificity LC-SRM for targeted quantification.

Abstract

Protein analysis of small numbers of human cells is primarily achieved by targeted proteomics with antibody-based immunoassays, which have inherent limitations (e.g., low multiplex and unavailability of antibodies for new proteins). Mass spectrometry (MS)-based targeted proteomics has emerged as an alternative because it is antibody-free, high multiplex, and has high specificity and quantitation accuracy. Recent advances in MS instrumentation make MS-based targeted proteomics possible for multiplexed quantification of highly abundant proteins in single cells. However, there is a technical challenge for effective processing of single cells with minimal sample loss for MS analysis. To address this issue, we have recently developed a convenient protein carrier-assisted one-pot sample preparation coupled with liquid chromatography (LC) - selected reaction monitoring (SRM) termed cLC-SRM for targeted proteomics analysis of small numbers of human cells. This method capitalizes on using the combined excessive exogenous protein as a carrier and low-volume one-pot processing to greatly reduce surface adsorption losses as well as high-specificity LC-SRM to effectively address the increased dynamic concentration range due to the addition of exogeneous carrier protein. Its utility has been demonstrated by accurate quantification of most moderately abundant proteins in small numbers of cells (e.g., 10-100 cells) and highly abundant proteins in single cells. The easy-to-implement features and no need for specific devices make this method readily accessible to most proteomics laboratories. Herein we have provided a detailed protocol for cLC-SRM analysis of small numbers of human cells including cell sorting, cell lysis and digestion, LC-SRM analysis, and data analysis. Further improvements in detection sensitivity and sample throughput are needed towards targeted single-cell proteomics analysis. We anticipate that cLC-SRM will be broadly applied to biomedical research and systems biology with the potential of facilitating precision medicine.

Introduction

Recent technological advances in genomics (transcriptomics) allow for comprehensive and precise analysis of the genome (transcriptome) in single cells^1,2,3. However, single-cell proteomics technologies are lagging far behind but are just as important as genomics (transcriptomics) technologies^4,5,6,7,8. Furthermore, protein abundance cannot necessarily be inferred from mRNA abundance⁹, and the proteome is more complex and dynamic than the transcriptome¹⁰. Given these challenges, a large number of mixed populations of cells (i.e., bulk cells) are generally used to generate comprehensive proteome data^11,12,13. However, such bulk measurements average out stochastic variations of individual cells, thus obscure important cell-to-cell variability (i.e., cell heterogeneity)^4,14. Limitations of such bulk measurements become even more severe when the cells of interest only account for a small portion of the total populations of cells (e.g., cancer stem cells within tumors at an early-stage cancer). Therefore, there is a huge knowledge gap between single-cell proteomics and genomics (transcriptomics).

Antibody-based immunoassays (e.g., flow or mass cytometry) are predominantly used for targeted proteomic analysis of single cells^{6,7,15,16,17,18}. However, they suffer from low multiplex, limited specificity, and unavailability of antibodies for new proteins of interest. Mass spectrometry (MS)-based targeted proteomics has emerged as an alternative for accurate protein quantification because of its being antibody-free, high multiplex (≥150 proteins in a single analysis¹⁹), high quantitation accuracy (absolute amounts or concentrations), and high specificity and reproducibility (≤10% CV)^20,21,22,23. Recent significant progress in sample preparation has made MS-based single-cell proteomics possible for quantitative analysis of highly abundant proteins from single human cells. However, MS-based single-cell proteomics is still at the early infancy stage. For example, the most advanced MS platform coupled with ultralow-flow RPLC flow rates can only allow label-free MS detection and quantification of ~670-870 proteins out of the total ≥12,000 proteins in single HeLa cells^24,25.

Currently, there are six MS-based single-cell proteomics approaches available for analysis of single mammalian cells, in which four are for global proteomics (nanoPOTS: nanowell-based Preparation in One pot for Trace Samples²⁶; iPAD-1: integrated proteome analysis device for single-cell analysis²⁷; OAD (oil-air-droplet) chip-based single cell proteomic analysis²⁸; SCoPE-MS: single cell proteomics by mass spectrometry²⁹) and the other two are for targeted proteomics (cLC-SRM: carrier-assisted liquid chromatography (LC) - selected reaction monitoring (SRM)³⁰; cPRISM-SRM: carrier-assisted high pressure, high-resolution separations with intelligent selection and multiplexing coupled to SRM³¹). However, all these approaches have technical drawbacks. nanoPOTS, iPAD-1, and OAD downscale sample processing volume to 2-200 nL and are not ready for broad benchtop applications^26,27,28. For SCoPE-MS, a TMT (tandem mass tag) carrier is added after single-cell processing, so it cannot effectively prevent surface adsorption losses during sample processing when a single tube is used for single-cell processing²⁹, resulting in low reproducibility with a correlation coefficient of only ~0.2-0.4 between replicates³². For cLC-SRM and cPRISM-SRM, using exogenous proteins as a carrier is more suitable for targeted proteomics because peptides from excessive exogenous proteins are frequently sequenced by MS/MS, which greatly reduces the chance for sequencing low abundant endogenous peptides^30,31. Unlike global proteomics for relative quantification, the two targeted proteomics approaches can provide accurate or absolute protein analysis of small numbers of cells with high reproducibility using heavy isotope-labeled internal standards at known concentrations. When compared to cPRISM-SRM that requires prior high-resolution PRISM fractionation, resulting in many fraction samples that need to be analyzed, cLC-SRM has a significant advantage in sample throughput without fractionation and can simultaneously quantify hundreds of proteins in a single analysis but with relatively lower detection sensitivity³⁰. Therefore, cLC-SRM is more accessible and should have broader utilities for accurate multiplexed protein analysis of small numbers of cells as well as mass-limited samples.

Herein we describe a detailed protocol to perform cLC-SRM for convenient targeted proteomics analysis of small numbers of human cells, including single cells. The protocol consists of the following major steps: cell sorting by FACS (fluorescence activated cell sorting), cell lysis and digestion processed in low-volume single polymerase chain reaction (PCR) tubes, LC-SRM data collection, and SRM data analysis using publicly available Skyline software (Figure 1). Its broad utility was demonstrated along with our previously well-established SRM assays by absolute targeted quantification of EGFR/MAPK pathway proteins in 1-100 MCF7 or MCF10A cells and determination of pathway protein copies per cell at a wide dynamic range of concentrations³⁰. We anticipate that with the detailed protocol most proteomics researchers can readily implement cLC-SRM in their laboratories for accurate protein analysis of ultrasmall samples (e.g., rare tumor cells) to meet their project needs.

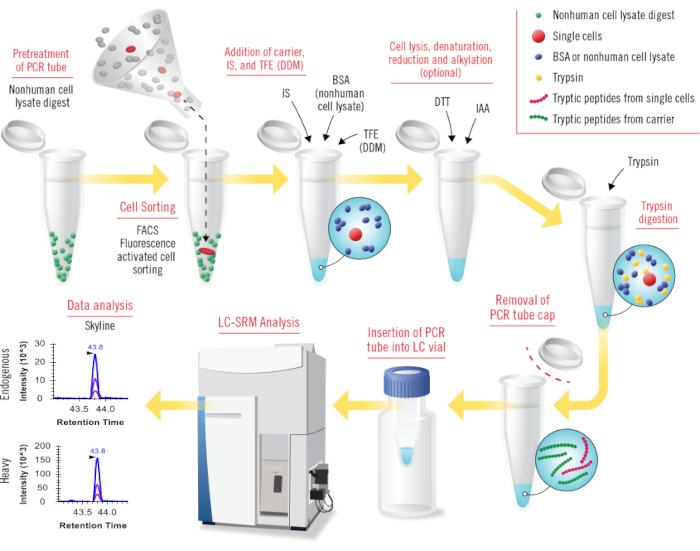

Figure 1: Overview of all steps in cLC-SRM (carried-assisted one-pot sample preparation coupled with liquid chromatography -selected reaction monitoring). Nonhuman cell lysate digests (e.g., Shewanella oneidensis) are used to pretreat PCR tubes for coating tube surface. Small numbers of human cells or single cells sorted by FACS are collected into pretreated PCR tubes. BSA protein (or nonhuman cell lysate proteome) carrier, heavy internal standard (IS), and TFE (or DDM) are added into sample tubes sequentially for facilitating cell lysis and reducing surface adsorption losses. Conceptually, the combined DDM and nonhuman cell lysate proteome carrier will work well for cLC-SRM. Cell lysis is conducted by sonication, and protein denaturation is achieved by heating at high temperature. DTT and IAA reagents are used for reduction and alkylation, respectively (this step is optional). Trypsin is added for digestion with much higher ratios of trypsin over protein amount than that for standard trypsin digestion. The cap of sample tube is removed and then PCR tube is inserted into LC vial for direct LC-SRM analysis. Collected SRM data are analyzed by using publicly available Skyline software. Please click here to view a larger version of this figure.

Protocol

NOTE: The step-by-step cLC-SRM analysis is shown in Figure 1.

1. Pretreatment of PCR tubes

1. Add 100 µL of nonhuman (e.g., Shewanella oneidensis) cell lysate digests at 0.2 µg/µL to PCR tubes. Incubate at room temperature for overnight to coat PCR tube surface.
2. Remove the cell lysate digests by pipetting, rinse PCR tubes with HPLC-grade water 3 times, and then airdry PCR tubes in a fume hood.
3. Store coated PCR tubes in a 4 ˚C freezer till further use.

2. FACS sorting

1. Align a fluorescence-activated cell sorter (FACS) (see Table of Materials) into a 96-well PCR plate using fluorescent beads with dyes that can be excited by the laser source to provide reliable reference signals.
2. Verify that the FACS machine is well aimed for sorting cells into the bottom of PCR plates.
   1. Set the angle of the sort stream to the minimum possible to maximize the success rate that the cells will be sorted into the bottoms of wells rather than hit the sides.
   2. To aim the machine, use the test stream to 'sort' droplets of PBS buffer (e.g., 100 droplets) onto the well of an empty plate to make sure that the collected droplets are on the bottom. If the droplets do not land in the right position, recalibrate the cell sorter and repeat till the droplets in the sort stream are collected correctly.
3. Place the coated PCR tubes into a 96-well PCR tube rack.
4. Sort desired numbers of human breast cells (MCF7 or MCF10A) into precoated PCR tubes.
5. Immediately centrifuge the sorted breast cells at 100 x g for 10 min at 4 °C to keep them at the bottom of the tube to avoid potential cell loss.
6. Store the sorted cells in a -80 °C freezer until further analysis.

3. Addition of protein carrier, heavy internal standards, and TFE

1. Add 4 µL of 25 mM NH₄HCO₃ into PCR tubes containing collected cells.
2. Add 1 µL of 10 ng/µL bovine serum albumin (BSA) in 25 mM NH₄HCO₃ into sample tubes.
3. Add 0.3 µL of 100 fmol/µL crude heavy peptide standards (total 30 fmol) into sample tubes.
   NOTE: Aliquots of crude heavy peptide standards for EGFR/MAPK pathway proteins are made at a nominal concentration of 100 fmol/µL in 25 mM NH₄HCO₃. Dispense the small volume of crude heavy peptide standards at 100 fmol/µL into the middle of the solution and make sure there is no left-over liquid in the pipet tip.
4. Add 9 µL of 100% TFE into sample tubes with the final concentration of ~60% TFE.
5. Centrifuge at 1500 x g for 5 min and then gently vortex at 100 x g for 3 min.

4. Cell lysis and protein denaturation

1. Sonicate FACS-sorted breast cells on ice for 1 min with 1-min intervals for a total of 5 cycles at the 70% amplitude and 0.5 Hz.
2. Incubate samples at 90 °C for 1 h for protein denaturation using a PCR thermocycler with the heated-lid option.
   NOTE: TFE is a volatile solvent with a boiling point of 74 °C, and thus the heated-lid option is selected to avoid complete drying with substantial sample loss.
3. Cool samples to room temperature with centrifugation at 1500 x g for 3 min.

5. Reduction and alkylation (optional)

1. Add 0.6 µL of 50 mM DTT for a final concentration of 2 mM.
   NOTE: DTT solution needs to be freshly prepared each time. Weigh 77.5 mg of DTT and then dissolve into 1 mL of 25 mM NH₄HCO₃ to make 500 mM DTT. 10 µL of 500 mM DTT is then added into 90 µL of 25 mM NH₄HCO₃ to make 50 mM DTT.
2. Centrifuge at 1500 x g for 5 min and then gently mix at 850 rpm for 3 min.
3. Incubate at 56°C for 1 h with gentle shaking at 100 x g.
4. Cool samples to room temperature and centrifuge at 1500 x g for 3 min.
5. Add 0.5 µL of 60 mM IAA to the RT-PCR tube with the final concentration of ~2 mM.
   NOTE: IAA solution needs to be freshly prepared each time. Weigh 74.3 mg of IAA and then dissolve into 1 mL of 25 mM NH₄HCO₃ to make 400 mM IAA. 15 µL of 400 mM IAA is added into 85 µL of 25 mM NH₄HCO₃ to make 60 mM IAA.
6. Incubate in the dark at room temperature for 30 min with gentle shaking at 100 x g.
   ​NOTE: The reduction and alkylation steps are optional when there are no cysteine-containing peptides selected for target proteins.

6.Trypsin digestion

1. Reduce the sample volume to ~4 µL using a SpeedVac concentrator.
   NOTE: TFE is a volatile solvent with boiling point at 74°C. High percentage TFE inhibits trypsin digestion.
2. Add 9 µL of 25 mM NH₄HCO₃ and 1-3 µL of 15 ng/µL trypsin for digestion with the final trypsin concentration of 1-3 ng/µL.
   ​NOTE: For 10 FACS-sorted human breast cells (~1 ng), the ratio of trypsin enzyme over protein is ≥15:1, 750-fold higher than that in standard trypsin digestion (the ratio of 1:50).
3. Mix gently at 100 x g for 3 min and incubate overnight (~16 hours) at 37 °C.
4. Add 0.5 µL of 5% formic acid to stop the enzymatic reaction.
5. Centrifuge for 1 h at 1500 x g.
6. Store in -80 °C freezer until further LC-SRM analysis or in 4 °C freezer for immediate analysis.

7. Preparation for direct LC-SRM analysis

1. Remove the cap of the PCR tube that was used for collection (Step 2) and processing (Step 6) of FACS-sorted breast cells.
2. Insert PCR tube into LC vial.
3. Close the LC vial for LC-SRM analysis.
   ​NOTE: For small numbers of cells processed in 96-well PCR plate, the mat cover will be added to seal the plate for direct LC-SRM analysis.

8. LC-SRM analysis

1. Analyze samples using UPLC coupled to a triple quadrupole mass spectrometer.
2. Connect capillary C18 columns (75 µm i.d. × 20 cm for standard gradient and 100 µm i.d. × 10 cm for short gradient) to a chemically etched 20 µm i.d. fused silica electrospray emitter via a stainless metal union.
3. Use a 20 µL sample loop for directly loading all of the sample (~15 µL in total) into the LC column to maximize detection sensitivity.
4. Use 0.1% formic acid in water and 0.1% formic acid in 90% acetonitrile as mobile phases A and B for capillary RPLC separation.
5. Use the binary LC gradient at flow rates of 300 nL/min for a standard gradient when large numbers of target proteins (>10) are measured. Standard gradient: 5-20% B in 26 min, 20-25% B in 10 min, 25-40% B in 8 min, 40-95% B in 1 min and at 95% B for 7 min for a total of 52 min and the analytical column re-equilibrated at 99.5% A for 8 min.
6. Use the binary LC gradient at flow rates of 400 nL/min for a short gradient when small numbers of target proteins (≤10) are measured. Short gradient for fast separation: 5-95% B in 5 min and the analytical column re-equilibrated at 99.5% A for 5 min with a total 10 min LC run time.
7. Operate the QQQ mass spectrometer with ion spray voltages of 2,400 ± 100 V, a capillary offset voltage of 35 V, a skimmer offset voltage of -5 V and a capillary inlet temperature of 220° C.
8. Obtain the other QQQ MS parameters from automatic tuning and calibration without further optimization.
9. Spike different concentrations of crude heavy peptide standards into 20-50 ng/µL of nonhuman cell lysate digests before LC-SRM analysis of samples to determine peptide LC retention time (RT) for building a scheduled SRM method and potential interference transitions for accurate quantification.
10. Use the RT scheduled SRM mode for multiplexed quantification with the scan window of ≥6 min.
    ​NOTE: The scan window will be adjusted accordingly depending on the number of transitions in a certain time window.
11. Set the total cycle time to 1 s, and the dwell time for each transition is automatically adjusted depending on the number of transitions scanned at different retention time windows. A minimal dwell time of 10 ms is needed for each SRM transition. All target proteins can be simultaneously monitored in a single LC-SRM analysis

9. Data Analysis

1. Import raw data files into publicly available Skyline software³³ for data visualization of each target peptide to determine their detectability.
2. Use two criteria to determine SRM peak detection and integration: 1) same LC retention time; 2) approximately the same relative SRM peak intensity ratios across multiple transitions between endogenous (light) peptides and their corresponding (heavy) isotope-labeled peptide internal standards.
3. Inspect all the SRM data manually to ensure correct SRM peak assignment and SRM peak boundary for reliable quantification using the above two criteria.
4. Use the best transition with a high SRM signal but without matrix interference for protein quantification, and use the other transitions as a reference.
5. Use multiple replicates to obtain the standard deviation (SD) and coefficient of variation (CV).
6. Calculate the signal-to-noise ratio (S/N) by the peak apex intensity over the average background noise within a retention time region of ±15 s for standard gradient and ±6 s for short gradient. The limit of detection (LOD) and the limit of quantification (LOQ) are defined as the lowest concentration points at which the S/N ratio is at least 3 and 7, respectively.
7. Apply one additional criteria for conservatively determining the LOQ values besides S/N ≥7: surrogate peptide response against different cell numbers must be within the linear dynamic range.
8. Use the Excel software to plot all calibration curves. Load the RAW data from QQQ MS into publicly available Skyline software to display graphs of extracted ion chromatograms (XICs) of multiple transitions of target proteins monitored.

Results

Small amounts of MCF7 cell lysates (0.5-20 ng equivalent to 5-200 cells) were first used to evaluate the performance of cLC-SRM by targeted quantification of EGFR/MAPK pathway proteins because they are more uniform with less variations when compared to small numbers of cells sorted by FACS. As shown in Figure 2A, XICs clearly shows detection of SRM transitions for ATADDELSFK derived from GRB2 present at ~220,000 copies per MCF7 cell³⁴....

Discussion

cLC-SRM is a convenient targeted proteomics method that enables accurate multiplexed protein analysis of small numbers of cells including single cells. This method capitalizes on protein carrier-assisted one-pot sample preparation, in which all steps including cell collection, multistep cell lysis and digestion, and transfer of peptide digests to capillary LC column for MS analysis are performed in one pot (e.g., single tube or single well) (Figure 1). This 'all-in-one' low-volume on...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
2 mL glass LC vial	Microsolv	9502S-WCV	Vessel to hold PCR tube for autosample injection
BSA	Sigma-Aldrich	P0834-10×1mL	Carrier protein for greatly reducing surface adsorption losses
DTT	Thermo Scientific	A39255	Reagent for reduction
Formic acid	Thermo Scientific	28905	Reagent for stopping enzyme reaction
IAA	Thermo Scientific	A39271	Reagent for alkylation
Peptide internal standards	New England peptide		Targeted quantification of EGFR/MAPK pathway proteins
RT-PCR tube	GeneMate Bioexpress	T-3035-1	0.2 mL PCR tube for one-pot sample preparation
Skyline software	University of Washington		Publicly available for SRM data analysis
Sonicator	Hielscher Ultrasound Technology	UTR200	Sonication on ice for cell lysis
Speed Vac concentrator	Thermo Scientific		Reduction of the percentage of TFE for effective trypsin digestion
TFE	Sigma-Aldrich	18370-10×1mL	60% TFE for cell lysis
Thermocycler w/ heated lid	Peltier Thermal Cycler	PTC-200	Heating for protein denaturation
Trypsin Gold	Promega	V528A	Enzyme for protein digestion
Waters BEH C18 column	Waters		C18 column for peptide separation
