Magnetic Nano-Actuation Platform for Remote and Controllable Mechanostimulation of Schwann Cells with Real-Time Confocal Imaging

Summary

This protocol presents a microscope-compatible magnetic nano-actuation platform integrating fluorescent superparamagnetic nanoparticles, a calibrated electromagnet, and real-time confocal imaging to remotely and controllably stimulate Schwann cells and dynamically monitor their mechanosensory responses.

Abstract

Mechanical forces critically regulate cellular behavior, yet many existing methods of mechanical stimulation rely on direct physical contact or artificially engineered extracellular environments, thereby limiting their flexibility in dynamic live-cell studies. Here, we present a magnetic nano-actuation platform for remote, non-contact, and controllable mechanostimulation of Schwann cells in vitro. This integrated setup enables remote magnetic stimulation and synchronized live-cell imaging in the same experimental session. This manuscript describes the preparation of fluorescent superparamagnetic nanoparticles (SPIONs), optionally actin-targeting functionalized SPIONs (f-SPIONs), the construction and calibration of a microscope-compatible electromagnetic stimulation device, the estimation of magnetic forces at the single-particle and single-cell levels, and the integration of magnetic actuation with real-time confocal imaging. Schwann cells are highly mechanosensitive glial cells that play essential roles in the development, maintenance, and repair of peripheral nerves. Real-time monitoring of their responses to mechanical stimulation is crucial for understanding how mechanical forces influence cytoskeletal organization and cellular behavior. This platform provides a reproducible workflow for studying Schwann cell mechanobiology and may be adapted to other mechanically responsive cell types and multicellular systems.

Introduction

Mechanical cues regulate a wide range of cellular processes, including adhesion, migration, proliferation, differentiation, and phenotypic plasticity^1,2,3. Studies in mechanobiology have shown that both neurons and glial cells exhibit pronounced mechanosensitivity and responsiveness throughout development^4,5,6,7. To investigate how cells sense and respond to force, multiple experimental approaches have been developed, including atomic force microscopy (AFM), micropipette aspiration, optical tweezers, stretch-based culture systems, and microfluidic platforms^8,9,10,11,12. These techniques have greatly advanced the study of mechanotransduction. However, many require direct physical contact with cells or depend on predefined artificial mechanical environments, making them less suitable for remote, dynamically controllable, and imaging-compatible stimulation.

Magnetic nanoparticle-mediated force delivery offers an alternative strategy for remote mechanostimulation^{13,14,15,16,17,18}. Because most biological tissues exhibit low magnetic susceptibility, externally applied magnetic fields can penetrate biological samples without direct contact and selectively act on magnetically responsive particles delivered into cells or tissues. In the presence of a magnetic field gradient, these particles experience directional forces that can be used to impose mechanical perturbations at the subcellular, cellular, or tissue level^8,9. This approach is attractive because it is non-contact, tunable, compatible with live imaging, and potentially extendable to more complex biological systems.

Schwann cells are highly mechanosensitive glial cells^19,20 that play critical roles in peripheral nerve development, maintenance, and repair^21,22. Dynamic observation of Schwann cell responses to physical stimulation is important for understanding how force regulates cytoskeletal organization and cell behavior. However, many conventional force-delivery systems are not readily compatible with real-time high-resolution microscopy. To address this limitation, we developed a magnetic nano-actuation platform that combines actin cytoskeleton-targeting fluorescent magnetic superparticles (f-SPIONs), a custom electromagnetic device compatible with a confocal microscope stage, and a quantitative framework for force estimation. This integrated setup enables remote magnetic stimulation and synchronized live-cell imaging in the same experimental session.

The workflow described here includes preparation of fluorescent magnetic superparticles (SPIONs), optional phalloidin-based actin-targeting functionalization to generate f-SPIONs, nanoparticle characterization, electromagnetic device construction and field calibration, magnetic force estimation, and combined magnetic stimulation with real-time confocal imaging. Although optimized here for Schwann cells, the platform may provide a practical framework for related studies in other mechanically responsive living systems.

Protocol

The experiments described in this protocol used an established rat Schwann cell line (RSC96) and did not involve human participants or live animals. This study was conducted as part of a broader research project involving animal experiments, which was approved by the Animal Welfare and Ethics Committee of the First Hospital of Jilin University (Approval No. 2022-0045).

1. Preparation of fluorescent magnetic superparticles

1. Synthesize oleic acid-coated Fe₃O₄ nanoparticles.
   ​NOTE: Oleic acid-coated Fe₃O₄ nanoparticles were synthesized by thermal decomposition as described previously^20,23.
   1. Add 2 mmol of Fe(acac)₃, 6 mmol of oleic acid, 6 mmol of oleylamine, and 5 mmol of 1,2-hexadecanediol to 20 mL of benzyl ether in a reaction flask.
   2. Stir the mixture under a nitrogen atmosphere for 15 min until a homogeneous precursor solution is obtained.
   3. Heat the mixture to 200 °C at a rate of 20 °C/min.
   4. Maintain the reaction at 200 °C for 30 min.
   5. Increase the temperature to 265 °C and reflux the mixture for 30 min.
   6. Allow the reaction mixture to cool naturally to room temperature.
   7. Collect the Fe₃O₄ nanoparticles by magnetic separation.
   8. Wash the nanoparticles 3 times with ethanol.
   9. Redisperse the purified nanoparticles in toluene.
2. Assemble Fe₃O₄·Cy3.5 superparticles.
   ​NOTE: Fe₃O₄·Cy3.5 superparticles were prepared as described previously^20,24,25.
   1. Disperse 28 mg of oleic acid-coated Fe₃O₄ nanoparticles in 4 mL of toluene in a 50 mL three-necked round-bottom flask.
   2. Prepare an aqueous phase containing 12.5 mg of sodium dodecyl sulfate and 3 mg of Cyanine 3.5 (Cy 3.5) in 12.5 mL of water.
   3. Combine the Fe₃O₄ nanoparticle suspension in toluene (28 mg in 4 mL; 7 mg/mL) with the aqueous surfactant/dye solution to form an oil-in-water microemulsion.
   4. Mix thoroughly until a stable emulsion is obtained.
   5. Heat the three-necked round-bottom flask to 60 °C and stir continuously at 300 rpm for 6 h.
      NOTE: No reduced-pressure or rotary evaporation procedure is required.
   6. Evaporate the toluene under the conditions described above to induce the aggregation of the Fe₃O₄ nanoparticles. Using a disposable transfer pipette, transfer a small aliquot of the solution into a test tube and allow it to stand. The absence of phase separation indicates that the toluene has been completely removed.
   7. Transfer the Fe₃O₄·Cy3.5 superparticle suspension into 15 mL centrifuge tubes. Centrifuge at 2,370 × g for 5 min at room temperature to collect the superparticles, and carefully discard the supernatant without disturbing the pellet.
   8. Redisperse the pellet in ultrapure deionized water and centrifuge again at 2,370 × g for 5 min at room temperature. Discard the supernatant and repeat the washing procedure three times to remove residual free Cy3.5 dye and sodium dodecyl sulfate.
3. Coat the superparticles with polydopamine (PDA).
   ​NOTE: Polydopamine-coated superparticles were prepared as described previously^20,26.
   1. Centrifuge the Fe₃O₄·Cy3.5 superparticle suspension at 2,370 × g for 5 min at room temperature, and discard the supernatant.
   2. Redisperse the pellet in 10 mM Tris buffer (pH 8.5).
   3. Add 26 mg of dopamine monomer to the suspension.
   4. Stir the mixture at room temperature for 3 h under alkaline conditions.
   5. Centrifuge the suspension at 2,370 × g for 5 min at room temperature.
   6. Remove the supernatant and redisperse the pellet in ultrapure water to obtain Fe₃O₄·Cy3.5@PDA particles (SPIONs).
4. Optionally functionalize the particles with phalloidin-Alexa Fluor 350.
   ​NOTE: The superparticles were surface-functionalized using commercially available phalloidin-Alexa Fluor 350²⁰.
   1. Prepare 5 mL of aqueous solution containing 100 units of phalloidin-Alexa Fluor 350.
   2. Add 200 µL of Fe₃O₄·Cy3.5@PDA suspension containing 2 mg of particles to the solution.
   3. Stir the mixture gently at room temperature for 24 h.
   4. Centrifuge the mixture at 2,370 × g for 5 min at room temperature.
   5. Discard the supernatant and redisperse the pellet in deionized water.
   6. Store the final Fe₃O₄·Cy3.5@PDA@phalloidin (f-SPIONs) formulation protected from light until use.

2. Characterization of the nanoparticles

1. Determine morphology and size.
   1. Prepare nanoparticle samples for transmission electron microscopy (TEM) or high-resolution transmission electron microscopy (HRTEM) according to the instrument requirements.

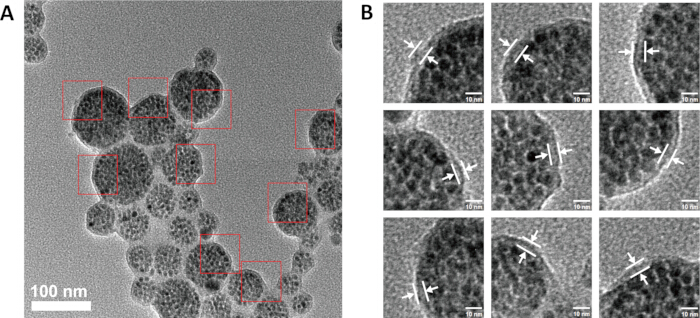

   2. Acquire images to determine the overall particle morphology, core-shell structure, and average diameter (Figure 1).

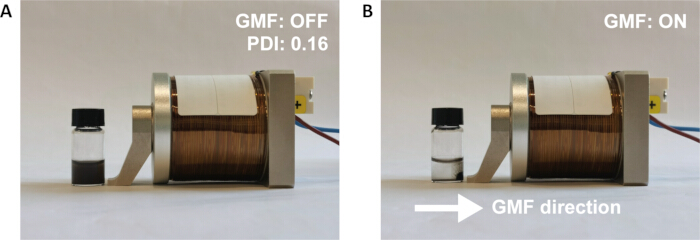

   3. Prepare aqueous nanoparticle suspensions for dynamic light scattering (DLS).
   4. Measure the hydrodynamic diameter and polydispersity index (PDI).
   5. Compare electron microscopy and DLS results to assess formulation uniformity and colloidal behavior.
2. Determine magnetic properties.
   1. Prepare dried or concentrated nanoparticle samples suitable for superconducting quantum interference device (SQUID) analysis.

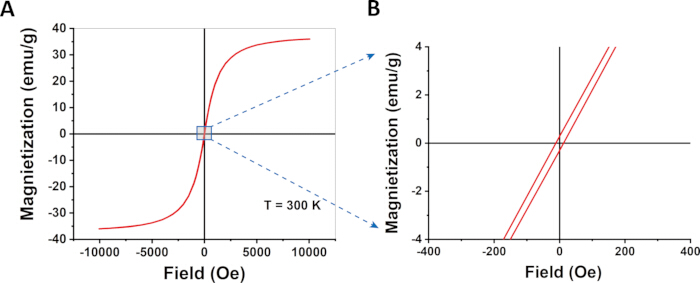

   2. Record magnetic hysteresis curves at 300 K.
   3. Determine saturation magnetization, remanence, and coercivity.
   4. Confirm that the particles exhibit superparamagnetic behavior with negligible remanence and coercivity.
3. Determine fluorescence properties.
   1. Prepare an f-SPION suspension in ultrapure deionized water and transfer the suspension to a quartz cuvette.
   2. Record photoluminescence spectra using a fluorescence spectrophotometer.
   3. Confirm that the fluorescent signal remains detectable after washing and resuspension.
4. Validate actin-associated localization when using the targeted formulation.
   1. Obtain RSC96 cells.
      ​NOTE: The RSC96 cells used in this study, a spontaneously transformed rat Schwann cell line established through long-term culture of primary rat Schwann cells, were obtained from the Cell Bank of the Chinese Academy of Sciences, Shanghai, China (CSTR: 19375.09.3101RATGNR6) and tested negative for mycoplasma and fungal contamination. Cells at passages 3–10 were used.
   2. Culture the cells in Dulbecco’s modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin–streptomycin solution (100 U/mL penicillin and 100 µg/mL streptomycin).
   3. Seed RSC96 cells at a density of 1 × 10⁵ cells per 35 mm cell culture microscopy dish and culture them for 24 h at 37 °C in a humidified atmosphere containing 5% CO₂ to allow cell attachment.
   4. Aspirate the existing culture medium, wash the cells twice with phosphate-buffered saline (PBS), and add complete culture medium containing 15 µg/mL f-SPIONs. Incubate the cells with f-SPIONs for 12 h.
   5. Aspirate the culture medium and wash the cells twice with ice-cold PBS containing 1 mM deferoxamine to thoroughly remove non-internalized particles.

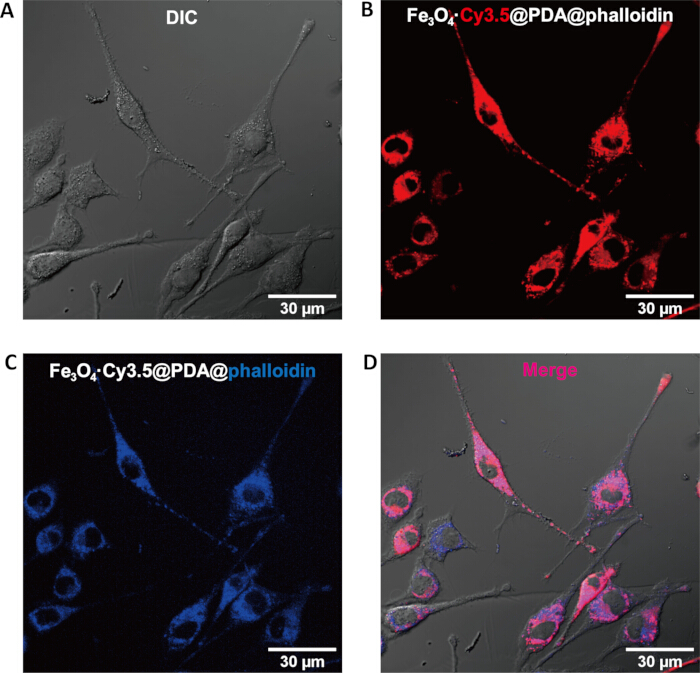

   6. Acquire confocal images to evaluate the intracellular distribution of the particles. Set the imaging parameters to a pinhole of 1 Airy unit (AU) and a z-step of 0.43 µm to obtain high-resolution optical sections of the intracellular structures.
   7. Examine whether the particles show enrichment in actin-associated cellular regions.

3. Construction and calibration of the electromagnetic stimulation device (Figure 2)

1. Assemble the electromagnetic device.

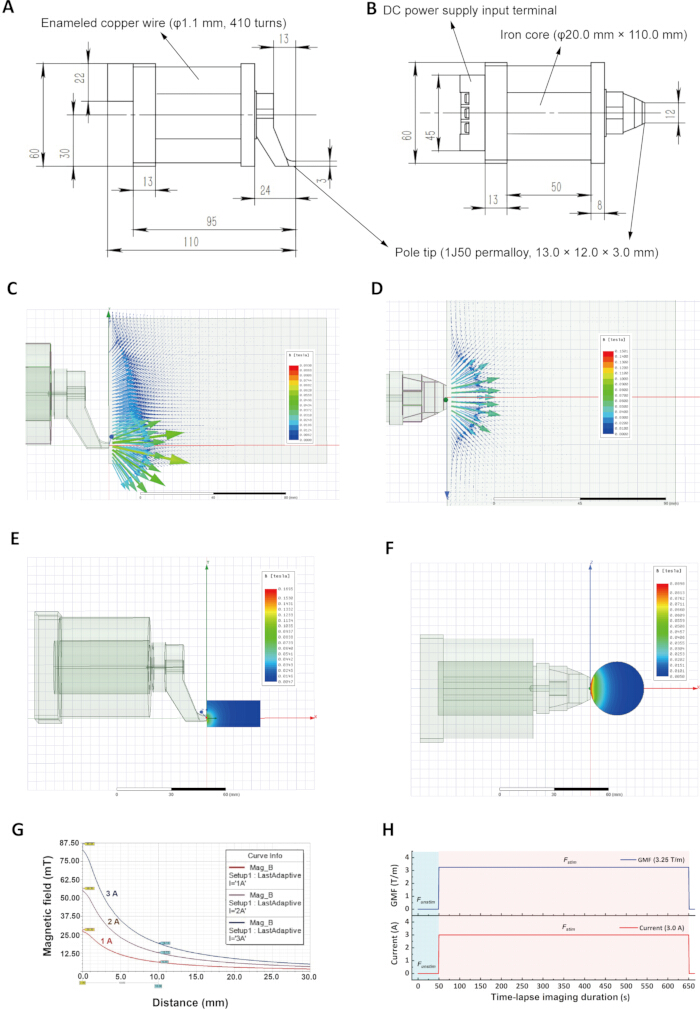

   1. Construct a compact electromagnetic coil system sized to fit the confocal microscope stage and live-cell chamber (Figure 2A,B).
   2. Connect the coil to a controllable power supply or external current source.
   3. Numerically simulate the gradient magnetic field environment using COMSOL Multiphysics 4.3b (Figure 2C,D).
   4. Confirm that the electromagnet generates the corresponding gradient magnetic field (GMF) under different input currents (Figure 2G).
2. Measure magnetic flux density and calibrate the gradient magnetic field.
   1. Position the electromagnet beside the culture dish, with the pole tip directed toward the center of the dish and located 1 mm from the outer wall of the dish (Figure 2E,F).
   2. Maintain this relative geometric configuration between the electromagnet and the culture dish during all subsequent live-cell magnetic force stimulation and imaging experiments.
   3. Use a digital Gauss meter to measure the magnetic flux density at predefined positions within the stimulation region, using the positioning grid on the bottom of the culture dish as a spatial reference.
   4. Calculate the local field gradient from the spatial change in magnetic flux density.
   5. Calibrate and validate the numerically simulated magnetic field gradient using the experimentally measured and calculated magnetic field gradient values.

4. Estimation of magnetic forces delivered by the platform.

1. Define the force-estimation model.
   1. Use the force equation for magnetic nanoparticles in a nonuniform magnetic field^27,28:

   2. Under the assumption of superparamagnetic alignment with the applied field, simplify the equation to

      where:
      F is the nanomagnetic force
      m is the magnetic dipole moment
      is the magnetic field gradient
      dB/dr is the magnetic field gradient (T/m) generated by the corresponding magnetic field generation device.
   3. Use the measured field gradient from the calibrated device in all calculations.
2. Estimate the force acting on a single nanoparticle.
   1. Determine the average particle dimensions from HRTEM images.
   2. Calculate the magnetic core volume assuming spherical geometry.
   3. Estimate the Fe₃O₄-specific magnetic volume based on the magnetic fraction of the core.
   4. Calculate the magnetic dipole moment according to
      where:
      M_m represents the mass magnetization of the f-SPIONs (16 A·m²/kg) under the given field intensity;
      ρ is the density of Fe₃O₄ (5.24 g/cm³).
      ​V is the volume of the Fe₃O₄ magnetic core within each f-SPION (5.89 × 10⁻¹⁷ cm³).
   5. Multiply the dipole moment by the measured field gradient to estimate the force acting on a single nanoparticle ().
3. Estimate nanoparticle uptake per Schwann cell.
   1. Seed RSC96 Schwann cells at 5 × 10⁵ cells per well in 35 mm cell culture microscopy dishes.
   2. Incubate the cells for 24 h under standard culture conditions.
   3. Replace the medium with fresh medium containing 15 µg/mL f-SPIONs.
   4. Incubate the cells for an additional 12 h.
   5. Wash the cells twice with ice-cold phosphate-buffered saline containing 1 mM deferoxamine.
   6. Collect and count the cells.
   7. Measure intracellular iron content using inductively coupled plasma atomic emission spectroscopy (ICP-AES).
   8. Calculate the number of internalized particles per cell by dividing the average iron mass per cell by the iron mass per particle .
4. Estimate the force delivered to a single Schwann cell.
   1. Calculate the cell-level force according to

      where:
      is the magnetic force exerted on a single f-SPION.
      is the number of f-SPIONs internalized per cell.
      F_cell is the magnetic force exerted on a single cell.
   2. Report the resulting value as the estimated magnetic force delivered to a single Schwann cell (F_cell).
   3. State clearly that the value is a model-based estimate rather than a direct intracellular force measurement.

5. Combining magnetic stimulation with real-time confocal laser scanning microscopy (CLSM) imaging

1. Load Schwann cells with magnetic nanoparticles.
   1. Seed Schwann cells in imaging-compatible ibidi culture dishes or microfluidic culture chambers.
   2. Allow the cells to adhere and recover.
   3. Replace the existing medium with fresh culture medium containing 15 µg/mL f-SPIONs.
   4. Incubate the cells for 12 h to allow f-SPION loading.
   5. Inspect cell morphology before proceeding.
2. Remove noninternalized particles.
   1. Remove the nanoparticle-containing medium.
   2. Wash the cells twice with PBS containing 1 mM deferoxamine.
   3. Replace the wash solution with imaging-compatible live-cell medium.
   4. Confirm low extracellular particle background before imaging.
3. Integrate the electromagnet device with the CLSM imaging system.

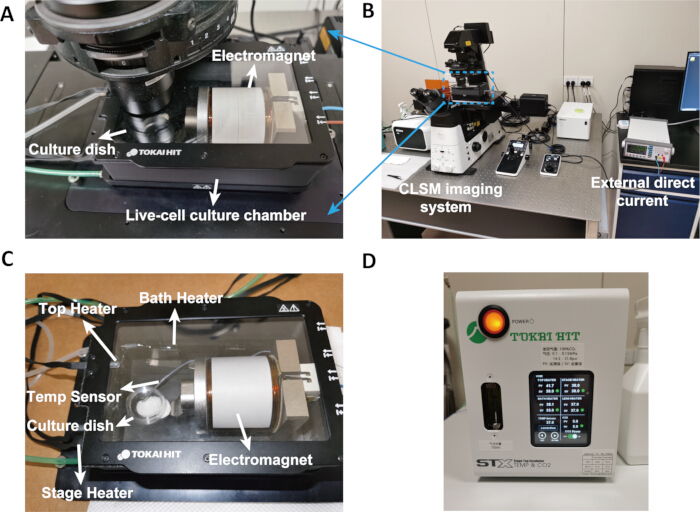

   1. Assemble the electromagnet with the live-cell culture chamber, positioning the electromagnet at its pre-calibrated location.
   2. Place the assembled live-cell culture chamber on the stage of the confocal microscope (Figure 3). Confirm that the culture dish is located within the effective stimulation region (Figure 3A).
   3. Energize the electromagnet according to the preset parameters and confirm effective gradient magnetic field exposure within the culture dish area (Figure 3B).
   4. Confirm that the objective lens can reach the focal plane without interference.
   5. Confirm that the device does not obstruct objective positioning or stage movement.
   6. Considering the heat generated during electromagnet operation, adjust the temperature settings of the live-cell chamber components according to the pre-determined optimal culture conditions to ensure an internal environment of 37 °C and 5% CO₂ (Figure 3C).
   7. Confirm that the entire system operates normally and stably.
4. Functional Ca²⁺ imaging in living cells.
   1. Incubate the cells with Krebs–Ringer’s solution (pH 7.4) containing 3 µM Fluo-4 AM and 0.1% Pluronic F-127 at 37 °C for 30 min.

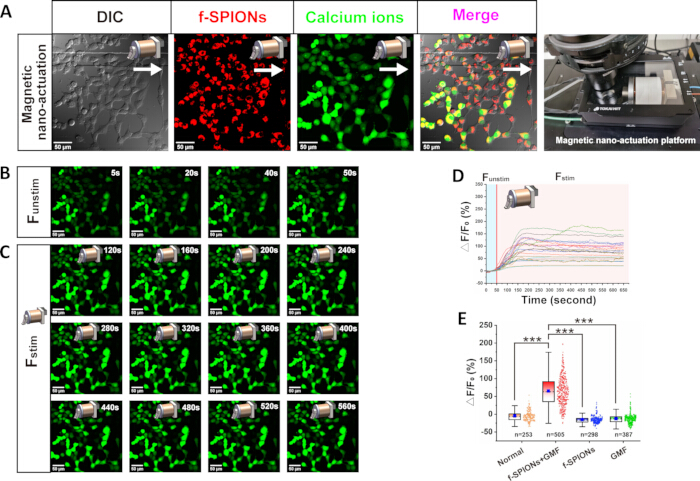

   2. After incubation, wash the cultures twice with PBS and transfer them to the live-cell imaging platform of the CLSM system for imaging (Figure 4A).
   3. Using the positioning grid on the bottom of the ibidi culture dish, image five predefined locations.
   4. Divide each imaging field equally into 25 regions and select 0–3 cells from each region for fluorescence quantification, depending on the actual cell density within that region.
   5. Define the complete outline of an individual cell as the region of interest (ROI), and monitor the magnetically induced calcium response by analyzing changes in fluorescence intensity (ΔF) within the ROI.
   6. Calculate the change in fluorescence intensity as ΔF = (F_stim - F₀). Consider a change in fluorescence intensity before and after stimulation (ΔF/F₀) exceeding 10% a calcium-response event.
      ​NOTE: F_unstim represents the fluorescence intensity before magnetic force stimulation, F₀ represents the baseline fluorescence intensity, and F_stim represents the evoked fluorescence intensity after magnetic force stimulation.
   7. For background correction, subtract the mean background fluorescence intensity measured in a cell-free region from the fluorescence intensity value of each ROI.
   8. Perform three independent experiments, with one culture dish included in each experiment.
5. Perform time-lapse imaging and apply magnetic stimulation during imaging.
   1. Set the time-lapse imaging parameters as follows: an acquisition interval of 2.1 s per frame, a total acquisition duration of 650 s, and standard high-resolution optical-section imaging using 1 AU.
   2. During cellular imaging, acquire images continuously for 50 s without current input to record the intracellular calcium fluorescence intensity in the absence of magnetic force stimulation (F_unstim) (Figure 2H and Figure 4B).
   3. Normalize the fluorescence intensity recorded during the first 50 s and define it as the baseline fluorescence intensity (F₀).
   4. Subsequently, apply a constant current input of 3.0 A to the electromagnet, exposing Schwann cells loaded with magnetic nanoparticles to a gradient magnetic field of 3.25 T/m and thereby subjecting them to magnetic force stimulation. Continue time-lapse imaging for 10 min to record the intracellular calcium fluorescence intensity during magnetic force stimulation (F_stim) (Figure 2H and Figure 4C).
   5. Quantitatively calculate the change in fluorescence intensity as ΔF/F₀ (Figure 4D,E).
6. Perform statistical analysis and analyze Ca²⁺ fluorescence data.
   1. For each cell, calculate the median ΔF/F₀ value across the analyzed time series and use this value as the cell-level Ca²⁺ response metric.
   2. Perform three independent experiments for each experimental condition, with one culture dish per condition in each experiment. Pool the cells analyzed across the three independent experiments for descriptive presentation, and report n as the total number of cells analyzed in each group.
   3. Assess the normality of the cell-level ΔF/F₀ data using the Kolmogorov-Smirnov test.
   4. Because the Ca²⁺ fluorescence-response data are non-normally distributed, present the data as the median and interquartile range (IQR).
   5. Analyze differences among groups using the nonparametric Friedman test, followed by Wilcoxon signed-rank tests for pairwise comparisons, as previously reported.
   6. Consider P < 0.05 to indicate statistical significance.

Results

High-resolution transmission electron microscopy (HRTEM) showed that the final nanoparticle formulation possessed a clustered magnetic core and an outer shell after surface modification (Figure 1). The final f-SPIONs had an average overall diameter of 63.36 ± 16.65 nm, with a Fe₃O₄-rich magnetic core of approximately 56.60 ± 6.19 nm and an outer shell composed of polydopamine and phalloidin-Alexa Fluor 350 with an average thickness of approximately 5.79 ± 1.36 nm. These results confirmed the...

Discussion

Iron oxide nanoparticles are widely recognized as magnetic nanomaterials with favorable biocompatibility. As widely used magnetic resonance imaging contrast agents, superparamagnetic Fe₃O₄ nanoparticles have been extensively applied in clinical imaging diagnosis^29,30. In our group’s recent study²⁰, f-SPIONs were demonstrated to exhibit extremely low cytotoxicity and excellent biosafety. The nanomagnetic actuation platform...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
1,2-Hexadecanediol	Sigma-Aldrich	213748	Technical grade, 90%; used in thermal decomposition synthesis
35 mm ibidi µ-dishes	ibidi	80156	Used for Schwann cell culture and imaging
Benzyl ether	Sigma-Aldrich	108014	98%; solvent for Fe3O4 nanoparticle synthesis
Confocal laser scanning microscope	Nikon	AXR (Ti2-E)	Used for live-cell and fluorescence imaging
Custom electromagnet	Custom-built	N/A	Compact unipolar electromagnet for in vitro gradient magnetic field generation
Cyanine3.5 carboxylic acid	Duofluor Inc.	D10128	Fluorescent dye used for Fe3O4·Cy3.5 superparticle assembly; MW 593.20; store at -20 °C, protected from light
Deferoxamine mesylate salt	Sigma-Aldrich	D9533	Iron-chelating agent used to remove noninternalized and membrane-associated iron
Digital Gauss meter	WEITE MAGNETIC	WT103	Used to measure magnetic flux density and calibrate the gradient magnetic field generated by the custom electromagnet
Dopamine hydrochloride	Sigma-Aldrich	H8502	≥98% (TLC); used for polydopamine coating
Dynamic light scattering instrument	Malvern Instruments	Zetasizer Nano-ZS	Used for hydrodynamic diameter and PDI measurement
Fluo-4 AM	Invitrogen, Thermo Fisher Scientific	F14201	Calcium indicator used for live-cell Ca2+ imaging
Fluorescence spectrophotometer	Shimadzu	RF-6000	Used for photoluminescence characterization
High-resolution transmission electron microscope	JEOL	JEM-F200	Used for HRTEM imaging of nanoparticle morphology and core–shell structure
Inductively coupled plasma atomic emission spectrometer	PerkinElmer	Optima 3300 DV	Used for intracellular iron quantification
Iron(III) acetylacetonate, Fe(acac)3	Sigma-Aldrich	F300	97%; precursor for Fe3O4 nanoparticle synthesis
Live-cell stage-top incubator	TOKAI HIT	TENP&CO2	Used for live-cell confocal imaging during magnetic stimulation
Oleic acid	Sigma-Aldrich	O1008	≥99% (GC); surface ligand for Fe3O4 nanoparticle synthesis
Oleylamine	Sigma-Aldrich	O7805	Technical grade, 70%; ligand for nanoparticle synthesis
Phalloidin–Alexa Fluor 350	Invitrogen, Thermo Fisher Scientific	A22281	Optional actin-targeting functionalization reagent
Pluronic F-127	Invitrogen, Thermo Fisher Scientific	P3000MP	Used to facilitate Fluo-4 AM loading for live-cell Ca2+ imaging
Programmable DC regulated power supply	Tongmen	eTM-L605SPL (60 V, 5 A)	Used to power the custom electromagnet for in vitro gradient magnetic field generation
RSC96 Schwann cells	Cell Bank of the Chinese Academy of Sciences	N/A	Rat-derived Schwann cell line
Sodium dodecyl sulfate (SDS)	Sigma-Aldrich	436143	ACS reagent, ≥99.0%; surfactant for oil-in-water microemulsion
SQUID magnetometer	Quantum Design Inc.	MPMS-XL	Used for magnetic hysteresis measurement at 300 K
Toluene	Sigma-Aldrich	244511	Anhydrous, 99.8%; solvent for superparticle assembly
Transmission electron microscope	FEI	EP 5018/40, Tecnai Spirit Biotwin	Used for cellular and neural tissue ultrastructure observation
