Comparative Analysis of Lower Limb Kinematics between the Initial and Terminal Phase of 5km Treadmill Running

Summary

This study investigated the biomechanical characteristics of the lower extremity kinematic variables between the initial and terminal phase of 5 km treadmill running. The lower-limb kinematic data of 10 runners were collected using a three-dimensional motion capture system on a treadmill at the initial phase (0.5 km) and the terminal phase (5 km), respectively.

Abstract

Running is beneficial for physical health, but it is also accompanied by many injuries. However, the main factors leading to running injury remain unexplained. This study investigated the effects of long running distance on lower-limb kinematic variables and the lower limb kinematic difference of between the initial (IR) and terminal phase (TR) of 5 km running was compared. Ten amateur runners ran on a treadmill at the speed of 10 km/h. Dynamic kinematic data was collected at the phase of IR (0.5 km) and TR (5 km), respectively. The peak angle, peak angular velocities, and range of motion were recorded in this experiment. The main results demonstrated the following: ankle eversion and knee abduction were increased at TR; ROMs of ankle and knee were increased in the frontal plane at TR than IR; a larger peak angular velocity of ankle dorsiflexion and hip interrotation were found in TR compared to IR. These changes during the long distance running may provide some specific details for exploring potential reasons of running injuries.

Introduction

Running is the most popular sport around the world. There are a large number of individuals that run and this number increases substantially every year¹. It has been suggested that participation in regular exercise including running can promote health, reduce the risk of cardiovascular diseases and thus improve life expectancy^2,3,4. Despite the significant health benefits of running, the incidence of running injuries has increased from 25% to 83% over the years^5,6. There are some risks associated with running, especially to the lower extremities, which are mainly focused on musculoskeletal injuries⁷. The majority of common running-related injuries are related to patellofemoral pain, ankle sprain, tibial stress fractures, and plantar fasciitis⁸. Running injuries can be induced by many factors, such as incorrect foot striking patterns, incorrect shoe selection, and other individual biomechanical factors⁹. For instance, running with a heel-strike pattern can lead to greater pronation, and is accompanied by larger plantar pressure on the medial side of foot, which may lead a higher risk for Achilles tendinopathy and patellofemoral pain¹⁰. In addition, running with a greater knee internal rotation has been previously reported to be associated with the iliotibial band syndrome for female runners¹¹, especially when running long distances.

Parameters of kinetics, kinematics, and time-space components can provide a precise analysis of gait biomechanics, and is currently considered to be an important parameter for clinical gait analysis¹². Lower vertical ground reaction forces and larger impact accelerations are recoded after long-distance running^13,14. Higher hip excursion and smaller knee flexions have also been found along with fatigued muscles¹⁵, and the increased stride frequency can result in reduced stride lengths^13,16.

However, changes in biomechanical features of lower limbs at the phase of initial and terminal running have not been fully analyzed, since most studies measured biomechanical variation after running. Additionally, only a few studies use standard laboratory techniques to assess the effects of long-distance running on gait biomechanical changes in amateur runners. The main factors leading to running injuries are still unclear. Therefore, in order to reveal the underlying reasons for lower extremity injuries caused by long distance running, this study aims to compare the biomechanical changes of the lower extremity between the IR and TR phases in treadmill 5 km running in amateur runners.

Protocol

Written informed consent was obtained from subjects and the testing procedures were approved by the university ethics committee. All participants were informed of the requirements and process of the trial.

1. Laboratory preparation

1. During calibration, switch off the lights and remove other possibly reflective objects. Ensure that eight cameras are appropriately placed and have a clear view without reflection.
2. Open the Vicon Nexus 1.8.5 program, and then initialize the cameras. Select System | Local System | MX Cameras in the Resources pane and the cameras will engage.
   NOTE: In the Properties pane, the parameters need to be adjusted. The range of values of the strobe intensity are adjusted to 0.95-1, and the value range of the threshold is set to 0.2-0.4. Set the grayscale mode to Auto. The Minimum circularity ratio is set to 0.5, and the Gain to times 1 (x1), the Max blob height to 50, and select Enable LEDs.
3. Place the T-frame in the center of the capture area, select all the cameras in the system, and use 2D mode. Confirm that the T-frame is in the camera view without any interference points. Select the first item System Preparation in the toolbar. In the T-Frame drop-down list, select the 5 Marker Wand & T-Frame calibration object.
4. In the System Preparation Tools pane, click the Start button under the Mask Cameras section. Then click the Start button under Calibrate MX camera section.
   NOTE: When the calibration process is completed, the progress bar is restored to 0%.
5. Place the T-frame in the center of the camera to establish the origin of the coordinates.
6. In the Tool pane, click the Start button under the Set Volume Origin section.
7. Put the treadmill in the center of the test zone. The eight cameras are displayed around the treadmill (Figure 1).
8. Attach a total of 22 reflective markers (diameter: 14 mm) with double-sided tape on the subjects in advance.

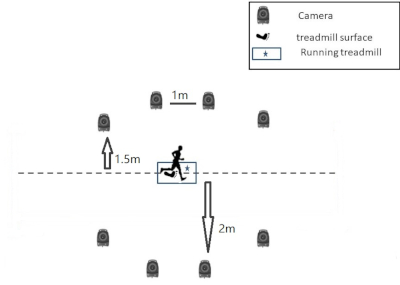

Figure 1: Test site layout. Cameras capture lower-limb motion while the subjects run on the treadmill. Please click here to view a larger version of this figure.

2. Subject preparation

1. Before the test, interview subjects in the laboratory and give a simple explanation of the experimental procedures. Then, have the participants complete a questionnaire. Summarize the results of these questionnaires.
   1. Use the following questions:
      1. How often do you run in a week?
      2. How many years have you been running for?
      3. Have you suffered any lower extremity injuries or received lower extremity surgeries in the last six months?
      4. How many kilometers do you run per week?
2. Use the following inclusion criteria: all participants were right leg dominant and without any lower extremity injuries in the previous six months before the study. All participants ran at least 15 km per week.
   NOTE: Ten healthy recreational female runners (ages: 23.4±1.3 years; height: 160.7±3.8 cm; mass: 50.3±2.3 kg; running years: 3.2±1.2 years) were selected.
   1. Obtain written informed consent from participants who meet the inclusion criteria.
3. Require that participants wear uniform tights and pants.
4. Record the subjects’ height (mm), weight (kg), lower limb length (mm), knee width (mm) and ankle width (mm) for the statistics model.
5. Place 16 reflective markers on subjects at the following locations: anterior-superior iliac spine, posterior-superior iliac spine, lateral mid-thigh, lateral knee, lateral mid-shank, lateral malleolus, second metatarsal head, and calcaneus. Place the markers on the second metatarsal head and calcaneus on the corresponding anatomical points of the socks and shoes.
6. Instruct the participants to wear uniform sport running shoes. Have the participants warm up with light running and stretching for 5 min.

3. Static calibration

1. Click the Data Management button on the toolbar, select Data Management. Click the New Database tab on the toolbar, select the location, describe the trial name and the Clinical Template, and click the create button.
2. In the Open Database window, select the name of the database that was created. In the open interface, click the green New Patient Classification button, the yellow New Patient button, and the grey New session button to create the experimental information including subject type, subject name, and different action status.
   1. Go back to the Nexus pane, in the left toolbar, click Subjects to create a New Subject data set, and choose the trial model. In the Properties pane, fill in all the anthropometric measurements: height (mm), weight (kg), lower limb length (mm), knee width (mm) and ankle width (mm).
3. Click the Go live button, select Spilt horizontally and choose the graph to check the Trajectory count.
   NOTE: Ensure that all the markers are visible in the 3D Perspective view. This indicates that all markers can be captured for analysis.
4. Prepare to capture the static model. On the Capture Tools pane, click the Start button in the Subject Capture section.
   NOTE: During the whole data collection process, the subjects should remain stationary in the capture area to collect 140-200 frames of images. Then click the Stop button.
5. In the perspective pane, view the capture marks. Click the Pipeline button in the Tools pane, select Running The Reconstruct Pipeline to create a 3D image of the captured markers. Then, manually label the static model. When the identification is completed, save and press ESC to exit.
6. In the toolbar, choose the subject preparation and subject calibration. Select the Static plug-in gait option from the drop-down list. In the Static Settings pane, choose the left foot and right foot, click the start button and save the static model.

4. Dynamic trials

1. When finished collecting the static data, select Capture in the right toolbar. Choose Trial Type and Session from top to bottom, and fill in the trial description.
2. Ask participants to run on the treadmill in the following manner.
   1. Warm up by walking at 8 km/h for 1 min.
   2. Ask the participant to run on the treadmill at speed of 10 km/h. After an adaption period of 4 min at this velocity, record the running data for 40 s. Collect the kinematic data at a distance of 0.5 km and 5 km, respectively.
   3. Ask the subjects to wear a heart rate monitor to record the heart rate and monitor the subjects’ fatigue status while running.
3. In the Tool Capture pane, click the Start button. After collecting the dynamic trials, click Stop to end the collection.

5. Post-processing

1. Open the Data Management window, double-click the trial name. Click the run Reconstruct Pipeline and Labels button in the toolbar to reconstruct the mark point position.
2. In the Perspective window, move the blue triangles on the time bar to set the required range of time.
3. Shift the view of the timeline so that it shows only the selected range, click on the time bar, and click Zoom to Region-of-Interest.
4. At this point, select the Label button to identify and check the label points, with the same steps as the static identification process. If necessary, supplement some incomplete identification points. Delete the unlabeled marks.
5. In the Subject Calibration pane, select the Dynamic Plug-in Gait. Click the Start button to run the data. Export motorial trials in c3d format for post-processing.

6. Data analysis

1. Process the kinematics data. Apply a fourth-order low pass Butterworth filter with a cut off frequency of 10 Hz (kinematic) before exporting the joint angle data. Export the data of the joint angle.
2. Calculate the range of motion (ROM), peak angle and peak angular velocity of the lower limb joints (hip, knee, and ankle) in three planes (sagittal, frontal, and transverse) during one stance phase.

7. Statistical analysis

1. Use paired-sample T-test to compare lower limb kinematics (peak angles, ROM, peak angular velocity) between the initial (IR) and terminal phase (TR) of 5 km running.
2. Calculate mean values and standard deviations of the five valid trials from each subject for different running distances. Set the significance level at p < 0.05.

Representative Results

The results showed that no differences in the peak angle of the ankle and hip were observed in the sagittal plane. Compared with IR, the peak angles of the ankle and the knee in the frontal plane were significantly increased at TR. A larger internal hip angle was found in TR as contrasted to IR. However, TR presented a smaller peak angle in hip abduction, ankle interrotation, and knee interrotation than IR (Figure 2).

In the sagittal plane, the ROMs of the ankle and the knee were significantly increased in IR when compared to TR. In the frontal plane, hip ROM was significantly decreased in TR compared to IR, whereas the ROMs of the ankle and the knee was increased in TR than IR. In the transverse plane, knee ROM was found to be significantly lower in the TR compared to the IR running, but no differences were found in the ROMs of the ankle and the hip (Figure 3).

Changes in peak angular velocity between IR and TR were also assessed. In the sagittal plane, there was no significant difference in the peak angular velocity of the hip and knee joints throughout the experiment. A larger peak angular velocity of ankle dorsiflexion was noted in TR. In the stance phase, the smaller peak angular velocity of hip abduction and knee abduction velocity were revealed at TR. The peak angular velocity of hip interrotation increased at TR. There was no significant difference in ankle eversion, knee and ankle interrotation velocity throughout the running.

Figure 2. Peak angle for ankle, knee, and hip in sagittal (A), frontal(B), and transverse planes(C) during one gait cycle (IR N=10; TR: N=10). Significant differences between the IR and TR are denoted with an asterisk (*). Please click here to view a larger version of this figure.

Figure 3. Changes in Joint ROM during the gait cycle IR- vs.TR (mean values). * Statistical significance. Please click here to view a larger version of this figure.

Peak angular velocity (deg/s)	IR Mean±SD	TR Mean±SD	p-value
Hip flexion	182.58±38.38	130.00±47.80	0.075
Knee flexion	221.88±22.90	266.00±26.36	0.07
Ankle dorsiflexion	326.11±20.49	344.85±43.76	0.046*
Hip abduction	256.06±47.31	245.54±38.17	0.000*
Knee abduction	128.65±17.04	96.14±15.50	0.041*
Ankle Eversion	235.43±41.68	232.95±11.60	0.915
Hip int. rotation	195.92±7.85	302.32±29.14	0.012*
Knee int. rotation	353.83±66.05	355.26±39.74	0.912
Ankle int. rotation	135.01±42.77	146.85±23.60	0.664

Table 1. Comparisons of knee, hip and ankle peak angular velocity before and after running. Significant differences between the IR and TR are denoted with an asterisk (*).

Discussion

This study compared the effect of long distance running on the biomechanical characteristics of the lower extremity in amateur runners. It was found that the peak angle of ankle eversion and knee abduction increased after 5 km running, which is consistent with a previous study¹⁷. Studies have shown that excessive ankle eversion and eversion velocity are important factors that increase the risk of ankle injuries^18,19. It is not surprising that the knee ROM increased at TR of 5 km running because studies have shown that knee kinematics are affected by long-distance running^15,17.

Similarly, the knee rotation angle range is reduced in the transverse plane. One of the reasons can be explained because the runner did not experience fatigue at TR²⁰. Compared with IR, the hip interrotation peak angle was larger in TR. Previous studies indicated that an increased angle of hip interrotation can lead to stress fractures of the tibia²¹. It was also reported that hip interrotation angular velocity was associated with muscle injury^22,23. In this study, the angular velocity of the hip interrotation was greater at TR. Hip instability is considered as an important mechanism for lower limb injury²⁴.

The results presented here are dependent on many procedures during the experiment. Firstly, lights must be switched off and other possible reflective objects must be removed. It is important to ensure that capture volume is entirely free from objects that may cause unwanted reflections. Secondly, it is vital to select the desired parameters in the Tools Capture pane for capturing a trial. Thirdly, before starting the test, the treadmill must be placed in the center of the test zone. Also, there are other potential limitations in this study. Only 10 amateur runners were recruited for this experiment. A further limitation of this study could relate to the running distance. Future studies should focus on the effect of different distances with different running shoes on muscle activities and joint moments.

The results of this study indicate that different levels of injury risk may exist for IR and TR of 5 km running. Runners should arrange running training plans scientifically, strengthen balance abilities prior to and during training, and choose running shoes with cushioning functions to reduce the injury risks of ankle and knee joint.

Materials

Name	Company	Catalog Number	Comments
14 mm Diameter Passive Retro-reflective Marker	Oxford Metrics Ltd., Oxford, UK		n=22
Double Adhesive Tape	Oxford Metrics Ltd., Oxford, UK		For fixing markers to skin
Heart Rate	Garmin, HRM3-SS, China		Detection of fatigue state
Motion Tracking Cameras	Oxford Metrics Ltd., Oxford, UK		n= 8
T-Frame	Oxford Metrics Ltd., Oxford, UK		-
Treadmill	Smart Run,China		Subject run on the treadmill for all the process.
Valid Dongle	Oxford Metrics Ltd., Oxford, UK		Vicon Nexus 1.4.116
Vicon Datastation ADC	Oxford Metrics Ltd., Oxford, UK		-
