Fabrication of Flat-Interface Nerve Electrodes for Recording Neural Activity

In This Article

Abstract

Source: Dweiri, Y. M., et al. Fabrication of high contact-density, flat-interface nerve electrodes for recording and stimulation applications. J. Vis. Exp. (2016)

This video demonstrates the fabrication of a flat nerve-wrapping electrode. It showcases the integration of shielding metal and precise polymer layering for an effective recording surface. The process involves attaching, curing, trimming, and cutting polymer layers for optimal nerve contact and accurate signal recording.

Protocol

1. Electrode Components Preparation

Gather four electrode components that require precision cutting (laser cutting was used; please refer to the Materials List) before manufacturing. These components are (Figure 1):
Contacts array frame: This frame comprises a 125 µm thick Polyether ether ketone (PEEK) sheet. It covers the entire width of the cuff and holds the middle contacts and has serpentine-shaped edges (Figure 1B). The middle contacts are wrapped in the guide channels; hence the exposed width of the contacts is limited by the width of the channels and the spacing is determined by the spac....

Access restricted. Please log in or start a trial to view this content.

Results

Nerve cuff electrode assembly diagram and surgical placement; dimensions in millimeters.

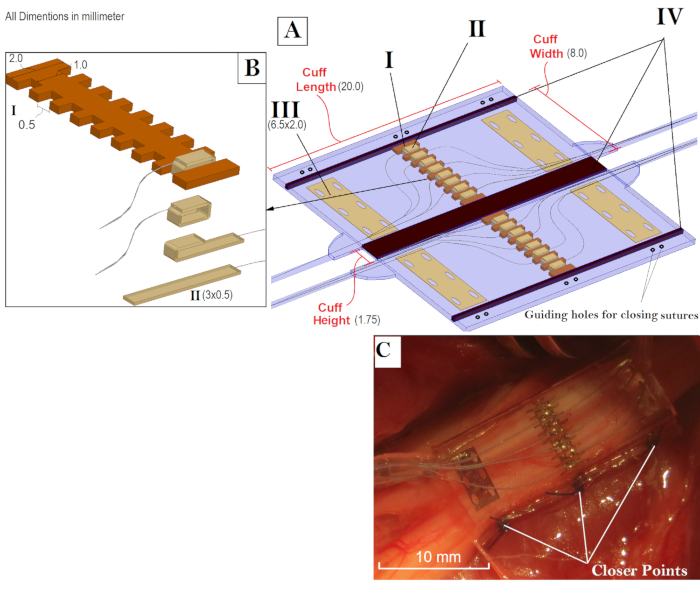

Figure 1: Overview of the FINE and its Components. A) FINE in the open position and the four main building components that require precision cut. These components are: Contacts array frame (I), the middle contacts strips (II), the reference contact.......
