Mouse 3B-11 endothelial cells were seeded on solidified reduced growth factor BME – in this assay, the product Matrigel was used - and followed over time. As shown in Figure 1, angiogenic factors secreted by either mouse keratinocytes or fibroblasts are capable of inducing tube formation over time. Endothelial cells migrate and begin to form small branches within 1-2 hr of plating. Maximum tube formation was reached by 4-6 hr using conditioned media previously obtained from keratinocytes. By 24 hr, some branches remained, but many of the cells became apoptotic and tubes began to disconnect.
Cell number has a profound impact on tube formation (Figure 2). When an insufficient number of cells are seeded on the matrix, few tubes form and the network is minimal. As more cells are seeded, the tube network becomes more extensive. However, at too high of a concentration, the cells begin to clump or form monolayers, and differences between treatment groups become masked.
Tube formation with 3B-11 cells works the best with cells between the second and sixth passages. After the sixth passage, cells do not form as extensive a network; cells will not form any major network after the tenth passage. Cells should have a minimum of two passages after reviving from liquid nitrogen storage to ensure adequate tube formation (Figure 3). The growth rate of 3B-11 is so rapid that 25% of cells passaged one day will yield a confluent flask the following day.
Images can be easily documented through phase contrast microscopy using objectives between 4X and 20X. However, if fluorescent images are desired, calcein AM may be added and the tube network visualized through fluorescence or confocal microscopy (Figure 4). There are several different ways to detect and quantify tube network formation. The most common methods of analysis involve quantification of number of tubes, nodes, loops/meshes, or length of tubes. These parameters can be counted by hand or can be done through various imaging programs, including NIH ImageJ with the Angiogenesis Analyzer plugin. Examples of each of these types of analysis are shown in Figure 4.

Figure 1. Mouse 3B-11 endothelial cell tube formation over time. A total of 1 x 105 cells were seeded per well on reduced growth factor BME with 350 µl of conditioned media from either fibroblasts or keratinocytes. Tube formation was recorded over the course of 24 hr.

Figure 2. The effect of cell number on endothelial cell tube formation. 3B-11 cells were seeded in wells at concentrations ranging from 5 x 104 to 2 x 105 with 350 µl of fibroblast or keratinocyte conditioned media, and then followed over time. Note the lack of tube formation in the wells plated with 5 x 104 cells and the crowding of cells in the wells plated with 2 x 105 cells.

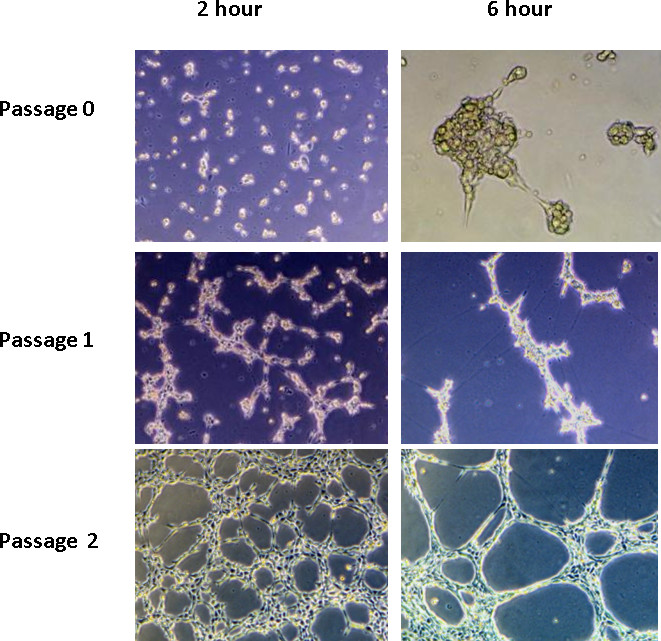

Figure 3. The effect of passage number on endothelial cell tube formation. A total of 1 x 105 cells were seeded per well on reduced growth factor BME at passage 0, 1, or 2. Little tube formation was seen before passage 2.

Figure 4. Fluorescence microscopy imaging and quantification of tube formation. Prior to the start of the assay, the endothelial cells can be treated with calcein AM in order to visualize the cells using fluorescence or confocal microscopy. There have been several reported methods for quantifying the formed tube network, including counting the number of tubes, loops/meshes, branch sites/nodes, or the length of tubes. Here, we show how NIH Image J with the Angiogenesis plugin software can be used on a calcein AM stained tube network (A) to detect total nodes (red)/tubes (pink)/mesh (blue) in combination (B) and merged on network (C). Additionally, this program can be used to individually detect nodes (D), tubes (E), or mesh (F) which can then be quantified (G).
