Method Article

Effective Detection of Hoechst Side Population Cells by Flow Cytometry

2.4K views

⸱

DOI:

10.3791/67012

⸱

August 23rd, 2024

 ,  ,  ,  ,
1Institute of Hematology, Department of Hematology, State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, 2The Lab of Aging Research, State Key Laboratory of Biotherapy, National Clinical Research Center for Geriatrics, West China Hospital, Sichuan University, 3Precision Medicine Research Laboratory, West China Hospital, Sichuan University

In This Article

Summary

Here, we show that high-power 375 nm and 405 nm lasers can effectively excite Hoechst 33342 and serve as a viable alternative to the 355 nm laser for side population (SP) cell detection, thereby expanding the range of available lasers in flow cytometry applications.

Abstract

The side population (SP) cells are identified through Hoechst 33342 staining and analyzed using flow cytometry (FCM). The Hoechst SP method is utilized for the isolation of stem cells based on the dye efflux properties of ATP-binding cassette (ABC) transporters. The method was initially employed for the identification and isolation of hematopoietic stem cells (HSCs), but it has now evolved to primarily focus on the identification and isolation of cancer stem cells (CSCs). The traditional detection method of FCM uses a 355 nm laser to excite the dye to detect SP cells. Through this study, we have successfully identified alternative approaches for dye excitation that can effectively replace the detection of SP cells using a 355 nm laser. This is achieved through the utilization of high-power 375 nm or 405 nm lasers. This allows us to exercise enhanced selectivity in the detection of SP cells rather than being solely limited to the 355 nm laser flow cytometry.

Introduction

The side population (SP) cells are identified through Hoechst 33342 staining and analyzed using flow cytometry (FCM). The SP cells are characterized by the pumping of the fluorescent DNA dye out of the cells through their ATP-binding cassette (ABC) transporter1,2. The method was originally established for isolating murine bone marrow hematopoietic stem cells (HSCs)1. The bone marrow SP cells were enriched with a population of HSCs characterized by  CD117+Sca-1+Lin-Thy1low expression3,4. Thereafter, the method was widely used to isolate and enrich stem cells from other tissues, including cardiac muscle5, liver6, lung7, kidney8, and forebrain9. In particular, the method has been applied to isolate cancer stem cells (CSCs) in the past decade. CSCs represent a small population of cells that possess the properties of tumor initiation, self-renewal, resistance to chemotherapy, and metastatic potential10. CSCs were initially identified in hematopoietic malignancies11 and subsequently observed in various solid tumors such as the prostate12, ovarian13, gastric14, breast15, and lung16 carcinomas. Despite the availability of various techniques for CSC identification, the SP technique remains a favored choice owing to its broad applicability across diverse tissues and cell lines. Moreover, it is a valuable technique that isolates CSCs using fluorescence-activated cell sorting (FACS)16,17,18. The experimental findings demonstrate that SP cells exhibit pronounced tumorigenicity and display elevated expression levels of stem cell-associated genes19,20. Our previous study21 has also demonstrated that transcriptomic analysis of isolated SP cells in multiple myeloma reveals enrichment of signaling pathways associated with stem cells, such as the hedgehog pathway. Meanwhile, we performed pathway enrichment analyses on the genes differentially expressed in the SP cells of acute myelogenous leukemia22. The altered genes were enriched in stem cell-related pathways (Wnt/β-catenin, TGF-β, Hedgehog, Notch). We found that 1 x 105 SP cells could form tumors in BALB/c null mice22, whereas non-SP cells could not, indicating that SP cells had characteristics of leukemia stem cells. The efficacy of the Hoechst SP method in the identification of CSCs is evident.

The Hoechst SP protocol has been refined and enhanced through the progression of research. The protocol entails stringent control of the dye concentration, cell density, incubation temperature and duration, buffer composition, and pH value. The cell samples prepared in accordance with this protocol were subjected to flow cytometric analysis. Due to the excitation of Hoechst dye with a UV laser at 355 nm and detection of its fluorescence emission using both a 690/50 nm filter (Hoechst Red) and 450/50 nm filter (Hoechst Blue), a 350 nm laser is required for FCM. However, 350 nm lasers are not commonly equipped in most FCMs because of their high cost. Hence, we attempted to find an alternate approach for dye excitation for the effective detection of SP cells by flow cytometry. In this study, the capability of the 375 nm and 405 nm lasers in detecting SP cells was assessed and compared with that of the 355 nm laser. Our findings demonstrate a remarkable similarity between the SP cells detected by the 355 nm, 375 nm, and 405 nm lasers. These results suggest that the high-power 375 nm and 405 nm lasers can serve as feasible alternatives to the 355 nm laser for SP cell detection. The inclusion of additional excitation light sources for Hoechst 33342 facilitates the use of more flow cytometry models.

Protocol

The experiments in this study utilized a total of 10 C57BL/6 mice aged between 8 and 12 weeks. Experimental operations were conducted in accordance with a protocol that was approved by the Institutional Animal Care and Use Committee of Sichuan University (#201609309). Experimental materials and the parameters of flow cytometry used in this article are listed in the Table of Materials.

1. Isolation and collection of mouse bone marrow cells

  1. Euthanize mice in strict accordance with the institutional guidelines. To induce unconsciousness in the mouse, administer inhalation anesthetics starting with 2% isoflurane, followed by a gradual increase in dosage to 5% isoflurane until cessation of respiration.
  2. Dissect the mice in the surgical suite or the Fume cupboard. Clean and sterilize the mice with 70% ethanol.
  3. Cut the skin and muscle of the leg with sharp scissors completely and dissect the femurs.
  4. Crush the femur gently with a grinding rod in a mortar and flush out bone marrow cells with DMEM medium until the bone turns white.
  5. Filter the obtained bone marrow cells with a 100 µm filter into 15 mL tubes. Centrifuge at 800 x g for 5 min at 4 °C.
  6. Discard the supernatant and lyse residual red blood cells with 1 mL of red blood cell lysis buffer for 1 min at 4 °C. Centrifuge at 800 x g for 5 min at 4 °C. After centrifugation, wash again with DMEM medium.
  7. Resuspend the cells in 2 mL of incubation solution (DMEM medium + 5% FBS), count the cells with an automatic cell counter and adjust the cell concentration to 1.0 x 106 cells/mL with incubation solution.

2. Cellular staining

  1. Supplement 2 mL of bone marrow cell suspension from each mouse with 5 µg/mL Hoechst 33342. To another 1 mL aliquot, add 100 µM verapamil as a negative control.
  2. Incubate in a water bath at 37 °C for 90 min with gentle agitation every 30 min.
  3. After incubation, cool the cells on ice for 5 min and then centrifuge at 250 x g for 5 min at 4 °C. Resuspend the cells in a cold running solution (HBSS + 2% FBS). Centrifuge at 4 °C for 5 min and discard the supernatant.
  4. Resuspend the resulting cell pellet in 500 µL of running solution per sample. Prior to FCM analysis, supplement cells with 2 µg/mL of propidium iodide (PI) and place on ice for approximately 5 min.

3. Flow cytometry

NOTE: For a summary of the various systems and configurations used, please see Table 1.

  1. Calibrate the Coefficient of variation (CV) values of the required channels using daily quality control (QC) fluorospheres in the FCMs and perform sample testing following the successful completion of quality control.
    1. Select the desktop shortcut of software and launch the software.
    2. Select Start QC/Standardization in the QC/Standardization menu to access the QC experiment.
    3. Insert the QC fluorospheres sample tube into the tube holder.
    4. Select Start to load the sample and begin to run the QC procedure. FCMs are ready for use after QC passes.
  2. Excite the Hoechst 33342 dye of the same samples with a 355 nm, 375 nm, and 405 nm laser, respectively, for detection of Hoechst red in the 690/50 nm channel and Hoechst blue in the 450/50 nm channel.
    1. Create a new experiment by selecting New Experiment in the File menu, specify the file path, and save the experiment.
    2. Select Set Channel in the Settings menu. Select the channel signal check box (Y585, V450, V660, NUV450, NUV660, UV450, UV660), then add the reagent name in the Label column (Y585: PI; V450: Hoechst Blue-405 nm; V660: Hoechst red-405 nm; NUV450: Hoechst Blue-375 nm; NUV660: Hoechst Blue-375 nm; UV450: Hoechst Blue-355nm; UV660: Hoechst Blue-355 nm).
    3. Click Pseudo Color Plots icons in the plot area to create plots. Select an axis name to change which channel is displayed.
    4. Click Add Tube in the Test Tube screen to create new sample tubes and change their names.
    5. Select Run to load the sample, view the plots, and establish the gates. Adjust the gain and threshold settings. Select Record to save the data.
  3. Design the gate setting logic.
    1. For the first plot, click the X-axis to select FSC-W and click the Y-axis to select FSC-A. Select Polygon Gate to draw gate A to circle the individual cell and exclude adherent cells (Figure 1A).
    2. For the second plot, click the X-axis to select FSC-A and click the Y-axis to select SSC-A. Select Polygon Gate to draw gate B to separate non-fragmentary cells and exclude cellular debris (Figure 1B).
    3. For the third plot, click the X-axis to select PI-A and click the Y-axis to select SSC-A. Select the Polygon Gate to draw gate D. Select Live cells exhibiting negative PI (Figure 1C) and draw gate C to obtain live cells.
    4. For the fourth two-dimensional plot, click the X-axis to select Hoechst Red and click the Y-axis to select Hoechst Blue. Right-click the Plot and select Property from the drop-down menu. Select Linear Format for both the X-axis and Y-axis. Select Polygon Gate to draw gate SP to get SP cells (Figure 1D).
  4. To assess sample eligibility, use 355 nm of a specific flow cytometer23 for SP cell detection.
  5. Use the 355 nm (laser power: 20 mW) and 405 nm (laser power: 80 mW) lasers simultaneously to detect both the control cells (with added verapamil) and experimental cells.
  6. Acquire fluorescence signals at the 690/50 nm and 450/50 nm channels corresponding to the two lasers. Observe the effective stimulation of Hoechst 33342 dye by 355 nm and 405 nm lasers with clear SP cells (Figure 2B-C).
  7. For the same samples, use the 375 nm (laser power: 60 mW) and 405 nm (laser power: 80 mW) lasers for cell detection.

Results

In Figure 2, the control group was treated with verapamil, which blocks ABC transporters in stem cells to prevent the elimination of Hoechst 33342. Thereby, the stem cells in the non-verapamil group expel Hoechst 33342 and form a negative cell population known as SP cells. The 355 nm laser effectively excited the Hoechst 33342 dye, resulting in clear observation of SP cells of bone marrow (Figure 2A). The SP cells of the same samples detected by the 355 nm laser and the 405 nm laser were found to be essentially identical (Figure 2D).

From Figure 2 and Figure 3, we saw that other models of non-traditional flow meters can also identify SP cells. The results indicate that both 375 nm and 405 nm lasers effectively excited Hoechst 33342 to obtain SP cells (Figure 3A-B). When it is necessary to detect or isolate CSCs or HSCs, we can opt for a 375 nm or 405 nm laser instead of a 355nm laser.

Flow cytometry graphs; FSC, SSC, PI, Hoechst staining; cell size, granularity analysis.
Figure 1: Flow cytometry-based gate setting logic for detecting SP cells. (A) FSC-A and FSC-W were utilized to exclude adherent cells. Gate A represents the single-cell cluster. (B) The parameters of FSC-A and SSC-A were employed for the removal of cellular debris. Gate B represents the non-fragmentary cell cluster. (C) Live cells exhibiting negative propidium iodide (PI) were selected. Gate C represents the live cell cluster. (D) Fluorescence signals were acquired through the 690/50 nm (Hoechst-red) and 450/50 nm (Hoechst-blue) channels. Gate SP represents the SP cell cluster. Please click here to view a larger version of this figure.

Flow cytometry analysis with verapamil. Graphs show Hoechst-stained cells, excitation-emission data.
Figure 2: High-power 405 nm laser detects SP cells as effectively as the 355 nm laser. (A) The Hoechst 33342 dye was excited by the 355 nm laser from a conventional flow cytometer to detect the SP cells of bone marrow. (B, C) The SP cells of bone marrow were identified by the 355 nm and 405 nm lasers of the same FCM. (D) The SP cells of the same samples detected by the 355 nm laser and the 405 nm laser were found to be essentially identical. Please click here to view a larger version of this figure.

Flow cytometry dot plots, Hoechst staining, cell cycle analysis, fluorescence intensity distribution.

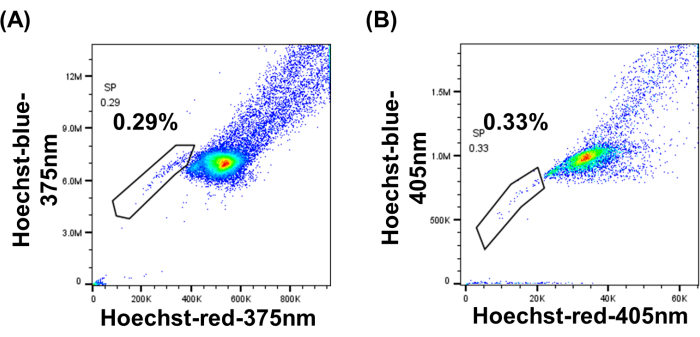

Figure 3: High-power 375 nm and 405 nm lasers are capable of detecting SP cells. (A) High-power 375 nm laser can detect SP cells. (B) The SP cells of bone marrow can also be detected utilizing the 405 nm lasers. Please click here to view a larger version of this figure.

Laser typeLaser wavelength (nm)Laser power (mW)Hoechst red filter (nm)Hoechst blue filter (nm)
Moflo Astrios EQ Argon gas355100692/75448/59
CytoFLEX LX Semiconductor35520690/50450/50
40580690/50450/50
CytoFLEX S Semiconductor37560690/50450/50
CytoFLEX SRT Semiconductor40580690/50450/50

Table 1: Summary of flow cytometer configurations.

Discussion

We used the protocol described to conduct three experiments, with each trial involving 3-4 mice, resulting in a total of 10 mice. The proportion of SP cells ranged from 0.05% to 0.76%. It is important to note that individual variations were observed among the mice. We utilized four flow cytometers to analyze the Hoechst samples. It is observed that the excitation of Hoechst dye by a 20 mW 355 nm laser on the new version of flow cytometry is equivalent to that of a 100 mW 355 nm laser on old-fashioned flow cytometry. This phenomenon can be attributed to the variation in laser types employed in both systems. The potential reason for the observed effect of 375 nm and 405 nm lasers could be attributed to the substantial power output of both lasers in conjunction with the utilization of the avalanche photodiode (APD) detector. The Hoechst Red-A channel captured the near-red long wavelength of 690 nm, where the photoelectric conversion efficiency of the photomultiplier tube (PMT) was relatively low. However, the APD demonstrated a photoelectric conversion efficiency approximately ten times higher than that of PMT24. Therefore, when combined with high-power 375 nm and 405 nm lasers, APD detectors efficiently distinguish SP cells. The 405 nm laser not only effectively detects SP cells but also exhibits superior capability in distinguishing a subset of weakly Hoechst Red positive populations compared to the 355 nm laser.

The critical step of the protocol is to use flow cytometry with a 375 nm laser or a 455 nm laser to detect cells with 690/50 nm (Hoechst-red) and 450/50 nm (Hoechst-blue) channels. While the technique detects SP cells with 375 nm and 405 nm lasers instead of 355 nm laser (traditional laser for analyzing SP cells1), which are more common in FCMs, high-power 375 nm and 405 nm lasers are required. This leads to the limitations of this technology. The significance of the method is to expand the range of lasers used to detect Hoechst dyes so that other models of flow cytometry can be used for SP cell detection.

Disclosures

No conflicts of interest declared.

Acknowledgements

 This work was supported by the grants to J.H. from National Natural Science Foundation of China (No. 81800207). The assistance of Beckman Coulter, Inc. in providing support for flow cytometry and parameter calibration is greatly appreciated. We thank Jiao Chen of the State Key Laboratory of Oral Diseases, West China Hospital of  Stomatology, Sichuan University, and Yu Qi of Regenerative Medicine Research Center, West China Hospital, Sichuan University, for their assistance in flow cytometry data acquisition.

Materials

List of materials used in this article
NameCompanyCatalog NumberComments
Automatic cell counterCountstar1M1200
Cell Filter(100 µm)BIOFILCSS-013-100
Daily quality control fluorospheresBeckman CoulterB5230
Dulbecco's Modification of Eagle's Medium with 4.5g/L glucose (DMEM medium)CORNING10-013-CVRC
Fetal bovine serumCORNING35-081-CV
HBSSHycloneSH30030.02
Hoechst 33342Sigma-AldrichB2261
Propidium iodide (PI)Sigma-AldrichP4170
Red blood cell lysis bufferBeyotimeC3702
VerapamilSigma-AldrichV4629

References

  1. Goodell, M. A., Brose, K., Paradis, G., Conner, A. S., Mulligan, R. C. Isolation and functional properties of murine hematopoietic stem cells that are replicating in vivo. J Exp Med. 183 (4), 1797-1806 (1996).
  2. Zhou, S., et al. The ABC transporter Bcrp1/ABCG2 is expressed in a wide variety of stem cells and is a molecular determinant of the side-population phenotype. Nat Med. 7 (9), 1028-1034 (2001).
  3. Camargo, F. D., Chambers, S. M., Drew, E., McNagny, K. M., Goodell, M. A. Hematopoietic stem cells do not engraft with absolute efficiencies. Blood. 107 (2), 501-507 (2006).
  4. Challen, G. A., Boles, N. C., Chambers, S. M., Goodell, M. A. Distinct hematopoietic stem cell subtypes are differentially regulated by TGF-beta1. Cell Stem Cell. 6 (3), 265-278 (2010).
  5. Asakura, A., Seale, P., Girgis-Gabardo, A., Rudnicki, M. A. Myogenic specification of side population cells in skeletal muscle. J Cell Biol. 159 (1), 123-134 (2002).
  6. Terrace, J. D., et al. Side population cells in developing human liver are primarily haematopoietic progenitor cells. Exp Cell Res. 315 (13), 2141-2153 (2009).
  7. Martin, J., et al. Adult lung side population cells have mesenchymal stem cell potential. Cytotherapy. 10 (2), 140-151 (2008).
  8. Challen, G. A., Bertoncello, I., Deane, J. A., Ricardo, S. D., Little, M. H. Kidney side population reveals multilineage potential and renal functional capacity but also cellular heterogeneity. J Am Soc Nephrol. 17 (7), 1896-1912 (2006).
  9. Mouthon, M. A., et al. Neural stem cells from mouse forebrain are contained in a population distinct from the 'side population'. J Neurochem. 99 (3), 807-817 (2006).
  10. Cordon-Cardo, C. Cancer stem cells. Ann Oncol. 21 (Suppl 7), 93-94 (2010).
  11. Lapidot, T., et al. A cell initiating human acute myeloid leukaemia after transplantation into SCID mice. Nature. 367 (6464), 645-648 (1994).
  12. Yun, E. J., et al. Targeting cancer stem cells in castration-resistant prostate cancer. Clin Cancer Res. 22 (3), 670-679 (2016).
  13. Lupia, M., Cavallaro, U. Ovarian cancer stem cells: still an elusive entity. Mol Cancer. 16 (1), 64(2017).
  14. Zhao, R., et al. AQP5 complements LGR5 to determine the fates of gastric cancer stem cells through regulating ULK1 ubiquitination. J Exp Clin Cancer Res. 41 (1), 322(2022).
  15. Liu, S., et al. A novel lncRNA ROPM-mediated lipid metabolism governs breast cancer stem cell properties. J Hematol Oncol. 14 (1), 178(2021).
  16. Ho, M. M., Ng, A. V., Lam, S., Hung, J. Y. Side population in human lung cancer cell lines and tumors is enriched with stem-like cancer cells. Cancer Res. 67 (10), 4827-4833 (2007).
  17. Chiba, T., et al. Side population purified from hepatocellular carcinoma cells harbors cancer stem cell-like properties. Hepatology. 44 (1), 240-251 (2006).
  18. Haraguchi, N., et al. Characterization of a side population of cancer cells from human gastrointestinal system. Stem Cells. 24 (3), 506-513 (2006).
  19. Zhou, J., et al. Activation of the PTEN/mTOR/STAT3 pathway in breast cancer stem-like cells is required for viability and maintenance. Proc Natl Acad Sci U S A. 104 (41), 16158-16163 (2007).
  20. Ota, M., et al. ADAM23 is downregulated in side population and suppresses lung metastasis of lung carcinoma cells. Cancer Sci. 107 (4), 433-443 (2016).
  21. Wang, F., et al. ALCAM regulates multiple myeloma chemoresistant side population. Cell Death Dis. 13 (2), 136(2022).
  22. Wang, F., et al. Homoharringtonine synergizes with quizartinib in FLT3-ITD acute myeloid leukemia by targeting FLT3-AKT-c-Myc pathway. Biochem Pharmacol. 188, 114538(2021).
  23. Dong, X. L., Wei, Y. Y., Xu, T., Tan, X. Y., Li, N. Analysis of side population in solid tumor cell lines. J Vis Exp. (168), e60658(2021).
  24. Bhowmick, D., Sheridan, R. T. C., Bushnell, T. P., Spalding, K. L. Practical guidelines for optimization and characterization of the Beckman Coulter CytoFLEX platform. Cytom Part A. 97 (8), 800-810 (2020).
