Expression of Functional Recombinant Hemagglutinin and Neuraminidase Proteins from the Novel H7N9 Influenza Virus Using the Baculovirus Expression System

Summary

Here we describe a way to express correctly folded and functional influenza virus surface antigens derived from the novel Chinese H7N9 virus in insect cells. The technique can be adapted to express ectodomains of any viral or cellular surface proteins.

Abstract

The baculovirus expression system is a powerful tool for expression of recombinant proteins. Here we use it to produce correctly folded and glycosylated versions of the influenza A virus surface glycoproteins - the hemagglutinin (HA) and the neuraminidase (NA). As an example, we chose the HA and NA proteins expressed by the novel H7N9 virus that recently emerged in China. However the protocol can be easily adapted for HA and NA proteins expressed by any other influenza A and B virus strains. Recombinant HA (rHA) and NA (rNA) proteins are important reagents for immunological assays such as ELISPOT and ELISA, and are also in wide use for vaccine standardization, antibody discovery, isolation and characterization. Furthermore, recombinant NA molecules can be used to screen for small molecule inhibitors and are useful for characterization of the enzymatic function of the NA, as well as its sensitivity to antivirals. Recombinant HA proteins are also being tested as experimental vaccines in animal models, and a vaccine based on recombinant HA was recently licensed by the FDA for use in humans. The method we describe here to produce these molecules is straight forward and can facilitate research in influenza laboratories, since it allows for production of large amounts of proteins fast and at a low cost. Although here we focus on influenza virus surface glycoproteins, this method can also be used to produce other viral and cellular surface proteins.

Introduction

As a first response to the recent emergence of the novel H7N9 influenza virus strain in China, we acquired plasmids carrying the genomic sequences for the hemagglutinin (HA) and neuraminidase (NA) genes of the first two isolates. Using these plasmids we were able to quickly construct baculoviral expression vectors for production of recombinant HA and NA in insect cells. This expression system is well established in our laboratory and has proven pivotal to many of our ongoing research projects^1-8. Insect cells are able to correctly fold and post-translationally modify complex proteins. These modifications include N-linked glycosylation, which is important for many viral glycoproteins. As such, it is not surprising that the baculovirus system is quite established for expressing influenza virus surface antigens. In fact, many of the HA and NA crystal structures have been solved using insect cell expressed proteins^9-11. Another advantage of the system lies in its reliable high protein yields of up to 30 mg of HA/L cell culture (based on our experience with more than 50 different HA proteins) - a consequence of virus-infection driven expression from the strong polyhedrin promoter.

Removal of the transmembrane and endodomain of the HA and NA proteins allows for expression of secretable, soluble versions of the proteins and thus greatly facilitates the purification process. In addition, these ectodomains are hexahistidine tagged and can therefore be purified using affinity chromatography using Ni²⁺-resin. The transmembrane domains of HA and NA proteins contribute to homotrimer and homotetramer formation, respectively. In order to preserve these oligomerizations, we add a C-terminal trimerization domain to the HA-, and a N-terminal tetramerization domain to the NA constructs (Figure 1). We have shown conclusively that such a trimerization domain stabilizes functional, conserved conformational epitopes on the stalk-domain of HA¹. The correct tetramerization of the NA might also contribute to correct folding and NA function¹⁰. Sequences and baculo-transfer vectors harboring trimerization or tetramerization domains can be requested from the authors or from other laboratories in the field ^,9,10,12.

Another important issue for expression of secreted proteins in insect cells is the choice of the right cell line. While Spodoptera frugiperda derived Sf9 cells support baculovirus replication very well and are generally used for virus rescue and propagation, they have limited capacity to secrete large amounts of protein. Trichoplusia ni derived BTI-TN-5B1-4 cells (commonly known as High Five) have a higher secretion capacity and are the cell line of choice for expression in this protocol^13,14. Furthermore, it is helpful to reduce or even remove fetal bovine serum (FBS) from expression cultures. We therefore use media with reduced (3%) FBS content for growing the virus working stocks, and we perform the protein expression in serum free media.

Recombinant HA and NA proteins are used for many immunological techniques. Perhaps the most common one is in ELISA assays for measuring serum conversion upon vaccination in humans or animals^4,6,7,15. HAs and NAs are also used in ELISPOT assays as both stimulatory molecules and detection reagents for antibody secreting cells¹⁶. Their use as molecular baits allows to specifically sort for plasmablasts or other types of B-cells that can then be used to isolate (therapeutic) monoclonal antibodies (mAbs). Recombinant HA and NA molecules are further used in the characterization of these mAbs⁸. Other examples include study the pH stability or receptor specificity of HAs expressed by different virus isolates, or quantitatively assessing specific NA enzymatic activity or resistance to inhibitors. Furthermore, recombinant, purified HA can be used to standardize HA content of inactivated influenza virus vaccines.

Importantly, rHA (and to a certain degree NA) vaccine candidates are currently being tested in animal models and human clinical trials with one vaccine candidate being licensed by the FDA in 2013^2,17-19. The advantage of these novel vaccines is that, due to the recombinant nature of these proteins, the labor-intensive process of generating of high growth reassortant viruses could be avoided. Perhaps even more relevant is the fact that their HA yield is high and reproducible from strain to strain. Also, since these vaccines are produced in an egg-free system, they do not contain protein contaminants that are problematic for individuals with egg allergies.

Here we chose to express the HA and NA proteins from two isolates of the novel Chinese H7N9 influenza virus, A/Anhui/1/13 and A/Shanghai/1/13^20,21. These are timely examples, but the described protocol can be used for expression of any influenza A and B HA or NA proteins and can be adapted to express any other secreted viral or cellular proteins. Trimeric or tetrameric transmembrane proteins can be cloned into the expression cassettes used for HA and NA, respectively. However, most soluble secreted cellular proteins, like interferons for example, do not need an additional domain for stabilization and can be expressed solely with a C-terminal hexahistidine tag.

Protocol

1. Generation of Recombinant Baculovirus

1. Cloning into baculovirus transfer-plasmids

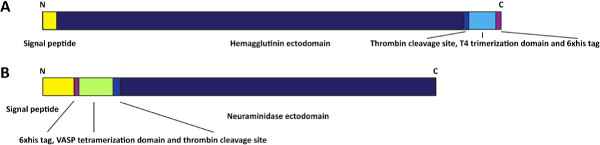

   1. Clone H7 HA and N9 NA ectodomain (or any other HA or NA gene) into modified pFastBac transfer plasmids (see introduction). Vectors for HA containing a C-terminal trimerization domain and a hexahistidine tag, as well as for NA containing an N-terminal tetramerization domain and hexahistidine tag, have been described^1,10,11,22 (Figure 1) and can be requested from the authors.
      Explanatory note: HA ectodomains expressed without a trimerization domain will be folded incorrectly, leading to loss of conformational neutralizing epitopes, especially in the stalk domain. Similarly, the NA enzymatic function relies on proper tetramerization.
   2. Generation of bacmids

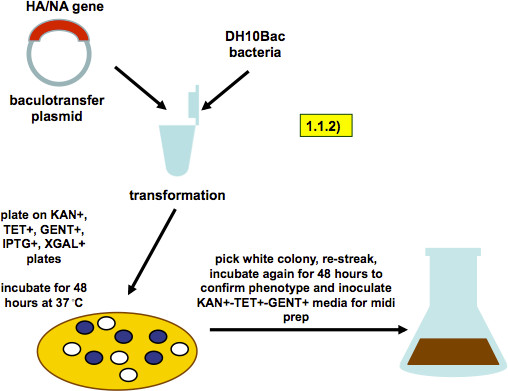

      Transform baculovirus transfer-plasmids containing HA and NA genes into DH10Bac bacteria according using a baculovirus expression system per manufacturer's instructions. Isolate and purify bacmids using a Midiprep kit according to manufacturer's instructions (Figure 2).
2. Rescue of recombinant baculovirus and verification of protein expression
   Explanatory note: The following steps have to be performed aseptically in a laminar flow hood. Perform this procedure independently for HA and NA (or any other gene of interest). Insect cells are usually grown at 28 °C without CO₂. Sf9 cells for this protocol are grown in full TNM-FH insect cell media supplemented with 10% FBS, 1% Pen-Strep^* and 0.1% Pluronic F68 solution, if not indicated otherwise, and passaged 1:4 twice a week. High Five cells are grown in SFX serum free media and passaged 1:15 twice a week.
   ^* Addition of antibiotics should be considered optional throughout the protocol and adjusted according to the practices used in each laboratory.
   1. Plate Sf9 insect cells in 6-well plates at a density of 2 x 10⁵ cells/cm² and let sit for 20 min in a 28 °C incubator (without CO₂).

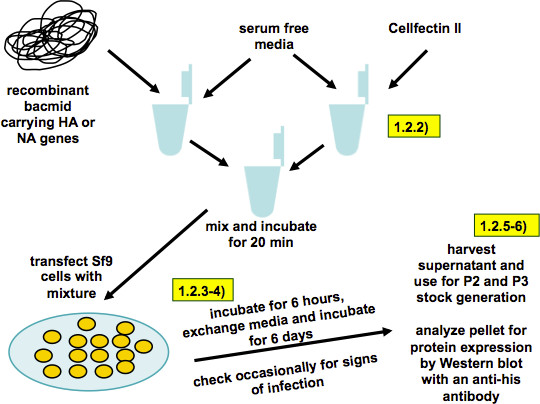

   2. Mix 2 μg (conc. 0.5-2 μg/ul) of recombinant bacmid with 100 μl of TNM-FH medium (serum free, 1% Pen-Strep). Mix 6 μl of transfection agent with 100 μl of TNM-FH medium (serum free, Pen-Strep). Combine the two volumes, mix gently and let sit for 20 min at room temperature (transfection mixture). Include one mock-transfection as control (Figure 3).
   3. Remove supernatant from plated Sf9 cells (cells will now stick to the plate) and replace with 2 ml of serum free TNM-FH medium containing Pen-Strep (1%). Add the complete volume of the transfection mixture (from step 1.2.2) and rock the 6-well plate carefully for 5 sec. Incubate in a 28 °C incubator without CO₂ for 6 hr (Figure 3).

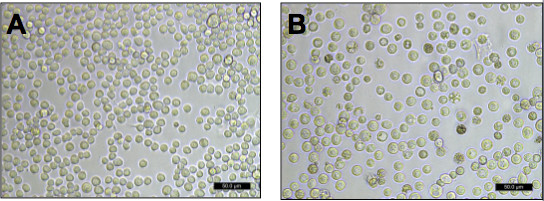

   4. Replace media with fresh full TNM-FH media (containing 10% FBS, 1% Pen-Strep and 0.1% Pluronic F68). Incubate in a 28 °C incubator without CO₂ for 6 days. Check cells occasionally under a microscope. Infected cells usually appear bigger, rounder, have enlarged nuclei, and start to detach (Figure 4).
   5. Harvest of cells and confirmation of protein expression
      1. Harvest cells 6 days post transfection by centrifugation at 2,000 x g for 5 min at room temperature. The supernatant contains the recombinant baculovirus - this will be used to generate working stocks right away, or can be stored at 4 °C for years.
      2. To check protein expression collect pellets and resuspend in 500 μl of PBS. Mix 50 μl of the suspension with 50 μl of SDS-PAGE loading buffer (containing a reducing agent). Run SDS-PAGE and perform a Western blot analysis with an anti-hexahistidine antibody to confirm gene expression. Include cells from the mock transfection as negative controls (Figure 3).
   6. Preparation of working stocks
      1. Plate 5 x 10⁵ Sf9 cells/cm² in a T175 cm² flask and let sit for 20 min allow them to attach to the dish. Replace complete TNM-FH media with TNM-FH media containing 3% FBS (and 1% Pen-Strep, 0.1% Pluronic F68).
      2. Infect cells with 100 μl of the rescue supernatant. Incubate in a 28 °C incubator without CO₂ for 6 days and check occasionally if cells get infected (as described in step 1.2.5.).
      3. Spin at 2,000 x g at room temperature for 5 min and collect supernatant. This is now your P2 stock. This stock can be stored indefinitely at 4 °C. Repeat the infection procedure using 100 μl of the P2 stock to infect cells. The resulting stock is called P3 or working stock, which can be stored at 4 °C or used directly for protein expression. The P3 stock usually contains 10⁷-10⁹ plaque forming units/ml.

2. Protein Expression and Purification

Explanatory note: Sf9 cells support the growth of baculovirus very well. However, their capacity to secrete large amounts of recombinant protein is limited. Therefore we use another insect cell line, High Five cells, for expression of secreted recombinant proteins. These cells do not support baculovirus replication to very high titers¹³ but have high secretory capacity.

1. Growing up High Five cells
   Grow High Five cells in SFX insect cell culture medium in T175 cm² flasks. Passage every other day 1:3. For a 200 ml expression culture you will need to grow 5 confluent flasks.
2. Harvesting and infecting High Five cells
   1. Detach High Five cells from 5 T175 cm² flasks by tapping the flasks with your hand. Collect the cell suspension and transfer into 50 ml centrifugation tubes.
   2. Spin at 1,200 x g for 7 min at room temperature. Remove supernatant by decanting and unite the pellets by resuspending them in 15 ml of P3 stock.

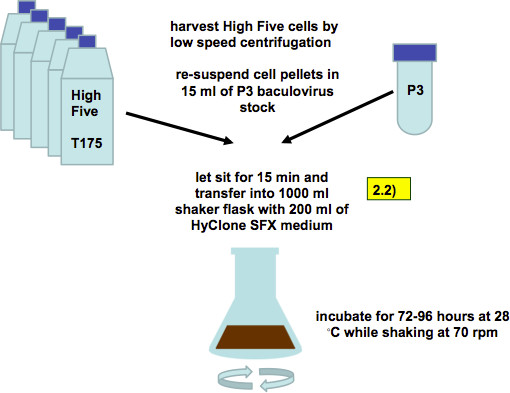

   3. Let sit for 15 min in the flow hood (Figure 5).
   4. Transfer 200 ml of Hyclone SFX culture medium into a clean, sterile 1,000 ml shaker flask (without buffles, sealed with aluminium foil before autoclaving, should not have been used for bacterial cultures before).
   5. Transfer the P3/cell suspension into the shaker flask. Seal with sterile aluminium foil and transfer flask into a shaker. Shake at 70 rpm at 28 °C for 72-96 hr.
3. Harvesting recombinant protein from High Five cell expression supernatants
   1. 72-96 hr post infection transfer culture supernatants into 500 ml centrifugation buckets. Spin at 5,500 x g for 20 min at 4 °C. In the meantime rinse the shaker flasks 3x with double distilled water (ddH₂O).

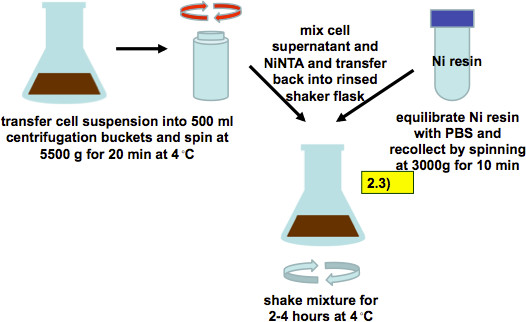

   2. Transfer 3 ml Ni-resin slurry into a 50 ml tube with 45 ml of PBS (one needed per 200 ml culture). Shake well and spin at 3,000 x g at room temperature for 10 min. Decant the PBS and keep the pellet. Mix the insect cell supernatant with the Ni-resin pellet and transfer into the already rinsed shaker flasks. Incubate at 4 °C for 2-4 hr, while shaking (Figure 6).

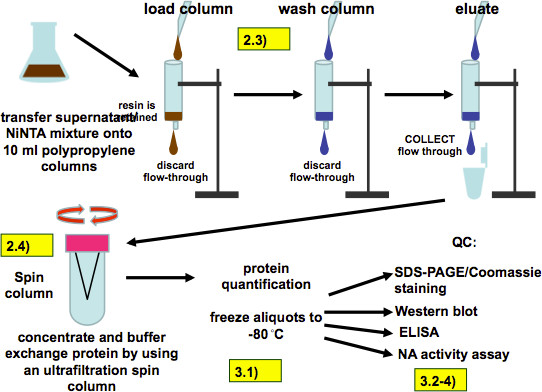

   3. Mount 10 ml polypropylene column on a clamp on a support stand. Remove both caps and place a beaker below the column to collect flow through (waste). Take the shaker flask out of the shaker and start to transfer the supernatant/slurry mixture onto the column; it will retain the Ni-resin and only the supernatant will flow through. Pass the entire volume over the column (Figure 7).
   4. Wash the resin 4x with 15 ml of washing buffer (50 mM Na₂HCO₃, 300 mM NaCl, 20 mM imidazole, pH 8). Let all the washing buffer drain from the column and close it with the cap (lower side).
   5. Add 2 ml of elution buffer (50 mM Na₂HCO₃, 300 mM NaCl, 300 mM imidazole, pH 8) and let sit for 5 min. Open column and collect the eluate. Repeat this 3 more times (with a total of 8 ml of elution buffer). Eluate that contains high concentrations of protein typically shows foam when shaken (Figure 7). Keep eluate on wet ice whenever possible.
4. Buffer exchange and concentration
   1. Prespin 15 ml ultrafiltration centrifugation units (30 kDa cut-off for HA/NA but may vary depending on the purified protein size) with PBS (pH 7.4-7.6) at 3,000 x g at 4 °C for 20 min. Discard flow through and load eluate onto the spin column. Fill up with 5 ml of sterile, ice cold PBS and spin for 60 min at 3,000 x g at 4 °C.
   2. Discharge flow through again, refill with 15 ml of ice cold PBS and spin for 60 min at 3,000 x g at 4 °C. Repeat this procedure one more time.
   3. Take the spin column out of the centrifuge and collect the buffer exchanged concentrate (typically 200 μl). This is highly concentrated recombinant protein. Rinse the spin column with 400 μl of sterile ice cold PBS and add this to the concentrate. Keep the concentrate on ice at all times.

3. Characterization and Quality Control

1. Measuring protein concentration
   Take an aliquot of the concentrate and measure it by using your protein quantification method of choice. Set protein concentration to 1 mg/ml by adding PBS and freeze small aliquots to -80 °C. Freeze thaw cycles harm the protein structure and can lead to aggregation.
2. SDS-PAGE and Coomassie staining

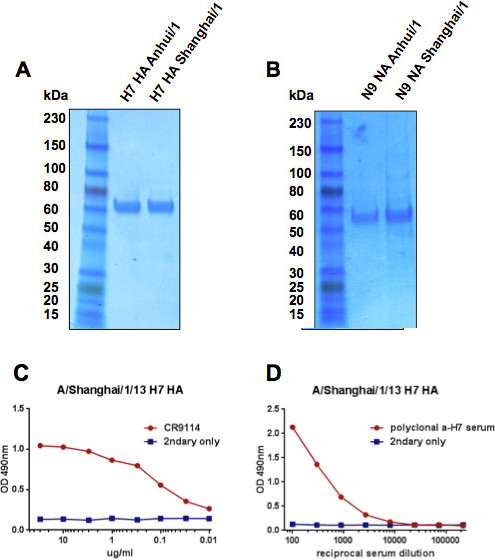

   Run 500 ng of your protein on a SDS-PAGE and perform a Coomassie staining. For fast and convenient staining use Coomassie reagent in combination with a microwave protocol. HA proteins typically appear at 64 kDa whereas NA proteins should run at a size of around 56 kDa (Figures 8A and B). Using the described protocol you should not see any degradation products. If degradation occurs it is usually a sign of yeast/fungal contamination during expression. In this case repeat the procedure and make sure to keep everything sterile.
3. Western blot/ELISA
   In order to verify protein identity we recommend do to a Western blot or ELISA assay with a specific antibody. Ideally, ELISA assays are performed with an antibody that binds to conformational epitopes (e.g. anti-HA stalk antibodies¹). Using such an antibody the correct folding of the protein can be confirmed (Figure 8C).
4. Measuring NA activity
   Correct folding of the viral NA can also be determined by measuring NA activity. We recommend to perform this test using the commercially available NA*STAR assay (just follow the user guidelines).

Results

HA molecules from A/Shanghai/1/13 and A/Anhui/1/13 expressed well with yields of about 20 mg/L culture. NA molecules of both strains showed moderate expression levels ranging from 0.2 mg/L culture for A/Shanghai/1/13 to 0.7 mg/L for A/Anhui/1/13. All four protein preparations had very little to no impurities (Figures 8A and B) with HAs being of higher purity than NAs which can be explained by the expression level. A/Shanghai/1/13 HA was further analyzed using ELISA with the broadly neutr...

Discussion

Although expression of influenza virus HA and NA proteins in insect cells using the baculovirus expression system is generally straight forward, there are several important points to consider. It is important, as pointed out in the introduction, that the ectodomains of HA and NA are expressed in fusion with trimerization or tetramerization domains, respectively. These domains ensure correct folding of the molecules usually assisted by the transmembrane domain, which is not present if only the ectodomain is expressed. For...
