Method Article

Regulating Schwann Cell Growth by Nanosecond Pulsed Electric Field for Peripheral Nerve Regeneration In Vitro

1.8K views

⸱

DOI:

10.3791/66097

⸱

May 3rd, 2024

 ,  ,  ,  ,  ,  ,  ,  ,
1Department of Orthopedics, The First Affiliated Hospital, College of Medicine, Zhejiang University, 2College of Medicine, Zhejiang University, 3Department of Orthopedics, The Second Affiliated Hospital of Zhejiang Chinese Medical University, 4Department of Orthopedic Physical Therapy, Faculty of Physical Therapy, Nahda University in Beni Suef, 5Plastic & Cosmetic Center, The First Affiliated Hospital, College of Medicine, Zhejiang University

* These authors contributed equally

In This Article

Summary

Here, we present a protocol for applying nanosecond pulse electric field (nsPEF) to stimulate Schwann cells in vitro. The synthesis and secretion ability of relevant factors and cell behavior changes validated the successful stimulation using nsPEF. The study gives a positive view of the peripheral nerve regeneration method.

Abstract

Schwann cells (SCs) are myelinating cells of the peripheral nervous system, playing a crucial role in peripheral nerve regeneration. Nanosecond Pulse Electric Field (nsPEF) is an emerging method applicable in nerve electrical stimulation that has been demonstrated to be effective in stimulating cell proliferation and other biological processes. Aiming to assess whether SCs undergo significant changes under nsPEF and help explore the potential for new peripheral nerve regeneration methods, cultured RSC96 cells were subjected to nsPEF stimulation at 5 kV and 10 kV, followed by continued cultivation for 3-4 days. Subsequently, some relevant factors expressed by SCs were assessed to demonstrate the successful stimulation, including the specific marker protein, neurotrophic factor, transcription factor, and myelination regulator. The representative results showed that nsPEF significantly enhanced the proliferation and migration of SCs and the ability to synthesize relevant factors that contribute positively to the regeneration of peripheral nerves. Simultaneously, lower expression of GFAP indicated the benign prognosis of peripheral nerve injuries. All these outcomes show that nsPEF has great potential as an efficient treatment method for peripheral nerve injuries by stimulating SCs.

Introduction

Each year, millions of people are affected by nerve injuries involving both the peripheral nervous system (PNS) and the central nervous system (CNS)1. Studies have demonstrated that the axonal repair capacity of the CNS is quite limited after nerve injuries, while the PNS shows enhanced capacity due to the significant plasticity of SCs2. Nevertheless, achieving complete regeneration after peripheral nerve injuries remains arduous and continues to pose a significant challenge to human health3,4. Nowadays, autografts have remained a common treatment despite the drawbacks of donor site morbidity and limited availability5. This situation has prompted researchers to explore alternative therapies, including materials6, molecular factors7, and electrical stimulation (ES). As a factor promoting axonal growth and nerve regeneration8, choosing an appropriate method of ES and exploring the relationship between ES and SCs become essential.

SCs are the main glial cells of the PNS, playing a crucial role in the regeneration of the PNS9,10. Following peripheral nerve injuries, SCs undergo rapid activation, extensive reprogramming2, and transition from a myelin-forming state to a growth-supportive morphology to conduct the regeneration of the nerve2. A substantial proliferation of SCs occurs at the distal end of the injured nerve, while SCs of the distal stump undergo proliferation and elongation to form Bungner's band, which are necessary to guide axons to grow towards the target organ11. Moreover, SCs from the proximal and distal nerve stumps migrate into the nerve bridge to form SC cords promoting axon regeneration12. Furthermore, previous studies have demonstrated that the synthesis and secretion of relevant factors related to SCs change in cases of peripheral nerve regeneration, including transcriptional factors13, neurotrophic factors14, and myelination regulators13. This also provides indicators for assessing the activity of SCs. Based on these, the promotion of SC proliferation, migration, synthesis, and secretion of relevant factors have been extensively investigated for improving peripheral nerve regeneration15.

Previous studies have demonstrated the possibility of using ES for nerve regeneration1. A widely accepted explanation is that ES can induce depolarization of cell membranes, alter membrane potential, and affect membrane protein functions by changing the charge distributions on these biomolecules1. However, widely applied Intense PEF may cause severe pain, involuntary muscle contractions, and heart fibrillation8. It also increases creatine kinase (CK) activity, decreases muscle strength, and induces the development of delayed onset muscle soreness (DOMS)16. nsPEF is an emerging technique that stimulates test subjects with high-voltage electric fields within a nanosecond pulse duration, and it is gradually being used in cellular-level research17,18. Previous studies have reported that the possible rationale of nsPEF promoting cell proliferation and organelle activity is the formation of membrane nanopores and the activation of ionic channels, which leads to an increase in cytoplasmic Ca2+ concentration19. nsPEF utilizes pulse power technology to charge the cell membrane, producing pulses characterized by short duration, rapid rise time, high power, and low energy density20. These characteristics suggest that nsPEF may be a preferred mode with minimal stimulation side effects8. Furthermore, nsPEF offers advantages such as minimally invasive procedures, reversibility, adjustability, and non-destructiveness to neural tissues compared to surgical interventions. One mainstream research direction of nsPEF in the biomedical field is its application for tumor tissue ablation using high-energy electric field stimulation21,22,23. Some research results indicate that 12-nsPEF can stimulate peripheral nerves without causing damage24. However, at present, there is limited evidence regarding the application of nsPEF in the field of nerve regeneration. Moreover, stimulating SCs using nsPEF is a pioneering attempt, contributing to further in vivo and clinical research. This study explores whether nsPEF stimulation of SCs can promote nerve regeneration and provide a reliable basis for subsequent in-depth and systematic research.

Access restricted. Please log in or start a trial to view this content.

Protocol

1. Thawing of cryopreserved RSC96 cells

  1. Thaw the cryovial containing 1 mL of cell suspension by rapidly shaking it in a 37 °C water bath, and then add it to a centrifuge tube containing 4-6 mL of complete culture medium and mix well.
  2. Centrifuge at 1000 x g for 3-5 min, discard the supernatant and resuspend the cells in 3 mL of complete culture medium.
  3. Add the cell suspension to a culture flask (or dish) containing 6-8 mL of complete culture medium and incubate at 37 °C overnight.
  4. The next day, observe the cell growth and density under a microscope.

2. Cell passage:

NOTE: If the cell density reaches 80%-90%, it is ready for passage.

  1. Discard the culture medium and rinse the cells 1-2 times with phosphate-buffered saline (PBS) without calcium and magnesium ions.
  2. Add 0.25% (w/v) trypsin-0.53 mM EDTA to the culture flask (1-2 mL for a T25 flask, 2-3 mL for a T75 flask) and incubate at 37 °C for 1-2 min.
  3. Observe the cell detachment under a microscope. If most cells become round and detach, quickly return the flask to the working area, tap the flask gently, and add 3-4 mL of culture medium containing 10% FBS to stop the digestion.
  4. Mix the contents, aspirate the solution, and centrifuge at 1000 x g for 5 min. Then, discard the supernatant and resuspend the cells by adding 1-2 mL of fresh culture medium and pipetting gently.
  5. Transfer the cell suspension to a new T25 flask at a 1:2 ratio and add 7 mL of culture medium.

3. Operation of nsPEF device

  1. Resuspend the RSC96 cells in 1 mL of DMEM culture medium and transfer them to colorimetric dishes with electrodes on both sides.
  2. Turn on the power switch.
  3. Adjust the parameters by rotating the knob on the instrument to alter the intensity of the electric field. The intensities set in this study are 5 kV/cm, 10 kV/cm, 20 kV/cm, and 40 kV/cm.
  4. Carefully rotate the electrodes until sparks appear, allowing the cells to receive 5 pulses of nsPEF according to the preset field strength intensities before immediately separating the two electrodes. Following this treatment, take the experimental group cells treated with nsPEF and the untreated control group cells to perform sections 4-6, respectively, after a certain period of cell culture (1 day in this experiment).

4. Cell counting kit-8 (CCK-8) assay

  1. Prepare a cell suspension of a particular concentration from RSC96 cells stimulated with electrical stimulation. Add 100 µL of the cell suspension to each well of a 96-well cell culture plate. Considering the requirements of the CCK-8 assay, control the total number of cells in the reagent kit between 1 x 103 and 1 x 106.
  2. Take 10 µL of CCK-8 solution from the kit and add it to the 96-well cell culture plate. Incubate in a CO2 incubator at 37 °C for an additional 30 min to 4 h.
  3. Measure the absorbance. Use dual-wavelength measurement with a detection wavelength of 430-490 nm and a reference wavelength of 600-650 nm.
  4. Determine the field strength intensity for subsequent experiments based on the experimental results of cell proliferation. Select cells with good proliferation for subsequent experiments.

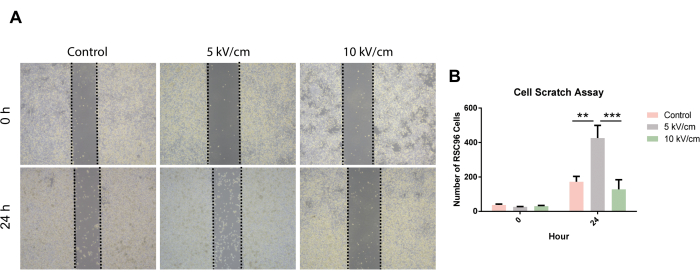

5. Cell scratch assay

  1. In each well of a six-well plate, seed 3 x 105 cells with a total volume of 2 mL per well. Approximately 72 h later, the cells will cover the well. Conduct the test on the experimental and the control groups separately.
  2. Use a pipette tip to draw a horizontal line at the bottom of the culture well. Ensure that the pipette tip is held vertically and try to avoid tilting it.
  3. Aspirate the culture media and wash with PBS 2-3 times.
  4. Add 2 mL of serum-free medium to each well.
  5. Place the plate in the 37 °C incubator. Take pictures under a fourfold magnification of the inverted microscope at 0 h and 24 h to observe changes in cell migration.

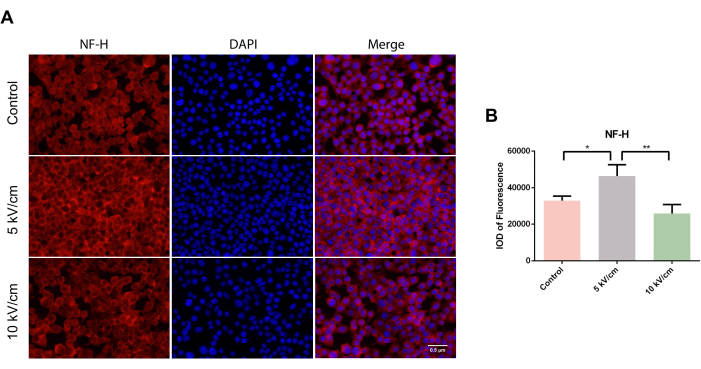

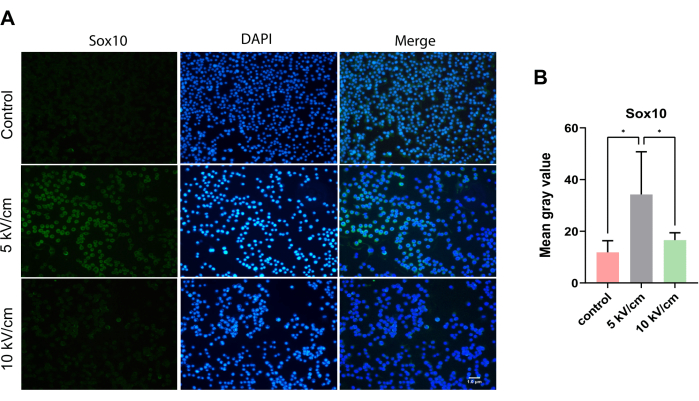

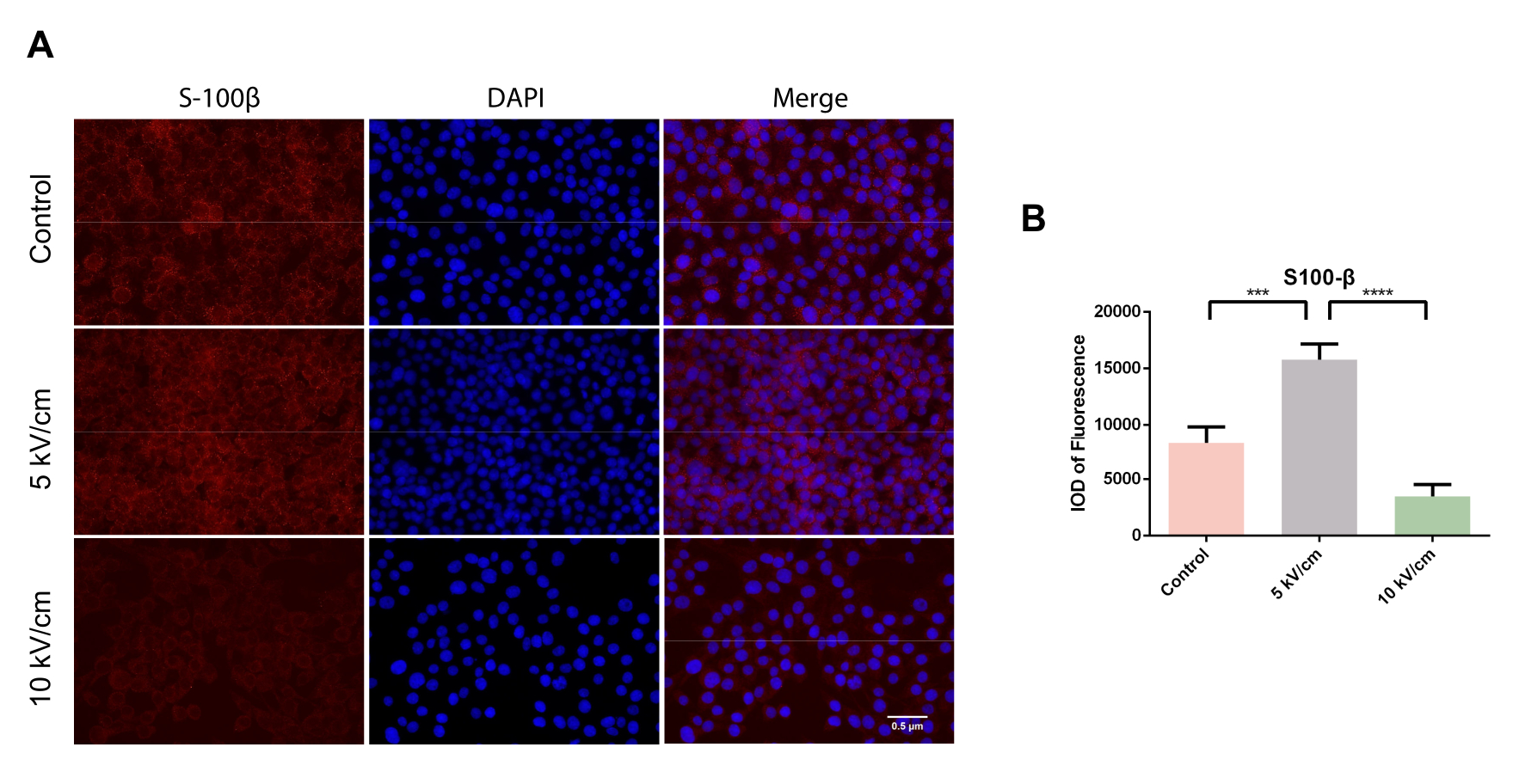

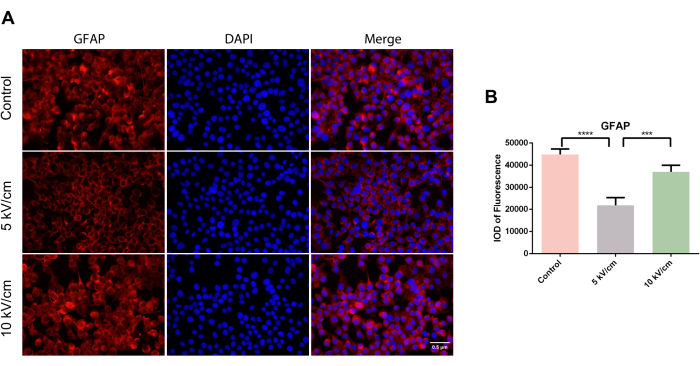

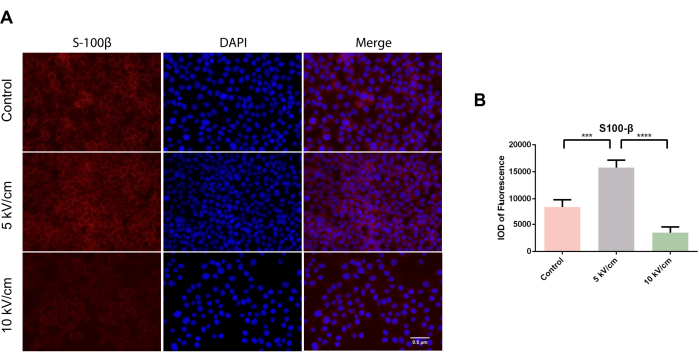

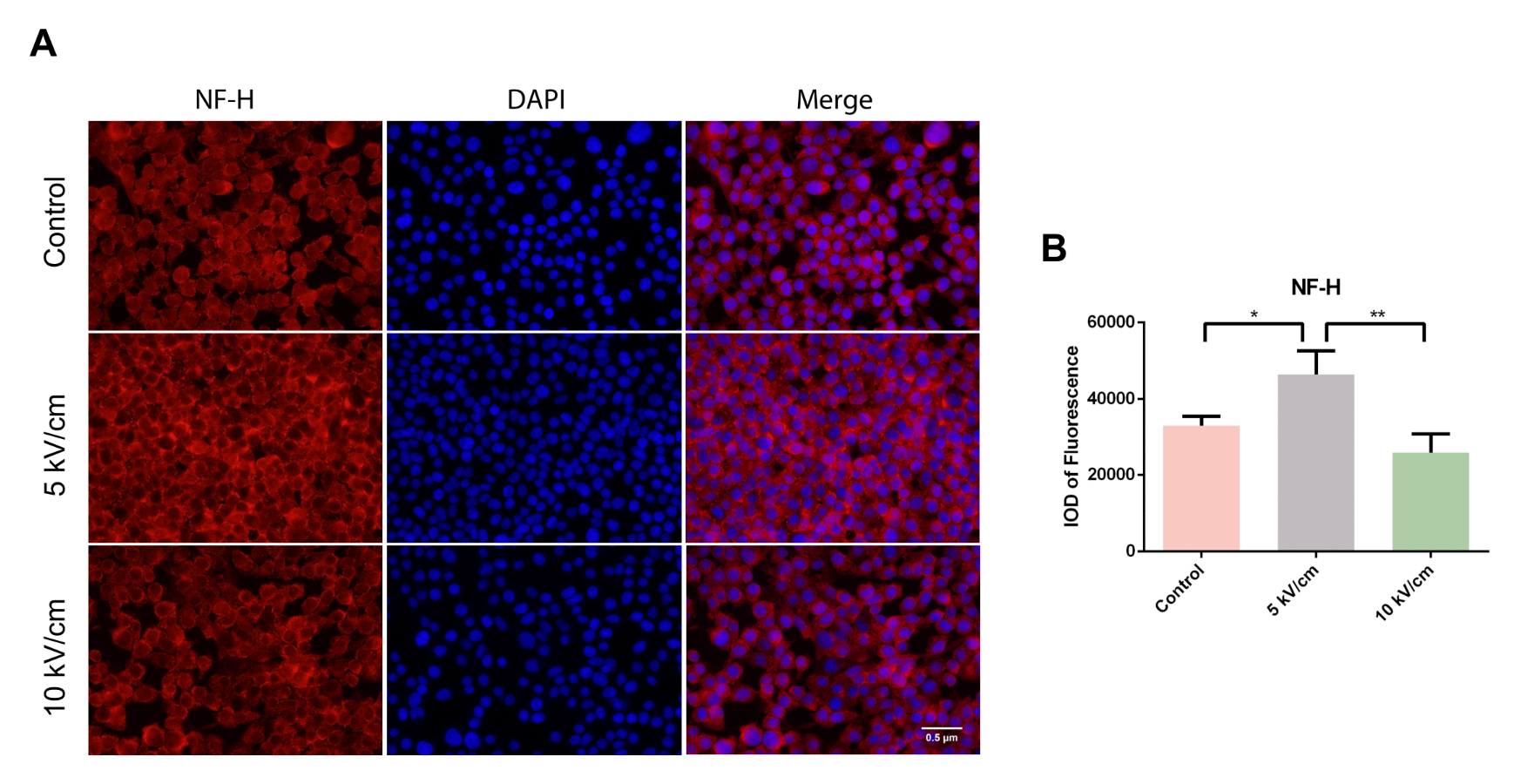

6. Immunofluorescence

  1. Cell permeabilization:
    1. After gently pipetting cell suspensions into culture dishes, draw circles with a histology pen at locations where cells are evenly distributed on the coverslip. Treat the control group and different experimental groups separately.
    2. Add 50-100 µL of permeabilization working solution (0.25-0.5% Triton X-100) and incubate at room temperature (RT) for 20 min. Wash three times with PBS for 5 min each time.
  2. Serum Blocking: Add 3% BSA within the circles to cover the tissue uniformly. Incubate at RT for 30 min.
  3. Primary antibody incubation: Gently remove the blocking solution and add the appropriately diluted primary antibody (mouse-derived, diluted at 1:300) to the cell wells. Place the cell culture plate in a humid box and incubate overnight at 4 °C.
  4. Secondary antibody incubation: Place the cell plate on a shaker and wash it three times for 5 min each time. Add the corresponding secondary antibody (CY3-labeled goat anti-mouse IgG, diluted at 1:300) and incubate at RT for 50 min.
  5. DAPI nuclear staining:
    1. Place the coverslip in PBS (pH 7.4) on a shaker and wash three times for 5 min each time.
    2. After gently drying the slide, add DAPI staining solution (2 µg/mL, 0.5 mL per circle) within the circles and incubate at RT for 10 min in a dark room.
  6. Mounting: Place the coverslip in PBS (pH 7.4) on a shaker and wash three times for 5 min each time. After gently drying the slide, seal the coverslip with an anti-fading mounting medium for fluorescence.
  7. Image acquisition: Excite DAPI at a wavelength of 330-380 nm and detect emission at 420 nm; excite at 465-495 nm and detect emission at 515-555 nm for AF488; excite at 510-560 nm and detect emission at 590 nm for CY3; excite at 608-648 nm and detect emission at 672-712 nm for CY5.

Access restricted. Please log in or start a trial to view this content.

Results

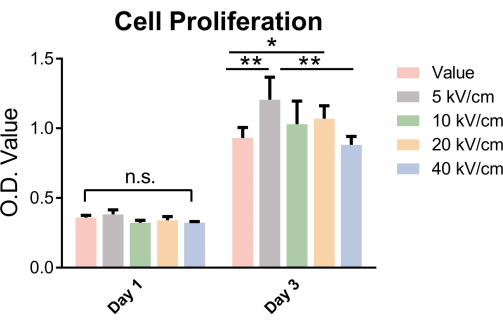

Low-intensity pulsed electric fields stimulate cell proliferation
According to the CCK-8 assay, the proliferation rate of RSC96 in the 5 kV/cm group was significantly faster than that of the control group cells. However, as the parameters increased (20 kV/cm and 40 kV/cm), the proliferation rate was unstable, even lower than that of the control group. The cell proliferation rate of RSC96 cells in the 40 kV/cm group was significantly lower than the control and 5 kV/cm groups, showing a significant sta...

Access restricted. Please log in or start a trial to view this content.

Discussion

In recent years, the application of nsPEF has experienced boosting growth, as reported. nsPEF has a highly targeted effect on only the desired area, providing enough energy to treat without causing additional thermal damage, making it safer for the human body28. These characteristics give it promising translational prospects in tumor treatment and nerve regeneration. However, some studies have proposed some limitations of nsPEF. Compared with materials research, ES is constrained by external power...

Access restricted. Please log in or start a trial to view this content.

Disclosures

The authors have nothing to disclose.

Acknowledgements

This work was funded by the National Key Scientific Instrument and Equipment Development Project (NO.82027803).

Access restricted. Please log in or start a trial to view this content.

Materials

List of materials used in this article
NameCompanyCatalog NumberComments
Antifade mounting mediumWuhan Xavier Biotechnology Co., LTDG1401
Anti-GFAP Mouse mAbWuhan Xavier Biotechnology Co., LTDGB12100-100
Anti-Neurofilament heavy polypeptide Mouse mAbWuhan Xavier Biotechnology Co., LTDGB12144-100
Anti-S100 beta Mouse mAbWuhan Xavier Biotechnology Co., LTDGB14146-100
BSAWuhan Xavier Biotechnology Co., LTDGC305010
CoverslipJiangsu Shitai experimental equipment Co., LTD10212432C
CY3-labeled goat anti-mouse IgGWuhan Xavier Biotechnology Co., LTDGB21302
DAPI Staining ReagentWuhan Xavier Biotechnology Co., LTDG1012
Decolorizing shakerWuhan Xavier Biotechnology Co., LTDDS-2S100
High Voltage Power Supply for nsPEFMatsusada Precision Inc.AU-60P1.6-L
Histochemical penWuhan Xavier Biotechnology Co., LTDG6100
Membrane breaking liquidWuhan Xavier Biotechnology Co., LTDG1204
Microscope slideWuhan Xavier Biotechnology Co., LTDG6012
Palm centrifugeWuhan Xavier Biotechnology Co., LTDMS6000
PBS powderedWuhan Xavier Biotechnology Co., LTDG0002
PipetteWuhan Xavier Biotechnology Co., LTD
Positive fluorescence microscopeNikon, JapanNIKON ECLIPSE C1
Rabbit Anti-SOX10/AF488 Conjugated antibodyBeijing Bioss Biotechnology Co., LTDBS-20563R-AF488
RSC96 Schwann cellsWuhan Xavier Biotechnology Co., LTDSTCC30007G-1
scanister3DHISTECHPannoramic MIDI
Special cable for nsPEFTimes Microwave SystemsM17/78-RG217
Turbine mixerWuhan Xavier Biotechnology Co., LTDMV-100

References

  1. Jing, W., et al. Study of electrical stimulation with different electric-field intensities in the regulation of the differentiation of PC12 cells. ACS Chem Neurosci. 10 (1), 348-357 (2018).
  2. Nocera, G., Jacob, C. Mechanisms of Schwann cell plasticity involved in peripheral nerve repair after injury. Cell Mol Life Sci. 77, 3977-3989 (2020).
  3. Aguilar, Z. Nanomaterials for Medical Applications. , Newnes. (2012).
  4. Xie, S., et al. Efficient generation of functional Schwann cells from adipose-derived stem cells in defined conditions. Cell Cycle. 16 (9), 841-851 (2017).
  5. Rosenbalm, T. N., Levi, N. H., Morykwas, M. J., Wagner, W. D. Electrical stimulation via repeated biphasic conducting materials for peripheral nerve regeneration. J Mater Sci Mater Med. 34 (11), 1-18 (2023).
  6. Daly, W. T., et al. Comparison and characterization of multiple biomaterial conduits for peripheral nerve repair. Biomaterials. 34 (34), 8630-8639 (2013).
  7. Lee, B. -K., et al. End-to-side neurorrhaphy using an electrospun PCL/collagen nerve conduit for complex peripheral motor nerve regeneration. Biomaterials. 33 (35), 9027-9036 (2012).
  8. Kim, V., Gudvangen, E., Kondratiev, O., Redondo, L., Xiao, S., Pakhomov, A. G. Peculiarities of neurostimulation by intense nanosecond pulsed electric fields: how to avoid firing in peripheral nerve fibers. Int J Mol Sci. 22 (13), 7051(2021).
  9. Assinck, P., Duncan, G. J., Hilton, B. J., Plemel, J. R., Tetzlaff, W. Cell transplantation therapy for spinal cord injury. Nat Neurosci. 20 (5), 637-647 (2017).
  10. Chen, Y. Y., McDonald, D., Cheng, C., Magnowski, B., Durand, J., Zochodne, D. W. Axon and Schwann cell partnership during nerve regrowth. J Neuropathol Exp Neurol. 64 (7), 613-622 (2005).
  11. Yi, S., et al. Tau modulates Schwann cell proliferation, migration and differentiation following peripheral nerve injury. J Cell Sci. 132 (6), (2019).
  12. Min, Q., Parkinson, D. B., Dun, X. Migrating Schwann cells direct axon regeneration within the peripheral nerve bridge. Glia. 69 (2), 235-254 (2021).
  13. Zhang, Y., Zhao, Q., Chen, Q., Xu, L., Yi, S. Transcriptional control of peripheral nerve regeneration. Mol Neurobiol. 60 (1), 329-341 (2023).
  14. Nishi, M., Kawata, M., Azmitia, E. C. Trophic interactions between brain-derived neurotrophic factor and S100β on cultured serotonergic neurons. Brain Res. 868 (1), 113-118 (2000).
  15. Gu, Y., et al. miR-sc8 inhibits Schwann cell proliferation and migration by targeting EGFR. PLoS One. 10 (12), e0145185(2015).
  16. Dong, H. -L., et al. AMPK regulates mitochondrial oxidative stress in C2C12 myotubes induced by electrical stimulations of different intensities. Nan Fang Yi Ke Da Xue Xue Bao. 38 (6), 742-747 (2018).
  17. Beebe, S. J., Blackmore, P. F., White, J., Joshi, R. P., Schoenbach, K. H. Nanosecond pulsed electric fields modulate cell function through intracellular signal transduction mechanisms. Physiol Meas. 25 (4), 1077(2004).
  18. Haberkorn, I., Siegenthaler, L., Buchmann, L., Neutsch, L., Mathys, A. Enhancing single-cell bioconversion efficiency by harnessing nanosecond pulsed electric field processing. Biotechnol Adv. 53, 107780(2021).
  19. Ruiz-Fernández, A. R., Campos, L., Gutierrez-Maldonado, S. E., Núñez, G., Villanelo, F., Perez-Acle, T. Nanosecond pulsed electric field (nsPEF): Opening the biotechnological Pandora's box. Int J Mol Sci. 23 (11), 6158(2022).
  20. Nuccitelli, R., et al. First-in-human trial of nanoelectroablation therapy for basal cell carcinoma: proof of method. Exp Dermatol. 23 (2), 135-137 (2014).
  21. Nuccitelli, R., et al. Non-thermal nanoelectroablation of UV-induced murine melanomas stimulates an immune response. Pigment Cell Melanoma Res. 25 (5), 618-629 (2012).
  22. Carr, L., et al. A nanosecond pulsed electric field (nsPEF) can affect membrane permeabilization and cellular viability in a 3D spheroids tumor model. Bioelectrochemistry. 141, 107839(2021).
  23. Hornef, J., Edelblute, C. M., Schoenbach, K. H., Heller, R., Guo, S., Jiang, C. Thermal analysis of infrared irradiation-assisted nanosecond-pulsed tumor ablation. Sci Rep. 10 (1), 5122(2020).
  24. Zuo, K. J., Gordon, T., Chan, K. M., Borschel, G. H. Electrical stimulation to enhance peripheral nerve regeneration: Update in molecular investigations and clinical translation. Exp Neurol. 332, 113397(2020).
  25. Juckett, L., Saffari, T. M., Ormseth, B., Senger, J. -L., Moore, A. M. The effect of electrical stimulation on nerve regeneration following peripheral nerve injury. Biomolecules. 12 (12), 1856(2022).
  26. Jessen, K. R., Mirsky, R. Negative regulation of myelination: relevance for development, injury, and demyelinating disease. Glia. 56 (14), 1552-1565 (2008).
  27. Chen, Z. -L., Yu, W. -M., Strickland, S. Peripheral regeneration. Annu Rev Neurosci. 30, 209-233 (2007).
  28. Yin, D., et al. Cutaneous papilloma and squamous cell carcinoma therapy utilizing nanosecond pulsed electric fields (nsPEF). PloS One. 7 (8), e43891(2012).
  29. Qi, F., et al. Photoexcited wireless electrical stimulation elevates nerve cell growth. Colloids Surf B Biointerfaces. 220, 112890(2022).
  30. Mi, Y., Liu, Q., Li, P., Xu, J., Yang, Q., Tang, J. Targeted gold nanorods combined with low-intensity nsPEFs enhance antimelanoma efficacy in vitro. Nanotechnology. 31 (35), 355102(2020).
  31. Ho, T. -C., et al. Hydrogels: Properties and applications in biomedicine. Molecules. 27 (9), 2902(2022).

Access restricted. Please log in or start a trial to view this content.
