Harnessing the Power of MicroRNA Cargoes in Small Extracellular Vesicles Released from Fresh-Frozen Human Brain Sections

Summary

Here, we establish a protocol using minimal amounts of fresh-frozen brain tissue sections and an accessible high-speed centrifugation method coupled with size exclusion chromatography to obtain small extracellular vesicles as sources for microRNA (miRNA) biomarkers for neurological disorders.

Abstract

Small extracellular vesicles (sEVs) are crucial mediators of cell-cell communication, transporting diverse cargoes like proteins, lipids, and nucleic acids (microRNA, mRNA, DNA). The microRNA sEV cargo has potential utility as a powerful non-invasive disease biomarker due to sEV's ability to traverse biological barriers (e.g., blood-brain barrier) and become accessible through various body fluids. Despite numerous studies on sEV biomarkers in body fluids, identifying tissue or cell-specific sEV subpopulations remains challenging, particularly from the brain. Our study addresses this challenge by adapting existing methods to isolate sEVs from minimal amounts of frozen human brain sections using size exclusion chromatography (SEC).

After ethical approval, approximately 250 µg of fresh-frozen human brain tissue (obtained from Manchester Brain Bank [UK]) was sliced from the 3 donor tissues and incubated in collagenase type 3/Hibernate-E solution, with intermediate agitation, followed by serial centrifugation and filtration steps. Then, sEVs were isolated using the SEC method and characterized by following MISEV guidelines. Before isolating RNA from within these sEVs, the solution was treated with Proteinase-K and RNase-A to remove any non-sEV extracellular RNA. The RNA quantity and quality were checked and processed further for qPCR and small RNA sequencing experiments.

The presence of sEVs was confirmed through fluorescence nanoparticle tracking analysis (fNTA) and western blot for surface markers (CD9, CD63, CD81). Size distribution (50-200 nm) was confirmed by NTA and electron microscopy. The total RNA concentration within lysed sEVs ranged from 3-9 ng/µL and was used for successful quantification by qPCR for selected candidate microRNAs. Small RNA sequencing on MiSeq provided high-quality data (Q >32) with 1.4-5 million reads per sample.

This method enables efficient isolation and characterization of sEVs from minimal brain tissue volumes, facilitating non-invasive biomarker research and holds promise for equitable disease biomarker studies, offering insights into neurodegenerative diseases and potentially other disorders.

Introduction

Extracellular vesicles (EVs) are one of the key players of inter-cellular communication in all multicellular organisms¹. EVs are cell-derived lipid bilayer membrane particles that can facilitate the transfer of a variety of cargo loads, such as proteins, lipids, and nucleic acids, to recipient cells. EVs can have a broad size range ranging from 30 nm up to 1 µM. Small EVs (sEVs), defined as lipid-bound vesicles with an average diameter size of <200 nm, have the ability to cross the blood-brain barrier; therefore, they have been implicated in the prion-like spread and exacerbation of neurodegenerative diseases and other conditions such as Alzheimer's disease (AD), frontotemporal dementia (FTD), Parkinson's disease (PD) and cancers^2,3. Furthermore, as sEVs can be found in a range of biofluids such as blood, cerebrospinal fluid (CSF), saliva, and even urine, their beneficial use can span the field of biomarkers and non-invasive diagnostics. For example, AD research may point to the use of biofluid pathogenic protein ratios, such as tau/Aβ, or even Aβ₄₂/Aβ₄₀⁴.

One known cargo of sEVs is microRNA (miRNA), a group of small, non-coding RNA molecules of around 22 nucleotides in length that bind to the 3'-UTR regions of mRNA and usually negatively regulate protein expression. Involved in many cellular roles, miRNAs have also been implicated in the pathogenesis of various diseases, including cancers and neurodegenerative diseases. Cheng et al. conducted a high-throughput sequencing analysis of serum-derived sEV miRNA expression signatures from AD patients⁵. Once coupled with neuroimaging records and known risk factors of age, sex, and APOE ε4 allele presentation, results were found to predict AD with 87% sensitivity and 77% specificity. Moreover, research have identified two upregulated CSF miRNAs (miR-151a-3p, let-7f-5p) and 3 downregulated miRNAs (miR-27a-3p, miR-125a-5p and miR-423-5p) that can potentially diagnose early-stage PD⁶. With pathological diseases, the pathological status may precede certain characteristic symptoms of diseases, whereas in neurodegeneration, the accumulation of pathological hallmarks occurs much earlier than cognitive decline.

MicroRNAs are potentially a more effective biomarker than proteins, owing to their diverse functions, and higher-order epigenetic regulation. Using brain tissue, researchers can potentially identify specific brain-derived sEV (BDsEV) miRNA signatures for diseases and their subtypes. For example, sEVs with neuronal and glial markers can present different miRNA cargo, and the analysis can result in more precise methods of disease detection. Furthermore, BDsEVs are suggested to play a large role in the transsynaptic spread of neuropathogenic proteins⁷. Previous reports have suggested immunoprecipitation and density gradient (sucrose gradient) ultracentrifugation to obtain sEVs from fresh-frozen brain tissue^8,9. However, these approaches require specific infrastructure with ultracentrifuge and downstream purification methods to obtain high-quality sEV samples¹⁰. More recent reports have suggested several modifications and improvements to the approach^11,12,13; however, despite this, isolation and study of sEV-derived microRNA from human tissues are still not widely applied. The approach described in this protocol aims to provide a refined, step-by-step protocol for brain-derived sEV study to enhance accessibility to this technique. We established a protocol using minimal amounts of brain tissue, from which we isolated pure sEVs using size exclusion chromatography and show high-quality next-generation sequencing data from the microRNA cargo of these sEVs.

Protocol

The work has been ethically approved by the Manchester Brain Bank (REC reference 09/H0906/52) and by the ethics committee at the University of Salford (Application ID: 3408).

1. Breakdown of intracellular matrix using collagenase on frozen brain tissue sections

1. Thinly slice 250 mg frozen brain tissue(around 0.4 mm thick fragments) using a sterilized scalpel on a cold plate and add 2 mL of 75 U/mL collagenase type-III/ Hibernate-E solution.
2. Incubate each sample in a water bath at 37 °C for 20 min. At the 5 min point, invert each sample two times to mix; at the 10 min point, pipette each sample three times gently using a 10 mL plastic disposable stripette.
3. Place each sample on ice and add 1x Protease inhibitor cocktail and 1x phosphatase inhibitor. This stops the enzyme reaction and is the endpoint of digestion using collagenase type-III.
4. Centrifuge each brain tissue sample at 300x g for 10 min at 4 °C. Collect each supernatant and further centrifuge at 2000 x g for 15 min at 4 °C.
5. Collect each supernatant again and filter through a 0.22 µm filter. Centrifuge each filtrate at 10 000 x g for 48 min at 4 °C.
6. Collect the supernatant and add precipitation buffer at a ratio of 2:1 to each sample. Incubate overnight at 4 °C.
7. Centrifuge each sample at 10 000 x g for 96 min at 4 °C and resuspend the pellet in 100 µL of extracellular vesicle (EV) free PBS.

2. Preparation of size exclusion chromatography columns

1. Prior to use, equilibrate the pre-prepared SEC column at room temperature (RT) for 15 min.
   NOTE: The bottom cap must be removed before the screw cap.
2. After equilibration, remove the preservative buffer from the top of the column and wash the column twice using 250 µL of EV-free PBS. Each PBS wash is left to enter the column through gravity.

3. Isolation of small extracellular vesicles using size exclusion chromatography

1. Add the resuspended pellet to the top of the SEC column and centrifuge the column at 50 x g for 30 s. Discard the flow-through.
2. Add 180 µL of EV-free PBS to the top of the SEC column and centrifuge the column at 50 x g for 1 min, allowing the brain-derived sEVs to elute from the column.

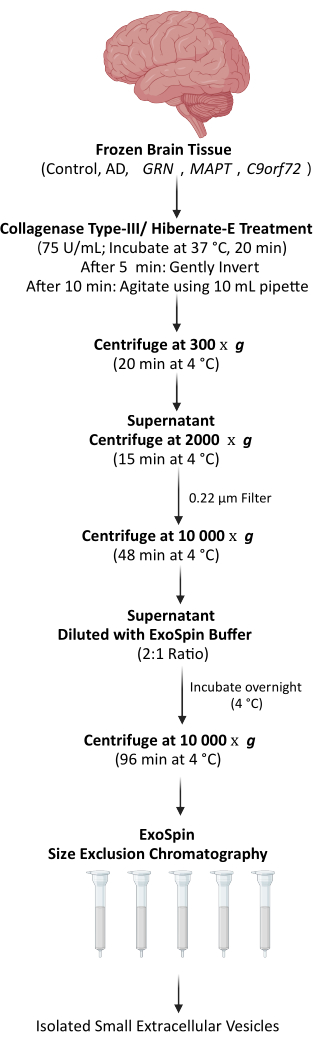

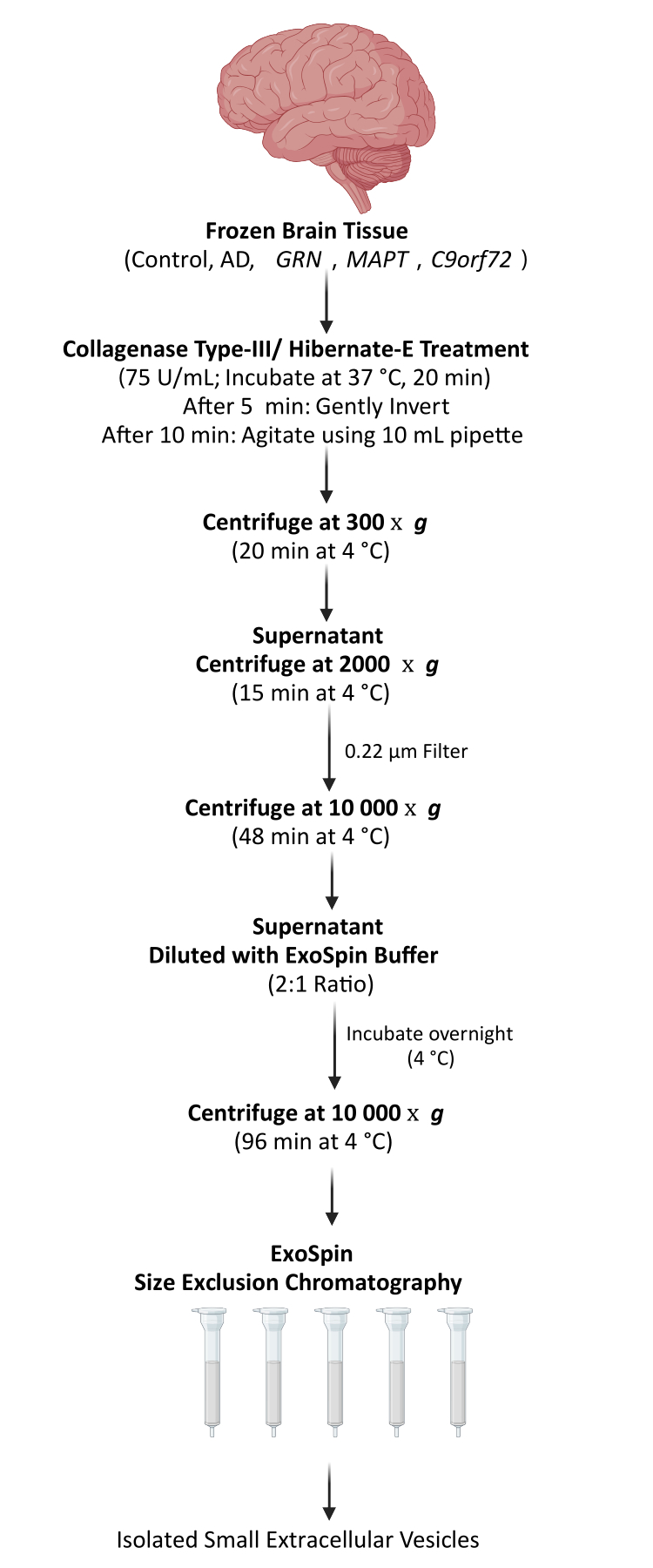

   NOTE: The part of the protocol detailed above is summarized in Figure 1.

4. Confirmation of small extracellular vesicle markers by western blotting

1. To lyse sEVs prior to western blot analysis (to ensure all membrane and cytosolic cargoes are analyzed), dilute isolated sEV sample 1:1 in lysis and extraction buffer (1x protease inhibitor and 1x phosphatase inhibitor).
2. Agitate the sample at 4 °C for 30 min.
3. Centrifuge sample at 14 000 x g for 15 min.
4. Collect the protein supernatant and measure protein concentrations using a protein assay kit.
5. Mix samples with 4x Laemmli buffer and load 20 µg of protein into each well against a pre-stained protein ladder.
6. Once resolved, transfer the proteins onto a 0.45 µm nitrocellulose membrane. After the transfer, block the membrane for 2 h in 5% BSA.
7. Incubate the membranes with primary antibodies (Table 1) overnight.
8. Wash the membrane three times with wash buffer (1% Tween20 in PBS) and stain using an anti-mouse secondary antibody. Afterward, wash three times with wash buffer (1% Tween20 in PBS).
9. Follow the above steps in the manuscript before imaging the blots.
10. Image using horseradish peroxidase (HRP) Substrate.

5. Confirmation of small extracellular vesicles by nanoparticle tracking analysis (NTA)

1. Perform NTA to analyze the concentration and size of all particles in the sample. Carry out this by diluting each sample in PBS at a dilution factor of 1:1000.
2. Inject the sample into the NTA instrument and read the sample at a wavelength of 550 nm. At this stage, use the particle quantity to measure the amount of protein per particle (usually expressed in femtogram) as recommended in MISEV guidelines.
3. Next, for fluorescent NTA, dilute cell mask orange (CMO) (stains all biological particles within a sample) in PBS by a dilution factor of 1:1000. From this, dilute CMO dye using sEV sample by a dilution factor of 1:10 - Incubate this dilution step in the dark for 30 min at 4 °C.
4. Dilute the second CMO dilution using PBS by a dilution factor of 1:1000.
   NOTE: The final dilution of CMO dye must be 1:10 000 000.
5. Read the CMO of each sEV sample at a wavelength of 550 nm using the NTA instrument.
6. For the tetraspanin fluorescent antibodies (see Table of Materials), firstly, dilute each respective antibody in PBS by a dilution factor of 1:10. From this, dilute each of the dyes using sEV sample by a dilution factor of 1:10 - Incubate the dilution step in the dark for 2 h at 4 °C.
7. Dilute the second antibody dilution using PBS by a dilution factor of 1:1000.
   NOTE: The final dilution of each tetraspanin antibody must be 1:100 000.
8. Read the fluorescent antibody readings of the sEV sample at a wavelength of 550 nm using the NTA instrument.

6. Confirmation of small extracellular vesicles by transmission electron microscopy (TEM)

NOTE: This protocol was performed by the Biomedical Microscopy Facility at the University of Liverpool.

1. Firstly, fix sEV samples using glutaraldehyde and stain using uranyl acetate.
2. Through a graded series of alcohols, dehydrate the sample ready for TEM.
3. Image samples using a suitable Transmission Electron Microscope.

7. Proteinase K and RNase A treatment

1. To 50 µL of isolated brain derivedsEVs, add 1 µL of 20 µg/µL proteinase K and incubate at 37 °C for 30 min.
2. Stop each reaction by adding 1x proteinase inhibitor cocktail and incubate on ice for 10 min.
3. After incubation, add 1 µL of 10 µg/µL RNase A to each sample and further incubate at 37 °C for 30 min.
   NOTE: Immediately move on to section 8.

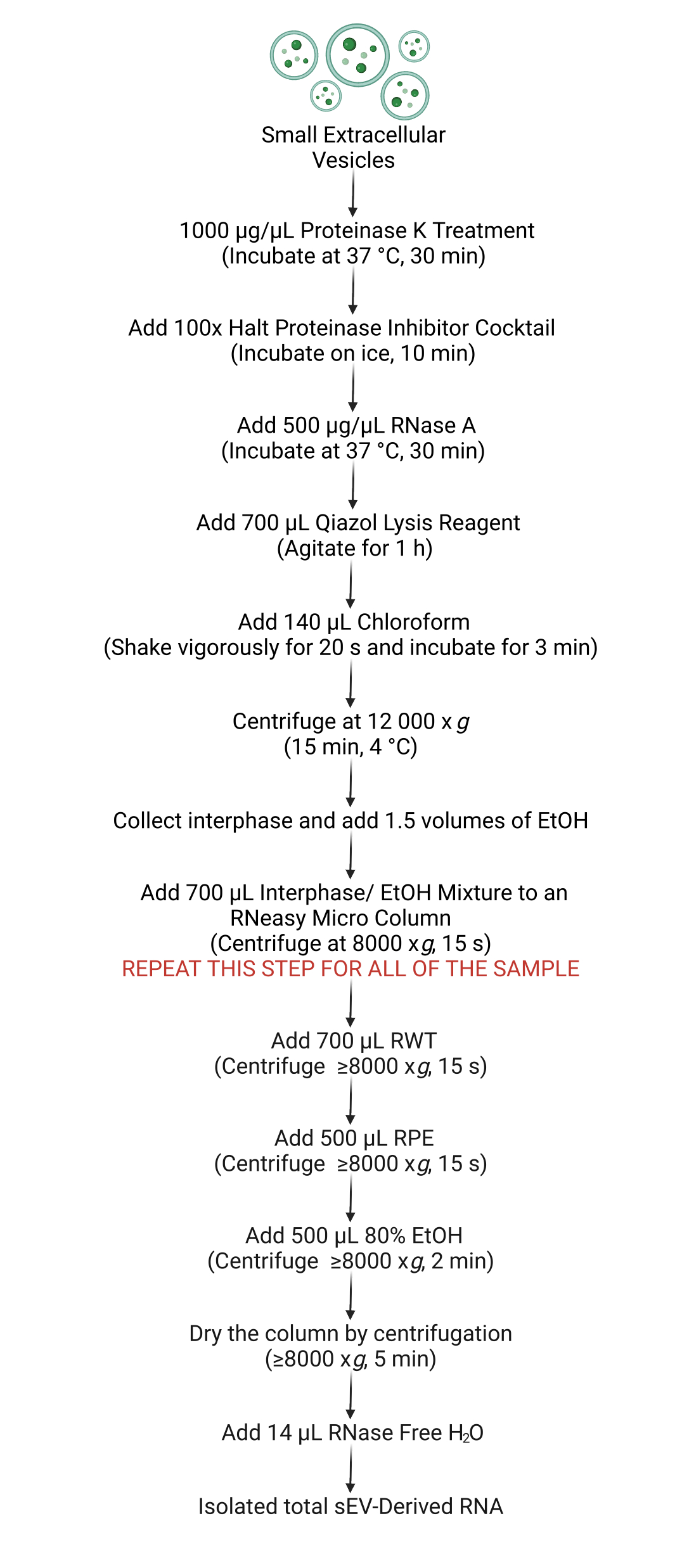

8. Total RNA isolation from small extracellular vesicles

1. To isolate total RNA, add 700 µL of high-quality RNA recovery lysis reagent to 50 µL of brain-derived EV (BDsEV) sample. Agitate each sample for 1 h.
2. Add 140 µL of chloroform, shake each sample vigorously for 20 s, and leave to incubate at RT for 3 min.
3. Centrifuge the sample at 12 000 x g for 15 min at 4 °C and collect the interphase from the sample. Add 1.5x volume of 100% ethanol.
4. Add 700 µL of interphase/ethanol mixture RNA isolation columns and centrifuge at ≥8000 x g for 15 s at RT.
   NOTE: Repeat this step using all the interphase/ethanol samples.
5. To the column, add 700 µL of wash buffer and centrifuge at ≥8000 x g for 15 s. Discard the flow-through.
6. Add 500 µL of buffer RPE and again centrifuge at ≥8000 x g for 15 s. Discard the flow-through.
7. Add 500 µL of 80% ethanol and centrifuge at ≥8000 x g for 2 min. Discard the flow-through.
8. At this point, dry the column membrane by centrifuging the columns at full speed (>8000 x g) for 5 min with the lid open.
9. Transfer the column to a new collection tube, add 14 µL of RNase-free water directly to the column membrane, and centrifuge at ≥8000 x g for 1 min to elute total RNA from BDsEVs.
10. Quantify the total microRNA with samples using a miRNA quantification assay kit, where samples were measured on a quantification fluorometer, selecting the miRNA assay type.

9. Small RNA sequencing

1. After quantification of miRNA within the sample, synthesize a cDNA library using the Small RNA-Seq Library Prep Kit.
   NOTE: Using this protocol, library generation included four steps: 3' adapter ligation, purification, 5' adapter ligation, and reverse transcription - where, in the end, an RNA/cDNA library is formed. After library generation, endpoint PCR amplification occurs with index primers being added (used for multiplexing purposes), after which the samples are purified.

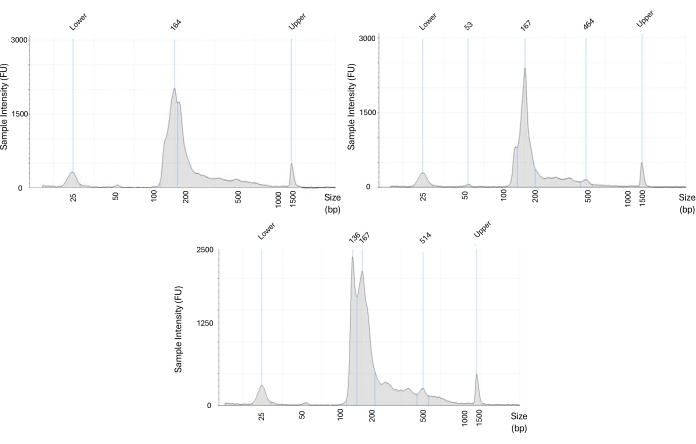

2. To test for RNA quality, use a quality control application assay detailing the size of each preparation and the peak intensity.
3. To test for DNA concentration, measure the DNA quantification on a quantification fluorometer, selecting the dsDNA assay type.
4. Prepare the samples for Small RNA Seq using the reagent kit, after which the samples are loaded into the flow cell.

Results

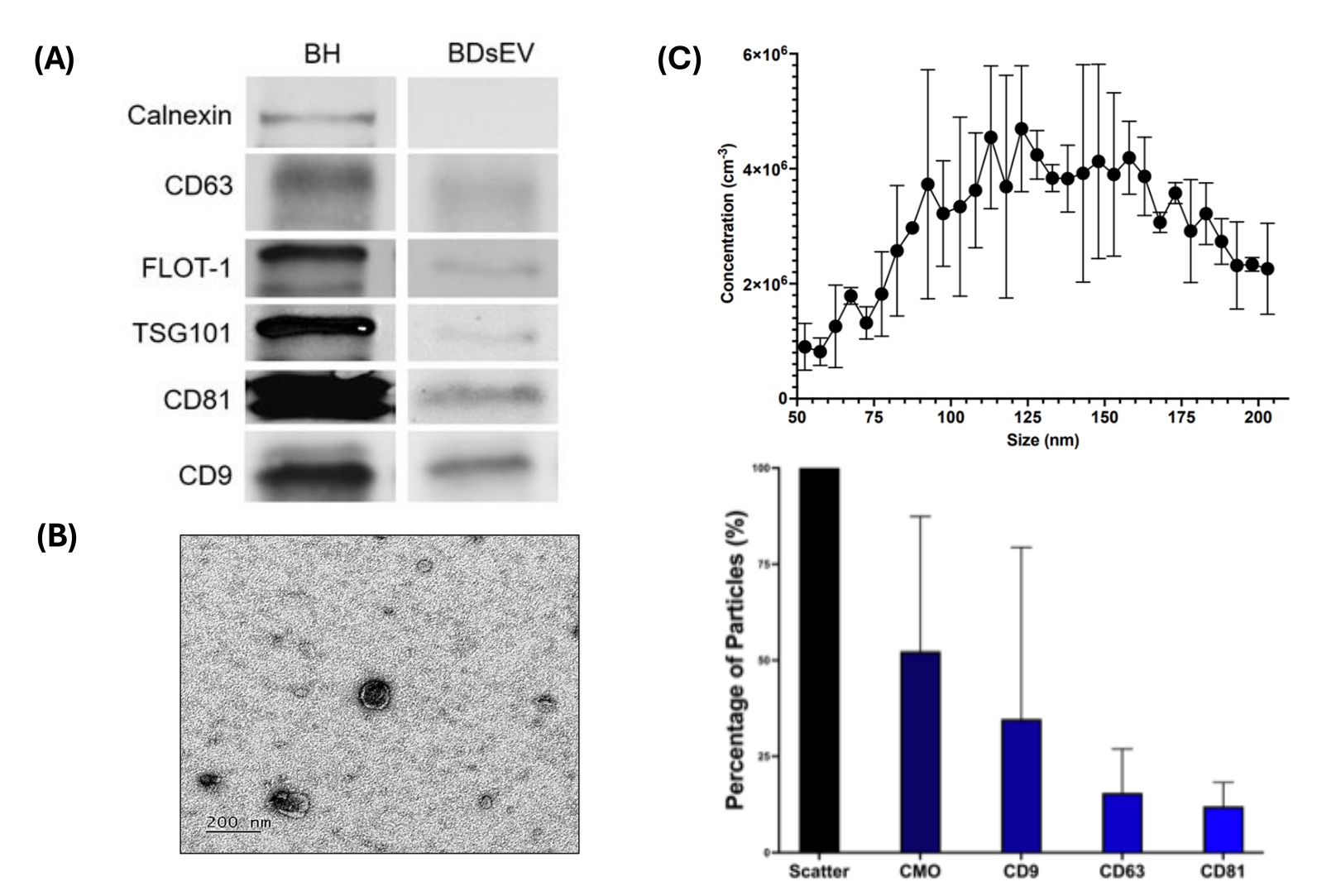

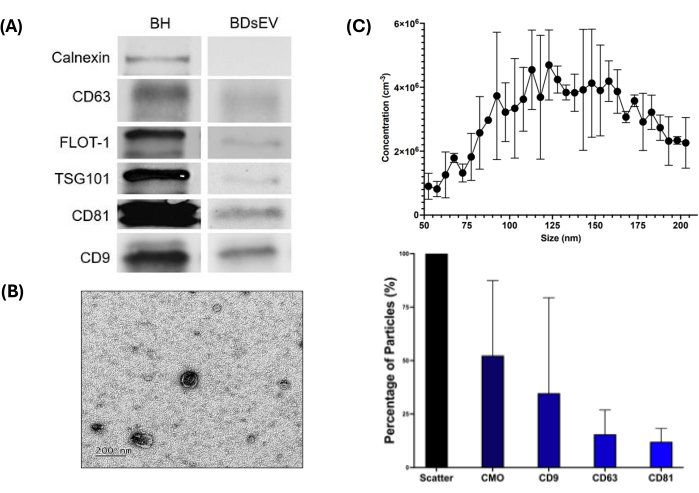

To confirm the presence of BDsEVs, three techniques were utilized: western blotting, NTA, and TEM (Figure 3). Western blot results (Figure 3A and Supplementary File 1) show the presence of all five positive markers (CD9, CD63, CD81, Flot-1, and TSG101) and the absence of Calnexin in sEVs (used as a negative control), confirming no contamination with cellular contents. As expected, the brain homogenates (BH) show more protein than observed in the...

Discussion

This modified and improved protocol for isolating brain-derived small extracellular vesicles and their microRNA cargo demonstrates the feasibility of using minimal tissue without compromising the quality and quantity of the products downstream. In the field of biomarker discovery, identifying molecular identifiers that are specific to cell and tissue types can lead to more accessible means of non-invasive diagnostic tests using body fluids. Furthermore, the approach described here provides the fr...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Bovine Serum Albumin	Merck	A9418-100G
Cell Mask Orange Plasma Membrane Stain	ThermoFisher Scientific	C10045
Collagenase Type-III	StemCell Technologies	07422
ExoSpin Columns and Buffer	Cell Guidance Systems Ltd.	EX01-50	This kit contains SEC columns used in this experiment, precipitation buffer and EV free PBS.
Halt Protease Inhibitor Cocktail (100x)	ThermoFisher Scientific	78429
Hibernate-E Medium	ThermoFisher Scientific	A1247601
Laemmli Sample Buffer (4x)	BioRad	1610747
Lexogen Small RNA-Seq Library Prep Kit	Lexogen	052.24	This kit contains Small RNA preparation reagent box with i7 Index primer plate.
miRNeasy Micro Kit (50)	Qiagen	217084	This kit contains high-quality RNA recovery lysis reagent (Qiazol), RNA isolation columns, isolation buffers (RWT, RPE) and RNase free water.
MiSeq Reagent Kit v3	Illumina	MS-102-3001	This is the Illumina Preparation Kit
Nitrocellulose Membrane, 0.45 μm	ThermoFisher Scientific	88018
PE/Dazzle 594 anti-human CD63 Antibody	BioLegend	143914	Used for fNTA Analysis
PE/Dazzle 594 anti-human CD81 Antibody	BioLegend	349520	Used for fNTA Analysis
PE/Dazzle 594 anti-human CD9 Antibody	BioLegend	312118	Used for fNTA Analysis
PhosSTOP	Merck	4906845001
Pierce BCA Protein Assay Kit	ThermoFisher Scientific	23225
Proteinase K	ThermoFisher Scientific	25530049
Qubit microRNA Assay Kit	ThermoFisher Scientific	Q32880
Qubit 1X dsDNA HS assay kit	ThermoFisher Scientific	Q33230
Qubit 3.0 Fluorometer	ThermoFisher Scientific	Q33216
RIPA Lysis and Extraction Buffer	ThermoFisher Scientific	89901
RNase A	ThermoFisher Scientific	EN0531
SuperSignal West Femto Maximum Sensitivity Substrate	ThermoFisher Scientific	34094
