Preparation and Maintenance of Dorsal Root Ganglia Neurons in Compartmented Cultures

1,2, 1,2

1Department of Pediatric Oncology, Dana Farber Cancer Institute, 2Department of Neurobiology, Harvard Medical School

Article
    Downloads Comments Metrics

    You must be subscribed to JoVE to access this content.

    This article is a part of   JoVE Biology. If you think this article would be useful for your research, please recommend JoVE to your institution's librarian.

    Recommend JoVE to Your Librarian

    Current Access Through Your IP Address

    You do not have access to any JoVE content through your current IP address.

    IP: 54.166.29.1, User IP: 54.166.29.1, User IP Hex: 916856065

    Current Access Through Your Registered Email Address

    You aren't signed into JoVE. If your institution subscribes to JoVE, please or create an account with your institutional email address to access this content.



    Summary

    Here we describe the technique of preparing and maintaining compartmented chambers for culturing sensory neurons of the dorsal root ganglia.

    Date Published: 10/17/2008, Issue 20; doi: 10.3791/951

    Cite this Article

    F. Pazyra-Murphy, M., A. Segal, R. Preparation and Maintenance of Dorsal Root Ganglia Neurons in Compartmented Cultures. J. Vis. Exp. (20), e951, doi:10.3791/951 (2008).

    Abstract

    Neurons extend axonal processes that are far removed from the cell body to innervate target tissues, where target-derived growth factors are required for neuronal survival and function. Neurotrophins are specifically required to maintain the survival and differentiation of innervating sensory neurons but the question of how these target-derived neurotrophins communicate to the cell body of innervating neurons has been an area of active research for over 30 years. The most commonly accepted model of how neurotrophin signals reach the cell body proposes that signaling endosomes carry this signal retrogradely along the axon. In order to study retrograde transport, a culture system was originally devised by Robert Campenot, in which cell bodies are isolated from their axons. The technique of preparing these compartmented chambers for culturing sensory neurons recapitulates the selective stimulation of neuron terminals that occurs in vivo following release of target-derived neurotrophins. Retrograde signaling events that require long-range microtubule dependent retrograde transport have important implications for the treatment of neurodegenerative disorders.

    Protocol

    Preparation of reagents

    1. Collagen coating: collagen coat p35 tissue culture plates and place in an oven at 37°C for 2 days before greasing the dividers. The final concentration of collagen should be at .71 mg/ml diluted in .001N HCl.  Then, add 1 ml of mixture per plate.
    2. Grease loaders: In order to fill the grease loader, a 60mL syringe must first be filled with Corning vacuum grease. Use the syringe to fill the grease loader, wrap it in foil and then autoclave for 45 minutes.
    3. Teflon dividers: the dividers can be re-used after each experiment but must first be properly cleaned. Remove the divider from the plate, wipe off all of the remaining grease and place in sulfuric acid for 2 days. After removing from the acid, rinse with water 3X, boil for 20 minutes, allow to dry, place in a glass p100 petri dish and autoclave for 20 minutes.
    4. N2-methylcellulose: Weigh out 1.5g of methylcellulose and place it in a 500mL bottle. Add a stir bar and autoclave it for 20 minutes on dry (from this point all work must be sterile). Next, add 500 mLs of serum free media (N2), and stir in a cold room until it dissolves. Aliquot into 50 mL conicals and freeze at -20°C.  For working stock, aliquot one of the 50 mL conicals into 1mL tubes and freeze at -20°C.
    5. DRG media: DMEM, 5% Heat inactivated horse serum, and 1% penicillin streptomycin.
    6. 100ng/mL DRGN media: The stock concentration of both nerve growth factor (NGF) and brain-derived neurotrophic factor (BDNF) is 1mg/mL. Dilute each of the neurotrophins 1:10,000 into the DRG media. Cultures can be grown in NGF alone; this alters the complement of neurons that survive in the cultures.

      Note: When needed, the concentration of (cytosine arabinoside) AraC is 1uM and used at a final concentration of 0.3uM. This will inhibit growth of Schwann cells and other glia.

    7. 10ng/mL DRGN media:  Dilute the 100ng/mL DRGN media (1:10) with DRG media.

      Figure 1

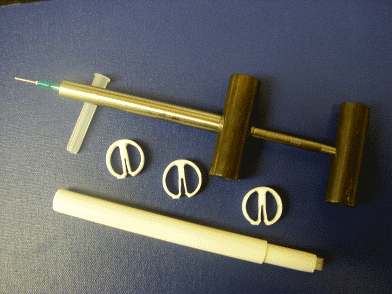

      Figure 1. Tools needed for set-up

    Setting up the compartmented chambers (start this process 1-2 days before the dissection)

    1. Make a scratch in the middle of a collagen coated p35 dish with an outward motion.
    2. Place 30ul of N2-methylcellulose on the middle of the scratch. Set dishes aside until divider is greased.
    3. Attach a 23-gauge luer stub adapter to the grease loader. Grip the Teflon divider with a pair of 90° angle hemostats and lay it flat with the divider facing up under a microscope. Trace the divider with grease making sure that each time the adapter is placed at a new starting point the adapter is inserted into the grease from the previous step so that there is a continuous line of grease (see diagram). Once the grease is applied to the entire divider, turn one of the prepared p35 dishes upside down and place it so the N2-methylcellulose is over the middle compartment. Press down on the bottom of the dish with a pair of tweezers. Make sure to press on the inside of the divider in four corners (upper left, lower right, upper right, lower left, indicated in diagram by "X").

      Figure 2

      Figure 2: Steps to greasing the divider

      Note: It is important to press firmly enough so that the grease makes a complete seal with the dish, but if too much pressure is added, the axons will not cross into the side compartments.

      Pick up the hemostats, turn it over and unclamp the divider. Lastly, place the dish with the divider firmly attached under the microscope focusing on the bottom of the middle compartment. With the grease loader, make a small barrier (.25cm) so that once the cells are placed in the middle compartment they cannot leak out.
    4. After having set up several cultures, place DRG media in each of the side compartments and place in an incubator in which the cells will be maintained.  Allow the cultures to sit for several hours and then check for leakage. If the media has leaked into the middle compartment, then the culture is unusable.

      Note: When first learning this technique, it is important to set up more cultures than are needed for an experiment, as several will be leaky.

      Figure 3

      Figure 3: "Good vs leaky" culture

    Maintaining DRG neurons in compartmented cultures

    1. Day 1:  Replace DRG media in the side compartments with 100ng/mL DRGN media + AraC.  Perform dissection and add cells to center compartment (100,000 cells).
    2. Day 2:  Add 10ng/mL media + AraC to the outside of the Teflon divider until the media flows over the grease barrier and exchanges fluid with the center compartment.
    3. Day 3:  Replace media in the side compartments to 100ng/mL DRGN omitting the AraC and the surround with 10ng/mL DRGN omitting the AraC.
    4. Day 6:  Replace media in the side compartments to 1ng/mL + AraC and the surround with DRG media + AraC.
    5. Day 9:  Use for experimentation.


      Figure 4

      Figure 4: IHC images of cell bodies and distal axons



      Note:  When changing the media, it is important to aspirate the liquid from the top of the each side compartment. Also, never change the media from the middle compartment itself, only from the surround, and let it flow over the grease barrier into the center.

    Subscription Required. Please recommend JoVE to your librarian.

    Discussion

    In this video, we have demonstrated how to prepare and maintain compartmented chambers for use in culturing DRG neurons. Done properly, this system allows separation of the cell body from the axon in order to study mechanisms by which neurotrophins signal across long axons. Since there is fluidic isolation between the compartments, it allows for selective stimulation or treatment of one compartment without the other compartments being affected. Compartmented chamber cultures can support other cell types including sympathetic neurons from the superior cervical ganglia, retinal ganglion neurons, and cortical neurons. Spatial understanding of neurotrophin signal transduction may provide novel insights into treatments of neurodegenerative disorders. Several neurodegenerative disorders, including Alzheimer's disease, Huntington's disease and motor neuron disease, are associated with defects in axonal transport. Recent studies have used microfluidic chambers instead of these compartmented chambers. The microfluidic chambers4,5 have several advantages for imaging analysis.

    Prior studies have tested the ability of these cultures to prevent diffusion between the axon and the cell body compartment1,3,6. This can easily be tested by adding low concentrations of a dye such as trypan blue to one compartment only, and look for diffusion of the dye. There should be little or no diffusion visible within 24 hours.

    Subscription Required. Please recommend JoVE to your librarian.

    Disclosures

    Acknowledgements

    We would like to thank Katharina Cosker and Stephanie Courchesne for helpful discussions.

    Materials

    Name Type Company Catalog Number Comments
    collagen Reagent BD Biosciences 354249
    N2-methylcellulose 400CPS Reagent Sel-Win Chemicals
    Teflon divider Other Tyler Research CAMP10 many other types of dividers are available
    Pin rake Tool Tyler Research Camp-PR
    Grease loader Tool Tyler Research Camp-GLSS
    DMEM Reagent Fisher Scientific MT10017CV
    NGF Reagent PeproTech Inc 450-01
    BDNF Reagent PeproTech Inc 450-02
    High vacuum grease Reagent Fisher Scientific 14-635-5D
    AraC Reagent Sigma-Aldrich C-1768
    23 gauge luer stub adapter Tool Fisher Scientific 427565
    90° angle hemostats Tool Roboz Surgical Instruments Co. RS-7035

    References

    1. Campenot, RB. Independent Control of the Local Environment of Somas and Neurites. Methods in Enzymology 58 302-7, (1979).

    2. Watson, FL., et al. Neurotrophins use the Erk5 pathway to mediate a retrograde survival response. Nature Neuroscience 4 981-88, (2001).

    3. Heerssen, HM., et al. Dynein motors transport activated Trks to promote survival of target-dependent neurons. Nature Neuroscience 7 596-603, (2004).

    4. Taylor, AM., et al. A microfluidic culture platform for CNS axonal injury, regeneration and transport. Nature Methods 2 599-605, (2005).

    5. Park JW., et al. Microfluidic culture platform for neuroscience research. Nat Protoc. 4 2128-36, (2006).

    6. Ure DR., et al. Retrograde transport and steady-state distribution of 125I-nerve growth factor in rat sympathetic neurons in compartmented cultures. J Neuroscience 4 1282-90, (1997)
